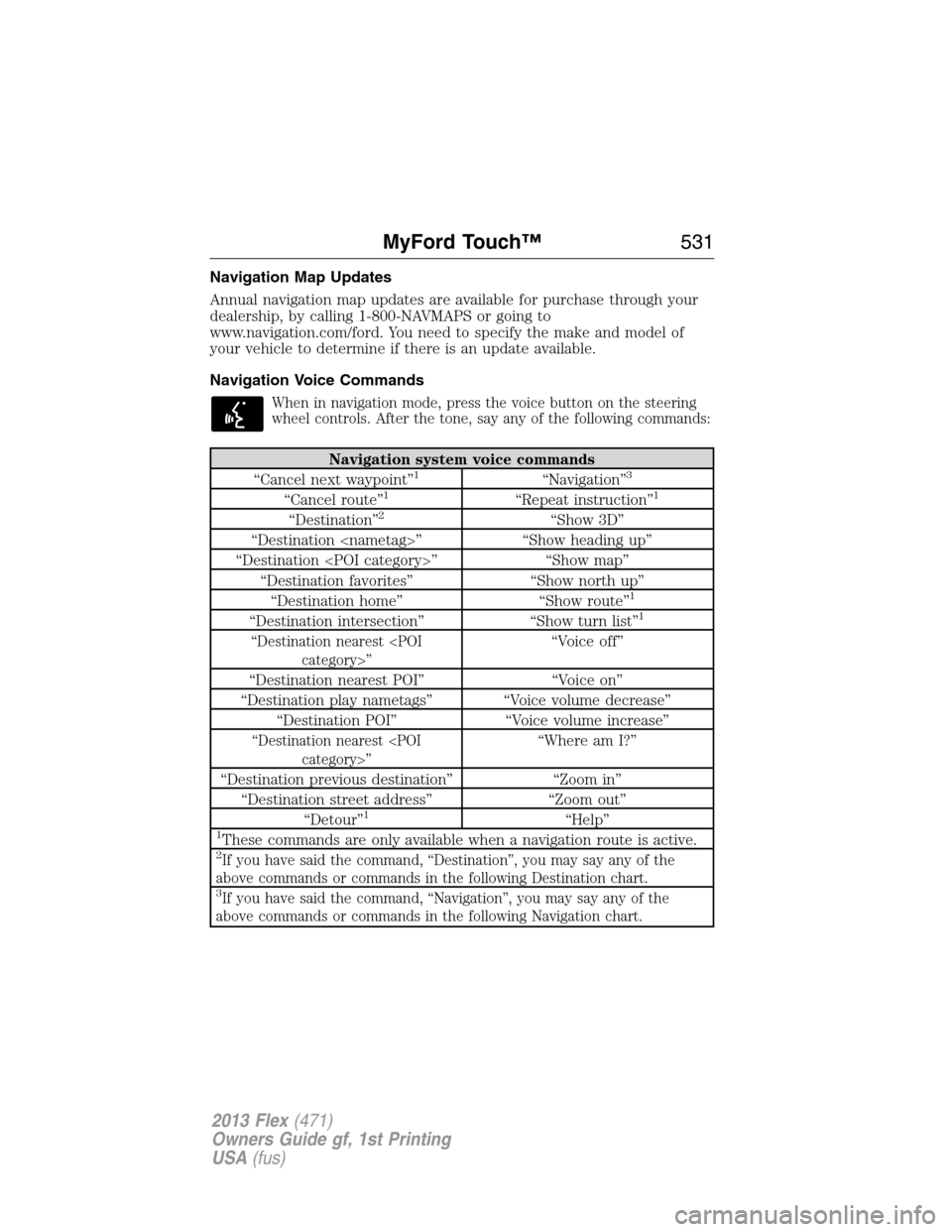

Navigation Map Updates
Annual navigation map updates are available for purchase through your
dealership, by calling 1-800-NAVMAPS or going to
www.navigation.com/ford. You need to specify the make and model of
your vehicle to determine if there is an update available.
Navigation Voice Commands
When in navigation mode, press the voice button on the steering
wheel controls. After the tone, say any of the following commands:
Navigation system voice commands
“Cancel next waypoint”1“Navigation”3
“Cancel route”1“Repeat instruction”1
“Destination”2“Show 3D”
“Destination ” “Show heading up”
“Destination ” “Show map”
“Destination favorites” “Show north up”
“Destination home” “Show route”
1
“Destination intersection” “Show turn list”1
“Destination nearest category>”“Voice off”
“Destination nearest POI” “Voice on”
“Destination play nametags” “Voice volume decrease”
“Destination POI” “Voice volume increase”
“Destination nearest category>”“Where am I?”
“Destination previous destination” “Zoom in”
“Destination street address” “Zoom out”
“Detour”
1“Help”1These commands are only available when a navigation route is active.2If you have said the command, “Destination”, you may say any of the
above commands or commands in the following Destination chart.
3If you have said the command, “Navigation”, you may say any of the
above commands or commands in the following Navigation chart.
MyFord Touch™531
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)

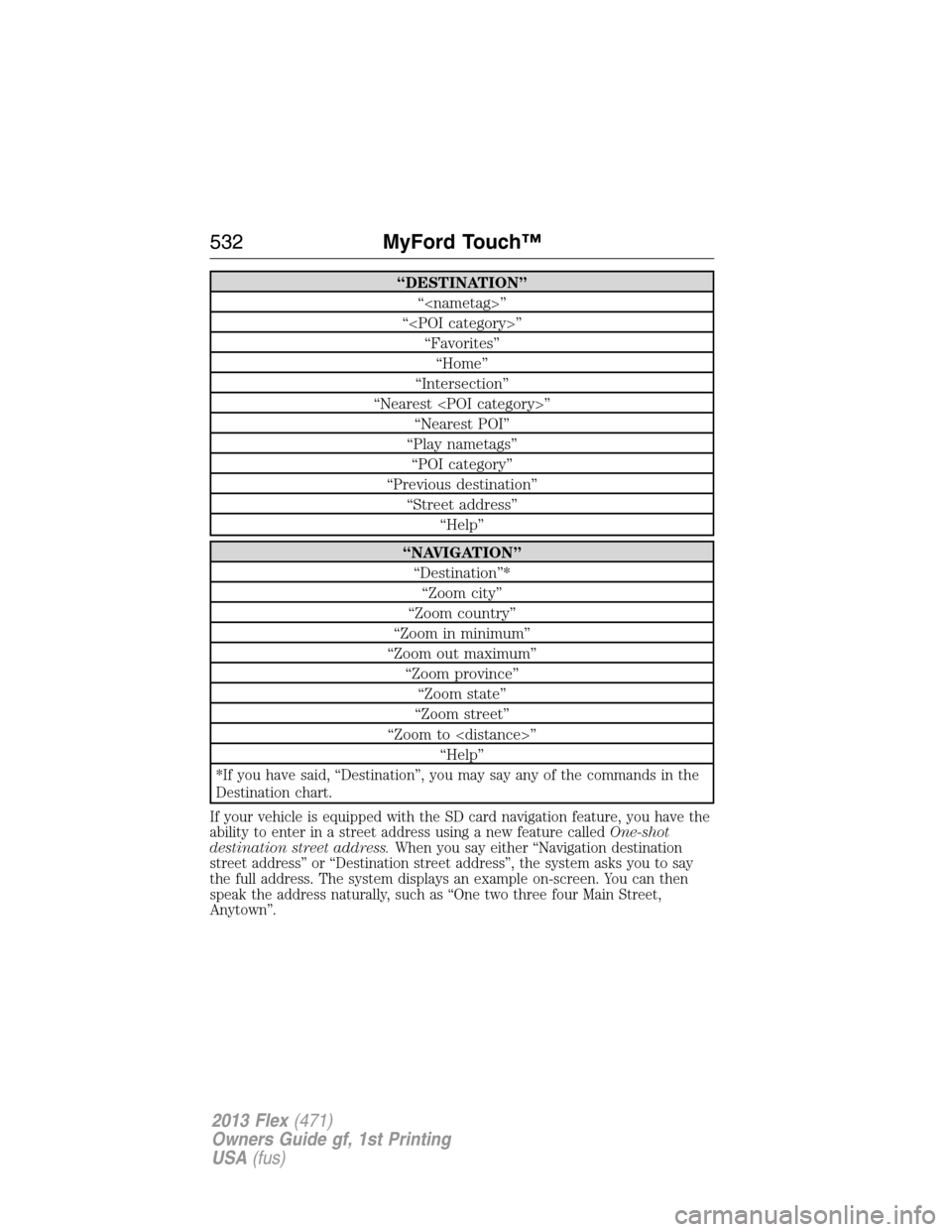

“DESTINATION”
“”
“”
“Favorites”
“Home”
“Intersection”
“Nearest ”
“Nearest POI”
“Play nametags”
“POI category”
“Previous destination”
“Street address”
“Help”
“NAVIGATION”
“Destination”*
“Zoom city”
“Zoom country”
“Zoom in minimum”
“Zoom out maximum”
“Zoom province”
“Zoom state”
“Zoom street”
“Zoom to ”
“Help”
*If you have said, “Destination”, you may say any of the commands in the
Destination chart.
If your vehicle is equipped with the SD card navigation feature, you have the
ability to enter in a street address using a new feature calledOne-shot
destination street address.When you say either “Navigation destination
street address” or “Destination street address”, the system asks you to say
the full address. The system displays an example on-screen. You can then
speak the address naturally, such as “One two three four Main Street,
Anytown”.
532MyFord Touch™
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)

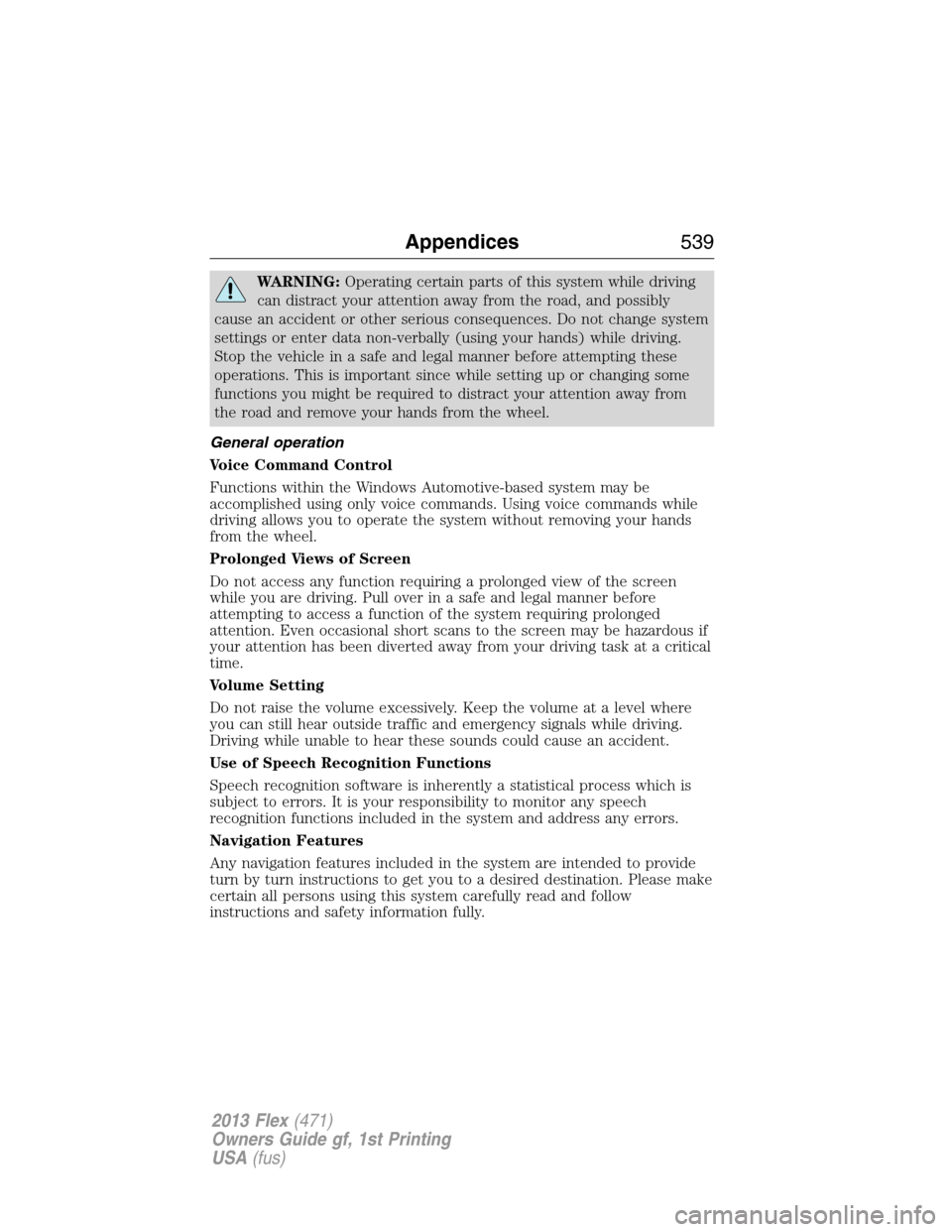

WARNING:Operating certain parts of this system while driving
can distract your attention away from the road, and possibly
cause an accident or other serious consequences. Do not change system
settings or enter data non-verbally (using your hands) while driving.
Stop the vehicle in a safe and legal manner before attempting these
operations. This is important since while setting up or changing some
functions you might be required to distract your attention away from
the road and remove your hands from the wheel.
General operation
Voice Command Control
Functions within the Windows Automotive-based system may be
accomplished using only voice commands. Using voice commands while
driving allows you to operate the system without removing your hands
from the wheel.
Prolonged Views of Screen
Do not access any function requiring a prolonged view of the screen
while you are driving. Pull over in a safe and legal manner before
attempting to access a function of the system requiring prolonged
attention. Even occasional short scans to the screen may be hazardous if
your attention has been diverted away from your driving task at a critical
time.
Volume Setting
Do not raise the volume excessively. Keep the volume at a level where
you can still hear outside traffic and emergency signals while driving.
Driving while unable to hear these sounds could cause an accident.
Use of Speech Recognition Functions
Speech recognition software is inherently a statistical process which is
subject to errors. It is your responsibility to monitor any speech
recognition functions included in the system and address any errors.
Navigation Features
Any navigation features included in the system are intended to provide
turn by turn instructions to get you to a desired destination. Please make
certain all persons using this system carefully read and follow
instructions and safety information fully.
Appendices539
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)

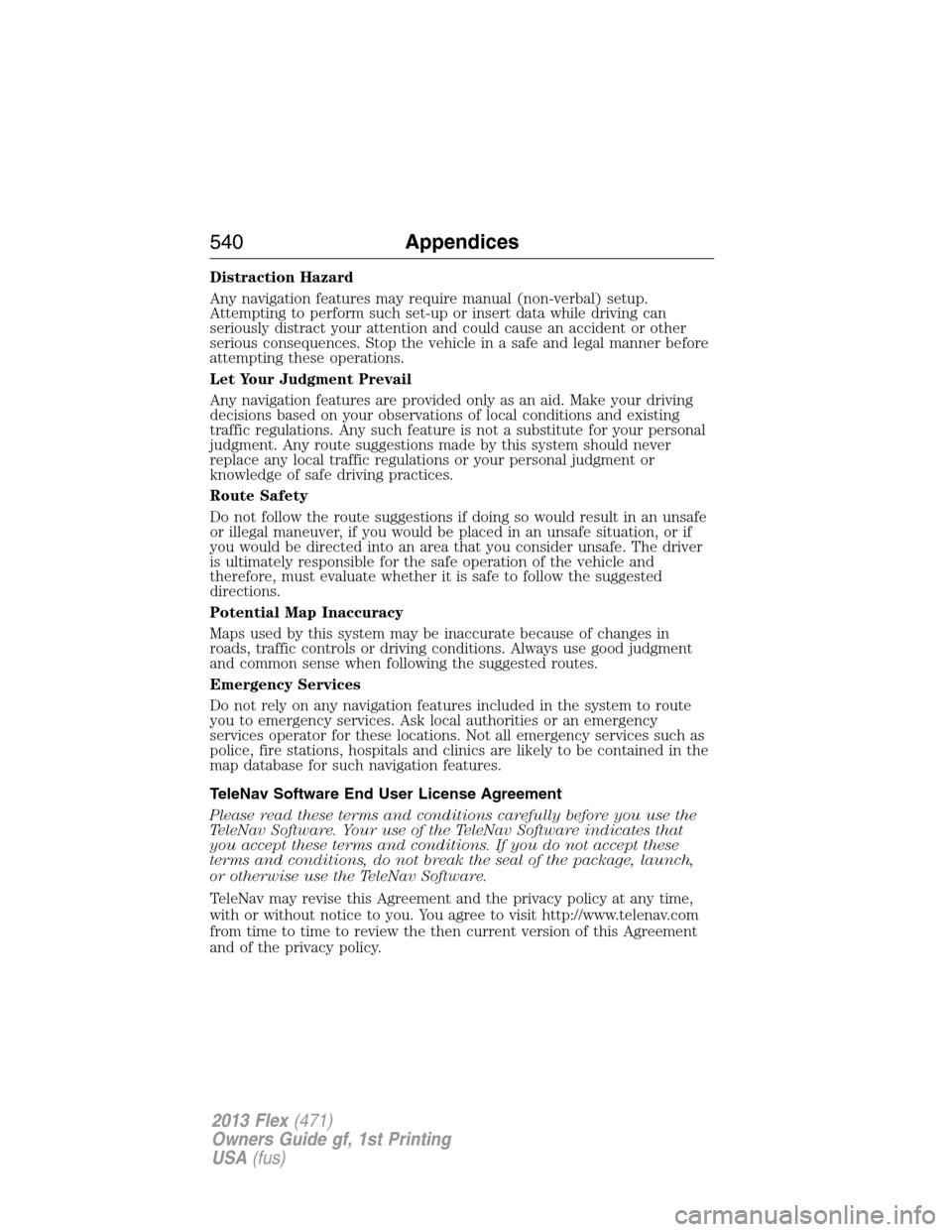

Distraction Hazard
Any navigation features may require manual (non-verbal) setup.
Attempting to perform such set-up or insert data while driving can
seriously distract your attention and could cause an accident or other
serious consequences. Stop the vehicle in a safe and legal manner before
attempting these operations.
Let Your Judgment Prevail
Any navigation features are provided only as an aid. Make your driving
decisions based on your observations of local conditions and existing
traffic regulations. Any such feature is not a substitute for your personal
judgment. Any route suggestions made by this system should never
replace any local traffic regulations or your personal judgment or
knowledge of safe driving practices.
Route Safety
Do not follow the route suggestions if doing so would result in an unsafe
or illegal maneuver, if you would be placed in an unsafe situation, or if
you would be directed into an area that you consider unsafe. The driver
is ultimately responsible for the safe operation of the vehicle and
therefore, must evaluate whether it is safe to follow the suggested
directions.
Potential Map Inaccuracy
Maps used by this system may be inaccurate because of changes in
roads, traffic controls or driving conditions. Always use good judgment
and common sense when following the suggested routes.
Emergency Services
Do not rely on any navigation features included in the system to route
you to emergency services. Ask local authorities or an emergency
services operator for these locations. Not all emergency services such as
police, fire stations, hospitals and clinics are likely to be contained in the
map database for such navigation features.
TeleNav Software End User License Agreement
Please read these terms and conditions carefully before you use the
TeleNav Software. Your use of the TeleNav Software indicates that
you accept these terms and conditions. If you do not accept these
terms and conditions, do not break the seal of the package, launch,
or otherwise use the TeleNav Software.
TeleNav may revise this Agreement and the privacy policy at any time,
with or without notice to you. You agree to visit http://www.telenav.com
from time to time to review the then current version of this Agreement
and of the privacy policy.
540Appendices
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)

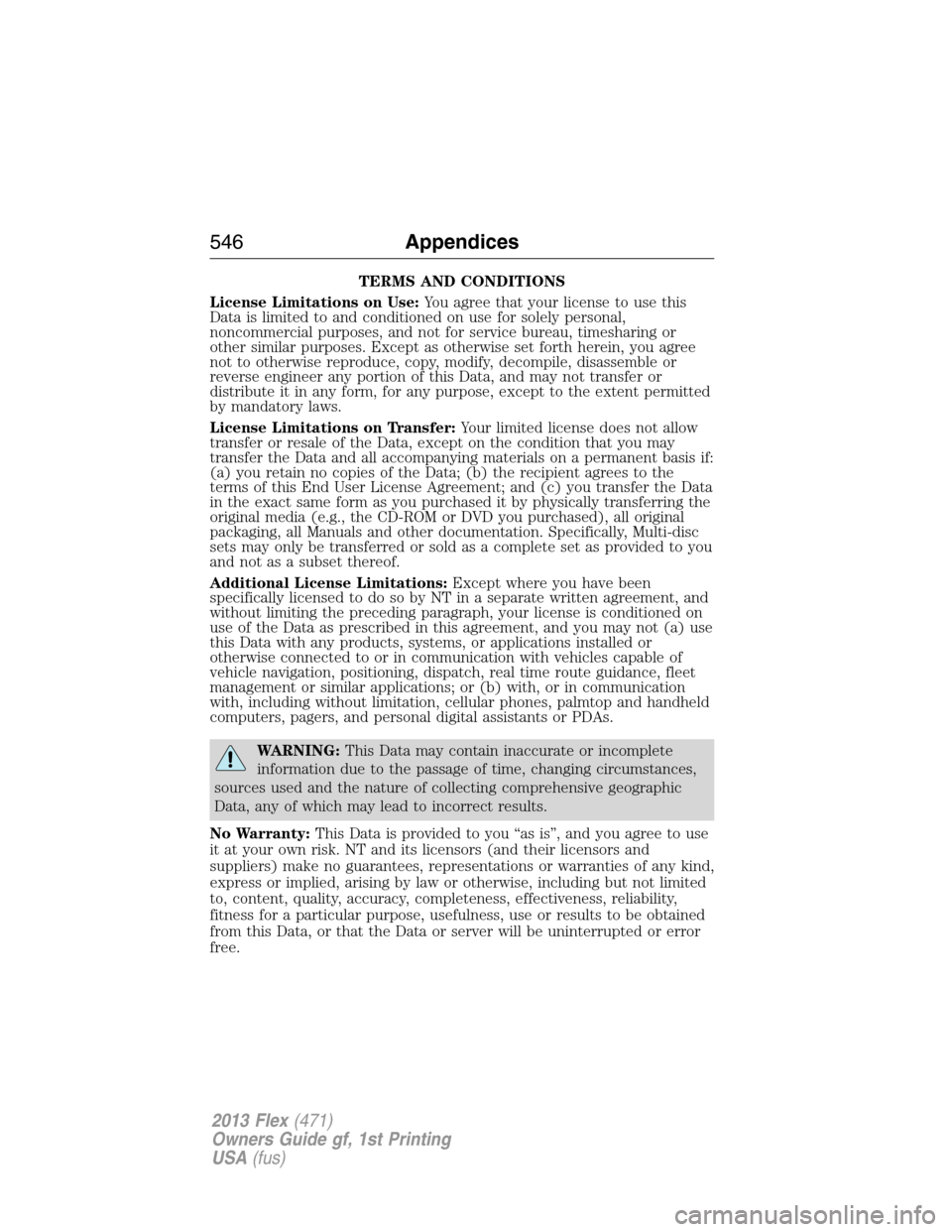

TERMS AND CONDITIONS
License Limitations on Use:You agree that your license to use this
Data is limited to and conditioned on use for solely personal,
noncommercial purposes, and not for service bureau, timesharing or
other similar purposes. Except as otherwise set forth herein, you agree
not to otherwise reproduce, copy, modify, decompile, disassemble or
reverse engineer any portion of this Data, and may not transfer or
distribute it in any form, for any purpose, except to the extent permitted
by mandatory laws.
License Limitations on Transfer:Your limited license does not allow
transfer or resale of the Data, except on the condition that you may
transfer the Data and all accompanying materials on a permanent basis if:
(a) you retain no copies of the Data; (b) the recipient agrees to the
terms of this End User License Agreement; and (c) you transfer the Data
in the exact same form as you purchased it by physically transferring the
original media (e.g., the CD-ROM or DVD you purchased), all original
packaging, all Manuals and other documentation. Specifically, Multi-disc
sets may only be transferred or sold as a complete set as provided to you
and not as a subset thereof.
Additional License Limitations:Except where you have been
specifically licensed to do so by NT in a separate written agreement, and
without limiting the preceding paragraph, your license is conditioned on
use of the Data as prescribed in this agreement, and you may not (a) use
this Data with any products, systems, or applications installed or
otherwise connected to or in communication with vehicles capable of
vehicle navigation, positioning, dispatch, real time route guidance, fleet
management or similar applications; or (b) with, or in communication
with, including without limitation, cellular phones, palmtop and handheld
computers, pagers, and personal digital assistants or PDAs.
WARNING:This Data may contain inaccurate or incomplete
information due to the passage of time, changing circumstances,
sources used and the nature of collecting comprehensive geographic
Data, any of which may lead to incorrect results.
No Warranty:This Data is provided to you “as is”, and you agree to use
it at your own risk. NT and its licensors (and their licensors and
suppliers) make no guarantees, representations or warranties of any kind,
express or implied, arising by law or otherwise, including but not limited
to, content, quality, accuracy, completeness, effectiveness, reliability,
fitness for a particular purpose, usefulness, use or results to be obtained
from this Data, or that the Data or server will be uninterrupted or error
free.
546Appendices
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)

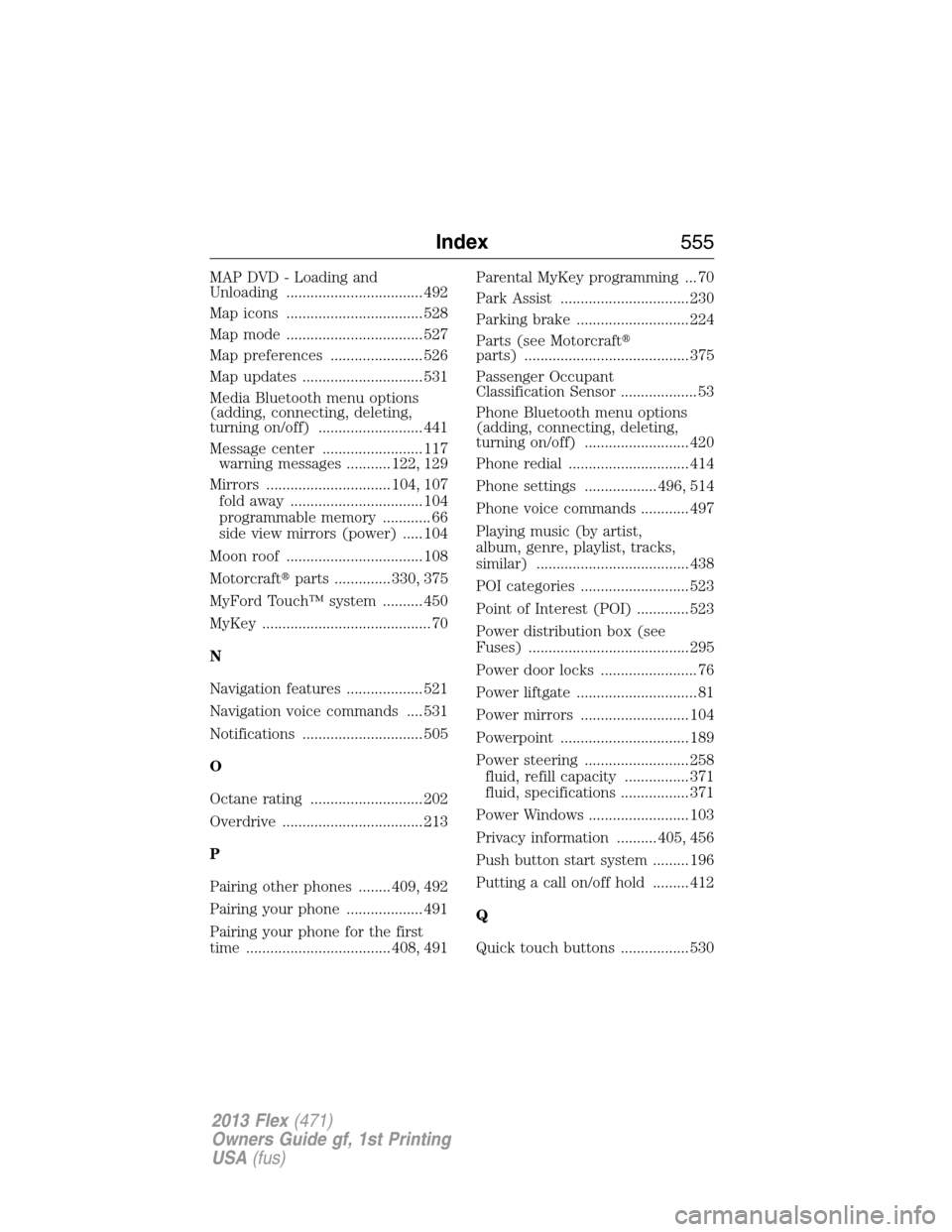

MAP DVD - Loading and
Unloading .................................. 492
Map icons .................................. 528
Map mode .................................. 527
Map preferences ....................... 526
Map updates .............................. 531
Media Bluetooth menu options
(adding, connecting, deleting,
turning on/off) .......................... 441
Message center ......................... 117
warning messages ........... 122, 129
Mirrors ............................... 104, 107
fold away ................................. 104
programmable memory ............ 66
side view mirrors (power) ..... 104
Moon roof .................................. 108
Motorcraftparts .............. 330, 375
MyFord Touch™ system .......... 450
MyKey .......................................... 70
N
Navigation features ................... 521
Navigation voice commands .... 531
Notifications .............................. 505
O
Octane rating ............................ 202
Overdrive ................................... 213
P
Pairing other phones ........ 409, 492
Pairing your phone ................... 491
Pairing your phone for the first
time .................................... 408, 491Parental MyKey programming ... 70
Park Assist ................................ 230
Parking brake ............................ 224
Parts (see Motorcraft
parts) ......................................... 375
Passenger Occupant
Classification Sensor ................... 53
Phone Bluetooth menu options
(adding, connecting, deleting,
turning on/off) .......................... 420
Phone redial .............................. 414
Phone settings .................. 496, 514
Phone voice commands ............ 497
Playing music (by artist,
album, genre, playlist, tracks,
similar) ...................................... 438
POI categories ........................... 523
Point of Interest (POI) ............. 523
Power distribution box (see
Fuses) ........................................ 295
Power door locks ........................ 76
Power liftgate .............................. 81
Power mirrors ........................... 104
Powerpoint ................................ 189
Power steering .......................... 258
fluid, refill capacity ................ 371
fluid, specifications ................. 371
Power Windows ......................... 103
Privacy information .......... 405, 456
Push button start system ......... 196
Putting a call on/off hold ......... 412
Q
Quick touch buttons ................. 530
Index555
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)
