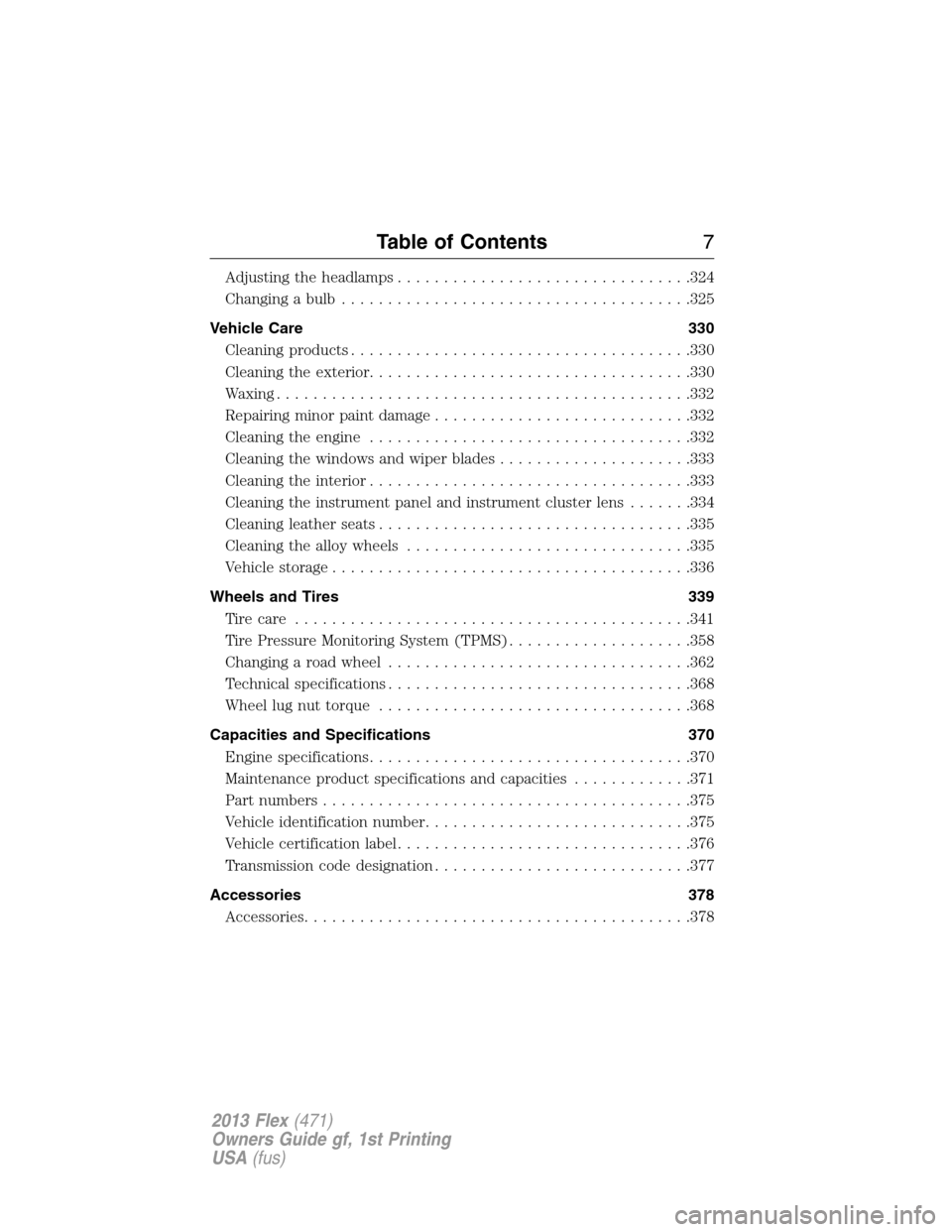

technical specifications FORD FLEX 2013 1.G Owners Manual

Adjusting the headlamps................................324
Changing a bulb......................................325
Vehicle Care 330
Cleaning products.....................................330
Cleaning the exterior...................................330
Waxing.............................................332
Repairing minor paint damage............................332
Cleaning the engine...................................332
Cleaning the windows and wiper blades.....................333
Cleaning the interior...................................333
Cleaning the instrument panel and instrument cluster lens.......334
Cleaning leather seats..................................335
Cleaning the alloy wheels...............................335
Vehicle storage.......................................336
Wheels and Tires 339
Tire care...........................................341
Tire Pressure Monitoring System (TPMS)....................358
Changing a road wheel.................................362
Technical specifications.................................368
Wheel lug nut torque..................................368
Capacities and Specifications 370
Engine specifications...................................370
Maintenance product specifications and capacities.............371
Part numbers........................................375
Vehicle identification number.............................375
Vehicle certification label................................376
Transmission code designation............................377
Accessories 378
Accessories..........................................378
Table of Contents7
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)

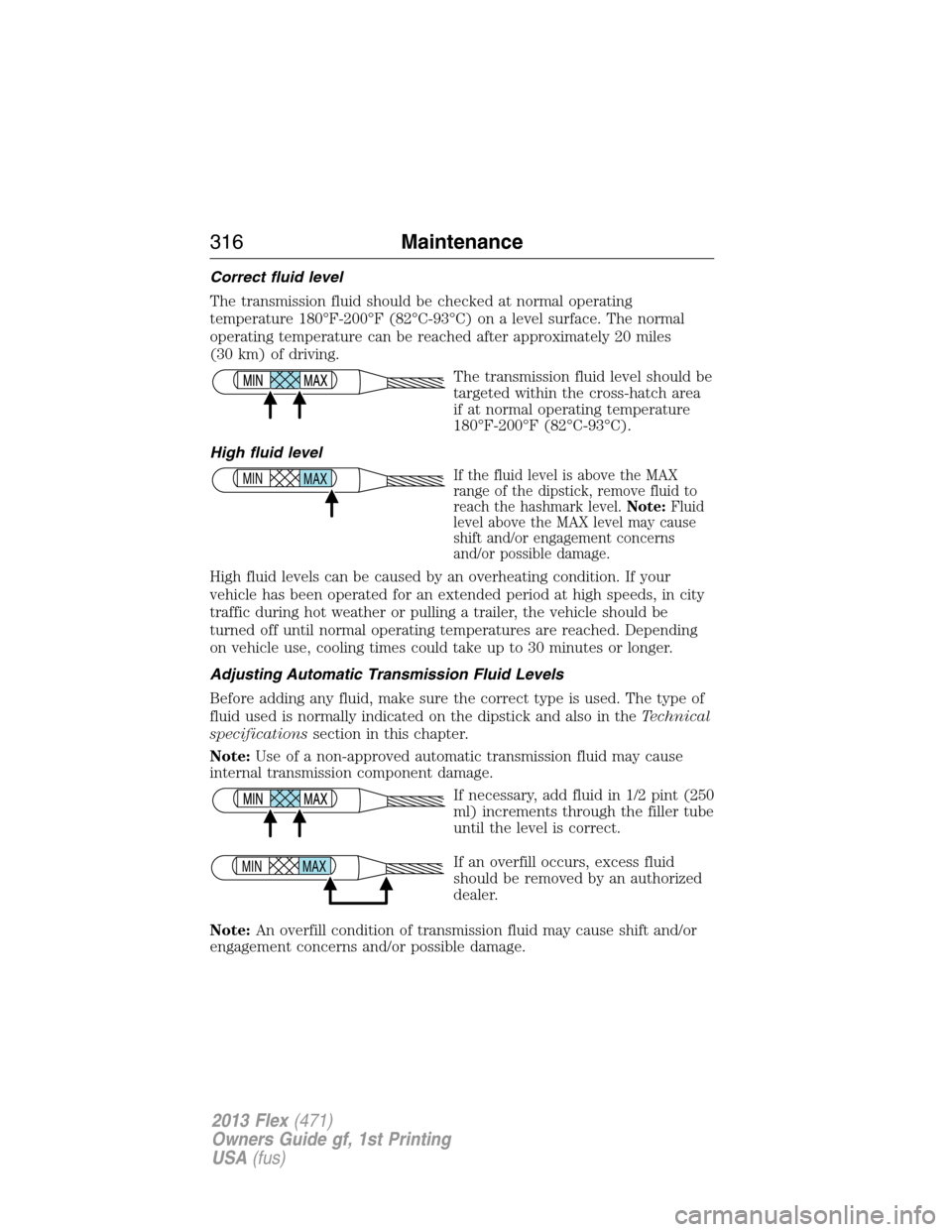

Correct fluid level
The transmission fluid should be checked at normal operating
temperature 180°F-200°F (82°C-93°C) on a level surface. The normal
operating temperature can be reached after approximately 20 miles
(30 km) of driving.
The transmission fluid level should be
targeted within the cross-hatch area
if at normal operating temperature
180°F-200°F (82°C-93°C).
High fluid level
If the fluid level is above the MAX
range of the dipstick, remove fluid to
reach the hashmark level.Note:Fluid
level above the MAX level may cause
shift and/or engagement concerns
and/or possible damage.
High fluid levels can be caused by an overheating condition. If your
vehicle has been operated for an extended period at high speeds, in city
traffic during hot weather or pulling a trailer, the vehicle should be
turned off until normal operating temperatures are reached. Depending
on vehicle use, cooling times could take up to 30 minutes or longer.
Adjusting Automatic Transmission Fluid Levels
Before adding any fluid, make sure the correct type is used. The type of
fluid used is normally indicated on the dipstick and also in theTechnical
specificationssection in this chapter.
Note:Use of a non-approved automatic transmission fluid may cause
internal transmission component damage.
If necessary, add fluid in 1/2 pint (250
ml) increments through the filler tube
until the level is correct.
If an overfill occurs, excess fluid
should be removed by an authorized
dealer.
Note:An overfill condition of transmission fluid may cause shift and/or
engagement concerns and/or possible damage.
MAX MIN
MAX MIN
316Maintenance
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)

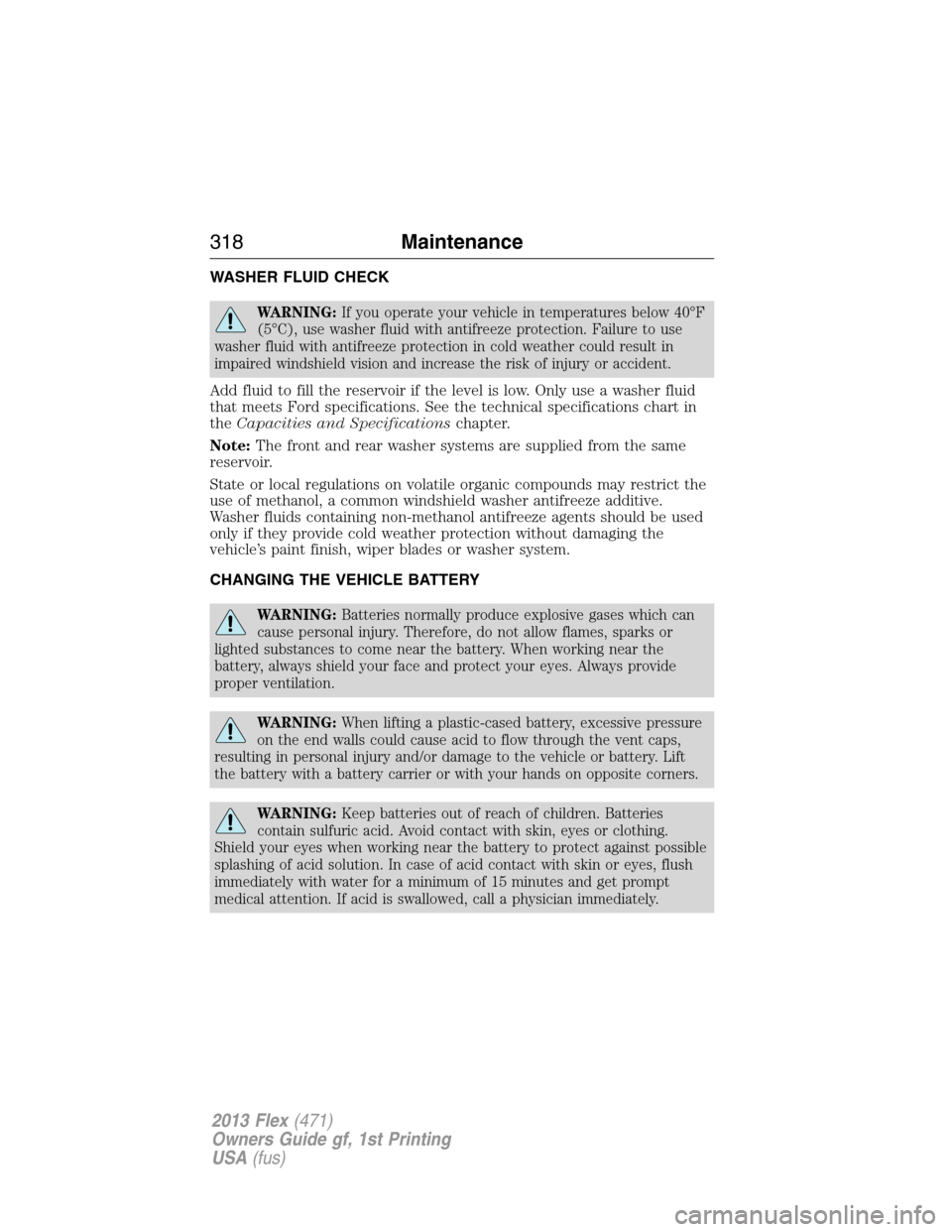

WASHER FLUID CHECK
WARNING:If you operate your vehicle in temperatures below 40°F
(5°C), use washer fluid with antifreeze protection. Failure to use
washer fluid with antifreeze protection in cold weather could result in
impaired windshield vision and increase the risk of injury or accident.
Add fluid to fill the reservoir if the level is low. Only use a washer fluid
that meets Ford specifications. See the technical specifications chart in
theCapacities and Specificationschapter.
Note:The front and rear washer systems are supplied from the same
reservoir.
State or local regulations on volatile organic compounds may restrict the
use of methanol, a common windshield washer antifreeze additive.
Washer fluids containing non-methanol antifreeze agents should be used
only if they provide cold weather protection without damaging the
vehicle’s paint finish, wiper blades or washer system.
CHANGING THE VEHICLE BATTERY
WARNING:Batteries normally produce explosive gases which can
cause personal injury. Therefore, do not allow flames, sparks or
lighted substances to come near the battery. When working near the
battery, always shield your face and protect your eyes. Always provide
proper ventilation.
WARNING:When lifting a plastic-cased battery, excessive pressure
on the end walls could cause acid to flow through the vent caps,
resulting in personal injury and/or damage to the vehicle or battery. Lift
the battery with a battery carrier or with your hands on opposite corners.
WARNING:Keep batteries out of reach of children. Batteries
contain sulfuric acid. Avoid contact with skin, eyes or clothing.
Shield your eyes when working near the battery to protect against possible
splashing of acid solution. In case of acid contact with skin or eyes, flush
immediately with water for a minimum of 15 minutes and get prompt
medical attention. If acid is swallowed, call a physician immediately.
318Maintenance
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)

If you are stowing the flat tire,
remove the L-shaped bolt from the
external pocket of the felt bag. With
the 3rd row seat in the raised
position, stand the flat tire in the rear
of the vehicle with the tire’s valve
stem facing the rear of the vehicle.
Fasten the flat tire to the vehicle by
inserting the L-shaped bolt through
one of the lug bolt holes in the wheel
and turning clockwise into the
threaded hole in the vehicle until the
tire is secured.
If you are stowing the temporary spare tire, place the tire over the jack
and secure it with the large wing nut.
TECHNICAL SPECIFICATIONS
Wheel Lug Nut Torque Specifications
Retighten the lug nuts to the specified torque within 100 miles (160 km)
after any wheel disturbance (rotation, flat tire, wheel removal, etc.).
Lug nut socket
size/Bolt sizeWheel lug nut torque*
ft-lb N•m
12x 20 100 135
* Torque specifications are for nut and bolt threads free of dirt and
rust. Use only Ford recommended replacement fasteners.
368Wheels and Tires
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)

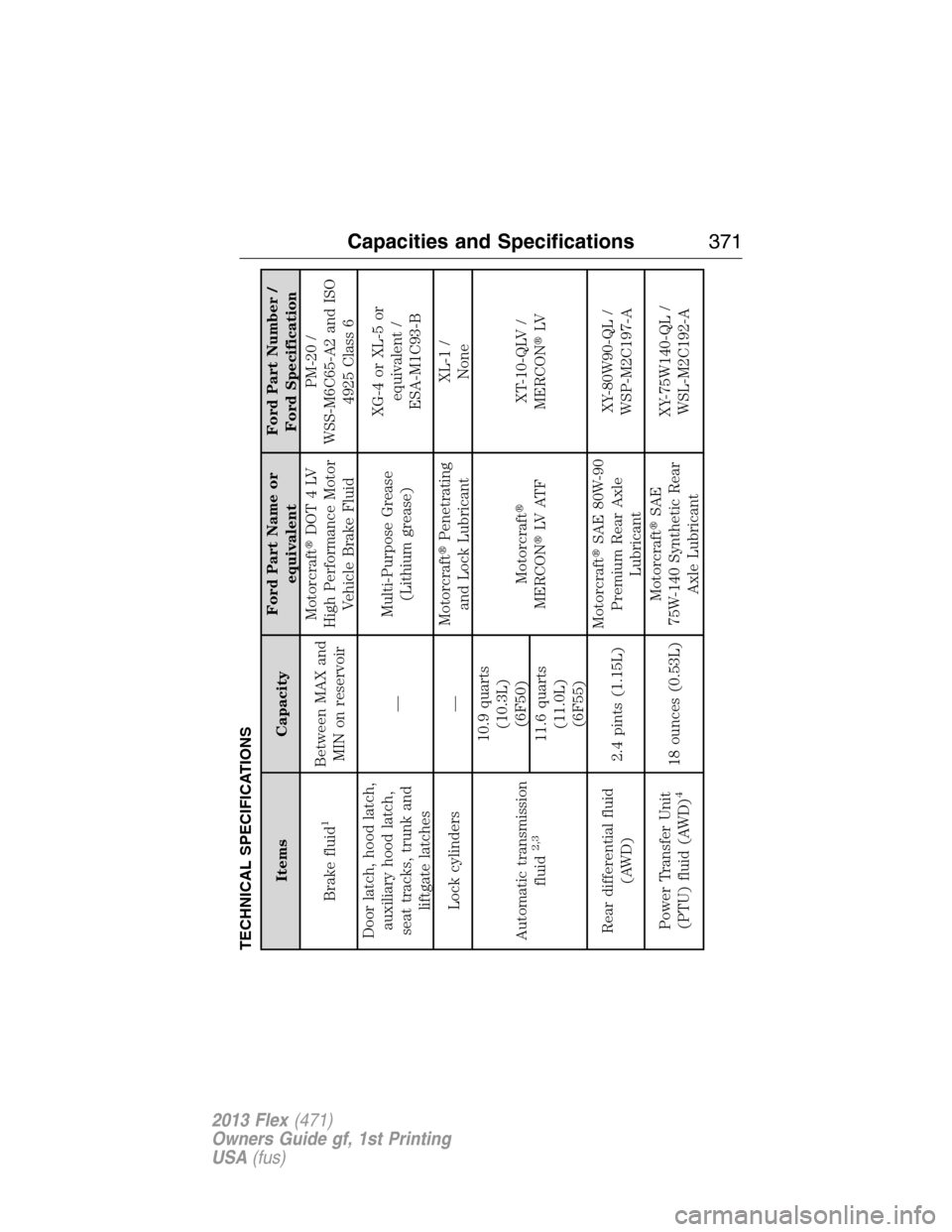

TECHNICAL SPECIFICATIONS
Items CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Brake fluid
1
Between MAX and
MIN on reservoirMotorcraftDOT4LV
High Performance Motor
Vehicle Brake FluidPM-20 /
WSS-M6C65-A2 and ISO
4925 Class 6
Door latch, hood latch,
auxiliary hood latch,
seat tracks, trunk and
liftgate latches—Multi-Purpose Grease
(Lithium grease)XG-4 or XL-5 or
equivalent /
ESA-M1C93-B
Lock cylinders —MotorcraftPenetrating
and Lock LubricantXL-1 /
None
Automatic transmission
fluid
2,3
10.9 quarts
(10.3L)
(6F50)
Motorcraft
MERCONLV AT FXT-10-QLV /
MERCONLV
11.6 quarts
(11.0L)
(6F55)
Rear differential fluid
(AWD)2.4 pints (1.15L)MotorcraftSAE 80W-90
Premium Rear Axle
LubricantXY-80W90-QL /
WSP-M2C197-A
Power Transfer Unit
(PTU) fluid (AWD)
4
18 ounces (0.53L)MotorcraftSAE
75W-140 Synthetic Rear
Axle LubricantXY-75W140-QL /
WSL-M2C192-A
Capacities and Specifications371
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)

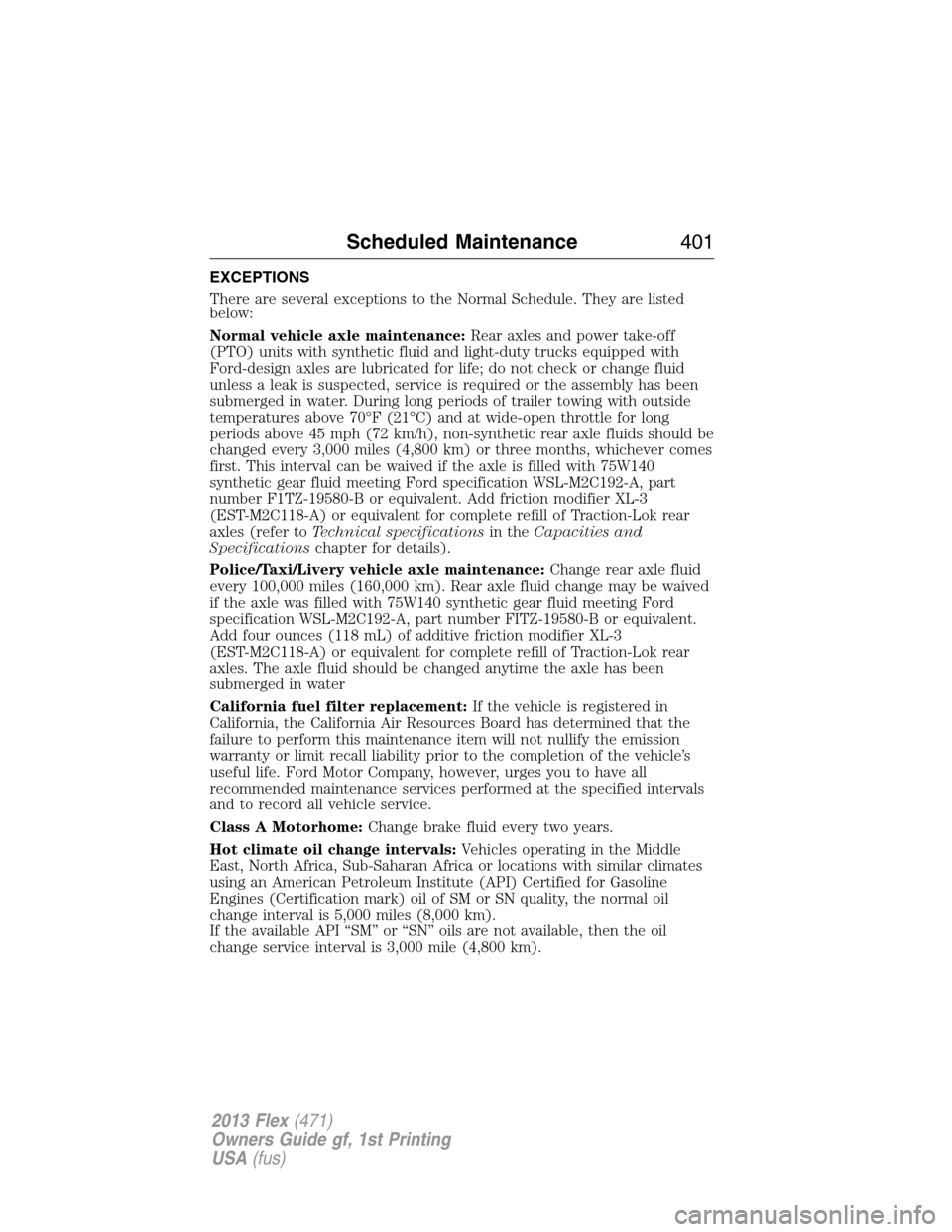

EXCEPTIONS
There are several exceptions to the Normal Schedule. They are listed
below:
Normal vehicle axle maintenance:Rear axles and power take-off
(PTO) units with synthetic fluid and light-duty trucks equipped with
Ford-design axles are lubricated for life; do not check or change fluid
unless a leak is suspected, service is required or the assembly has been
submerged in water. During long periods of trailer towing with outside
temperatures above 70°F (21°C) and at wide-open throttle for long
periods above 45 mph (72 km/h), non-synthetic rear axle fluids should be
changed every 3,000 miles (4,800 km) or three months, whichever comes
first. This interval can be waived if the axle is filled with 75W140
synthetic gear fluid meeting Ford specification WSL-M2C192-A, part
number F1TZ-19580-B or equivalent. Add friction modifier XL-3
(EST-M2C118-A) or equivalent for complete refill of Traction-Lok rear
axles (refer toTechnical specificationsin theCapacities and
Specificationschapter for details).
Police/Taxi/Livery vehicle axle maintenance:Change rear axle fluid
every 100,000 miles (160,000 km). Rear axle fluid change may be waived
if the axle was filled with 75W140 synthetic gear fluid meeting Ford
specification WSL-M2C192-A, part number FITZ-19580-B or equivalent.
Add four ounces (118 mL) of additive friction modifier XL-3
(EST-M2C118-A) or equivalent for complete refill of Traction-Lok rear
axles. The axle fluid should be changed anytime the axle has been
submerged in water
California fuel filter replacement:If the vehicle is registered in
California, the California Air Resources Board has determined that the
failure to perform this maintenance item will not nullify the emission
warranty or limit recall liability prior to the completion of the vehicle’s
useful life. Ford Motor Company, however, urges you to have all
recommended maintenance services performed at the specified intervals
and to record all vehicle service.
Class A Motorhome:Change brake fluid every two years.
Hot climate oil change intervals:Vehicles operating in the Middle
East, North Africa, Sub-Saharan Africa or locations with similar climates
using an American Petroleum Institute (API) Certified for Gasoline
Engines (Certification mark) oil of SM or SN quality, the normal oil
change interval is 5,000 miles (8,000 km).
If the available API “SM” or “SN” oils are not available, then the oil
change service interval is 3,000 mile (4,800 km).
Scheduled Maintenance401
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)

THE GRACENOTE SOFTWARE, EACH ITEM OF GRACENOTE DATA AND
THE GRACENOTE CONTENT ARE LICENSED TO YOU “AS IS.” NEITHER
GRACENOTE MAKES ANY REPRESENTATIONS OR WARRANTIES,
EXPRESS OR IMPLIED, REGARDING THE ACCURACY OF ANY
GRACENOTE DATA FROM THE GRACENOTE SERVERS OR GRACENOTE
CONTENT. GRACENOTE COLLECTIVELY AND SEPARATELY RESERVE
THE RIGHT TO DELETE DATA AND/OR CONTENT FROM THE
COMPANIES’ RESPECTIVE SERVERS OR, IN THE CASE OF GRACENOTE,
CHANGE DATA CATEGORIES FOR ANY CAUSE THAT GRACENOTE
DEEMS SUFFICIENT. NO WARRANTY IS MADE THAT EITHER
GRACENOTE CONTENT OR THE GRACENOTE SOFTWARE OR
GRACENOTE SERVERS ARE ERROR-FREE OR THAT THE FUNCTIONING
OF THE GRACENOTE SOFTWARE OR GRACENOTE SERVERS WILL BE
UNINTERRUPTED. GRACENOTE IS NOT OBLIGATED TO PROVIDE YOU
WITH ANY ENHANCED OR ADDITIONAL DATA TYPES THAT
GRACENOTE MAY CHOOSE TO PROVIDE IN THE FUTURE AND IS FREE
TO DISCONTINUE ITS ONLINE SERVICES AT ANY TIME. GRACENOTE
DISCLAIM ALL WARRANTIES EXPRESS OR IMPLIED, INCLUDING, BUT
NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE, TITLE, AND
NON-INFRINGEMENT. NEITHER GRACENOTE WARRANTS THE RESULTS
THAT WILL BE OBTAINED BY YOUR USE OF THE GRACENOTE
SOFTWARE OR ANY GRACENOTE SERVER. IN NO CASE WILL
GRACENOTE BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL

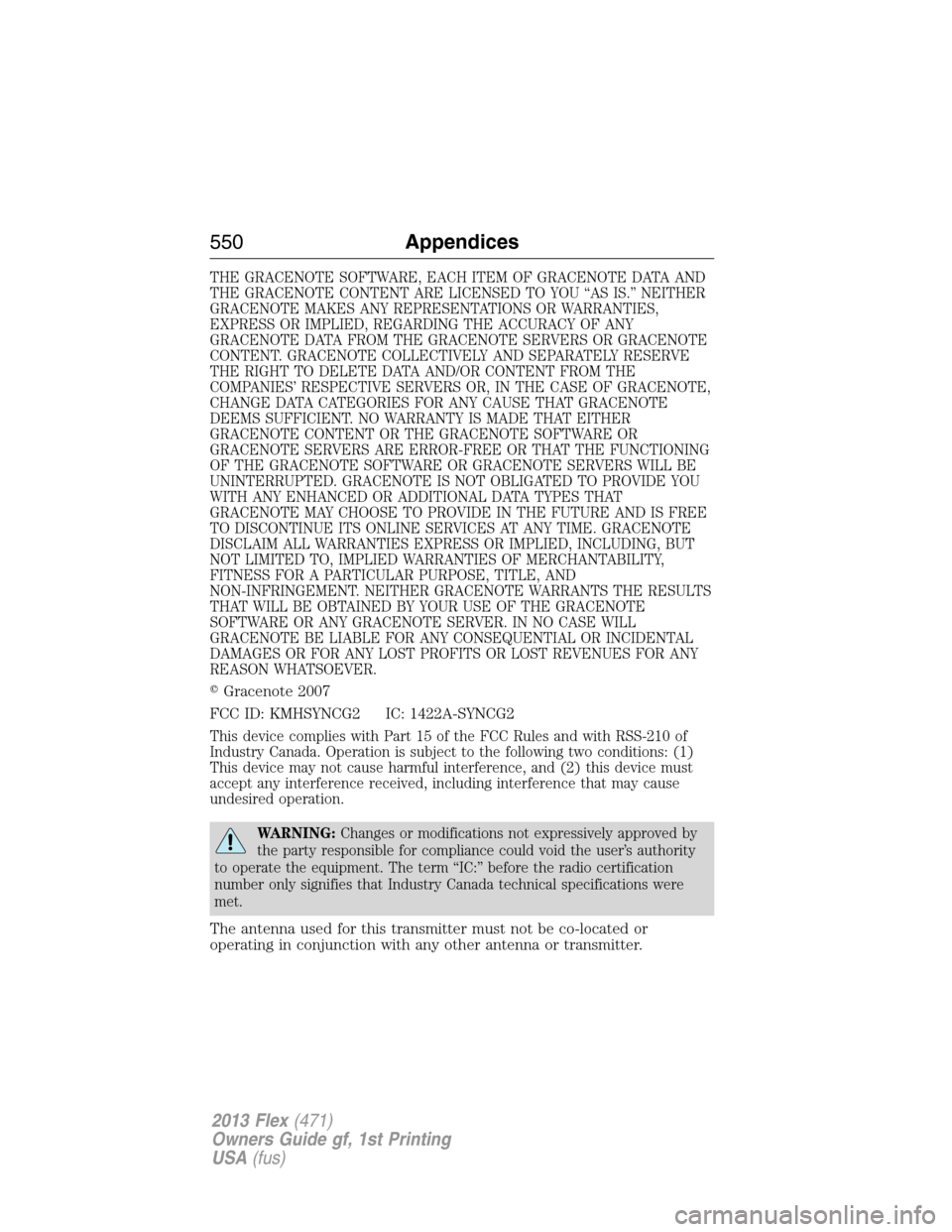

DAMAGES OR FOR ANY LOST PROFITS OR LOST REVENUES FOR ANY
REASON WHATSOEVER.
Gracenote 2007
FCC ID: KMHSYNCG2 IC: 1422A-SYNCG2
This device complies with Part 15 of the FCC Rules and with RSS-210 of
Industry Canada. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause
undesired operation.
WARNING:Changes or modifications not expressively approved by
the party responsible for compliance could void the user’s authority
to operate the equipment. The term “IC:” before the radio certification
number only signifies that Industry Canada technical specifications were
met.
The antenna used for this transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
550Appendices
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)
