FORD FLEX 2014 1.G Owners Manual

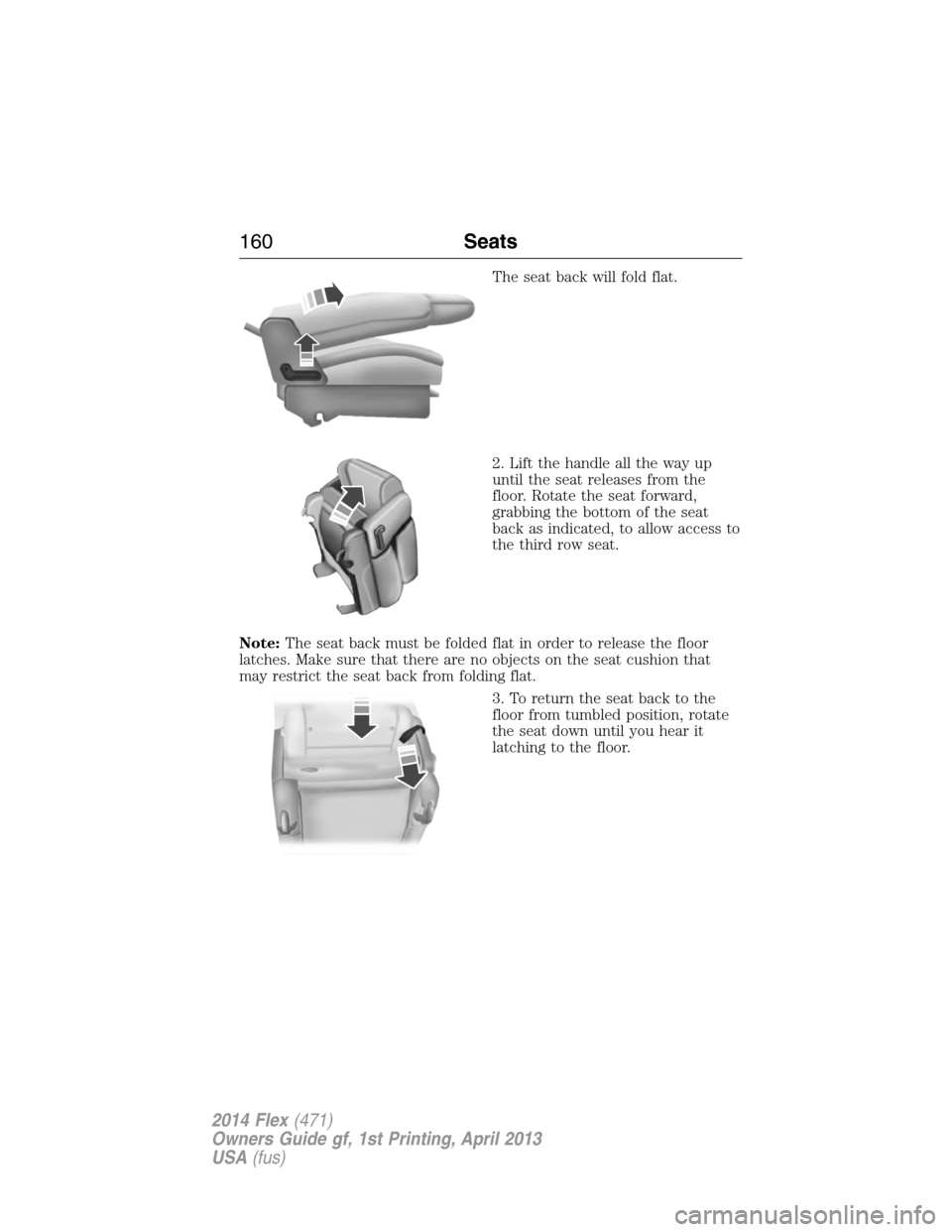

The seat back will fold flat.
2. Lift the handle all the way up
until the seat releases from the
floor. Rotate the seat forward,
grabbing the bottom of the seat
back as indicated, to allow access to
the third row seat.
Note:The seat back must be folded flat in order to release the floor
latches. Make sure that there are no objects on the seat cushion that
may restrict the seat back from folding flat.
3. To return the seat back to the
floor from tumbled position, rotate
the seat down until you hear it
latching to the floor.
160Seats
2014 Flex(471)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

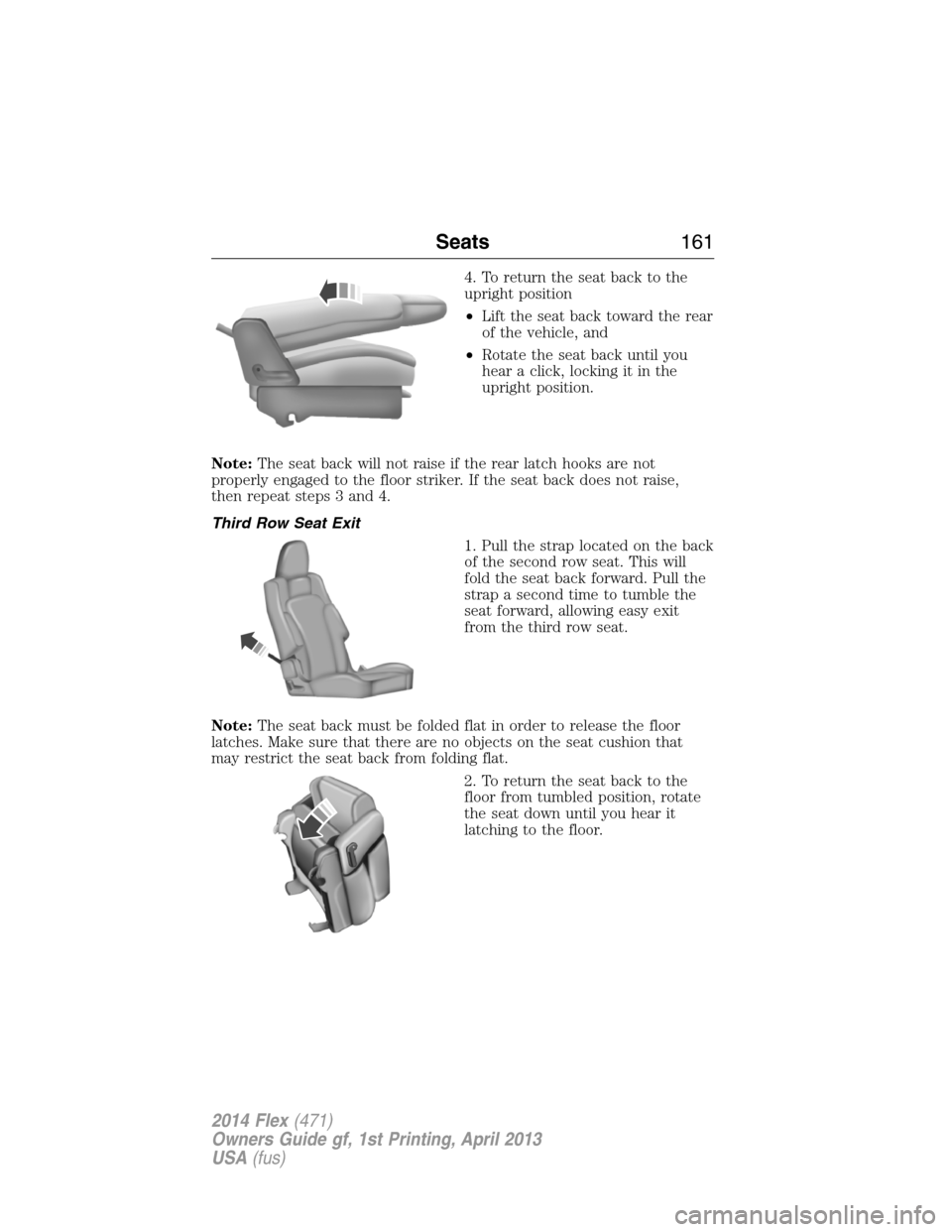

4. To return the seat back to the
upright position
•Lift the seat back toward the rear
of the vehicle, and
•Rotate the seat back until you
hear a click, locking it in the
upright position.
Note:The seat back will not raise if the rear latch hooks are not
properly engaged to the floor striker. If the seat back does not raise,
then repeat steps 3 and 4.
Third Row Seat Exit
1. Pull the strap located on the back
of the second row seat. This will
fold the seat back forward. Pull the
strap a second time to tumble the
seat forward, allowing easy exit
from the third row seat.
Note:The seat back must be folded flat in order to release the floor
latches. Make sure that there are no objects on the seat cushion that
may restrict the seat back from folding flat.
2. To return the seat back to the
floor from tumbled position, rotate
the seat down until you hear it
latching to the floor.
Seats161
2014 Flex(471)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

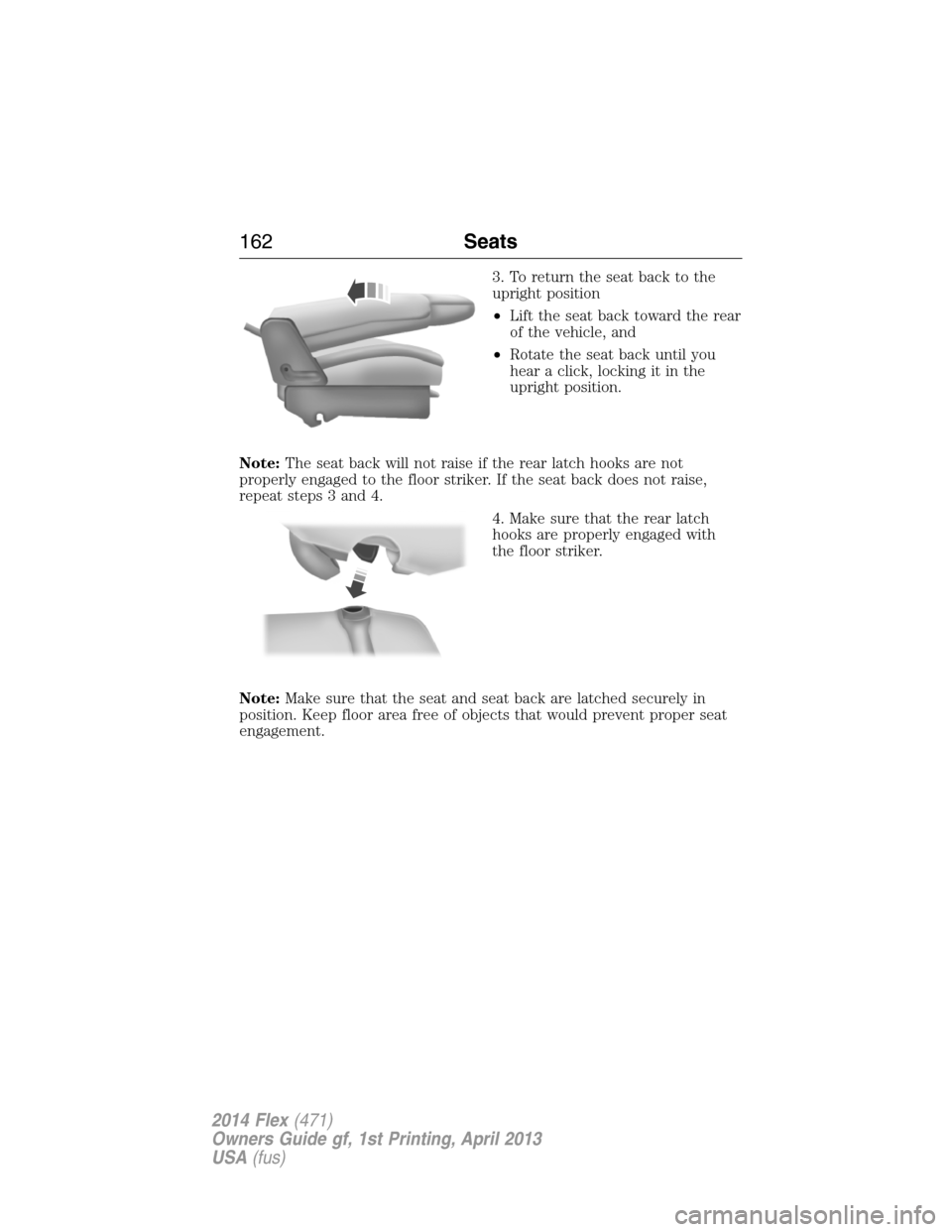

3. To return the seat back to the
upright position
•Lift the seat back toward the rear
of the vehicle, and
•Rotate the seat back until you
hear a click, locking it in the
upright position.
Note:The seat back will not raise if the rear latch hooks are not
properly engaged to the floor striker. If the seat back does not raise,
repeat steps 3 and 4.
4. Make sure that the rear latch
hooks are properly engaged with
the floor striker.
Note:Make sure that the seat and seat back are latched securely in
position. Keep floor area free of objects that would prevent proper seat
engagement.
162Seats
2014 Flex(471)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

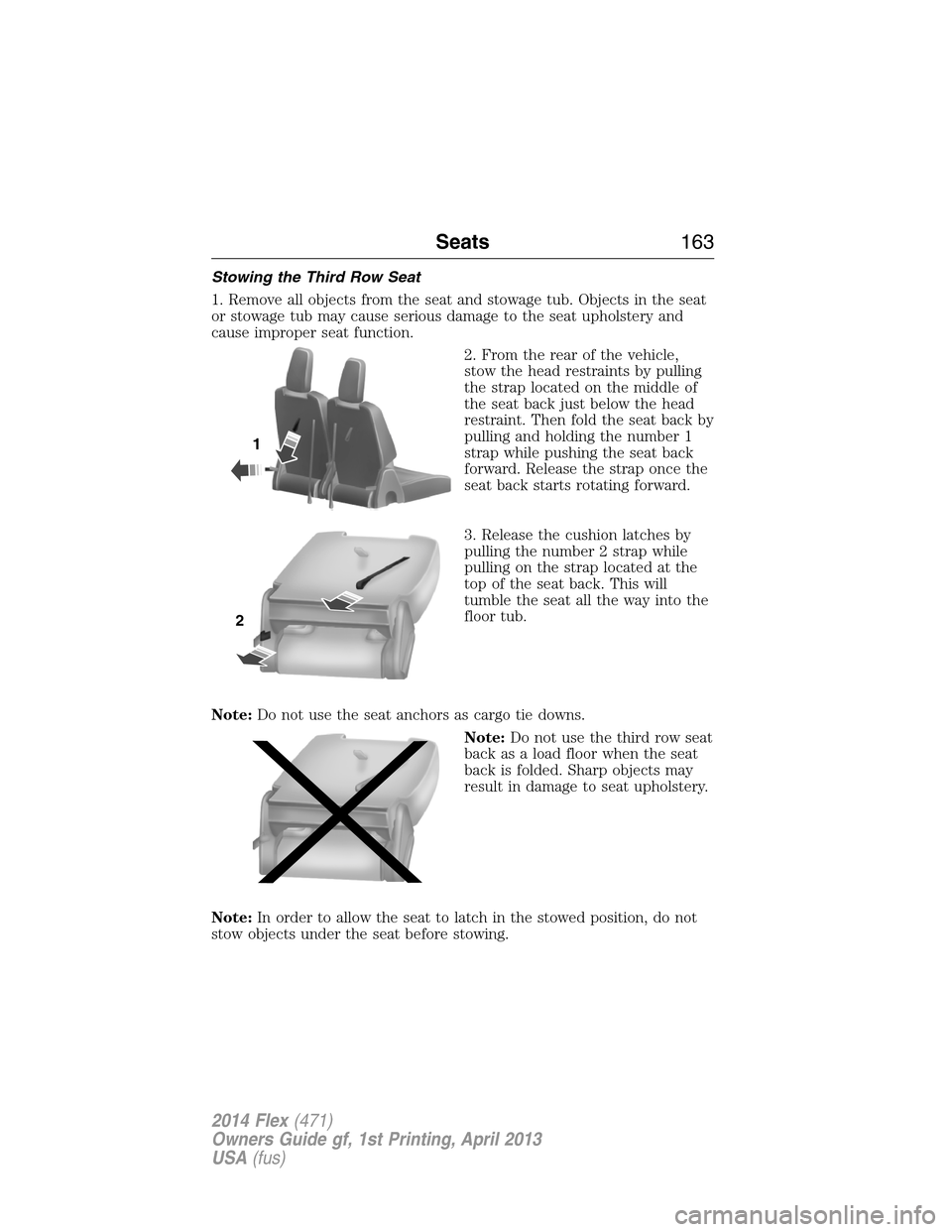

Stowing the Third Row Seat
1. Remove all objects from the seat and stowage tub. Objects in the seat
or stowage tub may cause serious damage to the seat upholstery and
cause improper seat function.
2. From the rear of the vehicle,
stow the head restraints by pulling
the strap located on the middle of
the seat back just below the head
restraint. Then fold the seat back by
pulling and holding the number 1
strap while pushing the seat back
forward. Release the strap once the
seat back starts rotating forward.
3. Release the cushion latches by
pulling the number 2 strap while
pulling on the strap located at the
top of the seat back. This will
tumble the seat all the way into the
floor tub.
Note:Do not use the seat anchors as cargo tie downs.
Note:Do not use the third row seat
back as a load floor when the seat
back is folded. Sharp objects may
result in damage to seat upholstery.
Note:In order to allow the seat to latch in the stowed position, do not
stow objects under the seat before stowing.
2
Seats163
2014 Flex(471)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

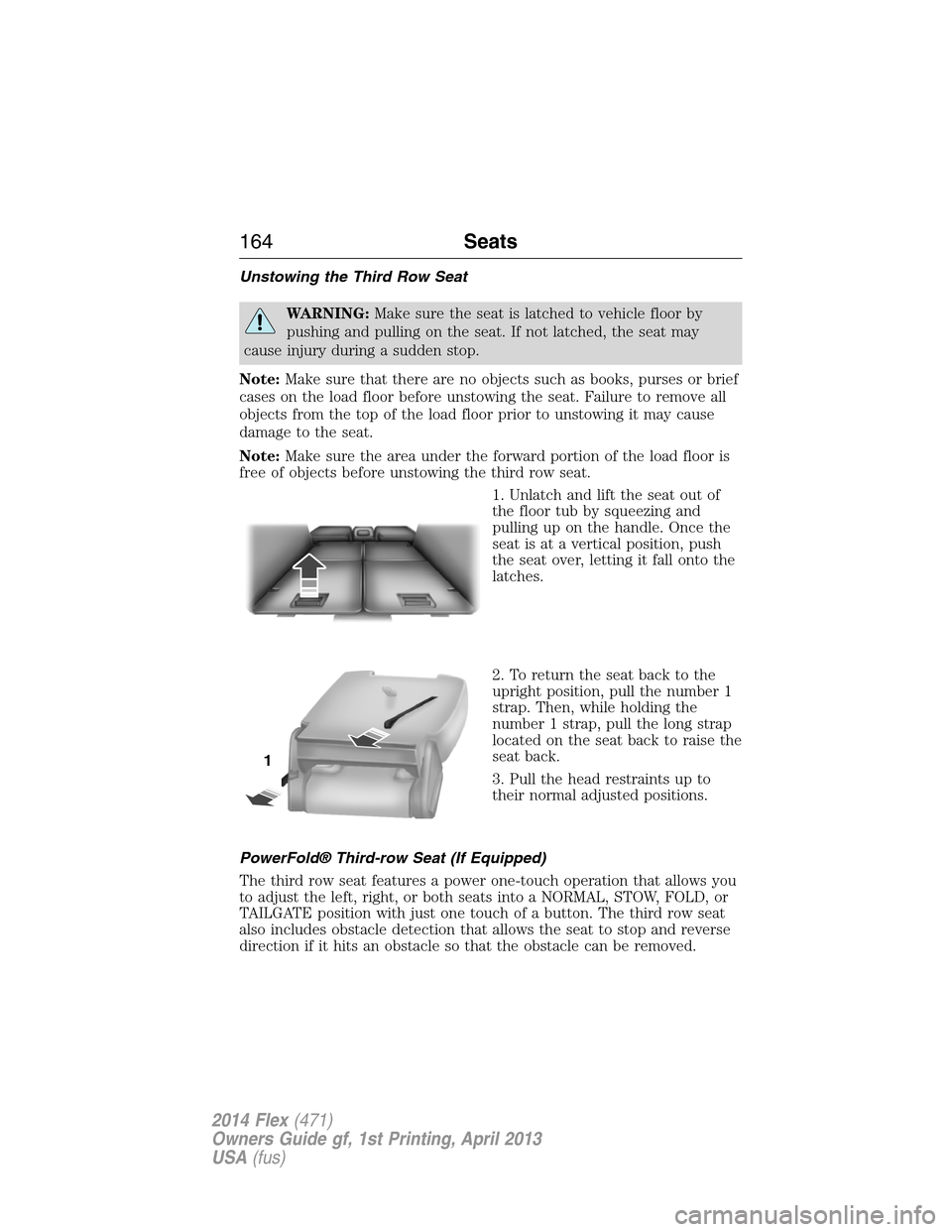

Unstowing the Third Row Seat
WARNING:Make sure the seat is latched to vehicle floor by
pushing and pulling on the seat. If not latched, the seat may
cause injury during a sudden stop.
Note:Make sure that there are no objects such as books, purses or brief
cases on the load floor before unstowing the seat. Failure to remove all
objects from the top of the load floor prior to unstowing it may cause
damage to the seat.
Note:Make sure the area under the forward portion of the load floor is
free of objects before unstowing the third row seat.
1. Unlatch and lift the seat out of
the floor tub by squeezing and
pulling up on the handle. Once the
seat is at a vertical position, push
the seat over, letting it fall onto the
latches.
2. To return the seat back to the
upright position, pull the number 1
strap. Then, while holding the
number 1 strap, pull the long strap
located on the seat back to raise the
seat back.
3. Pull the head restraints up to
their normal adjusted positions.
PowerFold® Third-row Seat (If Equipped)
The third row seat features a power one-touch operation that allows you
to adjust the left, right, or both seats into a NORMAL, STOW, FOLD, or
TAILGATE position with just one touch of a button. The third row seat
also includes obstacle detection that allows the seat to stop and reverse
direction if it hits an obstacle so that the obstacle can be removed.
1
164Seats
2014 Flex(471)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

The third row power seat buttons are located behind the third row seats
on the left-hand quarter trim panel.
Note:The power fold seats work only when the transmission selector
lever is in positionPand the tailgate is open. If the ignition is off and
the feature is still running, the battery saver will turn it off after
10 minutes. You can reactivate the power seats by pressing the unlock
button on the remote entry key fob or by using the unlock procedure on
the keyless entry keypad. SeeSecuriCode keyless keypadin theLocks
chapter. Keep the key in the accessory or run position to prevent the
feature from timing out.
Press the seat selection button (D) to select either right-hand seat, the
left-hand seat or both. First, select the seat you would like to adjust,
then select one of the following:
•Press the NORMAL button (A) to return the seat to the normal
seating position.
•Press the STOW button (B) to stow the seat into the tub floor.
•Press the FOLD button (C) (the top portion of the button) to fold
down the seat back.
•Press the TAILGATE button (C) (the bottom portion of the button) to
put the seat into the tailgate position.
Note:Pressing a different button while the power seat feature is already
being performed may cause the first selected seat movement to be
cancelled. Allow the first seat movement to be completed before pressing
a button for another function.
Note:Make sure that there are no objects such as books, purses or brief
cases on the load floor before unstowing the seat. Failure to remove all
objects from the top of the load floor prior to unstowing it may cause
damage to the seat.
NORMAL
STOWRH
BOTH
LH
FOLD
TA I L G AT E
ABCD
Seats165
2014 Flex(471)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

Note:In order to allow the seat to complete the stowed position, do not
place objects under the seat before stowing. Remove all objects from the
seat and stowage tub. Sharp objects may result in damage to the seat
upholstery and improper seat function.
Note:In the unlikely event that the third row power seat stops
prematurely, or travels to an unexpected position, press the FOLD
button (C) to reset the seat and return it to a normal position.
WARNING:Do not drive the vehicle when the third row seat is
rotated backwards. During a sudden stop, the safety belts are not
functional in this position and the third row seat can rapidly tip back to
the forward position, all of which may result in serious injury.
Closing the Liftgate
WARNING:To avoid injury to third row occupants when closing
the liftgate, make sure that the head of any occupant is not in
the path of the closing liftgate.
166Seats
2014 Flex(471)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

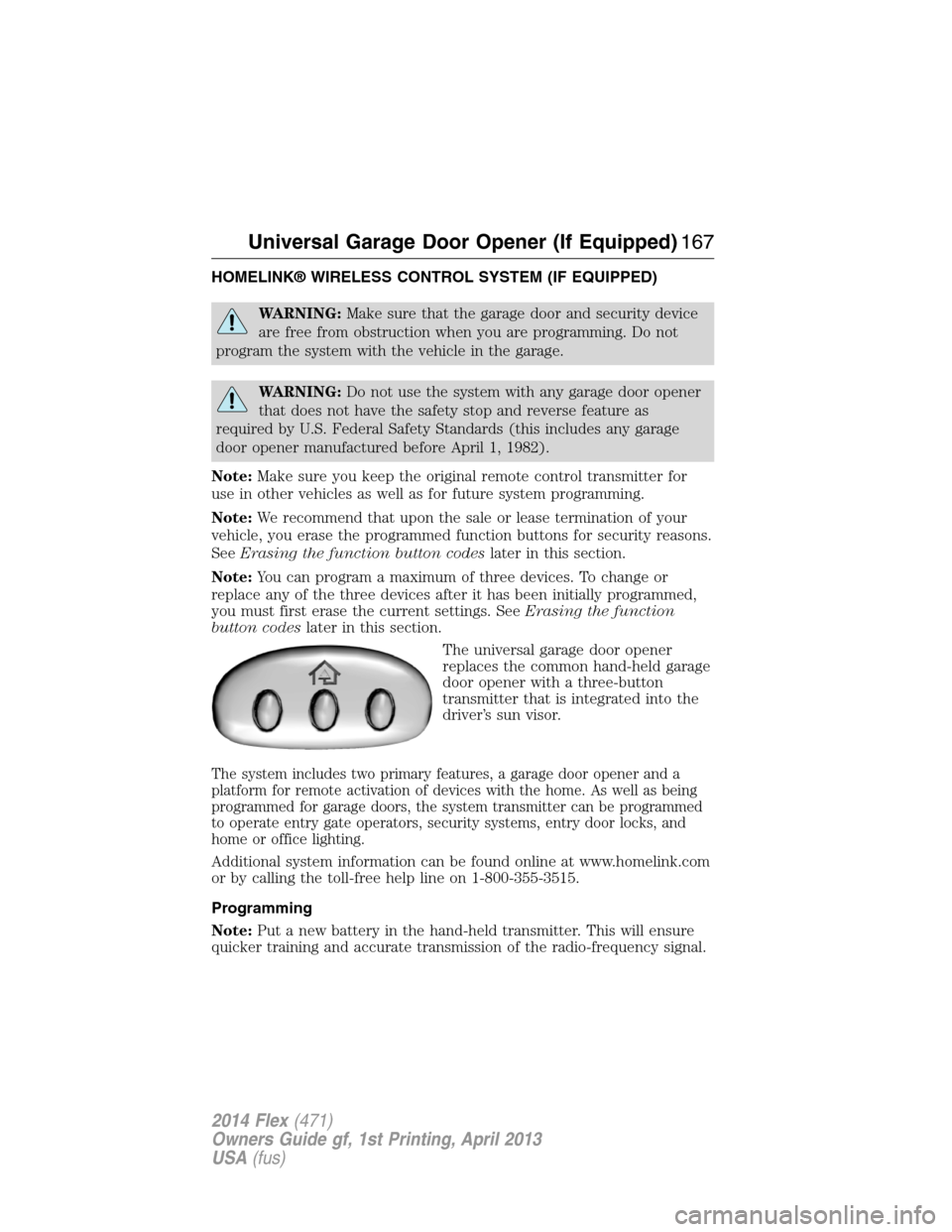

HOMELINK® WIRELESS CONTROL SYSTEM (IF EQUIPPED)
WARNING:Make sure that the garage door and security device
are free from obstruction when you are programming. Do not
program the system with the vehicle in the garage.
WARNING:Do not use the system with any garage door opener
that does not have the safety stop and reverse feature as
required by U.S. Federal Safety Standards (this includes any garage
door opener manufactured before April 1, 1982).
Note:Make sure you keep the original remote control transmitter for
use in other vehicles as well as for future system programming.
Note:We recommend that upon the sale or lease termination of your
vehicle, you erase the programmed function buttons for security reasons.
SeeErasing the function button codeslater in this section.
Note:You can program a maximum of three devices. To change or
replace any of the three devices after it has been initially programmed,
you must first erase the current settings. SeeErasing the function
button codeslater in this section.
The universal garage door opener
replaces the common hand-held garage
door opener with a three-button
transmitter that is integrated into the
driver’s sun visor.
The system includes two primary features, a garage door opener and a
platform for remote activation of devices with the home. As well as being
programmed for garage doors, the system transmitter can be programmed
to operate entry gate operators, security systems, entry door locks, and
home or office lighting.
Additional system information can be found online at www.homelink.com
or by calling the toll-free help line on 1-800-355-3515.
Programming
Note:Put a new battery in the hand-held transmitter. This will ensure
quicker training and accurate transmission of the radio-frequency signal.
Universal Garage Door Opener (If Equipped)167
2014 Flex(471)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

1. With your vehicle parked outside of the garage and your key in the
ignition, turn the key so that the ignition is in the on position.
2. Hold your hand-held, garage door
transmitter 1–3 inches (2–8 centimeters)
away from the HomeLink button you want
to program.
3. Using both hands, simultaneously press and hold the desired
HomeLink button and the hand-held transmitter button. DO NOT release
either one until the HomeLink indicator light flashes slowly and then
rapidly. When the indicator light flashes rapidly, both buttons may be
released. The rapid flashing indicates successful training.
4.
Press and hold the HomeLink button you programmed for five seconds,
then release. You may need to do this twice to activate the door. If your
garage door does not operate, watch the HomeLink indicator light.
If the indicator light stays on, the programming is complete. Press and
release the programmed HomeLink button, and then begin programming
your garage door opener. See below for Steps5–7.
If the indicator light flashes rapidly for two seconds and then turns to a
constant light, the HomeLink button is not programmed yet. Do the
following:
Press and hold the HomeLink button while you press and release the
hand-held transmitter button every two seconds. The HomeLink
indicator light will flash slowly and then rapidly once the HomeLink
function button recognizes and accepts the hand-held transmitter’s radio
frequency signal.
After programming the HomeLink button, follow Steps5–7aslisted
below to program your garage door opener.
Note:You may need a ladder to reach the unit
and you may need to remove the cover or
lamp lens on your garage door opener.
5. Press the learn button on the garage door
opener motor, and then you have 30 seconds
to complete the next step.
168Universal Garage Door Opener (If Equipped)
2014 Flex(471)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

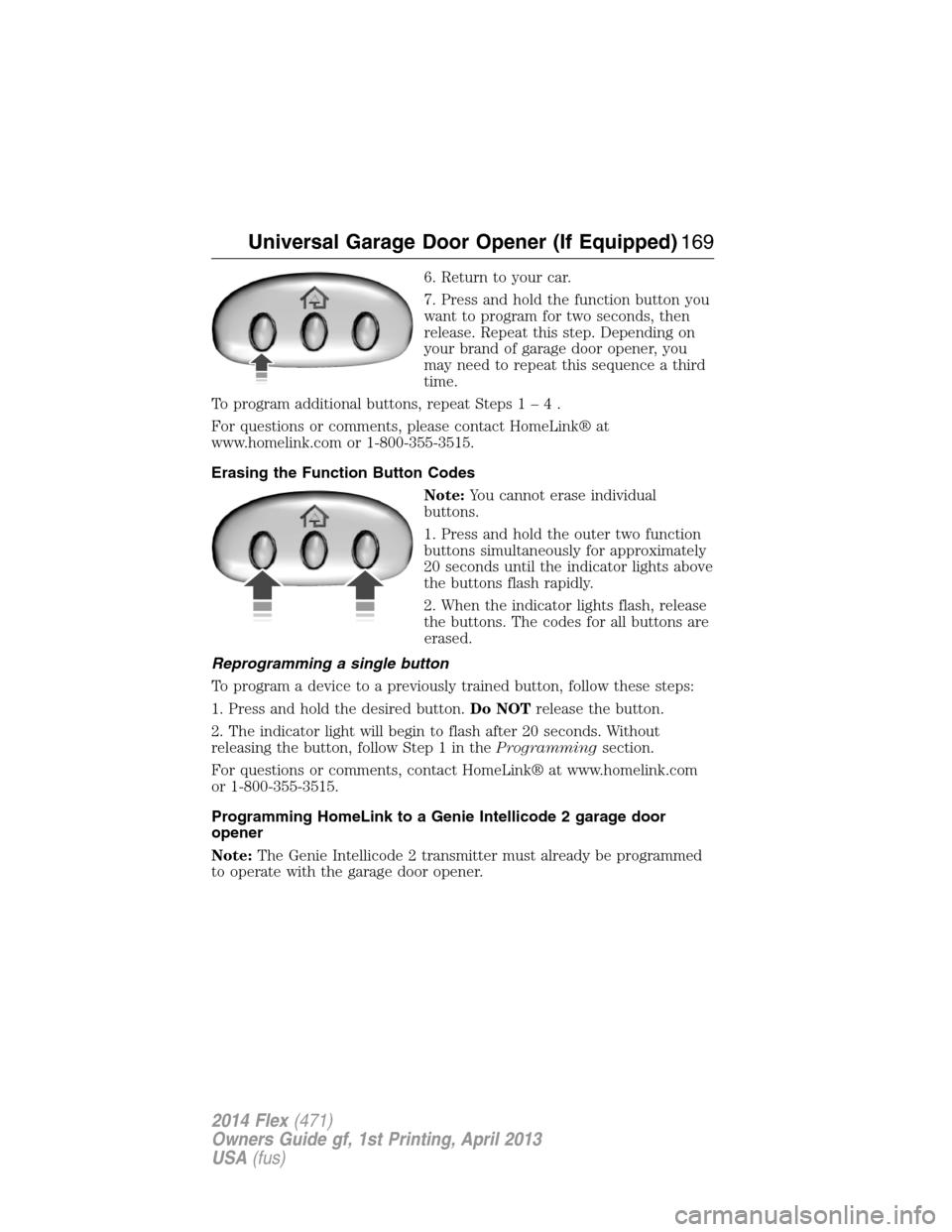

6. Return to your car.
7. Press and hold the function button you
want to program for two seconds, then
release. Repeat this step. Depending on
your brand of garage door opener, you
may need to repeat this sequence a third
time.
To program additional buttons, repeat Steps1–4.
For questions or comments, please contact HomeLink® at
www.homelink.com or 1-800-355-3515.
Erasing the Function Button Codes
Note:You cannot erase individual
buttons.
1. Press and hold the outer two function
buttons simultaneously for approximately
20 seconds until the indicator lights above
the buttons flash rapidly.
2. When the indicator lights flash, release
the buttons. The codes for all buttons are
erased.
Reprogramming a single button
To program a device to a previously trained button, follow these steps:
1. Press and hold the desired button.Do NOTrelease the button.
2. The indicator light will begin to flash after 20 seconds. Without
releasing the button, follow Step 1 in theProgrammingsection.
For questions or comments, contact HomeLink® at www.homelink.com
or 1-800-355-3515.
Programming HomeLink to a Genie Intellicode 2 garage door
opener
Note:The Genie Intellicode 2 transmitter must already be programmed
to operate with the garage door opener.
Universal Garage Door Opener (If Equipped)169
2014 Flex(471)
Owners Guide gf, 1st Printing, April 2013
USA(fus)
