FUSE SPECIFICATION CHART
Power Distribution Box
WARNING:Always disconnect the battery before servicing high
current fuses.
WARNING:To reduce risk of electrical shock, always replace the
cover to the power distribution box before reconnecting the
battery or refilling fluid reservoirs.
The power distribution box is located in the engine compartment. It has
high-current fuses that protect your vehicle’s main electrical systems
from overloads.
If the battery has been disconnected and reconnected, seeChanging the
Vehicle Batteryin theMaintenancechapter.
The high-current fuses are coded as follows:
Fuse or relay
numberFuse amp
ratingProtected components
1 40A** Fan relay 2
2 40A** Fan relay 1
3 30A** Trailer brake control module
4 30A** Wipers, Washer pump
5 50A** Anti-lock brake system pump
6 — Not used
97
98
77969594
93 92 91 90 89
88
66
4478
56
39
26
18 1617
312 4 5 6 7 8 919 20 21 22 23 2427 28 29 30 3140 41 42 4355
57 58 59 60 61 62 63 64 6579 80 81 82 83 84 85 86 87
67
45
32
10 11 12 1333 34 3546 47 48 49 50 5168 69 70 71 72 74
73 76
75
53
37 36 54
38
25
151452
Fuses285
2015 Flex(471)
Owners Guide gf, 1st Printing, October 2014
USA(fus)
Page 568 of 571

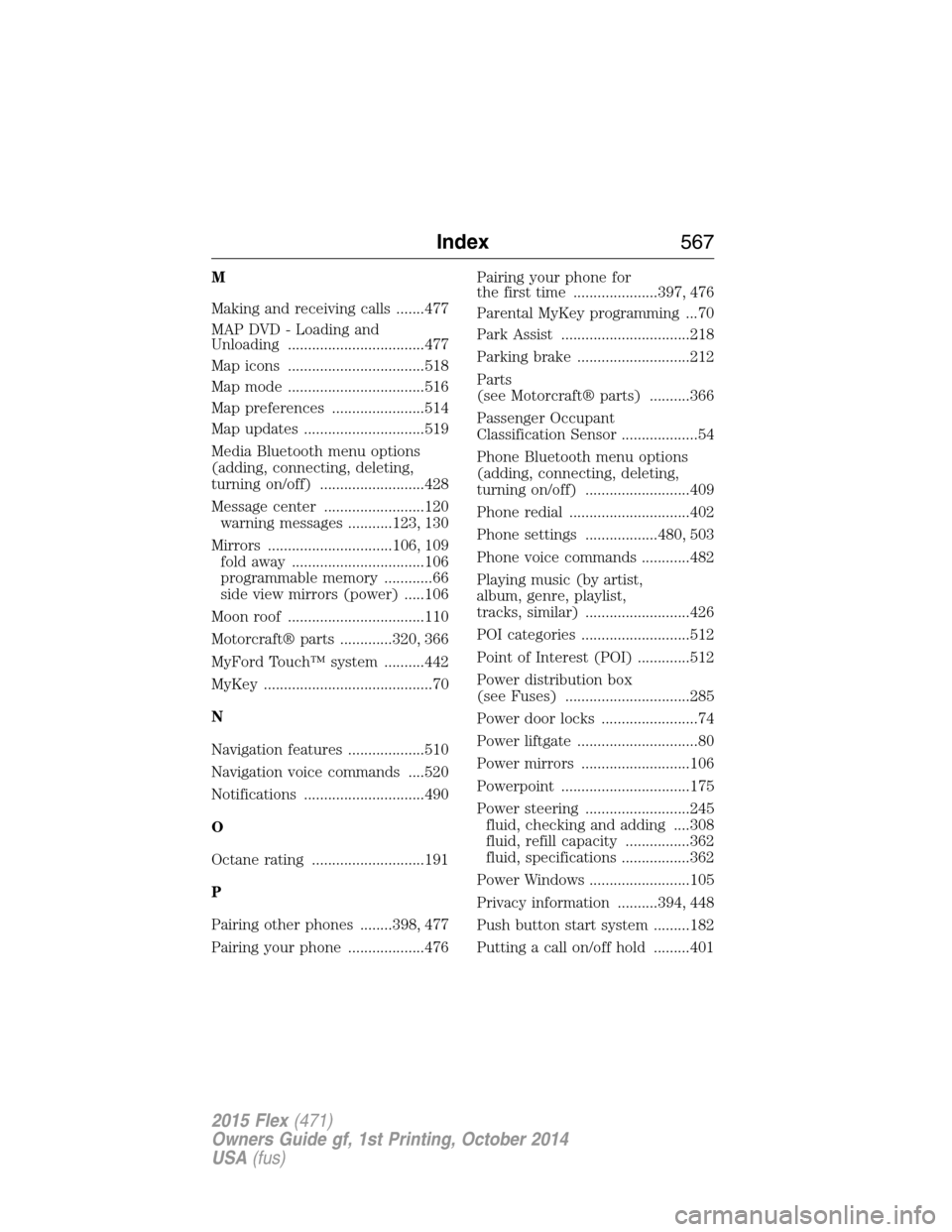

M
Making and receiving calls .......477
MAP DVD - Loading and
Unloading ..................................477
Map icons ..................................518
Map mode ..................................516
Map preferences .......................514
Map updates ..............................519
Media Bluetooth menu options
(adding, connecting, deleting,
turning on/off) ..........................428
Message center .........................120
warning messages ...........123, 130
Mirrors ...............................106, 109
fold away .................................106
programmable memory ............66
side view mirrors (power) .....106
Moon roof ..................................110
Motorcraft® parts .............320, 366
MyFord Touch™ system ..........442
MyKey ..........................................70
N
Navigation features ...................510
Navigation voice commands ....520
Notifications ..............................490
O
Octane rating ............................191
P
Pairing other phones ........398, 477
Pairing your phone ...................476Pairing your phone for
the first time .....................397, 476
Parental MyKey programming ...70
Park Assist ................................218
Parking brake ............................212
Parts
(see Motorcraft® parts) ..........366
Passenger Occupant
Classification Sensor ...................54
Phone Bluetooth menu options
(adding, connecting, deleting,
turning on/off) ..........................409
Phone redial ..............................402
Phone settings ..................480, 503
Phone voice commands ............482
Playing music (by artist,
album, genre, playlist,
tracks, similar) ..........................426
POI categories ...........................512
Point of Interest (POI) .............512
Power distribution box
(see Fuses) ...............................285
Power door locks ........................74
Power liftgate ..............................80
Power mirrors ...........................106
Powerpoint ................................175
Power steering ..........................245
fluid, checking and adding ....308
fluid, refill capacity ................362
fluid, specifications .................362
Power Windows .........................105
Privacy information ..........394, 448
Push button start system .........182
Putting a call on/off hold .........401
Index567
