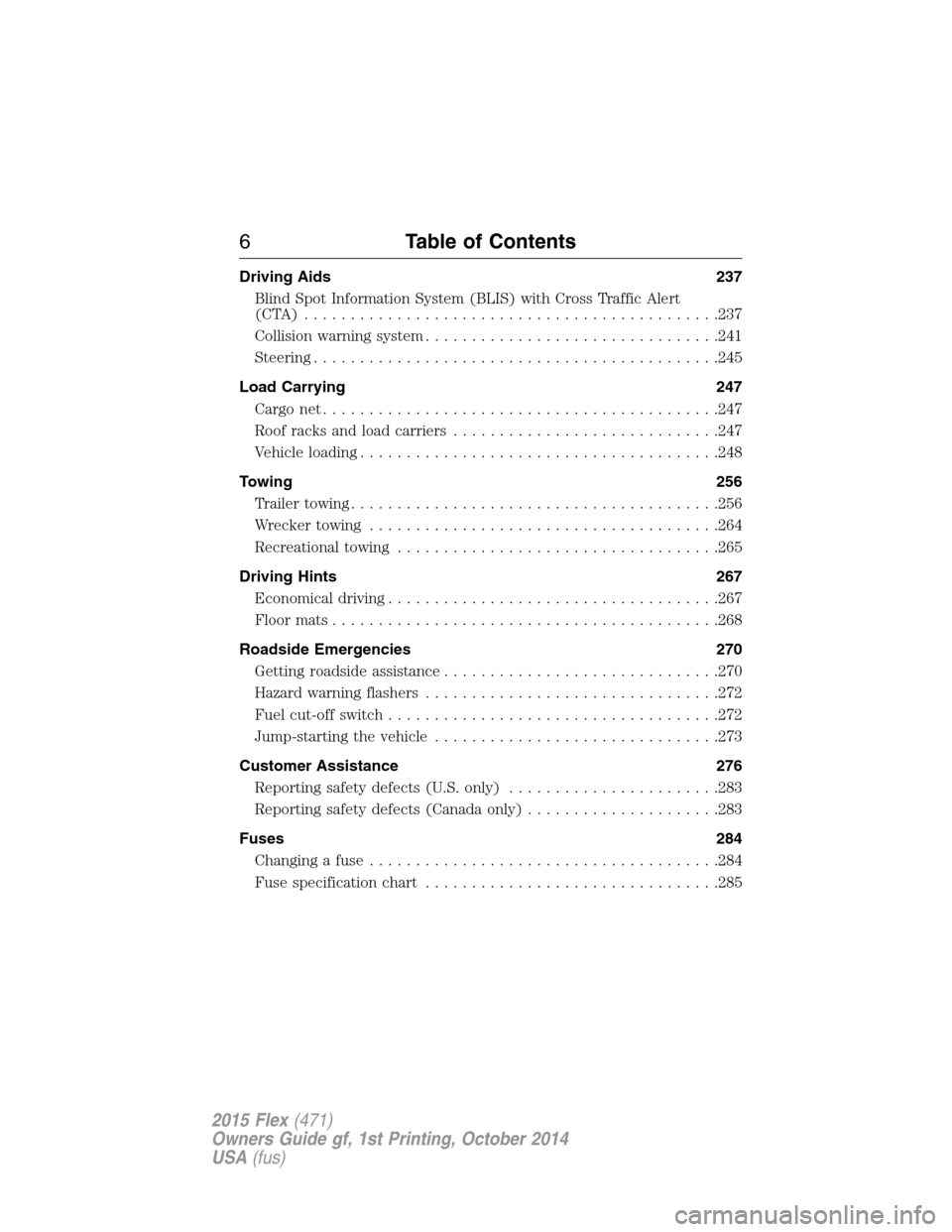

Page 7 of 571

Driving Aids 237
Blind Spot Information System (BLIS) with Cross Traffic Alert
(CTA) .............................................237
Collision warning system................................241
Steering............................................245
Load Carrying 247
Cargonet...........................................247
Roof racks and load carriers.............................247
Vehicle loading.......................................248
Towing 256
Trailertowing........................................256
Wrecker towing......................................264
Recreational towing...................................265
Driving Hints 267
Economical driving....................................267
Floormats..........................................268
Roadside Emergencies 270
Getting roadside assistance..............................270
Hazard warning flashers................................272
Fuel cut-off switch....................................272
Jump-starting the vehicle...............................273
Customer Assistance 276
Reporting safety defects (U.S. only).......................283
Reporting safety defects (Canada only).....................283
Fuses 284
Changing a fuse......................................284
Fuse specification chart................................285
6Table of Contents
2015 Flex(471)
Owners Guide gf, 1st Printing, October 2014
USA(fus)
Page 286 of 571

FUSE SPECIFICATION CHART
Power Distribution Box
WARNING:Always disconnect the battery before servicing high
current fuses.
WARNING:To reduce risk of electrical shock, always replace the
cover to the power distribution box before reconnecting the
battery or refilling fluid reservoirs.
The power distribution box is located in the engine compartment. It has
high-current fuses that protect your vehicle’s main electrical systems
from overloads.
If the battery has been disconnected and reconnected, seeChanging the
Vehicle Batteryin theMaintenancechapter.
The high-current fuses are coded as follows:
Fuse or relay
numberFuse amp
ratingProtected components
1 40A** Fan relay 2
2 40A** Fan relay 1
3 30A** Trailer brake control module
4 30A** Wipers, Washer pump
5 50A** Anti-lock brake system pump
6 — Not used
97
98
77969594
93 92 91 90 89
88
66
4478
56
39
26
18 1617
312 4 5 6 7 8 919 20 21 22 23 2427 28 29 30 3140 41 42 4355
57 58 59 60 61 62 63 64 6579 80 81 82 83 84 85 86 87
67
45
32
10 11 12 1333 34 3546 47 48 49 50 5168 69 70 71 72 74
73 76
75
53
37 36 54
38
25
151452
Fuses285
2015 Flex(471)
Owners Guide gf, 1st Printing, October 2014
USA(fus)
