Post-Crash Alert System..........................225
Customer Assistance
Getting the Services You Need...............226
In California (U.S. Only).............................227
The Better Business Bureau (BBB) Auto
Line Program (U.S. Only)......................228
Utilizing the Mediation/Arbitration Program (Canada Only).......................229
Getting Assistance Outside the U.S. and Canada........................................................229
Ordering Additional Owner's Literature....................................................230
Reporting Safety Defects (U.S. Only)..............................................................231
Reporting Safety Defects (Canada Only)..............................................................231
Fuses
Fuse Specification Chart...........................233
Changing a Fuse...........................................242
Maintenance
General Information
...................................243
Opening and Closing the Hood..............243
Under Hood Overview - 3.5L Duratec........................................................245
Under Hood Overview - 3.5L Ecoboost™................................................246
Engine Oil Dipstick.......................................247
Engine Oil Check..........................................247
Oil Change Indicator Reset.......................247
Engine Coolant Check
...............................248
Automatic Transmission Fluid Check ............................................................
252
Brake Fluid Check........................................253
Power Steering Fluid Check.....................254
Washer Fluid Check....................................254
Changing the 12V Battery.........................254
Checking the Wiper Blades.....................256
Changing the Wiper Blades.....................256 Adjusting the Headlamps.........................257
Removing a Headlamp.............................258
Changing a Bulb...........................................258
Bulb Specification Chart
............................261
Changing the Engine Air Filter................263
Vehicle Care
General Information
...................................264
Cleaning Products
.......................................264
Cleaning the Exterior..................................264
Waxing.............................................................265
Cleaning the Engine
...................................266
Cleaning the Windows and Wiper Blades..........................................................266
Cleaning the Interior...................................267
Cleaning the Instrument Panel and Instrument Cluster Lens........................267
Cleaning Leather Seats.............................268
Repairing Minor Paint Damage..............268
Cleaning the Alloy Wheels
.......................268
Vehicle Storage
............................................269
Wheels and Tires
General Information.....................................271
Tire Care
...........................................................273
Using Snow Chains.....................................287
Tire Pressure Monitoring System..........288
Changing a Road Wheel
............................291
Technical Specifications..........................296
Capacities and Specific- ations
Engine Specifications - 3.5L Duratec........................................................297
Engine Specifications - 3.5L Ecoboost™................................................297
Motorcraft Parts - 3.5L Duratec.............298
Motorcraft Parts - 3.5L Ecoboost™......299
Vehicle Identification Number...............300
Vehicle Certification Label........................301
4
Flex (), enUSA, First Printing Table of Contents
Page 166 of 417

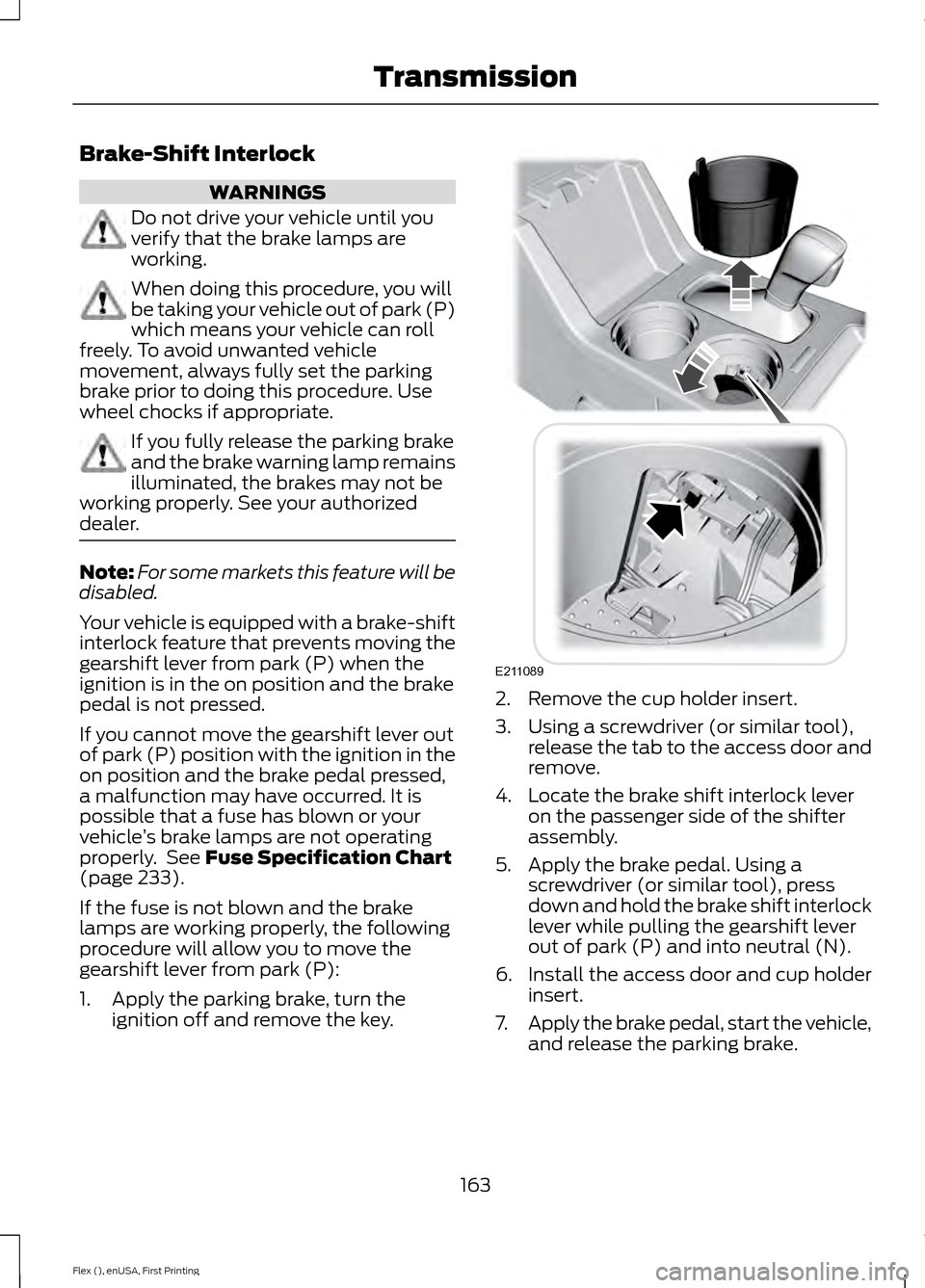

Brake-Shift Interlock
WARNINGS
Do not drive your vehicle until you
verify that the brake lamps are
working.
When doing this procedure, you will
be taking your vehicle out of park (P)
which means your vehicle can roll
freely. To avoid unwanted vehicle
movement, always fully set the parking
brake prior to doing this procedure. Use
wheel chocks if appropriate. If you fully release the parking brake
and the brake warning lamp remains
illuminated, the brakes may not be
working properly. See your authorized
dealer. Note:
For some markets this feature will be
disabled.
Your vehicle is equipped with a brake-shift
interlock feature that prevents moving the
gearshift lever from park (P) when the
ignition is in the on position and the brake
pedal is not pressed.
If you cannot move the gearshift lever out
of park (P) position with the ignition in the
on position and the brake pedal pressed,
a malfunction may have occurred. It is
possible that a fuse has blown or your
vehicle ’s brake lamps are not operating
properly. See Fuse Specification Chart
(page 233).
If the fuse is not blown and the brake
lamps are working properly, the following
procedure will allow you to move the
gearshift lever from park (P):
1. Apply the parking brake, turn the ignition off and remove the key. 2. Remove the cup holder insert.
3. Using a screwdriver (or similar tool),
release the tab to the access door and
remove.
4. Locate the brake shift interlock lever on the passenger side of the shifter
assembly.
5. Apply the brake pedal. Using a screwdriver (or similar tool), press
down and hold the brake shift interlock
lever while pulling the gearshift lever
out of park (P) and into neutral (N).
6. Install the access door and cup holder insert.
7. Apply the brake pedal, start the vehicle,
and release the parking brake.
163
Flex (), enUSA, First Printing TransmissionE211089
Page 236 of 417

FUSE SPECIFICATION CHART
Power Distribution Box
WARNINGS
Always disconnect the battery before
servicing high-current fuses.
To reduce risk of electrical shock,
always replace the cover to the
power distribution box before
reconnecting the battery or refilling fluid
reservoirs. The power distribution box is in the engine
compartment. It has high-current fuses
that protect the vehicle's main electrical
systems from overloads.
If you disconnect and reconnect the
battery, you will need to reset some
features. See Changing the 12V Battery
(page 254).
Protected components
Fuse amp rating
Fuse or relay number
Fan relay 2.
40A **
1
Fan relay 1.
40A **
2
Trailer brake control module.
30A **
3
Wipers.
30A **
4
Washer pump.
Anti-lock brake system pump.
50A **
5
233
Flex (), enUSA, First Printing FusesE173618
97
98
77 96
95
94
9392 919089
88
66
44 78
56
39 26 18 16
17
3 1
2
4
5
6
7
8
9 19
20
21
22
23
24 27
28
29
30
31 40
41
42
43 55
57
58
59
60
61
62
63
64
65 79
80
81
82
83
84
85
86
87
67
45
32
10
11
12
13 33
34
35 46
47
48
49
50
51 68
69
70
71
72
74
73
76
75
53
37 36
54
38
25
15
1452
Page 248 of 417

UNDER HOOD OVERVIEW - 3.5L DURATEC
Engine coolant reservoir. See Engine Coolant Check (page 248).
A
Brake fluid reservoir. See
Brake Fluid Check (page 253).
B
Battery. See
Changing the 12V Battery (page 254).
C
Engine compartment fusebox. See
Fuse Specification Chart (page 233).
D
Air filter assembly. See
Changing the Engine Air Filter (page 263).
E
Automatic transmission fluid dipstick. See
Automatic Transmission Fluid
Check (page 252).
F
Engine oil dipstick. See
Engine Oil Dipstick (page 247).
G
Engine oil filler cap. See
Engine Oil Check (page 247).
H
Windshield washer fluid reservoir. See
Washer Fluid Check (page 254).
I
245
Flex (), enUSA, First Printing MaintenanceIEFGH
ABCD
E223186
Page 409 of 417

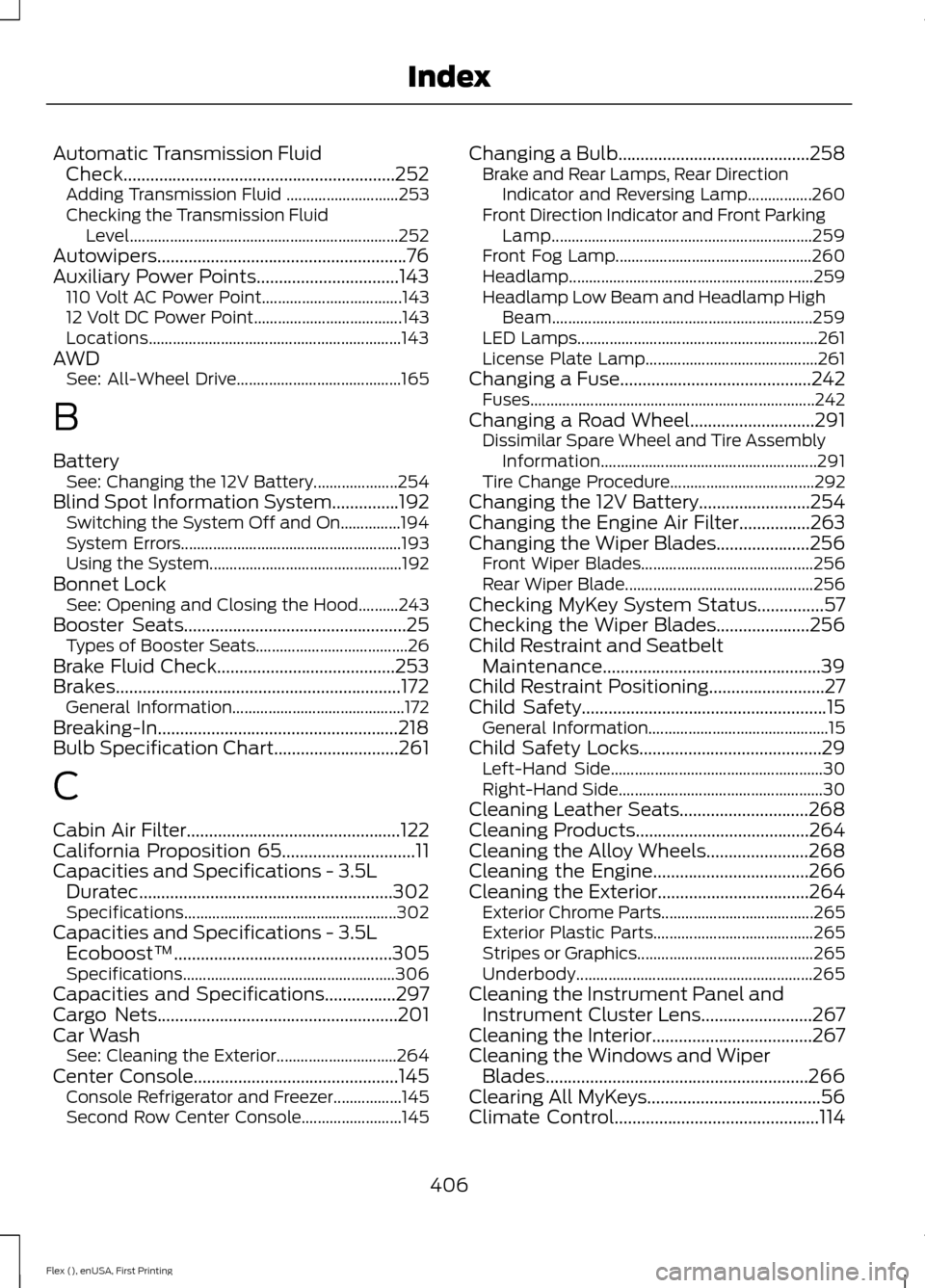

Automatic Transmission Fluid
Check.............................................................252
Adding Transmission Fluid ............................ 253
Checking the Transmission Fluid Level................................................................... 252
Autowipers........................................................76
Auxiliary Power Points................................143 110 Volt AC Power Point................................... 143
12 Volt DC Power Point..................................... 143
Locations............................................................... 143
AWD See: All-Wheel Drive......................................... 165
B
Battery See: Changing the 12V Battery..................... 254
Blind Spot Information System...............192
Switching the System Off and On...............194
System Errors....................................................... 193
Using the System................................................ 192
Bonnet Lock See: Opening and Closing the Hood..........243
Booster Seats..................................................25 Types of Booster Seats...................................... 26
Brake Fluid Check........................................253
Brakes................................................................172 General Information........................................... 172
Breaking-In......................................................218
Bulb Specification Chart............................261
C
Cabin Air Filter
................................................122
California Proposition 65..............................11
Capacities and Specifications - 3.5L Duratec
.........................................................302
Specifications..................................................... 302
Capacities and Specifications - 3.5L Ecoboost™.................................................305
Specifications..................................................... 306
Capacities and Specifications
................297
Cargo Nets......................................................201
Car Wash See: Cleaning the Exterior.............................. 264
Center Console..............................................145 Console Refrigerator and Freezer.................145
Second Row Center Console......................... 145Changing a Bulb...........................................258
Brake and Rear Lamps, Rear Direction
Indicator and Reversing Lamp................260
Front Direction Indicator and Front Parking Lamp................................................................. 259
Front Fog Lamp................................................. 260
Headlamp............................................................. 259
Headlamp Low Beam and Headlamp High Beam................................................................. 259
LED Lamps............................................................ 261
License Plate Lamp........................................... 261
Changing a Fuse...........................................242 Fuses....................................................................... 242
Changing a Road Wheel............................291 Dissimilar Spare Wheel and Tire Assembly
Information...................................................... 291
Tire Change Procedure.................................... 292
Changing the 12V Battery.........................254
Changing the Engine Air Filter................263
Changing the Wiper Blades.....................256 Front Wiper Blades........................................... 256
Rear Wiper Blade............................................... 256
Checking MyKey System Status
...............57
Checking the Wiper Blades.....................256
Child Restraint and Seatbelt Maintenance.................................................39
Child Restraint Positioning
..........................27
Child Safety.......................................................15
General Information............................................. 15
Child Safety Locks
.........................................29
Left-Hand Side..................................................... 30
Right-Hand Side................................................... 30
Cleaning Leather Seats.............................268
Cleaning Products
.......................................264
Cleaning the Alloy Wheels.......................268
Cleaning the Engine...................................266
Cleaning the Exterior..................................264 Exterior Chrome Parts...................................... 265
Exterior Plastic Parts........................................ 265
Stripes or Graphics............................................ 265
Underbody........................................................... 265
Cleaning the Instrument Panel and Instrument Cluster Lens
.........................267
Cleaning the Interior....................................267
Cleaning the Windows and Wiper Blades...........................................................266
Clearing All MyKeys
.......................................56
Climate Control..............................................114
406
Flex (), enUSA, First Printing Index
Page 411 of 417

Extended Service Plan (ESP)..................367
EXTENDED SERVICE PLAN (CANADA
ONLY)............................................................... 368
EXTENDED SERVICE PLAN (U.S. Only).................................................................. 367
Exterior Mirrors................................................87
Blind Spot Information System...................... 88
Fold-Away Exterior Mirrors............................... 87
Heated Exterior Mirrors ..................................... 88
Integrated Blind Spot Mirror............................ 88
Memory Mirrors ................................................... 88
Power Exterior Mirrors........................................ 87
Power-Folding Mirrors........................................ 87
Puddle Lamps....................................................... 88
F
Fastening the Seatbelts...............................32 Rear Inflatable Seatbelt.................................... 34
Seatbelt Extension Assembly......................... 36
Seatbelt Locking Modes.................................... 33
Using Seatbelts During Pregnancy................32
Floor Mats
........................................................219
Fog Lamps - Front See: Front Fog Lamps........................................ 83
Foot Pedals See: Adjusting the Pedals.................................. 75
Ford Credit
..........................................................11
(U.S. Only)................................................................. 11
Front Fog Lamps............................................83
Front Passenger Sensing System............43
Fuel and Refueling.......................................153
Fuel Consumption
........................................157
Calculating Fuel Economy.............................. 158
Filling the Tank.................................................... 158
Fuel Filler Funnel Location........................154
Fuel Quality....................................................154 Choosing the Right Fuel................................... 154
Fuel Shutoff
...................................................222
Fuses.................................................................233
Fuse Specification Chart...........................233 Passenger Compartment Fuse
Panel.................................................................. 238
Power Distribution Box.................................... 233G
Garage Door Opener
See: Universal Garage Door Opener...........138
Gauges................................................................91
General Information on Radio Frequencies...................................................49
Intelligent Access................................................. 49
General Maintenance Information.......369 Multi-Point Inspection....................................... 371
Owner Checks and Services.......................... 370
Protecting Your Investment.......................... 369
Why Maintain Your Vehicle?......................... 369
Why Maintain Your Vehicle at Your Dealership?..................................................... 369
Getting Assistance Outside the U.S. and Canada.........................................................229
Getting the Services You Need...............226 Away From Home.............................................. 226
H
Handbrake See: Parking Brake.............................................. 173
Hazard Warning Flashers..........................222
Headlamp Adjusting See: Adjusting the Headlamps..................... 257
Headlamp Exit Delay.....................................81
Headlamp Removal See: Removing a Headlamp.......................... 258
Head Restraints
.............................................123
Adjusting the Head Restraint......................... 124
Tilting Head Restraints .................................... 125
Heated Seats.................................................136 Front Seats............................................................ 136
Second Row Heated Seats............................. 136
Heated Steering Wheel................................74
Heated Windows and Mirrors
....................121
Heated Exterior Mirror....................................... 122
Heated Rear Window......................................... 121
Heating See: Climate Control.......................................... 114
408
Flex (), enUSA, First Printing Index
