compression ratio FORD FLEX 2019 Owners Manual

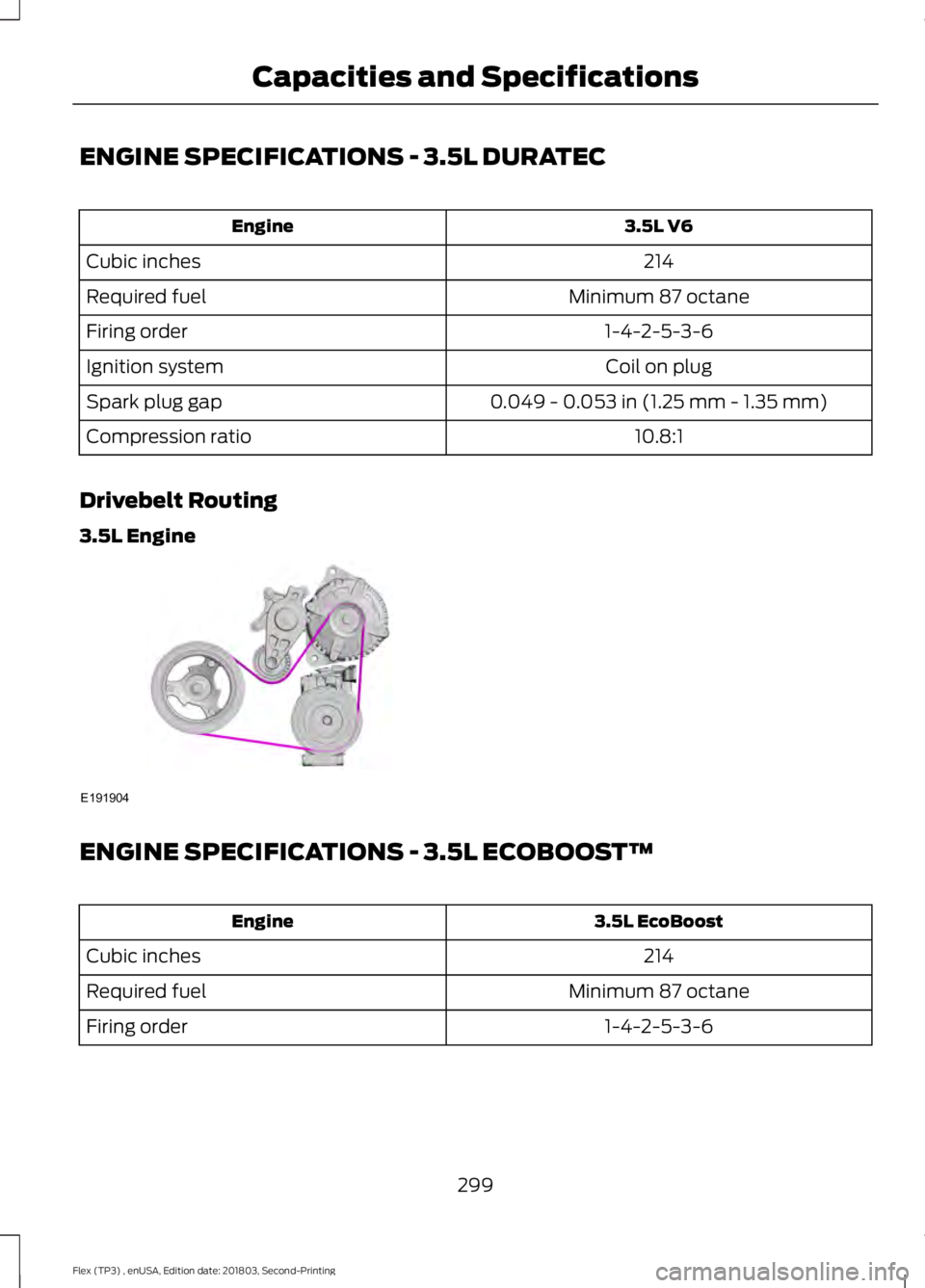

ENGINE SPECIFICATIONS - 3.5L DURATEC
3.5L V6
Engine
214
Cubic inches
Minimum 87 octane
Required fuel
1-4-2-5-3-6
Firing order
Coil on plug
Ignition system
0.049 - 0.053 in (1.25 mm - 1.35 mm)
Spark plug gap
10.8:1
Compression ratio
Drivebelt Routing
3.5L Engine ENGINE SPECIFICATIONS - 3.5L ECOBOOST™
3.5L EcoBoost
Engine
214
Cubic inches
Minimum 87 octane
Required fuel
1-4-2-5-3-6
Firing order
299
Flex (TP3) , enUSA, Edition date: 201803, Second-Printing Capacities and SpecificationsE191904

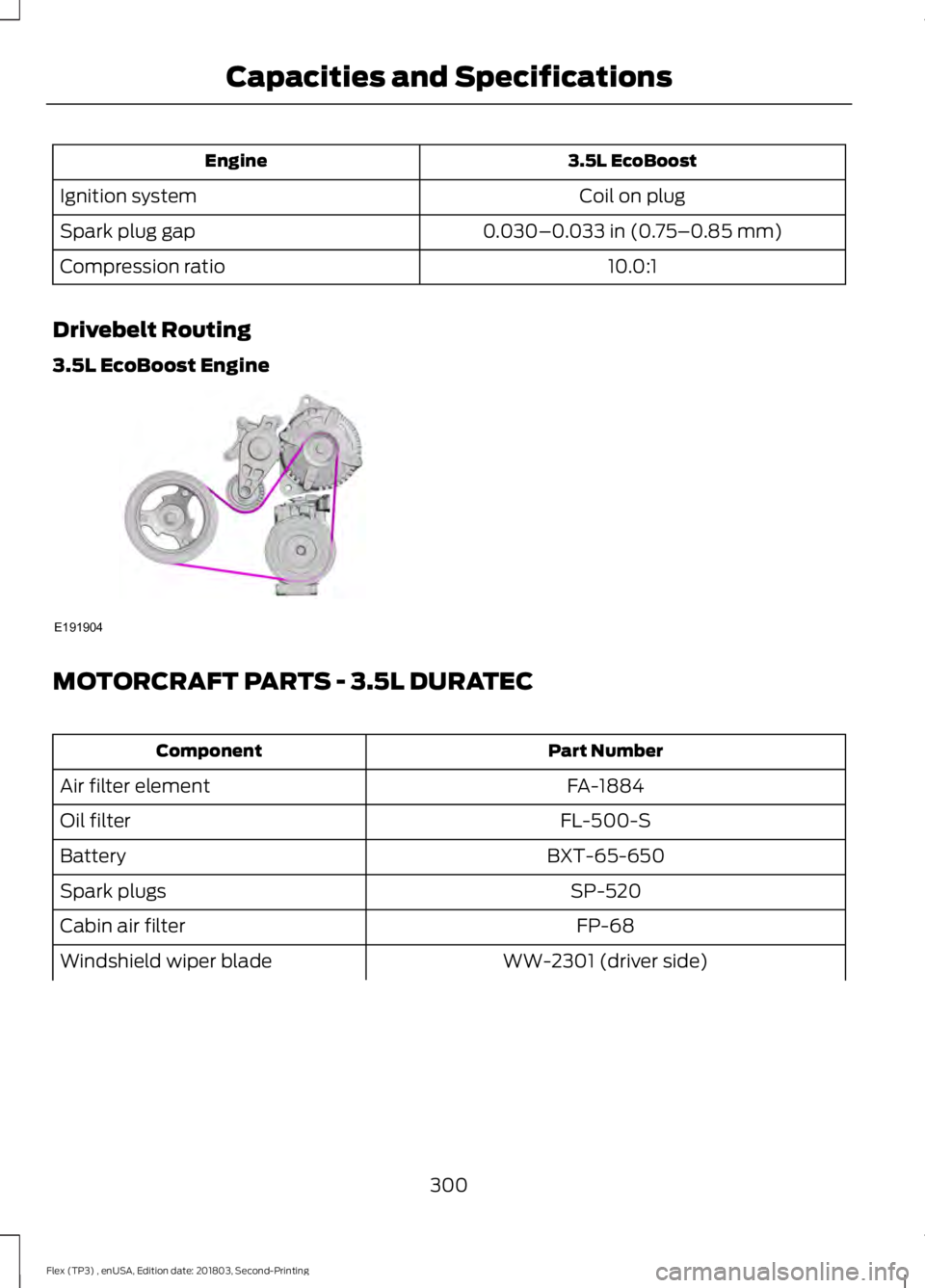

3.5L EcoBoost
Engine
Coil on plug
Ignition system
0.030–0.033 in (0.75–0.85 mm)
Spark plug gap
10.0:1
Compression ratio
Drivebelt Routing
3.5L EcoBoost Engine MOTORCRAFT PARTS - 3.5L DURATEC
Part Number
Component
FA-1884
Air filter element
FL-500-S
Oil filter
BXT-65-650
Battery
SP-520
Spark plugs
FP-68
Cabin air filter
WW-2301 (driver side)
Windshield wiper blade
300
Flex (TP3) , enUSA, Edition date: 201803, Second-Printing Capacities and SpecificationsE191904
