To activate RDS, press and hold MENU until RDS ON or RDS OFF
appears in the display. Press MENU again to continue to FIND and
SHOW functions. Press the Tune Selector (
/)orSEEKto
toggle RDS on/off and to scroll through the FIND and SHOW functions.
Track/Folder mode:Available only on MP3 discs in CD mode. In Track
Mode, CD functions use all tracks on the disc. In Folder Mode, CD
functions use the tracks only within the current folder.
Compression:Available only in CD mode. Compression brings soft and
loud CD passages together for a more consistent listening level.
Autoset:Sets the strongest radio stations on the radio frequency band
without losing the original manually set preset stations for the current
radio frequency band. With AUTOSET ON, the six strongest stations are
filled in the presets. The tuner will be set to the station stored in preset
1. If there are less than six strong stations, the system will store the last
one in all of the remaining presets. Turning AUTOSET OFF returns the
presets to the original preset stations.
Bass/Treble:Press the Tune Selector (
/)orSEEKto
increase/decrease the Bass or Treble levels.
Balance:Press the Tune Selector (
/)orSEEKto adjust
the audio between the left and right speakers.
Fade:Press the Tune Selector (
/)orSEEKto adjust the
audio between the front and rear speakers.
Speed sensitive volume:Radio volume automatically adjusts according
to vehicle speed to compensate for road and wind noise. Press the Tune
selector (
/)orSEEKto turn off or select rates 1 through
7. Rate 7 compensates the most volume at higher speeds.
Setting the clock:Upon initial battery connect, this function is
displayed first among MENU functions. Once the clock is set, this will be
shown as the last MENU function. Press MENU until SELECT HOUR or
SELECT MINS is displayed. Press the Tune selector (
/) to adjust
the hours/minutes.
4.Aux:Press to access the
Auxiliary mode. If no auxiliary
sources are available, NO AUX
AUDIO will be displayed.
2005 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
21

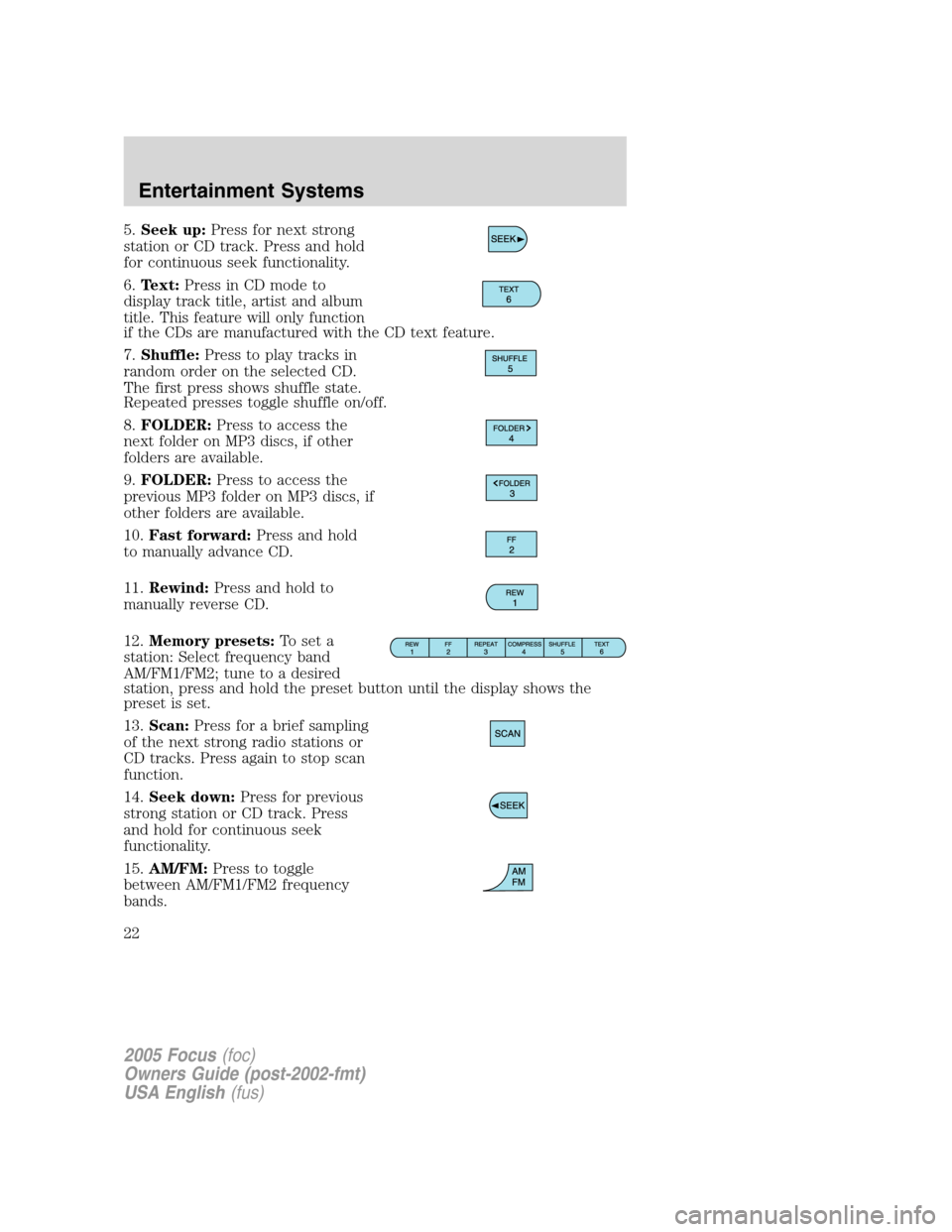

5.Seek up:Press for next strong
station or CD track. Press and hold
for continuous seek functionality.
6.Text:Press in CD mode to
display track title, artist and album
title. This feature will only function
if the CDs are manufactured with the CD text feature.
7.Shuffle:Press to play tracks in
random order on the selected CD.
The first press shows shuffle state.
Repeated presses toggle shuffle on/off.
8.FOLDER:Press to access the
next folder on MP3 discs, if other
folders are available.
9.FOLDER:Press to access the
previous MP3 folder on MP3 discs, if
other folders are available.
10.Fast forward:Press and hold
to manually advance CD.
11.Rewind:Press and hold to
manually reverse CD.
12.Memory presets:To set a
station: Select frequency band
AM/FM1/FM2; tune to a desired
station, press and hold the preset button until the display shows the
preset is set.
13.Scan:Press for a brief sampling
of the next strong radio stations or
CD tracks. Press again to stop scan
function.
14.Seek down:Press for previous
strong station or CD track. Press
and hold for continuous seek
functionality.
15.AM/FM:Press to toggle
between AM/FM1/FM2 frequency
bands.
2005 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
22

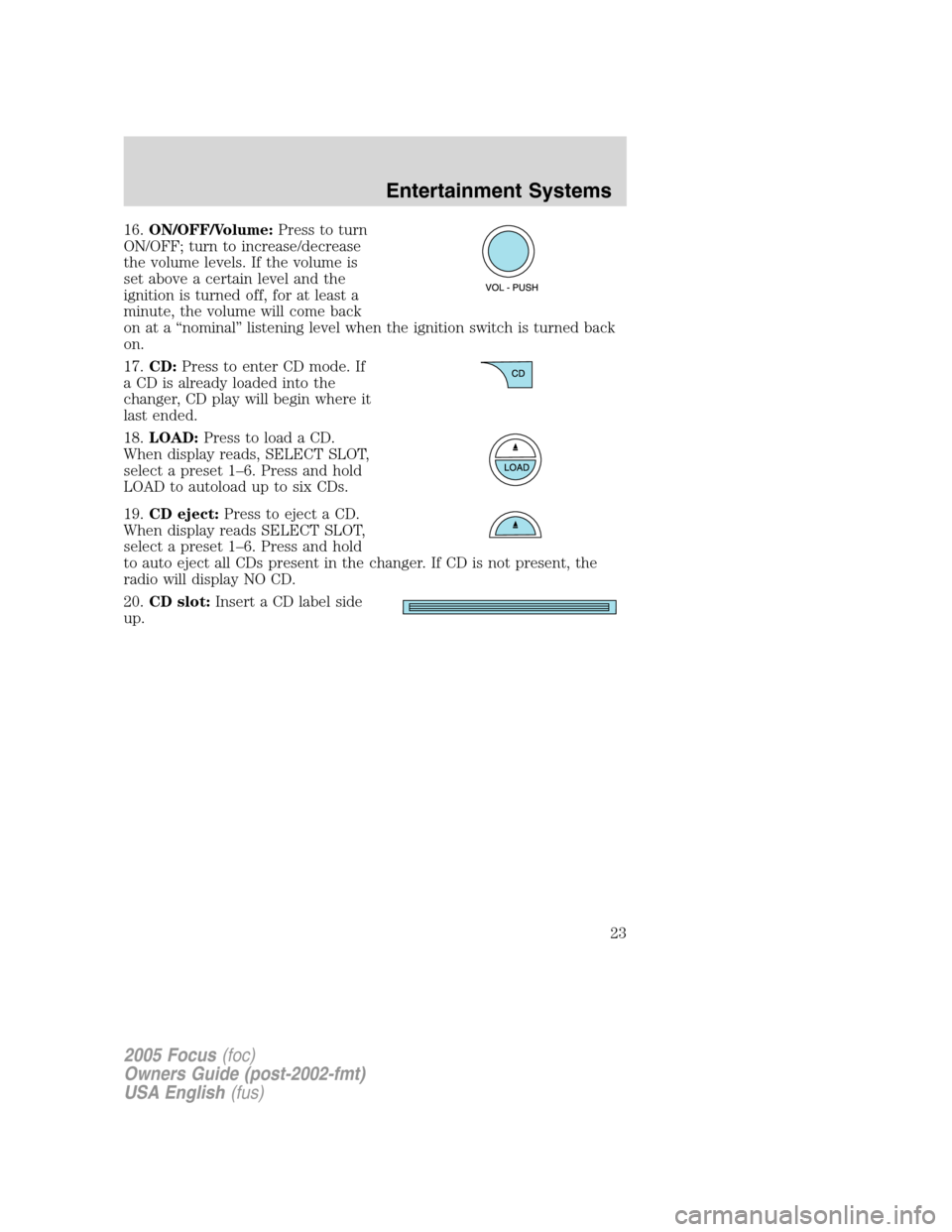

16.ON/OFF/Volume:Press to turn
ON/OFF; turn to increase/decrease
the volume levels. If the volume is
set above a certain level and the
ignition is turned off, for at least a
minute, the volume will come back
on at a“nominal”listening level when the ignition switch is turned back
on.
17.CD:Press to enter CD mode. If
a CD is already loaded into the
changer, CD play will begin where it
last ended.
18.LOAD:Press to load a CD.
When display reads, SELECT SLOT,
select a preset 1–6. Press and hold
LOAD to autoload up to six CDs.
19.CD eject:Press to eject a CD.
When display reads SELECT SLOT,
select a preset 1–6. Press and hold
to auto eject all CDs present in the changer. If CD is not present, the
radio will display NO CD.
20.CD slot:Insert a CD label side
up.
2005 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
23

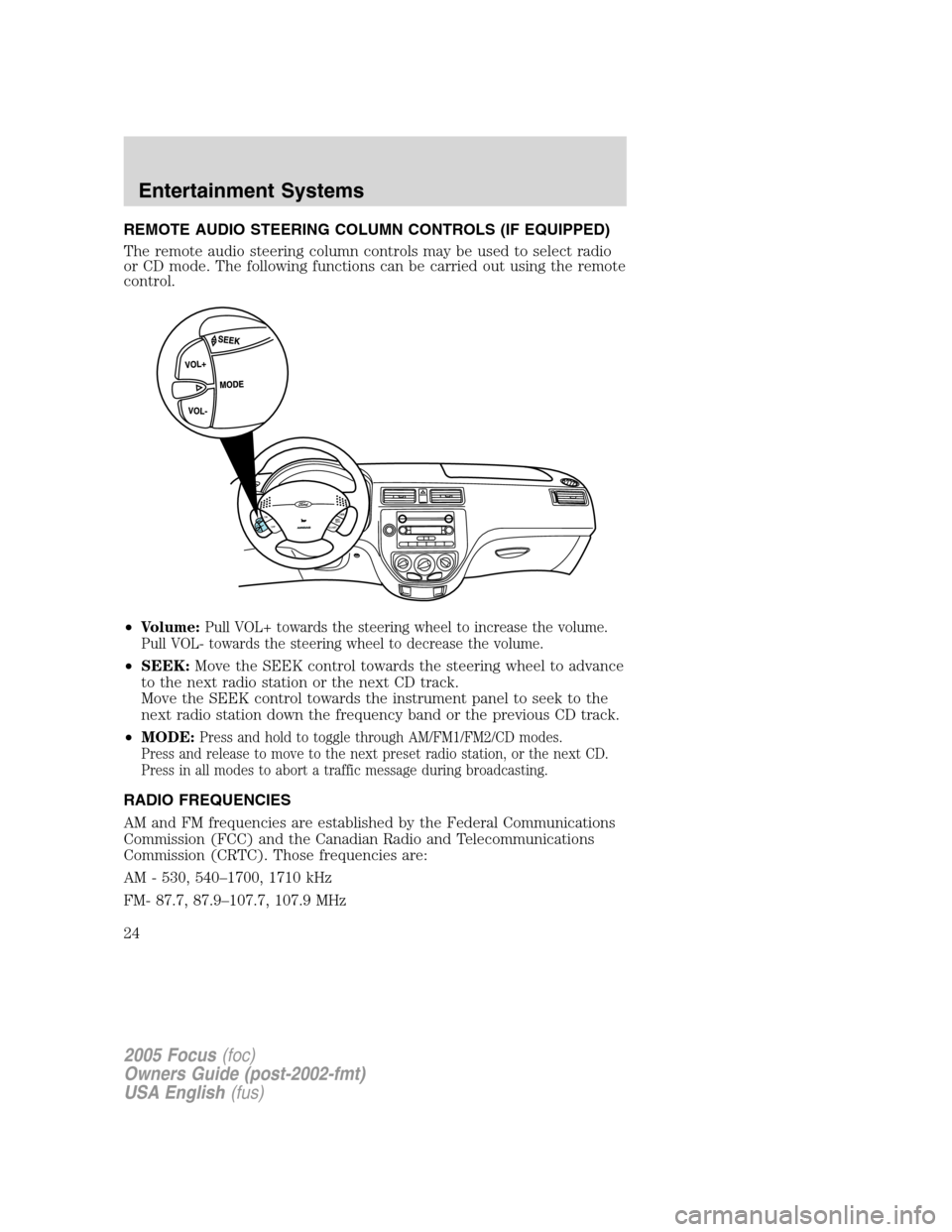

REMOTE AUDIO STEERING COLUMN CONTROLS (IF EQUIPPED)
The remote audio steering column controls may be used to select radio
or CD mode. The following functions can be carried out using the remote
control.
•Volume:
Pull VOL+ towards the steering wheel to increase the volume.
Pull VOL- towards the steering wheel to decrease the volume.
•SEEK:Move the SEEK control towards the steering wheel to advance
to the next radio station or the next CD track.
Move the SEEK control towards the instrument panel to seek to the
next radio station down the frequency band or the previous CD track.
•MODE:
Press and hold to toggle through AM/FM1/FM2/CD modes.
Press and release to move to the next preset radio station, or the next CD.
Press in all modes to abort a traffic message during broadcasting.
RADIO FREQUENCIES
AM and FM frequencies are established by the Federal Communications
Commission (FCC) and the Canadian Radio and Telecommunications
Commission (CRTC). Those frequencies are:
AM - 530, 540–1700, 1710 kHz
FM- 87.7, 87.9–107.7, 107.9 MHz
2005 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
24

RADIO RECEPTION FACTORS
There are three factors that can effect radio reception:
•Distance/strength: The further you travel from an FM station, the
weaker the signal and the weaker the reception.
•Terrain: Hills, mountains, tall buildings, power lines, electric fences,
traffic lights and thunderstorms can interfere with your reception.
•Station overload: When you pass a broadcast tower, a stronger signal
may overtake a weaker one and play while the weak station frequency
is displayed.
CD/CD PLAYER CARE
Do:
•Handle discs by their edges only. Never touch the playing surface.
•Inspect discs before playing. Clean only with an approved CD cleaner
and wipe from the center out.
Don’t:
•Expose discs to direct sunlight or heat sources for extended periods
of time.
•Insert more than one disc into each slot of the CD changer magazine.
•Clean using a circular motion.
CD units are designed to play commercially pressed 12 cm (4.75 in)
audio compact discs only. Due to technical incompatibility, certain
recordable and re-recordable compact discs may not function
correctly when used in Ford CD players. Irregular shaped CDs,
CDs with a scratch protection film attached, and CDs with
homemade paper (adhesive) labels should not be inserted into
the CD player. The label may peel and cause the CD to become
jammed. It is recommended that homemade CDs be identified
with permanent felt tip marker rather than adhesive labels.
Ballpoint pens may damage CDs. Please contact your dealer for
further information.
AUDIO SYSTEM WARRANTY AND SERVICE
Refer to theWarranty Guidefor audio system warranty information. If
service is necessary, see your dealer or qualified technician.
2005 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
25

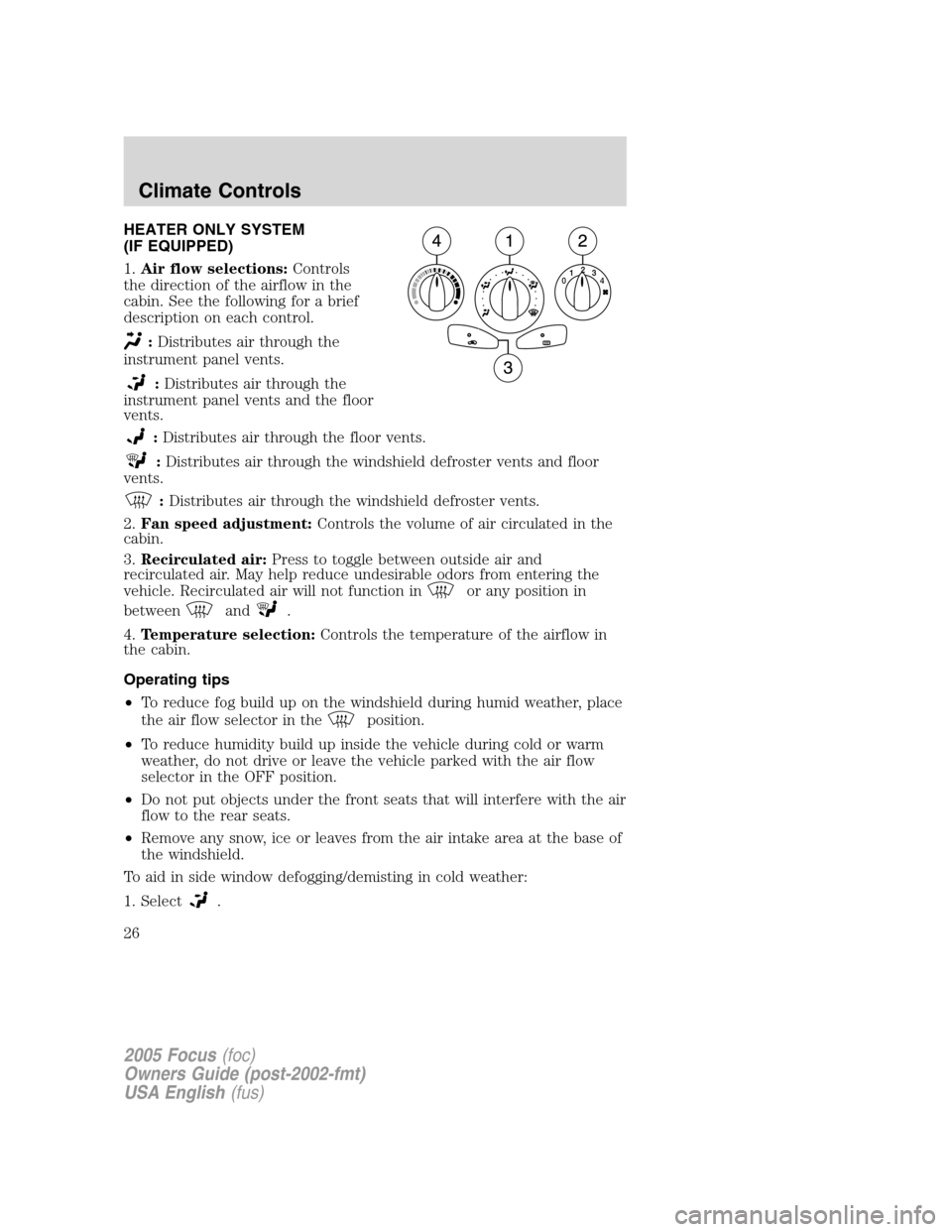

HEATER ONLY SYSTEM
(IF EQUIPPED)
1.Air flow selections:Controls
the direction of the airflow in the
cabin. See the following for a brief
description on each control.
:Distributes air through the
instrument panel vents.
:Distributes air through the
instrument panel vents and the floor
vents.
:Distributes air through the floor vents.
:Distributes air through the windshield defroster vents and floor
vents.
:Distributes air through the windshield defroster vents.
2.Fan speed adjustment:Controls the volume of air circulated in the
cabin.
3.Recirculated air:Press to toggle between outside air and
recirculated air. May help reduce undesirable odors from entering the
vehicle. Recirculated air will not function in
or any position in
between
and.
4.Temperature selection:Controls the temperature of the airflow in
the cabin.
Operating tips
•To reduce fog build up on the windshield during humid weather, place
the air flow selector in the
position.
•To reduce humidity build up inside the vehicle during cold or warm
weather, do not drive or leave the vehicle parked with the air flow
selector in the OFF position.
•Do not put objects under the front seats that will interfere with the air
flow to the rear seats.
•Remove any snow, ice or leaves from the air intake area at the base of
the windshield.
To aid in side window defogging/demisting in cold weather:
1. Select
.
2005 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Climate Controls
Climate Controls
26

2. Modulate the temperature control to maintain comfort.
3. Set the fan speed to the highest setting.
4. Direct the outer instrument panel vents toward the side windows.
To increase airflow to the outer instrument panel vents, close the vents
located in the middle of the instrument panel.
Do not place objects on top of the instrument panel as these
objects may become projectiles in a collision or sudden stop.

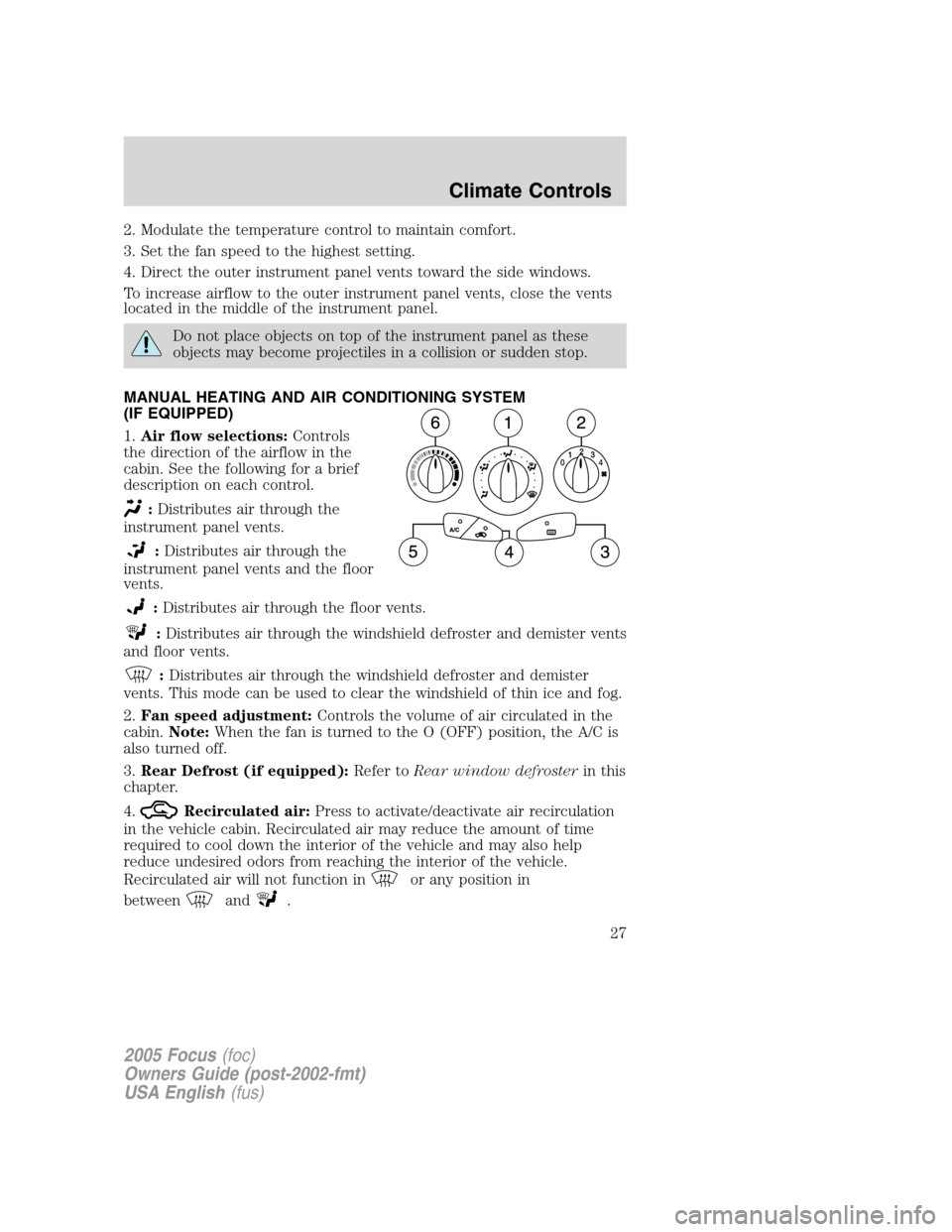

MANUAL HEATING AND AIR CONDITIONING SYSTEM
(IF EQUIPPED)
1.Air flow selections:Controls
the direction of the airflow in the
cabin. See the following for a brief
description on each control.
:Distributes air through the
instrument panel vents.
:Distributes air through the
instrument panel vents and the floor
vents.
:Distributes air through the floor vents.
:Distributes air through the windshield defroster and demister vents
and floor vents.
:Distributes air through the windshield defroster and demister
vents. This mode can be used to clear the windshield of thin ice and fog.
2.Fan speed adjustment:Controls the volume of air circulated in the
cabin.Note:When the fan is turned to the O (OFF) position, the A/C is
also turned off.
3.Rear Defrost (if equipped):Refer toRear window defrosterin this
chapter.
4.
Recirculated air:Press to activate/deactivate air recirculation
in the vehicle cabin. Recirculated air may reduce the amount of time
required to cool down the interior of the vehicle and may also help
reduce undesired odors from reaching the interior of the vehicle.
Recirculated air will not function in
or any position in
between
and.
2005 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Climate Controls
27

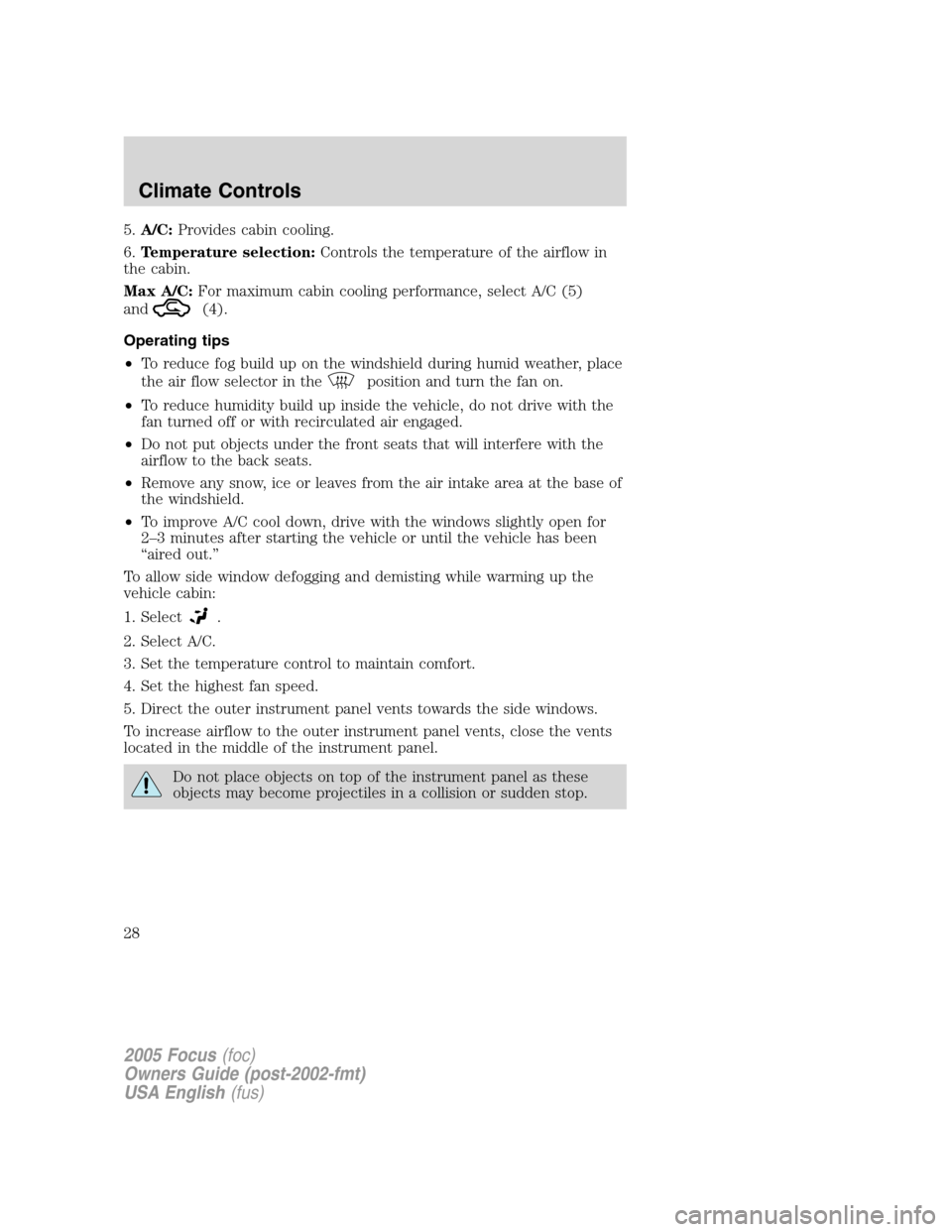

5.A/C:Provides cabin cooling.
6.Temperature selection:Controls the temperature of the airflow in
the cabin.
Max A/C:For maximum cabin cooling performance, select A/C (5)
and
(4).
Operating tips
•To reduce fog build up on the windshield during humid weather, place
the air flow selector in the
position and turn the fan on.
•To reduce humidity build up inside the vehicle, do not drive with the
fan turned off or with recirculated air engaged.
•Do not put objects under the front seats that will interfere with the
airflow to the back seats.
•Remove any snow, ice or leaves from the air intake area at the base of
the windshield.
•To improve A/C cool down, drive with the windows slightly open for
2–3 minutes after starting the vehicle or until the vehicle has been
“aired out.”
To allow side window defogging and demisting while warming up the
vehicle cabin:
1. Select
.
2. Select A/C.
3. Set the temperature control to maintain comfort.
4. Set the highest fan speed.
5. Direct the outer instrument panel vents towards the side windows.
To increase airflow to the outer instrument panel vents, close the vents
located in the middle of the instrument panel.
Do not place objects on top of the instrument panel as these
objects may become projectiles in a collision or sudden stop.
2005 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Climate Controls
28

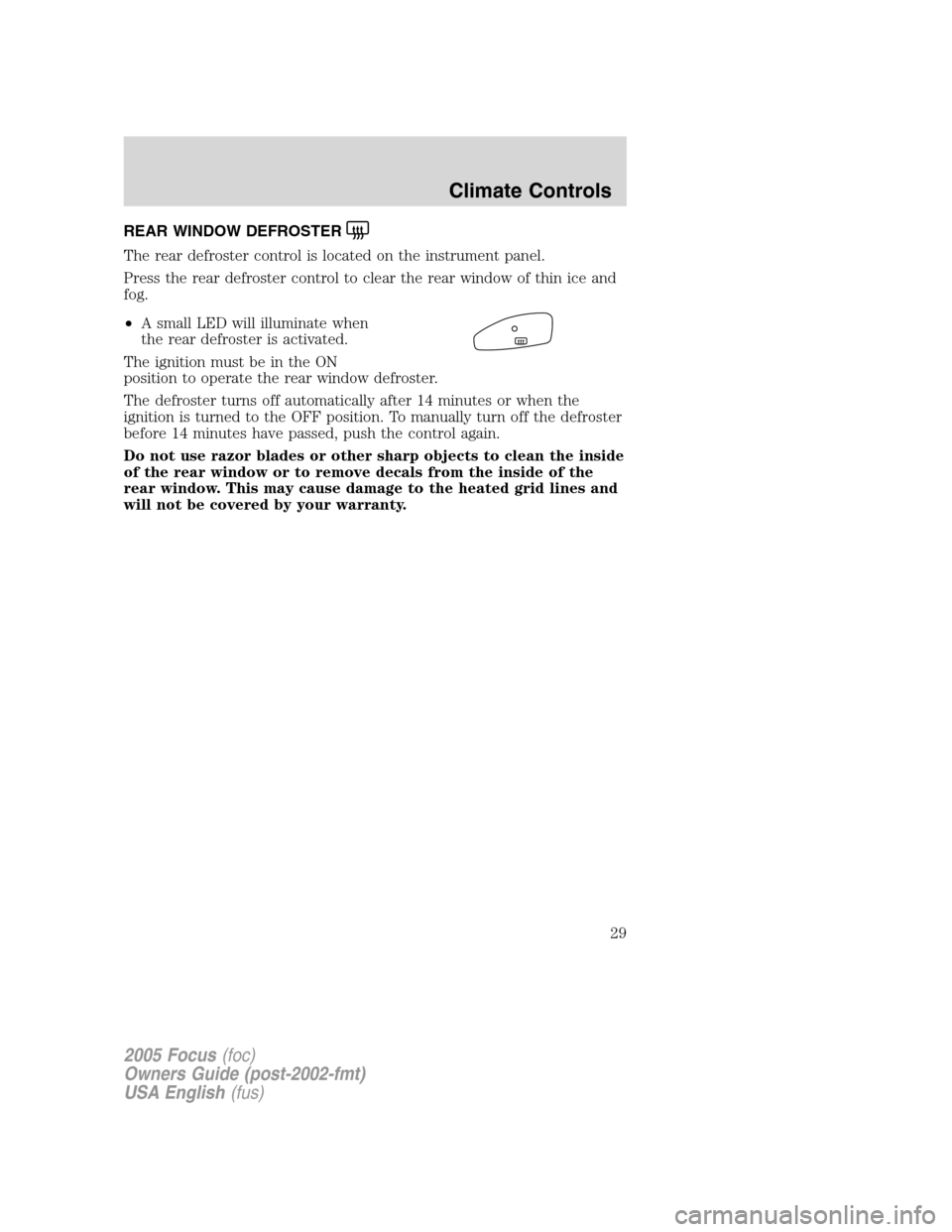

REAR WINDOW DEFROSTER
The rear defroster control is located on the instrument panel.
Press the rear defroster control to clear the rear window of thin ice and
fog.
•A small LED will illuminate when
the rear defroster is activated.
The ignition must be in the ON
position to operate the rear window defroster.
The defroster turns off automatically after 14 minutes or when the
ignition is turned to the OFF position. To manually turn off the defroster
before 14 minutes have passed, push the control again.
Do not use razor blades or other sharp objects to clean the inside
of the rear window or to remove decals from the inside of the
rear window. This may cause damage to the heated grid lines and
will not be covered by your warranty.
2005 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Climate Controls
29

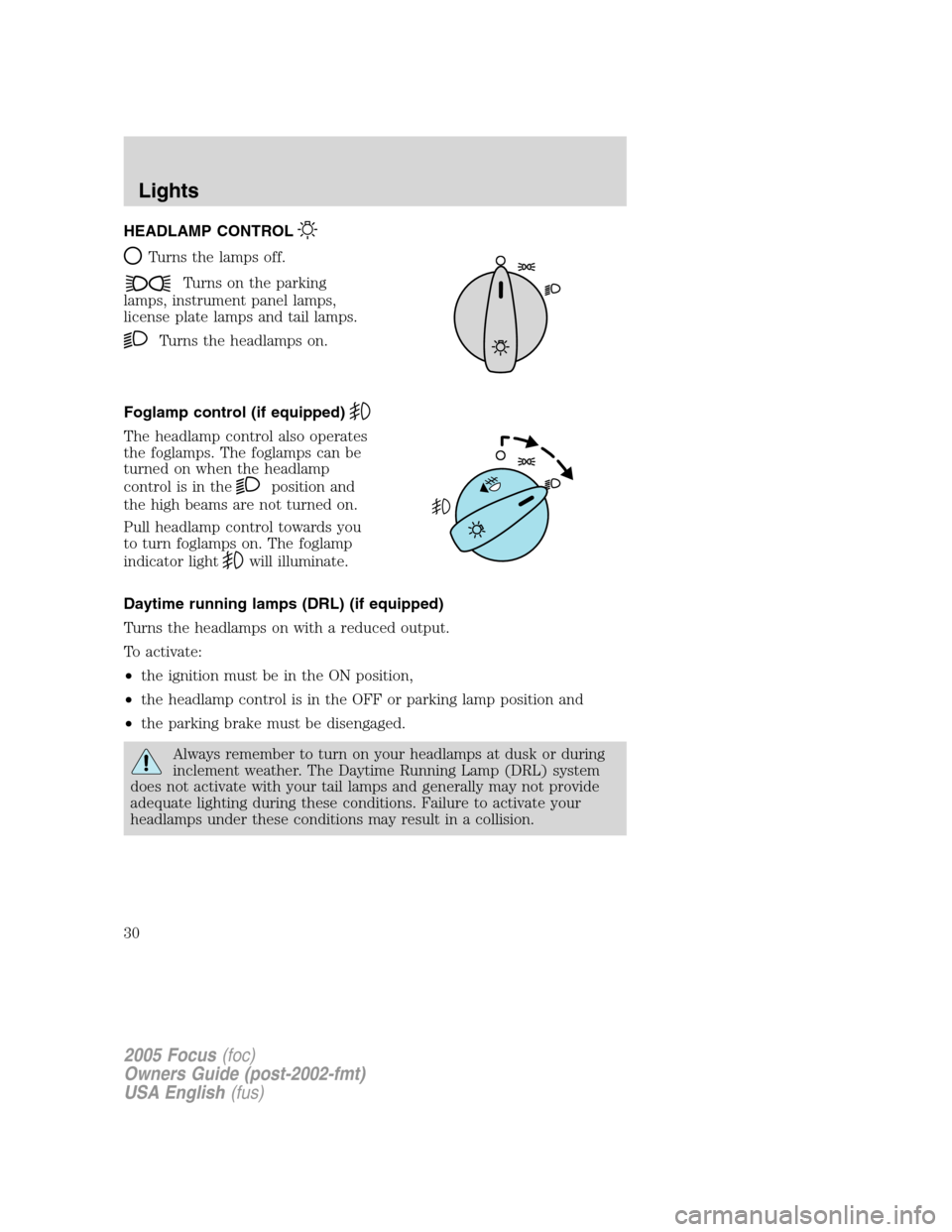

HEADLAMP CONTROL
Turns the lamps off.
Turns on the parking
lamps, instrument panel lamps,
license plate lamps and tail lamps.
Turns the headlamps on.
Foglamp control (if equipped)
The headlamp control also operates
the foglamps. The foglamps can be
turned on when the headlamp
control is in the
position and
the high beams are not turned on.
Pull headlamp control towards you
to turn foglamps on. The foglamp
indicator light
will illuminate.
Daytime running lamps (DRL) (if equipped)
Turns the headlamps on with a reduced output.
To activate:
•the ignition must be in the ON position,
•the headlamp control is in the OFF or parking lamp position and
•the parking brake must be disengaged.
Always remember to turn on your headlamps at dusk or during
inclement weather. The Daytime Running Lamp (DRL) system
does not activate with your tail lamps and generally may not provide
adequate lighting during these conditions. Failure to activate your
headlamps under these conditions may result in a collision.
2005 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Lights
Lights
30
