Page 31 of 224
High beams
Pull the lever towards you to
activate. Pull the lever towards you
again to deactivate.
Flash to pass
Pull toward you slightly to activate
and release to deactivate.
PANEL DIMMER CONTROL
Use to adjust the brightness of the
instrument panel during headlight
and parklamp operation.
•Rotate the thumbwheel from left
to right to brighten the
instrument panel.
•Rotate the thumbwheel from right to left to dim the instrument panel.
VERTICAL AIM ADJUSTMENT
1. Park the vehicle on a level surface directly in front of a vertical wall or
screen, approximately 7.6 meters (25 feet) away.
2. Measure the height of the headlamp bulb center from the ground and
mark a 2.5 meters (8 foot) horizontal reference line on the vertical wall
or screen at this height. (A piece of masking tape works well.)
3. Turn on the low beam headlamps to illuminate the wall or screen and
open the hood.
4. On the wall or screen you will observe an area of high intensity light.
The top of the high intensity area should touch the horizontal reference
line. If not, the beam will need to be adjusted.
2005 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Lights
31
Page 32 of 224
5. Locate the vertical adjuster on
each headlamp. Using a 7mm Allen
wrench, turn the adjuster either
clockwise (to adjust down) or
counterclockwise (to adjust up).
The high intensity area should touch
the horizontal reference line.
Note:HORIZONTAL AIM IS NOT
REQUIRED FOR THIS VEHICLE
AND IS NON-ADJUSTIBLE.
6. Close the hood and turn off the lamps.
TURN SIGNAL CONTROL
•Push down to activate the left
turn signal.
•Push up to activate the right turn
signal.
INTERIOR LAMPS
Dome lamps
The dome lamp is equipped with a
control switch that will illuminate
when:
•the doors are closed and the
switch is in the on position.
•the switch is in the door activated
position and any door is open.
When the dome lamp switch is in the off position, it will not illuminate
when you open the doors.
2005 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Lights
32
Page 33 of 224
Reading lamps (if equipped)
The reading lamps are operated by
separate on/off controls.
Theater dimming: The dome lamp
dims about 20 seconds after the
doors are closed.
BULBS
Replacing exterior bulbs
Check the operation of all the bulbs frequently.
Using the right bulbs
Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized“D.O.T.”for North America to assure
lamp performance, light brightness and pattern and safe visibility. The
correct bulbs will not damage the lamp assembly or void the lamp
assembly warranty and will provide quality bulb burn time.
Function Trade number
Headlamps HB5
Park and turn lamp (front) 3157K
Side marker lamp (front) GE194
Foglamps (if equipped) H11
Stop/turn and tail lamps 3157K
Backup lamp (sedan/wagon) 3156K
Backup lamp (3-door/5-door) 921
License plate lamp C-5W
High-mount brakelamp W5W
Dome lamp (front/rear) 12V10W
Map lamp 12V6W
Luggage compartment 12V10W
To replace all instrument panel lights - see your dealer
Replacing the interior bulbs
Check the operation of the bulbs frequently. To replace any of the
interior bulbs, see a dealer or qualified technician.
2005 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Lights
33
Page 34 of 224
Replacing headlamp bulbs
1. Make sure the headlamp control
is in the OFF position and open the
hood.
2. Remove the cover panel at the
front of the engine compartment.
3. Remove the bulb cap by turning it
counterclockwise (inboard).
4. Pull the bulb straight out from
the bulb holder.
Install in reverse order.
Handle a halogen headlamp bulb carefully and keep out of
children’s reach. Grasp the bulb by only its plastic base and do
not touch the glass. The oil from your hand could cause the bulb to
break the next time the headlamps are operated.
Note:If the bulb is accidentally touched, it should be cleaned with
rubbing alcohol before being used.
Replacing front parking lamp/turn signal bulbs
1. Make sure the headlamp control
is in the OFF position and open the
hood.
2. Remove the cover panel at the
front of the engine compartment.
3. Remove the bulb socket from the
lamp assembly by turning
counterclockwise (inboard).
4. Pull the bulb straight out of the
socket.
Install in reverse order.
2005 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Lights
34
Page 35 of 224
Replacing turn signal lamps
1. Make sure the headlamp control
is in the OFF position.
2. Reach under the bumper cover
and remove the bulb socket from
the turn signal lamp by turning
counterclockwise.
3. Disconnect the electrical connector from the turn signal lamp bulb.
Install in reverse order.
Replacing tail/brake/backup lights and turn signal bulbs (3dr & 5dr)
1. Make sure the headlamp control
is in the OFF position and then
open the hatchback.
2. From inside the luggage
compartment remove the wing nut
of the rear light assembly cover.
3. Using a Phillips screwdriver
remove the screw. The lamp is still
retained by a spring loaded clip.
Remove by gently pulling out the
light housing.
4. Turn the bulb socket counterclockwise as far as possible and pull it
out.
5. Pull the bulb straight out of the socket.
Install in reverse order.
Replacing tail/brake/backup lights and turn signal bulbs (sedan)
1. Make sure the headlamp control
is in the OFF position and then
open the trunk.
2. From inside the luggage
compartment remove the three wing
nuts of the light housing.
3. Gently pull the light housing to
the outside.
4. Turn the bulb socket
counterclockwise and pull it out.
2005 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Lights
35
Page 36 of 224
5. Pull the bulb straight out of the socket.
Install in reverse order.
Replacing tail/brake/backup lights and turn signal bulbs (wagon)
1. Make sure the headlamp control
is in the OFF position and then
open the hatchback.
2. Using a screwdriver, remove the
fixings and trim from the body.
3. Remove the socket from the lamp
assembly
4. Pull the bulb straight out of the
socket.
Install in reverse order.
Replacing foglamp bulbs (if equipped)
1. Make sure the headlamp switch is
in the OFF position and remove the
bulb socket from the foglamp by
turning counterclockwise.
2. Disconnect the electrical
connector.
Install the new bulb in reverse order.
2005 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Lights
36
Page 37 of 224

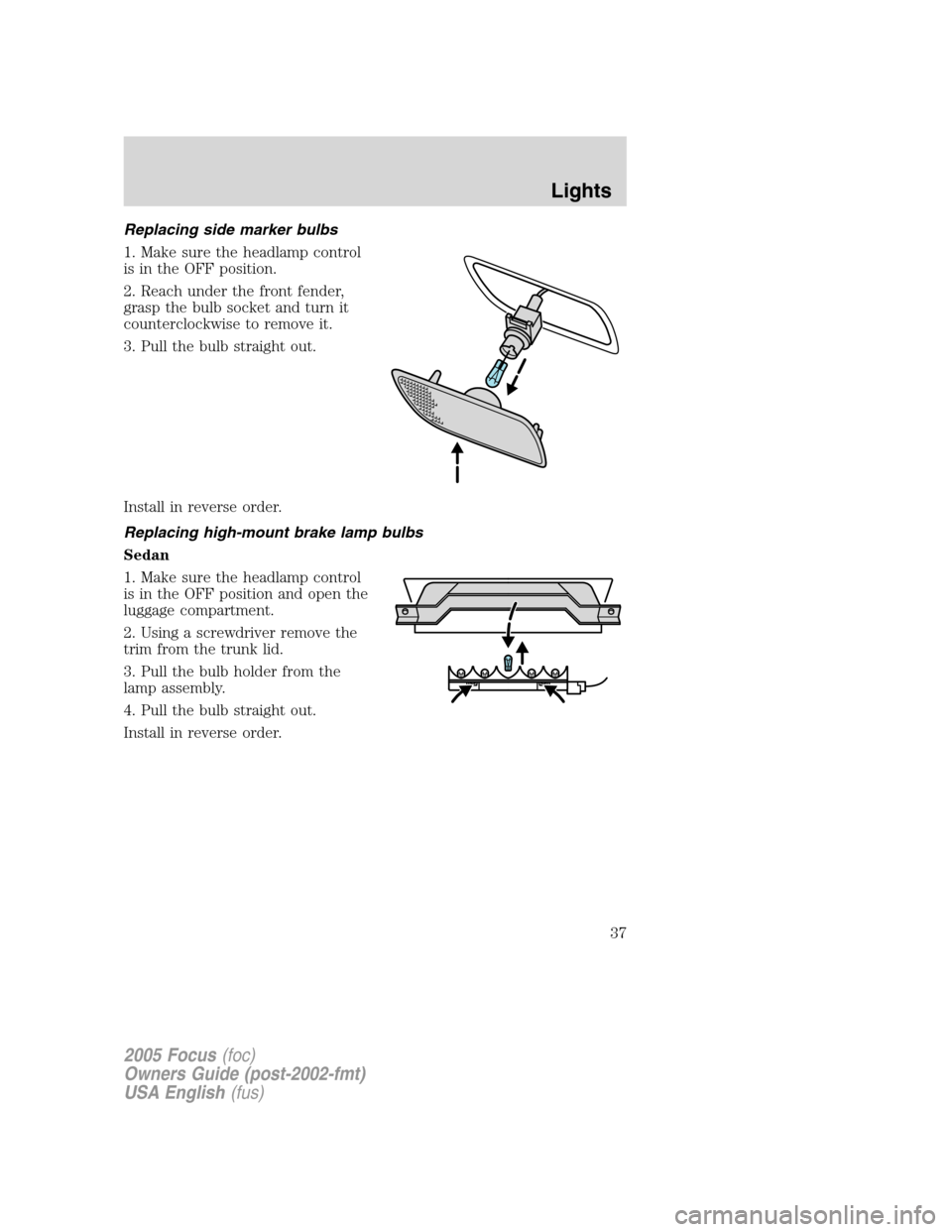

Replacing side marker bulbs
1. Make sure the headlamp control
is in the OFF position.
2. Reach under the front fender,
grasp the bulb socket and turn it
counterclockwise to remove it.
3. Pull the bulb straight out.
Install in reverse order.
Replacing high-mount brake lamp bulbs
Sedan
1. Make sure the headlamp control
is in the OFF position and open the
luggage compartment.
2. Using a screwdriver remove the
trim from the trunk lid.
3. Pull the bulb holder from the
lamp assembly.
4. Pull the bulb straight out.
Install in reverse order.
2005 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Lights
37
Page 38 of 224
3dr & 5dr and wagon
1. Make sure the headlamp control
is in the OFF position.
2. Remove the screws using a Torx
T20 screwdriver and then remove
the plastic cover.
3. Unclip the bulb holder from the
reflector.
4. Pull the bulb straight out.
Install in reverse order.
Replacing license plate lamp bulbs
1. Make sure the headlamp control
is in the OFF position.
2. Insert a flathead screwdriver in
the recess and pry out the complete
light assembly.
3. Pull the bulb straight out.
Install in reverse order.
Replacing the luggage compartment lamp
1. Make sure the headlamp control
is in the OFF position.
2. Carefully pry out the light
assembly from the holder with a
flathead screwdriver.
3. Pull the bulb straight out.
Install in reverse order.
2005 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Lights
38
Page 39 of 224

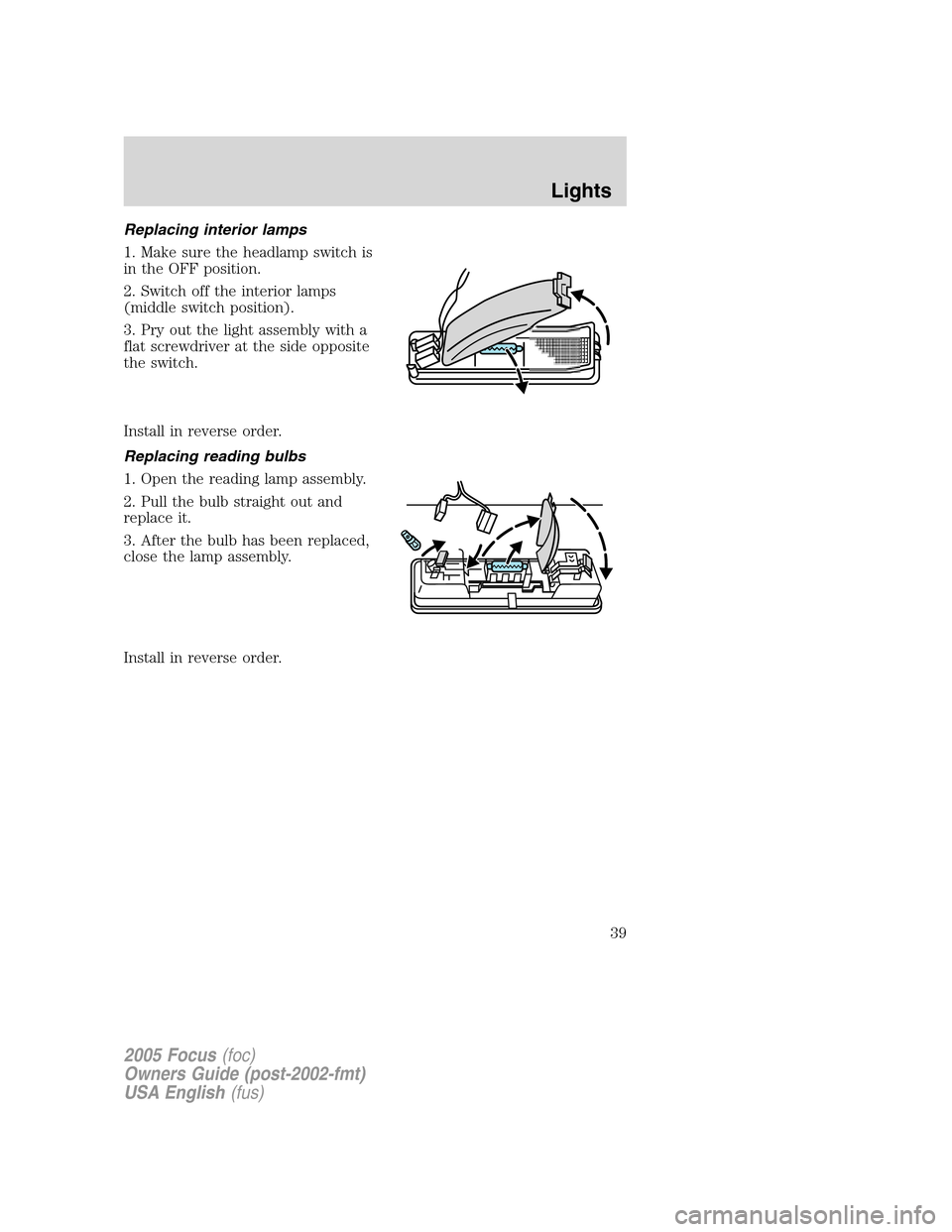

Replacing interior lamps
1. Make sure the headlamp switch is
in the OFF position.
2. Switch off the interior lamps
(middle switch position).
3. Pry out the light assembly with a
flat screwdriver at the side opposite
the switch.
Install in reverse order.
Replacing reading bulbs
1. Open the reading lamp assembly.
2. Pull the bulb straight out and
replace it.
3. After the bulb has been replaced,
close the lamp assembly.
Install in reverse order.
2005 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Lights
39
Page 40 of 224
MULTI-FUNCTION LEVER
Windshield wiper:Move the lever
down for a single wipe.
For intermittent operation, move
control up one position and adjust
the rotary control to the desired
speed.
For normal operation, move control
up two positions.
For high speed operation, move control up three positions.
Mist function:To mist, push and
release the windshield washer
control quickly. The wipers will
cycle two or three times to clear the
windshield.
Windshield washer:To activate
the windshield washer, push the
windshield washer control. Release
control to stop washer fluid spray. The wipers will provide three wipes
after the wash is turned off.
Rear window wiper/washer
(if equipped)
Wiper
Pull the lever towards you for
intermittent wiping.
Washer
Pull the lever further to operate the
washer.
2005 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Driver Controls
Driver Controls
40
