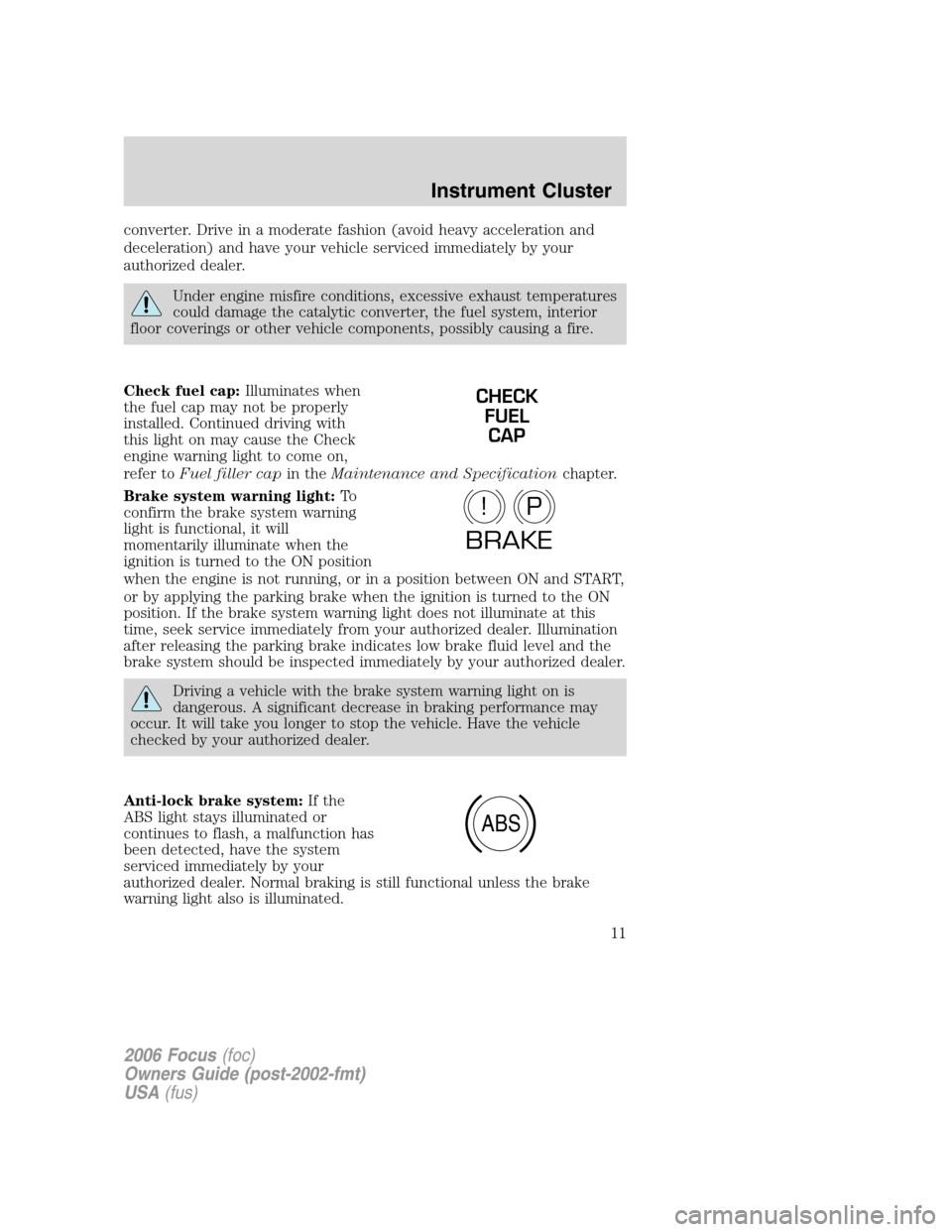

converter. Drive in a moderate fashion (avoid heavy acceleration and
deceleration) and have your vehicle serviced immediately by your
authorized dealer.
Under engine misfire conditions, excessive exhaust temperatures
could damage the catalytic converter, the fuel system, interior
floor coverings or other vehicle components, possibly causing a fire.
Check fuel cap:Illuminates when
the fuel cap may not be properly
installed. Continued driving with
this light on may cause the Check
engine warning light to come on,
refer toFuel filler capin theMaintenance and Specificationchapter.
Brake system warning light:To
confirm the brake system warning
light is functional, it will
momentarily illuminate when the
ignition is turned to the ON position
when the engine is not running, or in a position between ON and START,
or by applying the parking brake when the ignition is turned to the ON
position. If the brake system warning light does not illuminate at this
time, seek service immediately from your authorized dealer. Illumination
after releasing the parking brake indicates low brake fluid level and the
brake system should be inspected immediately by your authorized dealer.
Driving a vehicle with the brake system warning light on is
dangerous. A significant decrease in braking performance may
occur. It will take you longer to stop the vehicle. Have the vehicle
checked by your authorized dealer.
Anti-lock brake system:If the
ABS light stays illuminated or
continues to flash, a malfunction has
been detected, have the system
serviced immediately by your
authorized dealer. Normal braking is still functional unless the brake
warning light also is illuminated.
CHECK
FUEL
CAP
P!
BRAKE
ABS
2006 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Instrument Cluster
11

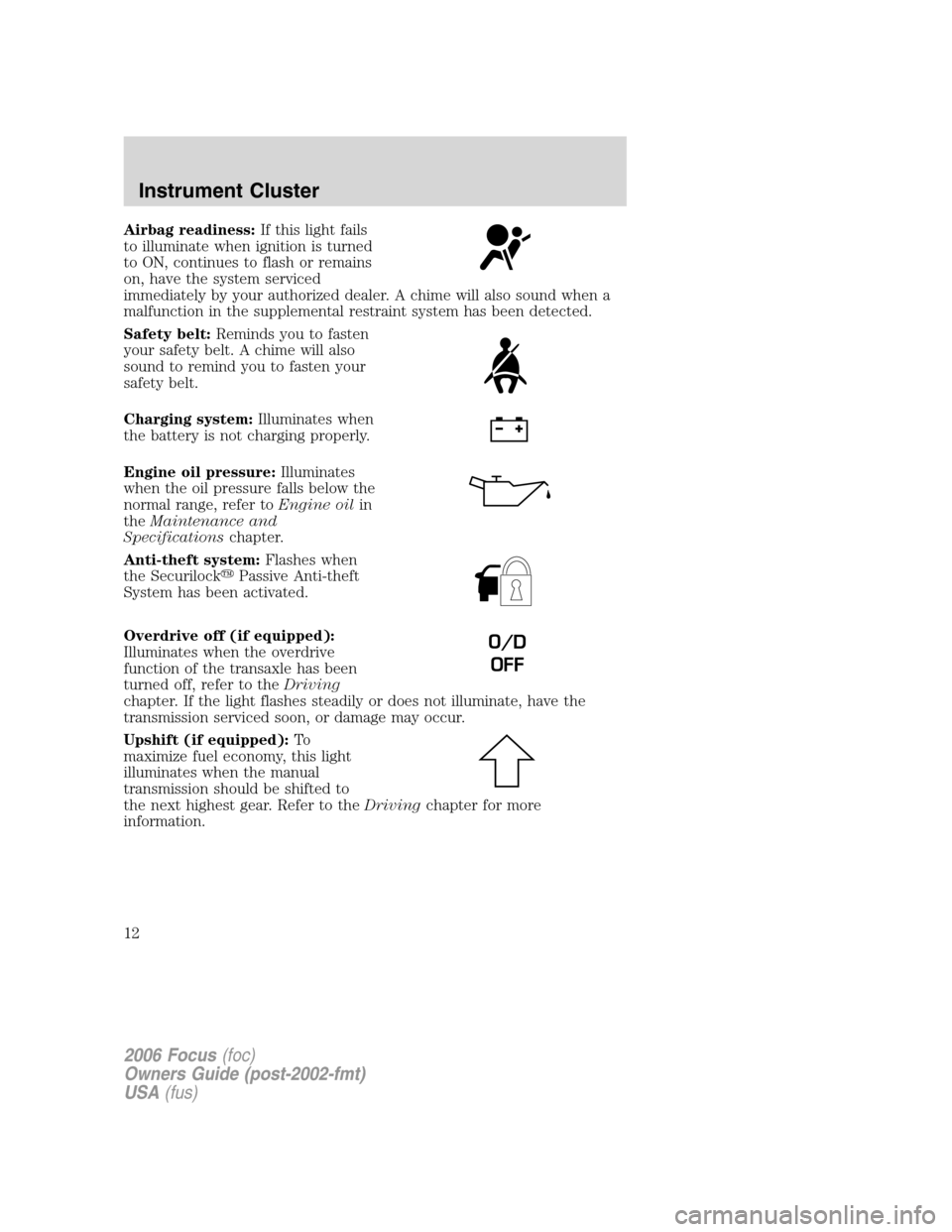

Airbag readiness:If this light fails
to illuminate when ignition is turned
to ON, continues to flash or remains
on, have the system serviced
immediately by your authorized dealer. A chime will also sound when a
malfunction in the supplemental restraint system has been detected.
Safety belt:Reminds you to fasten
your safety belt. A chime will also
sound to remind you to fasten your
safety belt.
Charging system:Illuminates when
the battery is not charging properly.
Engine oil pressure:Illuminates
when the oil pressure falls below the
normal range, refer toEngine oilin
theMaintenance and
Specificationschapter.
Anti-theft system:Flashes when
the Securilock
Passive Anti-theft
System has been activated.
Overdrive off (if equipped):
Illuminates when the overdrive
function of the transaxle has been
turned off, refer to theDriving
chapter. If the light flashes steadily or does not illuminate, have the
transmission serviced soon, or damage may occur.
Upshift (if equipped):To
maximize fuel economy, this light
illuminates when the manual
transmission should be shifted to
the next highest gear. Refer to theDrivingchapter for more
information.
O/D
OFF
2006 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Instrument Cluster
12

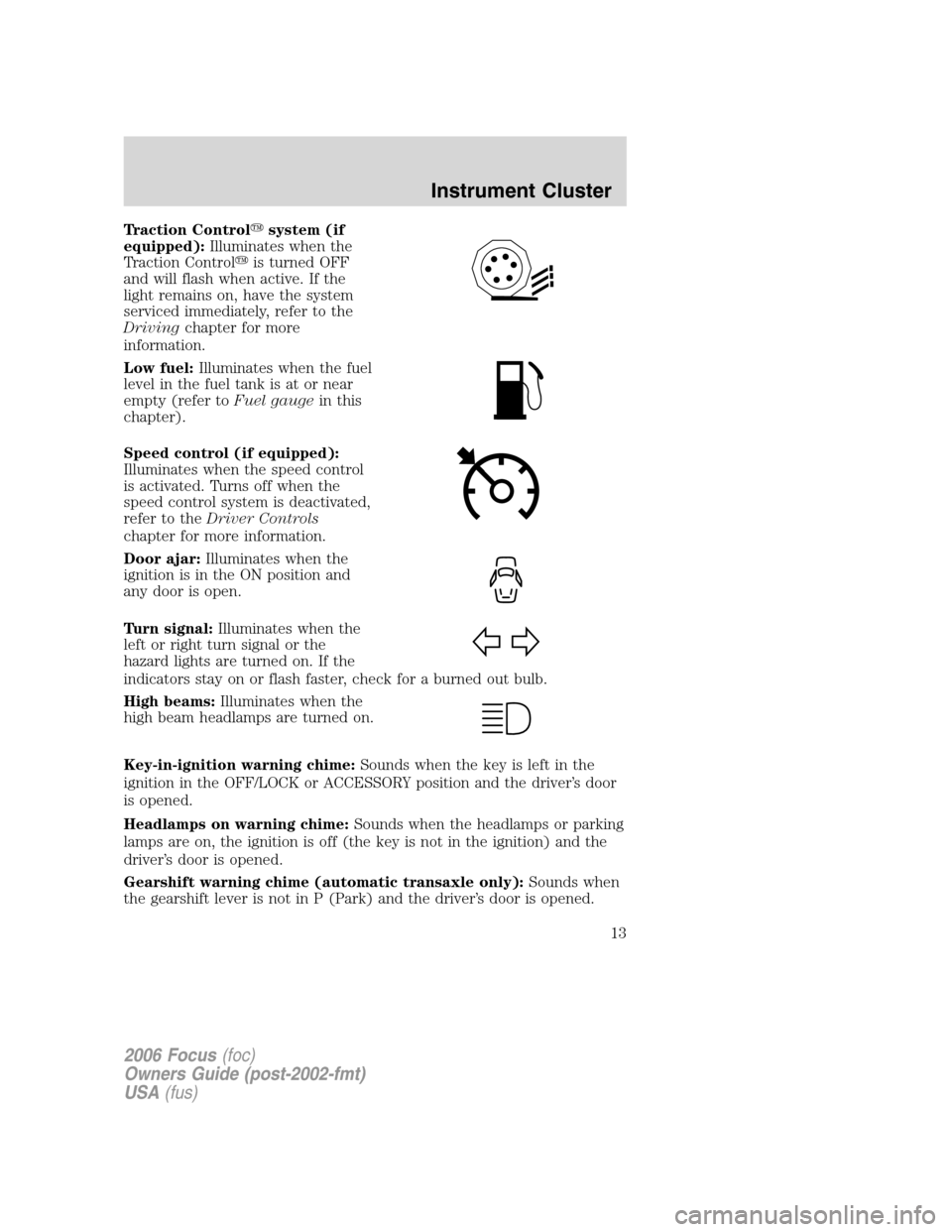

Traction Control
system (if
equipped):Illuminates when the
Traction Control
is turned OFF
and will flash when active. If the
light remains on, have the system
serviced immediately, refer to the
Drivingchapter for more
information.
Low fuel:Illuminates when the fuel
level in the fuel tank is at or near
empty (refer toFuel gaugein this
chapter).
Speed control (if equipped):
Illuminates when the speed control
is activated. Turns off when the
speed control system is deactivated,
refer to theDriver Controls
chapter for more information.
Door ajar:Illuminates when the
ignition is in the ON position and
any door is open.
Turn signal:Illuminates when the
left or right turn signal or the
hazard lights are turned on. If the
indicators stay on or flash faster, check for a burned out bulb.
High beams:Illuminates when the
high beam headlamps are turned on.
Key-in-ignition warning chime:Sounds when the key is left in the
ignition in the OFF/LOCK or ACCESSORY position and the driver’s door
is opened.
Headlamps on warning chime:Sounds when the headlamps or parking
lamps are on, the ignition is off (the key is not in the ignition) and the
driver’s door is opened.
Gearshift warning chime (automatic transaxle only):Sounds when
the gearshift lever is not in P (Park) and the driver’s door is opened.
2006 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Instrument Cluster
13

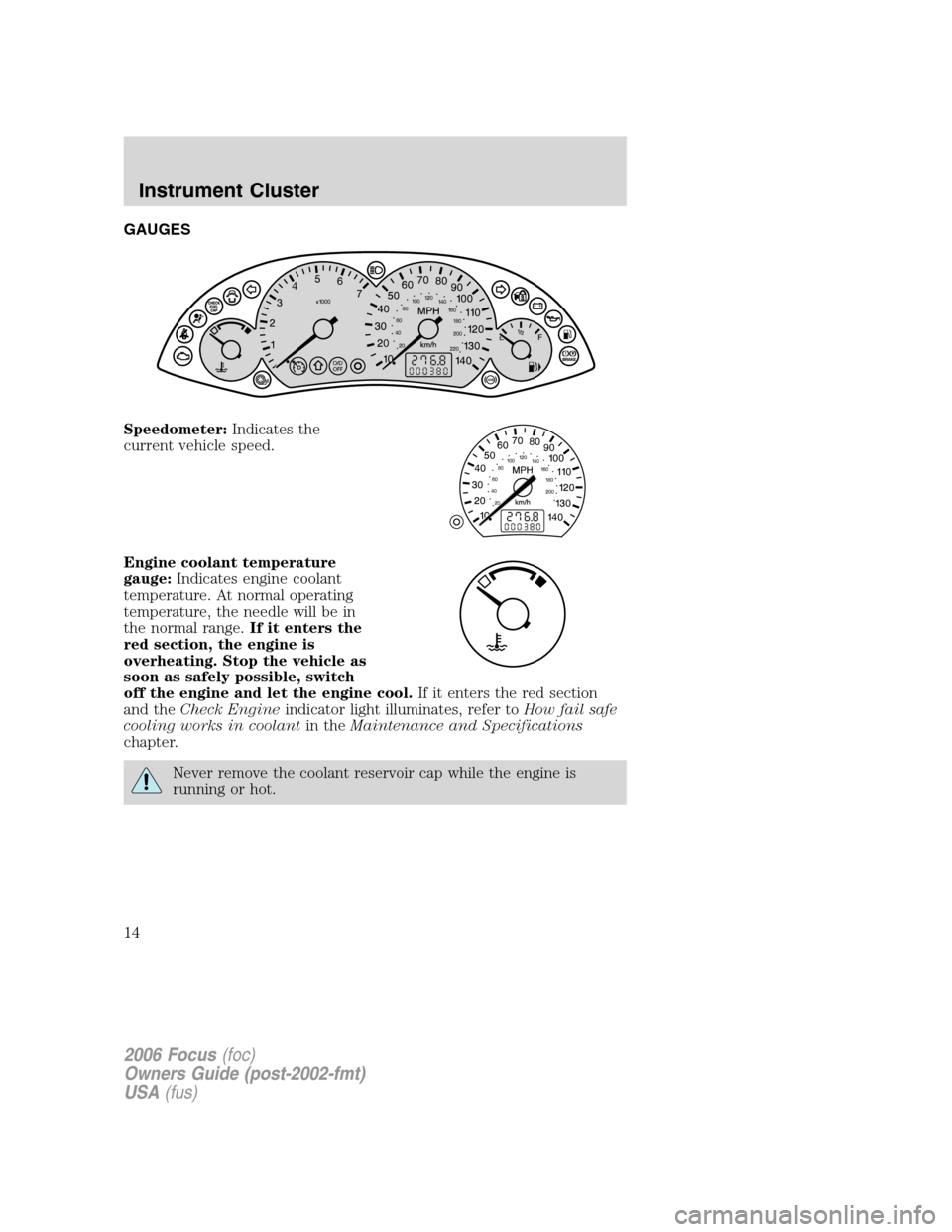

GAUGES
Speedometer:Indicates the
current vehicle speed.
Engine coolant temperature
gauge:Indicates engine coolant
temperature. At normal operating
temperature, the needle will be in
the normal range.If it enters the
red section, the engine is
overheating. Stop the vehicle as
soon as safely possible, switch
off the engine and let the engine cool.If it enters the red section
and theCheck Engineindicator light illuminates, refer toHow fail safe
cooling works in coolantin theMaintenance and Specifications
chapter.
Never remove the coolant reservoir cap while the engine is
running or hot.
2006 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Instrument Cluster
14

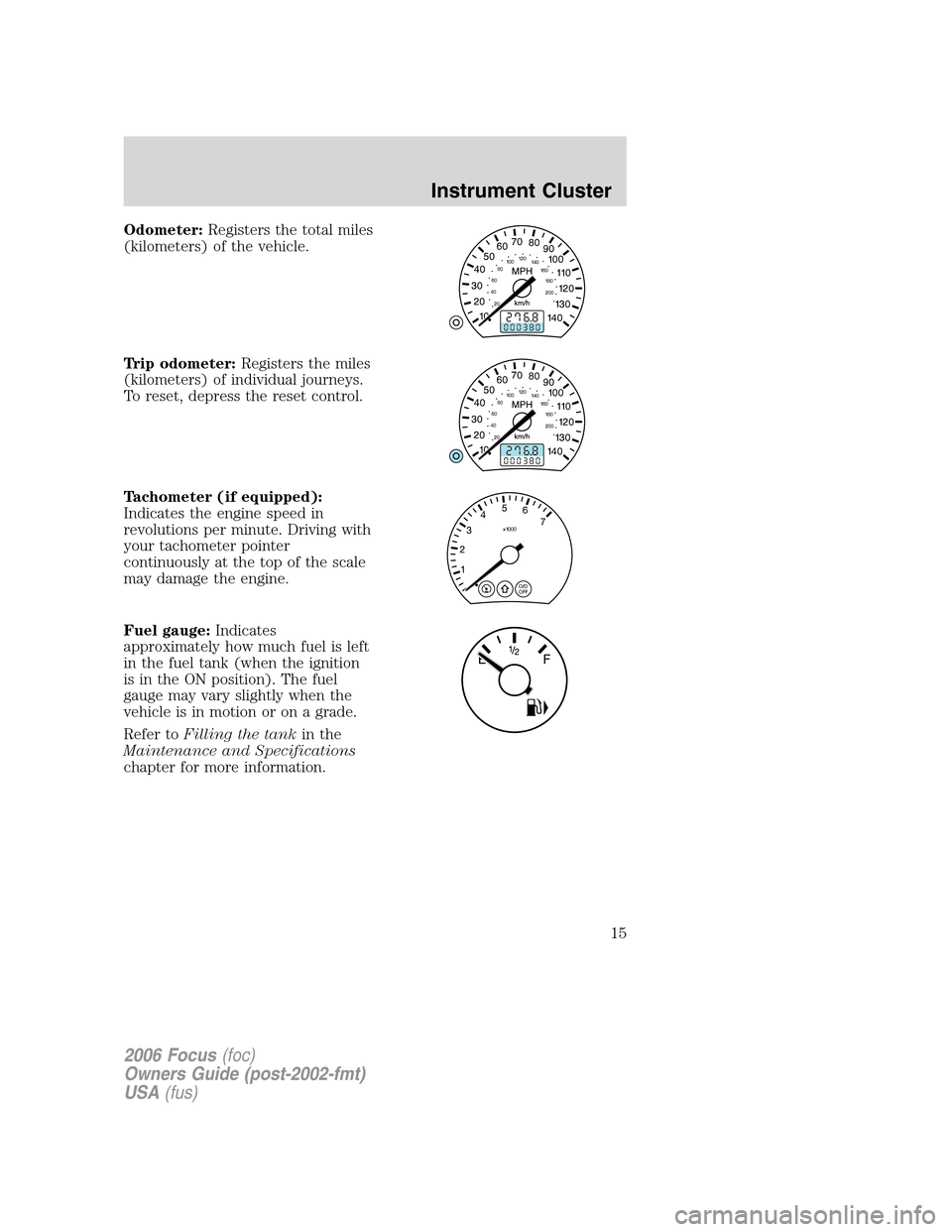

Odometer:Registers the total miles
(kilometers) of the vehicle.
Trip odometer:Registers the miles
(kilometers) of individual journeys.
To reset, depress the reset control.
Tachometer (if equipped):
Indicates the engine speed in
revolutions per minute. Driving with
your tachometer pointer
continuously at the top of the scale
may damage the engine.
Fuel gauge:Indicates
approximately how much fuel is left
in the fuel tank (when the ignition
is in the ON position). The fuel
gauge may vary slightly when the
vehicle is in motion or on a grade.
Refer toFilling the tankin the
Maintenance and Specifications
chapter for more information.
2006 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Instrument Cluster
15

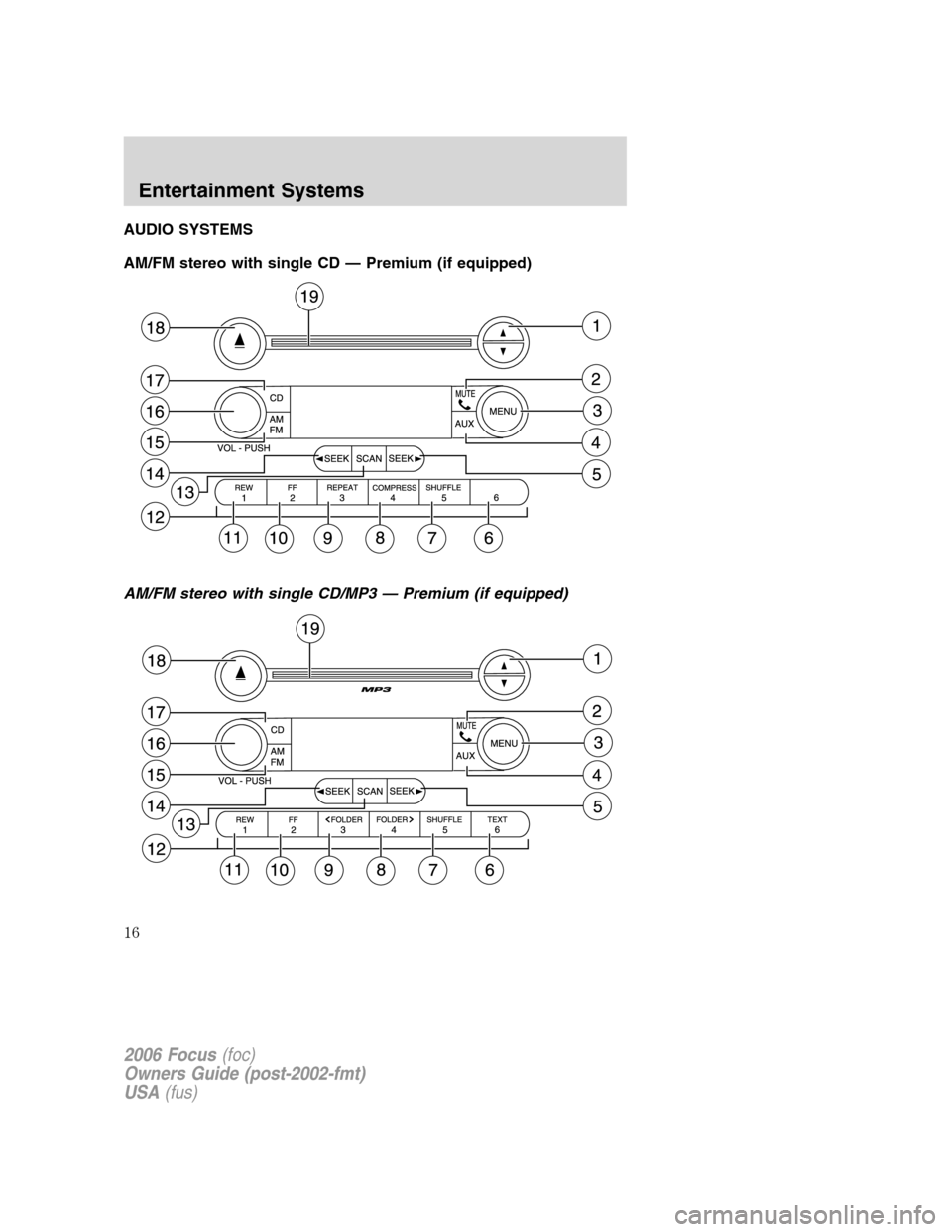

AUDIO SYSTEMS
AM/FM stereo with single CD — Premium (if equipped)
AM/FM stereo with single CD/MP3 — Premium (if equipped)
2006 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
16

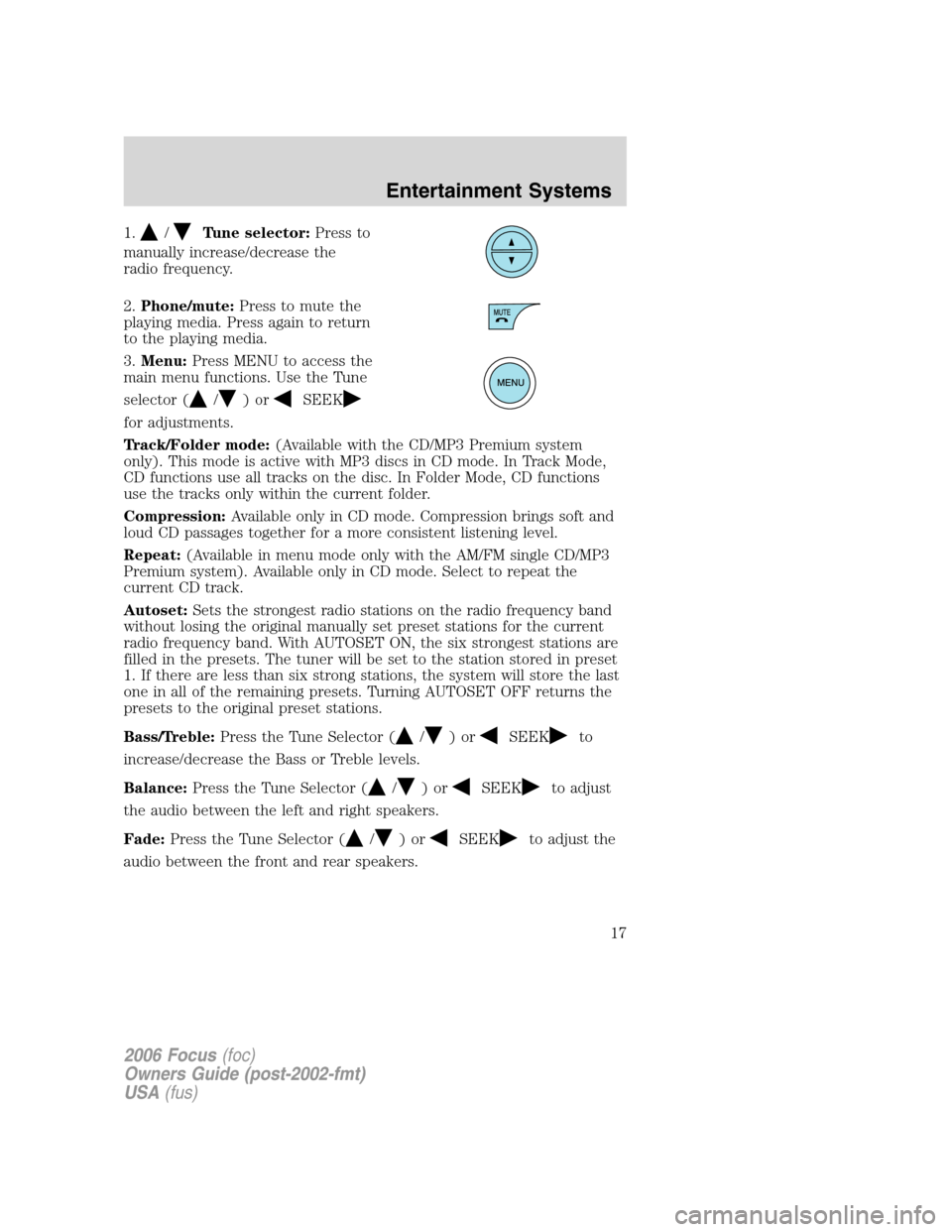

1./Tune selector:Press to
manually increase/decrease the
radio frequency.
2.Phone/mute:Press to mute the
playing media. Press again to return
to the playing media.
3.Menu:Press MENU to access the
main menu functions. Use the Tune
selector (
/)orSEEK
for adjustments.
Track/Folder mode:(Available with the CD/MP3 Premium system
only). This mode is active with MP3 discs in CD mode. In Track Mode,
CD functions use all tracks on the disc. In Folder Mode, CD functions
use the tracks only within the current folder.
Compression:Available only in CD mode. Compression brings soft and
loud CD passages together for a more consistent listening level.
Repeat:(Available in menu mode only with the AM/FM single CD/MP3
Premium system). Available only in CD mode. Select to repeat the
current CD track.
Autoset:Sets the strongest radio stations on the radio frequency band
without losing the original manually set preset stations for the current
radio frequency band. With AUTOSET ON, the six strongest stations are
filled in the presets. The tuner will be set to the station stored in preset
1. If there are less than six strong stations, the system will store the last
one in all of the remaining presets. Turning AUTOSET OFF returns the
presets to the original preset stations.
Bass/Treble:Press the Tune Selector (
/)orSEEKto
increase/decrease the Bass or Treble levels.
Balance:Press the Tune Selector (
/)orSEEKto adjust
the audio between the left and right speakers.
Fade:Press the Tune Selector (
/)orSEEKto adjust the
audio between the front and rear speakers.
2006 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
17

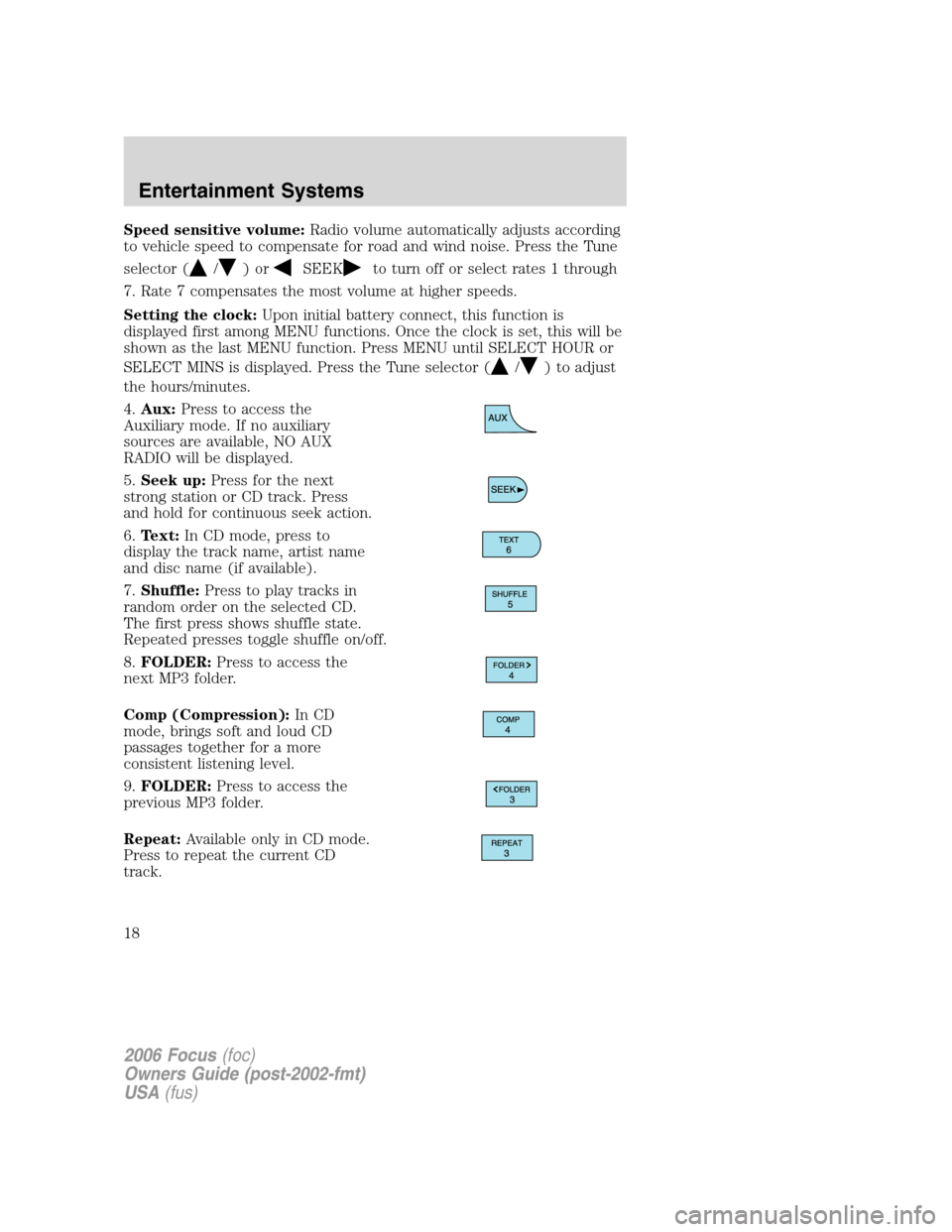

Speed sensitive volume:Radio volume automatically adjusts according
to vehicle speed to compensate for road and wind noise. Press the Tune
selector (
/)orSEEKto turn off or select rates 1 through
7. Rate 7 compensates the most volume at higher speeds.
Setting the clock:Upon initial battery connect, this function is
displayed first among MENU functions. Once the clock is set, this will be
shown as the last MENU function. Press MENU until SELECT HOUR or
SELECT MINS is displayed. Press the Tune selector (
/) to adjust
the hours/minutes.
4.Aux:Press to access the
Auxiliary mode. If no auxiliary
sources are available, NO AUX
RADIO will be displayed.
5.Seek up:Press for the next
strong station or CD track. Press
and hold for continuous seek action.
6.Text:In CD mode, press to
display the track name, artist name
and disc name (if available).
7.Shuffle:Press to play tracks in
random order on the selected CD.
The first press shows shuffle state.
Repeated presses toggle shuffle on/off.
8.FOLDER:Press to access the
next MP3 folder.
Comp (Compression):In CD
mode, brings soft and loud CD
passages together for a more
consistent listening level.
9.FOLDER:Press to access the
previous MP3 folder.
Repeat:Available only in CD mode.
Press to repeat the current CD
track.
2006 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
18

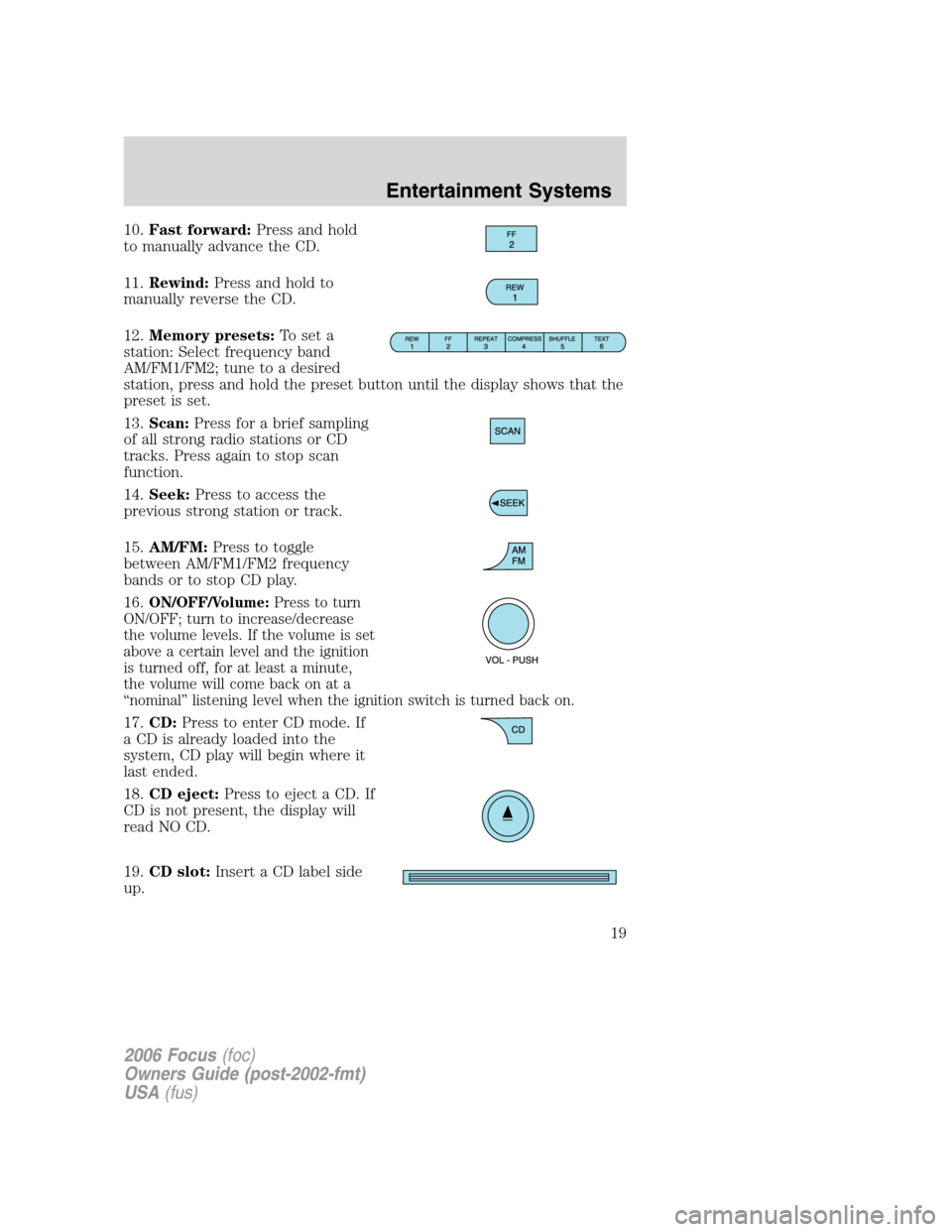

10.Fast forward:Press and hold
to manually advance the CD.
11.Rewind:Press and hold to
manually reverse the CD.
12.Memory presets:To set a
station: Select frequency band
AM/FM1/FM2; tune to a desired
station, press and hold the preset button until the display shows that the
preset is set.
13.Scan:Press for a brief sampling
of all strong radio stations or CD
tracks. Press again to stop scan
function.
14.Seek:Press to access the
previous strong station or track.
15.AM/FM:Press to toggle
between AM/FM1/FM2 frequency
bands or to stop CD play.
16.
ON/OFF/Volume:Press to turn
ON/OFF; turn to increase/decrease
the volume levels. If the volume is set
above a certain level and the ignition
is turned off, for at least a minute,
the volume will come back on at a
“nominal” listening level when the ignition switch is turned back on.
17.CD:Press to enter CD mode. If
a CD is already loaded into the
system, CD play will begin where it
last ended.
18.CD eject:Press to eject a CD. If
CD is not present, the display will
read NO CD.
19.CD slot:Insert a CD label side
up.
2006 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
19

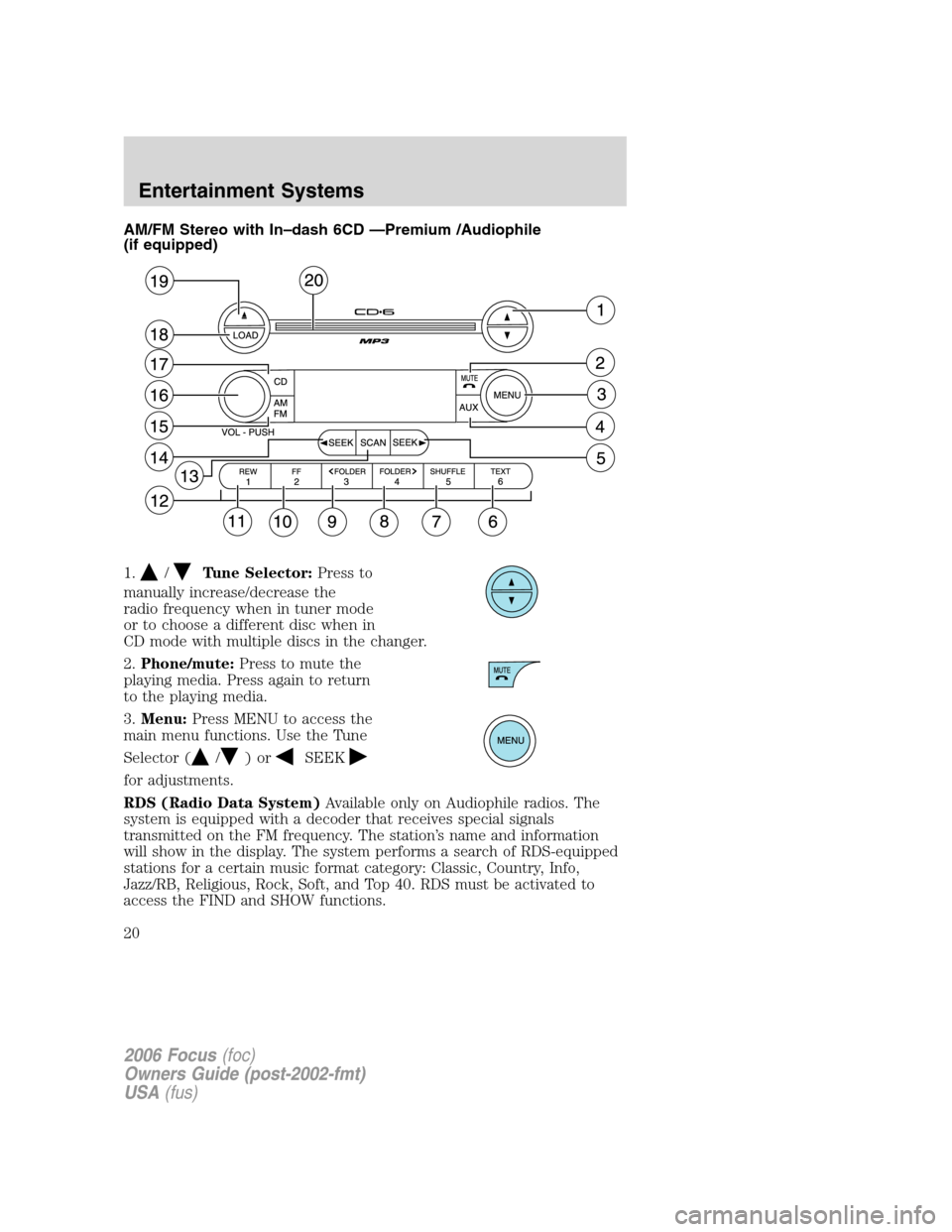

AM/FM Stereo with In–dash 6CD —Premium /Audiophile
(if equipped)
1.
/Tune Selector:Press to
manually increase/decrease the
radio frequency when in tuner mode
or to choose a different disc when in
CD mode with multiple discs in the changer.
2.Phone/mute:Press to mute the
playing media. Press again to return
to the playing media.
3.Menu:Press MENU to access the
main menu functions. Use the Tune
Selector (
/)orSEEK
for adjustments.
RDS (Radio Data System)Available only on Audiophile radios. The
system is equipped with a decoder that receives special signals
transmitted on the FM frequency. The station’s name and information
will show in the display. The system performs a search of RDS-equipped
stations for a certain music format category: Classic, Country, Info,
Jazz/RB, Religious, Rock, Soft, and Top 40. RDS must be activated to
access the FIND and SHOW functions.
2006 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
20
