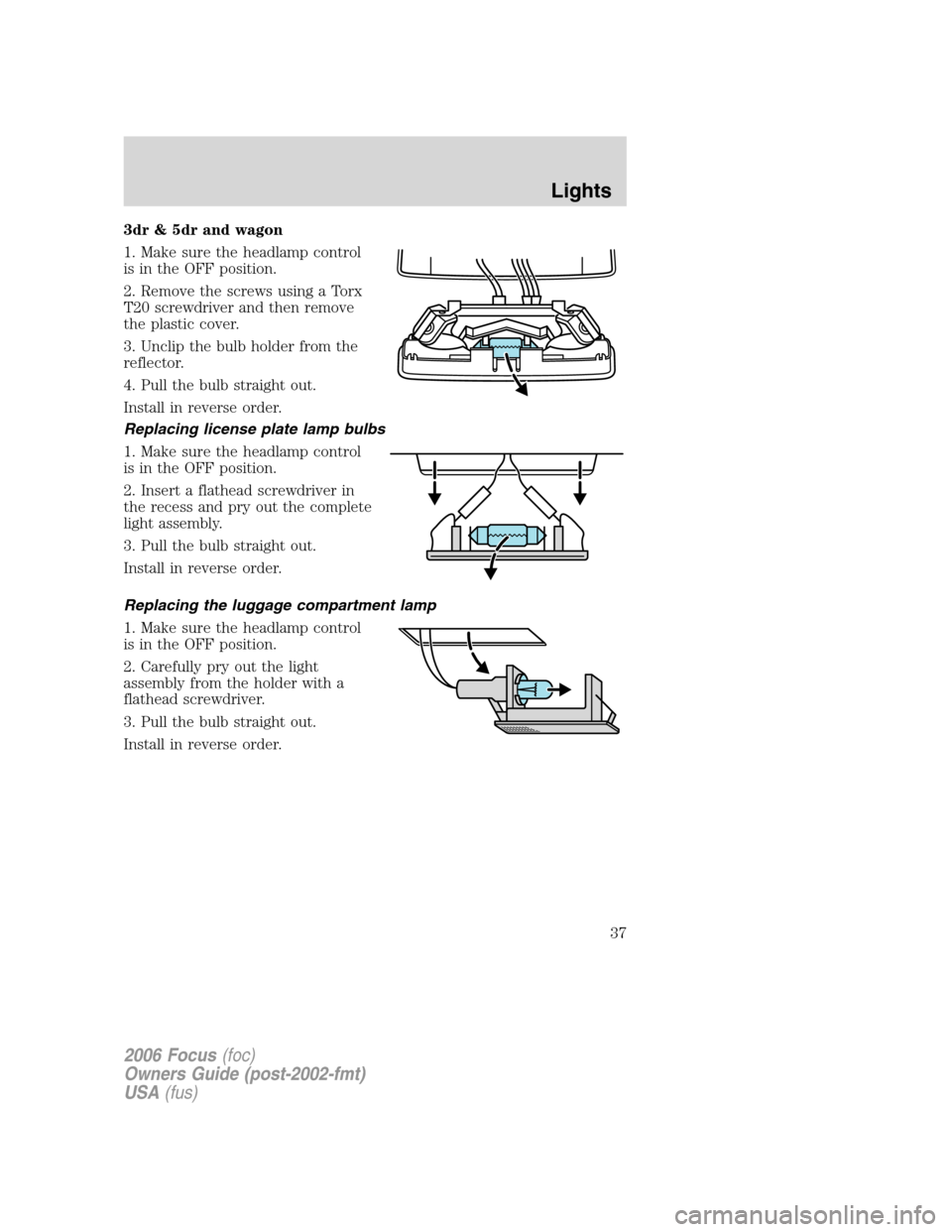

headlamp FORD FOCUS 2006 2.G User Guide

3dr & 5dr and wagon
1. Make sure the headlamp control
is in the OFF position.
2. Remove the screws using a Torx
T20 screwdriver and then remove
the plastic cover.
3. Unclip the bulb holder from the
reflector.
4. Pull the bulb straight out.
Install in reverse order.
Replacing license plate lamp bulbs
1. Make sure the headlamp control
is in the OFF position.
2. Insert a flathead screwdriver in
the recess and pry out the complete
light assembly.
3. Pull the bulb straight out.
Install in reverse order.
Replacing the luggage compartment lamp
1. Make sure the headlamp control
is in the OFF position.
2. Carefully pry out the light
assembly from the holder with a
flathead screwdriver.
3. Pull the bulb straight out.
Install in reverse order.
2006 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
37

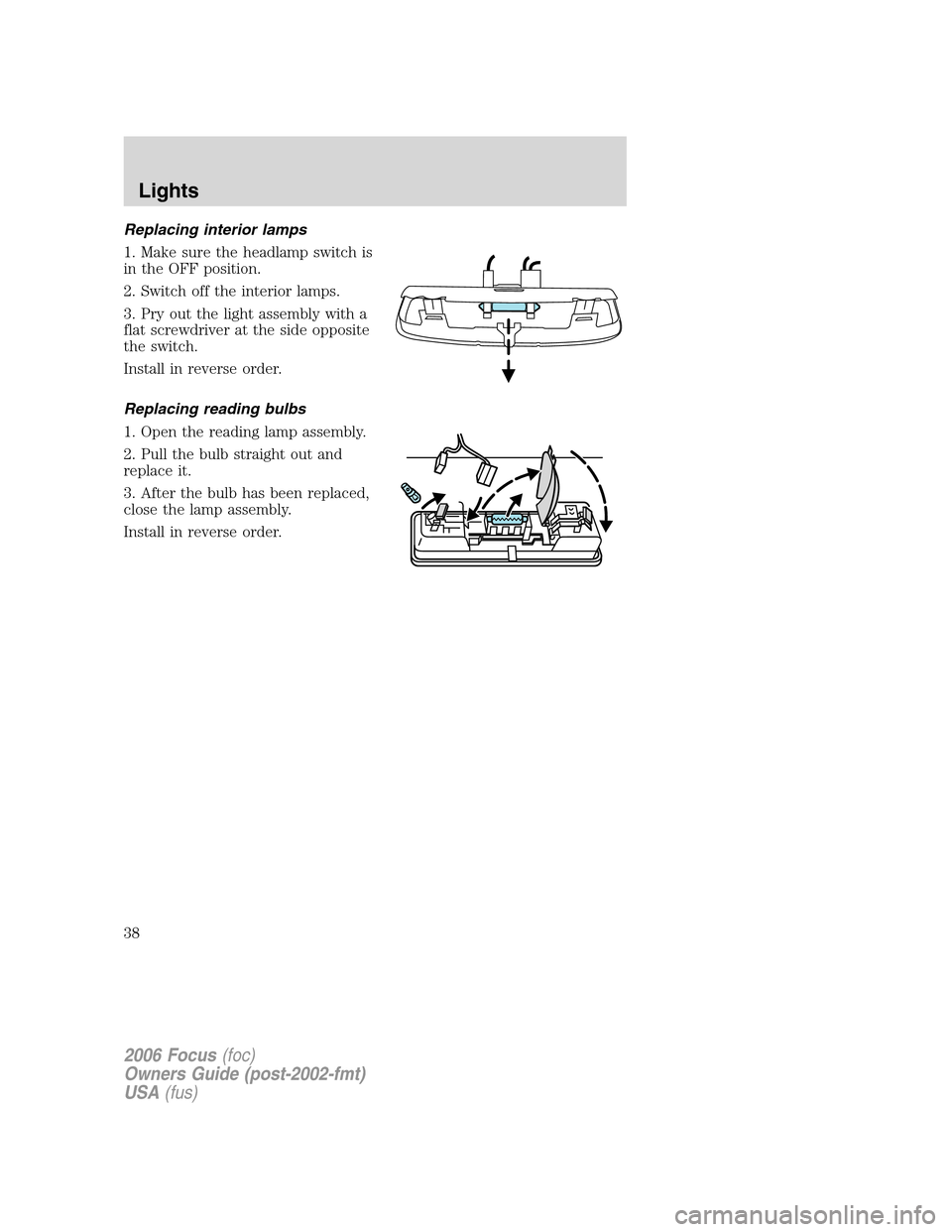

Replacing interior lamps
1. Make sure the headlamp switch is
in the OFF position.
2. Switch off the interior lamps.
3. Pry out the light assembly with a
flat screwdriver at the side opposite
the switch.
Install in reverse order.
Replacing reading bulbs
1. Open the reading lamp assembly.
2. Pull the bulb straight out and
replace it.
3. After the bulb has been replaced,
close the lamp assembly.
Install in reverse order.
2006 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
38

If you smell exhaust fumes inside your vehicle, have your dealer
inspect your vehicle immediately. Do not drive if you smell
exhaust fumes.
Important safety precautions
When the engine starts, the idle RPM runs faster to warm the engine. If
the engine idle speed does not slow down automatically, have the vehicle
checked.
Before starting the vehicle:
1. Make sure all occupants buckle their safety belts. For more
information on safety belts and their proper usage, refer to theSeating
and Safety Restraintschapter.
2. Make sure the headlamps and electrical accessories are off.
If starting a vehicle with an automatic transaxle:
•Make sure the parking brake is
set.
•Make sure the gearshift is in P
(Park).
2006 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
130

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
33 20A Horn
34 20A Power sunroof
35 7.5A Interior lamps, Power mirrors
36 7.5A A/C switch, Instrument cluster
37 — Not used
38 — Not used
39 — Not used
40 10A Back-up lamps (automatic
transaxle only)
41 7.5A Radio and cluster (accessory)
42 10A Stop lamps, Shift interlock
43 15A Rear wiper, Sunroof (ignition)
44 — Not used
45 7.5A Recirculated air, Air conditioning
46 — Not used
47 20A Cigar lighter/Power point
48 10A Data link connector
49 25A Rear defroster
50 7.5A Heated mirror, Heated backlite
indicator
51 7.5A Front passenger sensing system
52 15A Heated seats
53 10A Back-up lamps (manual transaxle
only), Speed control
54 25A Rear power windows
55 25A Front power windows
56 20A Front wipers
57 — Not used
58 — Not used
59 7.5A Light switch (headlamps)
60 7.5A Air bag module
2006 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
147

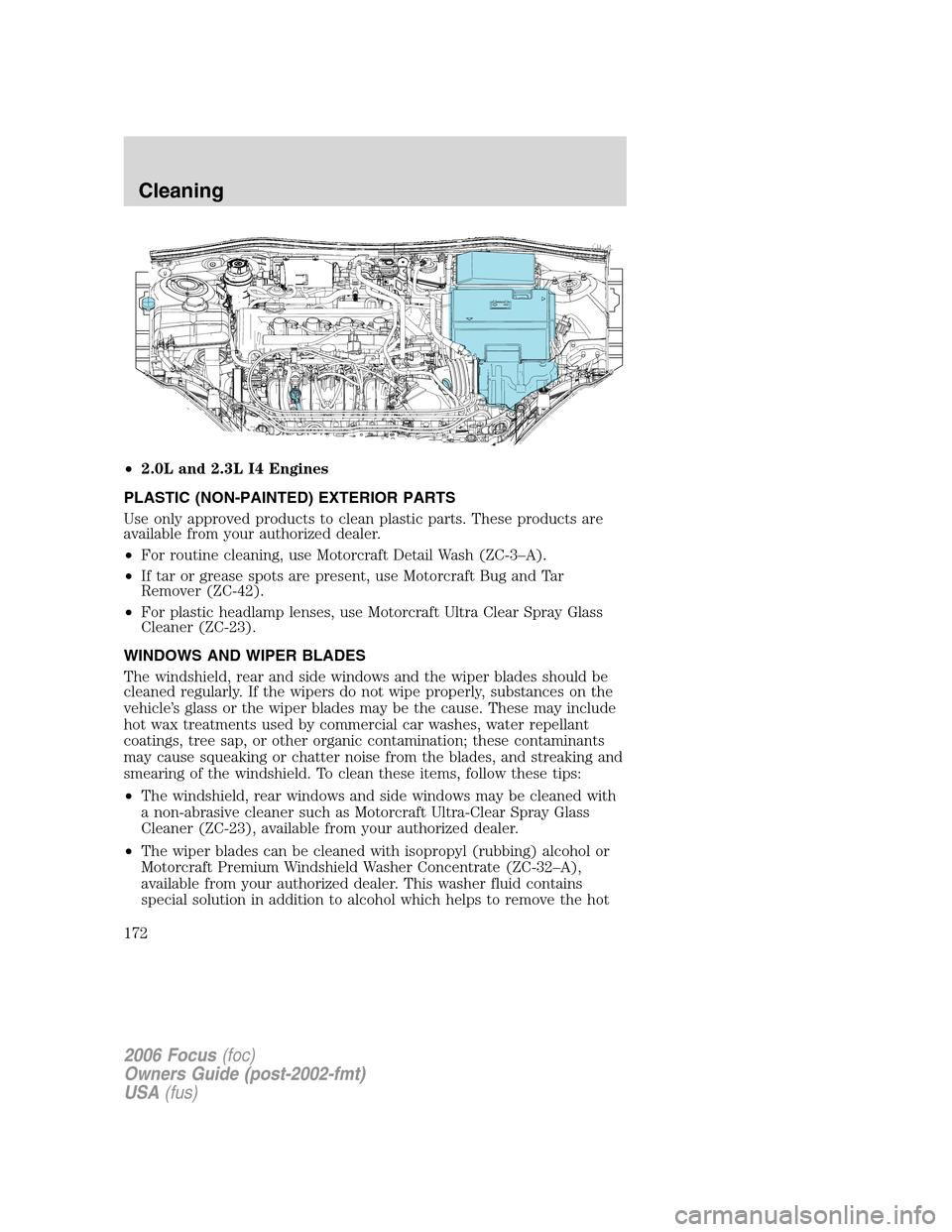

•2.0L and 2.3L I4 Engines
PLASTIC (NON-PAINTED) EXTERIOR PARTS
Use only approved products to clean plastic parts. These products are
available from your authorized dealer.
•For routine cleaning, use Motorcraft Detail Wash (ZC-3–A).
•If tar or grease spots are present, use Motorcraft Bug and Tar
Remover (ZC-42).
•For plastic headlamp lenses, use Motorcraft Ultra Clear Spray Glass
Cleaner (ZC-23).
WINDOWS AND WIPER BLADES
The windshield, rear and side windows and the wiper blades should be
cleaned regularly. If the wipers do not wipe properly, substances on the
vehicle’s glass or the wiper blades may be the cause. These may include
hot wax treatments used by commercial car washes, water repellant
coatings, tree sap, or other organic contamination; these contaminants
may cause squeaking or chatter noise from the blades, and streaking and
smearing of the windshield. To clean these items, follow these tips:
•The windshield, rear windows and side windows may be cleaned with
a non-abrasive cleaner such as Motorcraft Ultra-Clear Spray Glass
Cleaner (ZC-23), available from your authorized dealer.
•The wiper blades can be cleaned with isopropyl (rubbing) alcohol or
Motorcraft Premium Windshield Washer Concentrate (ZC-32–A),
available from your authorized dealer. This washer fluid contains
special solution in addition to alcohol which helps to remove the hot
2006 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Cleaning
172

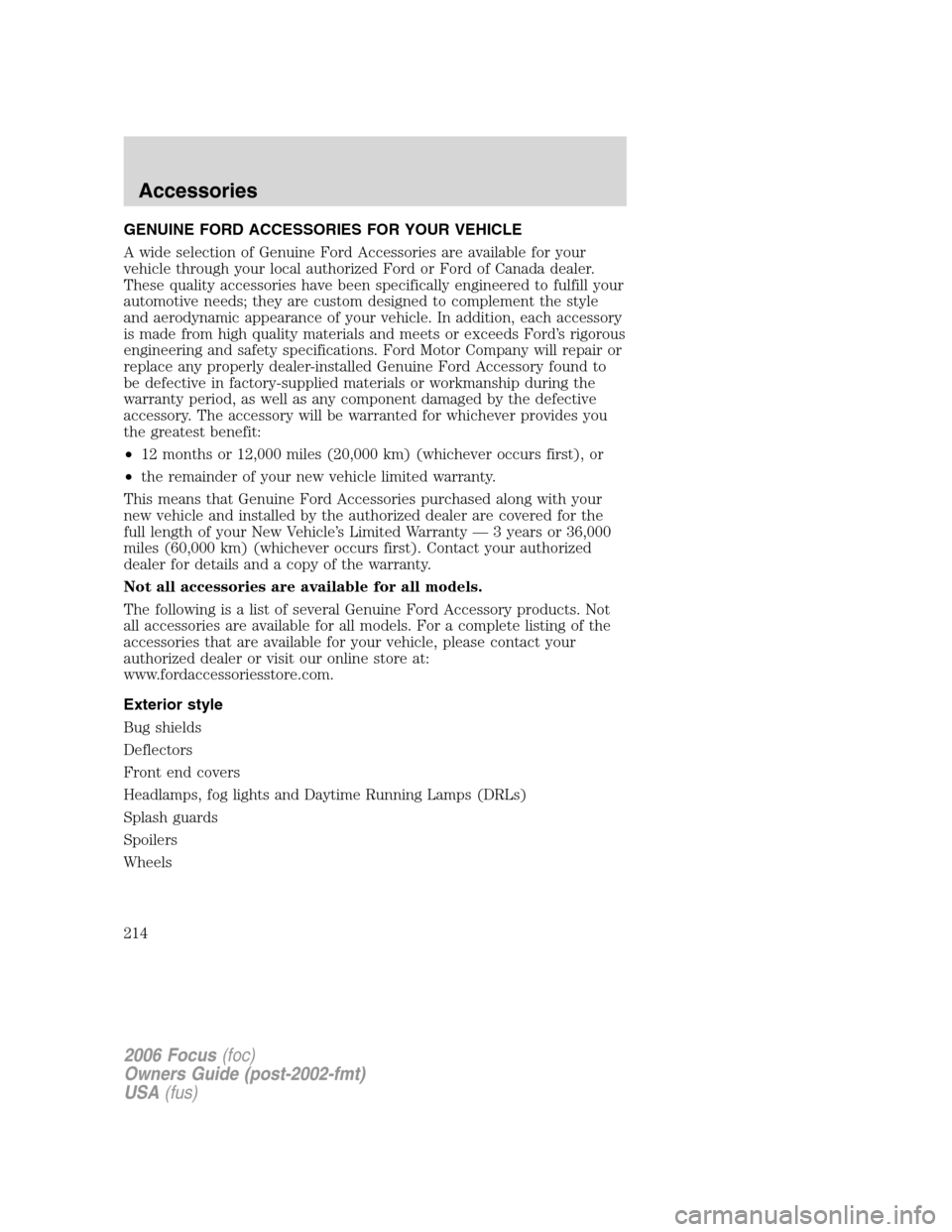

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local authorized Ford or Ford of Canada dealer.
These quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Genuine Ford Accessory found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessory. The accessory will be warranted for whichever provides you
the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
This means that Genuine Ford Accessories purchased along with your
new vehicle and installed by the authorized dealer are covered for the
full length of your New Vehicle’s Limited Warranty — 3 years or 36,000
miles (60,000 km) (whichever occurs first). Contact your authorized
dealer for details and a copy of the warranty.
Not all accessories are available for all models.
The following is a list of several Genuine Ford Accessory products. Not
all accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your
authorized dealer or visit our online store at:
www.fordaccessoriesstore.com.
Exterior style
Bug shields
Deflectors
Front end covers
Headlamps, fog lights and Daytime Running Lamps (DRLs)
Splash guards
Spoilers
Wheels
2006 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
214

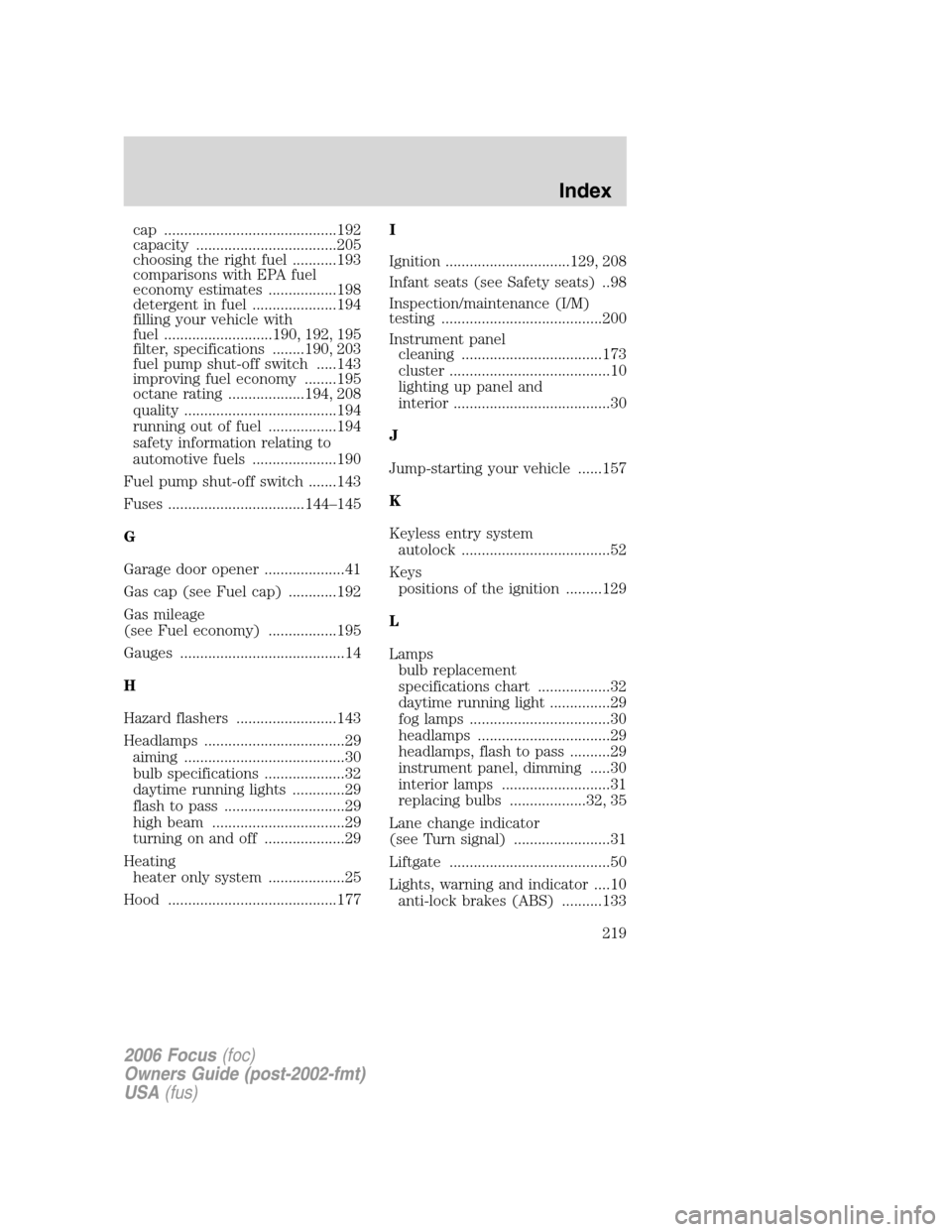

cap ...........................................192
capacity ...................................205
choosing the right fuel ...........193
comparisons with EPA fuel
economy estimates .................198
detergent in fuel .....................194
filling your vehicle with
fuel ...........................190, 192, 195
filter, specifications ........190, 203
fuel pump shut-off switch .....143
improving fuel economy ........195
octane rating ...................194, 208
quality ......................................194
running out of fuel .................194
safety information relating to
automotive fuels .....................190
Fuel pump shut-off switch .......143
Fuses ..................................144–145
G
Garage door opener ....................41
Gas cap (see Fuel cap) ............192
Gas mileage
(see Fuel economy) .................195
Gauges .........................................14
H
Hazard flashers .........................143
Headlamps ...................................29
aiming ........................................30
bulb specifications ....................32
daytime running lights .............29
flash to pass ..............................29
high beam .................................29
turning on and off ....................29
Heating
heater only system ...................25
Hood ..........................................177I
Ignition ...............................129, 208
Infant seats (see Safety seats) ..98
Inspection/maintenance (I/M)
testing ........................................200
Instrument panel
cleaning ...................................173
cluster ........................................10
lighting up panel and
interior .......................................30
J
Jump-starting your vehicle ......157
K
Keyless entry system
autolock .....................................52
Keys
positions of the ignition .........129
L
Lamps
bulb replacement
specifications chart ..................32
daytime running light ...............29
fog lamps ...................................30
headlamps .................................29
headlamps, flash to pass ..........29
instrument panel, dimming .....30
interior lamps ...........................31
replacing bulbs ...................32, 35
Lane change indicator
(see Turn signal) ........................31
Liftgate ........................................50
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........133
2006 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Index
219
