air conditioning FORD FOCUS 2008 2.G Owners Manual

Introduction 4
Instrument Cluster 10
Warning lights and chimes 10
Gauges 15
Entertainment Systems 17
Auxiliary input jack (Line in) 25
USB port 27
Satellite radio information 29
Climate Controls 32
Manual heating and air conditioning 32
Rear window defroster 34
Lights 35
Headlamps 35
Turn signal control 38
Bulb replacement 39
Driver Controls 44
Windshield wiper/washer control 44
Steering wheel adjustment 45
Power windows 46
Mirrors 47
Speed control 49
Moon roof 53
Message center 55
Locks and Security 62
Keys 62
Locks 62
Anti-theft system 71
Table of Contents
1
2008 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)

MANUAL HEATING AND AIR CONDITIONING SYSTEM
1.
Fan speed adjustment:Controls the volume of air circulated in
the vehicle.
2.
RRear defroster:Press to activate/deactivate the rear window
defroster. Refer toRear window defrosterlater in this chapter for more
information.
3.
Defrost:Distributes outside air through the windshield defroster
vents and demister vents. Can be used to clear the windshield of fog and
thin ice. The system will automatically provide outside air to reduce
window fogging. Press this button again to return to the previous air flow
selection.
4.
:Distributes air through the windshield defroster vents, demister
vents, floor vents and rear seat floor vents. The system will automatically
provide outside air to reduce window fogging.
5.
Power:Press to activate/deactivate the climate control system.
When the system is off, outside air is prevented from entering the
vehicle.
6.
:Distributes air through the instrument panel vents.
7.
:Distributes air through the instrument panel vents, floor vents,
rear seat floor vents and demister vents.
8.
:Distributes air through the floor vents, rear seat floor vents and
demister vents.
2008 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Climate Controls
32

9.Temperature control:Controls the temperature of the airflow in the
vehicle.
10.
Passenger heated seat control (if equipped):Press to
activate/deactivate the passenger heated seat. SeeHeated seatsin the
Seating and Safety Restraintschapter.
11.
Recirculated air:Press to activate/deactivate air
recirculation in the vehicle. Recirculated air may reduce the amount of
time needed to cool down the interior of the vehicle and may also help
reduce undesired odors from reaching the interior of the vehicle.
Recirculated air engages automatically when MAX A/C is selected or can
be engaged manually in any airflow mode except
(defrost). When
the ignition switch is turned off and back on, the climate system will
return to the recirculated air mode only if the A/C button LED is
illuminated and the air distribution selection is either
(panel) or
(panel/floor).
12.MAX A/C:Distributes recirculated air through the instrument panel
vents to cool the vehicle. This re-cooling of the interior air is more
economical and efficient. Recirculated air may also help reduce
undesirable odors from entering the vehicle. Press the MAX A/C button
again for normal A/C operation.
13.A/C:
Press to activate/deactivate air conditioning. Use with recirculated
air to improve cooling performance and efficiency. A/C engages
automatically in MAX A/C,
(defrost) and(floor/defrost).
14.Driver heated seat control (if equipped):Press to
activate/deactivate the driver heated seat. SeeHeated seatsin the
Seating and Safety Restraintschapter.
Operating tips
•To reduce fog build up on the windshield during humid weather,
select
(defrost) or(floor/defrost).
•To reduce humidity build up inside the vehicle, do not drive with the
system off or with
(recirculated air) engaged and A/C off.
•Do not put objects under the front seats that will interfere with the
airflow to the back seats.
•Remove any snow, ice or leaves from the air intake area at the base of
the windshield.
•To improve the time to reach comfort in hot weather, drive with the
windows slightly open for 2-3 minutes after start up or until the
vehicle has been “aired out.”
2008 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Climate Controls
33

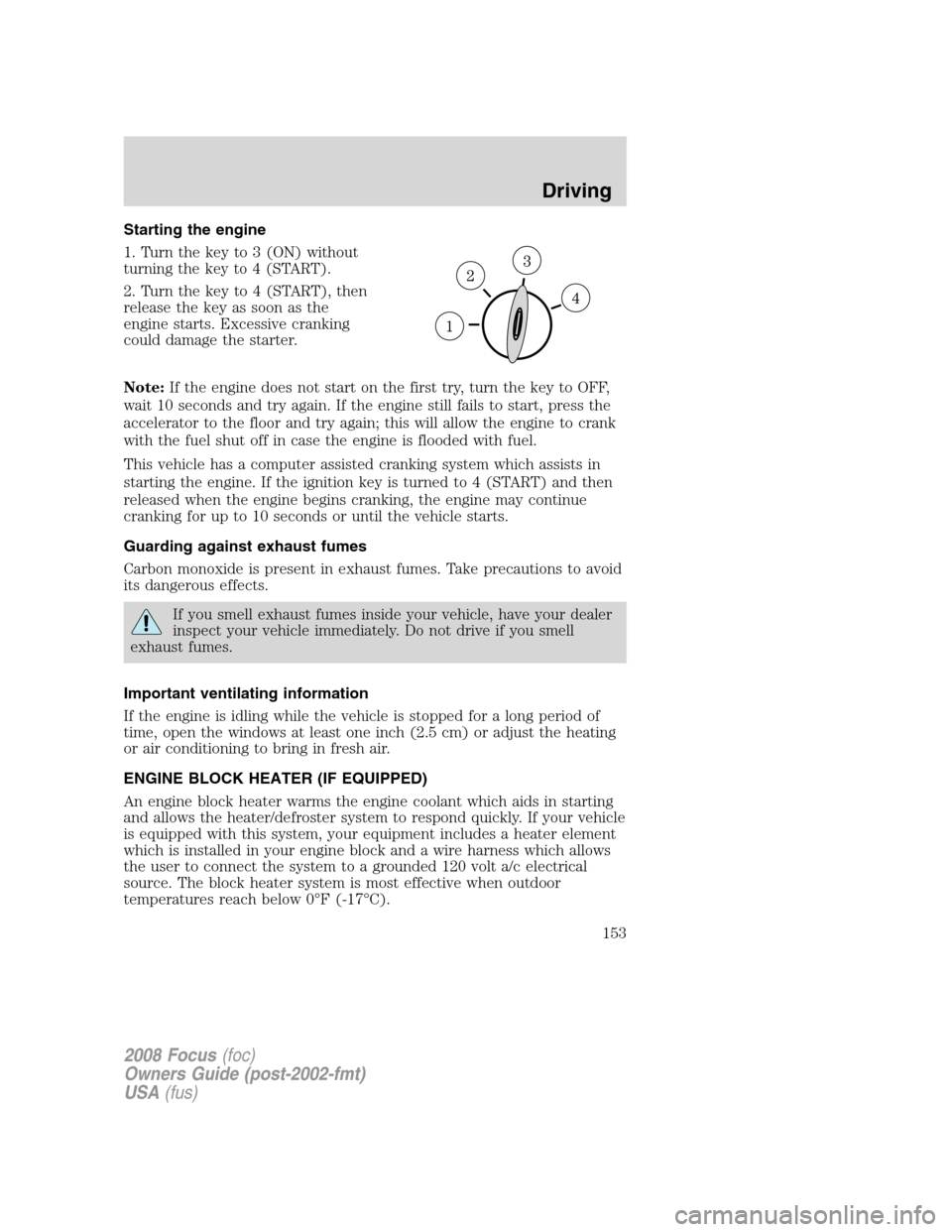

Starting the engine
1. Turn the key to 3 (ON) without
turning the key to 4 (START).
2. Turn the key to 4 (START), then
release the key as soon as the
engine starts. Excessive cranking
could damage the starter.
Note:If the engine does not start on the first try, turn the key to OFF,
wait 10 seconds and try again. If the engine still fails to start, press the
accelerator to the floor and try again; this will allow the engine to crank
with the fuel shut off in case the engine is flooded with fuel.
This vehicle has a computer assisted cranking system which assists in
starting the engine. If the ignition key is turned to 4 (START) and then
released when the engine begins cranking, the engine may continue
cranking for up to 10 seconds or until the vehicle starts.
Guarding against exhaust fumes
Carbon monoxide is present in exhaust fumes. Take precautions to avoid
its dangerous effects.
If you smell exhaust fumes inside your vehicle, have your dealer
inspect your vehicle immediately. Do not drive if you smell
exhaust fumes.
Important ventilating information
If the engine is idling while the vehicle is stopped for a long period of
time, open the windows at least one inch (2.5 cm) or adjust the heating
or air conditioning to bring in fresh air.
ENGINE BLOCK HEATER (IF EQUIPPED)
An engine block heater warms the engine coolant which aids in starting
and allows the heater/defroster system to respond quickly. If your vehicle
is equipped with this system, your equipment includes a heater element
which is installed in your engine block and a wire harness which allows
the user to connect the system to a grounded 120 volt a/c electrical
source. The block heater system is most effective when outdoor
temperatures reach below 0°F (-17°C).
2008 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
153

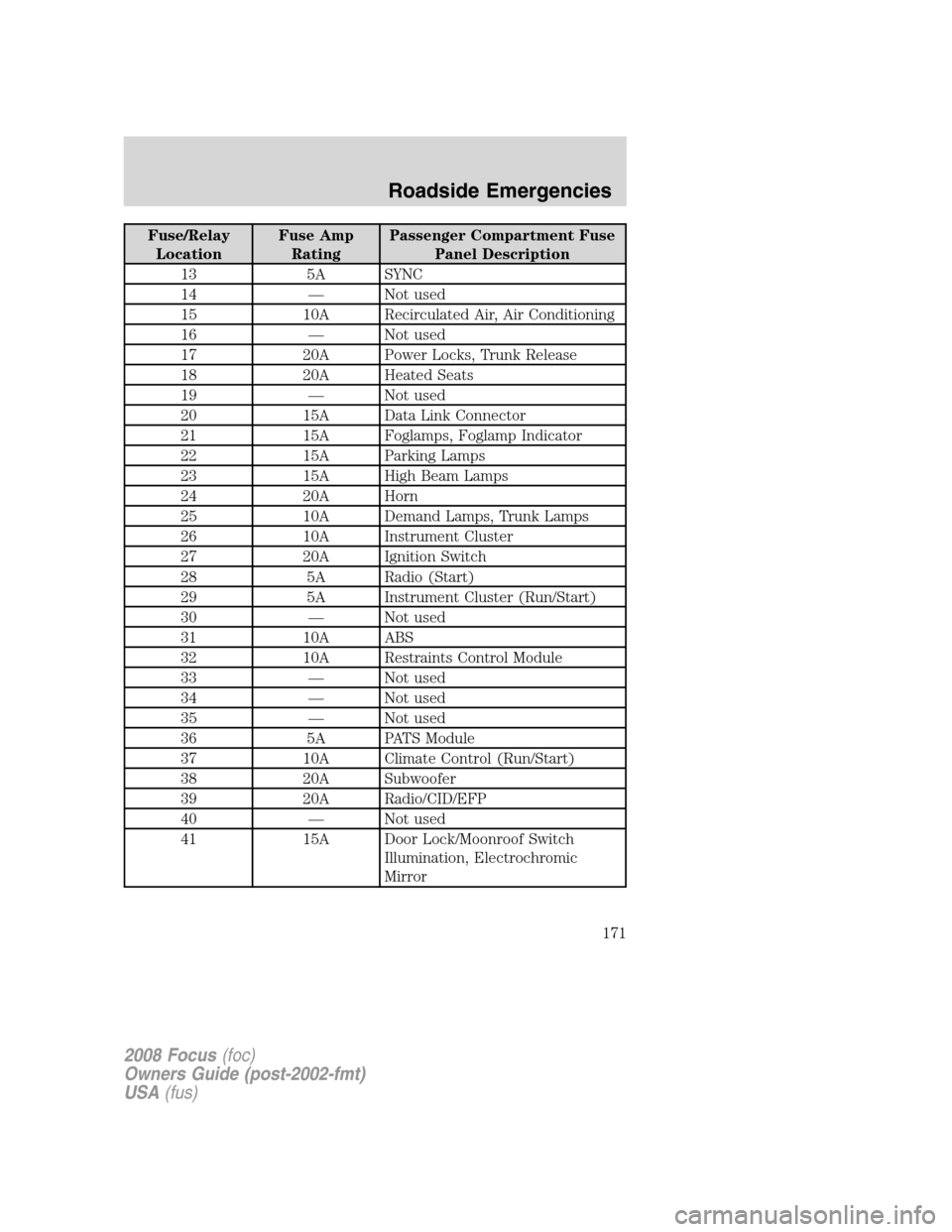

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
13 5A SYNC
14 — Not used
15 10A Recirculated Air, Air Conditioning
16 — Not used
17 20A Power Locks, Trunk Release
18 20A Heated Seats
19 — Not used
20 15A Data Link Connector
21 15A Foglamps, Foglamp Indicator
22 15A Parking Lamps
23 15A High Beam Lamps
24 20A Horn
25 10A Demand Lamps, Trunk Lamps
26 10A Instrument Cluster
27 20A Ignition Switch
28 5A Radio (Start)
29 5A Instrument Cluster (Run/Start)
30 — Not used
31 10A ABS
32 10A Restraints Control Module
33 — Not used
34 — Not used
35 — Not used
36 5A PATS Module
37 10A Climate Control (Run/Start)
38 20A Subwoofer
39 20A Radio/CID/EFP
40 — Not used
41 15A Door Lock/Moonroof Switch
Illumination, Electrochromic
Mirror
2008 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
171

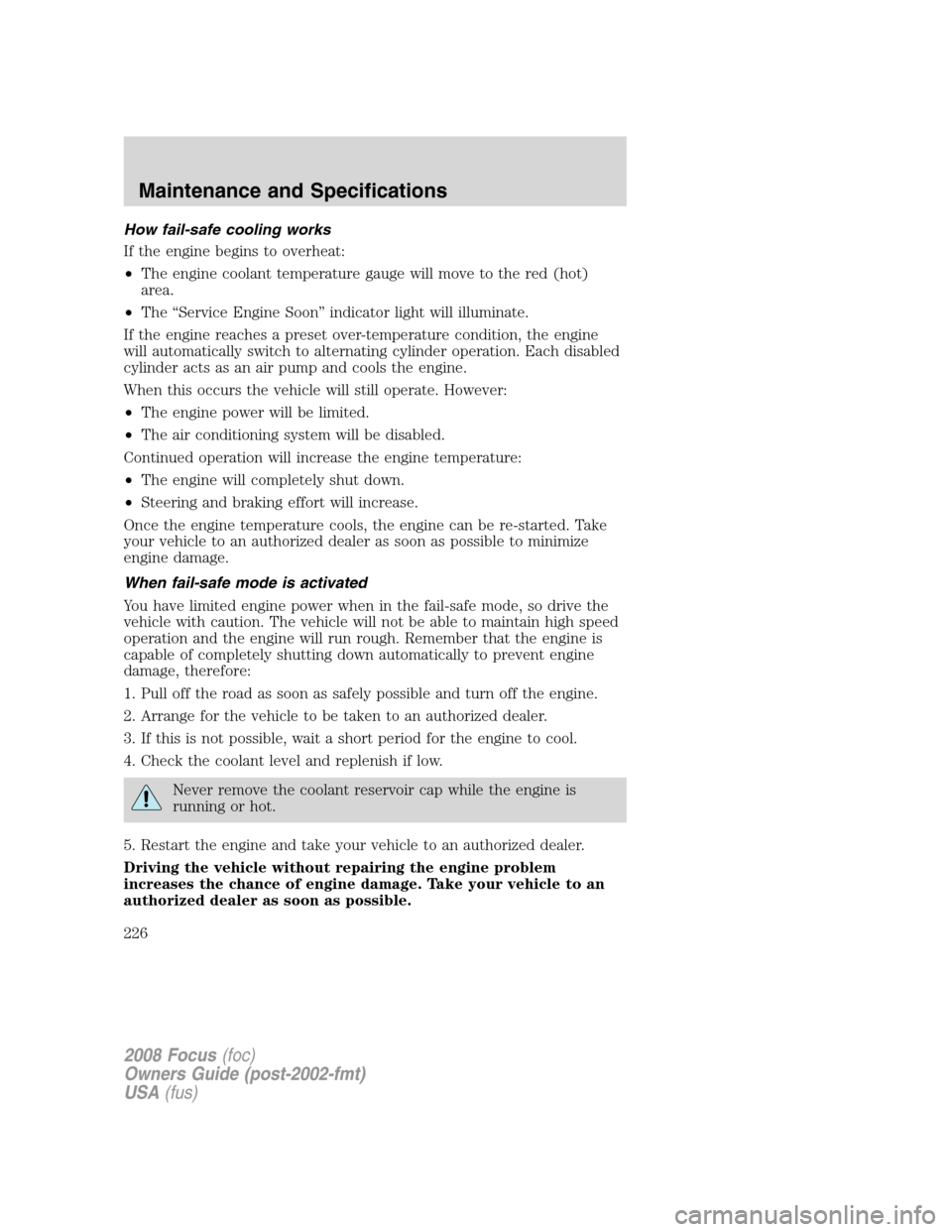

How fail-safe cooling works
If the engine begins to overheat:
•The engine coolant temperature gauge will move to the red (hot)
area.
•The “Service Engine Soon” indicator light will illuminate.
If the engine reaches a preset over-temperature condition, the engine
will automatically switch to alternating cylinder operation. Each disabled
cylinder acts as an air pump and cools the engine.
When this occurs the vehicle will still operate. However:
•The engine power will be limited.
•The air conditioning system will be disabled.
Continued operation will increase the engine temperature:
•The engine will completely shut down.
•Steering and braking effort will increase.
Once the engine temperature cools, the engine can be re-started. Take
your vehicle to an authorized dealer as soon as possible to minimize
engine damage.
When fail-safe mode is activated
You have limited engine power when in the fail-safe mode, so drive the
vehicle with caution. The vehicle will not be able to maintain high speed
operation and the engine will run rough. Remember that the engine is
capable of completely shutting down automatically to prevent engine
damage, therefore:
1. Pull off the road as soon as safely possible and turn off the engine.
2. Arrange for the vehicle to be taken to an authorized dealer.
3. If this is not possible, wait a short period for the engine to cool.
4. Check the coolant level and replenish if low.
Never remove the coolant reservoir cap while the engine is
running or hot.
5. Restart the engine and take your vehicle to an authorized dealer.
Driving the vehicle without repairing the engine problem
increases the chance of engine damage. Take your vehicle to an
authorized dealer as soon as possible.
2008 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
226

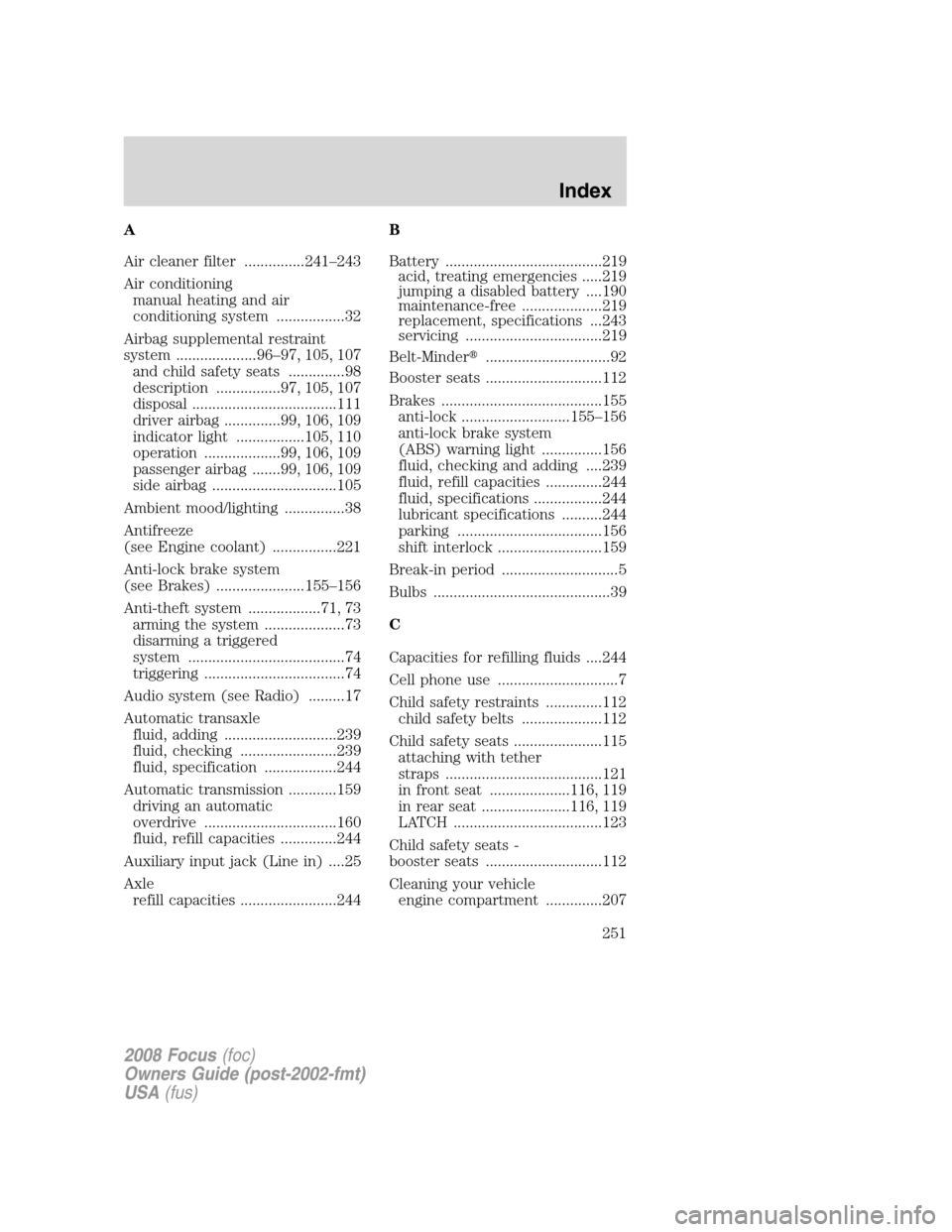

A
Air cleaner filter ...............241–243
Air conditioning
manual heating and air
conditioning system .................32
Airbag supplemental restraint
system ....................96–97, 105, 107
and child safety seats ..............98
description ................97, 105, 107
disposal ....................................111
driver airbag ..............99, 106, 109
indicator light .................105, 110
operation ...................99, 106, 109
passenger airbag .......99, 106, 109
side airbag ...............................105
Ambient mood/lighting ...............38
Antifreeze
(see Engine coolant) ................221
Anti-lock brake system
(see Brakes) ......................155–156
Anti-theft system ..................71, 73
arming the system ....................73
disarming a triggered
system .......................................74
triggering ...................................74
Audio system (see Radio) .........17
Automatic transaxle
fluid, adding ............................239
fluid, checking ........................239
fluid, specification ..................244
Automatic transmission ............159
driving an automatic
overdrive .................................160
fluid, refill capacities ..............244
Auxiliary input jack (Line in) ....25
Axle
refill capacities ........................244B
Battery .......................................219
acid, treating emergencies .....219
jumping a disabled battery ....190
maintenance-free ....................219
replacement, specifications ...243
servicing ..................................219
Belt-Minder...............................92
Booster seats .............................112
Brakes ........................................155
anti-lock ...........................155–156
anti-lock brake system
(ABS) warning light ...............156
fluid, checking and adding ....239
fluid, refill capacities ..............244
fluid, specifications .................244
lubricant specifications ..........244
parking ....................................156
shift interlock ..........................159
Break-in period .............................5
Bulbs ............................................39
C
Capacities for refilling fluids ....244
Cell phone use ..............................7
Child safety restraints ..............112
child safety belts ....................112
Child safety seats ......................115
attaching with tether
straps .......................................121
in front seat ....................116, 119
in rear seat ......................116, 119
LATCH .....................................123
Child safety seats -
booster seats .............................112
Cleaning your vehicle
engine compartment ..............207
2008 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Index
251

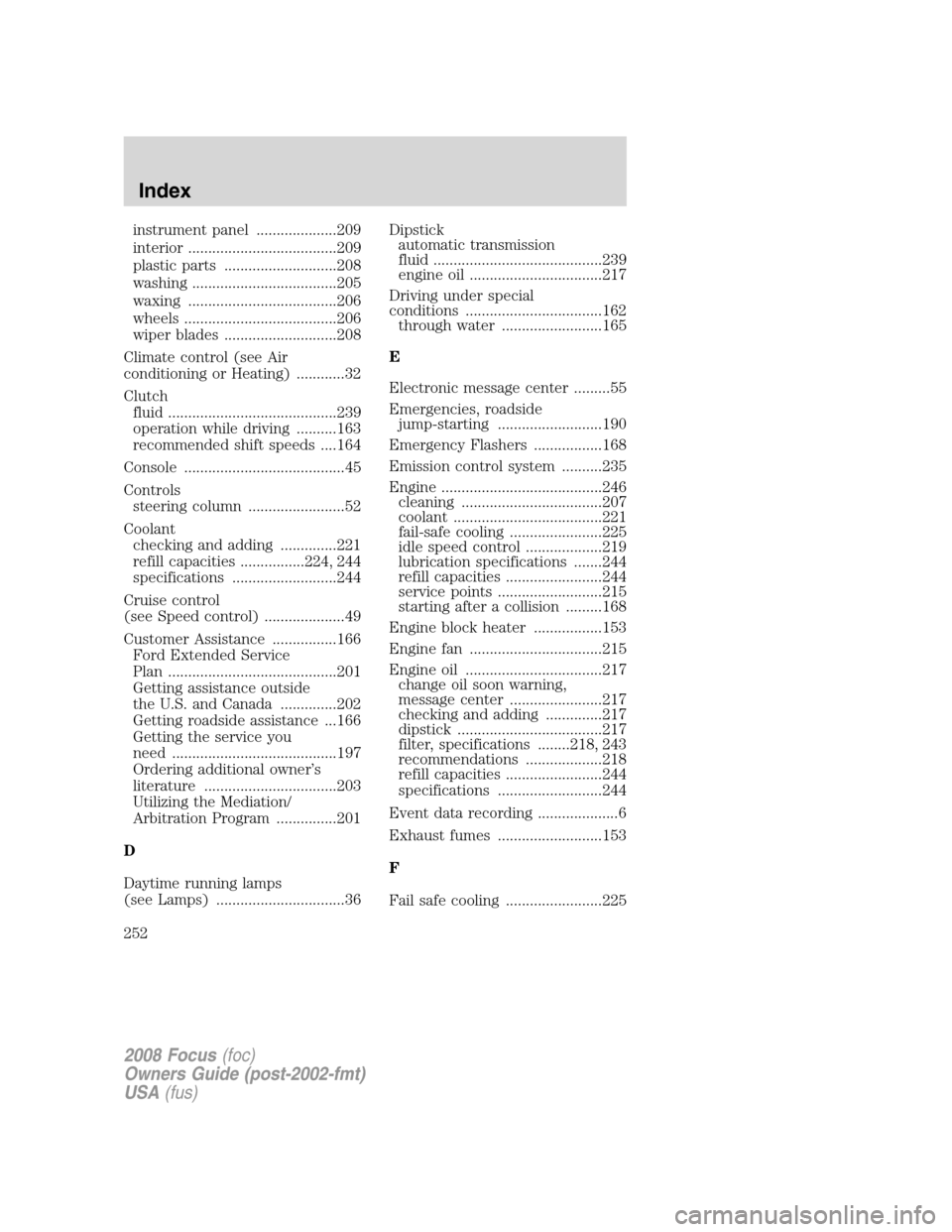

instrument panel ....................209
interior .....................................209
plastic parts ............................208
washing ....................................205
waxing .....................................206
wheels ......................................206
wiper blades ............................208
Climate control (see Air
conditioning or Heating) ............32
Clutch
fluid ..........................................239
operation while driving ..........163
recommended shift speeds ....164
Console ........................................45
Controls
steering column ........................52
Coolant
checking and adding ..............221
refill capacities ................224, 244
specifications ..........................244
Cruise control
(see Speed control) ....................49
Customer Assistance ................166
Ford Extended Service
Plan ..........................................201
Getting assistance outside
the U.S. and Canada ..............202
Getting roadside assistance ...166
Getting the service you
need .........................................197
Ordering additional owner’s
literature .................................203
Utilizing the Mediation/
Arbitration Program ...............201
D
Daytime running lamps
(see Lamps) ................................36Dipstick
automatic transmission
fluid ..........................................239
engine oil .................................217
Driving under special
conditions ..................................162
through water .........................165
E
Electronic message center .........55
Emergencies, roadside
jump-starting ..........................190
Emergency Flashers .................168
Emission control system ..........235
Engine ........................................246
cleaning ...................................207
coolant .....................................221
fail-safe cooling .......................225
idle speed control ...................219
lubrication specifications .......244
refill capacities ........................244
service points ..........................215
starting after a collision .........168
Engine block heater .................153
Engine fan .................................215
Engine oil ..................................217
change oil soon warning,
message center .......................217
checking and adding ..............217
dipstick ....................................217
filter, specifications ........218, 243
recommendations ...................218
refill capacities ........................244
specifications ..........................244
Event data recording ....................6
Exhaust fumes ..........................153
F
Fail safe cooling ........................225
2008 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Index
252

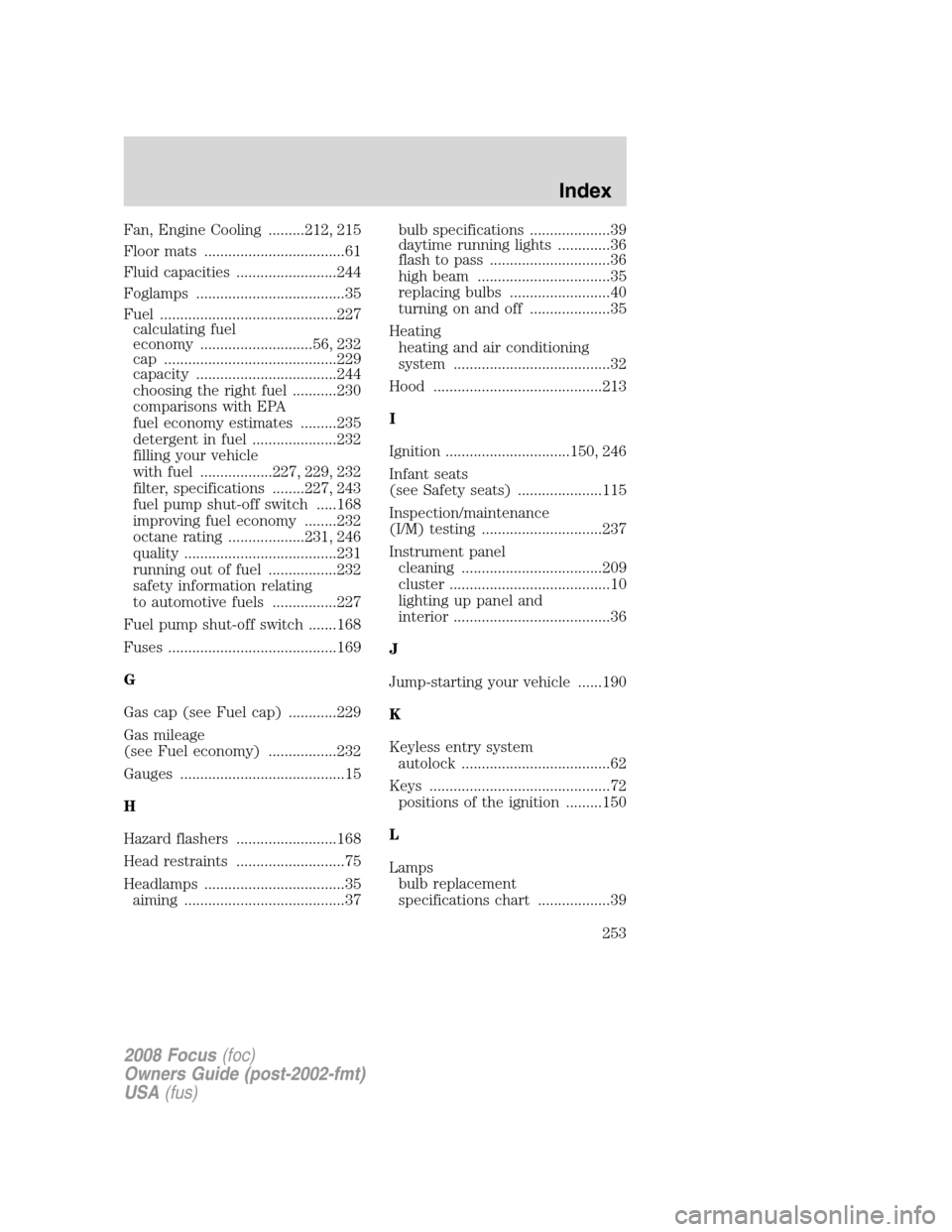

Fan, Engine Cooling .........212, 215
Floor mats ...................................61
Fluid capacities .........................244
Foglamps .....................................35
Fuel ............................................227
calculating fuel
economy ............................56, 232
cap ...........................................229
capacity ...................................244
choosing the right fuel ...........230
comparisons with EPA
fuel economy estimates .........235
detergent in fuel .....................232
filling your vehicle
with fuel ..................227, 229, 232
filter, specifications ........227, 243
fuel pump shut-off switch .....168
improving fuel economy ........232
octane rating ...................231, 246
quality ......................................231
running out of fuel .................232
safety information relating
to automotive fuels ................227
Fuel pump shut-off switch .......168
Fuses ..........................................169
G
Gas cap (see Fuel cap) ............229
Gas mileage
(see Fuel economy) .................232
Gauges .........................................15
H
Hazard flashers .........................168
Head restraints ...........................75
Headlamps ...................................35
aiming ........................................37bulb specifications ....................39
daytime running lights .............36
flash to pass ..............................36
high beam .................................35
replacing bulbs .........................40
turning on and off ....................35
Heating
heating and air conditioning
system .......................................32
Hood ..........................................213
I
Ignition ...............................150, 246
Infant seats
(see Safety seats) .....................115
Inspection/maintenance
(I/M) testing ..............................237
Instrument panel
cleaning ...................................209
cluster ........................................10
lighting up panel and
interior .......................................36
J
Jump-starting your vehicle ......190
K
Keyless entry system
autolock .....................................62
Keys .............................................72
positions of the ignition .........150
L
Lamps
bulb replacement
specifications chart ..................39
2008 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Index
253
