Page 1 of 256
Introduction 4
Instrument Cluster 10
Warning lights and chimes 10
Gauges 15
Entertainment Systems 17
Auxiliary input jack (Line in) 25
USB port 27
Satellite radio information 29
Climate Controls 32
Manual heating and air conditioning 32
Rear window defroster 34
Lights 35
Headlamps 35
Turn signal control 38
Bulb replacement 39
Driver Controls 44
Windshield wiper/washer control 44
Steering wheel adjustment 45
Power windows 46
Mirrors 47
Speed control 49
Moon roof 53
Message center 55
Locks and Security 62
Keys 62
Locks 62
Anti-theft system 71
Table of Contents
1
2008 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Page 14 of 256
AdvanceTrac™/Traction
Control™ system (if equipped):
Illuminates when the Traction
Control™ is turned OFF and will
flash when active. If the light
remains on, have the system
serviced immediately, refer to theDrivingchapter for more information.
Throttle Control/Transmission:
Illuminates when a powertrain fault
has been detected. Contact your
authorized dealer as soon as
possible.
Low fuel:Illuminates when the fuel
level in the fuel tank is at or near
empty (refer toFuel gaugein this
chapter).
Door ajar:Illuminates when the
ignition is in the ON position and
any door is open.
Turn signal:Illuminates when the
left or right turn signal or the
hazard lights are turned on. If the
indicators stay on or flash faster, check for a burned out bulb.
High beams:Illuminates when the
high beam headlamps are turned on.
Key-in-ignition warning chime:Sounds when the key is left in the
ignition in the OFF/LOCK or ACCESSORY position and the driver’s door
is opened.
Headlamps on warning chime:Sounds when the headlamps or parking
lamps are on, the ignition is off (the key is not in the ignition) and the
driver’s door is opened.
2008 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Instrument Cluster
14
Page 31 of 256
Radio Display Condition Action Required
NO TEXT Artist information
not available.Artist information not
available at this time on
this channel. The system is
working properly.
NO TEXT Song title
information not
available.Song title information not
available at this time on
this channel. The system is
working properly.
NO TEXT Category
information not
available.Category information not
available at this time on
this channel. The system is
working properly.
NO SIGNAL Loss of signal from
the SIRIUS satellite
or SIRIUS tower to
the vehicle antenna.You are in a location that is
blocking the SIRIUS signal
(i.e., tunnel, under an
overpass, dense foliage,
etc). The system is
working properly. When
you move into an open
area, the signal should
return.
UPDATING Update of channel
programming in
progress.No action required. The
process may take up to
three minutes.
CALL SIRIUS
1–888–539–7474Satellite service has
been deactivated by
SIRIUS Satellite
Radio.Call SIRIUS at
1–888–539–7474 to
re-activate or resolve
subscription issues.
SYNC SYSTEM (LATE AVAILABILITY — IF EQUIPPED)
Your vehicle may be equipped with SYNC, a multi-media system with
special phone and media features. Refer to yourSYNC supplementfor
further information.
2008 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
31
Page 38 of 256
5. Locate the vertical adjuster on
each headlamp, then usea7mm
Allen wrench or a Phillips
screwdriver to adjust the headlamp
up or down.
6. HORIZONTAL AIM IS NOT
REQUIRED FOR THIS VEHICLE
AND IS NON-ADJUSTABLE.
7. Close the hood and turn off the
lamps.
TURN SIGNAL CONTROL
•Push down to activate the left
turn signal.
•Push up to activate the right turn
signal.
INTERIOR LAMPS
Map lamps
To turn on the map lamps, press the
outer edge of the clear lens. The
map lamp lights when:
•any door is opened.
•the remote entry controls are
pressed and the ignition is OFF.
Ambient lighting (if equipped)
Never adjust the ambient/mood lighting when the vehicle is
moving.
2008 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
38

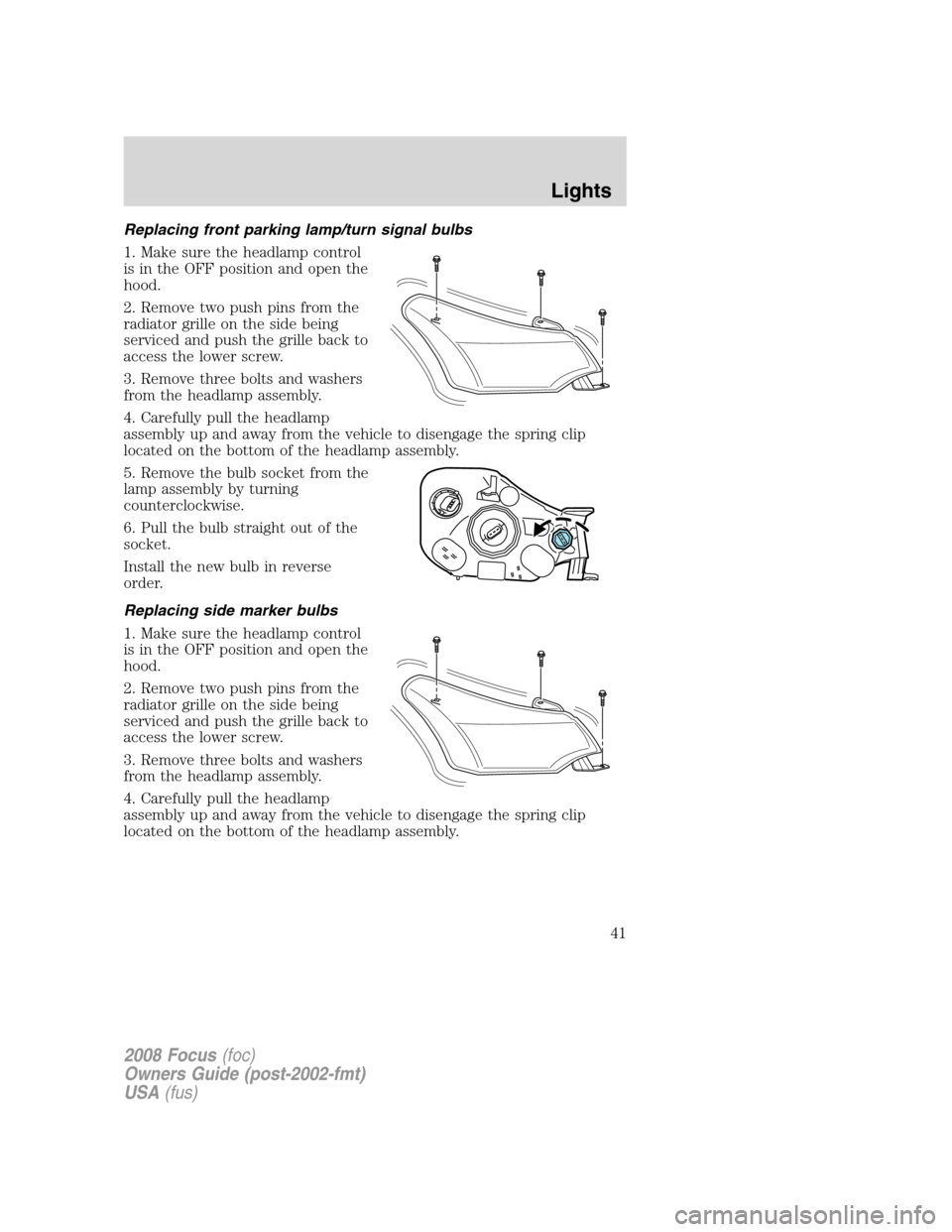

Page 41 of 256
Replacing front parking lamp/turn signal bulbs
1. Make sure the headlamp control
is in the OFF position and open the
hood.
2. Remove two push pins from the
radiator grille on the side being
serviced and push the grille back to
access the lower screw.
3. Remove three bolts and washers
from the headlamp assembly.
4. Carefully pull the headlamp
assembly up and away from the vehicle to disengage the spring clip
located on the bottom of the headlamp assembly.
5. Remove the bulb socket from the
lamp assembly by turning
counterclockwise.
6. Pull the bulb straight out of the
socket.
Install the new bulb in reverse
order.
Replacing side marker bulbs
1. Make sure the headlamp control
is in the OFF position and open the
hood.
2. Remove two push pins from the
radiator grille on the side being
serviced and push the grille back to
access the lower screw.
3. Remove three bolts and washers
from the headlamp assembly.
4. Carefully pull the headlamp
assembly up and away from the vehicle to disengage the spring clip
located on the bottom of the headlamp assembly.
2008 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
41

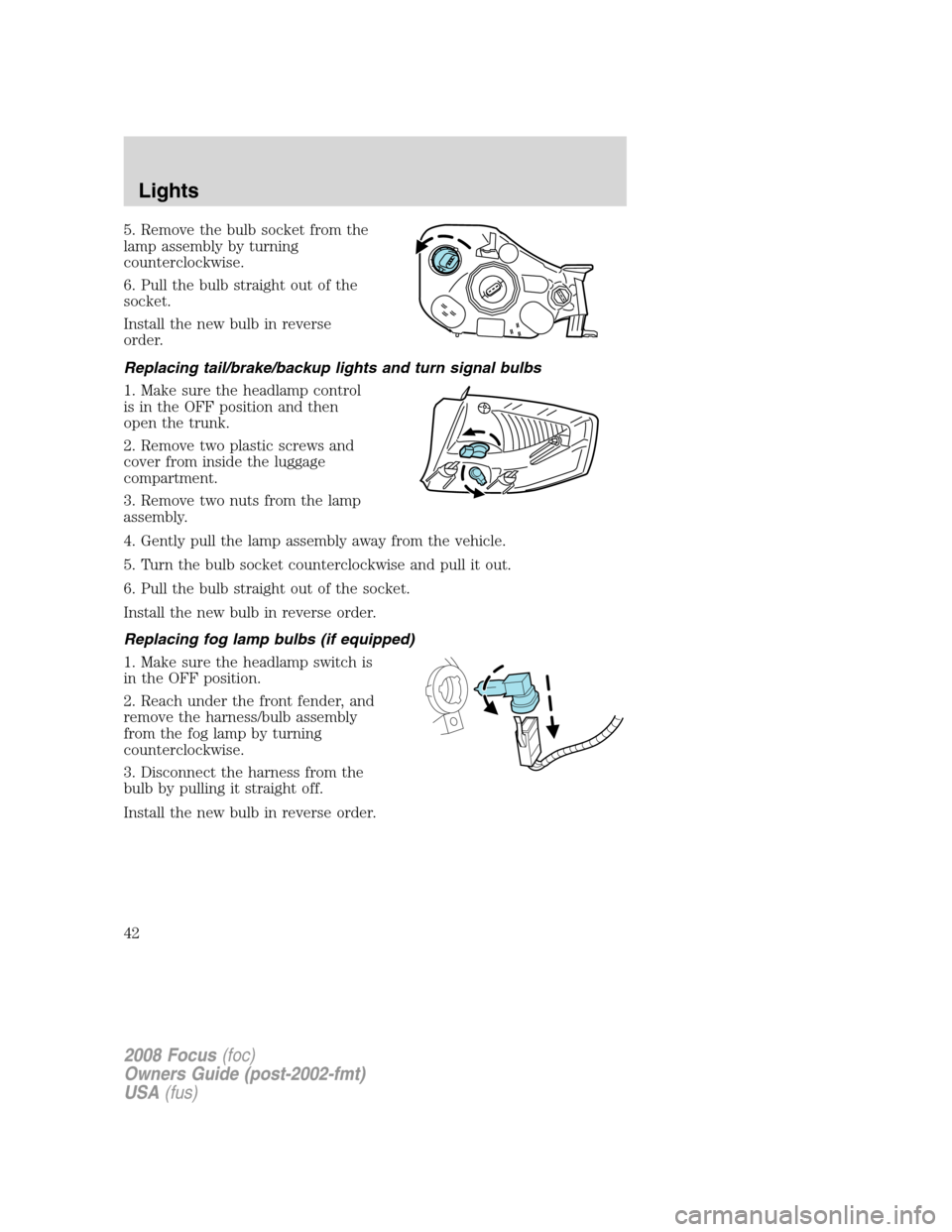

Page 42 of 256
5. Remove the bulb socket from the
lamp assembly by turning
counterclockwise.
6. Pull the bulb straight out of the
socket.
Install the new bulb in reverse
order.
Replacing tail/brake/backup lights and turn signal bulbs
1. Make sure the headlamp control
is in the OFF position and then
open the trunk.
2. Remove two plastic screws and
cover from inside the luggage
compartment.
3. Remove two nuts from the lamp
assembly.
4. Gently pull the lamp assembly away from the vehicle.
5. Turn the bulb socket counterclockwise and pull it out.
6. Pull the bulb straight out of the socket.
Install the new bulb in reverse order.
Replacing fog lamp bulbs (if equipped)
1. Make sure the headlamp switch is
in the OFF position.
2. Reach under the front fender, and
remove the harness/bulb assembly
from the fog lamp by turning
counterclockwise.
3. Disconnect the harness from the
bulb by pulling it straight off.
Install the new bulb in reverse order.
2008 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
42

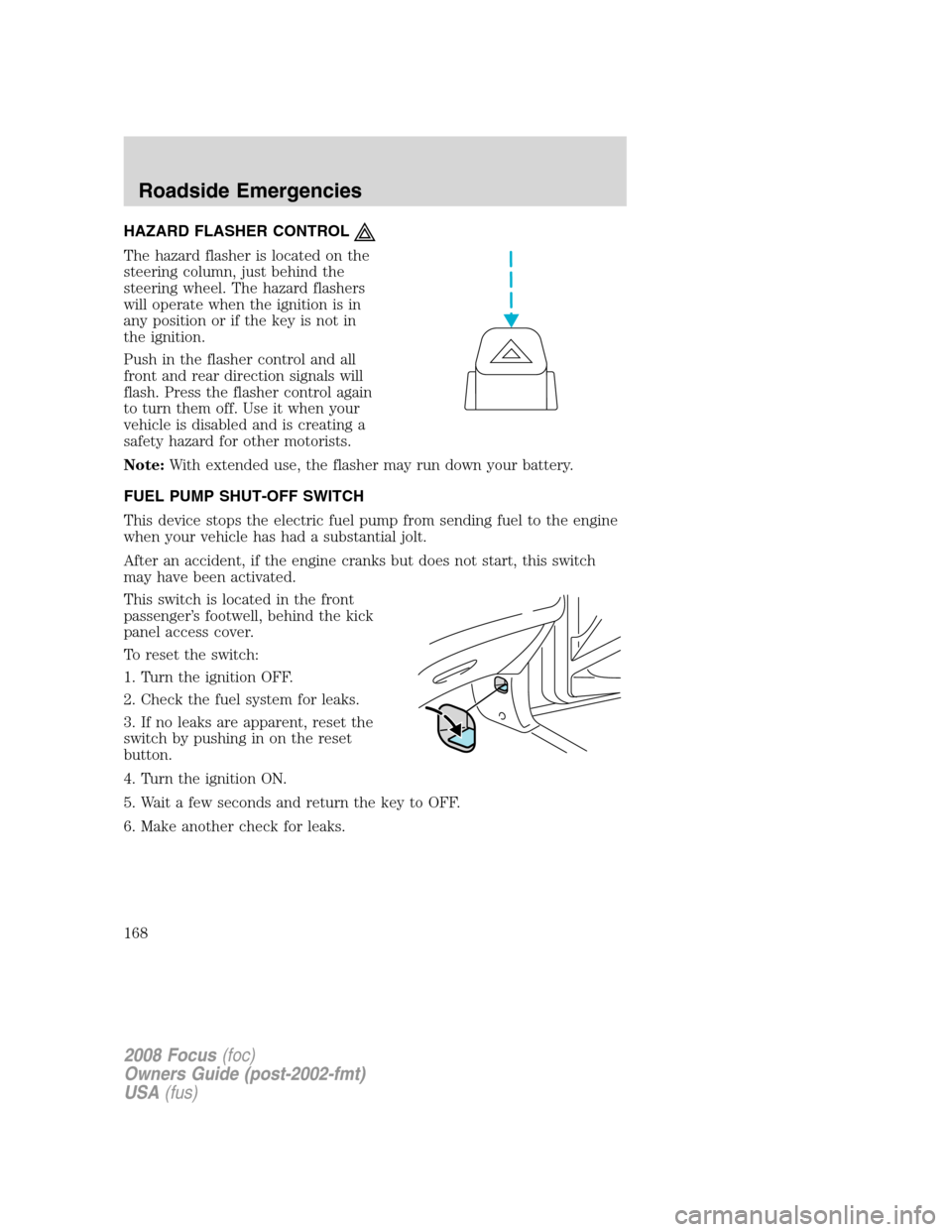

Page 168 of 256
HAZARD FLASHER CONTROL
The hazard flasher is located on the
steering column, just behind the
steering wheel. The hazard flashers
will operate when the ignition is in
any position or if the key is not in
the ignition.
Push in the flasher control and all
front and rear direction signals will
flash. Press the flasher control again
to turn them off. Use it when your
vehicle is disabled and is creating a
safety hazard for other motorists.
Note:With extended use, the flasher may run down your battery.
FUEL PUMP SHUT-OFF SWITCH
This device stops the electric fuel pump from sending fuel to the engine
when your vehicle has had a substantial jolt.
After an accident, if the engine cranks but does not start, this switch
may have been activated.
This switch is located in the front
passenger’s footwell, behind the kick
panel access cover.
To reset the switch:
1. Turn the ignition OFF.
2. Check the fuel system for leaks.
3. If no leaks are apparent, reset the
switch by pushing in on the reset
button.
4. Turn the ignition ON.
5. Wait a few seconds and return the key to OFF.
6. Make another check for leaks.
2008 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
168

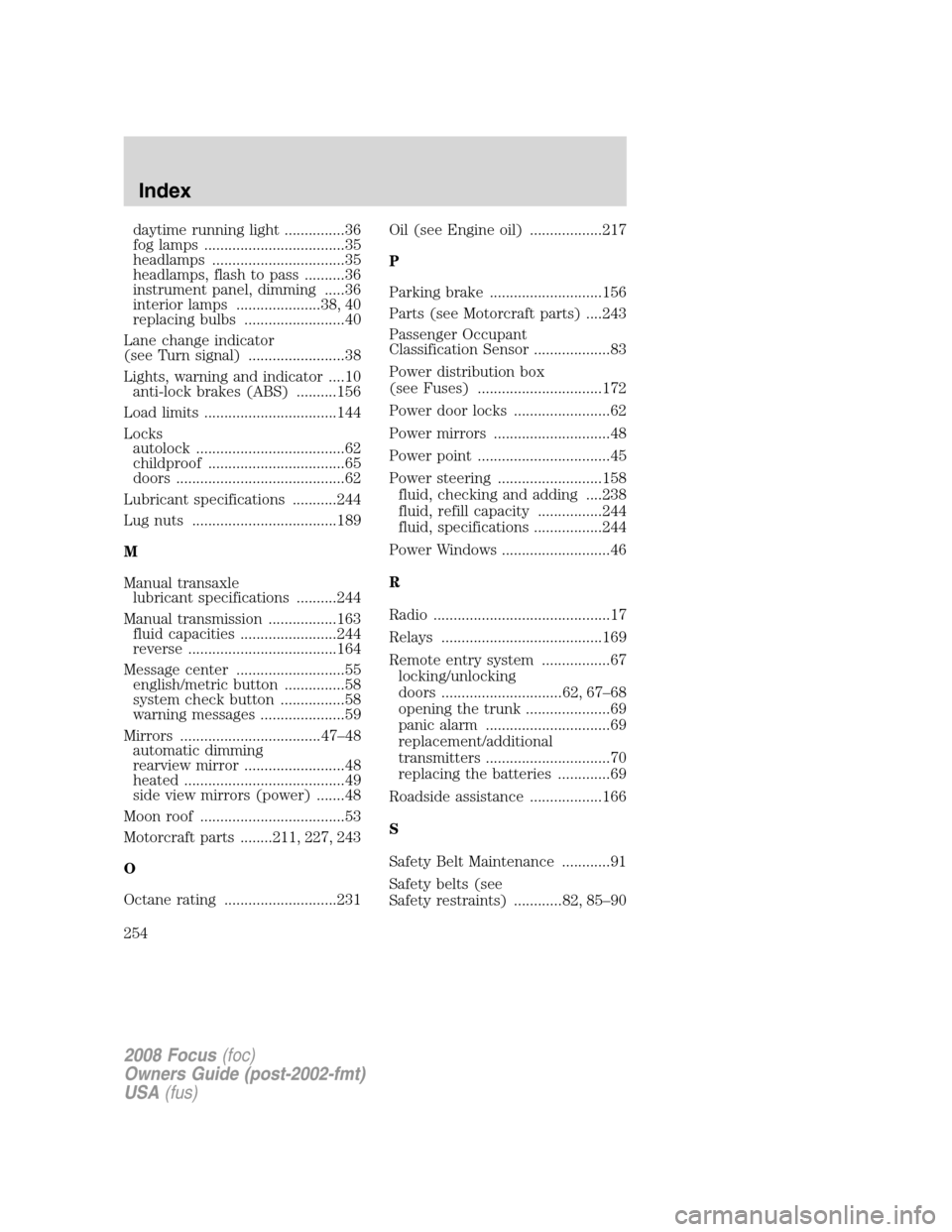

Page 254 of 256
daytime running light ...............36
fog lamps ...................................35
headlamps .................................35
headlamps, flash to pass ..........36
instrument panel, dimming .....36
interior lamps .....................38, 40
replacing bulbs .........................40
Lane change indicator
(see Turn signal) ........................38
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........156
Load limits .................................144
Locks
autolock .....................................62
childproof ..................................65
doors ..........................................62
Lubricant specifications ...........244
Lug nuts ....................................189
M
Manual transaxle
lubricant specifications ..........244
Manual transmission .................163
fluid capacities ........................244
reverse .....................................164
Message center ...........................55
english/metric button ...............58
system check button ................58
warning messages .....................59
Mirrors ...................................47–48
automatic dimming
rearview mirror .........................48
heated ........................................49
side view mirrors (power) .......48
Moon roof ....................................53
Motorcraft parts ........211, 227, 243
O
Octane rating ............................231Oil (see Engine oil) ..................217
P
Parking brake ............................156
Parts (see Motorcraft parts) ....243
Passenger Occupant
Classification Sensor ...................83
Power distribution box
(see Fuses) ...............................172
Power door locks ........................62
Power mirrors .............................48
Power point .................................45
Power steering ..........................158
fluid, checking and adding ....238
fluid, refill capacity ................244
fluid, specifications .................244
Power Windows ...........................46
R
Radio ............................................17
Relays ........................................169
Remote entry system .................67
locking/unlocking
doors ..............................62, 67–68
opening the trunk .....................69
panic alarm ...............................69
replacement/additional
transmitters ...............................70
replacing the batteries .............69
Roadside assistance ..................166
S
Safety Belt Maintenance ............91
Safety belts (see
Safety restraints) ............82, 85–90
2008 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Index
254

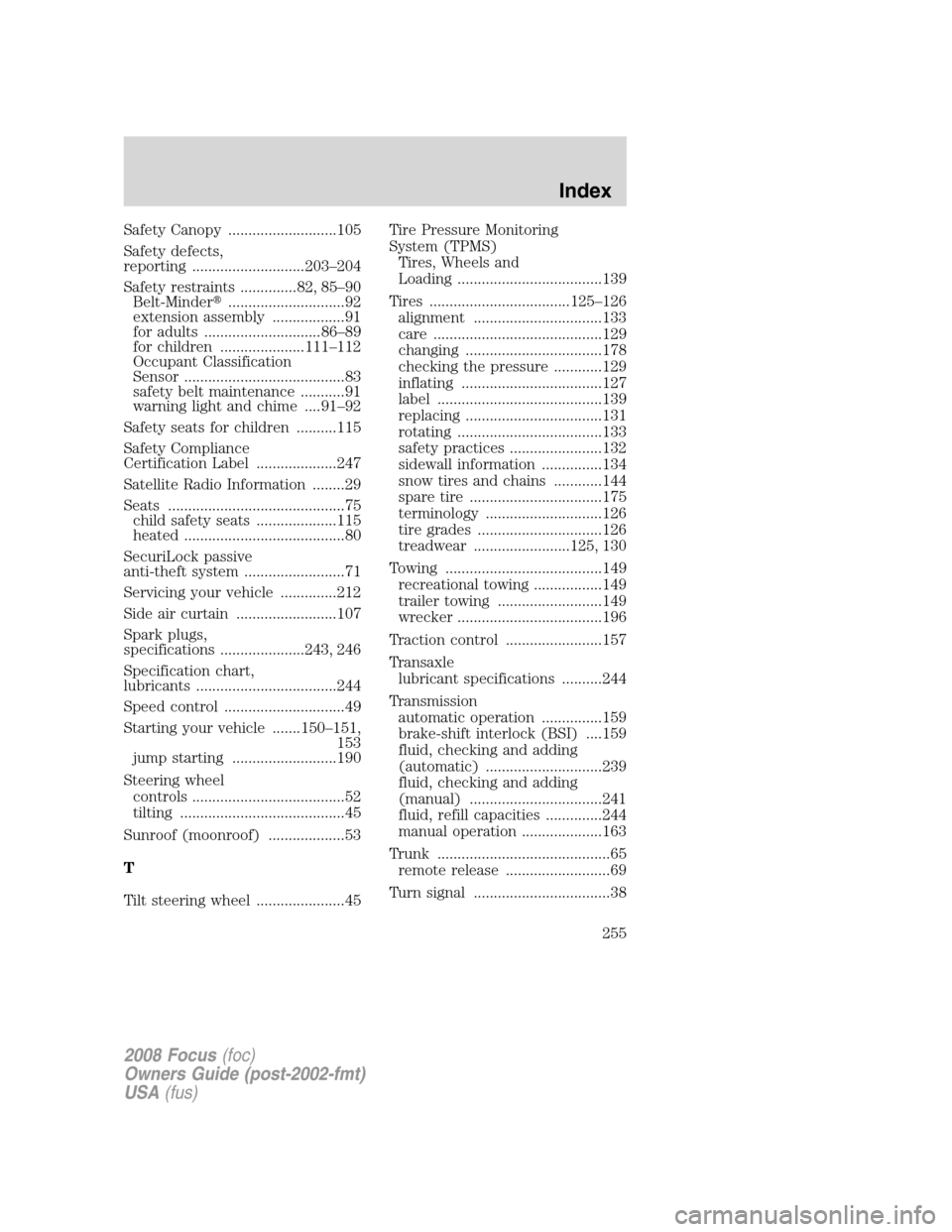

Page 255 of 256
Safety Canopy ...........................105
Safety defects,
reporting ............................203–204
Safety restraints ..............82, 85–90
Belt-Minder.............................92
extension assembly ..................91
for adults .............................86–89
for children .....................111–112
Occupant Classification
Sensor ........................................83
safety belt maintenance ...........91
warning light and chime ....91–92
Safety seats for children ..........115
Safety Compliance
Certification Label ....................247
Satellite Radio Information ........29
Seats ............................................75
child safety seats ....................115
heated ........................................80
SecuriLock passive
anti-theft system .........................71
Servicing your vehicle ..............212
Side air curtain .........................107
Spark plugs,
specifications .....................243, 246
Specification chart,
lubricants ...................................244
Speed control ..............................49
Starting your vehicle .......150–151,
153
jump starting ..........................190
Steering wheel
controls ......................................52
tilting .........................................45
Sunroof (moonroof) ...................53
T
Tilt steering wheel ......................45Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and
Loading ....................................139
Tires ...................................125–126
alignment ................................133
care ..........................................129
changing ..................................178
checking the pressure ............129
inflating ...................................127
label .........................................139
replacing ..................................131
rotating ....................................133
safety practices .......................132
sidewall information ...............134
snow tires and chains ............144
spare tire .................................175
terminology .............................126
tire grades ...............................126
treadwear ........................125, 130
Towing .......................................149
recreational towing .................149
trailer towing ..........................149
wrecker ....................................196
Traction control ........................157
Transaxle
lubricant specifications ..........244
Transmission
automatic operation ...............159
brake-shift interlock (BSI) ....159
fluid, checking and adding
(automatic) .............................239
fluid, checking and adding
(manual) .................................241
fluid, refill capacities ..............244
manual operation ....................163
Trunk ...........................................65
remote release ..........................69
Turn signal ..................................38
2008 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Index
255
