FORD FOCUS 2011 2.G Owners Manual

Canadian customers refer to your Warranty Guide or visit our
website at www.ford.ca for information on:
Using roadside assistance
Complete the roadside assistance identification card and place it in your
wallet for quick reference. In the United States, this card is found in the
Owner Guide portfolio in the glove compartment. In Canada, the card is
found in theWarranty Guidein the glove compartment.
U.S. Ford, Mercury and Lincoln vehicle customers who require Roadside
Assistance, call 1-800-241-3673.
Canadian customers who require roadside assistance, call
1-800-665-2006.
If you need to arrange roadside assistance for yourself, Ford Motor
Company will reimburse a reasonable amount for towing to the nearest
dealership within 35 miles (56 km). To obtain reimbursement
information, U.S. Ford, Mercury and Lincoln vehicle customers call
1-800-241-3673. Customers will be asked to submit their original
receipts.
Canadian customers who need to obtain reimbursement information, call
1-800-665-2006 or visit our website at www.ford.ca.
HAZARD FLASHER CONTROL
The hazard flasher is located on the
steering column, just behind the
steering wheel. The hazard flashers
will operate when the ignition is in
any position or if the key is not in
the ignition.
Press the flasher control and all
front and rear direction signals will
flash. Press the flasher control again
to turn them off. Use it when your
vehicle is disabled and is creating a
safety hazard for other motorists.
Note:With extended use, the flasher may run down your battery.
Roadside Emergencies
191
2011 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

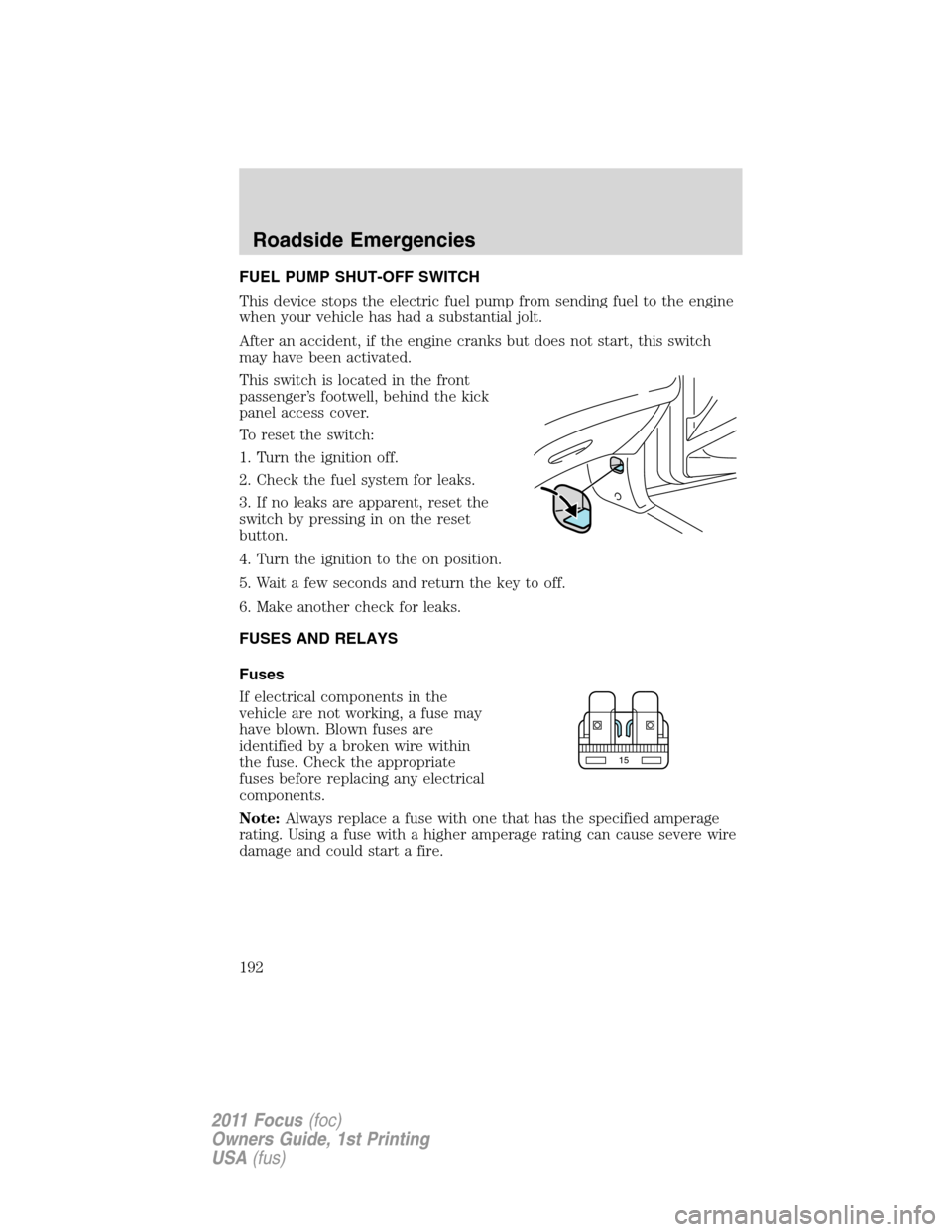

FUEL PUMP SHUT-OFF SWITCH
This device stops the electric fuel pump from sending fuel to the engine
when your vehicle has had a substantial jolt.
After an accident, if the engine cranks but does not start, this switch
may have been activated.
This switch is located in the front
passenger’s footwell, behind the kick
panel access cover.
To reset the switch:
1. Turn the ignition off.
2. Check the fuel system for leaks.
3. If no leaks are apparent, reset the
switch by pressing in on the reset
button.
4. Turn the ignition to the on position.
5. Wait a few seconds and return the key to off.
6. Make another check for leaks.
FUSES AND RELAYS
Fuses
If electrical components in the
vehicle are not working, a fuse may
have blown. Blown fuses are
identified by a broken wire within
the fuse. Check the appropriate
fuses before replacing any electrical
components.
Note:Always replace a fuse with one that has the specified amperage
rating. Using a fuse with a higher amperage rating can cause severe wire
damage and could start a fire.
15
Roadside Emergencies
192
2011 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

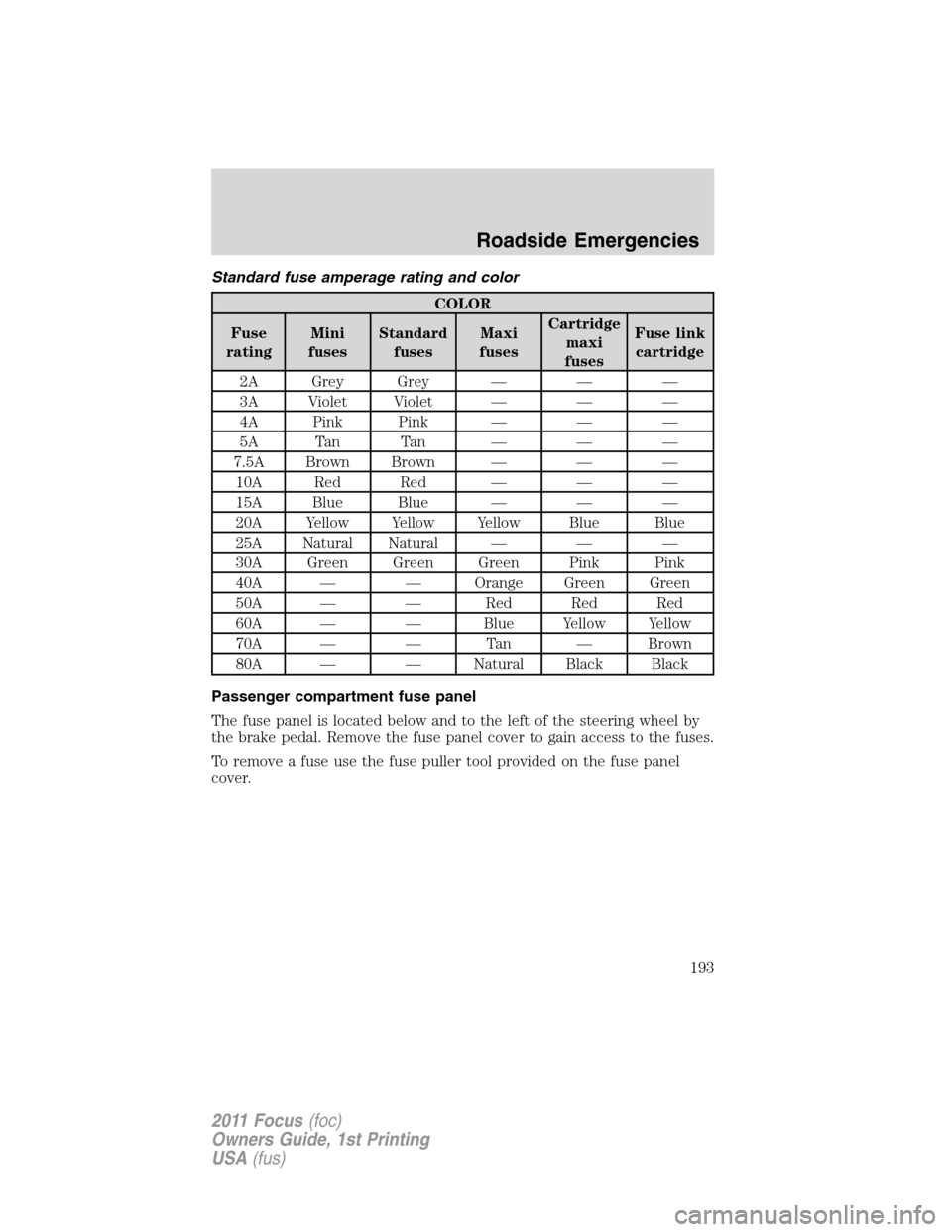

Standard fuse amperage rating and color
COLOR
Fuse
ratingMini
fusesStandard
fusesMaxi
fusesCartridge
maxi
fusesFuse link
cartridge
2A Grey Grey — — —
3A Violet Violet — — —
4A Pink Pink — — —
5A Tan Tan — — —
7.5A Brown Brown — — —
10A Red Red — — —
15A Blue Blue — — —
20A Yellow Yellow Yellow Blue Blue
25A Natural Natural — — —
30A Green Green Green Pink Pink
40A — — Orange Green Green
50A — — Red Red Red
60A — — Blue Yellow Yellow
70A — — Tan — Brown
80A — — Natural Black Black
Passenger compartment fuse panel
The fuse panel is located below and to the left of the steering wheel by
the brake pedal. Remove the fuse panel cover to gain access to the fuses.
To remove a fuse use the fuse puller tool provided on the fuse panel
cover.
Roadside Emergencies
193
2011 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

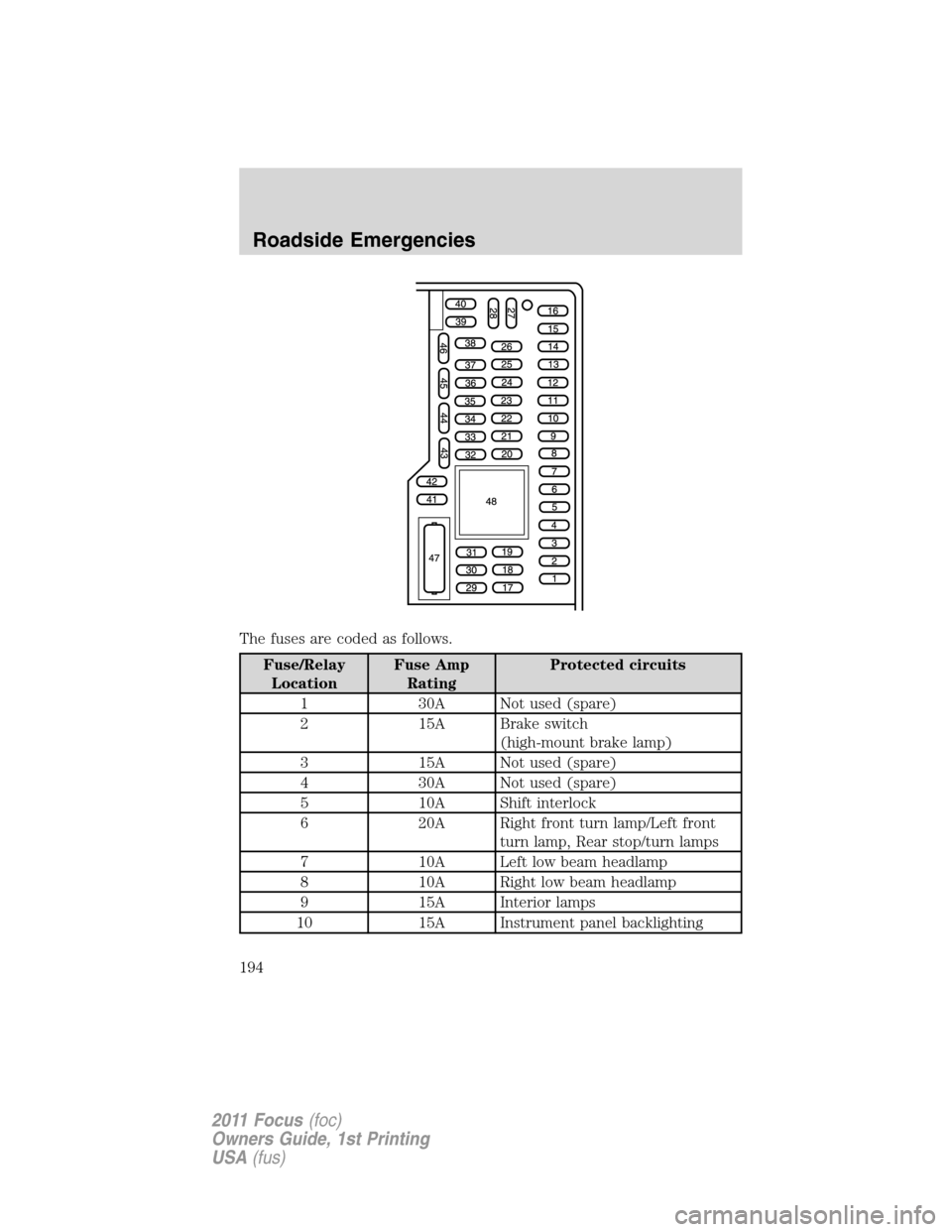

The fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingProtected circuits
1 30A Not used (spare)
2 15A Brake switch
(high-mount brake lamp)
3 15A Not used (spare)
4 30A Not used (spare)
5 10A Shift interlock
6 20A Right front turn lamp/Left front
turn lamp, Rear stop/turn lamps
7 10A Left low beam headlamp
8 10A Right low beam headlamp
9 15A Interior lamps
10 15A Instrument panel backlighting
Roadside Emergencies
194
2011 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected circuits
11 10A Not used (spare)
12 7.5A Power mirrors
13 5A SYNC
14 10A Not used (spare)
15 10A Recirculated air, Air conditioning
16 15A Global positioning system (GPS)
module
17 20A Power locks, Trunk release
18 20A Heated seats
19 25A Not used (spare)
20 15A Data link connector
21 15A Fog lamps, Fog lamp indicator
22 15A Parking lamps
23 15A High beam lamps
24 20A Horn
25 10A Demand lamps, Trunk lamps
26 10A Instrument cluster
27 20A Ignition switch
28 5A Radio (Start)
29 5A Instrument cluster (run/start)
30 5A Not used (spare)
31 10A Not used (spare)
32 10A Restraints control module
33 10A Not used (spare)
34 5A Not used (spare)
35 10A Anti-lock brake system (ABS)
36 5A Passive anti-theft system (PATS)
module
37 10A Climate control (run/start)
38 20A Subwoofer
Roadside Emergencies
195
2011 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected circuits

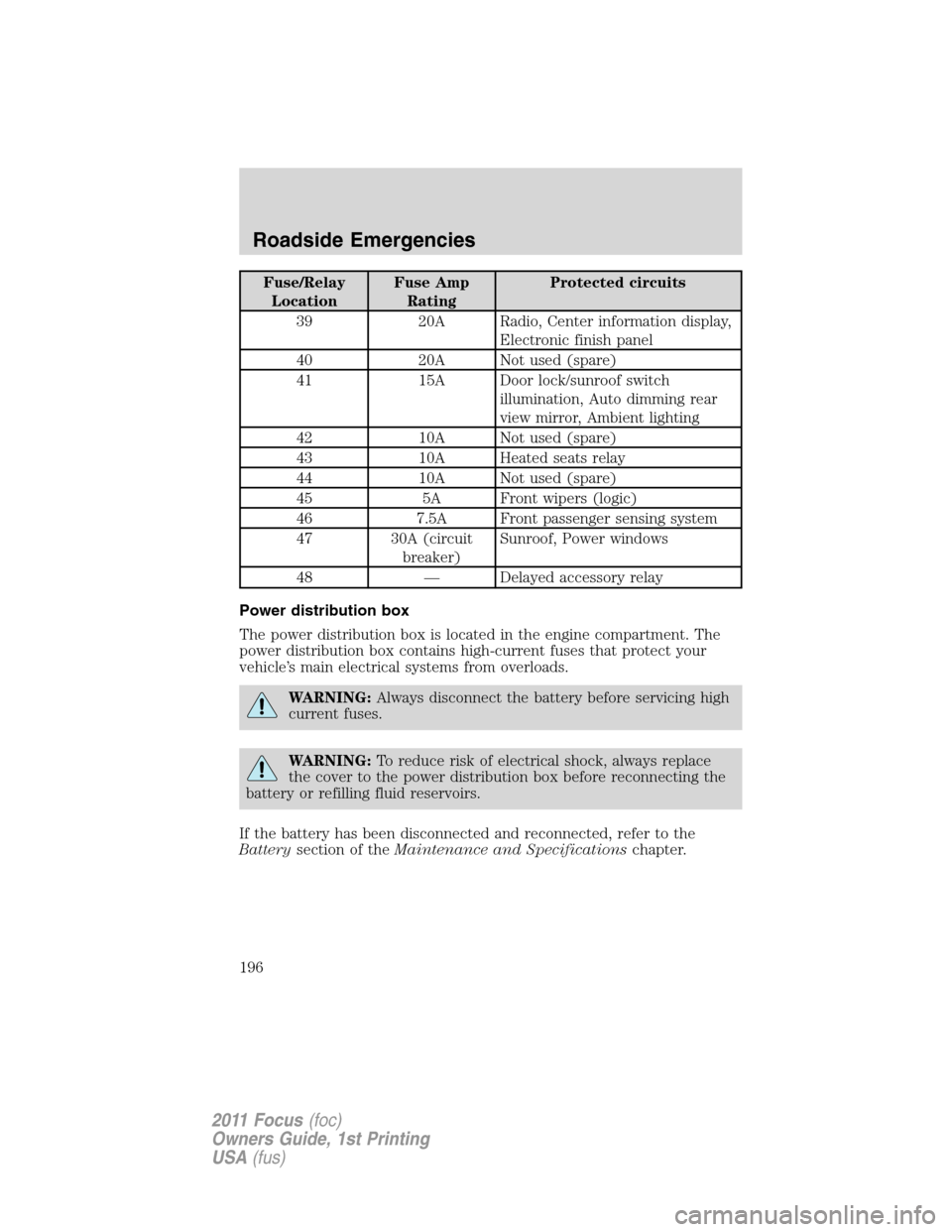

39 20A Radio, Center information display,
Electronic finish panel
40 20A Not used (spare)
41 15A Door lock/sunroof switch
illumination, Auto dimming rear
view mirror, Ambient lighting
42 10A Not used (spare)
43 10A Heated seats relay
44 10A Not used (spare)
45 5A Front wipers (logic)
46 7.5A Front passenger sensing system
47 30A (circuit
breaker)Sunroof, Power windows
48 — Delayed accessory relay
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
WARNING:Always disconnect the battery before servicing high
current fuses.
WARNING:To reduce risk of electrical shock, always replace
the cover to the power distribution box before reconnecting the
battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
Roadside Emergencies
196
2011 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

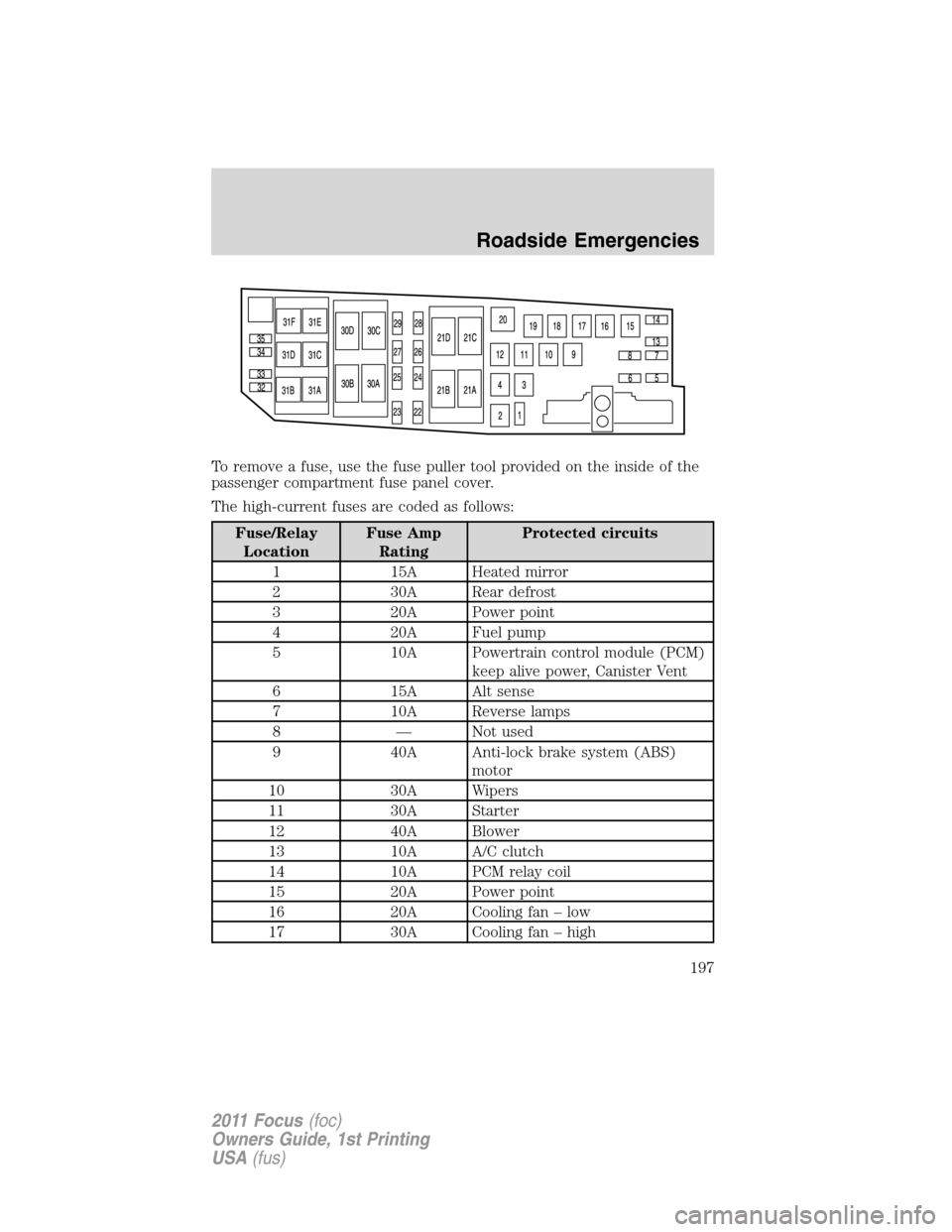

To remove a fuse, use the fuse puller tool provided on the inside of the
passenger compartment fuse panel cover.
The high-current fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingProtected circuits
1 15A Heated mirror
2 30A Rear defrost
3 20A Power point
4 20A Fuel pump
5 10A Powertrain control module (PCM)
keep alive power, Canister Vent
6 15A Alt sense
7 10A Reverse lamps
8 — Not used
9 40A Anti-lock brake system (ABS)
motor
10 30A Wipers
11 30A Starter
12 40A Blower
13 10A A/C clutch
14 10A PCM relay coil
15 20A Power point
16 20A Cooling fan – low
17 30A Cooling fan – high
Roadside Emergencies
197
2011 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

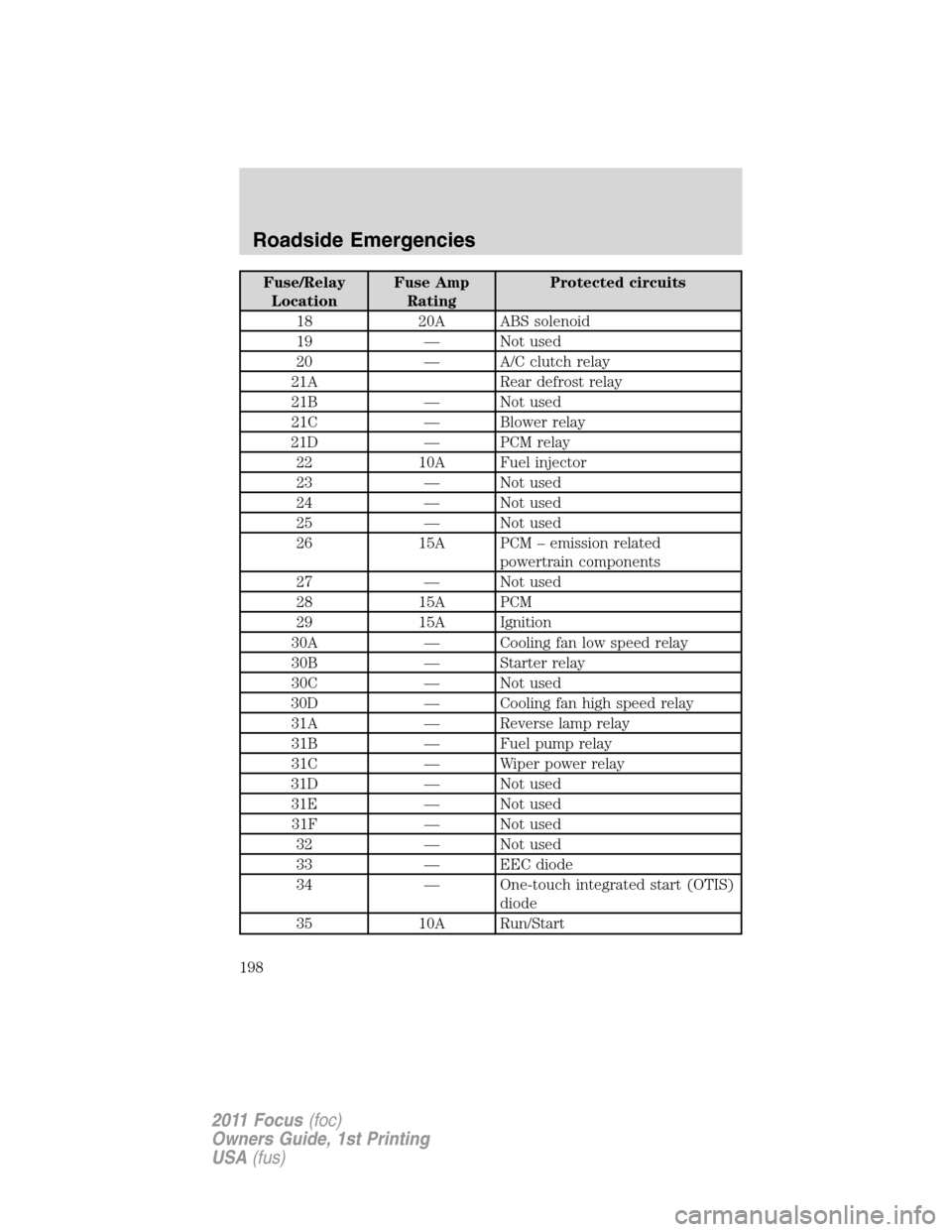

Fuse/Relay
LocationFuse Amp
RatingProtected circuits
18 20A ABS solenoid
19 — Not used
20 — A/C clutch relay
21A Rear defrost relay
21B — Not used
21C — Blower relay
21D — PCM relay
22 10A Fuel injector
23 — Not used
24 — Not used
25 — Not used
26 15A PCM – emission related
powertrain components
27 — Not used
28 15A PCM
29 15A Ignition
30A — Cooling fan low speed relay
30B — Starter relay
30C — Not used
30D — Cooling fan high speed relay
31A — Reverse lamp relay
31B — Fuel pump relay
31C — Wiper power relay
31D — Not used
31E — Not used
31F — Not used
32 — Not used
33 — EEC diode
34 — One-touch integrated start (OTIS)
diode
35 10A Run/Start
Roadside Emergencies
198
2011 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

CHANGING THE TIRES
If you get a flat tire while driving, do not apply the brake heavily.
Instead, gradually decrease your speed. Hold the steering wheel firmly
and slowly move to a safe place on the side of the road.
Note:The tire pressure monitoring system (TPMS) indicator light will
illuminate when the spare tire is in use. To restore the full functionality
of the monitoring system, all road wheels equipped with tire pressure
monitoring sensors must be mounted on the vehicle.
Have a flat serviced by an authorized dealer in order to prevent damage
to the TPMS sensors, refer toTire pressure monitoring system
(TPMS)in theTires, Wheels and Loadingchapter. Replace the spare
tire with a road tire as soon as possible. During repairing or replacing of
the flat tire, have the authorized dealer inspect the TPMS sensor for
damage.
WARNING:The use of tire sealants may damage your tire
pressure monitoring system (TPMS) and should not be used.
However, if you must use a sealant, the TPMS sensor and valve stem
on the wheel must be replaced by an authorized Ford dealer.
WARNING:Refer toTire pressure monitoring system (TPMS)
in theTires, Wheels and Loadingchapter for important
information. If the tire pressure monitor sensor becomes damaged, it
will no longer function.
Dissimilar spare tire/wheel information
WARNING:Failure to follow these guidelines could result in an
increased risk of loss of vehicle control, injury or death.
If you have a dissimilar spare tire/wheel, then it is intended for
temporary use only. This means that if you need to use it, you should
replace it as soon as possible with a road tire/wheel that is the same size
and type as the road tires and wheels that were originally provided by
Ford. If the dissimilar spare tire or wheel is damaged, it should be
replaced rather than repaired.
Roadside Emergencies
199
2011 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

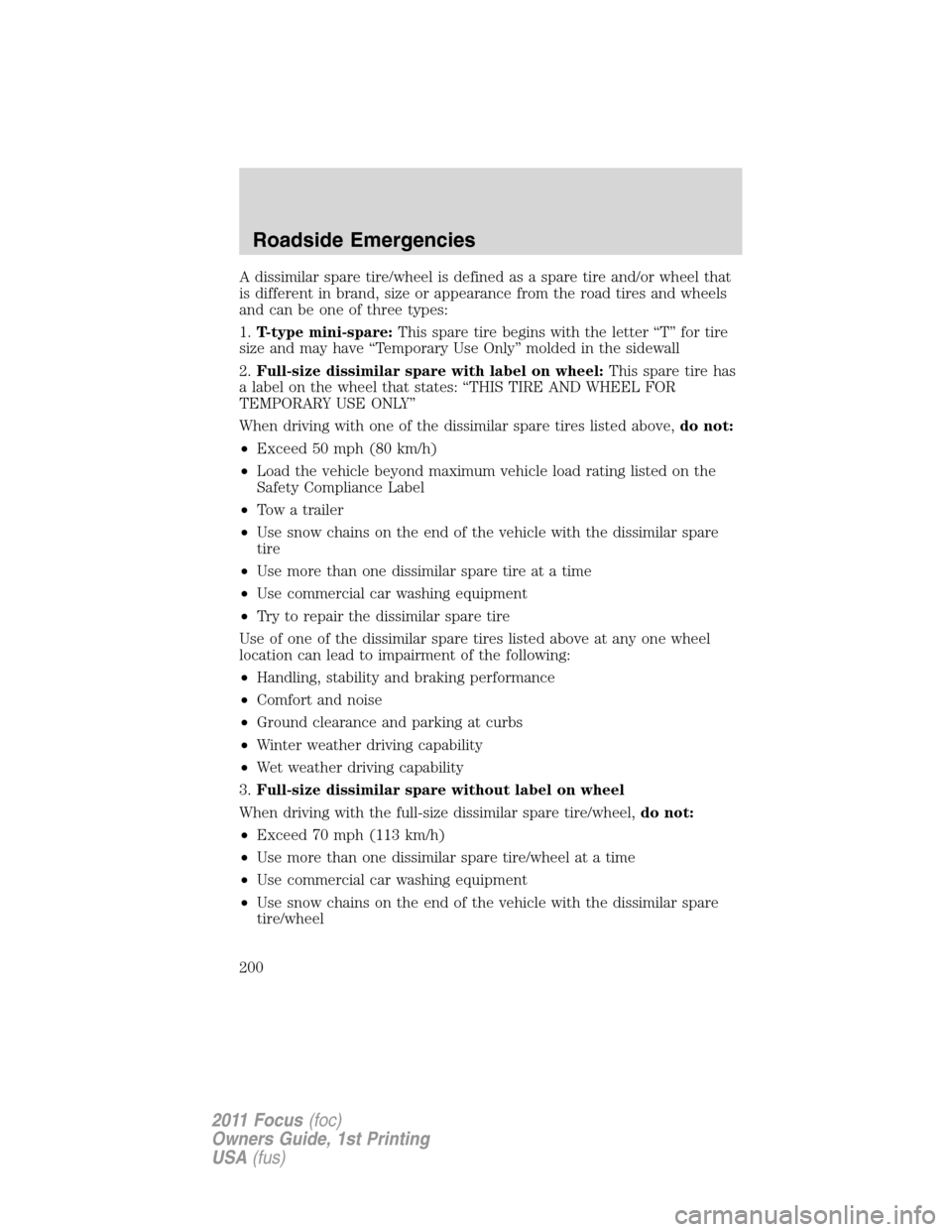

A dissimilar spare tire/wheel is defined as a spare tire and/or wheel that
is different in brand, size or appearance from the road tires and wheels
and can be one of three types:
1.T-type mini-spare:This spare tire begins with the letter “T” for tire
size and may have “Temporary Use Only” molded in the sidewall
2.Full-size dissimilar spare with label on wheel:This spare tire has
a label on the wheel that states: “THIS TIRE AND WHEEL FOR
TEMPORARY USE ONLY”
When driving with one of the dissimilar spare tires listed above,do not:
•Exceed 50 mph (80 km/h)
•Load the vehicle beyond maximum vehicle load rating listed on the
Safety Compliance Label
•Tow a trailer
•Use snow chains on the end of the vehicle with the dissimilar spare
tire
•Use more than one dissimilar spare tire at a time
•Use commercial car washing equipment
•Try to repair the dissimilar spare tire
Use of one of the dissimilar spare tires listed above at any one wheel
location can lead to impairment of the following:
•Handling, stability and braking performance
•Comfort and noise
•Ground clearance and parking at curbs
•Winter weather driving capability
•Wet weather driving capability
3.Full-size dissimilar spare without label on wheel
When driving with the full-size dissimilar spare tire/wheel,do not:
•Exceed 70 mph (113 km/h)
•Use more than one dissimilar spare tire/wheel at a time
•Use commercial car washing equipment
•Use snow chains on the end of the vehicle with the dissimilar spare
tire/wheel
Roadside Emergencies
200
2011 Focus(foc)
Owners Guide, 1st Printing
USA(fus)
