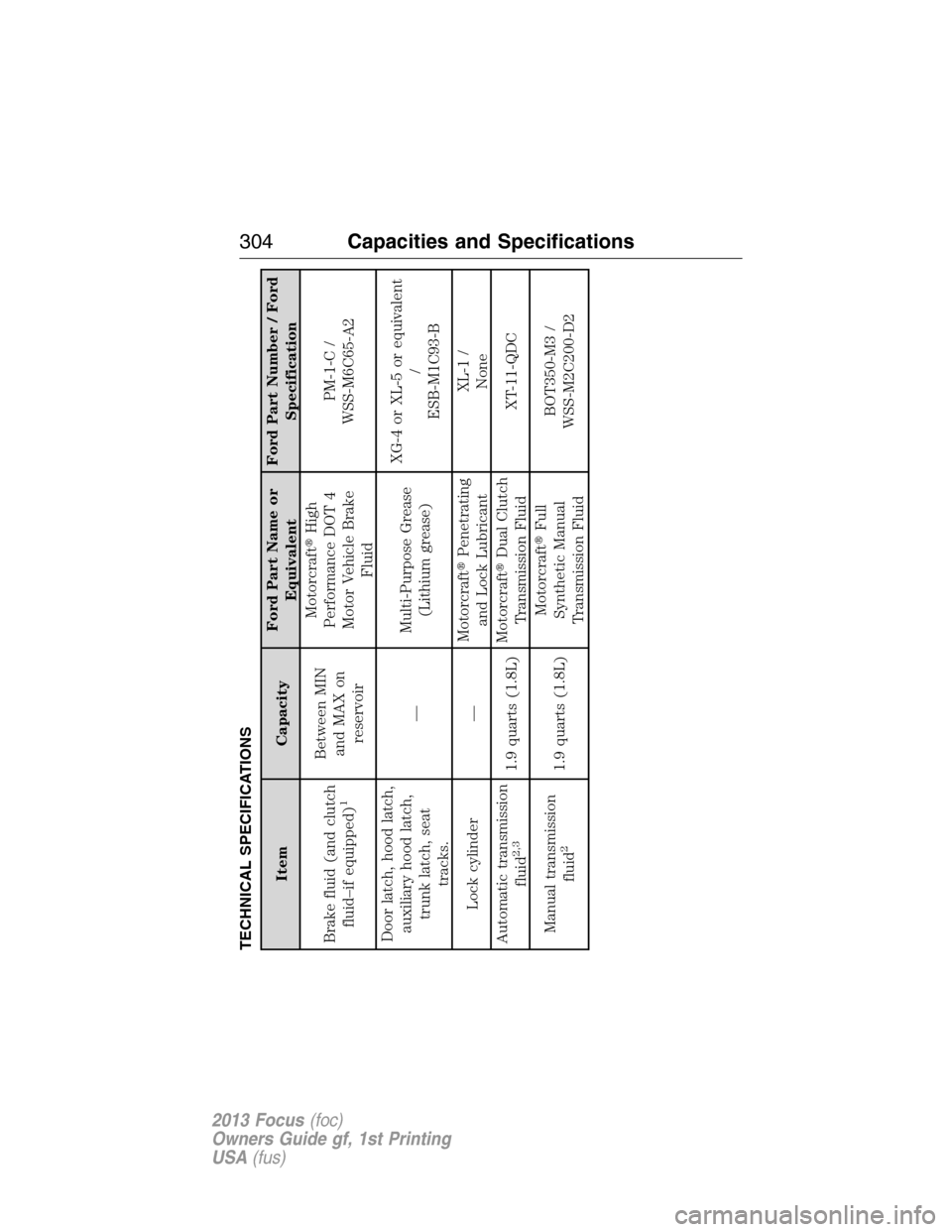

Page 304 of 475
TECHNICAL SPECIFICATIONS
Item CapacityFord Part Name or
EquivalentFord Part Number / Ford
Specification
Brake fluid (and clutch
fluid–if equipped)
1
Between MIN
and MAX on
reservoirMotorcraftHigh
Performance DOT 4
Motor Vehicle Brake
FluidPM-1-C /
WSS-M6C65-A2
Door latch, hood latch,
auxiliary hood latch,
trunk latch, seat
tracks.—Multi-Purpose Grease
(Lithium grease)XG-4 or XL-5 or equivalent
/
ESB-M1C93-B
Lock cylinder —MotorcraftPenetrating
and Lock LubricantXL-1 /
None
Automatic transmission
fluid
2,3
1.9 quarts (1.8L)MotorcraftDual Clutch
Transmission FluidXT-11-QDC
Manual transmission
fluid
2
1.9 quarts (1.8L)MotorcraftFull
Synthetic Manual
Transmission FluidBOT350-M3 /
WSS-M2C200-D2
304Capacities and Specifications
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

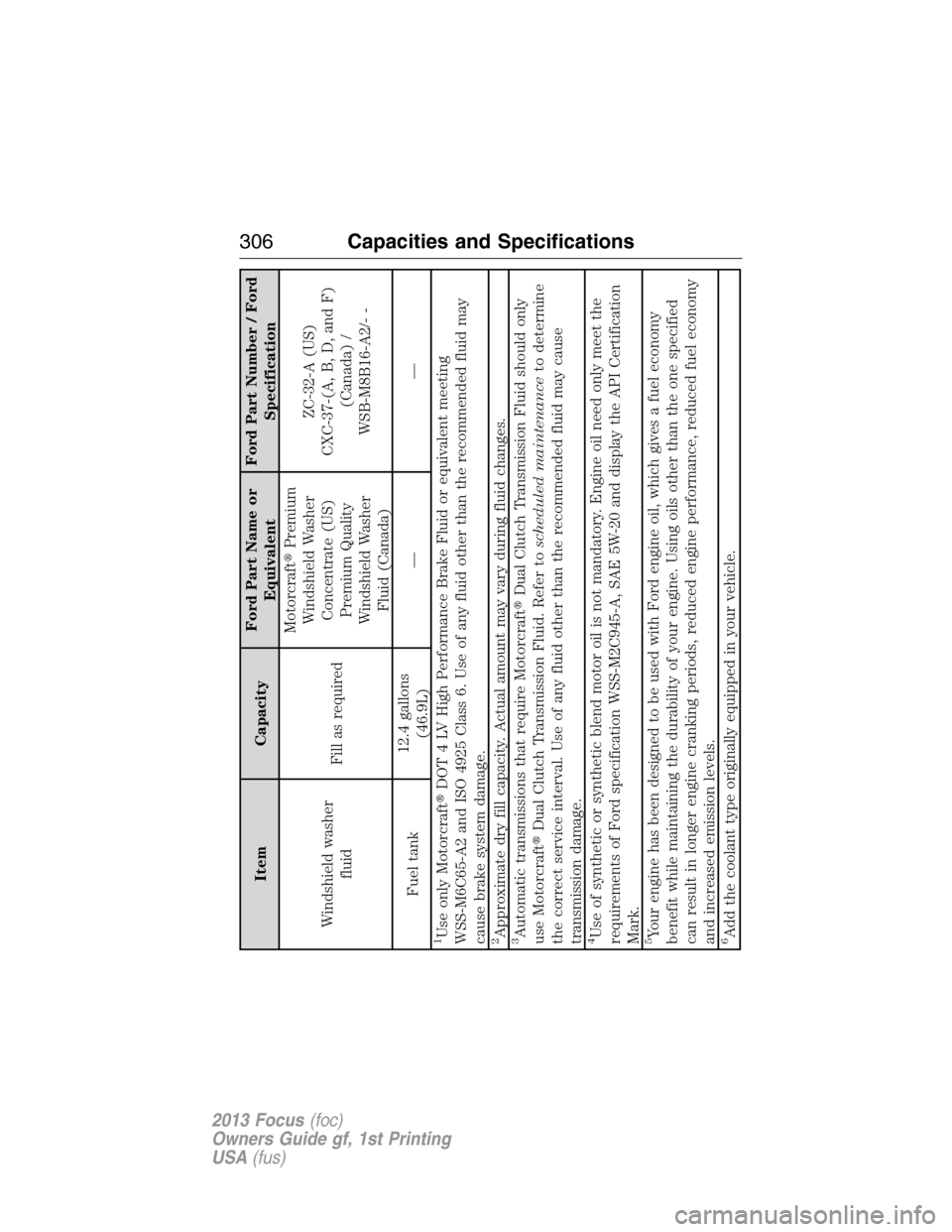

Page 306 of 475
Item CapacityFord Part Name or
EquivalentFord Part Number / Ford
Specification
Windshield washer
fluidFill as requiredMotorcraftPremium
Windshield Washer
Concentrate (US)
Premium Quality
Windshield Washer
Fluid (Canada)ZC-32-A (US)
CXC-37-(A, B, D, and F)
(Canada) /
WSB-M8B16-A2/- -
Fuel tank12.4 gallons
(46.9L)——
1Use only MotorcraftDOT 4 LV High Performance Brake Fluid or equivalent meeting
WSS-M6C65-A2 and ISO 4925 Class 6. Use of any fluid other than the recommended fluid may
cause brake system damage.2Approximate dry fill capacity. Actual amount may vary during fluid changes.3Automatic transmissions that require MotorcraftDual Clutch Transmission Fluid should only
use MotorcraftDual Clutch Transmission Fluid. Refer toscheduled maintenanceto determine
the correct service interval. Use of any fluid other than the recommended fluid may cause
transmission damage.4Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C945-A, SAE 5W-20 and display the API Certification
Mark.5Your engine has been designed to be used with Ford engine oil, which gives a fuel economy
benefit while maintaining the durability of your engine. Using oils other than the one specified
can result in longer engine cranking periods, reduced engine performance, reduced fuel economy
and increased emission levels.6Add the coolant type originally equipped in your vehicle.
306Capacities and Specifications
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

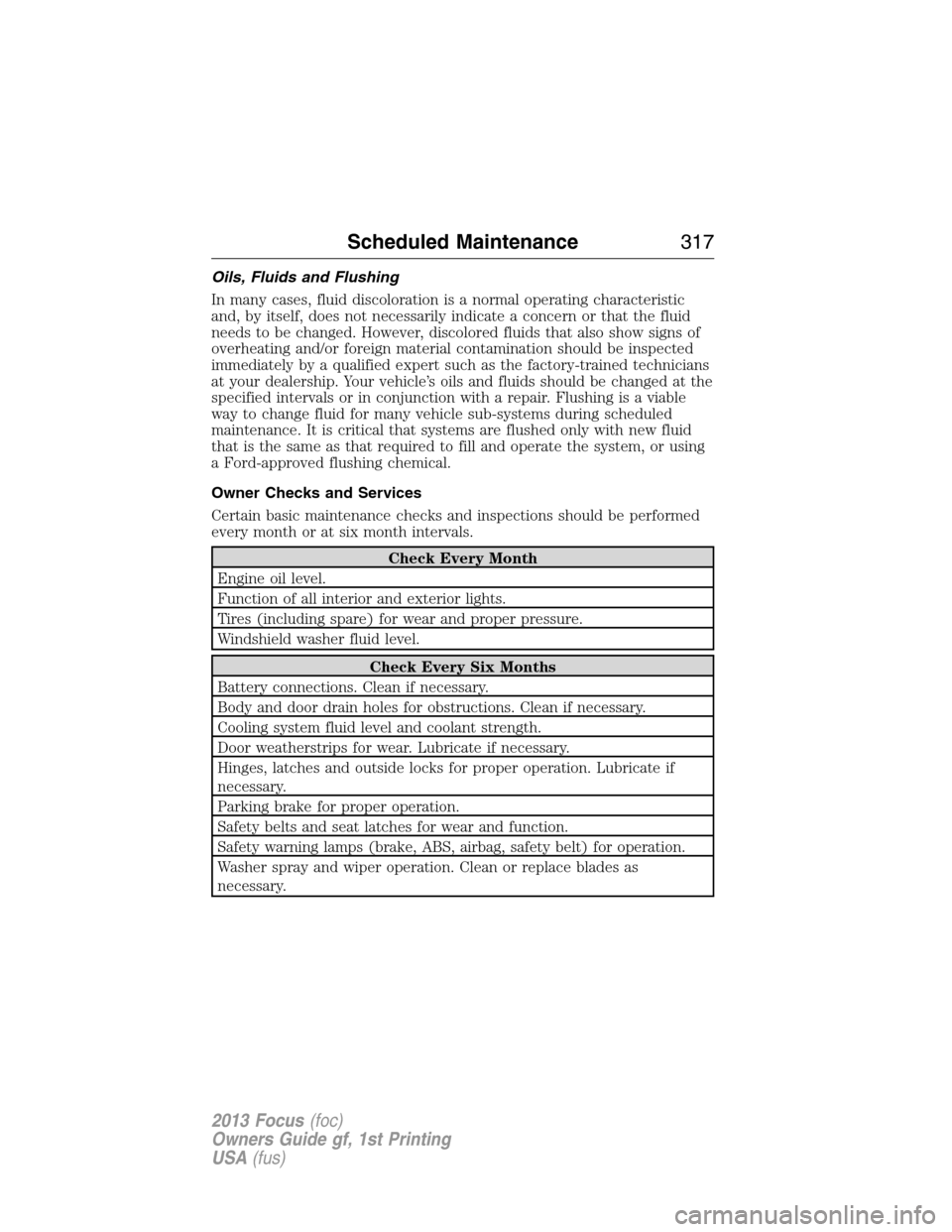

Page 317 of 475
Oils, Fluids and Flushing
In many cases, fluid discoloration is a normal operating characteristic
and, by itself, does not necessarily indicate a concern or that the fluid
needs to be changed. However, discolored fluids that also show signs of
overheating and/or foreign material contamination should be inspected
immediately by a qualified expert such as the factory-trained technicians
at your dealership. Your vehicle’s oils and fluids should be changed at the
specified intervals or in conjunction with a repair. Flushing is a viable
way to change fluid for many vehicle sub-systems during scheduled
maintenance. It is critical that systems are flushed only with new fluid
that is the same as that required to fill and operate the system, or using
a Ford-approved flushing chemical.
Owner Checks and Services
Certain basic maintenance checks and inspections should be performed
every month or at six month intervals.
Check Every Month
Engine oil level.
Function of all interior and exterior lights.
Tires (including spare) for wear and proper pressure.
Windshield washer fluid level.
Check Every Six Months
Battery connections. Clean if necessary.
Body and door drain holes for obstructions. Clean if necessary.
Cooling system fluid level and coolant strength.
Door weatherstrips for wear. Lubricate if necessary.
Hinges, latches and outside locks for proper operation. Lubricate if
necessary.
Parking brake for proper operation.
Safety belts and seat latches for wear and function.
Safety warning lamps (brake, ABS, airbag, safety belt) for operation.
Washer spray and wiper operation. Clean or replace blades as
necessary.
Scheduled Maintenance317
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

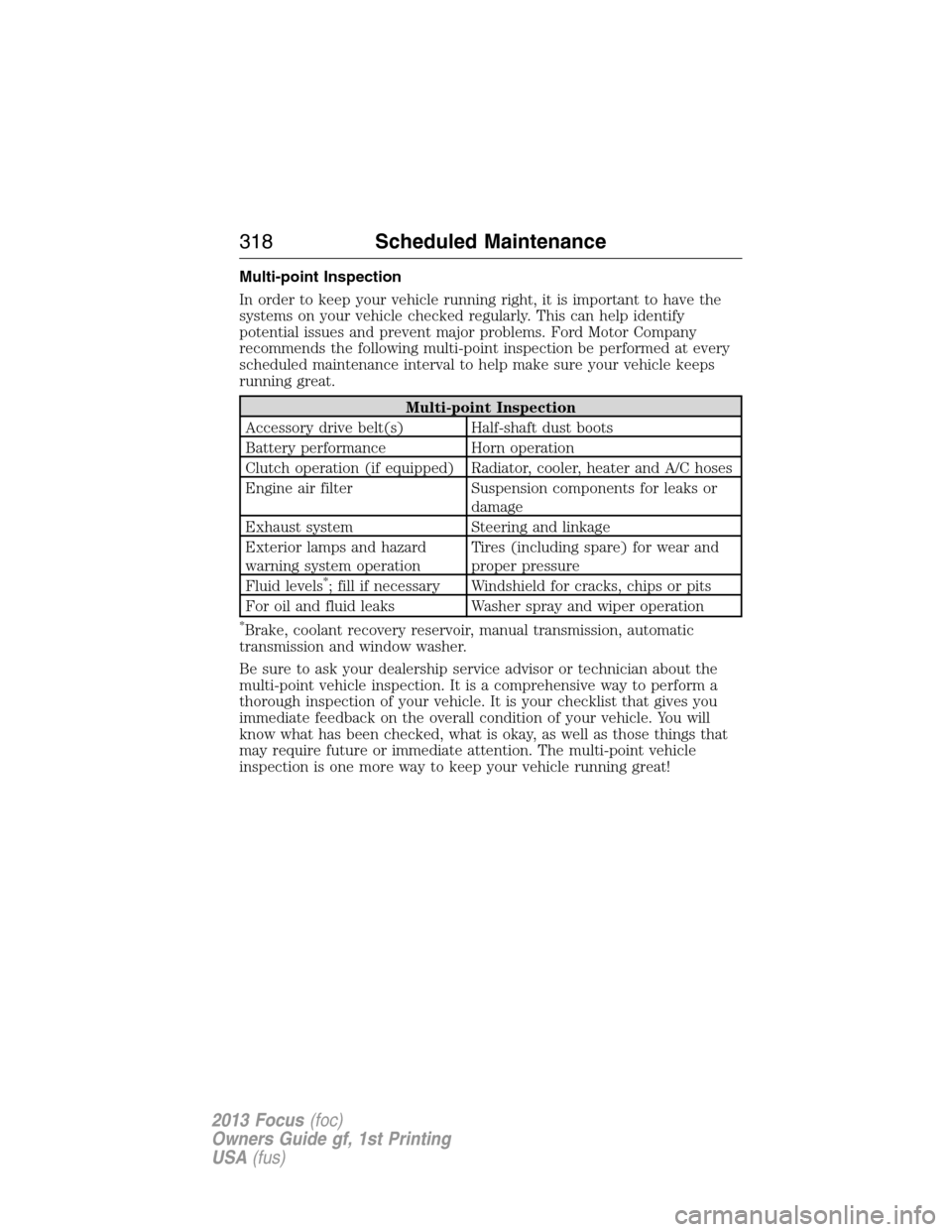

Page 318 of 475
Multi-point Inspection
In order to keep your vehicle running right, it is important to have the
systems on your vehicle checked regularly. This can help identify
potential issues and prevent major problems. Ford Motor Company
recommends the following multi-point inspection be performed at every
scheduled maintenance interval to help make sure your vehicle keeps
running great.
Multi-point Inspection
Accessory drive belt(s) Half-shaft dust boots
Battery performance Horn operation
Clutch operation (if equipped) Radiator, cooler, heater and A/C hoses
Engine air filter Suspension components for leaks or
damage
Exhaust system Steering and linkage
Exterior lamps and hazard
warning system operationTires (including spare) for wear and
proper pressure
Fluid levels
*; fill if necessary Windshield for cracks, chips or pits
For oil and fluid leaks Washer spray and wiper operation
*Brake, coolant recovery reservoir, manual transmission, automatic
transmission and window washer.
Be sure to ask your dealership service advisor or technician about the
multi-point vehicle inspection. It is a comprehensive way to perform a
thorough inspection of your vehicle. It is your checklist that gives you
immediate feedback on the overall condition of your vehicle. You will
know what has been checked, what is okay, as well as those things that
may require future or immediate attention. The multi-point vehicle
inspection is one more way to keep your vehicle running great!
318Scheduled Maintenance
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

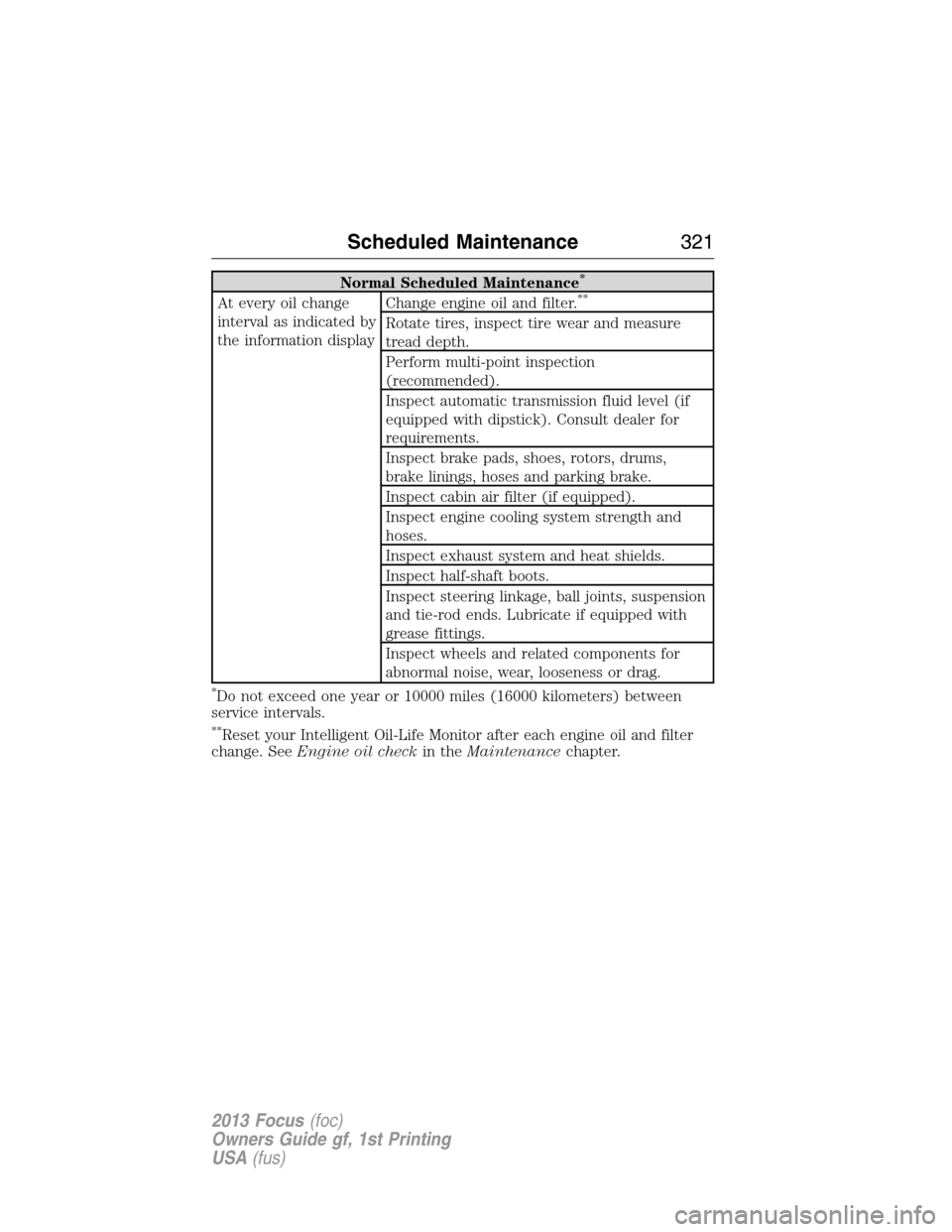

Page 321 of 475
Normal Scheduled Maintenance*
At every oil change
interval as indicated by
the information displayChange engine oil and filter.**
Rotate tires, inspect tire wear and measure
tread depth.
Perform multi-point inspection
(recommended).
Inspect automatic transmission fluid level (if
equipped with dipstick). Consult dealer for
requirements.
Inspect brake pads, shoes, rotors, drums,
brake linings, hoses and parking brake.
Inspect cabin air filter (if equipped).
Inspect engine cooling system strength and
hoses.
Inspect exhaust system and heat shields.
Inspect half-shaft boots.
Inspect steering linkage, ball joints, suspension
and tie-rod ends. Lubricate if equipped with
grease fittings.
Inspect wheels and related components for
abnormal noise, wear, looseness or drag.
*Do not exceed one year or 10000 miles (16000 kilometers) between
service intervals.
**Reset your Intelligent Oil-Life Monitor after each engine oil and filter
change. SeeEngine oil checkin theMaintenancechapter.
Scheduled Maintenance321
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)
Page 468 of 475
911 Assist™ ......................351, 422
A
ABS (see Brakes) .....................187
Accessing and using your USB
port ............................................401
Accessing call history/phone
book during active call .............341
Accessing your calendar ..........421
Accessing your media menu
features ......................................364
Accessing your phone menu
features ......................................342
Accessory delay ..........................97
Active call menu options .........341
Active Park Assist .....................195
Adding (pairing) a phone ........409
Advanced menu options ...349, 370
Advanced menu options
(prompts, languages, defaults,
master reset, installing
applications) ..............................349
Airbag supplemental restraint
system ..........................................46
and child safety seats ..............47
description ................................46
disposal ......................................56
driver airbag ..............................46
passenger airbag .......................46
side airbag ...........................46, 52
Air cleaner filter .......258–259, 307
Air conditioning ........................141
manual heating and air
conditioning system ...............141
Air filter .....................................259
Air filter, cabin ..........................149Ambient mood/lighting .......94, 427
Ambulance packages ..................15
AM/FM .......................................388
Antifreeze
(see Engine coolant) ................250
Anti-lock brake system
(see Brakes) ..............................187
Anti-theft system ........................79
arming the system ..............79, 81
disarming a triggered system ..81
AppLink™ .................................358
Audio system
Single CD ........125, 127, 130, 132
Audio system
(see Radio) ........125, 127, 130, 132
Automatic transmission
fluid, adding ............................254
fluid, checking ........................254
fluid, refill capacities ..............304
fluid, specification ..................304
Selectshift (SST) ....................181
Auxiliary Input Jack .................398
Auxiliary input jack (Line in) ..136
Auxiliary powerpoint ................161
A/V inputs ..........................138, 406
Axle
refill capacities ........................304
B
Battery .......................................255
acid, treating emergencies .....255
jumping a disabled battery ....225
maintenance-free ....................255
replacement, specifications ...307
servicing ..................................255
Booster seats ...............................22
468Index
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

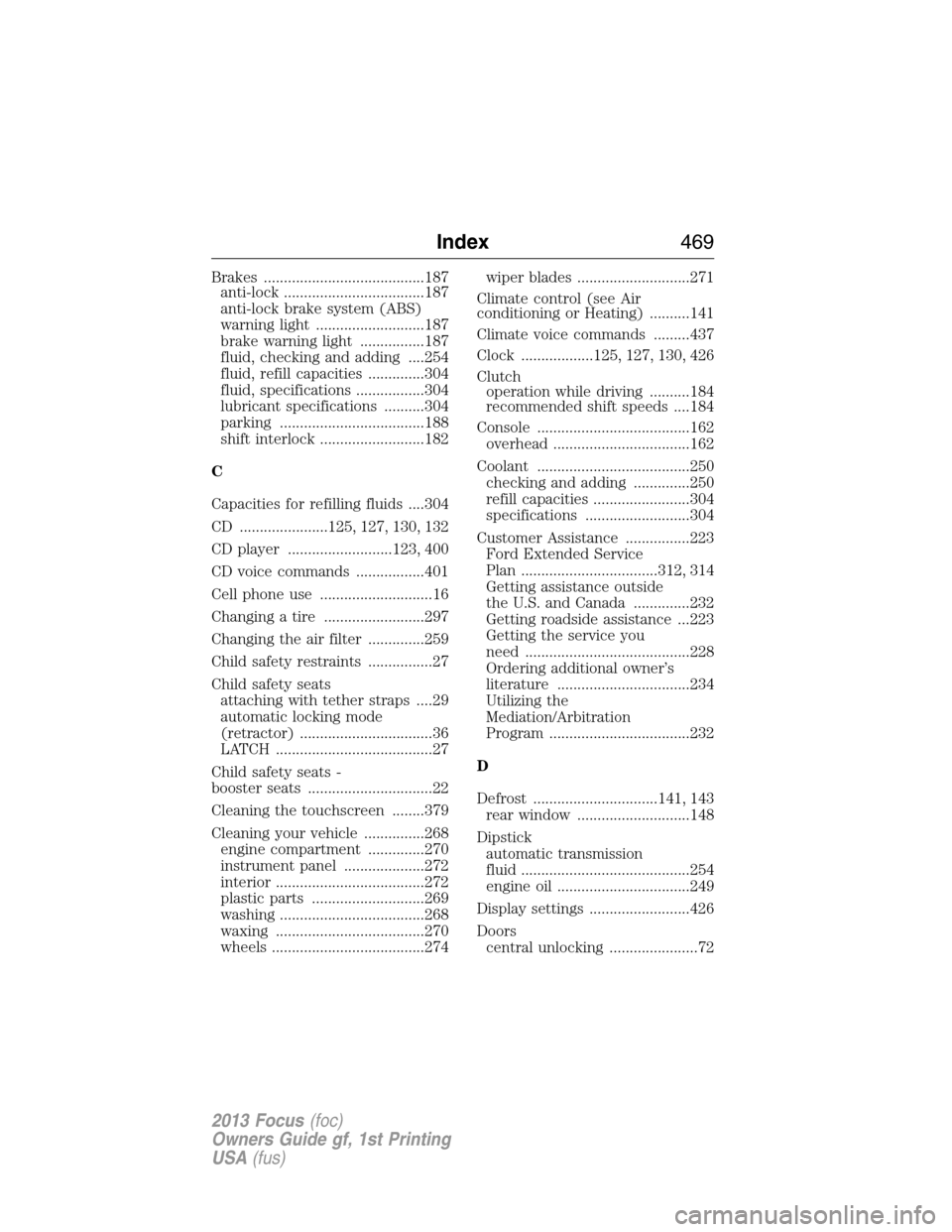

Page 469 of 475
Brakes ........................................187
anti-lock ...................................187
anti-lock brake system (ABS)
warning light ...........................187
brake warning light ................187
fluid, checking and adding ....254
fluid, refill capacities ..............304
fluid, specifications .................304
lubricant specifications ..........304
parking ....................................188
shift interlock ..........................182
C
Capacities for refilling fluids ....304
CD ......................125, 127, 130, 132
CD player ..........................123, 400
CD voice commands .................401
Cell phone use ............................16
Changing a tire .........................297
Changing the air filter ..............259
Child safety restraints ................27
Child safety seats
attaching with tether straps ....29
automatic locking mode
(retractor) .................................36
LATCH .......................................27
Child safety seats -
booster seats ...............................22
Cleaning the touchscreen ........379
Cleaning your vehicle ...............268
engine compartment ..............270
instrument panel ....................272
interior .....................................272
plastic parts ............................269
washing ....................................268
waxing .....................................270
wheels ......................................274wiper blades ............................271
Climate control (see Air
conditioning or Heating) ..........141
Climate voice commands .........437
Clock ..................125, 127, 130, 426
Clutch
operation while driving ..........184
recommended shift speeds ....184
Console ......................................162
overhead ..................................162
Coolant ......................................250
checking and adding ..............250
refill capacities ........................304
specifications ..........................304
Customer Assistance ................223
Ford Extended Service
Plan ..................................312, 314
Getting assistance outside
the U.S. and Canada ..............232
Getting roadside assistance ...223
Getting the service you
need .........................................228
Ordering additional owner’s
literature .................................234
Utilizing the
Mediation/Arbitration
Program ...................................232
D
Defrost ...............................141, 143
rear window ............................148
Dipstick
automatic transmission
fluid ..........................................254
engine oil .................................249
Display settings .........................426
Doors
central unlocking ......................72
Index469
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)
Page 472 of 475
Map preferences .......................443
Map updates ..............................448
Media Bluetooth menu options
(adding, connecting, deleting,
turning on/off) ..........................369
Message center .........................108
warning messages ...................112
Mirrors ...................................97, 99
fold away ...................................97
side view mirrors (power) .......97
Moon roof ....................................99
Motorcraftparts ..............268, 307
MyFord Touch™ system ..........377
MyKey ..........................................66
N
Navigation features ...................439
Navigation voice commands ....448
Notifications ..............................421
O
Octane rating ............................171
P
Pairing other phones ........338, 409
Pairing your phone ...................408
Pairing your phone for the
first time ............................337, 408
Parental MyKey programming ...66
Park Assist ................................195
Parking brake ............................188
Parts
(see Motorcraftparts) ...........307Phone Bluetooth menu options
(adding, connecting, deleting,
turning on/off) ..........................348
Phone redial ..............................342
Phone settings ..................413, 432
Phone voice commands ............414
Playing music (by artist,
album, genre, playlist,
tracks, similar) ..........................366
POI categories ...........................440
Point of Interest (POI) .............440
Power distribution box
(see Fuses) ...............................237
Power door locks ........................72
Power mirrors .............................97
Powerpoint ................................161
Power steering ..........................207
fluid, refill capacity ................304
fluid, specifications .................304
Power Windows ...........................95
Privacy information ..........334, 381
Push button start system .........164
Putting a call on/off hold .........341
Q
Quick touch buttons .................447
R
Radio ..................125, 127, 130, 132
AM/FM .....................................388
Single CD ........125, 127, 130, 132
Radio reception .........................123
Radio voice commands .............390
472Index
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)
Page 474 of 475
Specification chart,
lubricants ...................................304
Stability system .........................191
Starting your vehicle ................166
jump starting ..........................225
push button start system .......164
Steering wheel ............................82
controls ......................................83
tilting .........................................82
Supplemental Restraint System
(SRS) (see airbags) ....................46
Supported media file types ......405
Supported player, media
formats and metadata
information ................................405
SYNCAppLink™ ....................358
SYNCcustomer
support ..............................333, 380
SYNCServices .................356, 415
System settings .........................428
T
Temperature control (see
Climate control) ........141, 143, 436
Text messaging .................344, 411
Text messaging (sending,
downloading, deleting) .....344, 346
Tilt steering wheel ......................82
Tires ...........................277–278, 297
alignment ................................291
care ..........................................277
changing ..........................297, 299
checking the pressure ............287
inflating ...................................285label .........................................284
replacing ..................................289
rotating ....................................291
safety practices .......................290
sidewall information ...............280
snow tires and chains ............292
spare tire .................................297
terminology .............................279
tire grades ...............................278
treadwear ........................278, 287
Touchscreen features
(climate) ....................................436
Towing .......................................215
recreational towing .................216
trailer towing ..........................215
wrecker ....................................215
Traction control ........................189
Traffic, Directions and
Information ................................356
Traffic preferences ...................443
Transmission
brake-shift interlock
(BSI) ........................................182
fluid, checking and adding
(automatic) .............................254
fluid, checking and adding
(manual) .................................254
fluid, refill capacities ..............304
lubricant specifications ..........304
Trunk .....................................77–78
remote release ..........................73
Turn signal ..................................92
U
USB port ....................137–138, 401
Using privacy mode ..................341
474Index
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)
