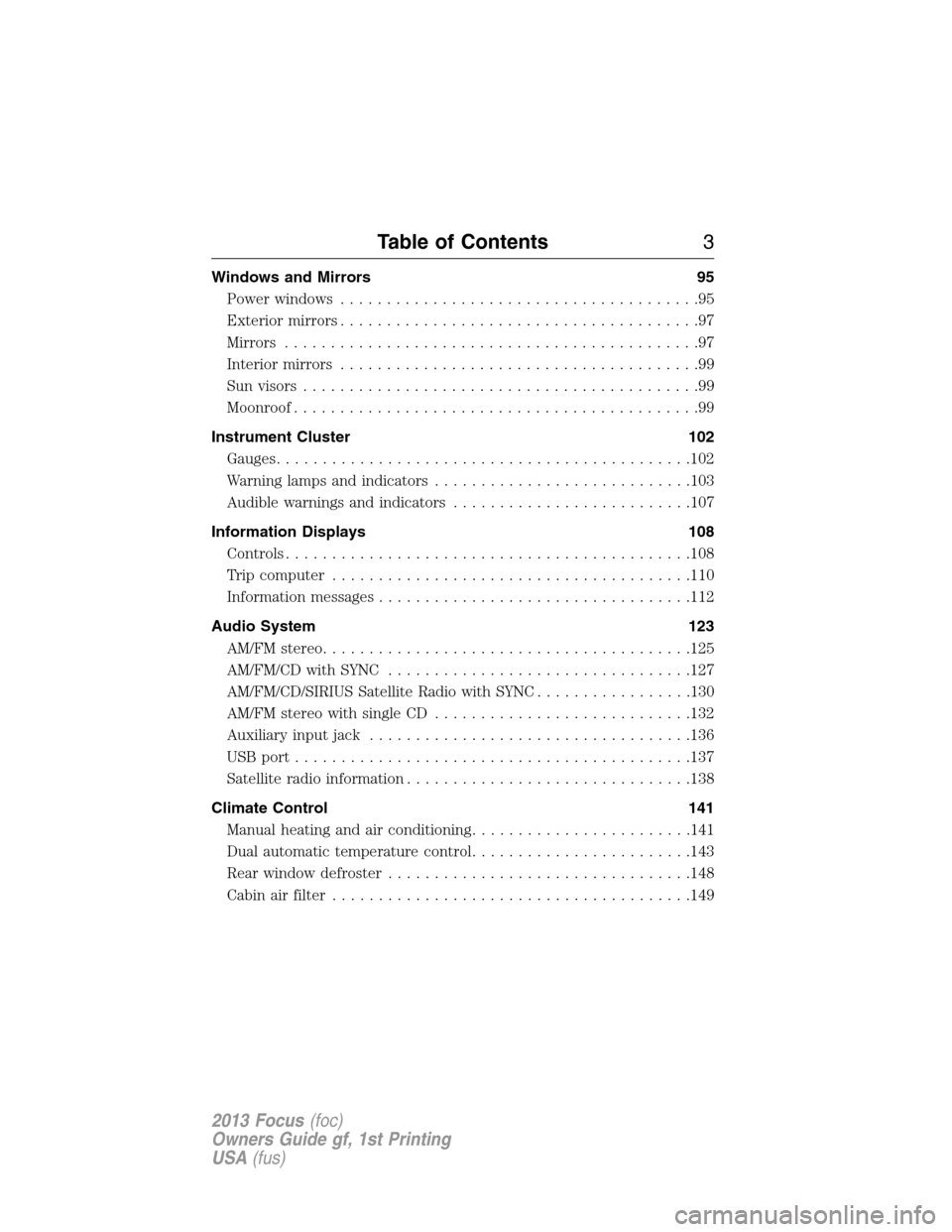

Windows and Mirrors 95
Power windows.......................................95
Exteriormirrors.......................................97
Mirrors .............................................97
Interior mirrors.......................................99
Sun visors...........................................99
Moonroof............................................99
Instrument Cluster 102
Gauges.............................................102
Warning lamps and indicators............................103
Audible warnings and indicators..........................107
Information Displays 108
Controls............................................108
Trip computer.......................................110
Information messages..................................112
Audio System 123
AM/FMstereo........................................125
AM/FM/CD with SYNC.................................127
AM/FM/CD/SIRIUS Satellite Radio with SYNC.................130
AM/FMstereowithsingleCD ............................132
Auxiliary input jack...................................136
USBport...........................................137
Satellite radio information...............................138
Climate Control 141
Manual heating and air conditioning........................141
Dual automatic temperature control........................143
Rear window defroster.................................148
Cabin air filter.......................................149
Table of Contents3
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

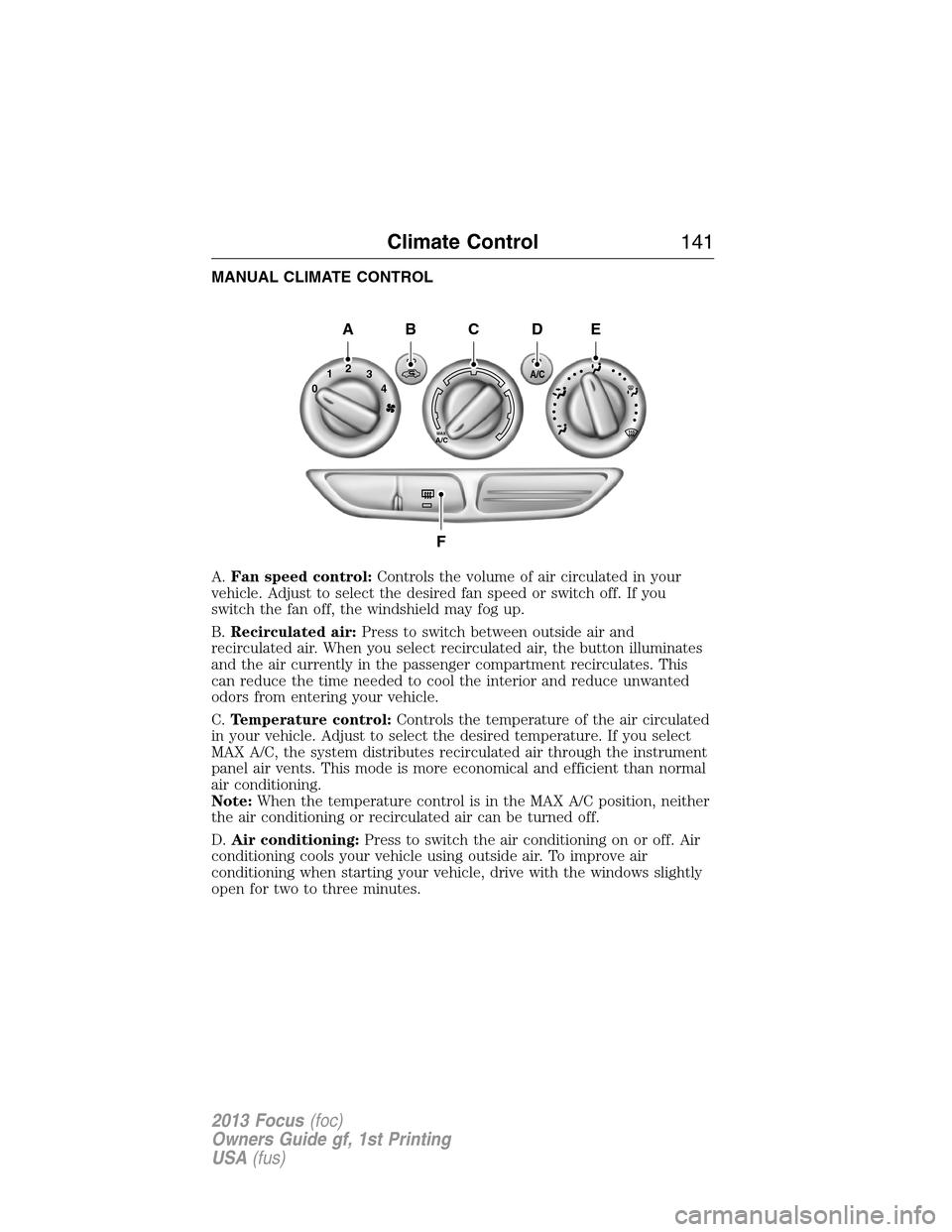

MANUAL CLIMATE CONTROL
A.Fan speed control:Controls the volume of air circulated in your
vehicle. Adjust to select the desired fan speed or switch off. If you
switch the fan off, the windshield may fog up.
B.Recirculated air:Press to switch between outside air and
recirculated air. When you select recirculated air, the button illuminates
and the air currently in the passenger compartment recirculates. This
can reduce the time needed to cool the interior and reduce unwanted
odors from entering your vehicle.
C.Temperature control:Controls the temperature of the air circulated
in your vehicle. Adjust to select the desired temperature. If you select
MAX A/C, the system distributes recirculated air through the instrument
panel air vents. This mode is more economical and efficient than normal
air conditioning.
Note:When the temperature control is in the MAX A/C position, neither
the air conditioning or recirculated air can be turned off.
D.Air conditioning:Press to switch the air conditioning on or off. Air
conditioning cools your vehicle using outside air. To improve air
conditioning when starting your vehicle, drive with the windows slightly
open for two to three minutes.
012
3
4
MAXA/C
A/C
AB
F
CDE
Climate Control141
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

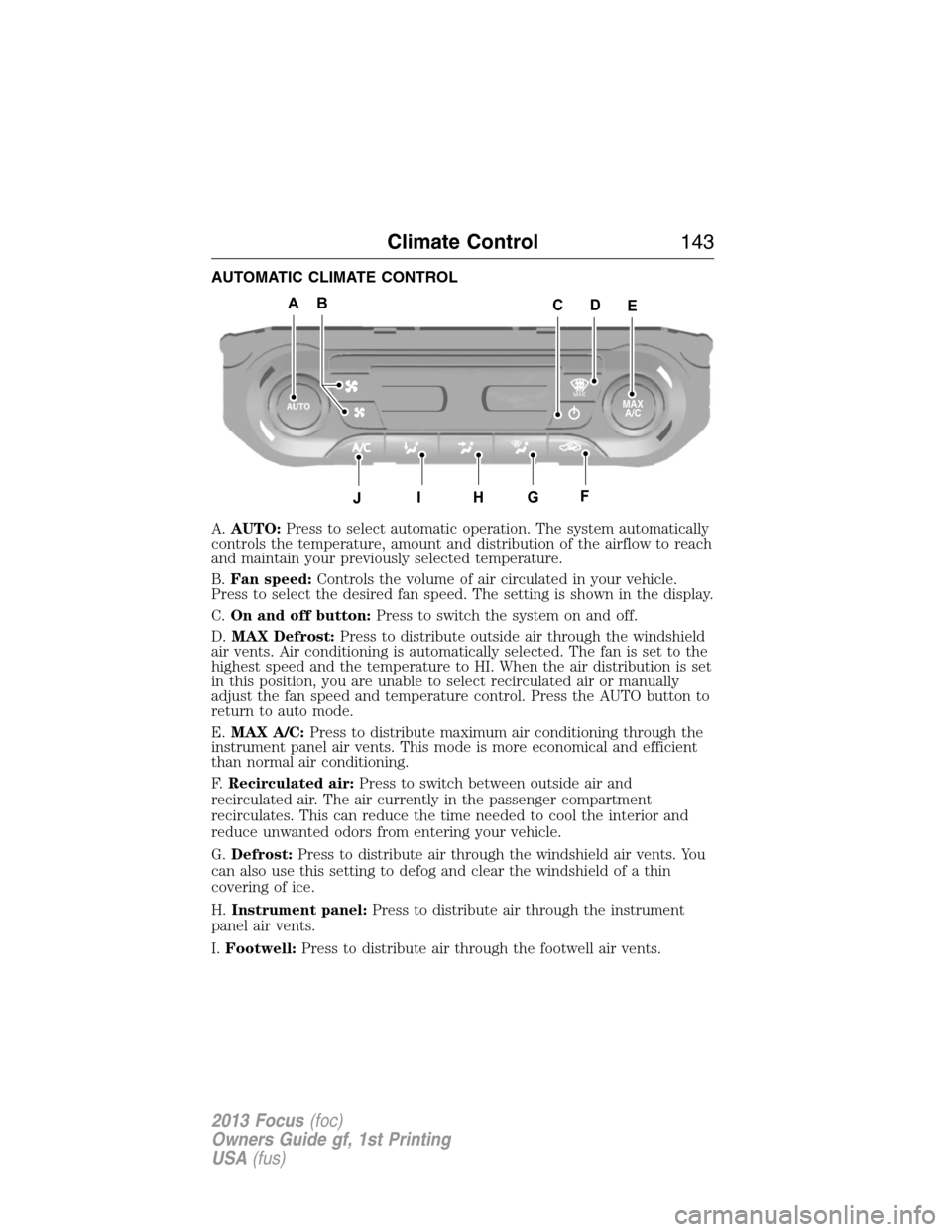

AUTOMATIC CLIMATE CONTROL
A.AUTO:Press to select automatic operation. The system automatically
controls the temperature, amount and distribution of the airflow to reach
and maintain your previously selected temperature.
B.Fan speed:Controls the volume of air circulated in your vehicle.
Press to select the desired fan speed. The setting is shown in the display.
C.On and off button:Press to switch the system on and off.
D.MAX Defrost:Press to distribute outside air through the windshield
air vents. Air conditioning is automatically selected. The fan is set to the
highest speed and the temperature to HI. When the air distribution is set
in this position, you are unable to select recirculated air or manually
adjust the fan speed and temperature control. Press the AUTO button to
return to auto mode.
E.MAX A/C:Press to distribute maximum air conditioning through the
instrument panel air vents. This mode is more economical and efficient
than normal air conditioning.
F.Recirculated air:Press to switch between outside air and
recirculated air. The air currently in the passenger compartment
recirculates. This can reduce the time needed to cool the interior and
reduce unwanted odors from entering your vehicle.
G.Defrost:Press to distribute air through the windshield air vents. You
can also use this setting to defog and clear the windshield of a thin
covering of ice.
H.Instrument panel:Press to distribute air through the instrument
panel air vents.
I.Footwell:Press to distribute air through the footwell air vents.
ABAAEAAC
J
D
AHAGAFAI
MAX
A/C
Climate Control143
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

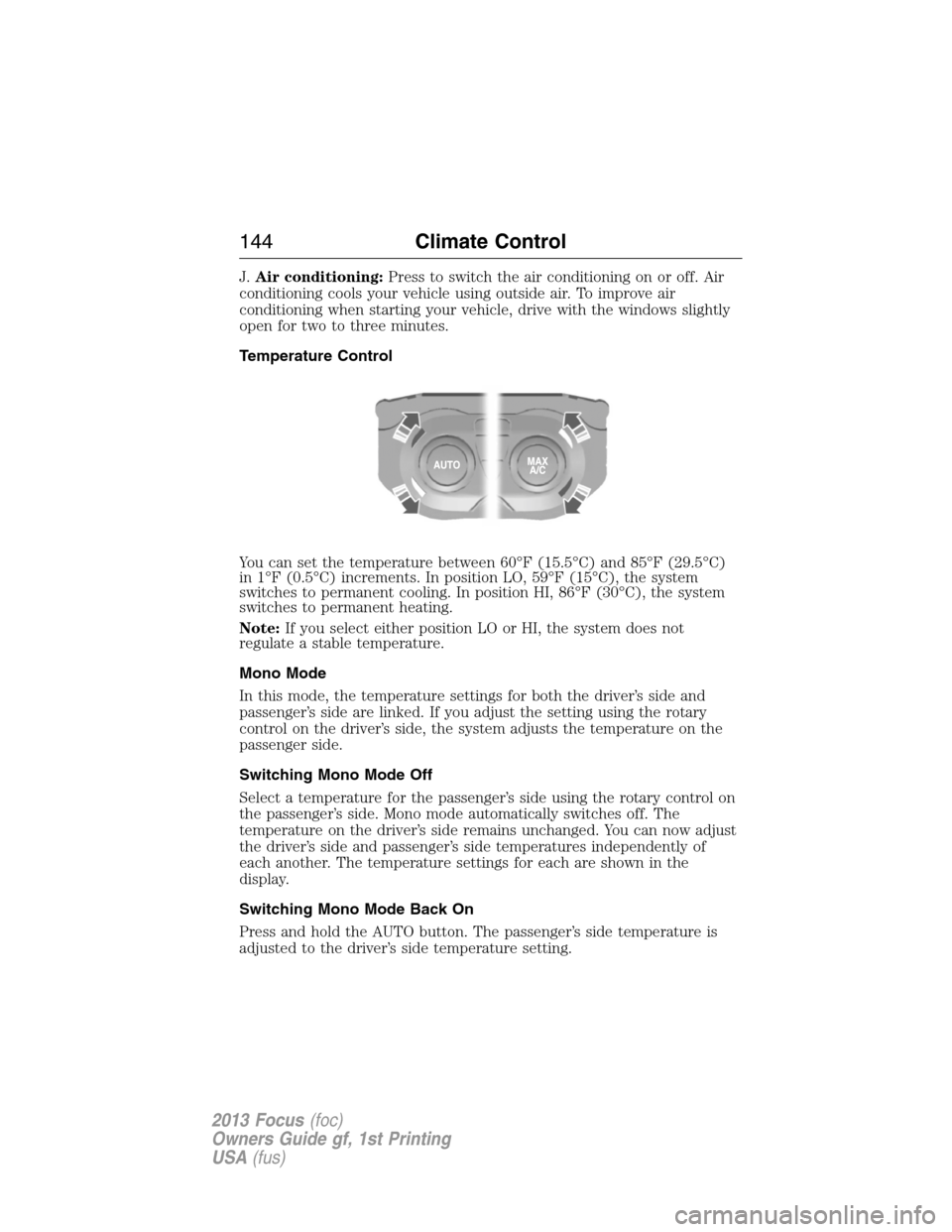

J.Air conditioning:Press to switch the air conditioning on or off. Air
conditioning cools your vehicle using outside air. To improve air
conditioning when starting your vehicle, drive with the windows slightly
open for two to three minutes.
Temperature Control
You can set the temperature between 60°F (15.5°C) and 85°F (29.5°C)
in 1°F (0.5°C) increments. In position LO, 59°F (15°C), the system
switches to permanent cooling. In position HI, 86°F (30°C), the system
switches to permanent heating.
Note:If you select either position LO or HI, the system does not
regulate a stable temperature.
Mono Mode
In this mode, the temperature settings for both the driver’s side and
passenger’s side are linked. If you adjust the setting using the rotary
control on the driver’s side, the system adjusts the temperature on the
passenger side.
Switching Mono Mode Off
Select a temperature for the passenger’s side using the rotary control on
the passenger’s side. Mono mode automatically switches off. The
temperature on the driver’s side remains unchanged. You can now adjust
the driver’s side and passenger’s side temperatures independently of
each another. The temperature settings for each are shown in the
display.
Switching Mono Mode Back On
Press and hold the AUTO button. The passenger’s side temperature is
adjusted to the driver’s side temperature setting.
144Climate Control
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

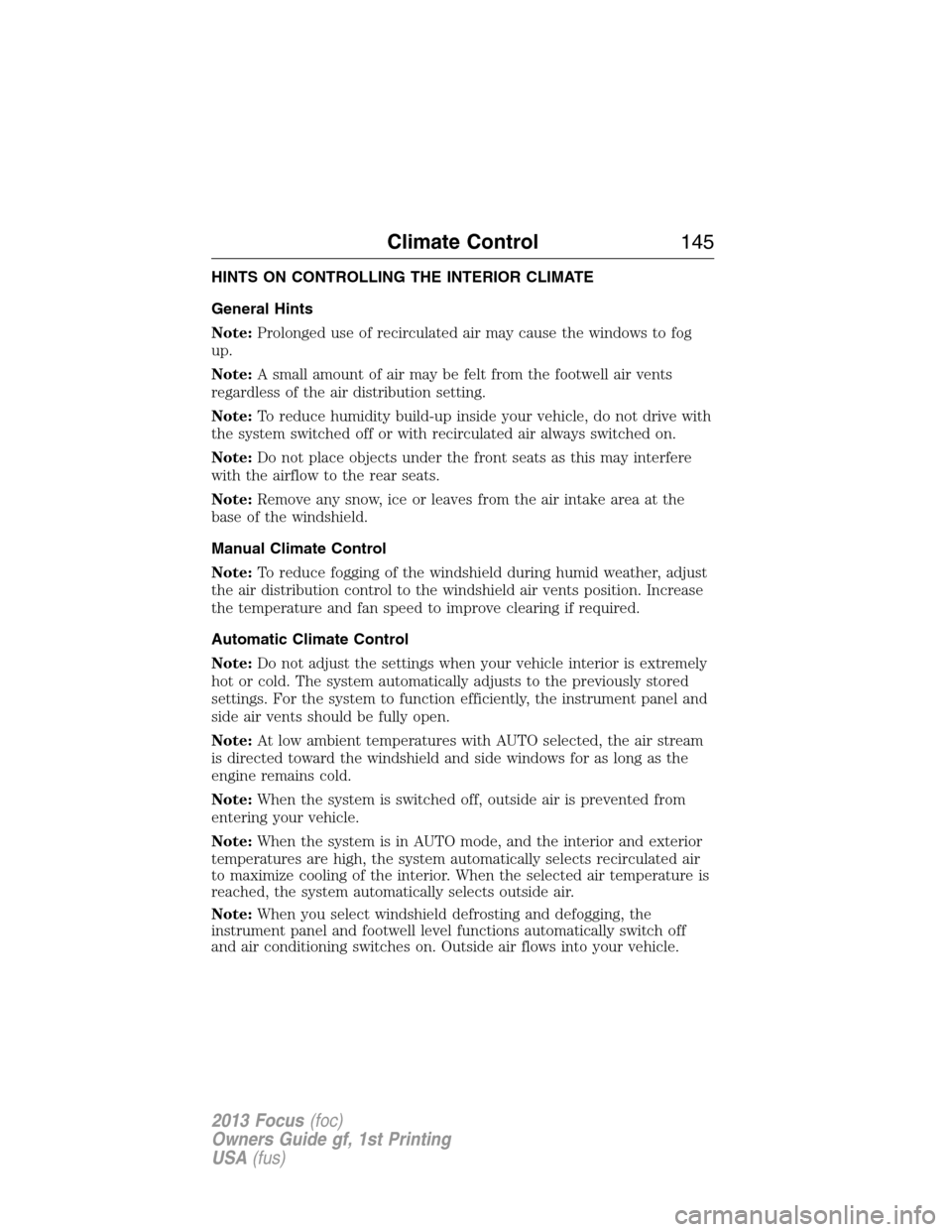

HINTS ON CONTROLLING THE INTERIOR CLIMATE
General Hints
Note:Prolonged use of recirculated air may cause the windows to fog
up.
Note:A small amount of air may be felt from the footwell air vents
regardless of the air distribution setting.
Note:To reduce humidity build-up inside your vehicle, do not drive with
the system switched off or with recirculated air always switched on.
Note:Do not place objects under the front seats as this may interfere
with the airflow to the rear seats.
Note:Remove any snow, ice or leaves from the air intake area at the
base of the windshield.
Manual Climate Control
Note:To reduce fogging of the windshield during humid weather, adjust
the air distribution control to the windshield air vents position. Increase
the temperature and fan speed to improve clearing if required.
Automatic Climate Control
Note:Do not adjust the settings when your vehicle interior is extremely
hot or cold. The system automatically adjusts to the previously stored
settings. For the system to function efficiently, the instrument panel and
side air vents should be fully open.
Note:At low ambient temperatures with AUTO selected, the air stream
is directed toward the windshield and side windows for as long as the
engine remains cold.
Note:When the system is switched off, outside air is prevented from
entering your vehicle.
Note:When the system is in AUTO mode, and the interior and exterior
temperatures are high, the system automatically selects recirculated air
to maximize cooling of the interior. When the selected air temperature is
reached, the system automatically selects outside air.
Note:When you select windshield defrosting and defogging, the
instrument panel and footwell level functions automatically switch off
and air conditioning switches on. Outside air flows into your vehicle.
Climate Control145
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

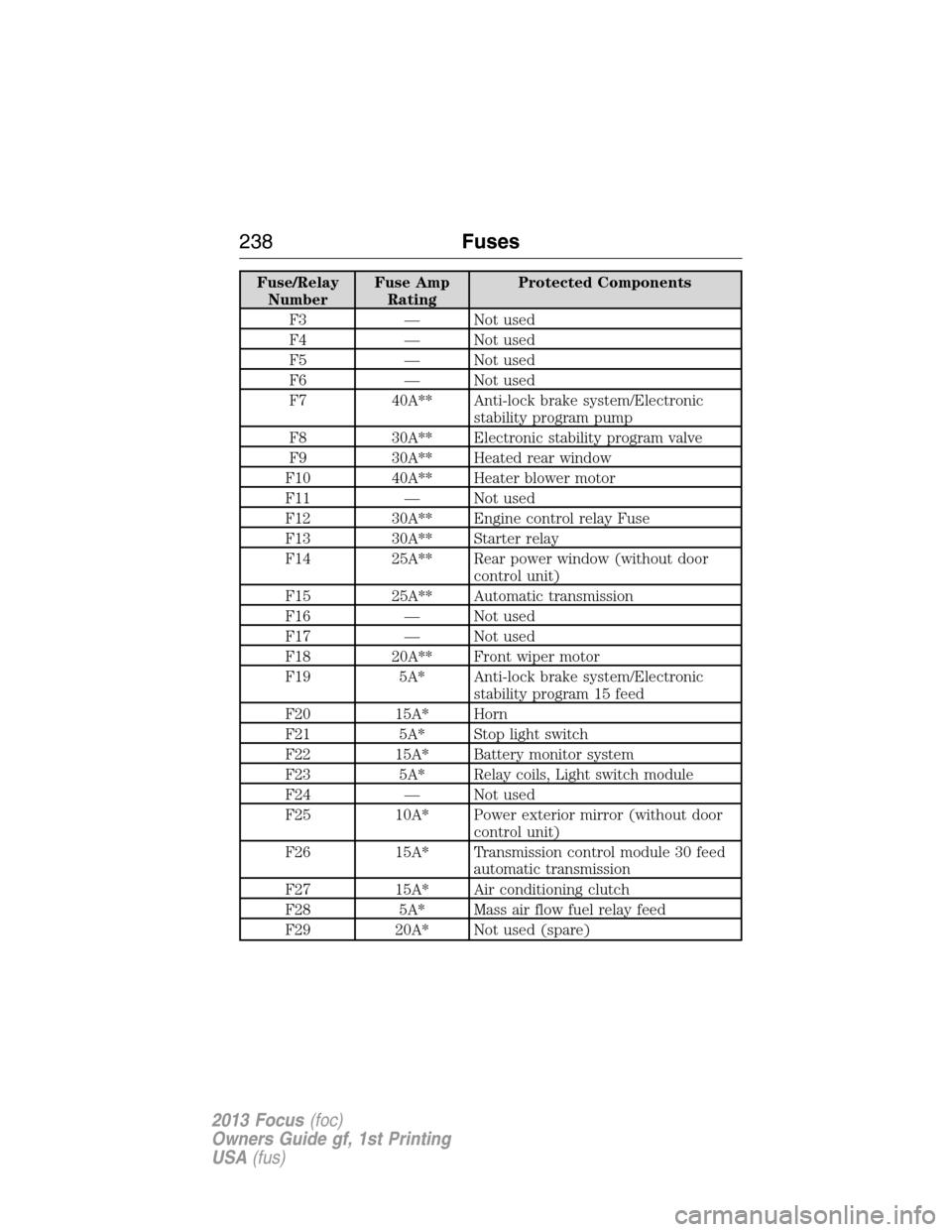

Fuse/Relay
NumberFuse Amp
RatingProtected Components
F3 — Not used
F4 — Not used
F5 — Not used
F6 — Not used
F7 40A** Anti-lock brake system/Electronic
stability program pump
F8 30A** Electronic stability program valve
F9 30A** Heated rear window
F10 40A** Heater blower motor
F11 — Not used
F12 30A** Engine control relay Fuse
F13 30A** Starter relay
F14 25A** Rear power window (without door
control unit)
F15 25A** Automatic transmission
F16 — Not used
F17 — Not used
F18 20A** Front wiper motor
F19 5A* Anti-lock brake system/Electronic
stability program 15 feed
F20 15A* Horn
F21 5A* Stop light switch
F22 15A* Battery monitor system
F23 5A* Relay coils, Light switch module
F24 — Not used
F25 10A* Power exterior mirror (without door
control unit)
F26 15A* Transmission control module 30 feed
automatic transmission
F27 15A* Air conditioning clutch
F28 5A* Mass air flow fuel relay feed
F29 20A* Not used (spare)
238Fuses
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

Fuse/Relay
NumberFuse Amp
RatingProtected Components
R8 — Not used
R9 — Not used
R10 Mini relay Starter relay
R11 Micro relay Air conditioning clutch
R12 Power relay Cooling fan
R13 Mini relay Heater blower
R14 Mini relay Engine control relay
R15 Power relay Heated rear window
R16 Power relay Ignition 15
*Mini Fuses **Cartridge Fuses

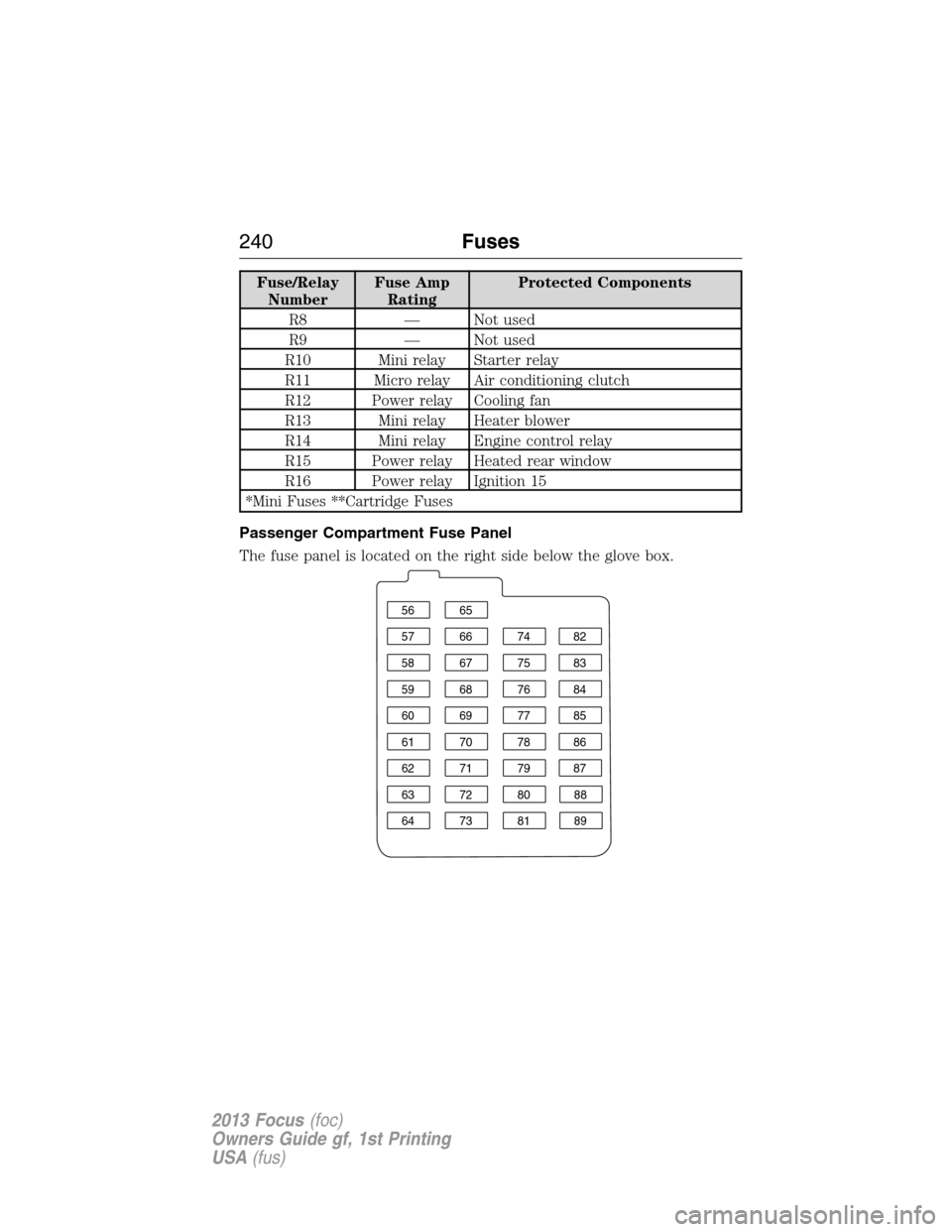

Passenger Compartment Fuse Panel
The fuse panel is located on the right side below the glove box.
56
57
58
59
60
61
62
63
6465
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
88
89
82
83
84
85
86
87
240Fuses
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

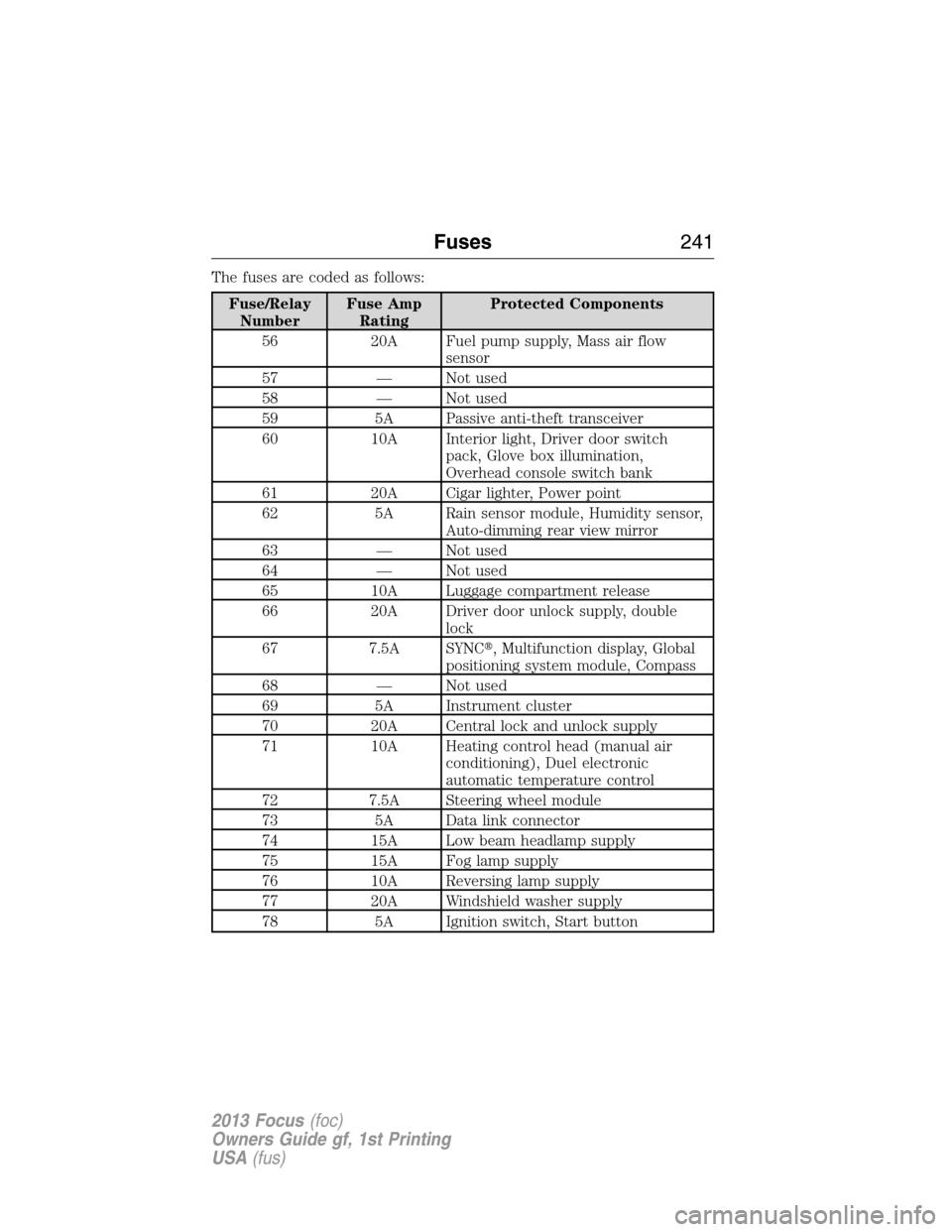

The fuses are coded as follows:
Fuse/Relay
NumberFuse Amp
RatingProtected Components
56 20A Fuel pump supply, Mass air flow
sensor
57 — Not used
58 — Not used
59 5A Passive anti-theft transceiver
60 10A Interior light, Driver door switch
pack, Glove box illumination,
Overhead console switch bank
61 20A Cigar lighter, Power point
62 5A Rain sensor module, Humidity sensor,
Auto-dimming rear view mirror
63 — Not used
64 — Not used
65 10A Luggage compartment release
66 20A Driver door unlock supply, double
lock
67 7.5A SYNC, Multifunction display, Global
positioning system module, Compass
68 — Not used
69 5A Instrument cluster
70 20A Central lock and unlock supply
71 10A Heating control head (manual air
conditioning), Duel electronic
automatic temperature control
72 7.5A Steering wheel module
73 5A Data link connector
74 15A Low beam headlamp supply
75 15A Fog lamp supply
76 10A Reversing lamp supply
77 20A Windshield washer supply
78 5A Ignition switch, Start button
Fuses241
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

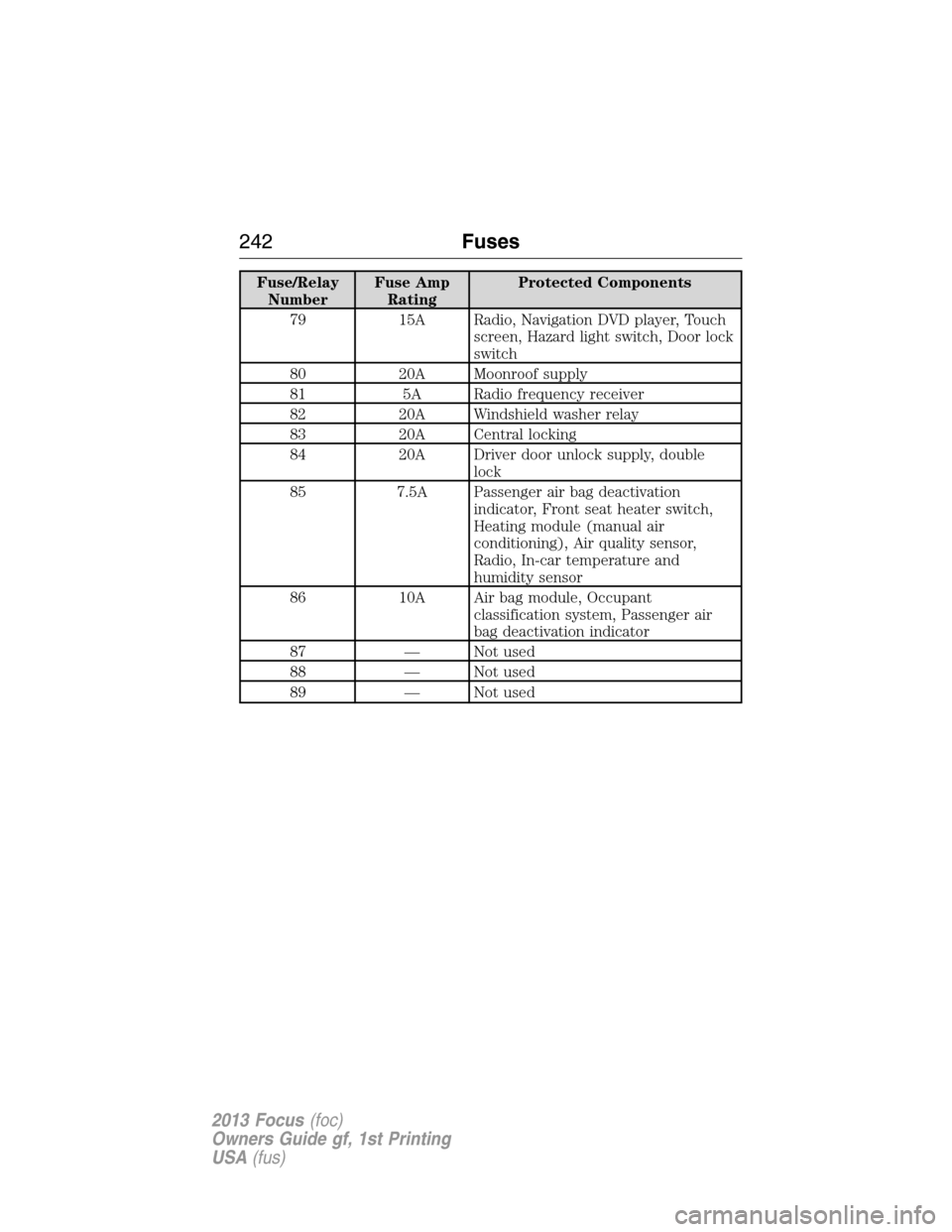

Fuse/Relay
NumberFuse Amp
RatingProtected Components
79 15A Radio, Navigation DVD player, Touch
screen, Hazard light switch, Door lock
switch
80 20A Moonroof supply
81 5A Radio frequency receiver
82 20A Windshield washer relay
83 20A Central locking
84 20A Driver door unlock supply, double
lock
85 7.5A Passenger air bag deactivation
indicator, Front seat heater switch,
Heating module (manual air
conditioning), Air quality sensor,
Radio, In-car temperature and
humidity sensor
86 10A Air bag module, Occupant
classification system, Passenger air
bag deactivation indicator
87 — Not used
88 — Not used
89 — Not used
242Fuses
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

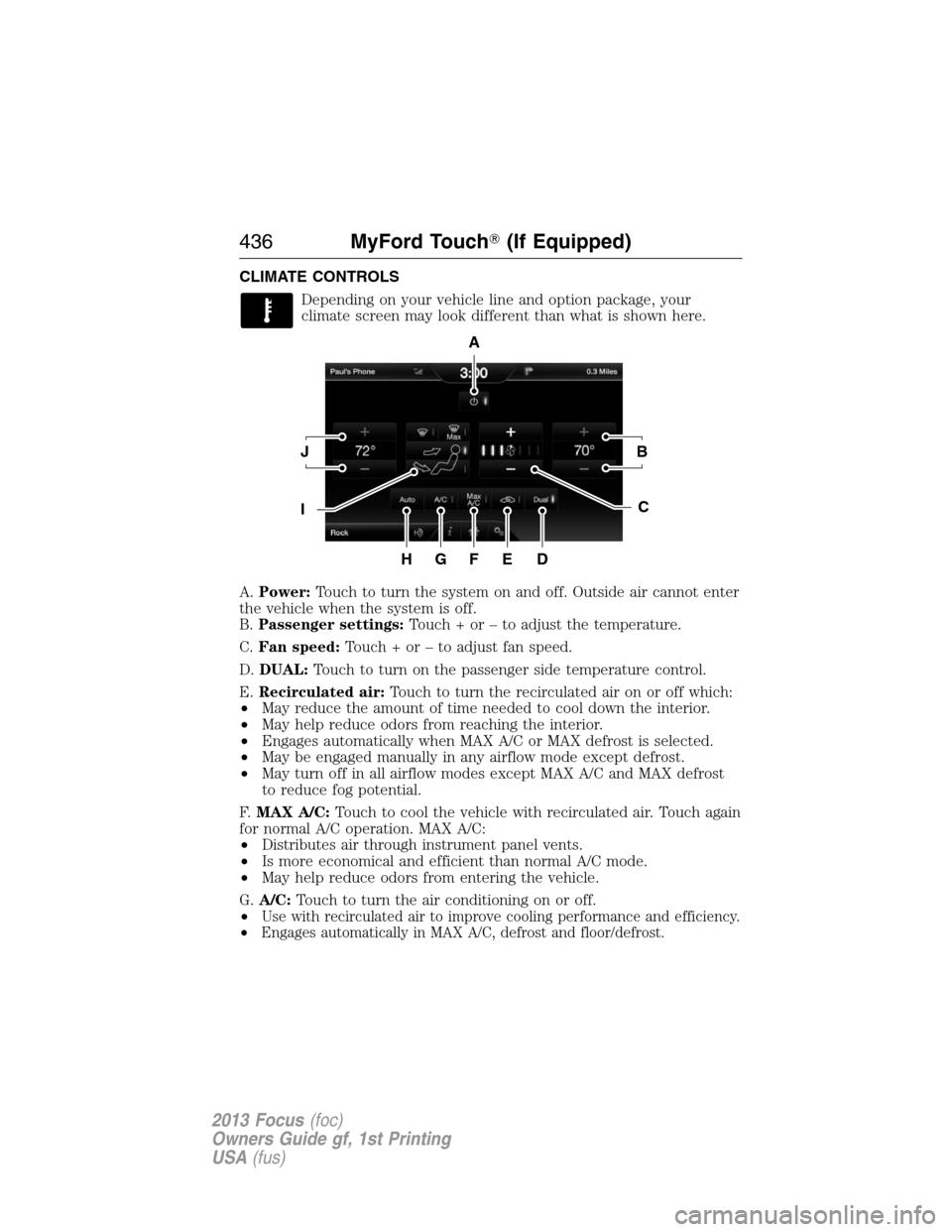

CLIMATE CONTROLS
Depending on your vehicle line and option package, your
climate screen may look different than what is shown here.
A.Power:Touch to turn the system on and off. Outside air cannot enter
the vehicle when the system is off.
B.Passenger settings:Touch + or – to adjust the temperature.
C.Fan speed:Touch + or – to adjust fan speed.
D.DUAL:Touch to turn on the passenger side temperature control.
E.Recirculated air:Touch to turn the recirculated air on or off which:
•May reduce the amount of time needed to cool down the interior.
•May help reduce odors from reaching the interior.
•Engages automatically when MAX A/C or MAX defrost is selected.
•May be engaged manually in any airflow mode except defrost.
•May turn off in all airflow modes except MAX A/C and MAX defrost
to reduce fog potential.
F.MAX A/C:Touch to cool the vehicle with recirculated air. Touch again
for normal A/C operation. MAX A/C:
•Distributes air through instrument panel vents.
•Is more economical and efficient than normal A/C mode.
•May help reduce odors from entering the vehicle.
G.A/C:Touch to turn the air conditioning on or off.
•
Use with recirculated air to improve cooling performance and efficiency.
•Engages automatically in MAX A/C, defrost and floor/defrost.
A
JB
IC
HGFED
436MyFord Touch(If Equipped)
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)
