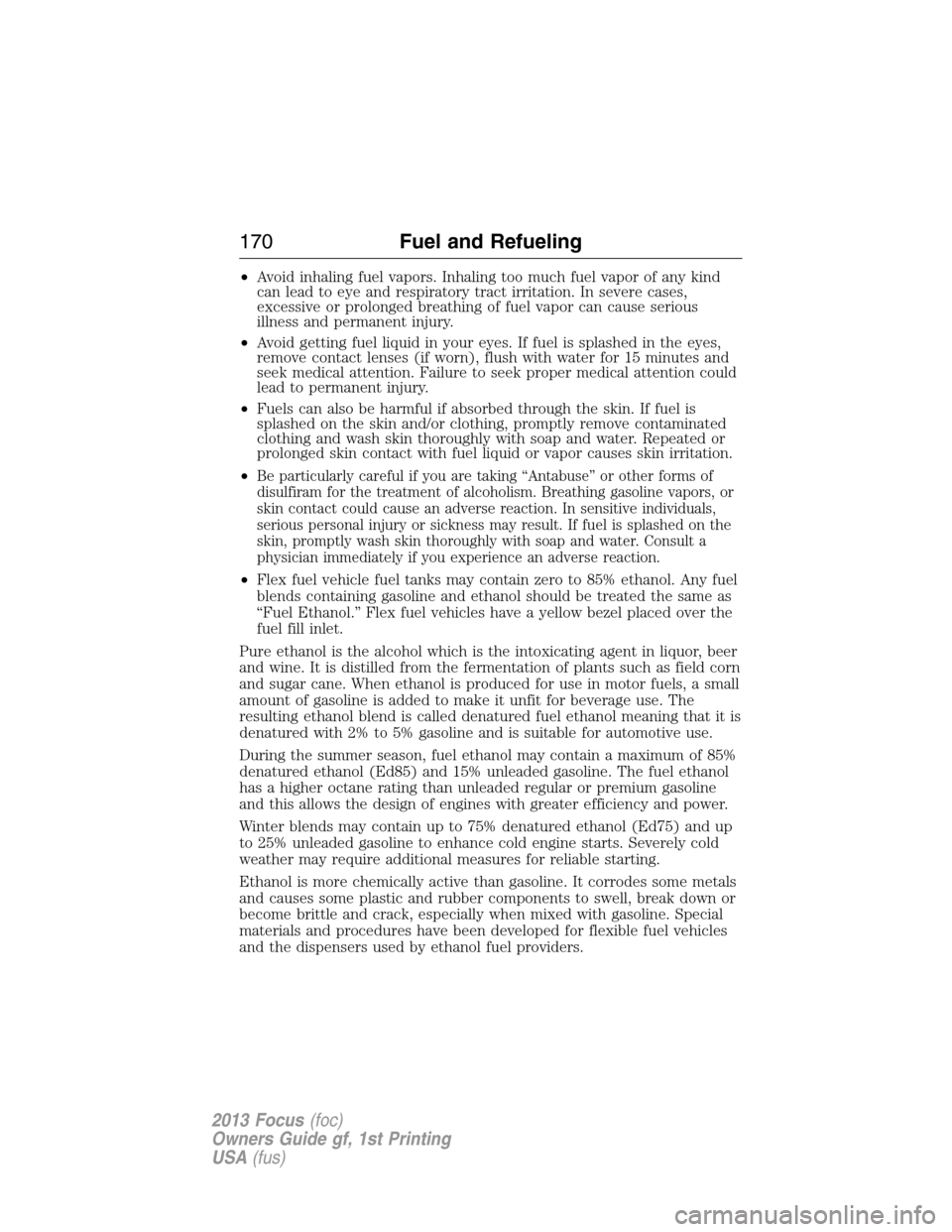

•Avoid inhaling fuel vapors. Inhaling too much fuel vapor of any kind
can lead to eye and respiratory tract irritation. In severe cases,
excessive or prolonged breathing of fuel vapor can cause serious
illness and permanent injury.
•Avoid getting fuel liquid in your eyes. If fuel is splashed in the eyes,
remove contact lenses (if worn), flush with water for 15 minutes and
seek medical attention. Failure to seek proper medical attention could
lead to permanent injury.
•Fuels can also be harmful if absorbed through the skin. If fuel is
splashed on the skin and/or clothing, promptly remove contaminated
clothing and wash skin thoroughly with soap and water. Repeated or
prolonged skin contact with fuel liquid or vapor causes skin irritation.
•
Be particularly careful if you are taking “Antabuse” or other forms of
disulfiram for the treatment of alcoholism. Breathing gasoline vapors, or
skin contact could cause an adverse reaction. In sensitive individuals,
serious personal injury or sickness may result. If fuel is splashed on the
skin, promptly wash skin thoroughly with soap and water. Consult a
physician immediately if you experience an adverse reaction.
•Flex fuel vehicle fuel tanks may contain zero to 85% ethanol. Any fuel
blends containing gasoline and ethanol should be treated the same as
“Fuel Ethanol.” Flex fuel vehicles have a yellow bezel placed over the
fuel fill inlet.
Pure ethanol is the alcohol which is the intoxicating agent in liquor, beer
and wine. It is distilled from the fermentation of plants such as field corn
and sugar cane. When ethanol is produced for use in motor fuels, a small
amount of gasoline is added to make it unfit for beverage use. The
resulting ethanol blend is called denatured fuel ethanol meaning that it is
denatured with 2% to 5% gasoline and is suitable for automotive use.
During the summer season, fuel ethanol may contain a maximum of 85%
denatured ethanol (Ed85) and 15% unleaded gasoline. The fuel ethanol
has a higher octane rating than unleaded regular or premium gasoline
and this allows the design of engines with greater efficiency and power.
Winter blends may contain up to 75% denatured ethanol (Ed75) and up
to 25% unleaded gasoline to enhance cold engine starts. Severely cold
weather may require additional measures for reliable starting.
Ethanol is more chemically active than gasoline. It corrodes some metals
and causes some plastic and rubber components to swell, break down or
become brittle and crack, especially when mixed with gasoline. Special
materials and procedures have been developed for flexible fuel vehicles
and the dispensers used by ethanol fuel providers.
170Fuel and Refueling
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

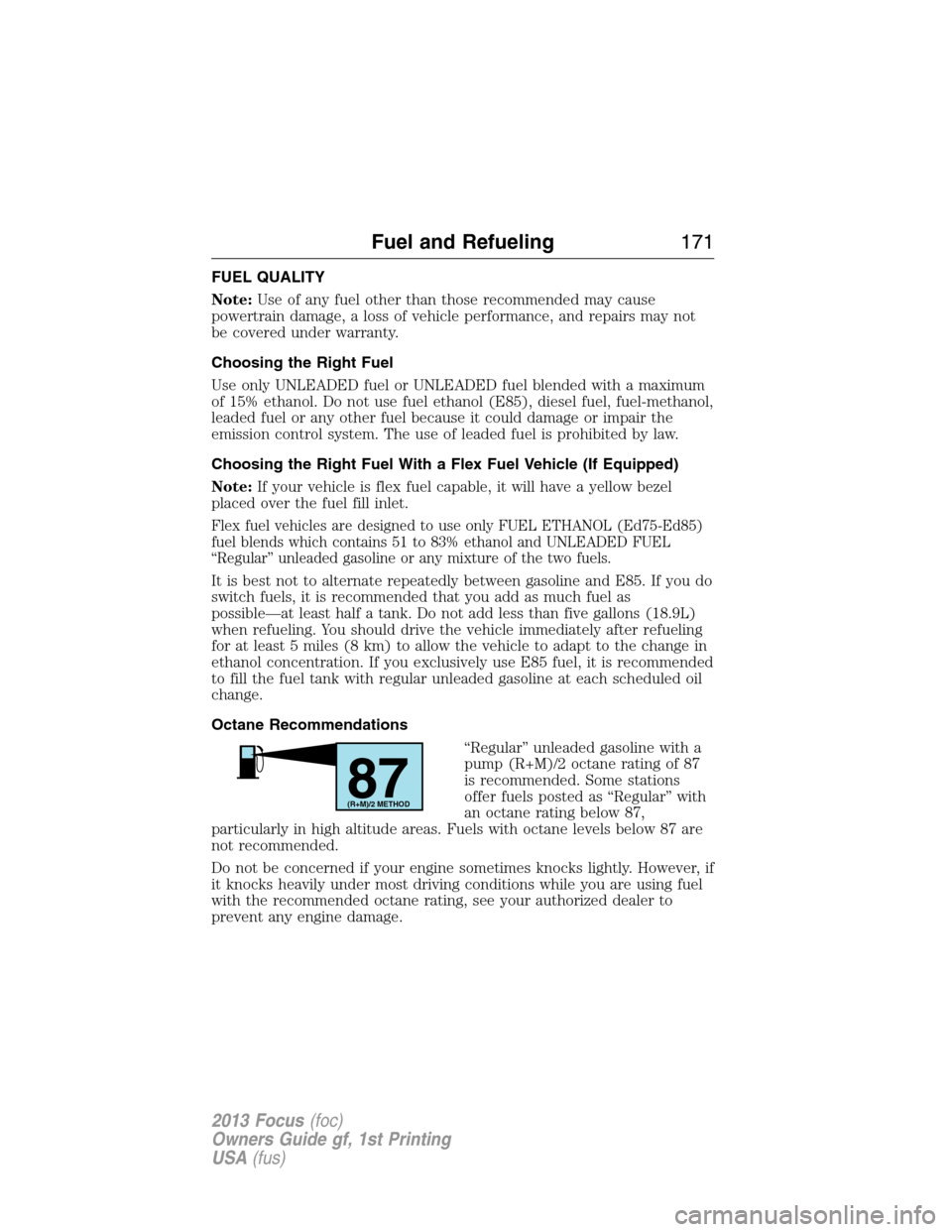

FUEL QUALITY
Note:Use of any fuel other than those recommended may cause
powertrain damage, a loss of vehicle performance, and repairs may not
be covered under warranty.
Choosing the Right Fuel
Use only UNLEADED fuel or UNLEADED fuel blended with a maximum
of 15% ethanol. Do not use fuel ethanol (E85), diesel fuel, fuel-methanol,
leaded fuel or any other fuel because it could damage or impair the
emission control system. The use of leaded fuel is prohibited by law.
Choosing the Right Fuel With a Flex Fuel Vehicle (If Equipped)
Note:If your vehicle is flex fuel capable, it will have a yellow bezel
placed over the fuel fill inlet.
Flex fuel vehicles are designed to use only FUEL ETHANOL (Ed75-Ed85)
fuel blends which contains 51 to 83% ethanol and UNLEADED FUEL
“Regular” unleaded gasoline or any mixture of the two fuels.
It is best not to alternate repeatedly between gasoline and E85. If you do
switch fuels, it is recommended that you add as much fuel as
possible—at least half a tank. Do not add less than five gallons (18.9L)
when refueling. You should drive the vehicle immediately after refueling
for at least 5 miles (8 km) to allow the vehicle to adapt to the change in
ethanol concentration. If you exclusively use E85 fuel, it is recommended
to fill the fuel tank with regular unleaded gasoline at each scheduled oil
change.
Octane Recommendations
“Regular” unleaded gasoline with a
pump (R+M)/2 octane rating of 87
is recommended. Some stations
offer fuels posted as “Regular” with
an octane rating below 87,
particularly in high altitude areas. Fuels with octane levels below 87 are
not recommended.
Do not be concerned if your engine sometimes knocks lightly. However, if
it knocks heavily under most driving conditions while you are using fuel
with the recommended octane rating, see your authorized dealer to
prevent any engine damage.
87(R+M)/2 METHOD
Fuel and Refueling171
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

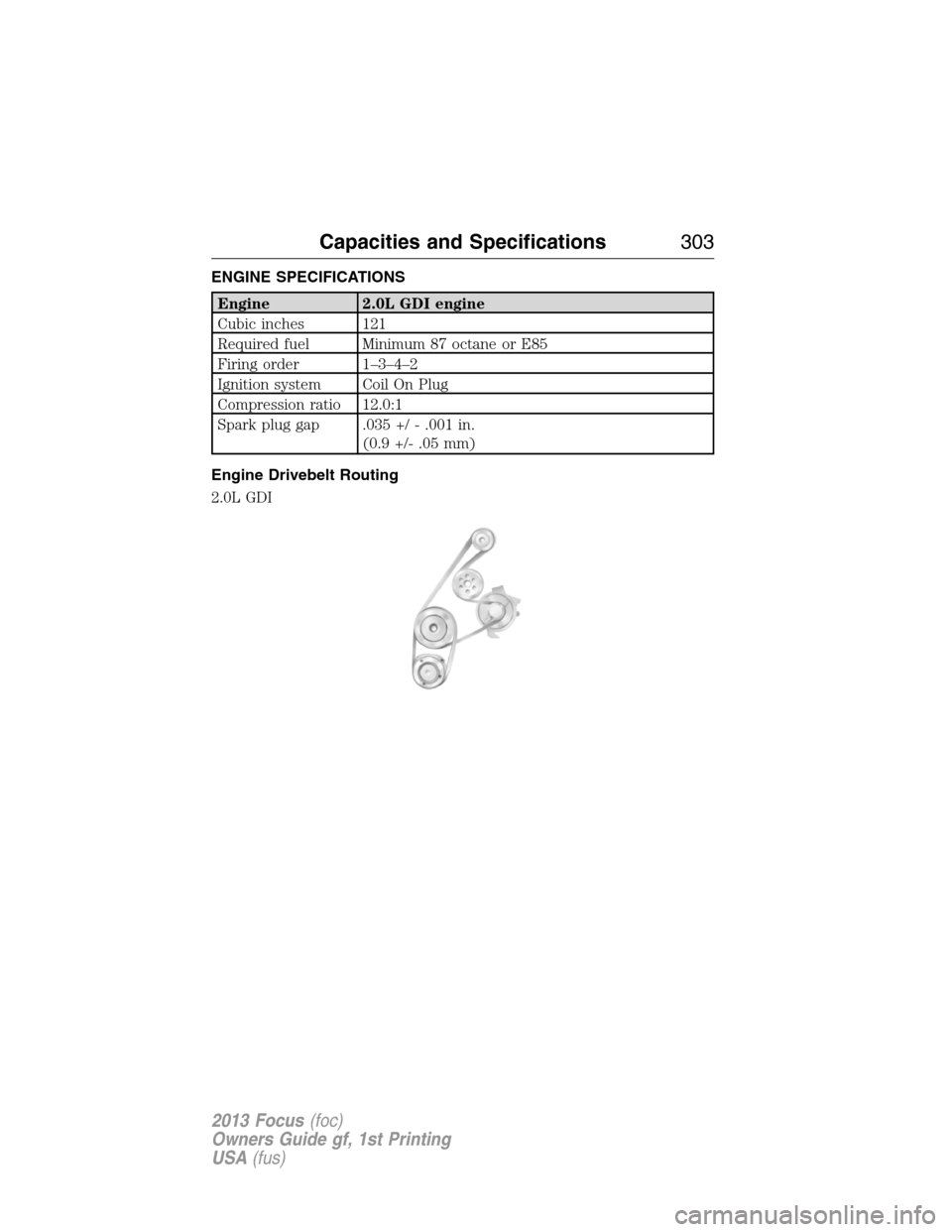

ENGINE SPECIFICATIONS
Engine 2.0L GDI engine
Cubic inches 121
Required fuel Minimum 87 octane or E85
Firing order 1–3–4–2
Ignition system Coil On Plug
Compression ratio 12.0:1
Spark plug gap .035 +/ - .001 in.
(0.9 +/- .05 mm)
Engine Drivebelt Routing
2.0L GDI
Capacities and Specifications303
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

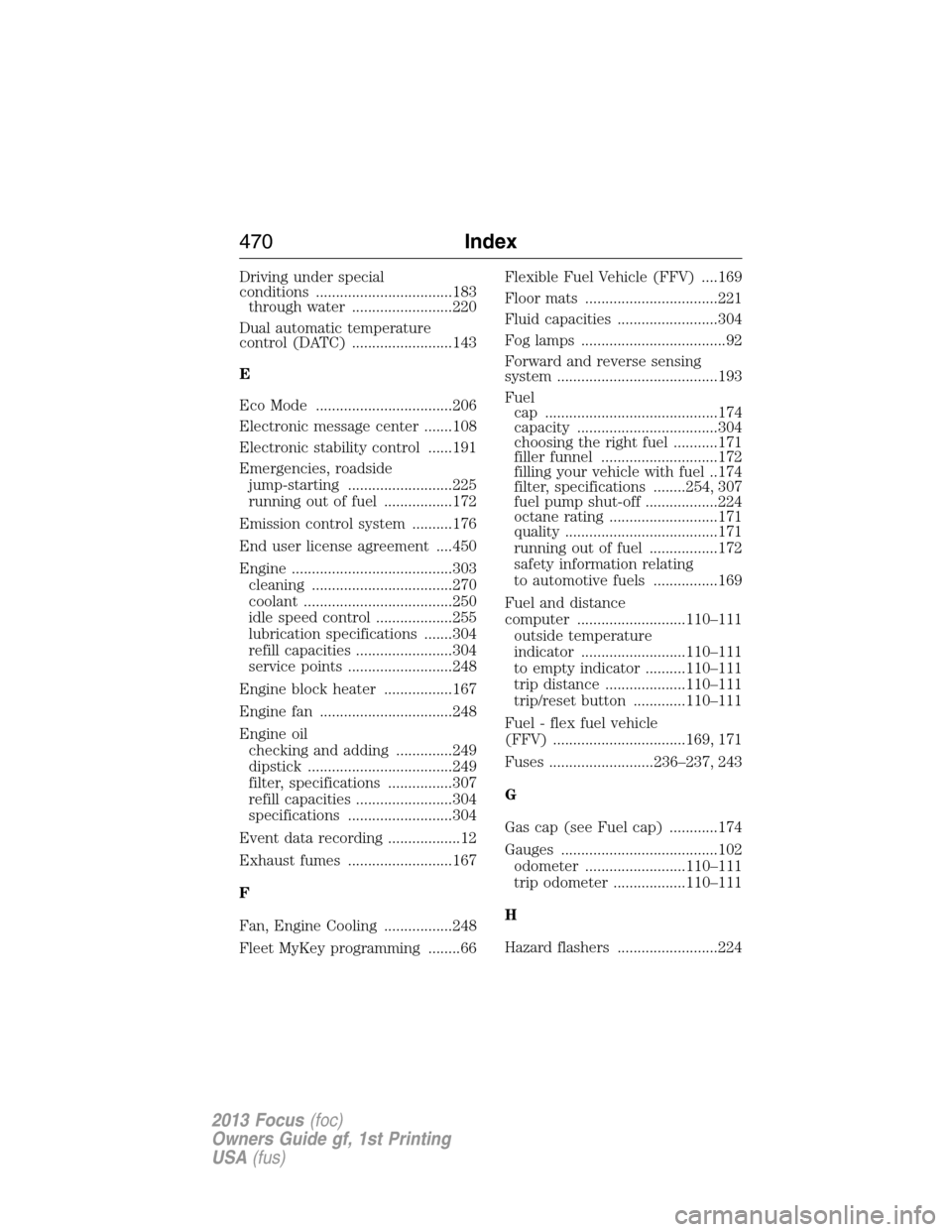

Driving under special
conditions ..................................183
through water .........................220
Dual automatic temperature
control (DATC) .........................143
E
Eco Mode ..................................206
Electronic message center .......108
Electronic stability control ......191
Emergencies, roadside
jump-starting ..........................225
running out of fuel .................172
Emission control system ..........176
End user license agreement ....450
Engine ........................................303
cleaning ...................................270
coolant .....................................250
idle speed control ...................255
lubrication specifications .......304
refill capacities ........................304
service points ..........................248
Engine block heater .................167
Engine fan .................................248
Engine oil
checking and adding ..............249
dipstick ....................................249
filter, specifications ................307
refill capacities ........................304
specifications ..........................304
Event data recording ..................12
Exhaust fumes ..........................167
F
Fan, Engine Cooling .................248
Fleet MyKey programming ........66Flexible Fuel Vehicle (FFV) ....169
Floor mats .................................221
Fluid capacities .........................304
Fog lamps ....................................92
Forward and reverse sensing
system ........................................193
Fuel
cap ...........................................174
capacity ...................................304
choosing the right fuel ...........171
filler funnel .............................172
filling your vehicle with fuel ..174
filter, specifications ........254, 307
fuel pump shut-off ..................224
octane rating ...........................171
quality ......................................171
running out of fuel .................172
safety information relating
to automotive fuels ................169
Fuel and distance
computer ...........................110–111
outside temperature
indicator ..........................110–111
to empty indicator ..........110–111
trip distance ....................110–111
trip/reset button .............110–111
Fuel - flex fuel vehicle
(FFV) .................................169, 171
Fuses ..........................236–237, 243
G
Gas cap (see Fuel cap) ............174
Gauges .......................................102
odometer .........................110–111
trip odometer ..................110–111
H
Hazard flashers .........................224
470Index
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

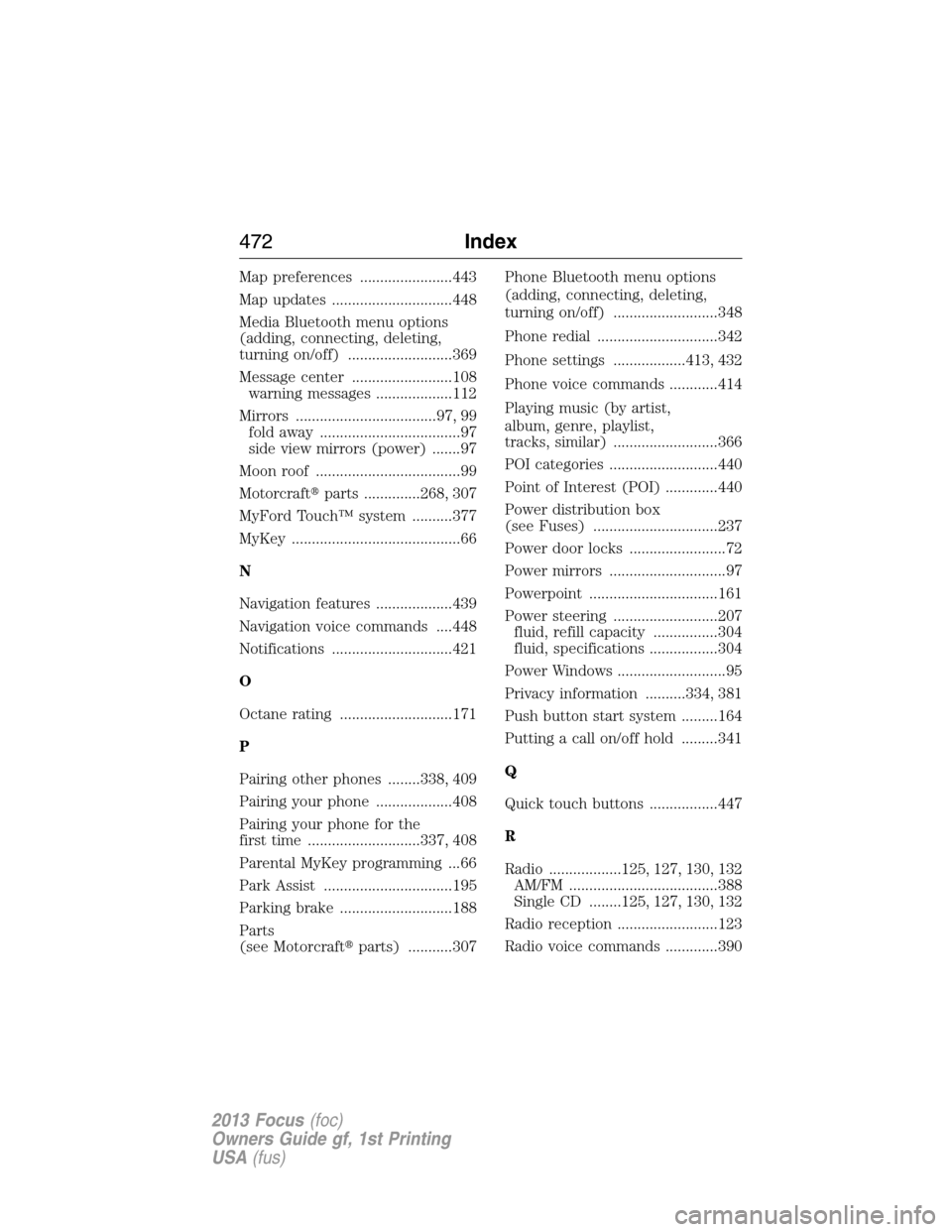

Map preferences .......................443
Map updates ..............................448
Media Bluetooth menu options
(adding, connecting, deleting,
turning on/off) ..........................369
Message center .........................108
warning messages ...................112
Mirrors ...................................97, 99
fold away ...................................97
side view mirrors (power) .......97
Moon roof ....................................99
Motorcraftparts ..............268, 307
MyFord Touch™ system ..........377
MyKey ..........................................66
N
Navigation features ...................439
Navigation voice commands ....448
Notifications ..............................421
O
Octane rating ............................171
P
Pairing other phones ........338, 409
Pairing your phone ...................408
Pairing your phone for the
first time ............................337, 408
Parental MyKey programming ...66
Park Assist ................................195
Parking brake ............................188
Parts
(see Motorcraftparts) ...........307Phone Bluetooth menu options
(adding, connecting, deleting,
turning on/off) ..........................348
Phone redial ..............................342
Phone settings ..................413, 432
Phone voice commands ............414
Playing music (by artist,
album, genre, playlist,
tracks, similar) ..........................366
POI categories ...........................440
Point of Interest (POI) .............440
Power distribution box
(see Fuses) ...............................237
Power door locks ........................72
Power mirrors .............................97
Powerpoint ................................161
Power steering ..........................207
fluid, refill capacity ................304
fluid, specifications .................304
Power Windows ...........................95
Privacy information ..........334, 381
Push button start system .........164
Putting a call on/off hold .........341
Q
Quick touch buttons .................447
R
Radio ..................125, 127, 130, 132
AM/FM .....................................388
Single CD ........125, 127, 130, 132
Radio reception .........................123
Radio voice commands .............390
