power steering fluid FORD FOCUS 2013 3.G Owners Manual

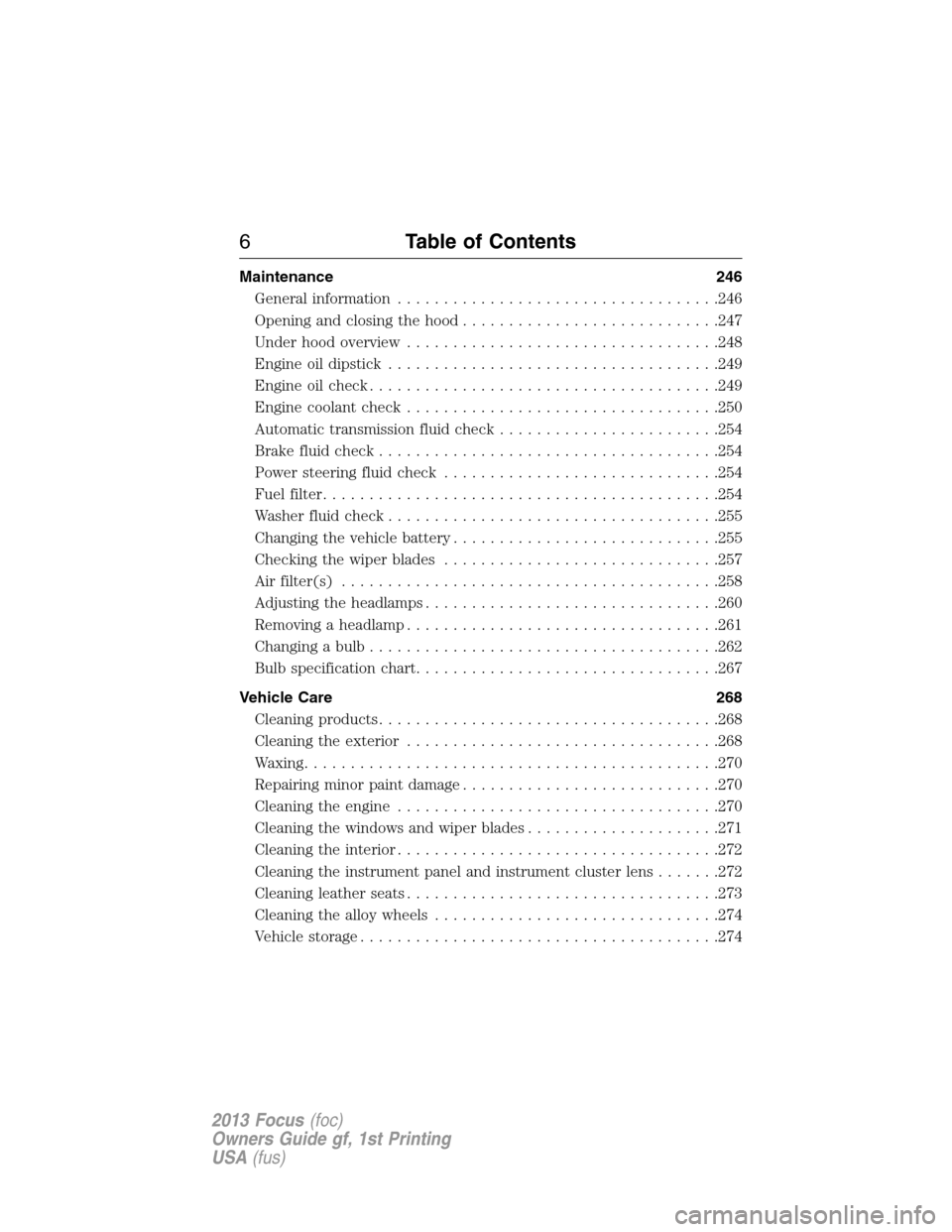

Maintenance 246
General information...................................246
Opening and closing the hood............................247
Under hood overview..................................248
Engine oil dipstick....................................249
Engine oil check......................................249
Engine coolant check..................................250
Automatic transmission fluid check........................254
Brake fluid check.....................................254
Power steering fluid check..............................254
Fuel filter...........................................254
Washer fluid check....................................255
Changing the vehicle battery.............................255
Checking the wiper blades..............................257
Air filter(s).........................................258
Adjusting the headlamps................................260
Removing a headlamp..................................261
Changing a bulb......................................262
Bulb specification chart.................................267
Vehicle Care 268
Cleaning products.....................................268
Cleaning the exterior..................................268
Waxing.............................................270
Repairing minor paint damage............................270
Cleaning the engine...................................270
Cleaning the windows and wiper blades.....................271
Cleaning the interior...................................272
Cleaning the instrument panel and instrument cluster lens.......272
Cleaning leather seats..................................273
Cleaning the alloy wheels...............................274
Vehicle storage.......................................274
6Table of Contents
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

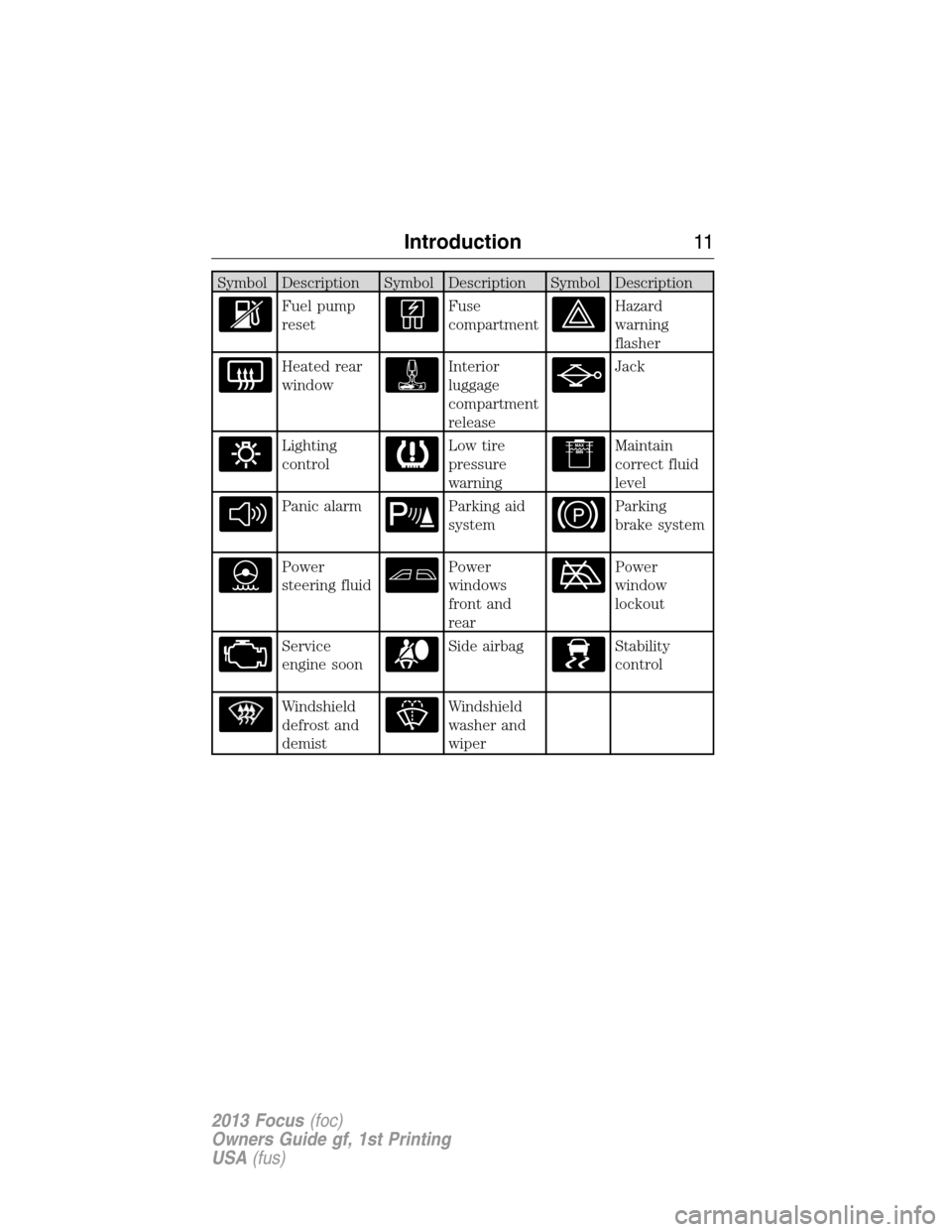

Symbol Description Symbol Description Symbol Description
Fuel pump
resetFuse
compartmentHazard
warning
flasher
Heated rear
windowInterior
luggage
compartment
releaseJack
Lighting
controlLow tire
pressure
warningMaintain
correct fluid
level
Panic alarmParking aid
systemParking
brake system
Power
steering fluidPower
windows
front and
rearPower
window
lockout
Service
engine soonSide airbagStability
control
Windshield
defrost and
demistWindshield
washer and
wiper
Introduction11
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

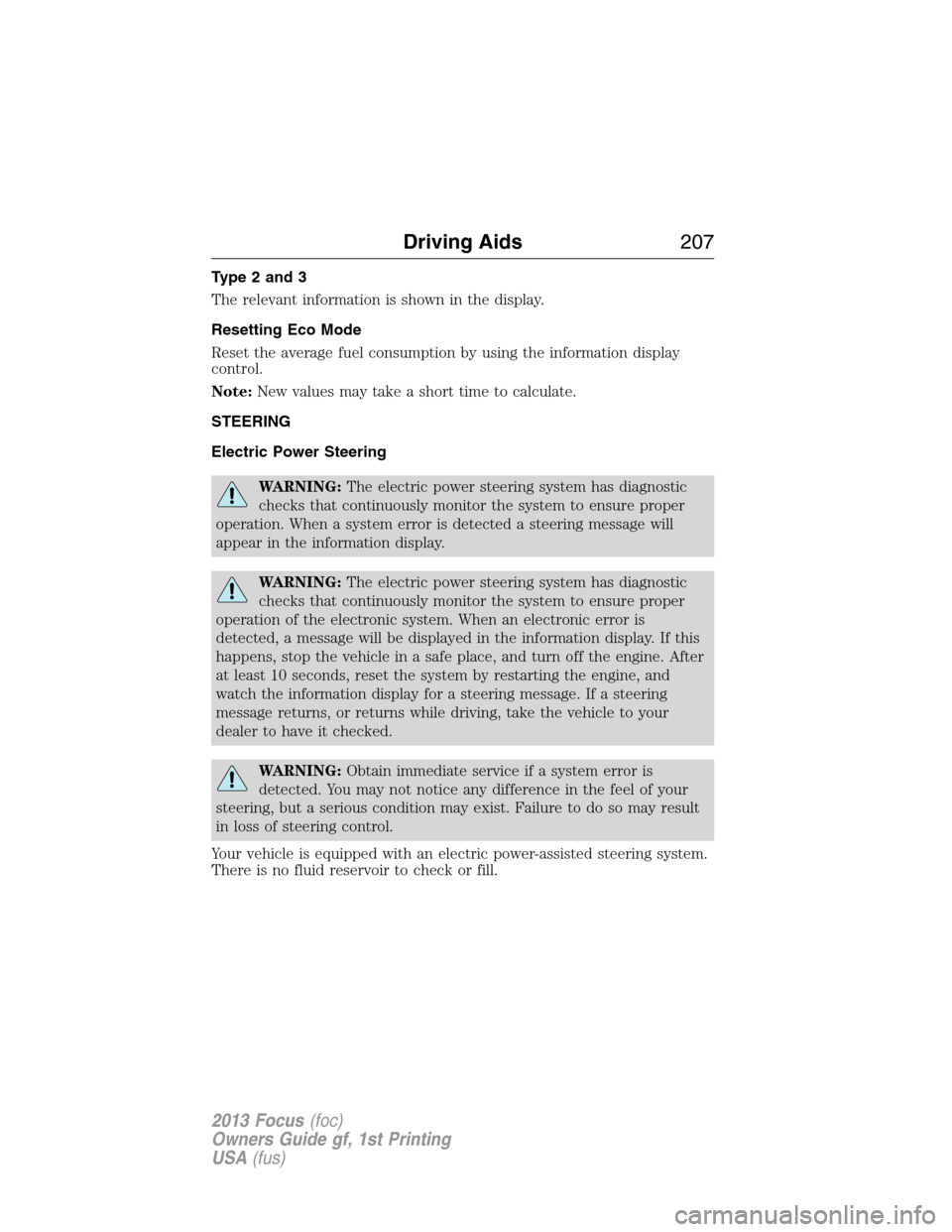

Type 2 and 3
The relevant information is shown in the display.
Resetting Eco Mode
Reset the average fuel consumption by using the information display
control.
Note:New values may take a short time to calculate.
STEERING
Electric Power Steering
WARNING:The electric power steering system has diagnostic
checks that continuously monitor the system to ensure proper
operation. When a system error is detected a steering message will
appear in the information display.
WARNING:The electric power steering system has diagnostic
checks that continuously monitor the system to ensure proper
operation of the electronic system. When an electronic error is
detected, a message will be displayed in the information display. If this
happens, stop the vehicle in a safe place, and turn off the engine. After
at least 10 seconds, reset the system by restarting the engine, and
watch the information display for a steering message. If a steering
message returns, or returns while driving, take the vehicle to your
dealer to have it checked.
WARNING:Obtain immediate service if a system error is
detected. You may not notice any difference in the feel of your
steering, but a serious condition may exist. Failure to do so may result
in loss of steering control.
Your vehicle is equipped with an electric power-assisted steering system.
There is no fluid reservoir to check or fill.
Driving Aids207
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

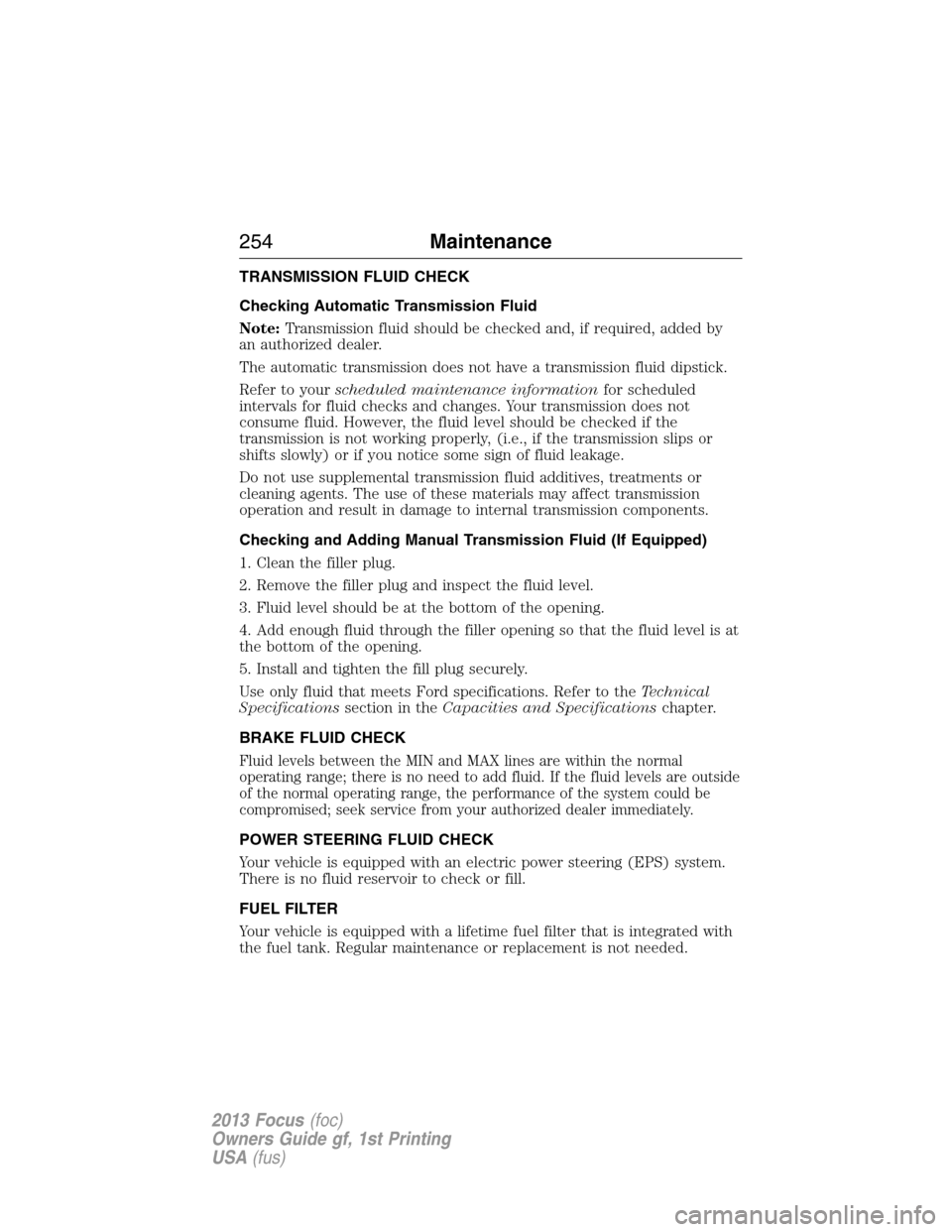

TRANSMISSION FLUID CHECK
Checking Automatic Transmission Fluid
Note:Transmission fluid should be checked and, if required, added by
an authorized dealer.
The automatic transmission does not have a transmission fluid dipstick.
Refer to yourscheduled maintenance informationfor scheduled
intervals for fluid checks and changes. Your transmission does not
consume fluid. However, the fluid level should be checked if the
transmission is not working properly, (i.e., if the transmission slips or
shifts slowly) or if you notice some sign of fluid leakage.
Do not use supplemental transmission fluid additives, treatments or
cleaning agents. The use of these materials may affect transmission
operation and result in damage to internal transmission components.
Checking and Adding Manual Transmission Fluid (If Equipped)
1. Clean the filler plug.
2. Remove the filler plug and inspect the fluid level.
3. Fluid level should be at the bottom of the opening.
4. Add enough fluid through the filler opening so that the fluid level is at
the bottom of the opening.
5. Install and tighten the fill plug securely.
Use only fluid that meets Ford specifications. Refer to theTechnical
Specificationssection in theCapacities and Specificationschapter.
BRAKE FLUID CHECK
Fluid levels between the MIN and MAX lines are within the normal
operating range; there is no need to add fluid. If the fluid levels are outside
of the normal operating range, the performance of the system could be
compromised; seek service from your authorized dealer immediately.
POWER STEERING FLUID CHECK
Your vehicle is equipped with an electric power steering (EPS) system.
There is no fluid reservoir to check or fill.
FUEL FILTER
Your vehicle is equipped with a lifetime fuel filter that is integrated with
the fuel tank. Regular maintenance or replacement is not needed.
254Maintenance
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

Map preferences .......................443
Map updates ..............................448
Media Bluetooth menu options
(adding, connecting, deleting,
turning on/off) ..........................369
Message center .........................108
warning messages ...................112
Mirrors ...................................97, 99
fold away ...................................97
side view mirrors (power) .......97
Moon roof ....................................99
Motorcraftparts ..............268, 307
MyFord Touch™ system ..........377
MyKey ..........................................66
N
Navigation features ...................439
Navigation voice commands ....448
Notifications ..............................421
O
Octane rating ............................171
P
Pairing other phones ........338, 409
Pairing your phone ...................408
Pairing your phone for the
first time ............................337, 408
Parental MyKey programming ...66
Park Assist ................................195
Parking brake ............................188
Parts
(see Motorcraftparts) ...........307Phone Bluetooth menu options
(adding, connecting, deleting,
turning on/off) ..........................348
Phone redial ..............................342
Phone settings ..................413, 432
Phone voice commands ............414
Playing music (by artist,
album, genre, playlist,
tracks, similar) ..........................366
POI categories ...........................440
Point of Interest (POI) .............440
Power distribution box
(see Fuses) ...............................237
Power door locks ........................72
Power mirrors .............................97
Powerpoint ................................161
Power steering ..........................207
fluid, refill capacity ................304
fluid, specifications .................304
Power Windows ...........................95
Privacy information ..........334, 381
Push button start system .........164
Putting a call on/off hold .........341
Q
Quick touch buttons .................447
R
Radio ..................125, 127, 130, 132
AM/FM .....................................388
Single CD ........125, 127, 130, 132
Radio reception .........................123
Radio voice commands .............390
472Index
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)
