wheel FORD FOCUS 2015 3.G Quick Reference Guide

COMMONLY USED SYNC® VOICE COMMANDSTABLE OF CONTENTS
WARNING
Driving while distracted can result in loss of vehicle control, crash and injury. We strongly recommend that you use extreme
caution when using any device that may take your focus off the road. Your primary responsibility is the safe operation of your
vehicle. We recommend against the use of any hand-held device while driving and encourage the use of voice-operated
systems when possible. Make sure you are aware of all applicable local laws that may affect the use of electronic devices
while driving.
Some services may not be available in your area.
Refer to your Owner’s Manual, visit the website
or call the toll-free number for more information. For U.S. customers: visit SyncMyRide.com
or call 1-800-392-3673 (select Option
1 or 2 for language, then Option 3). For Canadian customers: visit SyncMyRide.ca
or call 1-800-565-3673 (select Option 1 or 2
for language, then Option 3).
*if equipped
**available only with MyFord Touch
Basic Commands
• What can I say?
• List of commands
• Main menu
• Previous
• Next
• Go back
• Exit
• Help
• Pair my phone
Phone • Phone list of commands
• Dial
• Call on cell/
at home/at work
• Call voicemail
• Do not disturb
• Listen to text messages
(phone-dependent feature)
Climate** • Climate control list
of commands
• Climate temperature Entertainment
• Audio list of commands:
You can also get
detailed lists of
commands for radio,
USB, Bluetooth
® audio,
SiriusXM and SD card*
• Radio
-
- FM <87.9-107.9>
- FM preset <#>
• CD
- Play track <1-512>
- Shuffle
• USB
- Play song
- Play album
• SiriusXM
-
- Preset <#>
Navigation** • Navigation list of commands
• Destination street address

• Destination home
• Navigation voice
• Navigation voice volume

• Repeat instruction
• Show

INSTRUMENT PANEL
12
3
4
6
9
5
8
4 • 5*if equipped
*if equipped
7
1 Trunk*/Liftgate* Release
2 Cruise Control*
To Set Your Cruise Control Speed
A. Press the ON control and release.
B. Accelerate to the desired speed.
C. Press the SET + control and
release, then take your foot off
the accelerator.
3 Information Display
Provides information about various systems on your vehicle.
Use the left, 5-way controls, located on the steering wheel,
to choose and confirm settings and messages. Refer to the
Information Displays chapter of your Owner’s Manual for
more information.
4 Service Engine Soon Light
Lights briefly when you switch the ignition on. If it
remains on or blinks after you start the engine, the On-Board
Diagnostics (OBD-II) system detects a problem. Drive in a
moderate fashion and contact your authorized dealer as
soon as possible.
5 Wiper Controls
Use the rotary control on the lever to adjust the wipe
intervals. Pull the lever toward you to spray and wash the
windshield. Press the button at the end of the lever to turn
the rear wiper* on, off or change to intermittent wipe.
6 Steering Wheel Controls*
Use the right-hand, 5-way controls to adjust the
following features:
Press VOL + or – to increase or decrease volume levels.
Press the right arrow
to hear the next saved radio
station, CD track or MP3 choice. Press the left arrow to hear the previous selection.
Press
to access voice recognition.
Press
to answer a call.
Press
to exit phone mode or end a call.
7 Push Button Start*
Allows you to start your vehicle by pressing the START
STOP button while fully pressing down on the brake
(automatic transmission) or clutch and brake (manual
transmission) pedal(s). Press the button again to switch
the engine off.
Note: Your intelligent access transmitter must be inside the
vehicle for keyless starting to work.
8 Tilt/Telescope Steering Column
Unlock the steering wheel by pulling the lever down. Adjust
the wheel to the desired position. Push the lever back up to
lock the steering wheel in place.
9 Hazard Warning FlashersAfter you set your speed, you can press
SET + or SET – to adjust your cruise
speed. To disable, tap the brake, press
the clutch pedal or press the CAN
(Cancel) control.
Note: Using the clutch pedal to cancel a
set speed may cause the engine speed
to increase briefly. Preproduction model shown
Preproduction model shown

*if equipped10 • 11*if equipped
Remote Start*
Remote start allows you to start the
engine from outside your vehicle using
your transmitter.
To Start
1. Press
and then press twice
within three seconds.
2. Once inside, press the brake while
pressing the START STOP button.

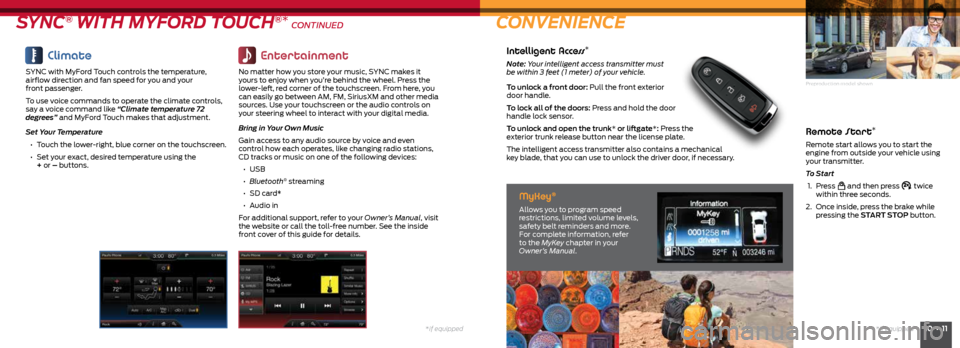

SYNC® WITH MYFORD TOUCH®* CONTINUED CONVENIENCE
Climate
SYNC with MyFord Touch controls the temperature,
airflow direction and fan speed for you and your
front passenger.
To use voice commands to operate the climate controls,
say a voice command like “Climate temperature 72
degrees” and MyFord Touch makes that adjustment.
Set Your Temperature
• Touch the lower-right, blue corner on the touchscreen.
• Set your exact, desired temperature using the
+ or – buttons.
Entertainment
No matter how you store your music, SYNC makes it
yours to enjoy when you’re behind the wheel. Press the
lower-left, red corner of the touchscreen. From here, you
can easily go between AM, FM, SiriusXM and other media
sources. Use your touchscreen or the audio controls on
your steering wheel to interact with your digital media.
Bring in Your Own Music
Gain access to any audio source by voice and even
control how each operates, like changing radio stations,
CD tracks or music on one of the following devices:
• USB
• Bluetooth
® streaming
• SD card*
• Audio in
For additional support, refer to your Owner’s Manual, visit
the website or call the toll-free number. See the inside
front cover of this guide for details.
Intelligent Access*
Note: Your intelligent access transmitter must
be within 3 feet (1 meter) of your vehicle.
To unlock a front door: Pull the front exterior
door handle.
To lock all of the doors: Press and hold the door
handle lock sensor.
To unlock and open the trunk* or liftgate*: Press the
exterior trunk release button near the license plate.
The intelligent access transmitter also contains a mechanical
key blade, that you can use to unlock the driver door, if necessary.
MyKey®
Allows you to program speed
restrictions, limited volume levels,
safety belt reminders and more.
For complete information, refer
to the MyKey chapter in your
Owner’s Manual.
Preproduction model shown

Preproduction model shown
PowerShift Six-speed Automatic Transmission*
We designed this transmission for fun-to-drive
performance and exceptional fuel efficiency, by using
the advantages of a manual transmission with the
convenience of an automatic transmission.
You may notice the following characteristics of
this technology:
• Although the gears shift automatically, the shifting
feel and sound experienced from the PowerShift
transmission are similar to those of a manual transmission, which
is normal.
• The PowerShift transmission continuously makes electronic
adjustments to optimize shift quality. During the initial break-in
period, you may feel slight vibrations when accelerating your vehicle
from low speeds.
See the Transmission chapter of your Owner’s Manual for more details.
FUNCTION
Rear View Camera
Provides a video image of the area behind
the vehicle in the display in the center
of the instrument panel. The image
automatically appears when the vehicle
is in reverse (R) and uses green, yellow
and red guides to alert you of
your proximity to objects.
Integrated Blind Spot Mirrors
Designed to assist you by increasing the visibility along the side of
your vehicle.
• The integrated convex mirror is within the upper outboard corner of
the exterior mirrors.
• When an approaching vehicle moves toward you, the reflection
appears first in the main mirror, and then in the blind spot mirror.
Active Park Assist*
The active park assist system
can detect an available parallel
parking space and automatically
steer the vehicle into that space
(hands-free). The system instructs
the driver with visual and audible
instructions with regard to braking,
accelerating and shifting gears in
order to safely park
the vehicle.
• To initiate active park assist, press the
button located
on the center console.
• To stop the parking procedure, grab the steering wheel or
press the control again. For complete information, refer to
the Parking Aids chapter in your Owner’s Manual.
Note: The driver is always responsible for controlling the vehicle,
supervising the system and intervening, if required.
Towing Your Focus
Towing your Focus behind an RV or any other vehicle
may be limited. Refer to Towing the Vehicle on Four
Wheels in the Towing chapter of your Owner’s Manual.
Headlamp Exit Delay
After you switch the ignition off, you can switch the
headlamps on by pulling the direction indicator lever
toward you. A short tone sounds. The headlamps turn off
automatically after three minutes with any door open or
30 seconds after you close the last door. You can cancel
this feature by pulling the direction indicator toward you
again or switching the ignition on.
Autolamps*
The headlamps turn on and off automatically in low light situations or during inclement weather. They
remain on for a period of time after you switch the ignition off. You can adjust the time delay through the
information display controls.
*if equipped12 • 13*if equipped

14 • 15*if equipped
COMFORT
Ambient Lighting*
The ambient lighting system lights the interior with a choice of several colors.
The ambient lighting control is in the overhead console. Rotate the control knob to
switch the feature on and adjust the desired brightness. Press the palette button
to cycle through your color choices.
Ambient lighting switches on when:
• Y ou switch the ignition on.
• Y ou switch the headlamps on.
Traction Control
The traction control system helps avoid
drive wheel spin and loss of traction.
If your vehicle begins to slide, the
system applies the brakes to individual
wheels and, when needed, reduces
engine power at the same time. If the
wheels spin when accelerating on
slippery or loose surfaces, the system
reduces engine power in order to
increase traction.
In certain situations (for example,
stuck in snow or mud), turning the
traction control off may be beneficial
as this allows the wheels to spin with
full engine power. You can switch this
feature off in the information display.
FUNCTION CONTINUED
Interior Lamps
The lamps turn on when you
open any door, press a remote
control button or press the
overhead control.
Press
to switch off the door
illumination function when you
open any door.
Press
again to switch the door
illumination function back on.
Press
to switch the overhead
lamps on and off.
AdvanceTrac® Stability
Control System
The system helps you keep control
of your vehicle when on a slippery
surface. The electronic stability
control portion of the system helps
avoid skids and lateral slides, while
the traction control system helps
avoid drive wheel spin and loss
of traction.
*if equipped
Tilting Head Restraints*
You can adjust your vehicle’s
front-row head restraints.
To raise: Pull up on the
head restraint.
To lower: Press the head
restraint down while pressing
and holding the guide sleeve
adjust and release button.
To tilt the head restraint: Gently pull the top of the
head restraint forward.
To return it to its upright position: Tilt it forward once
more and release.
Note: Do not attempt to force the head restraint
backward after tilting it. Instead, continue tilting it forward
until the head restraint releases to the upright position.
Front-Seat Adjusters
Height/Recline Adjustment
Adjust the height of the driver seat by
lifting the lever.
Adjust the angle of the seatback by
lifting the control.
Heated front Seats*
Press the heated front seat
control on the instrument
panel or use the touchscreen.
Dual Zone Temperature Control*
You can operate the temperature with one control, called
single zone, or two, called dual zone where both driver and
front passenger can select independent temperatures using
their own rotary dials.
To operate the dual zone: Use the rotary control on the
passenger’s side. Single zone automatically shuts off.
You can now adjust the driver’s side and passenger’s side
temperatures independently.
To return back to single zone: Press and hold the AUTO
button for 2–4 seconds. The passenger’s temperature
switches to the driver’s temperature setting.
Preproduction model shown

ESSENTIAL INFORMATION
18 • 19*if equipped
Tire Pressure
Monitoring System
Your vehicle displays a low tire pressure
warning light in your instrument
cluster when one or more of your tires
are significantly under-inflated. If this
happens, stop and check your tires as
soon as possible, then inflate them to
the proper pressure. Refer to the Inflating
Your Tires section in the Wheels and Tires
chapter of your Owner’s Manual for
more information.
Fuel Tank Capacity/Fuel Info
Your vehicle has a 12.4 gallon (46.9L) fuel tank capacity.
If your vehicle has a yellow ring around the fuel inlet, you have
a flex fuel vehicle and can use either regular unleaded fuel,
E85 ethanol fuel or any mixture of the two.
Some tips to keep in mind with an E85 vehicle:
• It is best not to alternate repeatedly between gasoline and
E85. If you do switch fuels, it is recommended that you add as
much fuel as possible, at least half a tank.
• Do not add less than 5 gallons (18.9L) when refueling.
• You should drive the vehicle immediately after refueling for at
least 5 miles (8 km) to allow the vehicle to adapt to the
change in ethanol concentration.
• If you exclusively use E85 fuel, we recommend to fill the fuel tank
with regular unleaded gasoline at each scheduled oil change.
• Non-flex fuel vehicles use only UNLEADED fuel with a minimum
octane rating of 87. Do not use fuel
E20 - E85 ethanol (E85), diesel fuel,
fuel-methanol, leaded fuel or any other fuel because it could
damage or impair the emission control system.
Location of Spare Tire and Tools
Your spare tire and tools are under the carpeted floor panel in the rear of
your vehicle.
• The spare tire is designed for emergency use only. You should replace it
as soon as possible.
• For complete details on changing your tire, refer to the Changing a Road
Wheel section in the Wheels and Tires chapter of your Owner’s Manual.
Easy Fuel® Sy s t e m
To use, p ut your
vehicle into park
(P) and switch
the ignition
off. Open the
fuel-filler door.
Insert the
nozzle. Begin
fueling. Wait 5–10 seconds between
the time the refueling nozzle is shut
off until you remove the nozzle from
the vehicle to allow residual fuel in the
nozzle to drain into the tank. When
using a portable fuel container, slowly
insert the fuel funnel (located in the
spare tire compartment) and pour the
fuel into the funnel.
Note: Do not use aftermarket funnels
as they do not work with the Easy
Fuel system and may cause damage.
Properly clean the funnel after
each use.
Front and Rear
Sensing Systems*
Each system sounds an audible
warning tone if there is an obstacle
near the vehicle’s front or
rear bumpers.
• As the vehicle moves closer to the
obstacle, the rate of the warning
tone increases in frequency.
• The front sensors automatically
activate when the vehicle is in
drive (D) and detect objects up to
28 inches (70 cm) away.
• The reverse sensors activate
automatically when the vehicle is in
reverse (R), and detect objects up
to 71 inches (180 cm) away.
• See the Parking Aids chapter in
your Owner’s Manual for complete
information on your vehicle’s
sensing systems.
Note: Visibility aids do not replace the
need to watch where the vehicle is
moving. Refer to your Owner’s Manual
for safety information, more details
and limitations. SelectShift Automatic®
Transmission*
Gives you
the ability to
manually change
gears, if you like.
To use, move the
gearshift lever
from drive (D) to
sport (S). Press
the + or – thumb
toggle on the side of your gearshift
lever or pull the + or – paddles on
your steering wheel to upshift
or downshift.
Roadside Assistance
Your new Ford vehicle comes with the
assurance and support of 24-hour
emergency roadside assistance.
To receive roadside assistance in the
United States, call 1-800-241-3673.
In Canada, call 1-800-665-2006.
Preproduction model shown
