FORD FOCUS 2015 3.G ST Supplement Manual

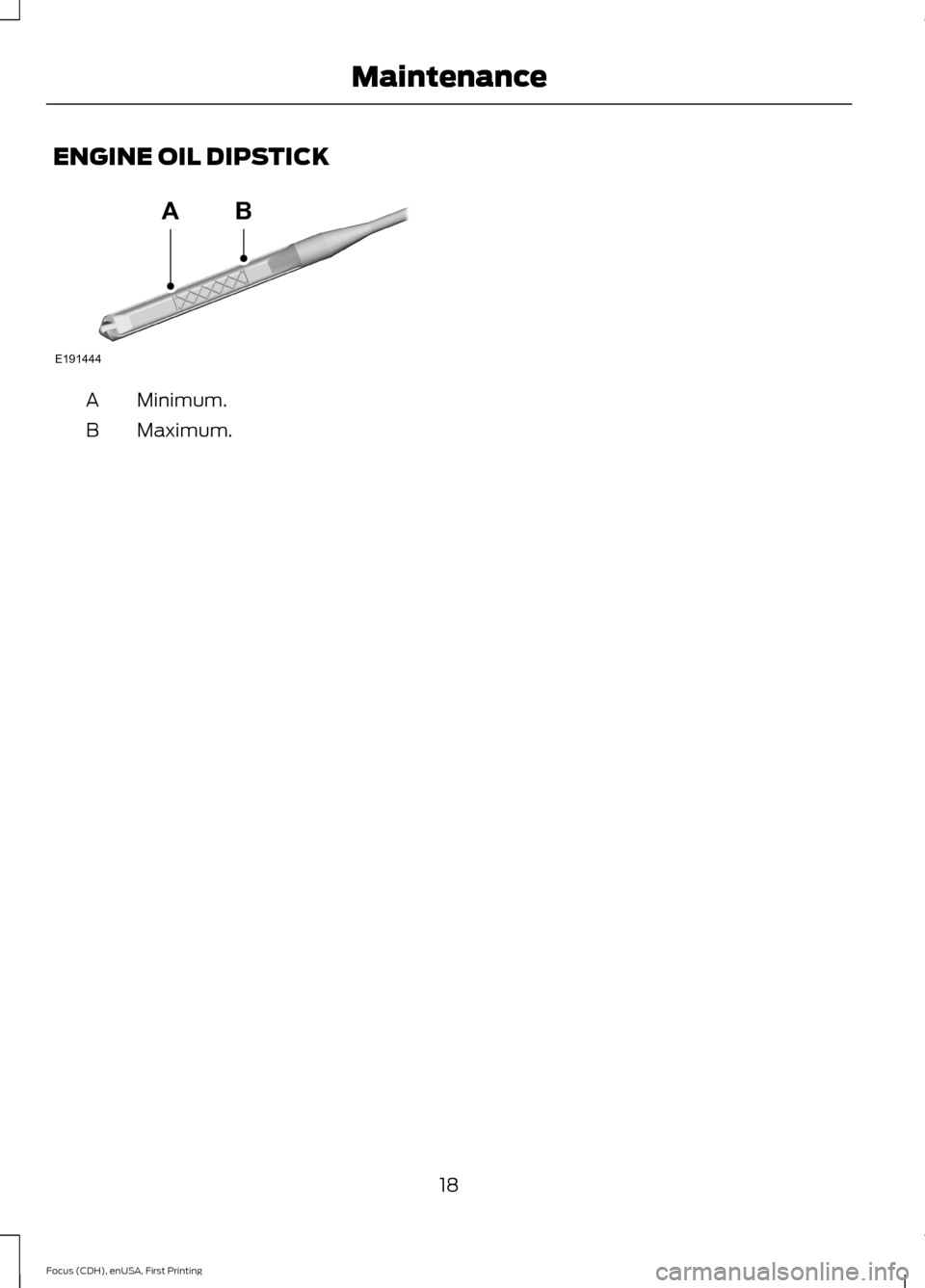

ENGINE OIL DIPSTICK
Minimum.A
Maximum.B
18Focus (CDH), enUSA, First PrintingMaintenanceE191444AB

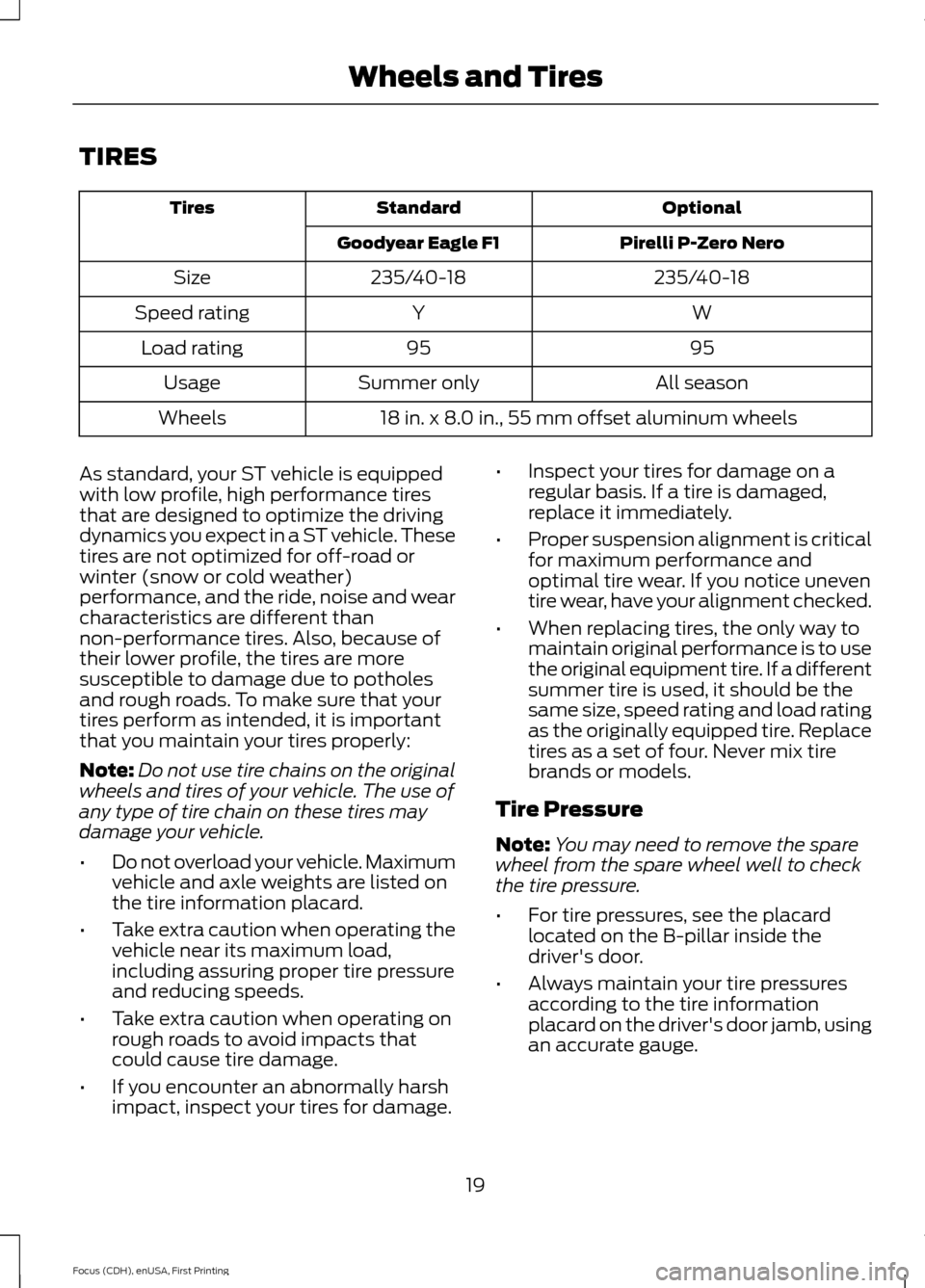

TIRES
OptionalStandardTires
Pirelli P-Zero NeroGoodyear Eagle F1
235/40-18235/40-18Size
WYSpeed rating
9595Load rating
All seasonSummer onlyUsage
18 in. x 8.0 in., 55 mm offset aluminum wheelsWheels
As standard, your ST vehicle is equippedwith low profile, high performance tiresthat are designed to optimize the drivingdynamics you expect in a ST vehicle. Thesetires are not optimized for off-road orwinter (snow or cold weather)performance, and the ride, noise and wearcharacteristics are different thannon-performance tires. Also, because oftheir lower profile, the tires are moresusceptible to damage due to potholesand rough roads. To make sure that yourtires perform as intended, it is importantthat you maintain your tires properly:
Note:Do not use tire chains on the originalwheels and tires of your vehicle. The use ofany type of tire chain on these tires maydamage your vehicle.
•Do not overload your vehicle. Maximumvehicle and axle weights are listed onthe tire information placard.
•Take extra caution when operating thevehicle near its maximum load,including assuring proper tire pressureand reducing speeds.
•Take extra caution when operating onrough roads to avoid impacts thatcould cause tire damage.
•If you encounter an abnormally harshimpact, inspect your tires for damage.
•Inspect your tires for damage on aregular basis. If a tire is damaged,replace it immediately.
•Proper suspension alignment is criticalfor maximum performance andoptimal tire wear. If you notice uneventire wear, have your alignment checked.
•When replacing tires, the only way tomaintain original performance is to usethe original equipment tire. If a differentsummer tire is used, it should be thesame size, speed rating and load ratingas the originally equipped tire. Replacetires as a set of four. Never mix tirebrands or models.
Tire Pressure
Note:You may need to remove the sparewheel from the spare wheel well to checkthe tire pressure.
•For tire pressures, see the placardlocated on the B-pillar inside thedriver's door.
•Always maintain your tire pressuresaccording to the tire informationplacard on the driver's door jamb, usingan accurate gauge.
19Focus (CDH), enUSA, First PrintingWheels and Tires

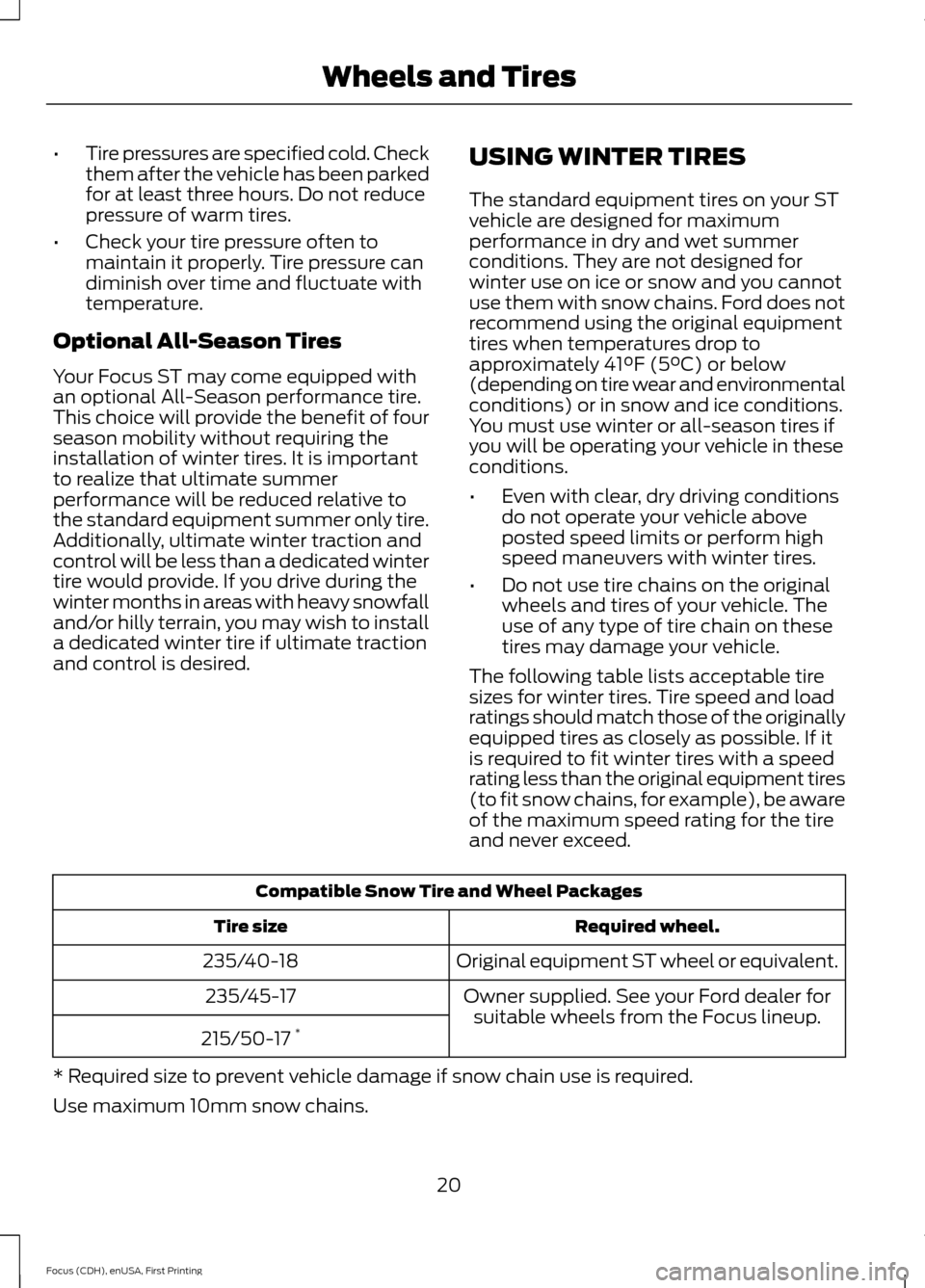

•Tire pressures are specified cold. Checkthem after the vehicle has been parkedfor at least three hours. Do not reducepressure of warm tires.
•Check your tire pressure often tomaintain it properly. Tire pressure candiminish over time and fluctuate withtemperature.
Optional All-Season Tires
Your Focus ST may come equipped withan optional All-Season performance tire.This choice will provide the benefit of fourseason mobility without requiring theinstallation of winter tires. It is importantto realize that ultimate summerperformance will be reduced relative tothe standard equipment summer only tire.Additionally, ultimate winter traction andcontrol will be less than a dedicated wintertire would provide. If you drive during thewinter months in areas with heavy snowfalland/or hilly terrain, you may wish to installa dedicated winter tire if ultimate tractionand control is desired.
USING WINTER TIRES
The standard equipment tires on your STvehicle are designed for maximumperformance in dry and wet summerconditions. They are not designed forwinter use on ice or snow and you cannotuse them with snow chains. Ford does notrecommend using the original equipmenttires when temperatures drop toapproximately 41°F (5°C) or below(depending on tire wear and environmentalconditions) or in snow and ice conditions.You must use winter or all-season tires ifyou will be operating your vehicle in theseconditions.
•Even with clear, dry driving conditionsdo not operate your vehicle aboveposted speed limits or perform highspeed maneuvers with winter tires.
•Do not use tire chains on the originalwheels and tires of your vehicle. Theuse of any type of tire chain on thesetires may damage your vehicle.
The following table lists acceptable tiresizes for winter tires. Tire speed and loadratings should match those of the originallyequipped tires as closely as possible. If itis required to fit winter tires with a speedrating less than the original equipment tires(to fit snow chains, for example), be awareof the maximum speed rating for the tireand never exceed.
Compatible Snow Tire and Wheel Packages
Required wheel.Tire size
Original equipment ST wheel or equivalent.235/40-18
Owner supplied. See your Ford dealer forsuitable wheels from the Focus lineup.235/45-17
215/50-17 *
* Required size to prevent vehicle damage if snow chain use is required.
Use maximum 10mm snow chains.
20Focus (CDH), enUSA, First PrintingWheels and Tires

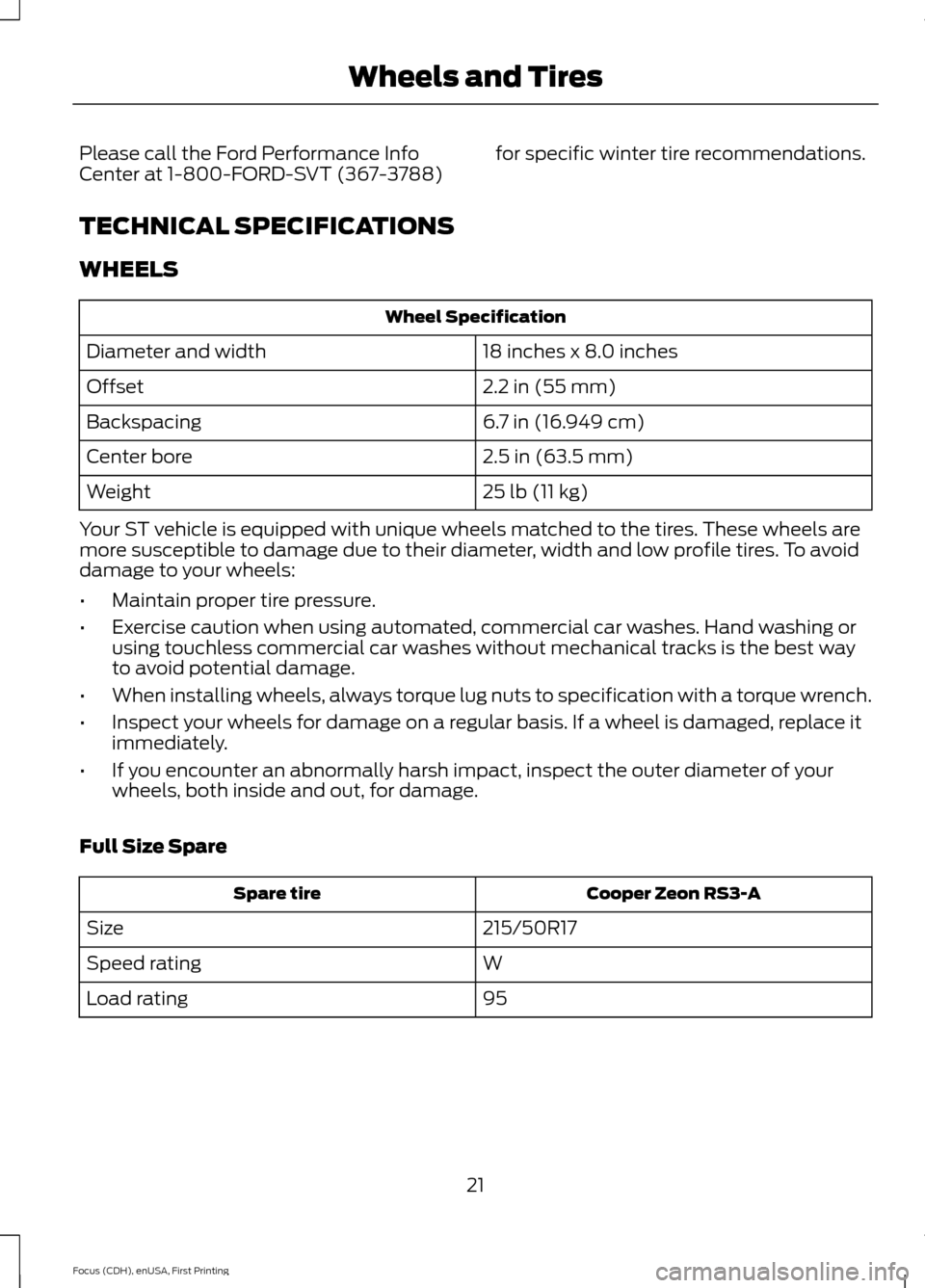

Please call the Ford Performance InfoCenter at 1-800-FORD-SVT (367-3788)for specific winter tire recommendations.
TECHNICAL SPECIFICATIONS
WHEELS
Wheel Specification
18 inches x 8.0 inchesDiameter and width
2.2 in (55 mm)Offset
6.7 in (16.949 cm)Backspacing
2.5 in (63.5 mm)Center bore
25 lb (11 kg)Weight
Your ST vehicle is equipped with unique wheels matched to the tires. These wheels aremore susceptible to damage due to their diameter, width and low profile tires. To avoiddamage to your wheels:
•Maintain proper tire pressure.
•Exercise caution when using automated, commercial car washes. Hand washing orusing touchless commercial car washes without mechanical tracks is the best wayto avoid potential damage.
•When installing wheels, always torque lug nuts to specification with a torque wrench.
•Inspect your wheels for damage on a regular basis. If a wheel is damaged, replace itimmediately.
•If you encounter an abnormally harsh impact, inspect the outer diameter of yourwheels, both inside and out, for damage.
Full Size Spare
Cooper Zeon RS3-ASpare tire
215/50R17Size
WSpeed rating
95Load rating
21Focus (CDH), enUSA, First PrintingWheels and Tires

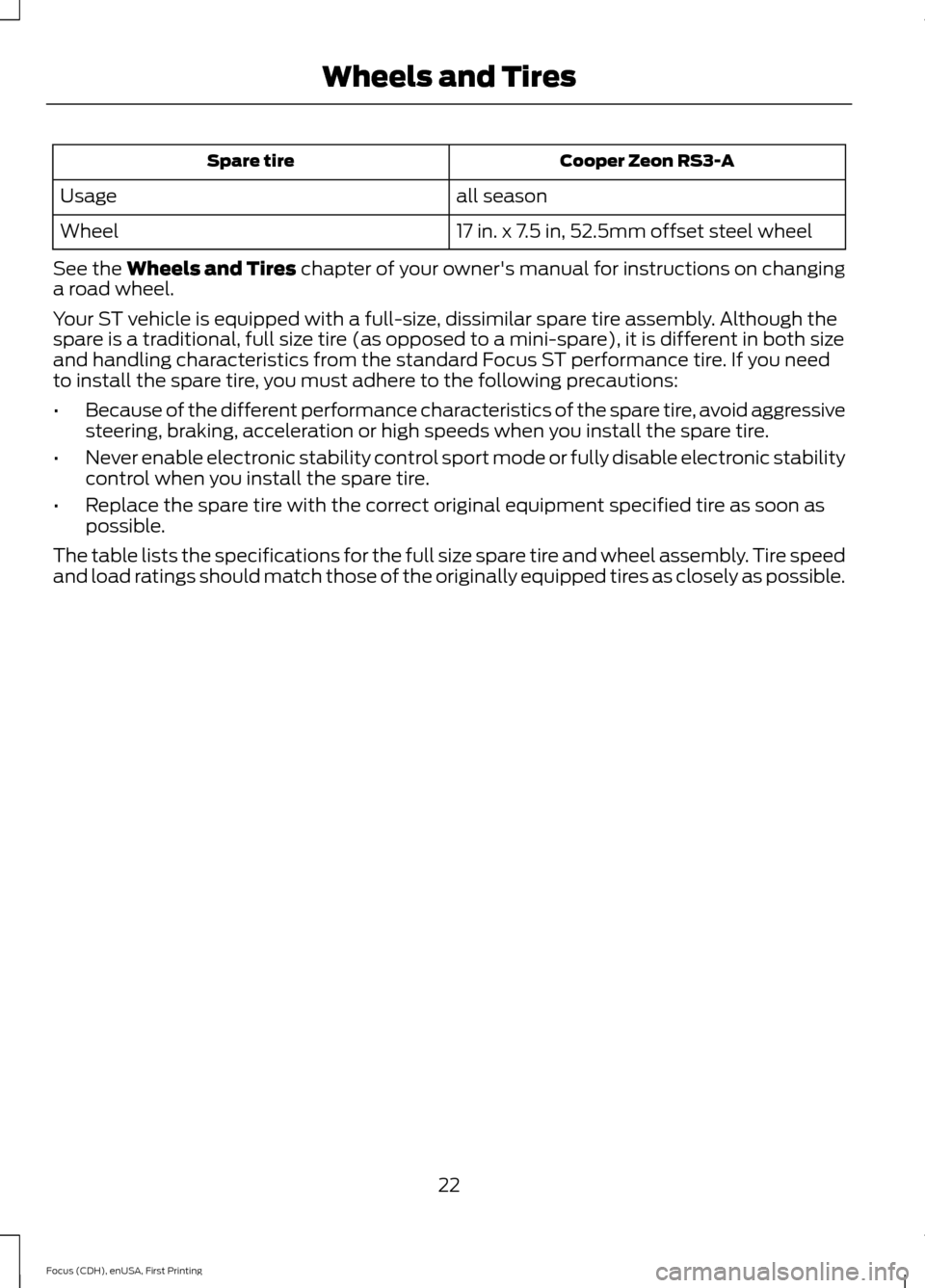

Cooper Zeon RS3-ASpare tire
all seasonUsage
17 in. x 7.5 in, 52.5mm offset steel wheelWheel
See the Wheels and Tires chapter of your owner's manual for instructions on changinga road wheel.
Your ST vehicle is equipped with a full-size, dissimilar spare tire assembly. Although thespare is a traditional, full size tire (as opposed to a mini-spare), it is different in both sizeand handling characteristics from the standard Focus ST performance tire. If you needto install the spare tire, you must adhere to the following precautions:
•Because of the different performance characteristics of the spare tire, avoid aggressivesteering, braking, acceleration or high speeds when you install the spare tire.
•Never enable electronic stability control sport mode or fully disable electronic stabilitycontrol when you install the spare tire.
•Replace the spare tire with the correct original equipment specified tire as soon aspossible.
The table lists the specifications for the full size spare tire and wheel assembly. Tire speedand load ratings should match those of the originally equipped tires as closely as possible.
22Focus (CDH), enUSA, First PrintingWheels and Tires

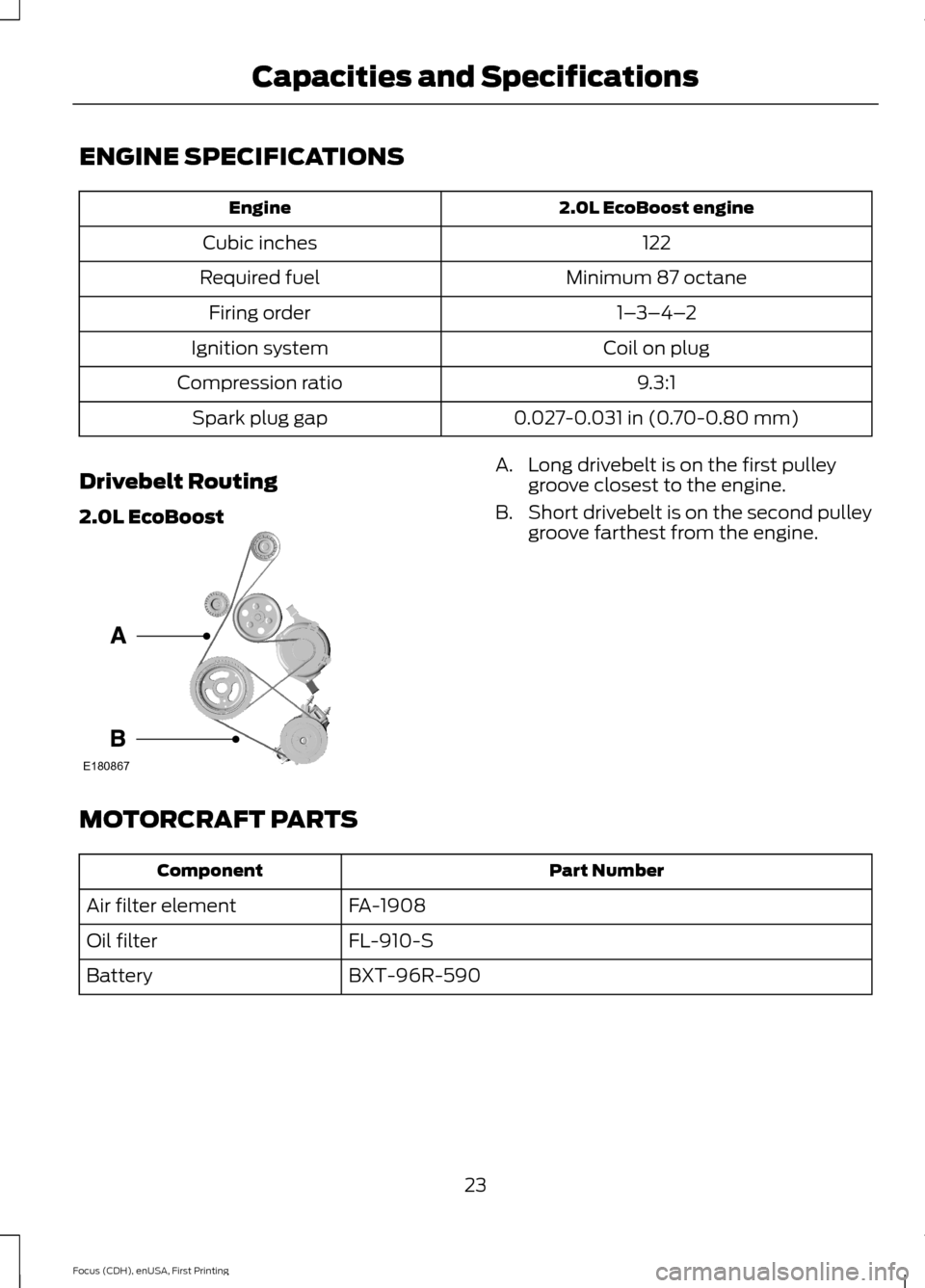

ENGINE SPECIFICATIONS
2.0L EcoBoost engineEngine
122Cubic inches
Minimum 87 octaneRequired fuel
1–3–4–2Firing order
Coil on plugIgnition system
9.3:1Compression ratio
0.027-0.031 in (0.70-0.80 mm)Spark plug gap
Drivebelt Routing
2.0L EcoBoost
A.Long drivebelt is on the first pulleygroove closest to the engine.
B.Short drivebelt is on the second pulleygroove farthest from the engine.
MOTORCRAFT PARTS
Part NumberComponent
FA-1908Air filter element
FL-910-SOil filter
BXT-96R-590Battery
23Focus (CDH), enUSA, First PrintingCapacities and SpecificationsE180867

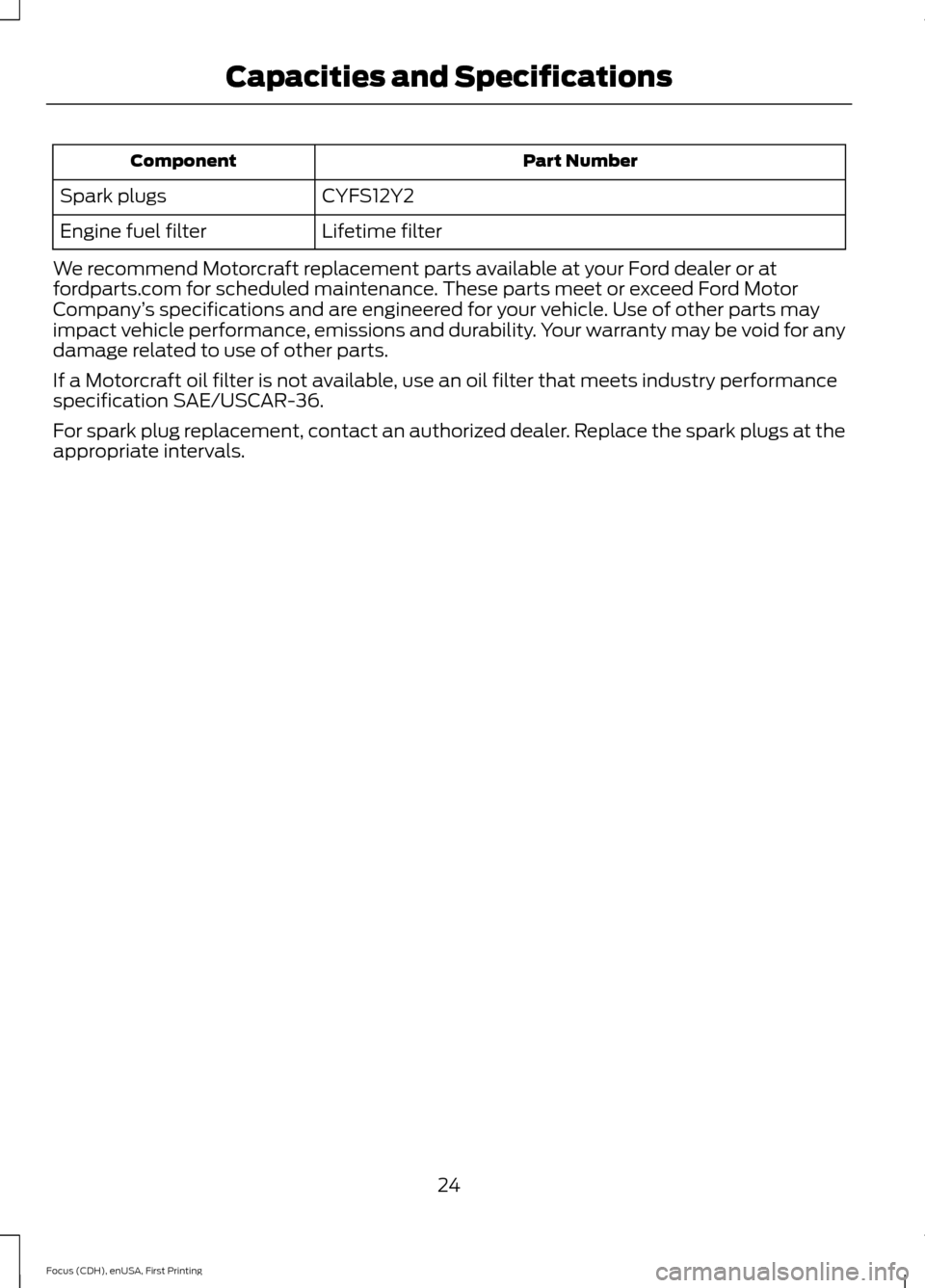

Part NumberComponent
CYFS12Y2Spark plugs
Lifetime filterEngine fuel filter
We recommend Motorcraft replacement parts available at your Ford dealer or atfordparts.com for scheduled maintenance. These parts meet or exceed Ford MotorCompany’s specifications and are engineered for your vehicle. Use of other parts mayimpact vehicle performance, emissions and durability. Your warranty may be void for anydamage related to use of other parts.
If a Motorcraft oil filter is not available, use an oil filter that meets industry performancespecification SAE/USCAR-36.
For spark plug replacement, contact an authorized dealer. Replace the spark plugs at theappropriate intervals.
24Focus (CDH), enUSA, First PrintingCapacities and Specifications

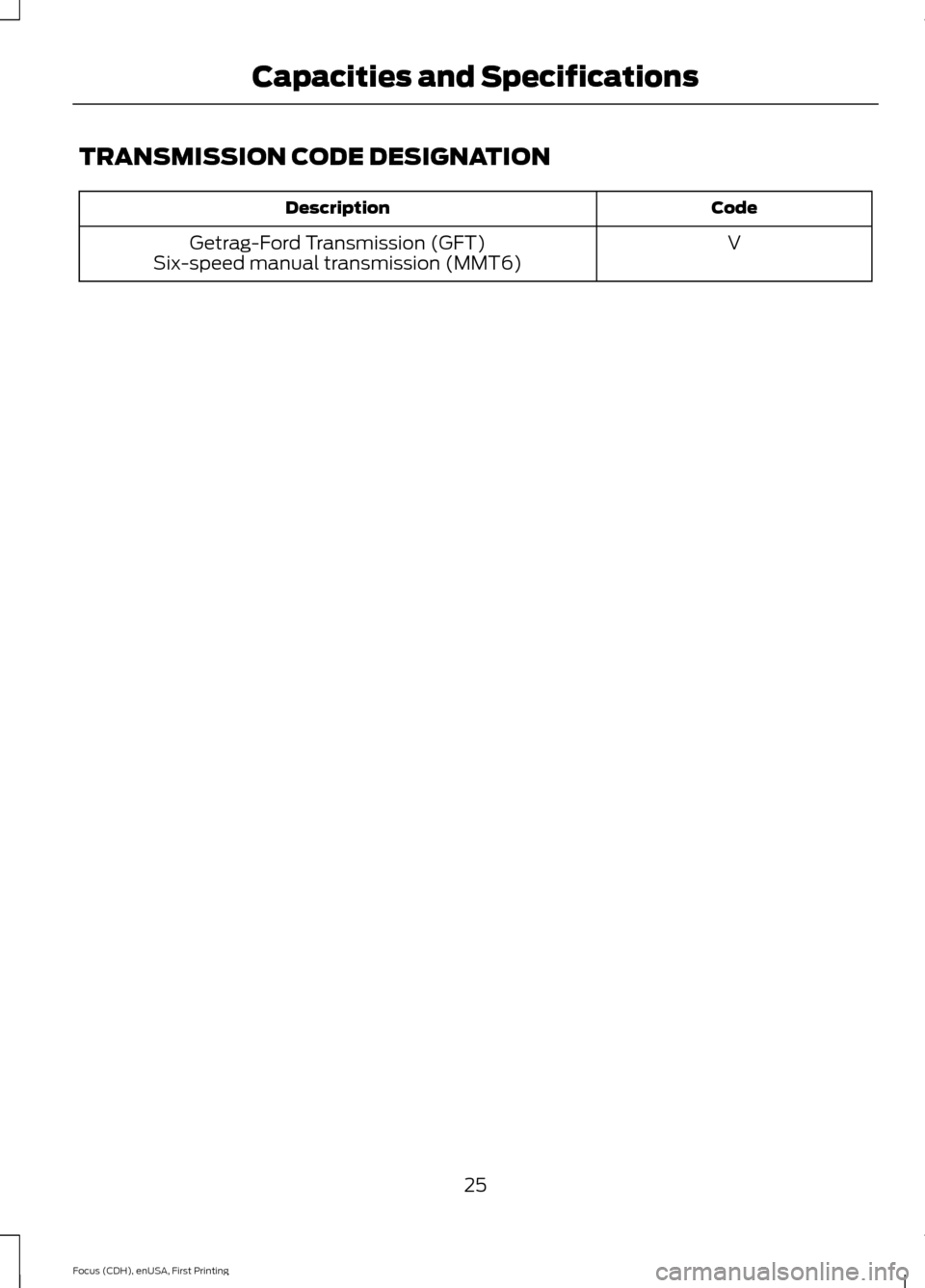

TRANSMISSION CODE DESIGNATION
CodeDescription
VGetrag-Ford Transmission (GFT)Six-speed manual transmission (MMT6)
25Focus (CDH), enUSA, First PrintingCapacities and Specifications

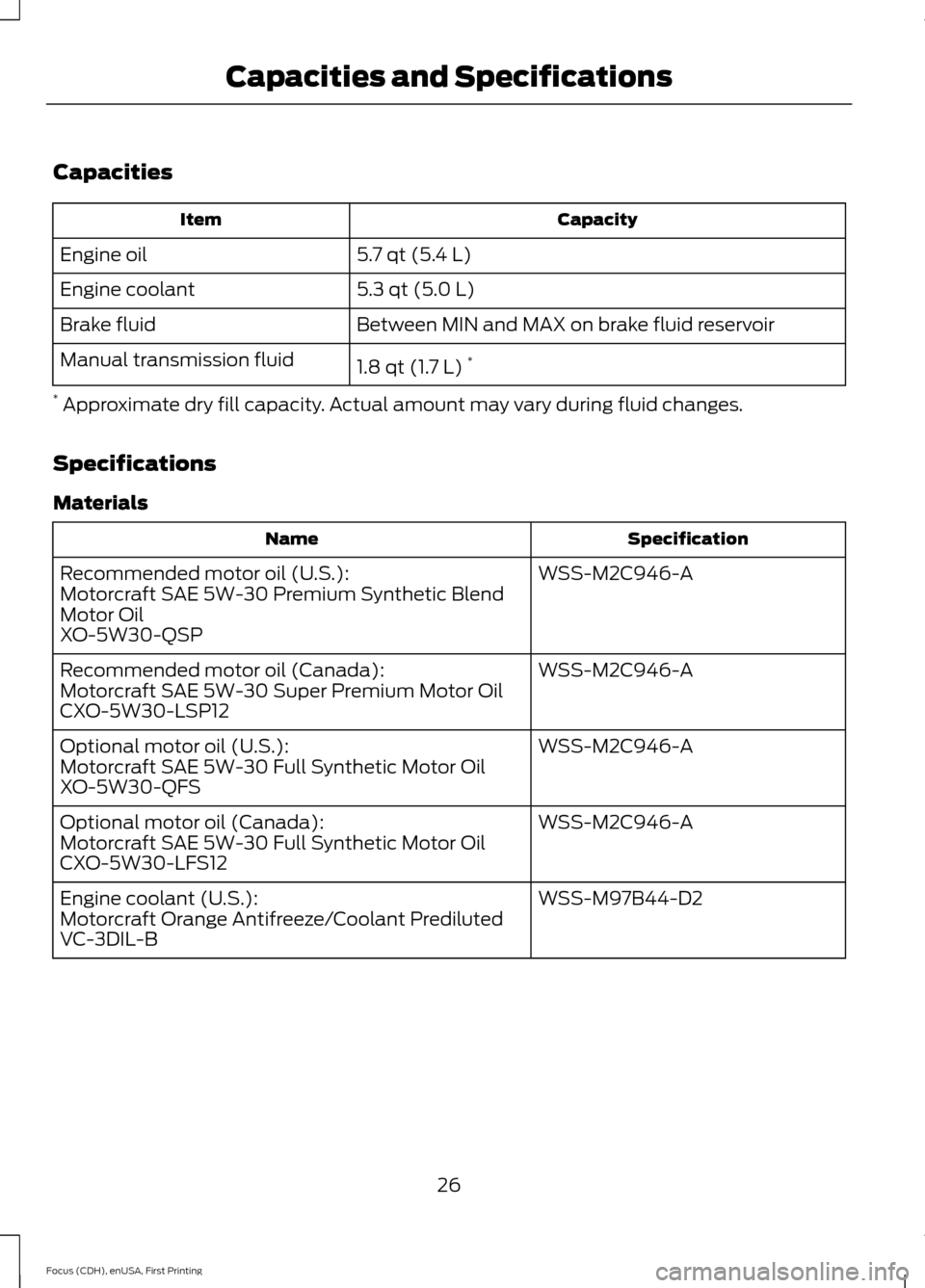

Capacities
CapacityItem
5.7 qt (5.4 L)Engine oil
5.3 qt (5.0 L)Engine coolant
Between MIN and MAX on brake fluid reservoirBrake fluid
1.8 qt (1.7 L)*Manual transmission fluid
* Approximate dry fill capacity. Actual amount may vary during fluid changes.
Specifications
Materials
SpecificationName
WSS-M2C946-ARecommended motor oil (U.S.):Motorcraft SAE 5W-30 Premium Synthetic BlendMotor OilXO-5W30-QSP
WSS-M2C946-ARecommended motor oil (Canada):Motorcraft SAE 5W-30 Super Premium Motor OilCXO-5W30-LSP12
WSS-M2C946-AOptional motor oil (U.S.):Motorcraft SAE 5W-30 Full Synthetic Motor OilXO-5W30-QFS
WSS-M2C946-AOptional motor oil (Canada):Motorcraft SAE 5W-30 Full Synthetic Motor OilCXO-5W30-LFS12
WSS-M97B44-D2Engine coolant (U.S.):Motorcraft Orange Antifreeze/Coolant PredilutedVC-3DIL-B
26Focus (CDH), enUSA, First PrintingCapacities and Specifications

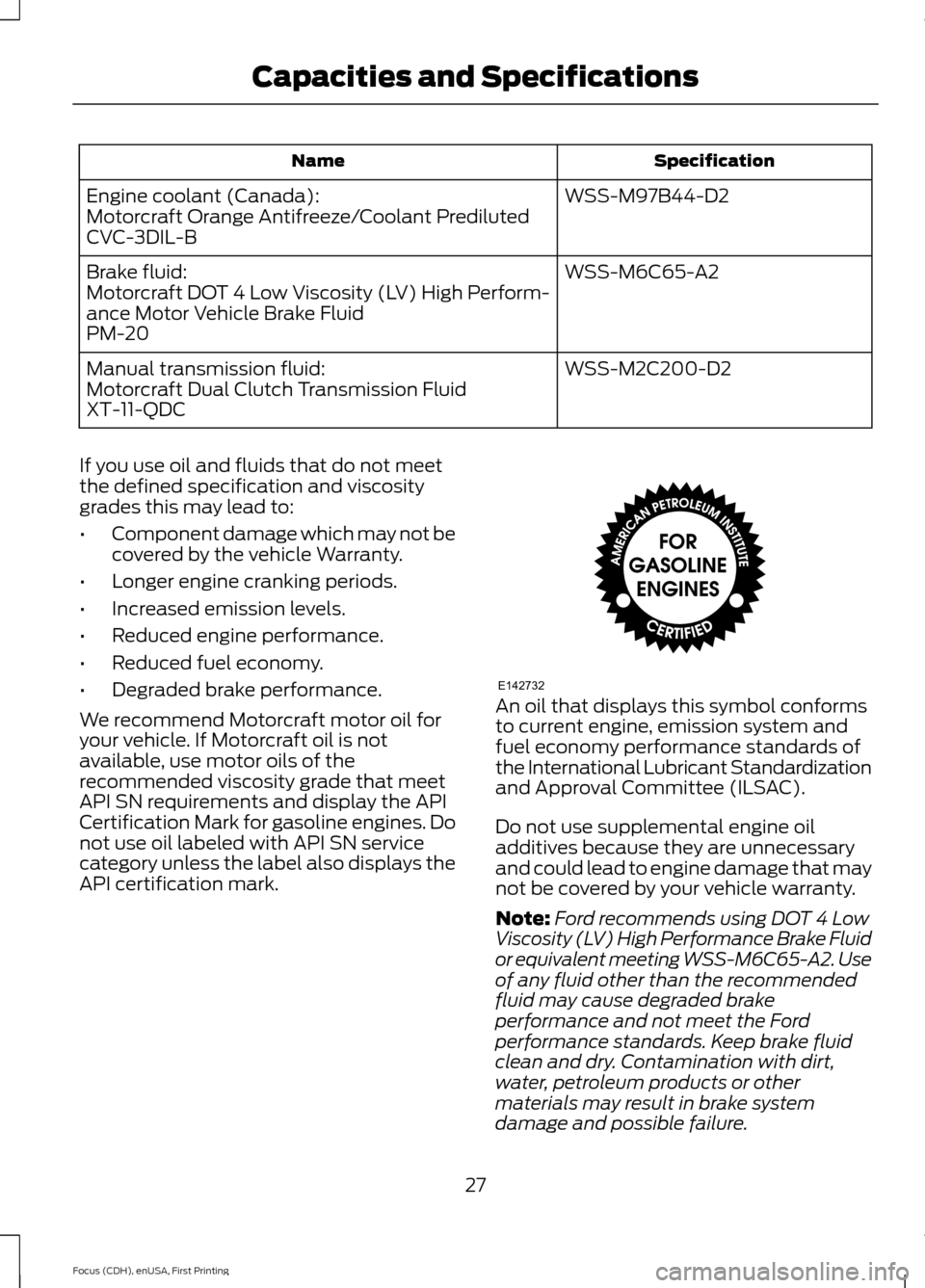

SpecificationName
WSS-M97B44-D2Engine coolant (Canada):Motorcraft Orange Antifreeze/Coolant PredilutedCVC-3DIL-B
WSS-M6C65-A2Brake fluid:Motorcraft DOT 4 Low Viscosity (LV) High Perform-ance Motor Vehicle Brake FluidPM-20
WSS-M2C200-D2Manual transmission fluid:Motorcraft Dual Clutch Transmission FluidXT-11-QDC
If you use oil and fluids that do not meetthe defined specification and viscositygrades this may lead to:
•Component damage which may not becovered by the vehicle Warranty.
•Longer engine cranking periods.
•Increased emission levels.
•Reduced engine performance.
•Reduced fuel economy.
•Degraded brake performance.
We recommend Motorcraft motor oil foryour vehicle. If Motorcraft oil is notavailable, use motor oils of therecommended viscosity grade that meetAPI SN requirements and display the APICertification Mark for gasoline engines. Donot use oil labeled with API SN servicecategory unless the label also displays theAPI certification mark.
An oil that displays this symbol conformsto current engine, emission system andfuel economy performance standards ofthe International Lubricant Standardizationand Approval Committee (ILSAC).
Do not use supplemental engine oiladditives because they are unnecessaryand could lead to engine damage that maynot be covered by your vehicle warranty.
Note:Ford recommends using DOT 4 LowViscosity (LV) High Performance Brake Fluidor equivalent meeting WSS-M6C65-A2. Useof any fluid other than the recommendedfluid may cause degraded brakeperformance and not meet the Fordperformance standards. Keep brake fluidclean and dry. Contamination with dirt,water, petroleum products or othermaterials may result in brake systemdamage and possible failure.
27Focus (CDH), enUSA, First PrintingCapacities and SpecificationsE142732
