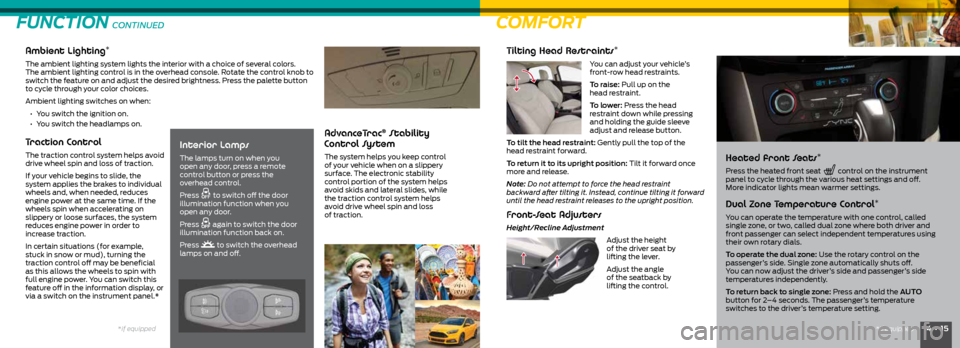

remote control FORD FOCUS 2016 3.G Quick Reference Guide

14 • 15*if equipped
COMFORT
Ambient Lighting*
The ambient lighting system lights the interior with a choice of several colors.
The ambient lighting control is in the overhead console. Rotate the control knob to
switch the feature on and adjust the desired brightness. Press the palette button
to cycle through your color choices.
Ambient lighting switches on when:
• Y ou switch the ignition on.
• Y ou switch the headlamps on.
Traction Control
The traction control system helps avoid
drive wheel spin and loss of traction.
If your vehicle begins to slide, the
system applies the brakes to individual
wheels and, when needed, reduces
engine power at the same time. If the
wheels spin when accelerating on
slippery or loose surfaces, the system
reduces engine power in order to
increase traction.
In certain situations (for example,
stuck in snow or mud), turning the
traction control off may be beneficial
as this allows the wheels to spin with
full engine power. You can switch this
feature off in the information display, or
via a switch on the instrument panel.*
FUNCTION CONTINUED
Interior Lamps
The lamps turn on when you
open any door, press a remote
control button or press the
overhead control.
Press
to switch off the door
illumination function when you
open any door.
Press
again to switch the door
illumination function back on.
Press
to switch the overhead
lamps on and off.
AdvanceTrac® Stability
Control System
The system helps you keep control
of your vehicle when on a slippery
surface. The electronic stability
control portion of the system helps
avoid skids and lateral slides, while
the traction control system helps
avoid drive wheel spin and loss
of traction.
*if equipped
Tilting Head Restraints*
You can adjust your vehicle’s
front-row head restraints.
To raise: Pull up on the
head restraint.
To lower: Press the head
restraint down while pressing
and holding the guide sleeve
adjust and release button.
To tilt the head restraint: Gently pull the top of the
head restraint forward.
To return it to its upright position: Tilt it forward once
more and release.
Note: Do not attempt to force the head restraint
backward after tilting it. Instead, continue tilting it forward
until the head restraint releases to the upright position.
Front-Seat Adjusters
Height/Recline Adjustment
Adjust the height
of the driver seat by
lifting the lever.
Adjust the angle
of the seatback by
lifting the control.
Heated front Seats*
Press the heated front seat
control on the instrument
panel to cycle through the various heat settings and off.
More indicator lights mean warmer settings.
Dual Zone Temperature Control*
You can operate the temperature with one control, called
single zone, or two, called dual zone where both driver and
front passenger can select independent temperatures using
their own rotary dials.
To operate the dual zone: Use the rotary control on the
passenger’s side. Single zone automatically shuts off.
You can now adjust the driver’s side and passenger’s side
temperatures independently.
To return back to single zone: Press and hold the AUTO
button for 2–4 seconds. The passenger’s temperature
switches to the driver’s temperature setting.

16 • 17*if equipped
Auxiliary Power Points
The power points are on the center
console or in the center console,
depending on your vehicle style. You
can use the power point to power
your smaller electrical devices that
require up to 180 watts. Run the
vehicle for full-capacity use of
the power point.
To prevent the battery
from discharging:
• Do not use the power point
longer than necessary when the
vehicle is not running.
• Do not leave devices plugged in
overnight or when the vehicle is
parked for extended periods.
Rear Window Buffeting
You may hear a pulsing noise when just one of the windows is open.
Lower an opposite window slightly to reduce this noise.
• Press the control to open the window.
• Lift the control to close the window.
Folding the Rear Seats
Your rear seatback can fold down for more versatile cargo storage
and transport. Your vehicle may have split seatbacks* that must be
folded individually.
To lower the seatback(s), do the following:
• Remove the outboard head restraint(s).
• Press the unlock buttons located on the
top outboard sides of each seatback.
• Push the seatback forward.
Note: Make sure you stow the safety belt in
the belt stowage clip to prevent it from getting
caught in the seat latch.
• In vehicles with split-folding seatbacks,
you can flip the seat cushions forward
before folding the seatback for additional
cargo space.
• When raising the seatback(s), make sure
you hear the seat latch into place and that
no red portion is visible on the release
button on both sides.

COMFORT CONTINUED
Moonroof*
The control is in the overhead console and includes a
one-touch open and close feature. To stop the motion
during a one-touch operation, press the control a
second time.
• Press and release the rear of the control to open
the moonroof. The moonroof stops short of the
fully opened position. This position helps to reduce
wind noise.
• Press and hold the control again to open the
moonroof fully.
• Press and release the front of the control to close
the moonroof.
Luggage Compartment*/Liftgate* Release
To open the luggage compartment or liftgate from the inside
of your vehicle, press the button located on the instrument
panel, near the headlamp switch.
With your vehicle unlocked, you can open the luggage
compartment or liftgate from the outside by pressing the
release button located under the handle and above the
license plate.
With your vehicle locked and the intelligent access
transmitter* within 3 ft (1 m) behind the rear bumper, press
the release button located above the license plate to open.
You can also use the keyless remote.
*if equipped
