FORD FOCUS 2018 Owners Manual

Helm, Incorporated can also be reachedby their website:
www.helminc.com
(Items in this catalog may be purchasedby credit card, check or money order.)
Obtaining a French Owner’sManual
French Owner’s Manual can be obtainedfrom your authorized dealer or bycontacting Helm, Incorporated using thecontact information listed previously in thissection.
REPORTING SAFETY DEFECTS
(U.S. ONLY)
If you believe that your vehicle hasa defect which could cause acrash or could cause injury ordeath, you should immediatelyinform the National HighwayTraffic Safety Administration(NHTSA) in addition to notifyingFord Motor Company.
If NHTSA receives similarcomplaints, it may open aninvestigation, and if it finds that asafety defect exists in a group ofvehicles, it may order a recall andremedy campaign. However,NHTSA cannot become involvedin individual problems betweenyou, your dealer, or Ford MotorCompany.
To contact NHTSA, you may callthe Vehicle Safety Hotlinetoll-free at 1-888-327-4236 (TTY:1-800-424-9153); go tohttp://www.safercar.gov; or writeto:
Administrator
1200 New Jersey Avenue,Southeast
Washington, D.C. 20590
You can also obtain otherinformation about motor vehiclesafety fromhttp://www.safercar.gov.
REPORTING SAFETY DEFECTS
(CANADA ONLY)
If you believe that your vehicle has a defectwhich could cause a crash or could causeinjury or death, you should immediatelyinform Transport Canada and Ford ofCanada.
1982018 Focus (CDH) Canada/United States of America, JM5J 19A321 AA enUSA, Edition date: 201706, Second PrintingCustomer AssistanceE142557

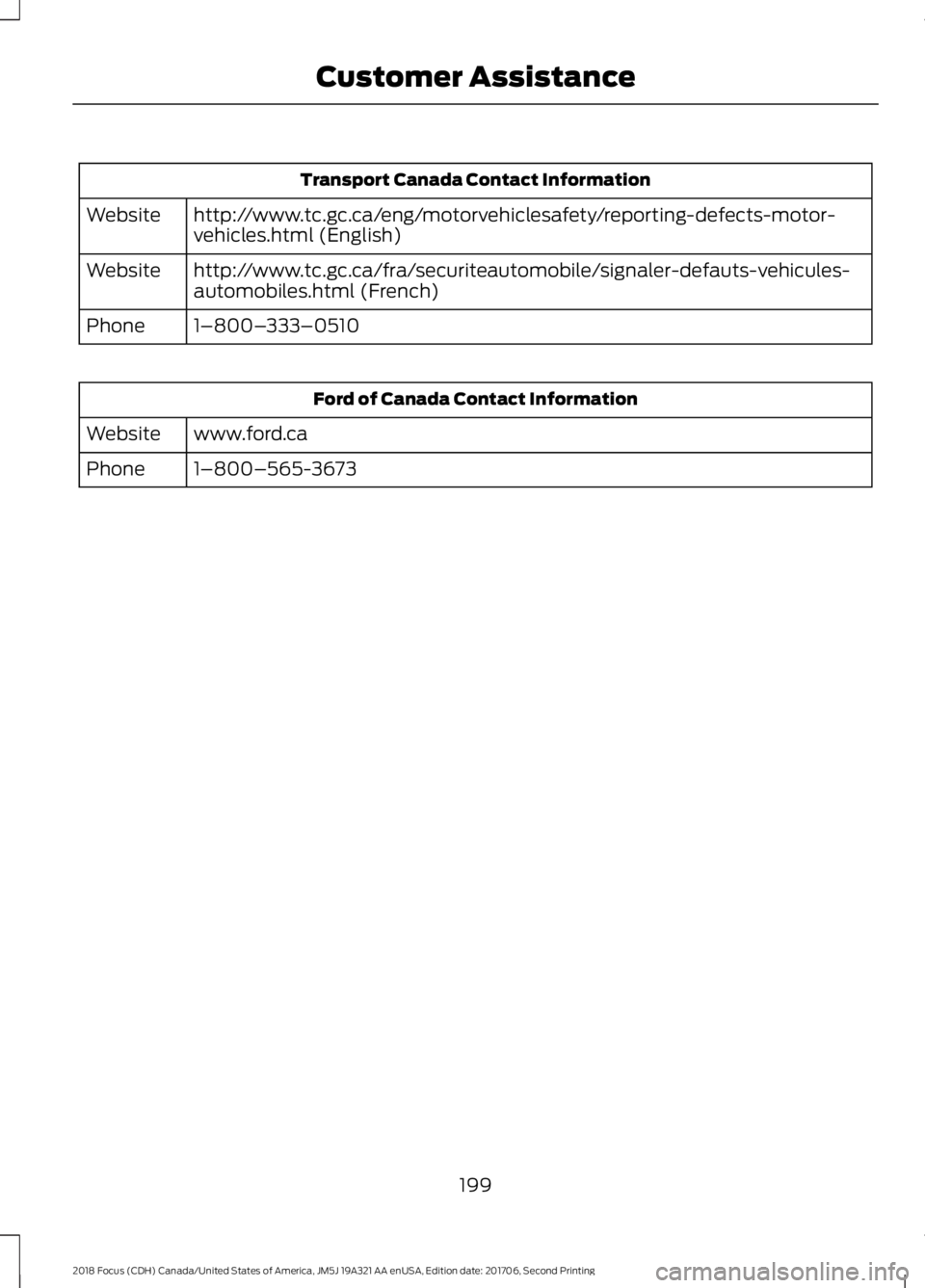

Transport Canada Contact Information
http://www.tc.gc.ca/eng/motorvehiclesafety/reporting-defects-motor-vehicles.html (English)Website
http://www.tc.gc.ca/fra/securiteautomobile/signaler-defauts-vehicules-automobiles.html (French)Website
1–800–333–0510Phone
Ford of Canada Contact Information
www.ford.caWebsite
1–800–565-3673Phone
1992018 Focus (CDH) Canada/United States of America, JM5J 19A321 AA enUSA, Edition date: 201706, Second PrintingCustomer Assistance

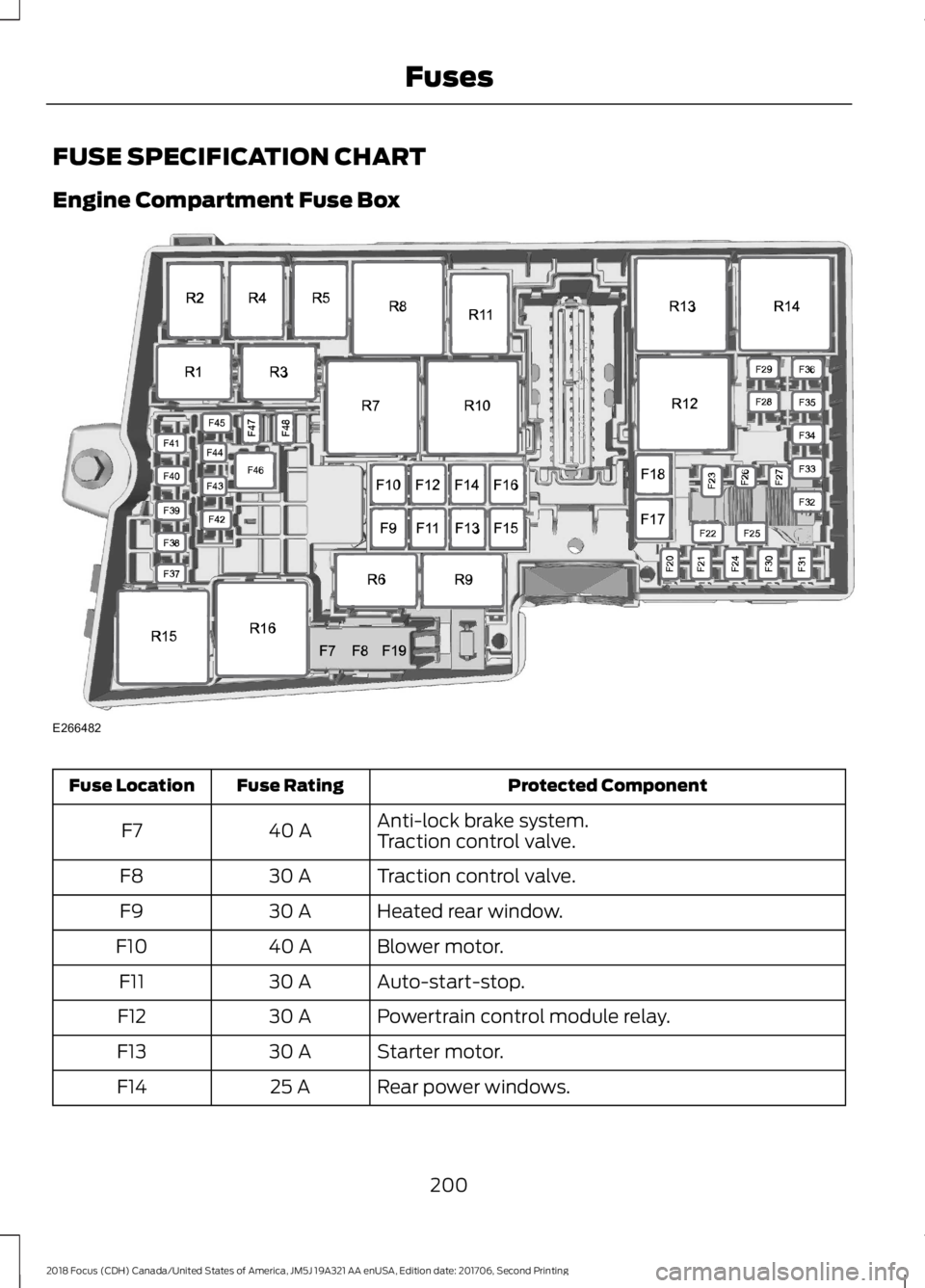

FUSE SPECIFICATION CHART
Engine Compartment Fuse Box
Protected ComponentFuse RatingFuse Location
Anti-lock brake system.40 AF7Traction control valve.
Traction control valve.30 AF8
Heated rear window.30 AF9
Blower motor.40 AF10
Auto-start-stop.30 AF11
Powertrain control module relay.30 AF12
Starter motor.30 AF13
Rear power windows.25 AF14
2002018 Focus (CDH) Canada/United States of America, JM5J 19A321 AA enUSA, Edition date: 201706, Second PrintingFusesE266482

Protected ComponentFuse RatingFuse Location
Transmission control module.25 AF15Cooling fan (1.0L EcoBoost).
Battery monitoring sensor.20 AF16
Not used.-F17
Windshield wipers.20 AF18
Traction control module.5 AF19
Horn.15 AF20
Stoplamp switch.5 AF21
Parking assist control module.5 AF22
A/C compressor relay coils.5 AF23Lighting control.
Right-hand heated windshield element.5 AF24
Exterior mirrors.10 AF25
Transmission control module (2.0L GDI).15 AF26Transmission control module (1.0L Ecoboost).20 A
Air conditioning clutch.15 AF27
Rear view camera.5 AF28
Auto-stop-start.10 AF29
Not used.-F30
Accessory delay.5 AF31
Powertrain control module.10 AF32Crankshaft position sensor.Camshaft position sensor.
Mass air flow sensor (2.0 GDI).15 AF33Ignition coil (1.0L EcoBoost).
Coolant pump.
10 AF34
Evaporative emission canister purge valve.Sound symposer actuator valve.Turbocharger bypass valve.Wastegate control valve.Air conditioning compressor.
2012018 Focus (CDH) Canada/United States of America, JM5J 19A321 AA enUSA, Edition date: 201706, Second PrintingFuses

Protected ComponentFuse RatingFuse Location
Oil pump.Turbocharger variable vane hydraulic control valve.Variable intake valve.Externally-controlled variable displacementcompressor.
Crankshaft position sensor.10 AF35Heated oxygen sensor.Evaporative emission canister purge valve.
Active grille shutter.5 AF36
Daytime running lamps.15 AF37Headlamp control module.
Transmission control module.15 AF38
Driver heated seat.15 AF39
Electronic power assist steering.5 AF40
Body control module.20 AF41
Rear window wiper motor.15 AF42
Headlamps.15 AF43
Not used.-F44
Passenger heated seat.15 AF45
Power windows.25 AF46
Heated exterior mirrors.7.5 AF47
Not used.-F48
Circuits SwitchedRelay Number
Cooling fan.R1
Horn.R2
Heated windshield relay.R3
Not used.R4
Rear window wiper.R5
Not used.R6
2022018 Focus (CDH) Canada/United States of America, JM5J 19A321 AA enUSA, Edition date: 201706, Second PrintingFuses

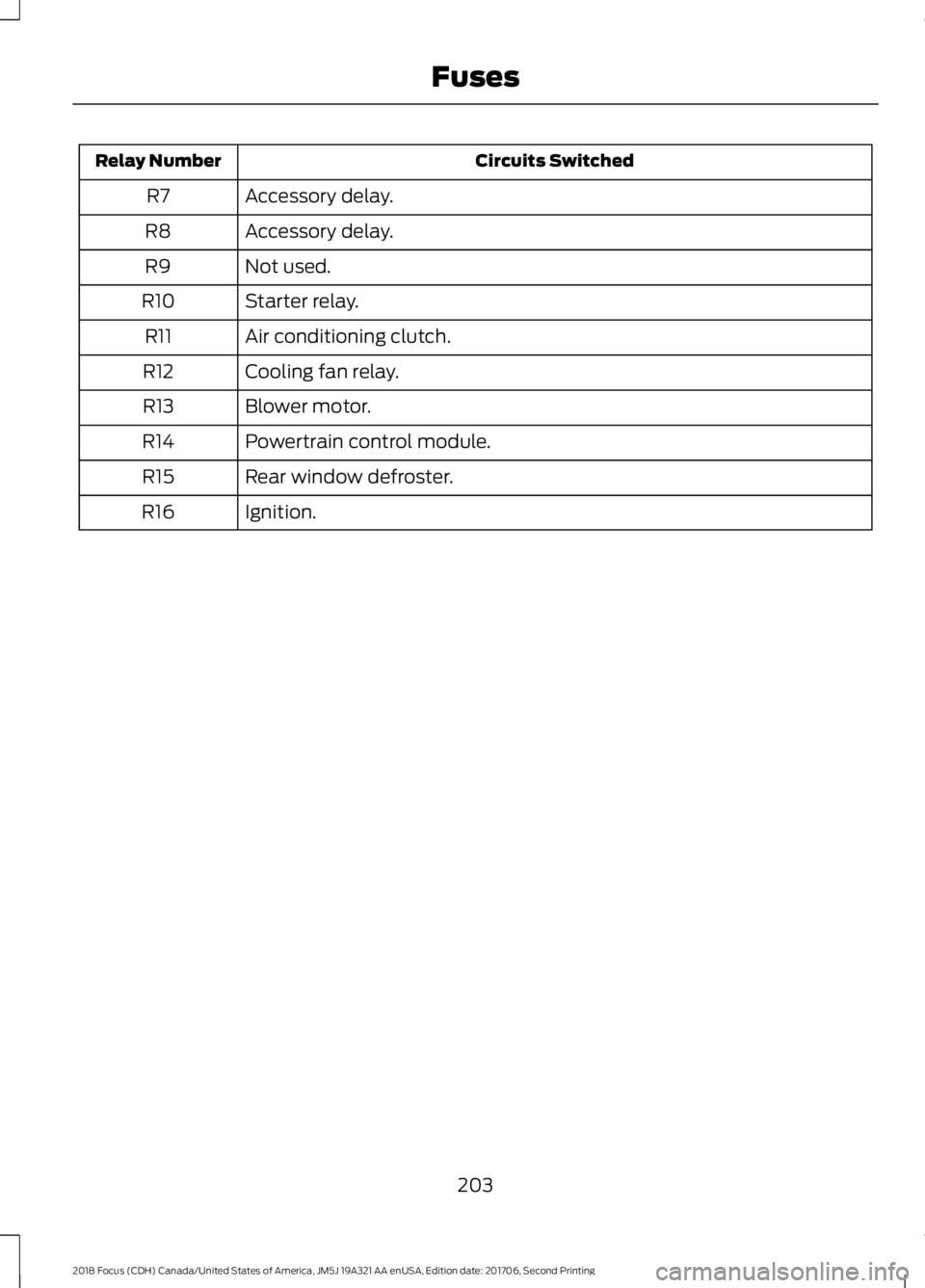

Circuits SwitchedRelay Number
Accessory delay.R7
Accessory delay.R8
Not used.R9
Starter relay.R10
Air conditioning clutch.R11
Cooling fan relay.R12
Blower motor.R13
Powertrain control module.R14
Rear window defroster.R15
Ignition.R16
2032018 Focus (CDH) Canada/United States of America, JM5J 19A321 AA enUSA, Edition date: 201706, Second PrintingFuses

Passenger Compartment Fuse Box
Protected ComponentFuse RatingFuse Location
Fuel pump.20 AF56
Not used.-F57
Not used (spare).5 AF58
Passive anti-theft system.5 AF59
Interior lamp.10 AF60Ambient lighting module.
2042018 Focus (CDH) Canada/United States of America, JM5J 19A321 AA enUSA, Edition date: 201706, Second PrintingFusesE129926

Protected ComponentFuse RatingFuse Location
Moonroof.left-hand front door module.
Cigar lighter.20 AF61Rear auxiliary power points.
Not used (spare).5 AF62
Not used (spare).10 AF63
Not used.-F64
Liftgate release switch.10 AF65
Driver door lock.20 AF66
Information and entertainment display.7.5 AF67Global positioning system module.SYNC module.
Not used.-F68
Instrument cluster.5 AF69
Central locking system.20 AF70
Air conditioning control module.7.5 AF71
Steering wheel module.7.5 AF72
Battery back-up sounder.7.5 AF73Secondary on-board diagnostic control module A.
Headlamp high beam.15 AF74
Front fog lamps.15 AF75
Reversing lamp.10 AF76
Windshield washer pump.20 AF77Rear window washer pump.
Push button ignition switch.5 AF78
Audio unit.15 AF79Hazard flasher switch.Power door locks.
Moonroof.20 AF80
Radio frequency receiver.5 AF81
2052018 Focus (CDH) Canada/United States of America, JM5J 19A321 AA enUSA, Edition date: 201706, Second PrintingFuses

Protected ComponentFuse RatingFuse Location
Windshield washer pump.20 AF82Rear window washer pump.
Tracking and blocking control module.20 AF83
Driver door unlock.20 AF84
Voltage quality monitoring.
7.5 AF85Air conditioning clutch.Front parking aid camera.Audio unit.Moonroof.
Supplemental restraint system.10 AF86Passenger sensing system.
Heated steering wheel.15 AF87
Not used.-F88
Not used.-F89
Luggage Compartment Fuse Box
Protected ComponentFuse RatingFuse Location
Not used.-F1
Not used.-F2
Remote keyless entry.5 AF3
2062018 Focus (CDH) Canada/United States of America, JM5J 19A321 AA enUSA, Edition date: 201706, Second PrintingFusesE129927

Protected ComponentFuse RatingFuse Location
Left-hand front power windows.25 AF4Central locking system.Left-hand heated exterior mirror.
Right-hand front power windows.25 AF5Central locking system.Right-hand heated exterior mirror.
Left-hand rear-window power.25 AF6
Right-hand rear power windows.25 AF7
Not used.-F8
Driver power seat.25 AF9
Audio unit antenna amplifier.25 AF10
Remote keyless entry.5 AF11
Not used.-F12
Not used.-F13
Not used.-F14
Not used.-F15
Not used.-F16
Not used.-F17
Not used.-F18
Not used.-F19
Not used.-F20
Not used.-F21
Not used.-F22
Not used.-F23
Not used.-F24
Not used.-F25
Not used.-F26
Not used.-F27
2072018 Focus (CDH) Canada/United States of America, JM5J 19A321 AA enUSA, Edition date: 201706, Second PrintingFuses
