FORD FOCUS ELECTRIC 2012 3.G Owners Manual

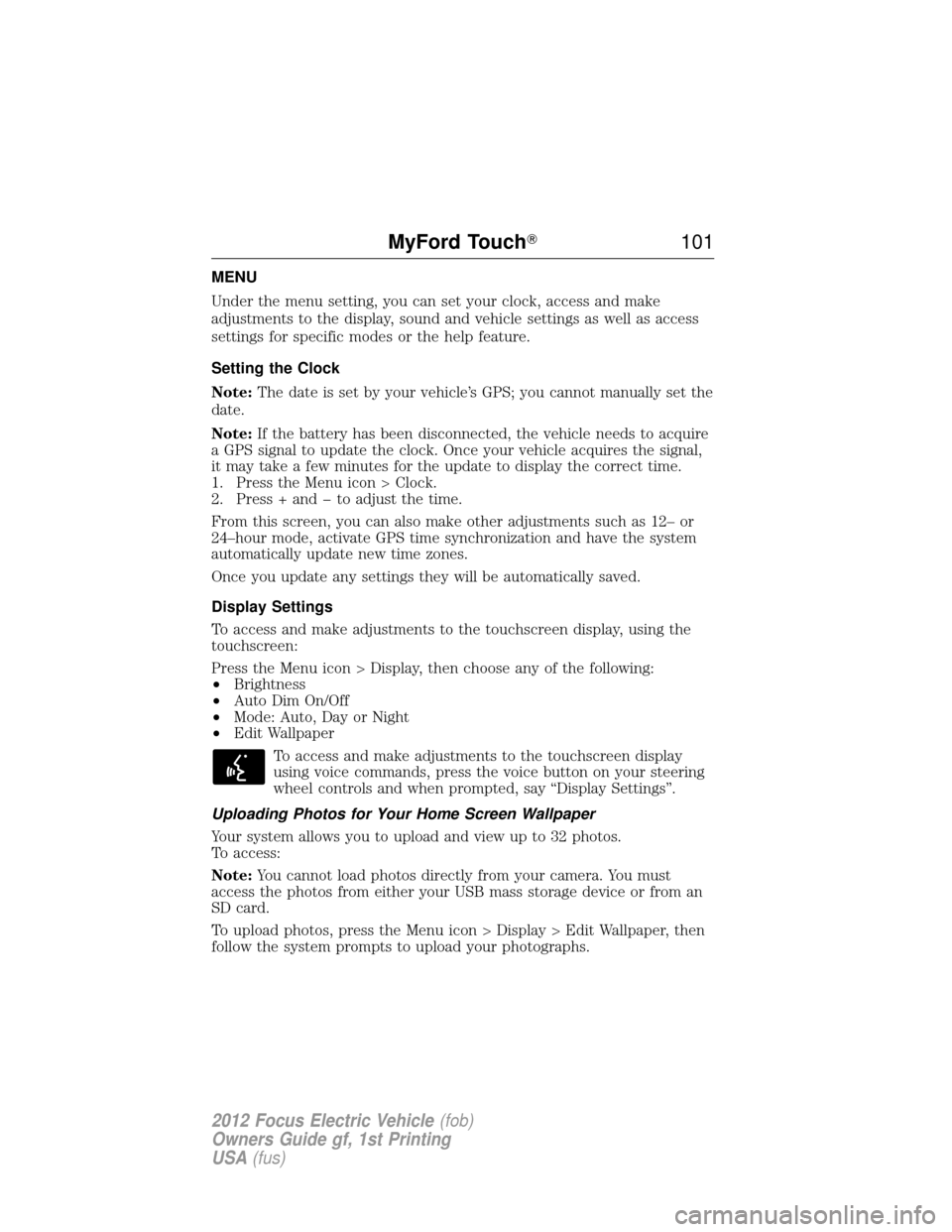

MENU
Under the menu setting, you can set your clock, access and make
adjustments to the display, sound and vehicle settings as well as access
settings for specific modes or the help feature.
Setting the Clock
Note:The date is set by your vehicle’s GPS; you cannot manually set the
date.
Note: If the battery has been disconnected, the vehicle needs to acquire
a GPS signal to update the clock. Once your vehicle acquires the signal,
it may take a few minutes for the update to display the correct time.
1. Press the Menu icon > Clock.
2. Press + and to adjust the time.
From this screen, you can also make other adjustments such as 12– or
24–hour mode, activate GPS time synchronization and have the system
automatically update new time zones.
Once you update any settings they will be automatically saved.
Display Settings
To access and make adjustments to the touchscreen display, using the
touchscreen:
Press the Menu icon > Display, then choose any of the following:
• Brightness
• Auto Dim On/Off
• Mode: Auto, Day or Night
• Edit Wallpaper
To access and make adjustments to the touchscreen display
using voice commands, press the voice button on your steering
wheel controls and when prompted, say “Display Settings”.
Uploading Photos for Your Home Screen Wallpaper
Your system allows you to upload and view up to 32 photos.
To access:
Note: You cannot load photos directly from your camera. You must
access the photos from either your USB mass storage device or from an
SD card.
To upload photos, press the Menu icon > Display > Edit Wallpaper, then
follow the system prompts to upload your photographs.
MyFord Touch 101
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

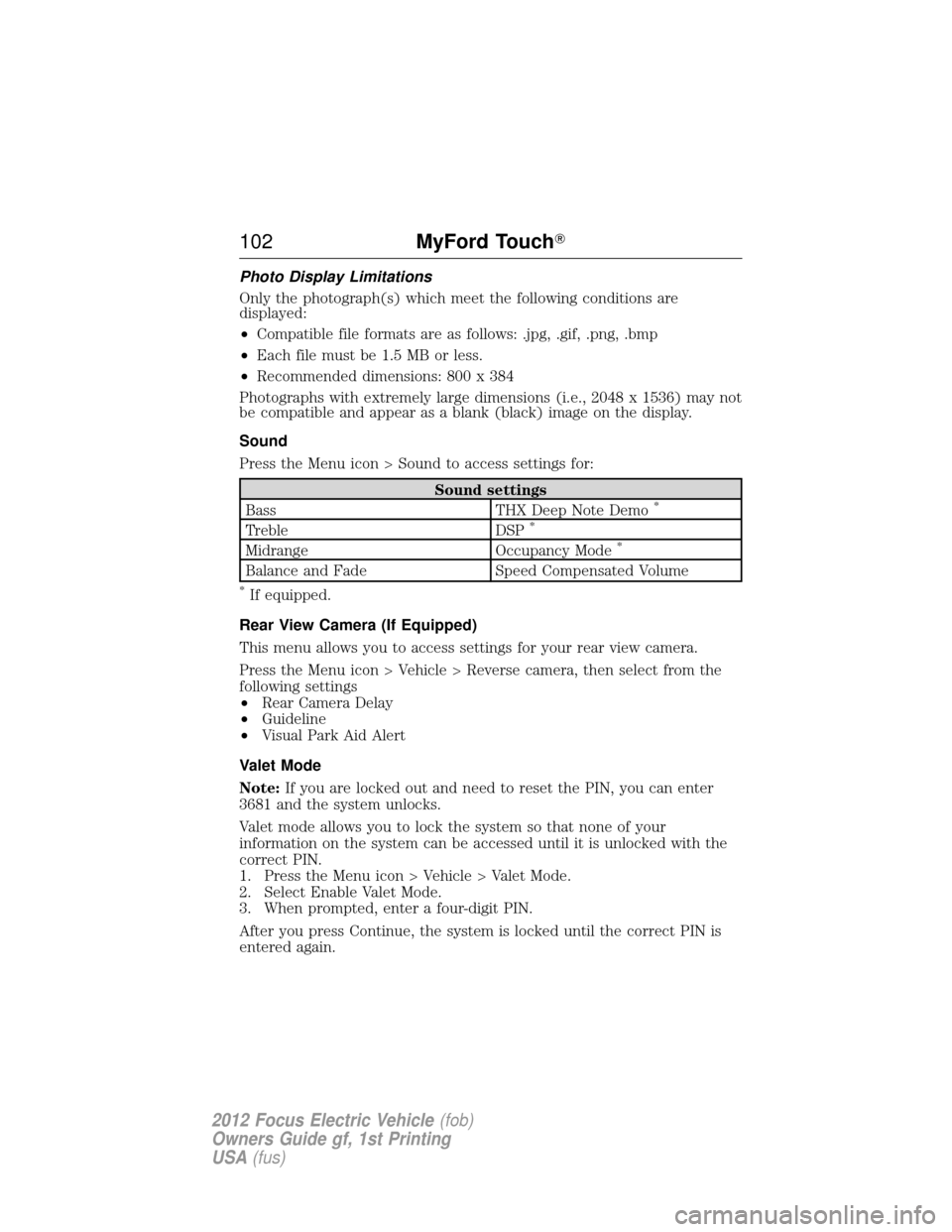

Photo Display Limitations
Only the photograph(s) which meet the following conditions are
displayed:
•Compatible file formats are as follows: .jpg, .gif, .png, .bmp
• Each file must be 1.5 MB or less.
• Recommended dimensions: 800 x 384
Photographs with extremely large dimensions (i.e., 2048 x 1536) may not
be compatible and appear as a blank (black) image on the display.
Sound
Press the Menu icon > Sound to access settings for:
Sound settings
Bass THX Deep Note Demo*
Treble DSP*
MidrangeOccupancy Mode*
Balance and FadeSpeed Compensated Volume
*If equipped.
Rear View Camera (If Equipped)
This menu allows you to access settings for your rear view camera.
Press the Menu icon > Vehicle > Reverse camera, then select from the
following settings
• Rear Camera Delay
• Guideline
• Visual Park Aid Alert
Valet Mode
Note: If you are locked out and need to reset the PIN, you can enter
3681 and the system unlocks.
Valet mode allows you to lock the system so that none of your
information on the system can be accessed until it is unlocked with the
correct PIN.
1. Press the Menu icon > Vehicle > Valet Mode.
2. Select Enable Valet Mode.
3. When prompted, enter a four-digit PIN.
After you press Continue, the system is locked until the correct PIN is
entered again.
102 MyFord Touch
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

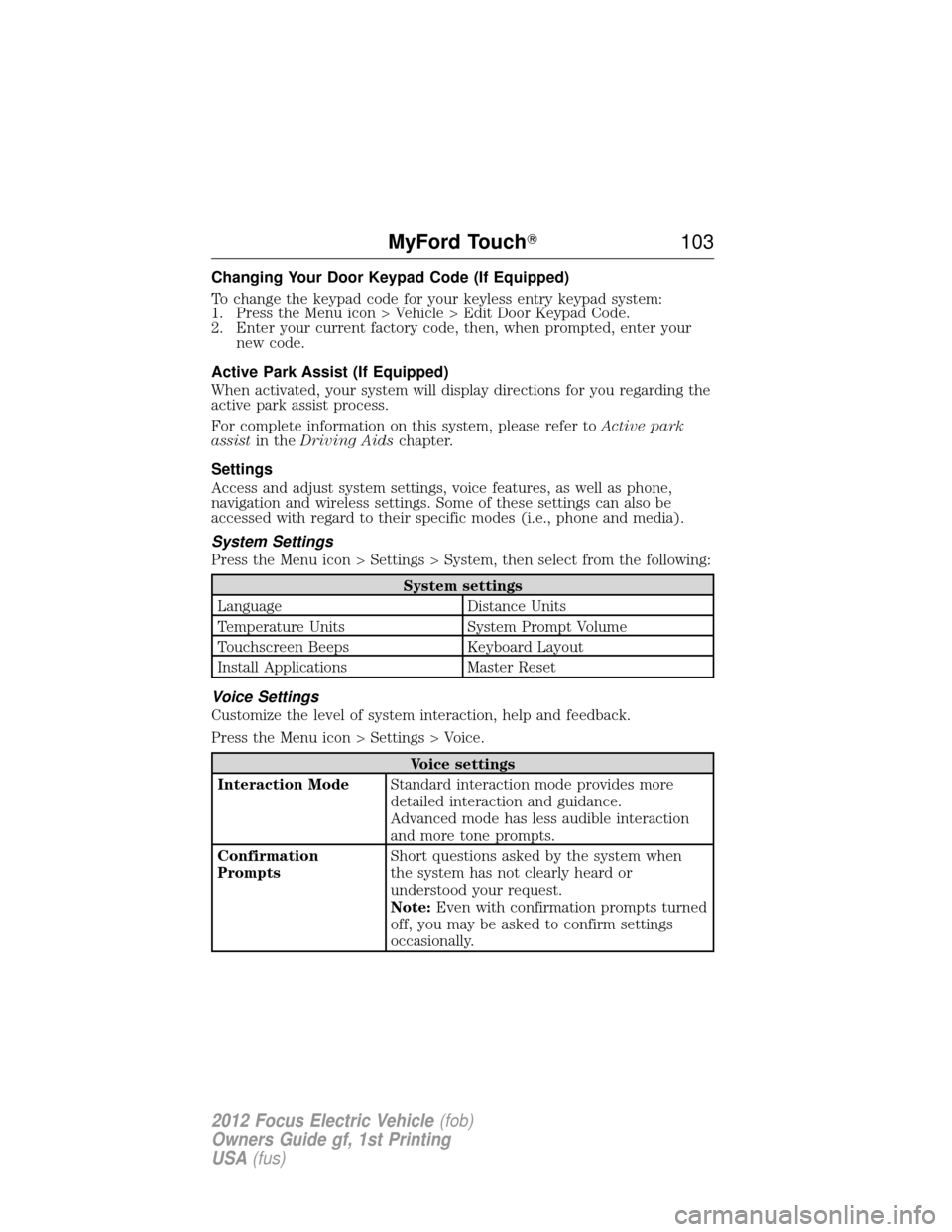

Changing Your Door Keypad Code (If Equipped)
To change the keypad code for your keyless entry keypad system:
1. Press the Menu icon > Vehicle > Edit Door Keypad Code.
2. Enter your current factory code, then, when prompted, enter yournew code.
Active Park Assist (If Equipped)
When activated, your system will display directions for you regarding the
active park assist process.
For complete information on this system, please refer to Active park
assist in the Driving Aids chapter.
Settings
Access and adjust system settings, voice features, as well as phone,
navigation and wireless settings. Some of these settings can also be
accessed with regard to their specific modes (i.e., phone and media).
System Settings
Press the Menu icon > Settings > System, then select from the following:
System settings
Language Distance Units
Temperature Units System Prompt Volume
Touchscreen Beeps Keyboard Layout
Install Applications Master Reset
Voice Settings
Customize the level of system interaction, help and feedback.
Press the Menu icon > Settings > Voice.
Voice settings
Interaction Mode Standard interaction mode provides more
detailed interaction and guidance.
Advanced mode has less audible interaction
and more tone prompts.
Confirmation
Prompts Short questions asked by the system when
the system has not clearly heard or
understood your request.
Note:
Even with confirmation prompts turned
off, you may be asked to confirm settings
occasionally.
MyFord Touch 103
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

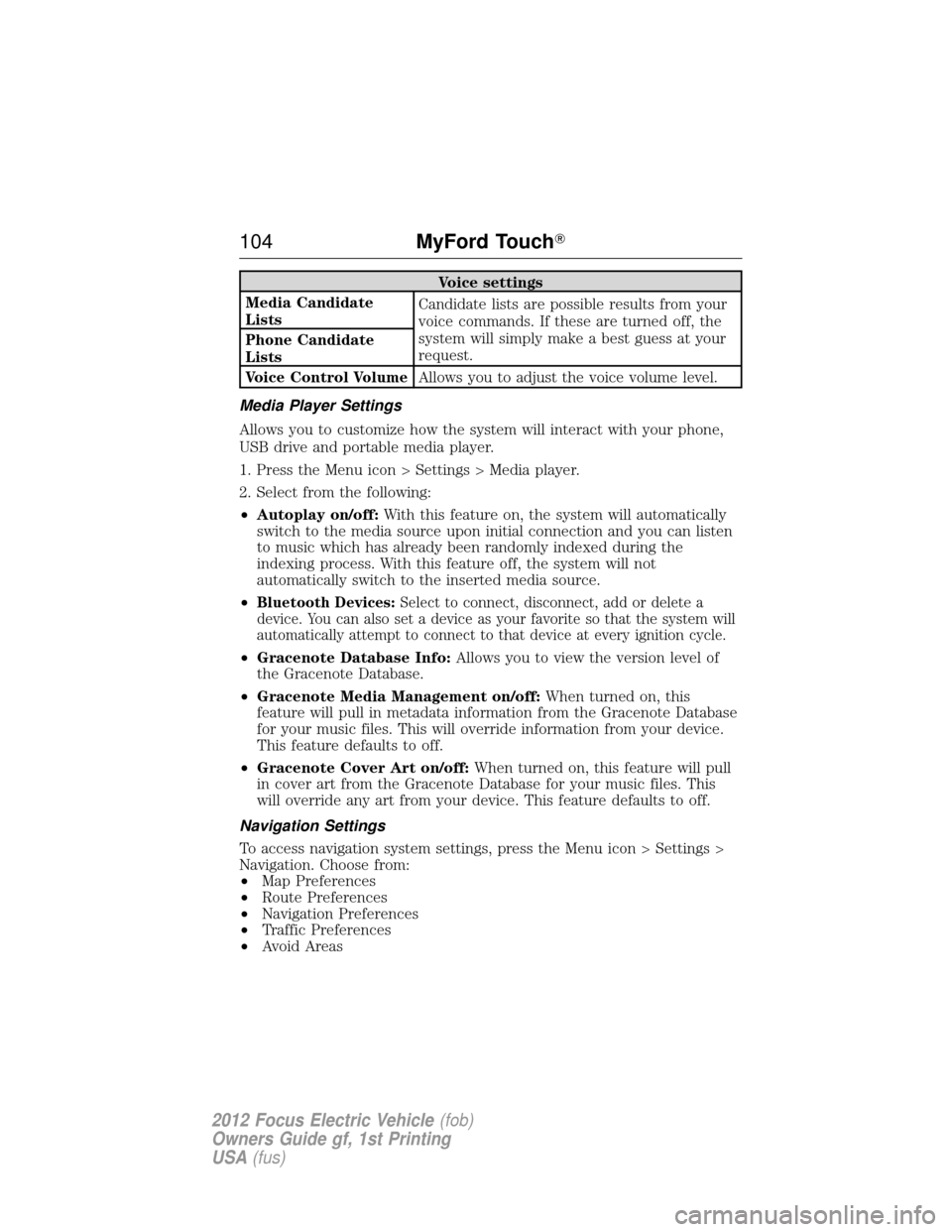

Voice settings
Media Candidate
Lists Candidate lists are possible results from your
voice commands. If these are turned off, the
system will simply make a best guess at your
request.
Phone Candidate
Lists
Voice Control Volume
Allows you to adjust the voice volume level.
Media Player Settings
Allows you to customize how the system will interact with your phone,
USB drive and portable media player.
1. Press the Menu icon > Settings > Media player.
2. Select from the following:
• Autoplay on/off: With this feature on, the system will automatically
switch to the media source upon initial connection and you can listen
to music which has already been randomly indexed during the
indexing process. With this feature off, the system will not
automatically switch to the inserted media source.
•
Bluetooth Devices: Select to connect, disconnect, add or delete a
device. You can also set a device as your favorite so that the system will
automatically attempt to connect to that device at every ignition cycle.
• Gracenote Database Info: Allows you to view the version level of
the Gracenote Database.
• Gracenote Media Management on/off: When turned on, this
feature will pull in metadata information from the Gracenote Database
for your music files. This will override information from your device.
This feature defaults to off.
• Gracenote Cover Art on/off: When turned on, this feature will pull
in cover art from the Gracenote Database for your music files. This
will override any art from your device. This feature defaults to off.
Navigation Settings
To access navigation system settings, press the Menu icon > Settings >
Navigation. Choose from:
• Map Preferences
• Route Preferences
• Navigation Preferences
• Traffic Preferences
• Avoid Areas
104 MyFord Touch
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

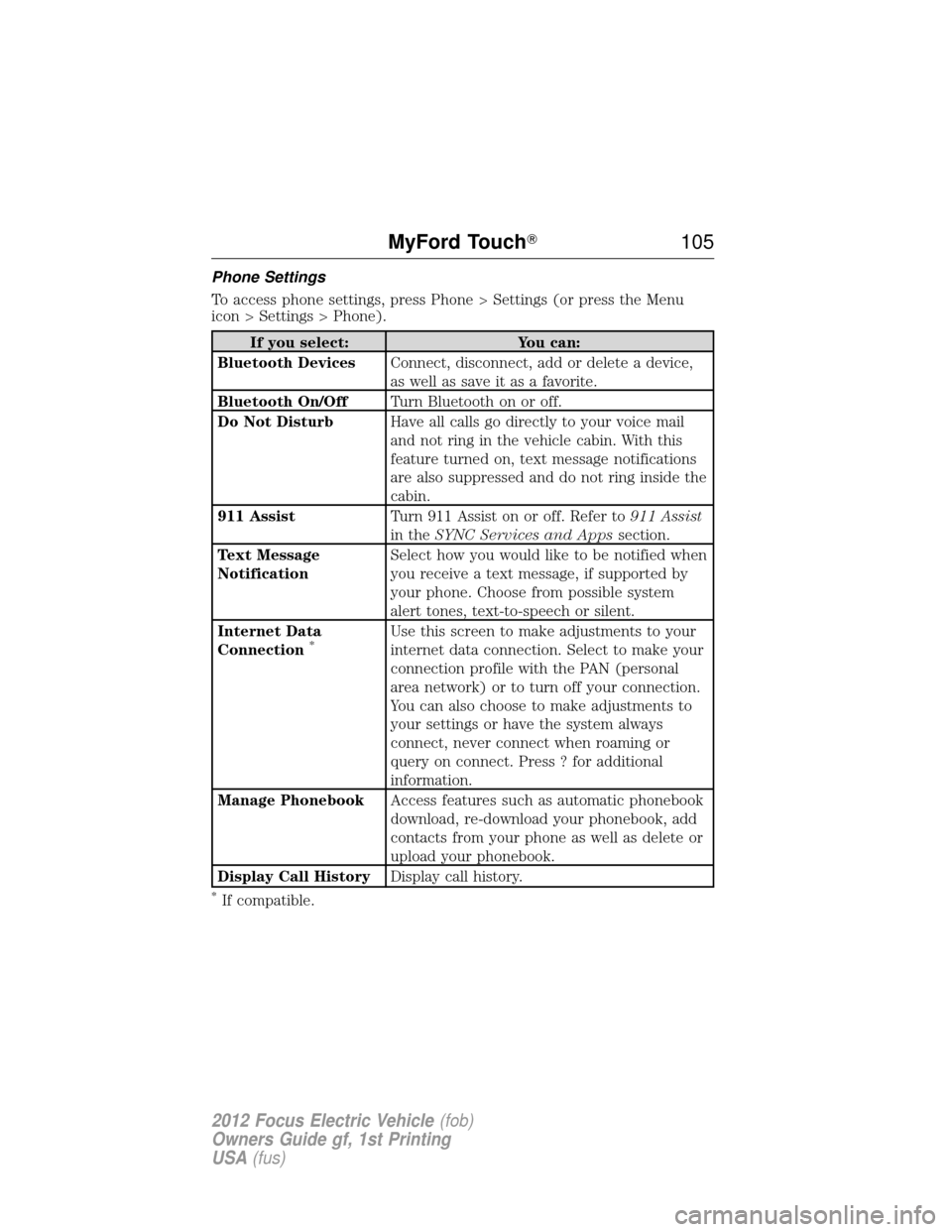

Phone Settings
To access phone settings, press Phone > Settings (or press the Menu
icon > Settings > Phone).
If you select:You can:
Bluetooth Devices Connect, disconnect, add or delete a device,
as well as save it as a favorite.
Bluetooth On/Off Turn Bluetooth on or off.
Do Not Disturb Have all calls go directly to your voice mail
and not ring in the vehicle cabin. With this
feature turned on, text message notifications
are also suppressed and do not ring inside the
cabin.
911 Assist Turn 911 Assist on or off. Refer to 911 Assist
in the SYNC Services and Apps section.
Text Message
Notification Select how you would like to be notified when
you receive a text message, if supported by
your phone. Choose from possible system
alert tones, text-to-speech or silent.
Internet Data
Connection
*Use this screen to make adjustments to your
internet data connection. Select to make your
connection profile with the PAN (personal
area network) or to turn off your connection.
You can also choose to make adjustments to
your settings or have the system always
connect, never connect when roaming or
query on connect. Press ? for additional
information.
Manage Phonebook Access features such as automatic phonebook
download, re-download your phonebook, add
contacts from your phone as well as delete or
upload your phonebook.
Display Call History Display call history.
*If compatible.
MyFord Touch 105
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

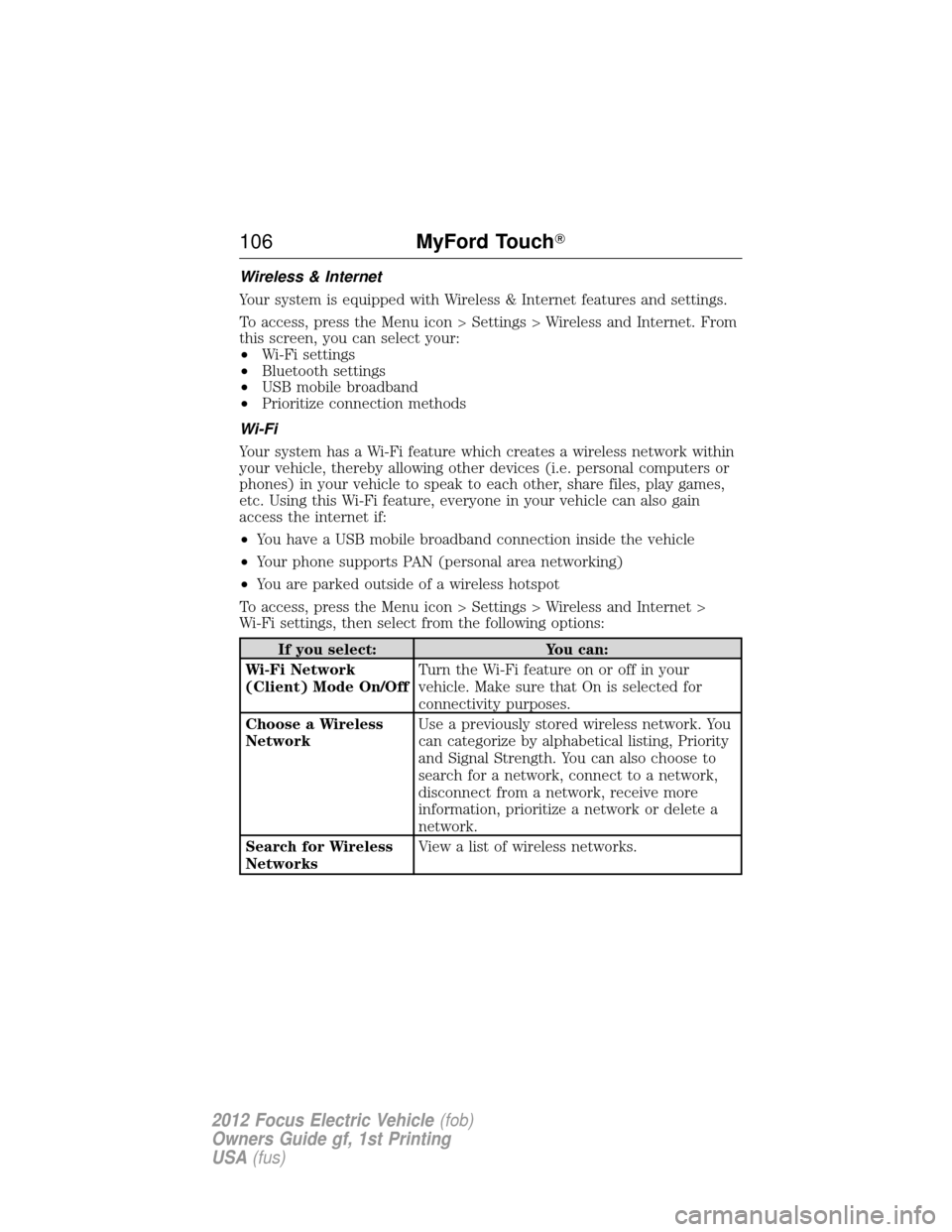

Wireless & Internet
Your system is equipped with Wireless & Internet features and settings.
To access, press the Menu icon > Settings > Wireless and Internet. From
this screen, you can select your:
•Wi-Fi settings
• Bluetooth settings
• USB mobile broadband
• Prioritize connection methods
Wi-Fi
Your system has a Wi-Fi feature which creates a wireless network within
your vehicle, thereby allowing other devices (i.e. personal computers or
phones) in your vehicle to speak to each other, share files, play games,
etc. Using this Wi-Fi feature, everyone in your vehicle can also gain
access the internet if:
• You have a USB mobile broadband connection inside the vehicle
• Your phone supports PAN (personal area networking)
• You are parked outside of a wireless hotspot
To access, press the Menu icon > Settings > Wireless and Internet >
Wi-Fi settings, then select from the following options:
If you select: You can:
Wi-Fi Network
(Client) Mode On/Off Turn the Wi-Fi feature on or off in your
vehicle. Make sure that On is selected for
connectivity purposes.
Choose a Wireless
Network Use a previously stored wireless network. You
can categorize by alphabetical listing, Priority
and Signal Strength. You can also choose to
search for a network, connect to a network,
disconnect from a network, receive more
information, prioritize a network or delete a
network.
Search for Wireless
Networks View a list of wireless networks.
106
MyFord Touch
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

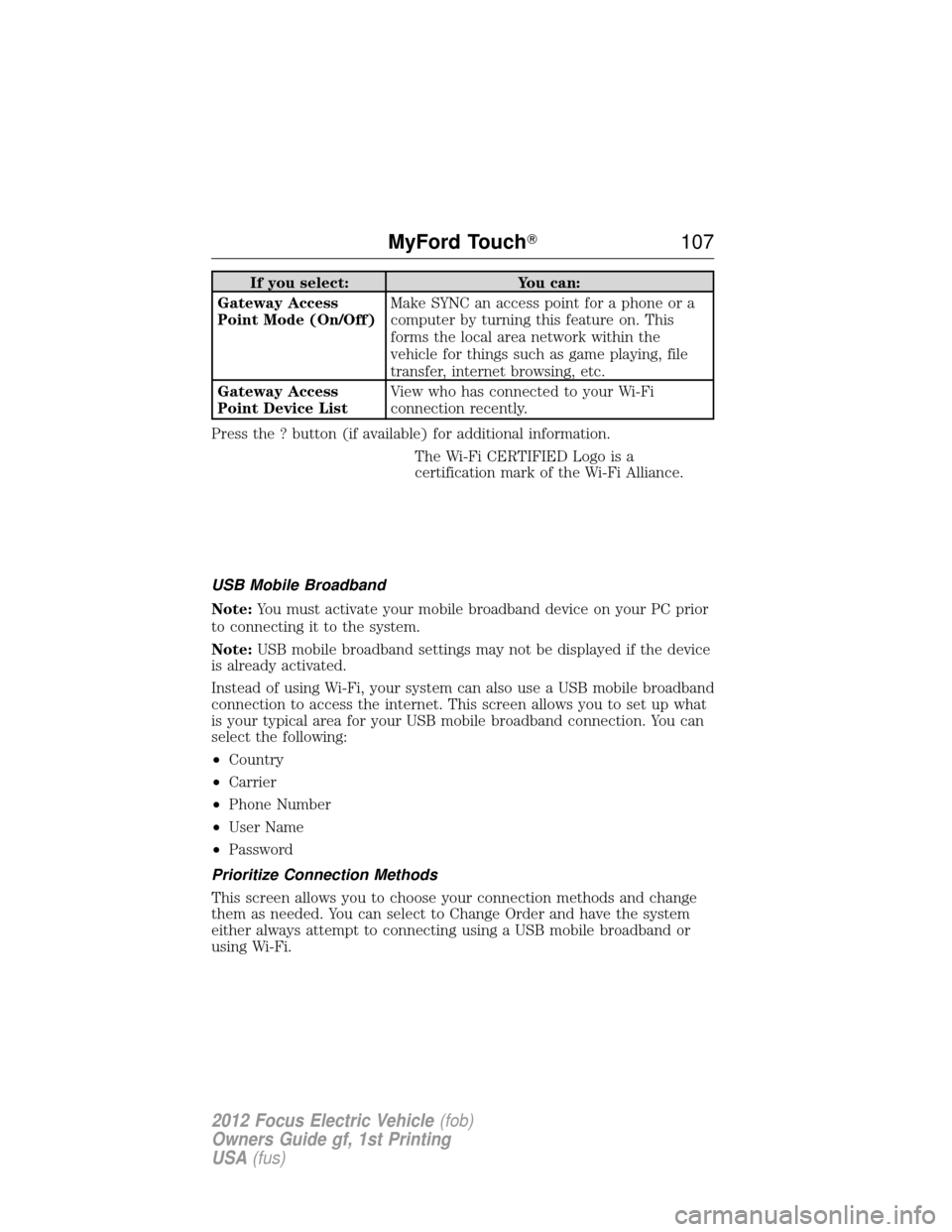

If you select:You can:
Gateway Access
Point Mode (On/Off) Make SYNC an access point for a phone or a
computer by turning this feature on. This
forms the local area network within the
vehicle for things such as game playing, file
transfer, internet browsing, etc.
Gateway Access
Point Device List View who has connected to your Wi-Fi
connection recently.
Press the ? button (if available) for additional information. The Wi-Fi CERTIFIED Logo is a
certification mark of the Wi-Fi Alliance.
USB Mobile Broadband
Note: You must activate your mobile broadband device on your PC prior
to connecting it to the system.
Note: USB mobile broadband settings may not be displayed if the device
is already activated.
Instead of using Wi-Fi, your system can also use a USB mobile broadband
connection to access the internet. This screen allows you to set up what
is your typical area for your USB mobile broadband connection. You can
select the following:
• Country
• Carrier
• Phone Number
• User Name
• Password
Prioritize Connection Methods
This screen allows you to choose your connection methods and change
them as needed. You can select to Change Order and have the system
either always attempt to connecting using a USB mobile broadband or
using Wi-Fi.
MyFord Touch 107
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

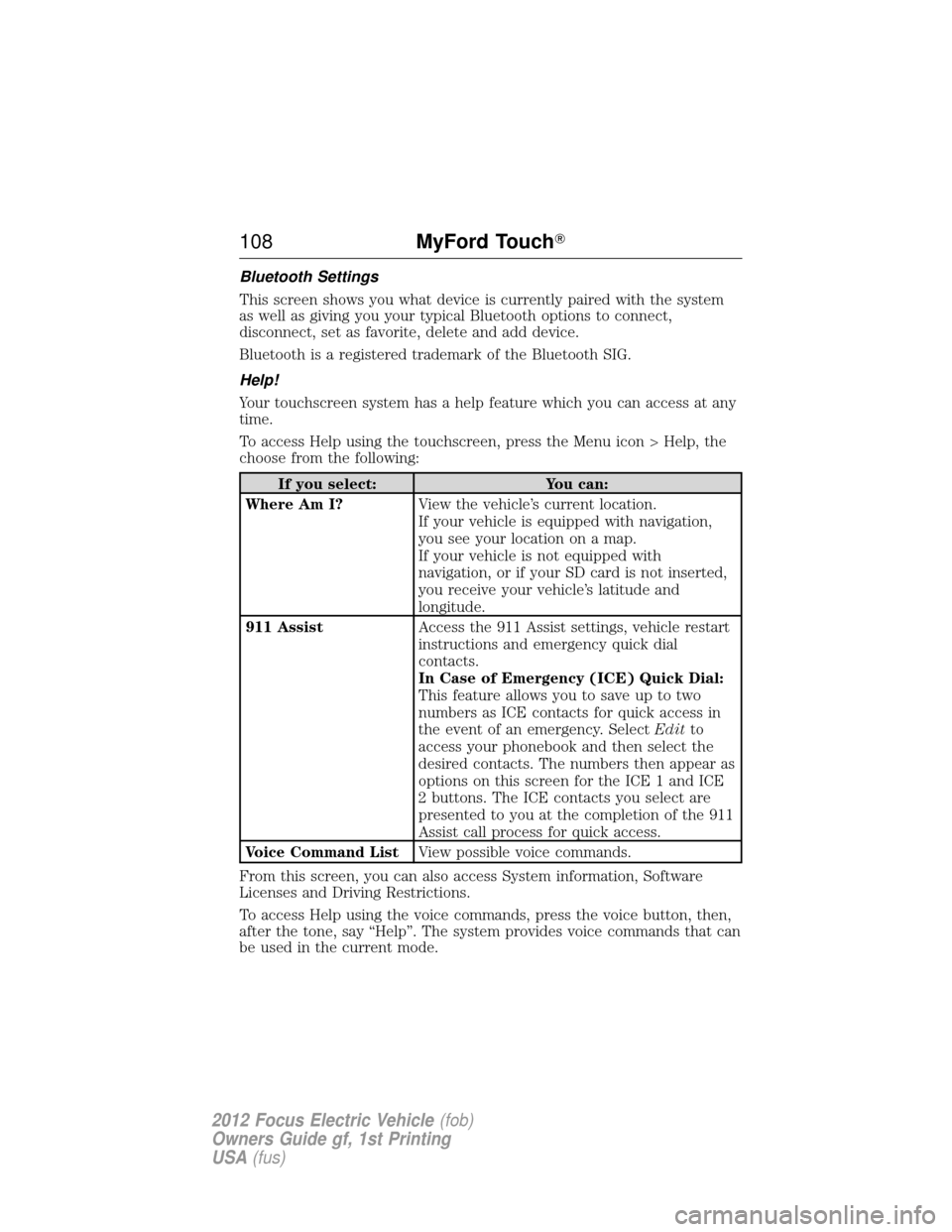

Bluetooth Settings
This screen shows you what device is currently paired with the system
as well as giving you your typical Bluetooth options to connect,
disconnect, set as favorite, delete and add device.
Bluetooth is a registered trademark of the Bluetooth SIG.
Help!
Your touchscreen system has a help feature which you can access at any
time.
To access Help using the touchscreen, press the Menu icon > Help, the
choose from the following:
If you select:You can:
Where Am I? View the vehicle’s current location.
If your vehicle is equipped with navigation,
you see your location on a map.
If your vehicle is not equipped with
navigation, or if your SD card is not inserted,
you receive your vehicle’s latitude and
longitude.
911 Assist Access the 911 Assist settings, vehicle restart
instructions and emergency quick dial
contacts.
In Case of Emergency (ICE) Quick Dial:
This feature allows you to save up to two
numbers as ICE contacts for quick access in
the event of an emergency. Select Editto
access your phonebook and then select the
desired contacts. The numbers then appear as
options on this screen for the ICE 1 and ICE
2 buttons. The ICE contacts you select are
presented to you at the completion of the 911
Assist call process for quick access.
Voice Command List View possible voice commands.
From this screen, you can also access System information, Software
Licenses and Driving Restrictions.
To access Help using the voice commands, press the voice button, then,
after the tone, say “Help”. The system provides voice commands that can
be used in the current mode.
108 MyFord Touch
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

TOUCHSCREEN CLIMATE CONTROLSPress the lower right corner on the touchscreen to access your
climate control features. Depending on your vehicle line and
option package, your climate screen may look different than
what is shown here.
A. Power: Touch to turn the system on and off. Outside air cannot enter
the vehicle when the system is off.
B. Passenger settings:
• Touch DUAL to turn on the passenger side temperature control.
• Touch the red or blue arrow to increase or decrease the temperature.
• Touch the heated seat icon to control the heated seat (if equipped).
• Touch the cooled seat icon to control the cooled seat (if equipped).
C. Fan speed: Touch + to increase or – to decrease fan speed.
D. Recirculated air: Touch to turn the recirculated air on or off which:
• May reduce the amount of time needed to cool down the interior.
• May help reduce odors from reaching the interior.
• Engages automatically when MAX A/C is selected.
• May be engaged manually in any airflow mode except defrost.
• May turn off in all airflow modes except MAX A/C to reduce fog
potential.
A
KB
JC
IHGFED
MyFord Touch 109
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

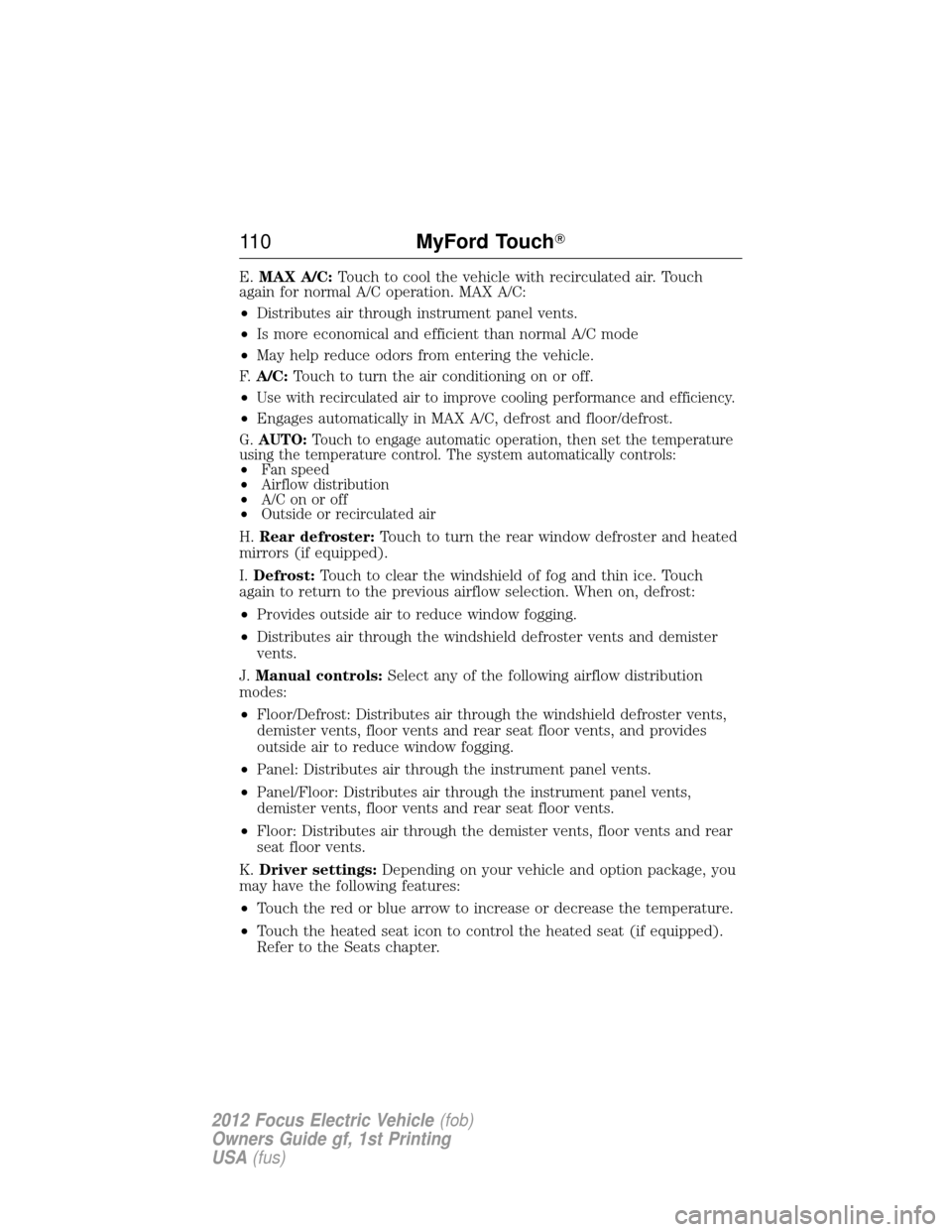

E.MAX A/C: Touch to cool the vehicle with recirculated air. Touch
again for normal A/C operation. MAX A/C:
• Distributes air through instrument panel vents.
• Is more economical and efficient than normal A/C mode
• May help reduce odors from entering the vehicle.
F. A/C: Touch to turn the air conditioning on or off.
•
Use with recirculated air to improve cooling performance and efficiency.
• Engages automatically in MAX A/C, defrost and floor/defrost.
G. AUTO: Touch to engage automatic operation, then set the temperature
using the temperature control. The system automatically controls:
• Fan speed
• Airflow distribution
• A/C on or off
• Outside or recirculated air
H.Rear defroster: Touch to turn the rear window defroster and heated
mirrors (if equipped).
I. Defrost: Touch to clear the windshield of fog and thin ice. Touch
again to return to the previous airflow selection. When on, defrost:
• Provides outside air to reduce window fogging.
• Distributes air through the windshield defroster vents and demister
vents.
J. Manual controls: Select any of the following airflow distribution
modes:
• Floor/Defrost: Distributes air through the windshield defroster vents,
demister vents, floor vents and rear seat floor vents, and provides
outside air to reduce window fogging.
• Panel: Distributes air through the instrument panel vents.
• Panel/Floor: Distributes air through the instrument panel vents,
demister vents, floor vents and rear seat floor vents.
• Floor: Distributes air through the demister vents, floor vents and rear
seat floor vents.
K. Driver settings: Depending on your vehicle and option package, you
may have the following features:
• Touch the red or blue arrow to increase or decrease the temperature.
• Touch the heated seat icon to control the heated seat (if equipped).
Refer to the Seats chapter.
11 0 MyFord Touch
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)
