FORD FOCUS ELECTRIC 2012 3.G Owners Manual

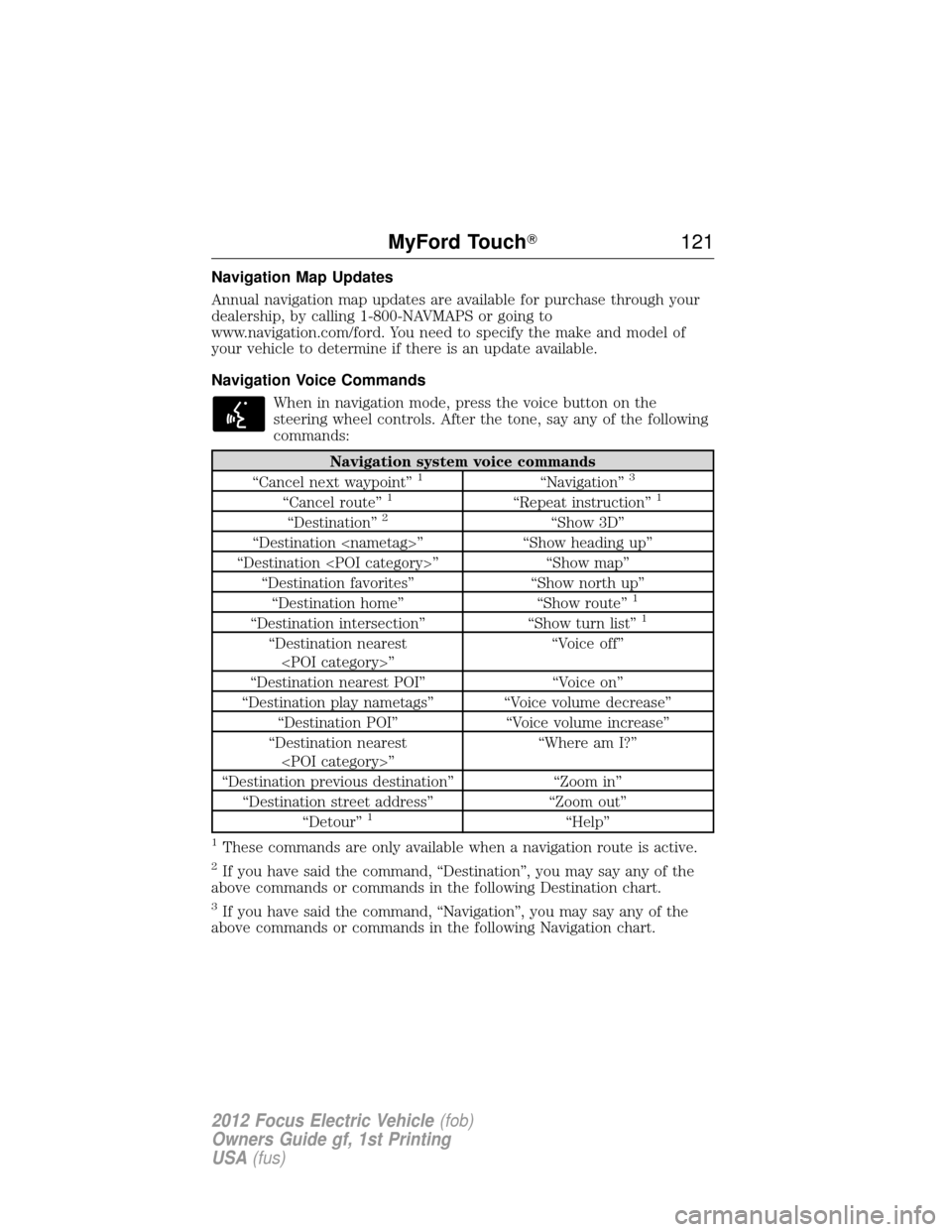

Navigation Map Updates
Annual navigation map updates are available for purchase through your
dealership, by calling 1-800-NAVMAPS or going to
www.navigation.com/ford. You need to specify the make and model of
your vehicle to determine if there is an update available.
Navigation Voice CommandsWhen in navigation mode, press the voice button on the
steering wheel controls. After the tone, say any of the following
commands:
Navigation system voice commands
“Cancel next waypoint”1“Navigation”3
“Cancel route”1“Repeat instruction”1
“Destination”2“Show 3D”
“Destination ” “Show heading up”
“Destination ” “Show map” “Destination favorites” “Show north up”“Destination home” “Show route”
1
“Destination intersection” “Show turn list”1
“Destination nearest
” “Voice off”
“Destination nearest POI” “Voice on”
“Destination play nametags” “Voice volume decrease” “Destination POI” “Voice volume increase”
“Destination nearest ” “Where am I?”
“Destination previous destination” “Zoom in”
“Destination street address” “Zoom out”
“Detour”
1“Help”
1These commands are only available when a navigation route is active.
2If you have said the command, “Destination”, you may say any of the
above commands or commands in the following Destination chart.
3If you have said the command, “Navigation”, you may say any of the
above commands or commands in the following Navigation chart.
MyFord Touch 121
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

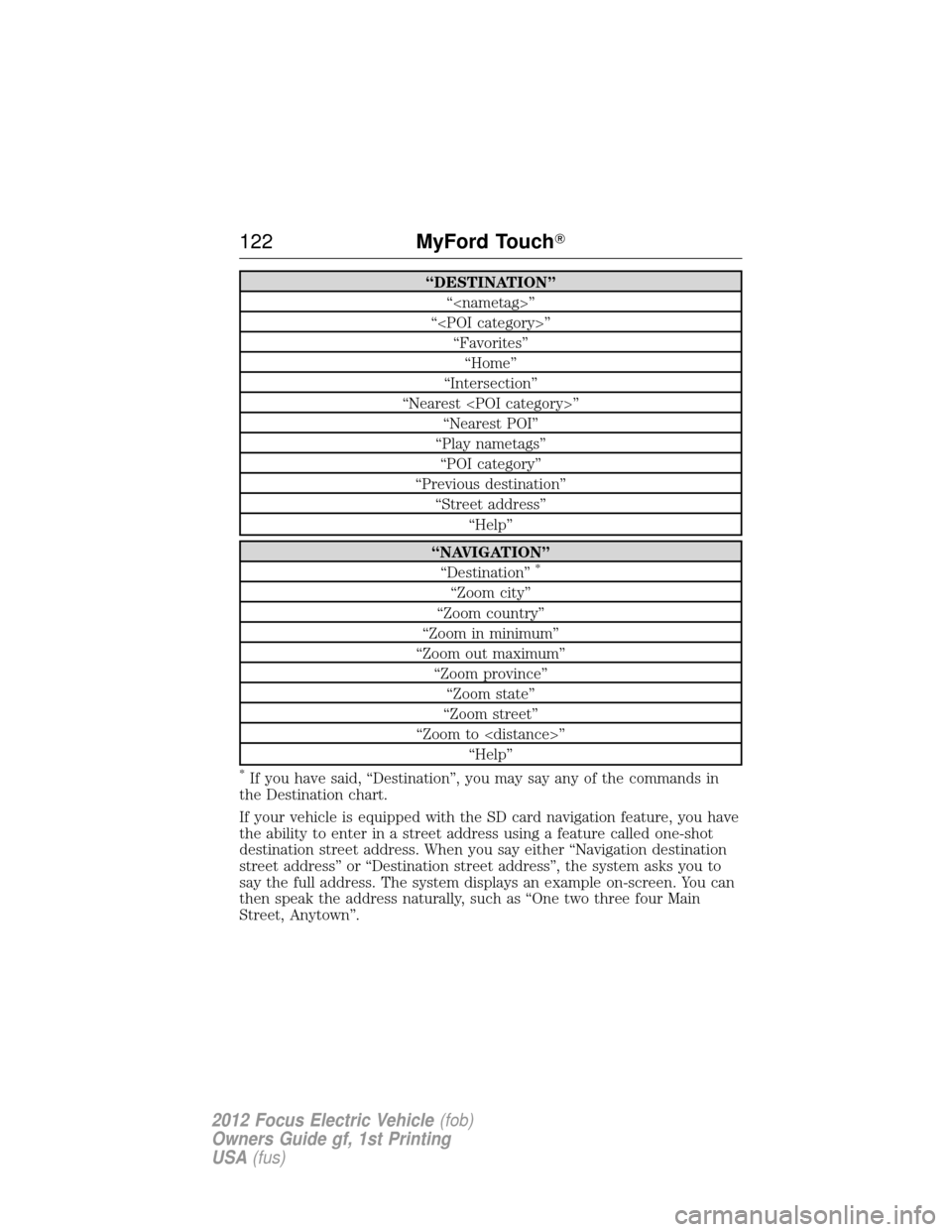

“DESTINATION”“”
“” “Favorites”“Home”
“Intersection”
“Nearest ” “Nearest POI”
“Play nametags” “POI category”
“Previous destination” “Street address” “Help”
“NAVIGATION”“Destination”*
“Zoom city”
“Zoom country”
“Zoom in minimum”
“Zoom out maximum” “Zoom province”“Zoom state”
“Zoom street”
“Zoom to ” “Help”
*If you have said, “Destination”, you may say any of the commands in
the Destination chart.
If your vehicle is equipped with the SD card navigation feature, you have
the ability to enter in a street address using a feature called one-shot
destination street address. When you say either “Navigation destination
street address” or “Destination street address”, the system asks you to
say the full address. The system displays an example on-screen. You can
then speak the address naturally, such as “One two three four Main
Street, Anytown”.
122 MyFord Touch
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

DUAL AUTOMATIC TEMPERATURE CONTROL (DATC) SYSTEM
Temperature conversion:To switch between Fahrenheit and Celsius:
Press MENU > Display Settings > Temp. Setting. If your vehicle is
equipped with the touchscreen system, press Menu > Settings > System
> Temperature.
1. Press to turn the system on or off.
2. Distributes outside air through the windshield defroster vents
and demister vents. Can be used to clear the windshield of fog
and thin ice. Automatically turns on rear window defroster and
heated mirrors. Press this button again to return to the previous air flow
selection.
3. MAX A/C: Press to distribute recirculated air through the instrument
panel vents to cool the vehicle. This re-cooling of the interior air is more
economical and efficient. Recirculated air may also help reduce
undesirable odors from entering the vehicle.
4. Passenger temperature setting: Rotate knob to turn on dual zone
operation and select the desired temperature for the passenger only. To
return to single zone operation, press and hold AUTO for two to four
seconds.
234
98765
12111
10
Climate Control 123
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

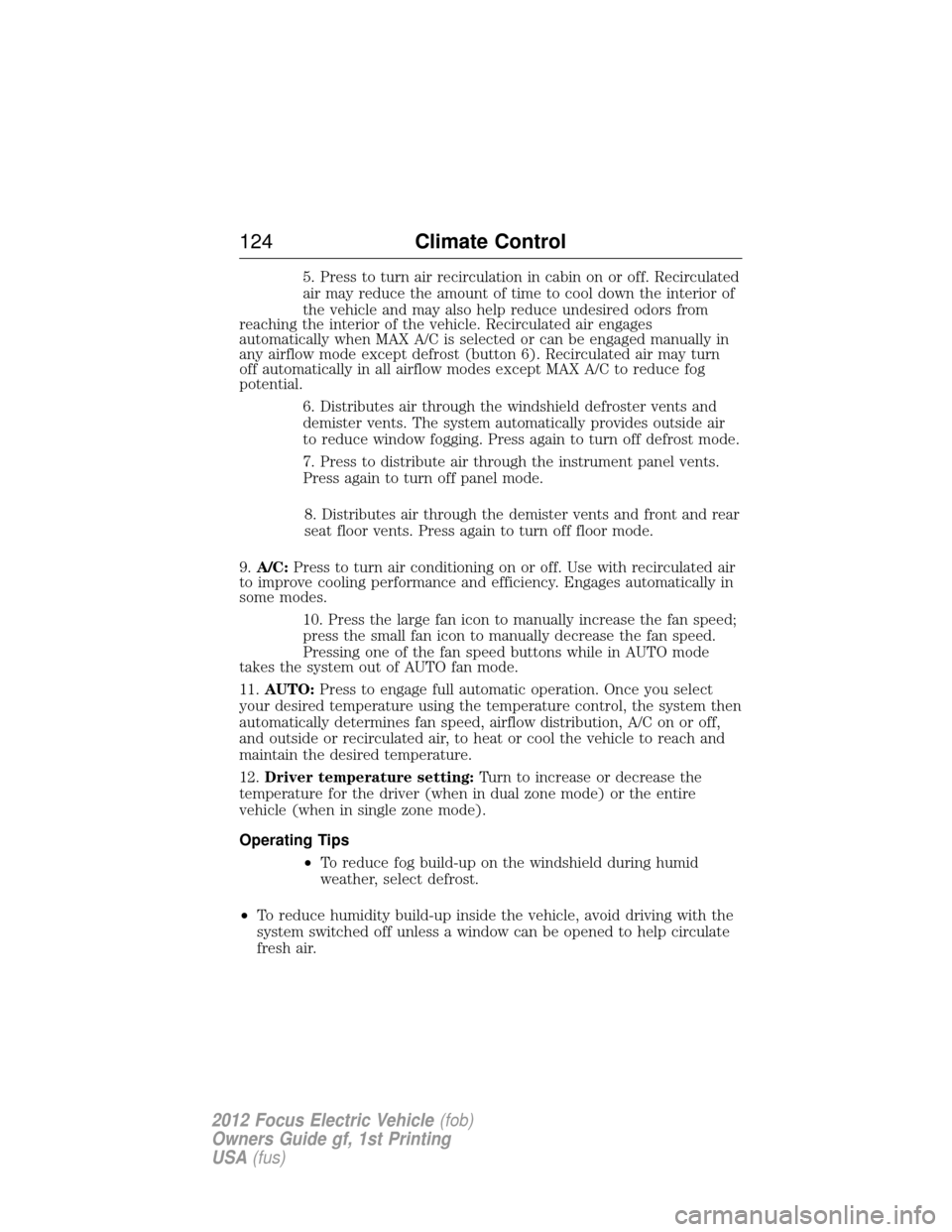

5. Press to turn air recirculation in cabin on or off. Recirculated
air may reduce the amount of time to cool down the interior of
the vehicle and may also help reduce undesired odors from
reaching the interior of the vehicle. Recirculated air engages
automatically when MAX A/C is selected or can be engaged manually in
any airflow mode except defrost (button 6). Recirculated air may turn
off automatically in all airflow modes except MAX A/C to reduce fog
potential.
6. Distributes air through the windshield defroster vents and
demister vents. The system automatically provides outside air
to reduce window fogging. Press again to turn off defrost mode.
7. Press to distribute air through the instrument panel vents.
Press again to turn off panel mode.
8. Distributes air through the demister vents and front and rear
seat floor vents. Press again to turn off floor mode.
9. A/C: Press to turn air conditioning on or off. Use with recirculated air
to improve cooling performance and efficiency. Engages automatically in
some modes.
10. Press the large fan icon to manually increase the fan speed;
press the small fan icon to manually decrease the fan speed.
Pressing one of the fan speed buttons while in AUTO mode
takes the system out of AUTO fan mode.
11. AUTO: Press to engage full automatic operation. Once you select
your desired temperature using the temperature control, the system then
automatically determines fan speed, airflow distribution, A/C on or off,
and outside or recirculated air, to heat or cool the vehicle to reach and
maintain the desired temperature.
12. Driver temperature setting: Turn to increase or decrease the
temperature for the driver (when in dual zone mode) or the entire
vehicle (when in single zone mode).
Operating Tips
•To reduce fog build-up on the windshield during humid
weather, select defrost.
• To reduce humidity build-up inside the vehicle, avoid driving with the
system switched off unless a window can be opened to help circulate
fresh air.
124 Climate Control
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

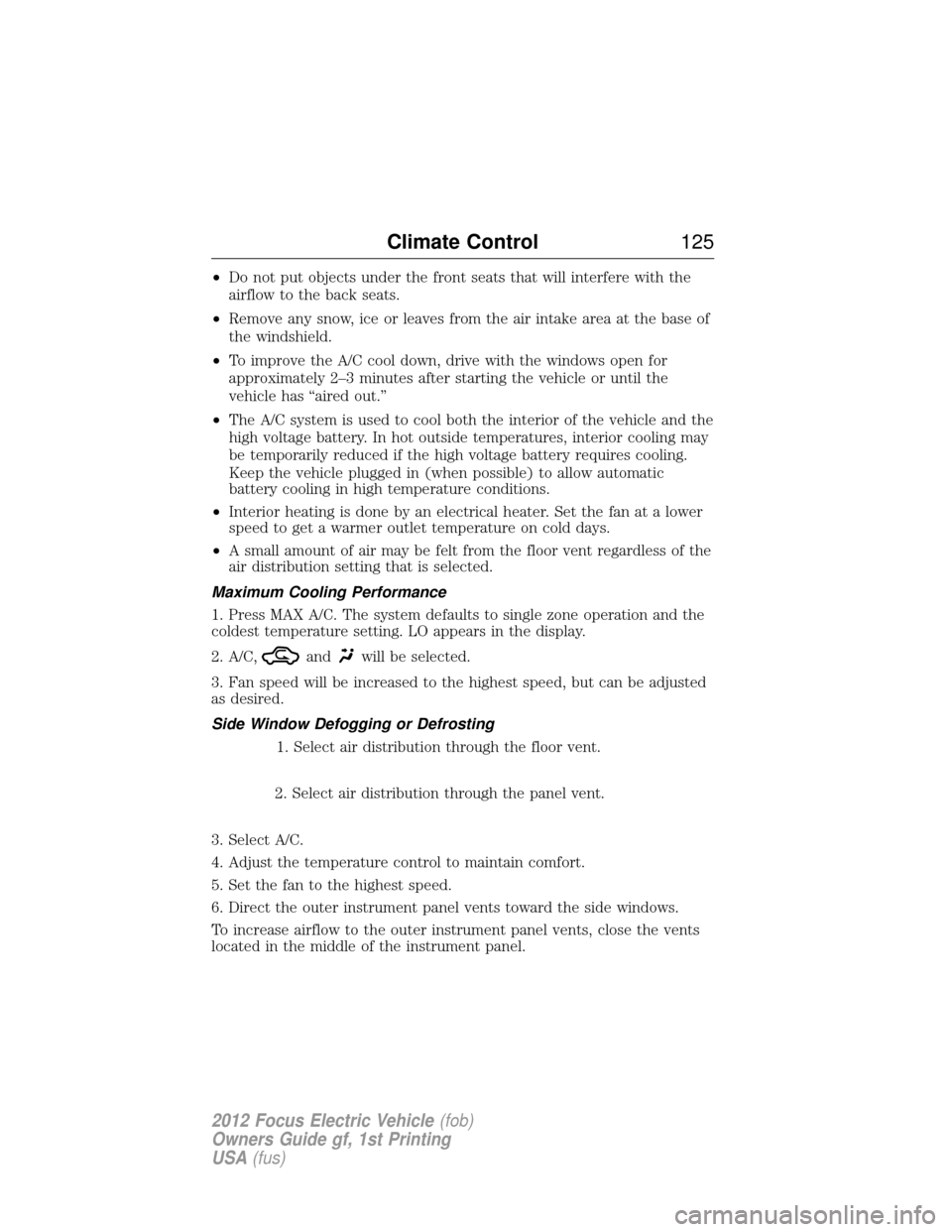

•Do not put objects under the front seats that will interfere with the
airflow to the back seats.
• Remove any snow, ice or leaves from the air intake area at the base of
the windshield.
• To improve the A/C cool down, drive with the windows open for
approximately 2–3 minutes after starting the vehicle or until the
vehicle has “aired out.”
• The A/C system is used to cool both the interior of the vehicle and the
high voltage battery. In hot outside temperatures, interior cooling may
be temporarily reduced if the high voltage battery requires cooling.
Keep the vehicle plugged in (when possible) to allow automatic
battery cooling in high temperature conditions.
• Interior heating is done by an electrical heater. Set the fan at a lower
speed to get a warmer outlet temperature on cold days.
• A small amount of air may be felt from the floor vent regardless of the
air distribution setting that is selected.
Maximum Cooling Performance
1. Press MAX A/C. The system defaults to single zone operation and the
coldest temperature setting. LO appears in the display.
2. A/C,
andwill be selected.
3. Fan speed will be increased to the highest speed, but can be adjusted
as desired.
Side Window Defogging or Defrosting 1. Select air distribution through the floor vent.
2. Select air distribution through the panel vent.
3. Select A/C.
4. Adjust the temperature control to maintain comfort.
5. Set the fan to the highest speed.
6. Direct the outer instrument panel vents toward the side windows.
To increase airflow to the outer instrument panel vents, close the vents
located in the middle of the instrument panel.
Climate Control 125
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

Improving Vehicle Drive Range
Your vehicle is equipped with a high voltage electric compressor and a
high voltage electric heater. You can increase your driving range by
minimizing the amount of energy expended to cool or heat the interior
during the drive.
•Press the brake pedal and power button while the vehicle is charging
to switch the climate control system on. This is beneficial because it
draws as much power as possible from the wall charge and not the
high voltage battery.
• Pre-condition the interior temperature during vehicle charging
reduces the battery energy use on the interior comfort and improves
range. See Convenience charging with MyFord mobile in the
Charging Your High Voltage Battery chapter.
• Hot and cold temperatures make your vehicle use more energy to
achieve and maintain a comfortable interior temperature. Park the
vehicle in the shade or in a parking structure when hot, and in a
garage when cold.
• Consider opening a window (or windows) to let fresh air circulate, if
weather conditions permit. Maximum energy savings can be achieved
by switching the climate system off. Do this only if conditions exist
for safe vehicle operation.
• Reduce fan speed.
• Set the AUTO temperature a couple degrees cooler than you normally
do on cold days and a couple degrees higher on hot days. Use the
heated seats on cold days to increase interior comfort.
• Switch the air conditioning system off in mild temperatures or low
humidity conditions.
• Defrost mode automatically turns the air conditioning on to
dehumidify the air, and cannot be switched off. If defogging or
defrosting is not necessary, select a non-defrost mode and disengage
air conditioning to extend vehicle range.
• Air conditioning and heating functions are automatically switched off
(unless in defrost mode) when driving distance to empty is zero miles
(zero km). The interior fan continues to operate, however.
Touchscreen Features
Your vehicle is equipped with a touchscreen system. You can access
climate features using the touchscreen and voice commands. Refer to
Touchscreen climate controls in theMyFord Touch chapter for more
information.
126 Climate Control
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

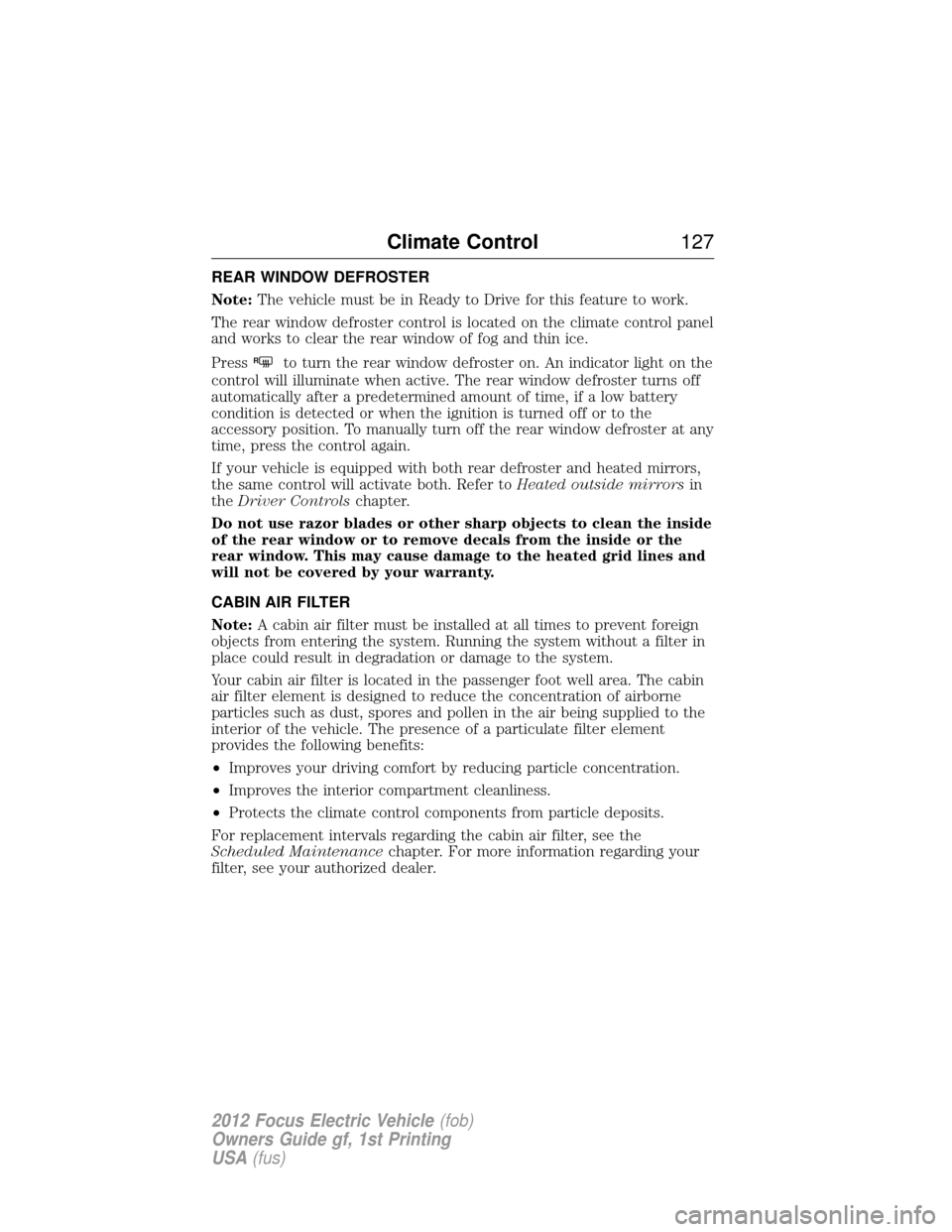

REAR WINDOW DEFROSTER
Note:The vehicle must be in Ready to Drive for this feature to work.
The rear window defroster control is located on the climate control panel
and works to clear the rear window of fog and thin ice.
Press
Rto turn the rear window defroster on. An indicator light on the
control will illuminate when active. The rear window defroster turns off
automatically after a predetermined amount of time, if a low battery
condition is detected or when the ignition is turned off or to the
accessory position. To manually turn off the rear window defroster at any
time, press the control again.
If your vehicle is equipped with both rear defroster and heated mirrors,
the same control will activate both. Refer to Heated outside mirrorsin
the Driver Controls chapter.
Do not use razor blades or other sharp objects to clean the inside
of the rear window or to remove decals from the inside or the
rear window. This may cause damage to the heated grid lines and
will not be covered by your warranty.
CABIN AIR FILTER
Note: A cabin air filter must be installed at all times to prevent foreign
objects from entering the system. Running the system without a filter in
place could result in degradation or damage to the system.
Your cabin air filter is located in the passenger foot well area. The cabin
air filter element is designed to reduce the concentration of airborne
particles such as dust, spores and pollen in the air being supplied to the
interior of the vehicle. The presence of a particulate filter element
provides the following benefits:
• Improves your driving comfort by reducing particle concentration.
• Improves the interior compartment cleanliness.
• Protects the climate control components from particle deposits.
For replacement intervals regarding the cabin air filter, see the
Scheduled Maintenance chapter. For more information regarding your
filter, see your authorized dealer.
Climate Control 127
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

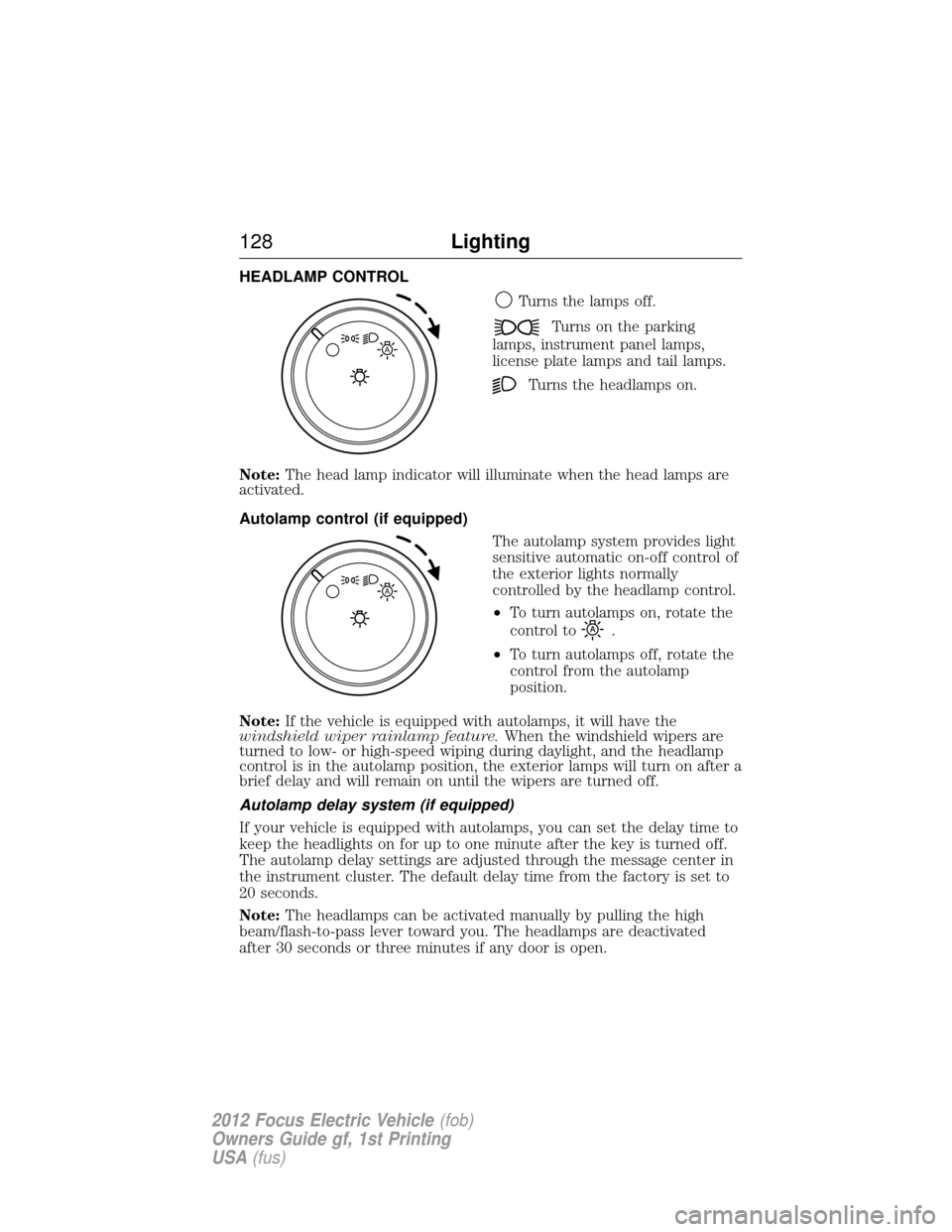

HEADLAMP CONTROL
Turns the lamps off.
Turns on the parking
lamps, instrument panel lamps,
license plate lamps and tail lamps.
Turns the headlamps on.
Note: The head lamp indicator will illuminate when the head lamps are
activated.
Autolamp control (if equipped)
The autolamp system provides light
sensitive automatic on-off control of
the exterior lights normally
controlled by the headlamp control.
•To turn autolamps on, rotate the
control to
.
• To turn autolamps off, rotate the
control from the autolamp
position.
Note: If the vehicle is equipped with autolamps, it will have the
windshield wiper rainlamp feature. When the windshield wipers are
turned to low- or high-speed wiping during daylight, and the headlamp
control is in the autolamp position, the exterior lamps will turn on after a
brief delay and will remain on until the wipers are turned off.
Autolamp delay system (if equipped)
If your vehicle is equipped with autolamps, you can set the delay time to
keep the headlights on for up to one minute after the key is turned off.
The autolamp delay settings are adjusted through the message center in
the instrument cluster. The default delay time from the factory is set to
20 seconds.
Note: The headlamps can be activated manually by pulling the high
beam/flash-to-pass lever toward you. The headlamps are deactivated
after 30 seconds or three minutes if any door is open.
A
A
128 Lighting
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

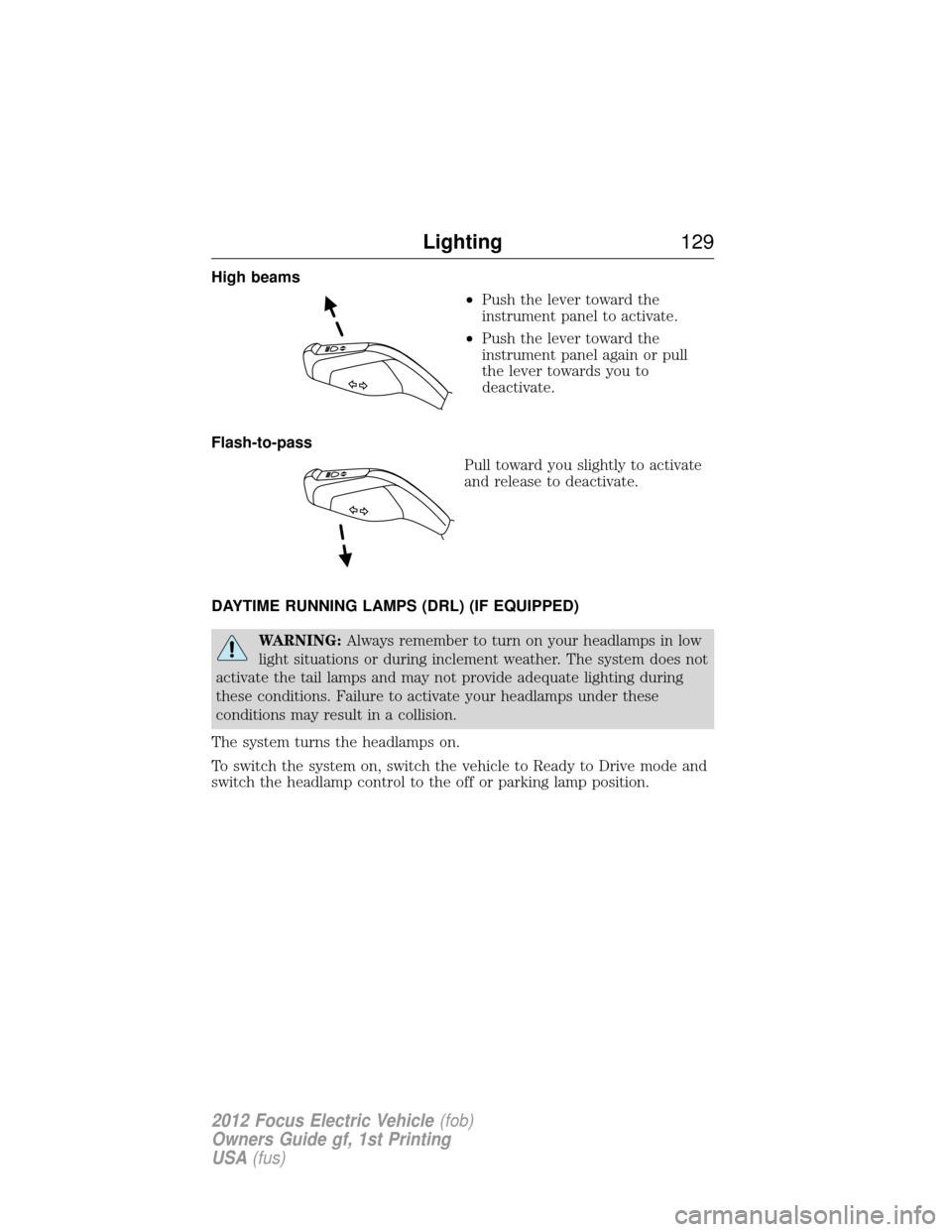

High beams•Push the lever toward the
instrument panel to activate.
• Push the lever toward the
instrument panel again or pull
the lever towards you to
deactivate.
Flash-to-pass Pull toward you slightly to activate
and release to deactivate.
DAYTIME RUNNING LAMPS (DRL) (IF EQUIPPED)
WARNING: Always remember to turn on your headlamps in low
light situations or during inclement weather. The system does not
activate the tail lamps and may not provide adequate lighting during
these conditions. Failure to activate your headlamps under these
conditions may result in a collision.
The system turns the headlamps on.
To switch the system on, switch the vehicle to Ready to Drive mode and
switch the headlamp control to the off or parking lamp position.
Lighting 129
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

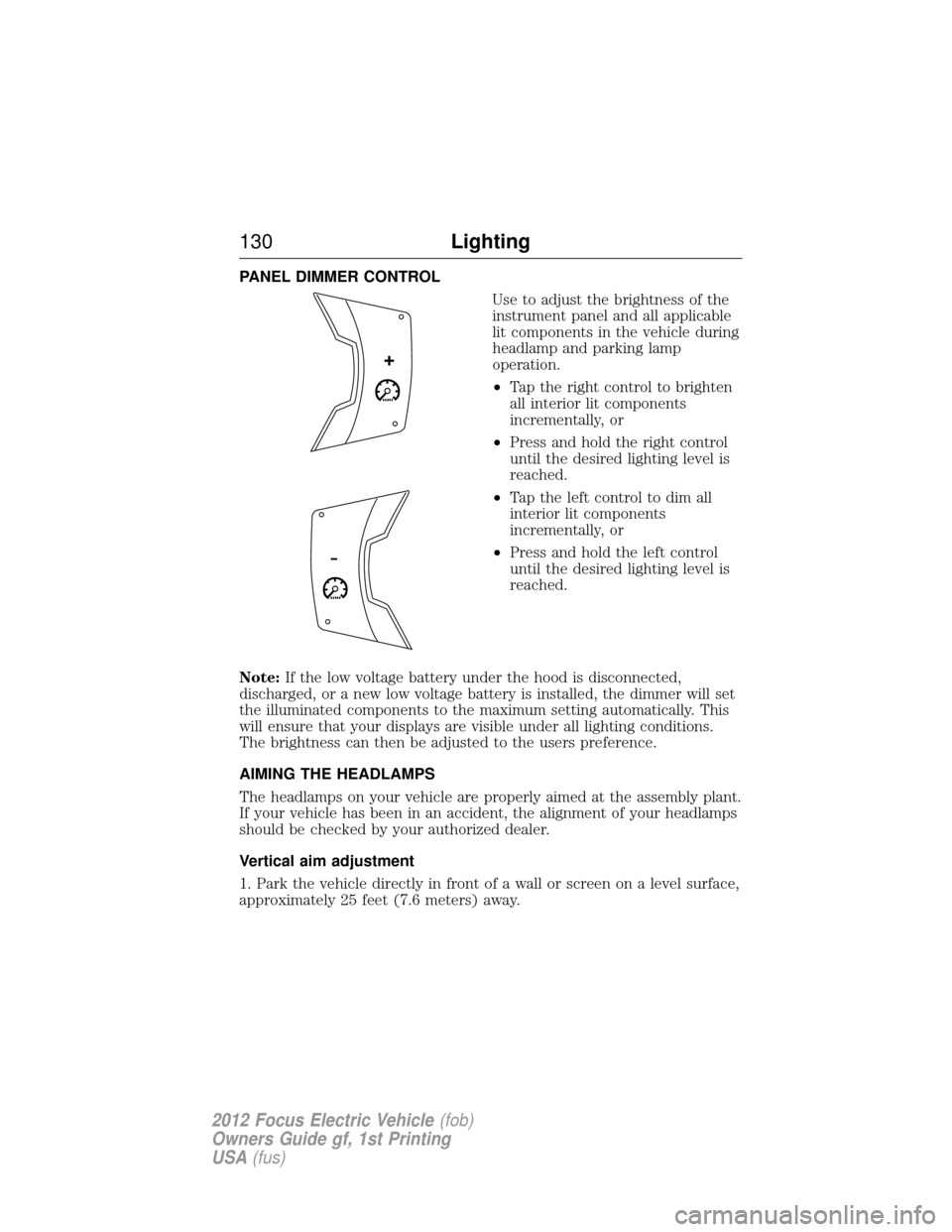

PANEL DIMMER CONTROLUse to adjust the brightness of the
instrument panel and all applicable
lit components in the vehicle during
headlamp and parking lamp
operation.
•Tap the right control to brighten
all interior lit components
incrementally, or
• Press and hold the right control
until the desired lighting level is
reached.
• Tap the left control to dim all
interior lit components
incrementally, or
• Press and hold the left control
until the desired lighting level is
reached.
Note: If the low voltage battery under the hood is disconnected,
discharged, or a new low voltage battery is installed, the dimmer will set
the illuminated components to the maximum setting automatically. This
will ensure that your displays are visible under all lighting conditions.
The brightness can then be adjusted to the users preference.
AIMING THE HEADLAMPS
The headlamps on your vehicle are properly aimed at the assembly plant.
If your vehicle has been in an accident, the alignment of your headlamps
should be checked by your authorized dealer.
Vertical aim adjustment
1. Park the vehicle directly in front of a wall or screen on a level surface,
approximately 25 feet (7.6 meters) away.
130 Lighting
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)
