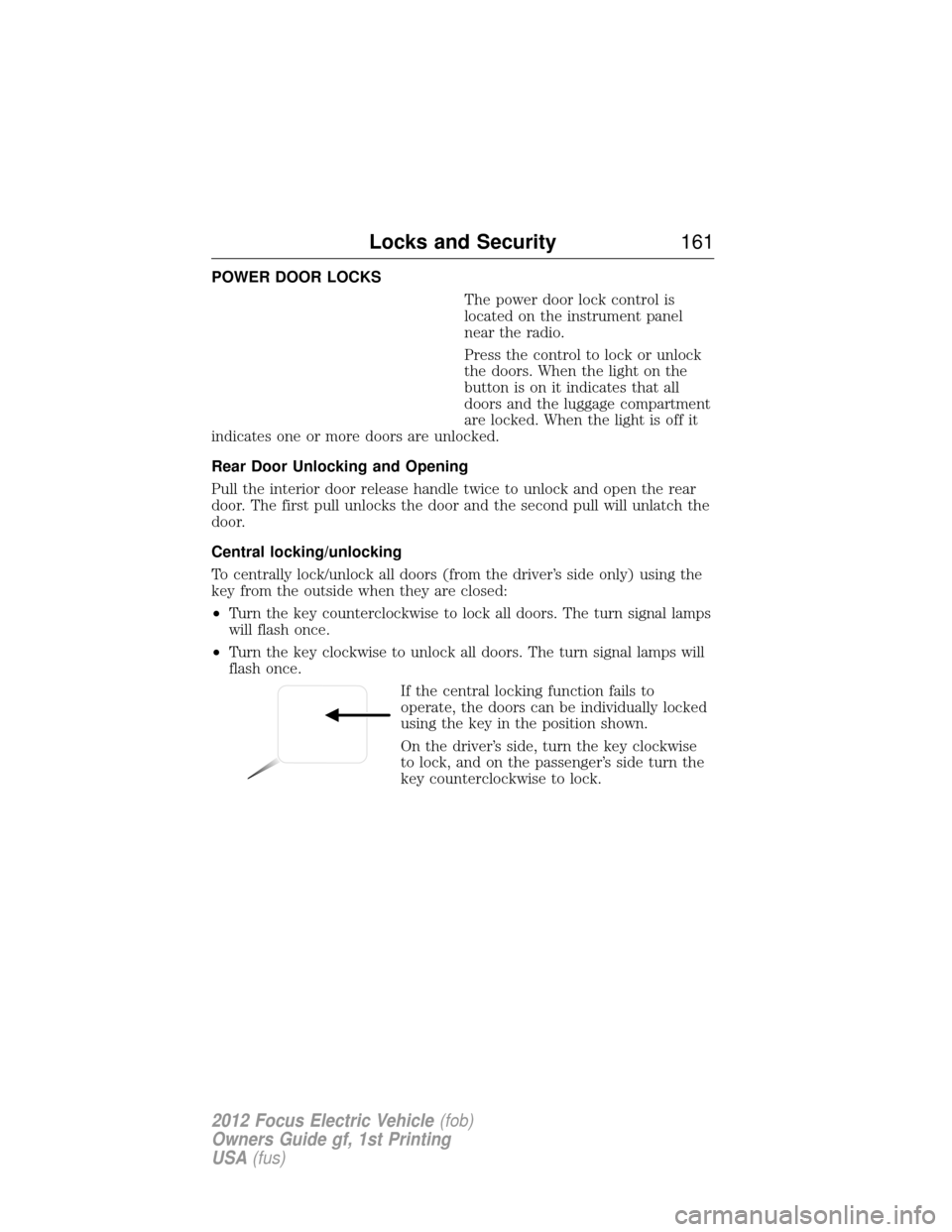

POWER DOOR LOCKSThe power door lock control is
located on the instrument panel
near the radio.
Press the control to lock or unlock
the doors. When the light on the
button is on it indicates that all
doors and the luggage compartment
are locked. When the light is off it
indicates one or more doors are unlocked.
Rear Door Unlocking and Opening
Pull the interior door release handle twice to unlock and open the rear
door. The first pull unlocks the door and the second pull will unlatch the
door.
Central locking/unlocking
To centrally lock/unlock all doors (from the driver’s side only) using the
key from the outside when they are closed:
• Turn the key counterclockwise to lock all doors. The turn signal lamps
will flash once.
• Turn the key clockwise to unlock all doors. The turn signal lamps will
flash once.
If the central locking function fails to
operate, the doors can be individually locked
using the key in the position shown.
On the driver’s side, turn the key clockwise
to lock, and on the passenger’s side turn the
key counterclockwise to lock.
Locks and Security 161
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

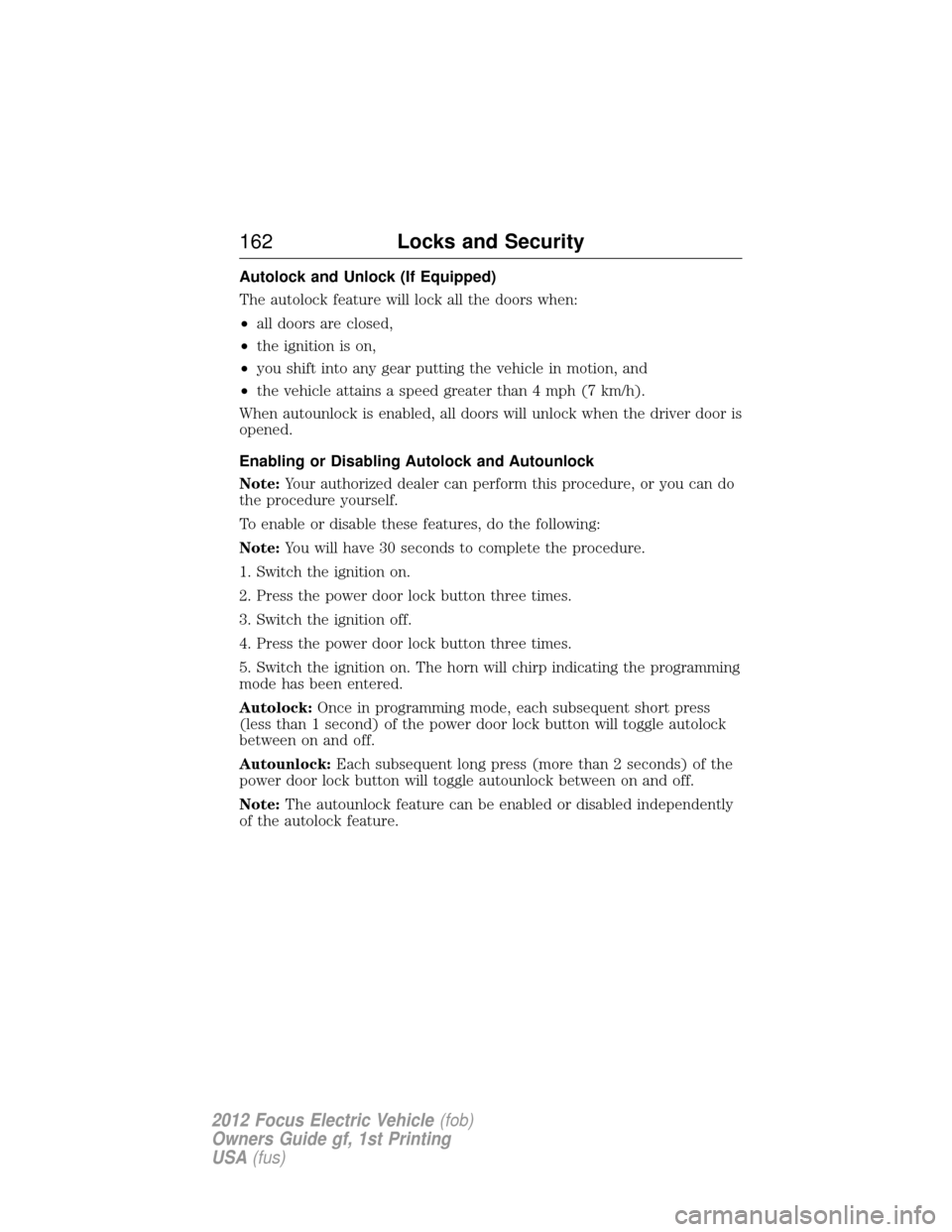

Autolock and Unlock (If Equipped)
The autolock feature will lock all the doors when:
•all doors are closed,
• the ignition is on,
• you shift into any gear putting the vehicle in motion, and
• the vehicle attains a speed greater than 4 mph (7 km/h).
When autounlock is enabled, all doors will unlock when the driver door is
opened.
Enabling or Disabling Autolock and Autounlock
Note: Your authorized dealer can perform this procedure, or you can do
the procedure yourself.
To enable or disable these features, do the following:
Note: You will have 30 seconds to complete the procedure.
1. Switch the ignition on.
2. Press the power door lock button three times.
3. Switch the ignition off.
4. Press the power door lock button three times.
5. Switch the ignition on. The horn will chirp indicating the programming
mode has been entered.
Autolock: Once in programming mode, each subsequent short press
(less than 1 second) of the power door lock button will toggle autolock
between on and off.
Autounlock: Each subsequent long press (more than 2 seconds) of the
power door lock button will toggle autounlock between on and off.
Note: The autounlock feature can be enabled or disabled independently
of the autolock feature.
162 Locks and Security
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

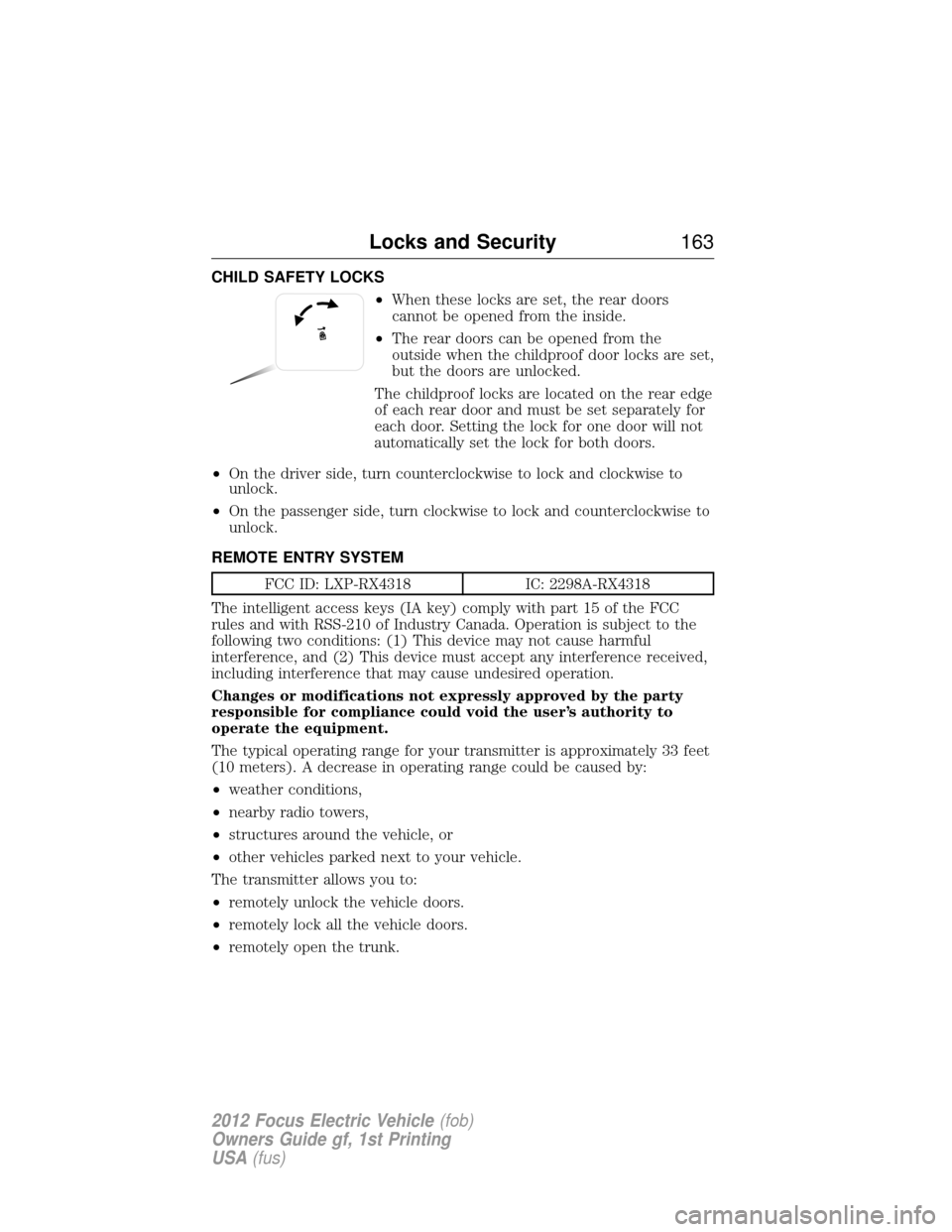

CHILD SAFETY LOCKS•When these locks are set, the rear doors
cannot be opened from the inside.
• The rear doors can be opened from the
outside when the childproof door locks are set,
but the doors are unlocked.
The childproof locks are located on the rear edge
of each rear door and must be set separately for
each door. Setting the lock for one door will not
automatically set the lock for both doors.
• On the driver side, turn counterclockwise to lock and clockwise to
unlock.
• On the passenger side, turn clockwise to lock and counterclockwise to
unlock.
REMOTE ENTRY SYSTEM
FCC ID: LXP-RX4318 IC: 2298A-RX4318
The intelligent access keys (IA key) comply with part 15 of the FCC
rules and with RSS-210 of Industry Canada. Operation is subject to the
following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
The typical operating range for your transmitter is approximately 33 feet
(10 meters). A decrease in operating range could be caused by:
• weather conditions,
• nearby radio towers,
• structures around the vehicle, or
• other vehicles parked next to your vehicle.
The transmitter allows you to:
• remotely unlock the vehicle doors.
• remotely lock all the vehicle doors.
• remotely open the trunk.
Locks and Security 163
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

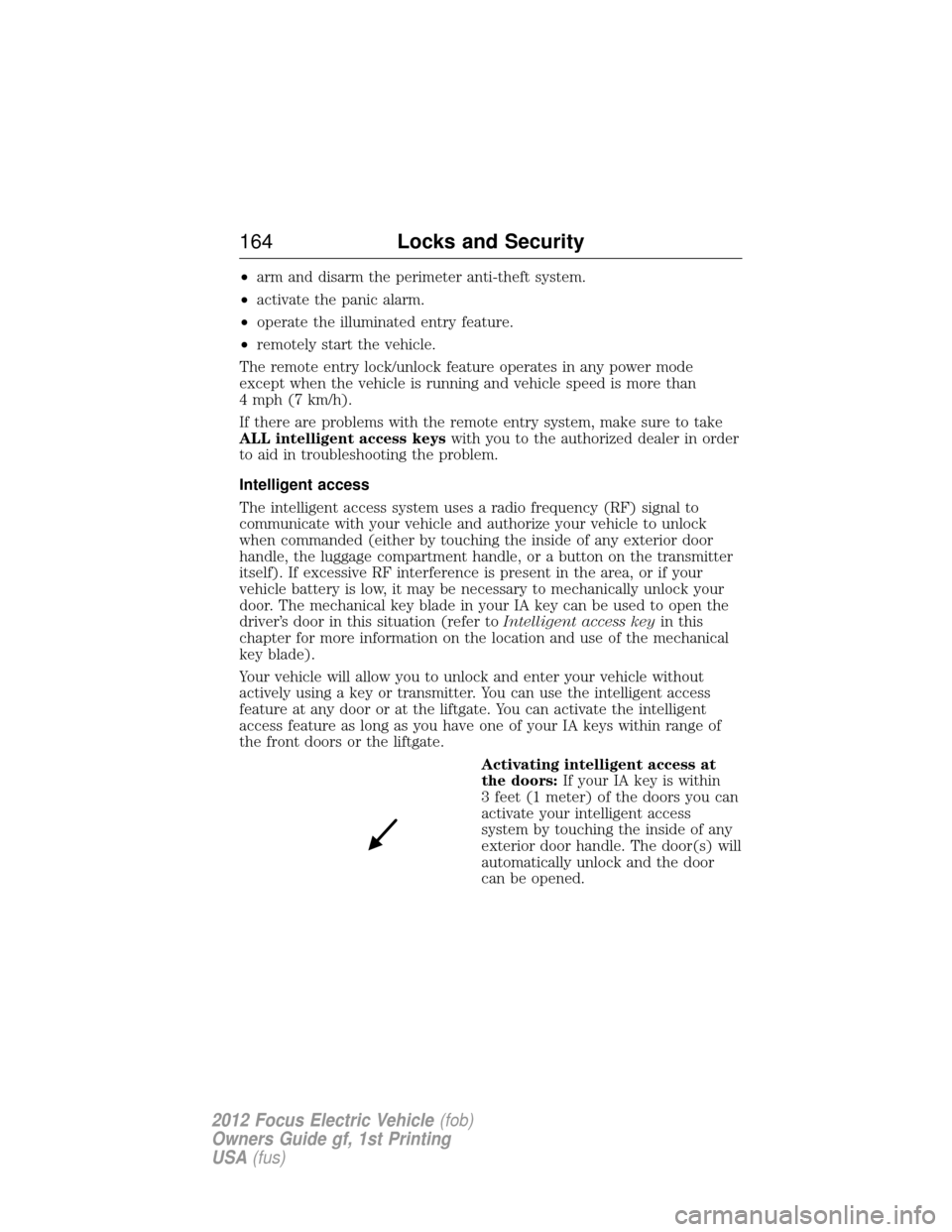

•arm and disarm the perimeter anti-theft system.
• activate the panic alarm.
• operate the illuminated entry feature.
• remotely start the vehicle.
The remote entry lock/unlock feature operates in any power mode
except when the vehicle is running and vehicle speed is more than
4 mph (7 km/h).
If there are problems with the remote entry system, make sure to take
ALL intelligent access keys with you to the authorized dealer in order
to aid in troubleshooting the problem.
Intelligent access
The intelligent access system uses a radio frequency (RF) signal to
communicate with your vehicle and authorize your vehicle to unlock
when commanded (either by touching the inside of any exterior door
handle, the luggage compartment handle, or a button on the transmitter
itself). If excessive RF interference is present in the area, or if your
vehicle battery is low, it may be necessary to mechanically unlock your
door. The mechanical key blade in your IA key can be used to open the
driver’s door in this situation (refer to Intelligent access keyin this
chapter for more information on the location and use of the mechanical
key blade).
Your vehicle will allow you to unlock and enter your vehicle without
actively using a key or transmitter. You can use the intelligent access
feature at any door or at the liftgate. You can activate the intelligent
access feature as long as you have one of your IA keys within range of
the front doors or the liftgate.
Activating intelligent access at
the doors:If your IA key is within
3 feet (1 meter) of the doors you can
activate your intelligent access
system by touching the inside of any
exterior door handle. The door(s) will
automatically unlock and the door
can be opened.
164 Locks and Security
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

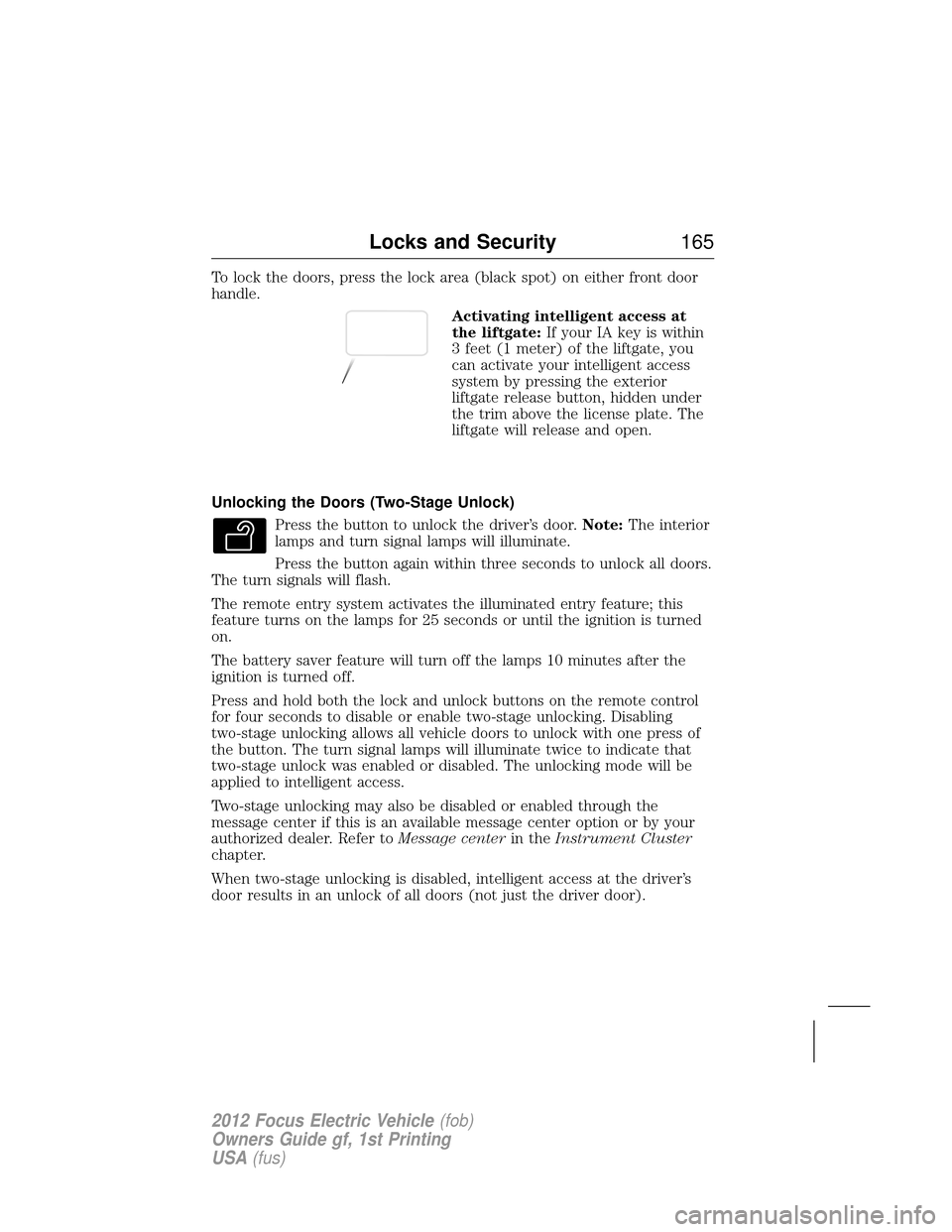

To lock the doors, press the lock area (black spot) on either front door
handle.Activating intelligent access at
the liftgate:If your IA key is within
3 feet (1 meter) of the liftgate, you
can activate your intelligent access
system by pressing the exterior
liftgate release button, hidden under
the trim above the license plate. The
liftgate will release and open.
Unlocking the Doors (Two-Stage Unlock) Press the button to unlock the driver’s door. Note:The interior
lamps and turn signal lamps will illuminate.
Press the button again within three seconds to unlock all doors.
The turn signals will flash.
The remote entry system activates the illuminated entry feature; this
feature turns on the lamps for 25 seconds or until the ignition is turned
on.
The battery saver feature will turn off the lamps 10 minutes after the
ignition is turned off.
Press and hold both the lock and unlock buttons on the remote control
for four seconds to disable or enable two-stage unlocking. Disabling
two-stage unlocking allows all vehicle doors to unlock with one press of
the button. The turn signal lamps will illuminate twice to indicate that
two-stage unlock was enabled or disabled. The unlocking mode will be
applied to intelligent access.
Two-stage unlocking may also be disabled or enabled through the
message center if this is an available message center option or by your
authorized dealer. Refer to Message centerin theInstrument Cluster
chapter.
When two-stage unlocking is disabled, intelligent access at the driver’s
door results in an unlock of all doors (not just the driver door).
Locks and Security 165
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

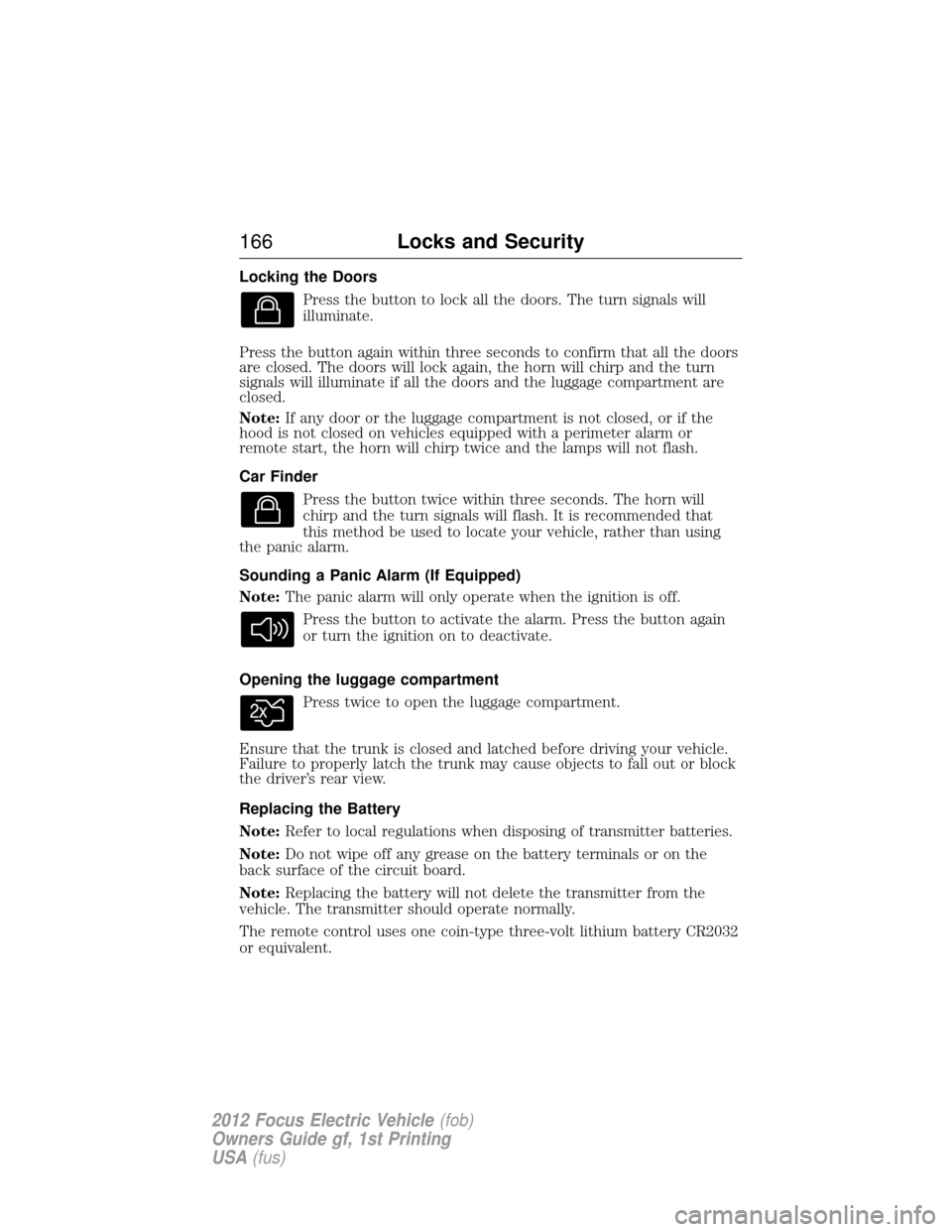

Locking the DoorsPress the button to lock all the doors. The turn signals will
illuminate.
Press the button again within three seconds to confirm that all the doors
are closed. The doors will lock again, the horn will chirp and the turn
signals will illuminate if all the doors and the luggage compartment are
closed.
Note: If any door or the luggage compartment is not closed, or if the
hood is not closed on vehicles equipped with a perimeter alarm or
remote start, the horn will chirp twice and the lamps will not flash.
Car Finder
Press the button twice within three seconds. The horn will
chirp and the turn signals will flash. It is recommended that
this method be used to locate your vehicle, rather than using
the panic alarm.
Sounding a Panic Alarm (If Equipped)
Note: The panic alarm will only operate when the ignition is off.
Press the button to activate the alarm. Press the button again
or turn the ignition on to deactivate.
Opening the luggage compartment Press twice to open the luggage compartment.
Ensure that the trunk is closed and latched before driving your vehicle.
Failure to properly latch the trunk may cause objects to fall out or block
the driver’s rear view.
Replacing the Battery
Note: Refer to local regulations when disposing of transmitter batteries.
Note: Do not wipe off any grease on the battery terminals or on the
back surface of the circuit board.
Note: Replacing the battery will not delete the transmitter from the
vehicle. The transmitter should operate normally.
The remote control uses one coin-type three-volt lithium battery CR2032
or equivalent.
166 Locks and Security
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

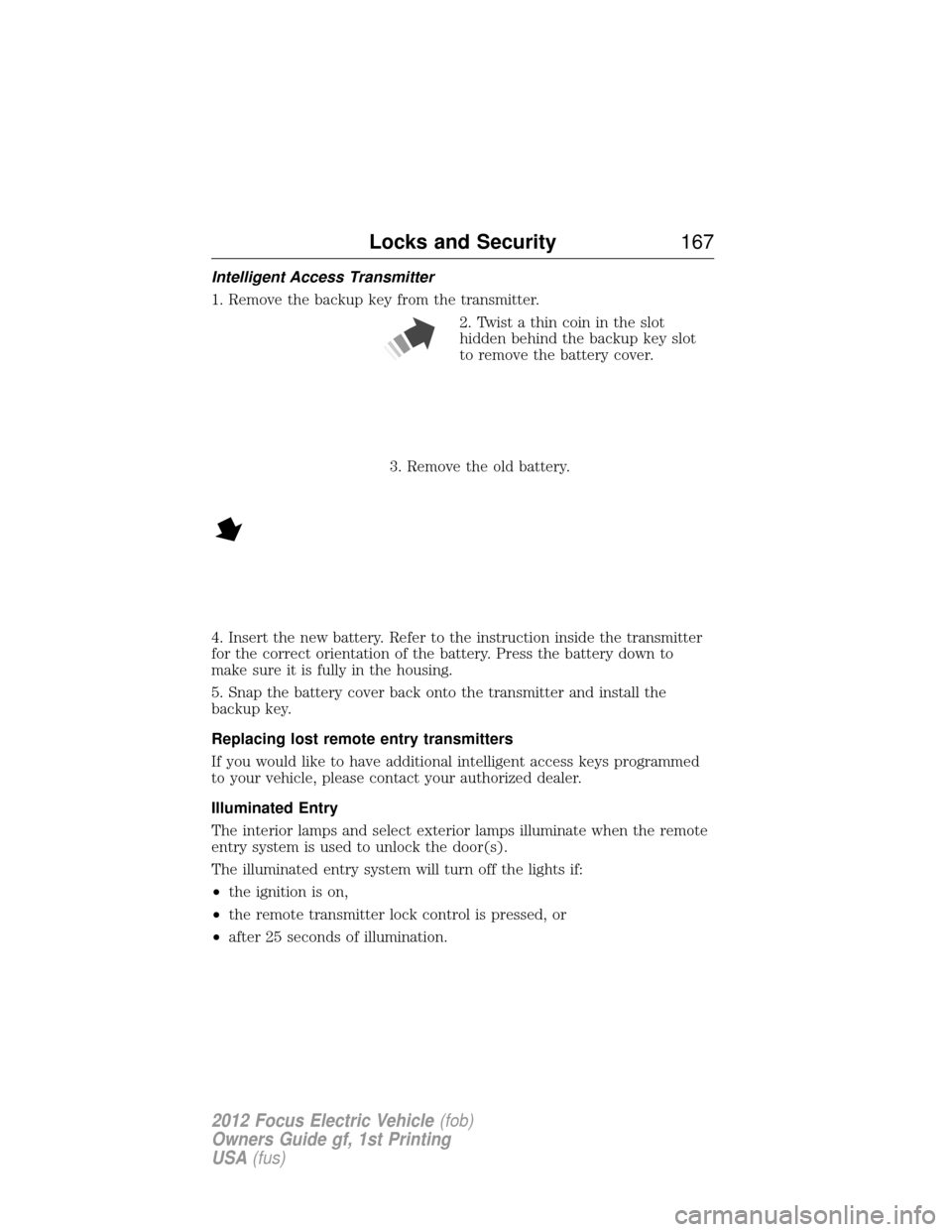

Intelligent Access Transmitter
1. Remove the backup key from the transmitter.2. Twist a thin coin in the slot
hidden behind the backup key slot
to remove the battery cover.
3. Remove the old battery.
4. Insert the new battery. Refer to the instruction inside the transmitter
for the correct orientation of the battery. Press the battery down to
make sure it is fully in the housing.
5. Snap the battery cover back onto the transmitter and install the
backup key.
Replacing lost remote entry transmitters
If you would like to have additional intelligent access keys programmed
to your vehicle, please contact your authorized dealer.
Illuminated Entry
The interior lamps and select exterior lamps illuminate when the remote
entry system is used to unlock the door(s).
The illuminated entry system will turn off the lights if:
• the ignition is on,
• the remote transmitter lock control is pressed, or
• after 25 seconds of illumination.
Locks and Security 167
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

The lights will not turn off if:
•they have been turned on with the dimmer control, or
• any door is open.
Illuminated exit
The interior dome lamps and parking lamps will illuminate when all
doors are closed and the vehicle is turned off.
The lamps will turn off if all the doors remain closed and:
• 25 seconds elapse
• the POWER button is pressed.
Battery saver
The battery saver will shut off the lamps 10 minutes after the vehicle has
been turned off.
• If the dome lamps were turned on using the panel dimmer control, the
battery saver will shut them off 10 minutes after the vehicle has been
turned off.
• If the courtesy lamps were turned on because one of the vehicle doors
or the trunk was opened, the battery saver will shut them off
10 minutes after the vehicle has been turned off.
• The battery saver will shut off the headlamps 10 minutes after the
vehicle has been turned off.
Accessory mode battery saver
Accessory mode will shut off after 30 minutes.
Remote Start Your vehicle has remote start if the transmitter has this button.
The remote start feature allows you to start the vehicle from outside the
vehicle. The transmitter has an extended operating range.
Vehicles with automatic climate control can be configured to operate
when the vehicle is remote started. Refer to the Climate Control
chapter for more information.
Many states and provinces have restrictions for the use of remote start.
Check your local and state or provincial laws for specific requirements
regarding remote start systems.
168 Locks and Security
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

The remote start system will not work if:
•the vehicle is on
• the alarm system is triggered
• the feature has been disabled
• the hood is not closed
• two remote vehicle starts have already been attempted within the last
hour
• the vehicle is not in P (Park)
• the vehicle battery voltage is too low
• the powertrain malfunction/reduced power indicator was on the last
time the vehicle was driven.
Remote Starting the Vehicle
Note: Each button press must be done within three seconds of each
other. The vehicle will not remote start if this sequence is not followed
and the horn will not chirp.
The label on your transmitter
details the starting procedure. To
remote start the vehicle:
1. Press the lock button to lock all the doors.
2. Press the remote start button twice. The exterior lamps will flash
twice.
The horn will chirp if the system fails to start (unless quiet start is on).
Quiet start will run the blower fan at a slower speed to reduce noise. It
can be switched on or off. Refer to the Message centerin the
Instrument Cluster chapter.
Note: If the vehicle has been remote started you must press the
START/STOP button on the instrument panel once while applying the
brake pedal before driving the vehicle.
Locks and Security 169
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

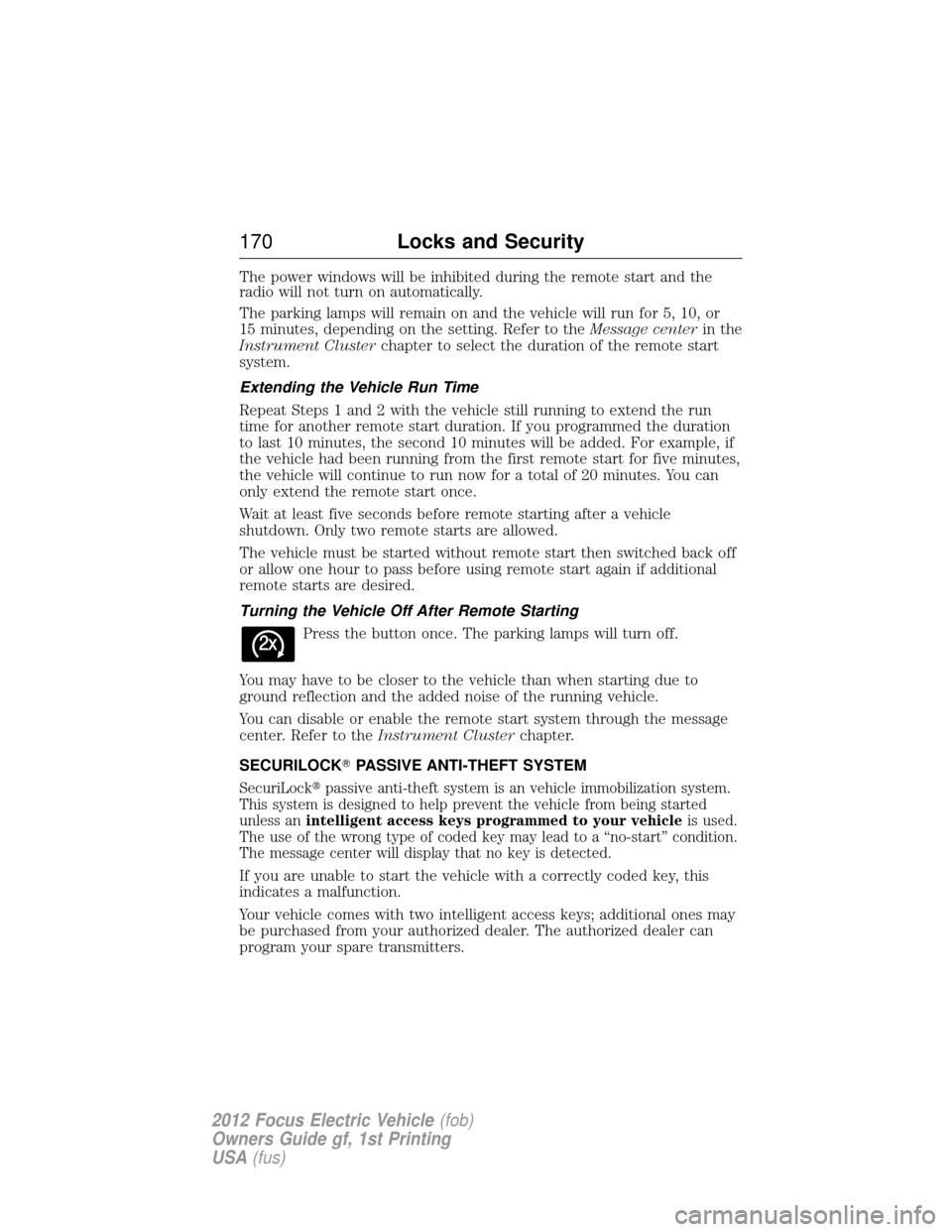

The power windows will be inhibited during the remote start and the
radio will not turn on automatically.
The parking lamps will remain on and the vehicle will run for 5, 10, or
15 minutes, depending on the setting. Refer to theMessage centerin the
Instrument Cluster chapter to select the duration of the remote start
system.
Extending the Vehicle Run Time
Repeat Steps 1 and 2 with the vehicle still running to extend the run
time for another remote start duration. If you programmed the duration
to last 10 minutes, the second 10 minutes will be added. For example, if
the vehicle had been running from the first remote start for five minutes,
the vehicle will continue to run now for a total of 20 minutes. You can
only extend the remote start once.
Wait at least five seconds before remote starting after a vehicle
shutdown. Only two remote starts are allowed.
The vehicle must be started without remote start then switched back off
or allow one hour to pass before using remote start again if additional
remote starts are desired.
Turning the Vehicle Off After Remote Starting
Press the button once. The parking lamps will turn off.
You may have to be closer to the vehicle than when starting due to
ground reflection and the added noise of the running vehicle.
You can disable or enable the remote start system through the message
center. Refer to the Instrument Cluster chapter.
SECURILOCK PASSIVE ANTI-THEFT SYSTEM
SecuriLockpassive anti-theft system is an vehicle immobilization system.
This system is designed to help prevent the vehicle from being started
unless an intelligent access keys programmed to your vehicle is used.
The use of the wrong type of coded key may lead to a “no-start” condition.
The message center will display that no key is detected.
If you are unable to start the vehicle with a correctly coded key, this
indicates a malfunction.
Your vehicle comes with two intelligent access keys; additional ones may
be purchased from your authorized dealer. The authorized dealer can
program your spare transmitters.
170 Locks and Security
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)
