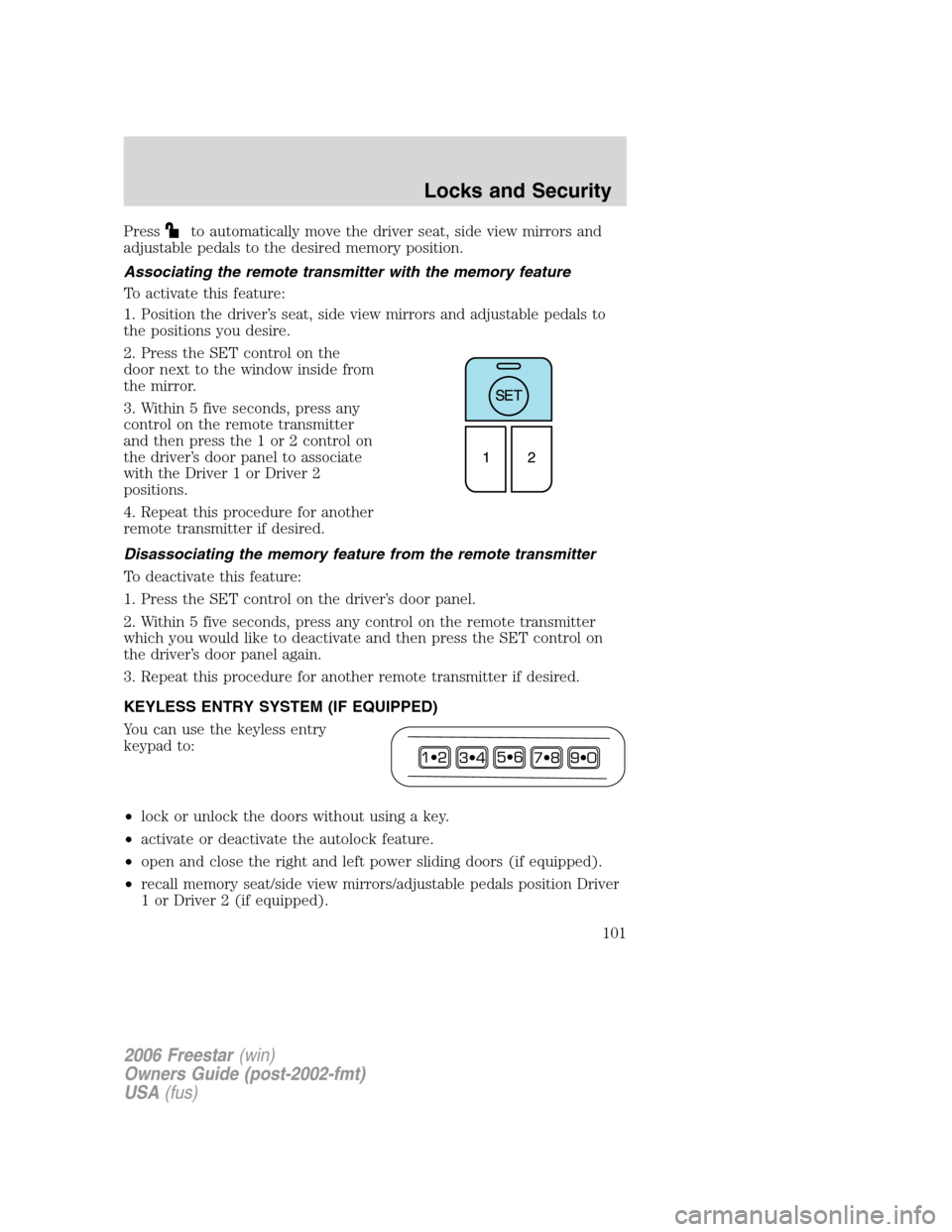

Pressto automatically move the driver seat, side view mirrors and
adjustable pedals to the desired memory position.
Associating the remote transmitter with the memory feature
To activate this feature:
1. Position the driver’s seat, side view mirrors and adjustable pedals to
the positions you desire.
2. Press the SET control on the
door next to the window inside from
the mirror.
3. Within 5 five seconds, press any
control on the remote transmitter
and then press the 1 or 2 control on
the driver’s door panel to associate
with the Driver 1 or Driver 2
positions.
4. Repeat this procedure for another
remote transmitter if desired.
Disassociating the memory feature from the remote transmitter
To deactivate this feature:
1. Press the SET control on the driver’s door panel.
2. Within 5 five seconds, press any control on the remote transmitter
which you would like to deactivate and then press the SET control on
the driver’s door panel again.
3. Repeat this procedure for another remote transmitter if desired.
KEYLESS ENTRY SYSTEM (IF EQUIPPED)
You can use the keyless entry
keypad to:
•lock or unlock the doors without using a key.
•activate or deactivate the autolock feature.
•open and close the right and left power sliding doors (if equipped).
•recall memory seat/side view mirrors/adjustable pedals position Driver
1 or Driver 2 (if equipped).
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
101

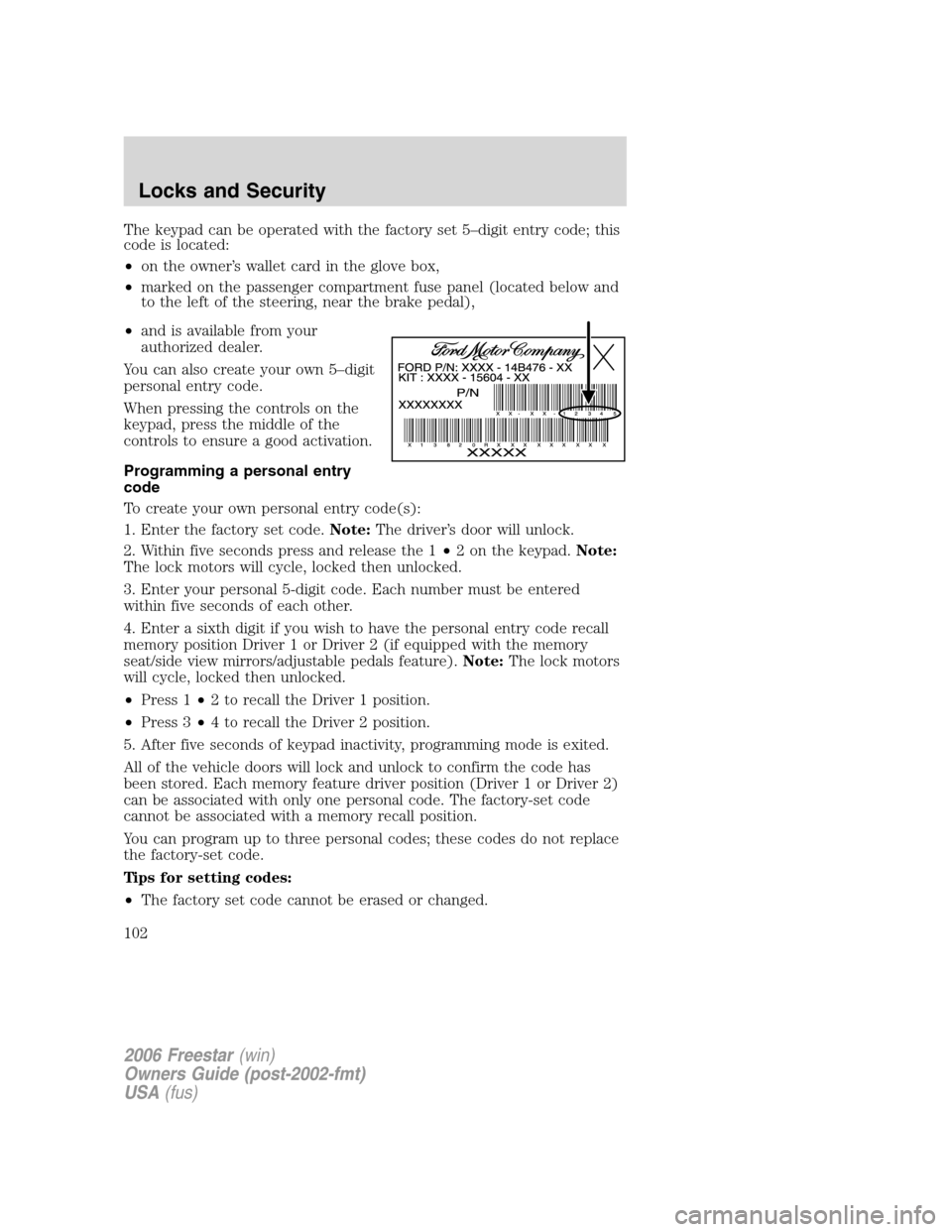

The keypad can be operated with the factory set 5–digit entry code; this
code is located:
•on the owner’s wallet card in the glove box,
•marked on the passenger compartment fuse panel (located below and
to the left of the steering, near the brake pedal),
•and is available from your
authorized dealer.
You can also create your own 5–digit
personal entry code.
When pressing the controls on the
keypad, press the middle of the
controls to ensure a good activation.
Programming a personal entry
code
To create your own personal entry code(s):
1. Enter the factory set code.Note:The driver’s door will unlock.
2. Within five seconds press and release the 1•2 on the keypad.Note:
The lock motors will cycle, locked then unlocked.
3. Enter your personal 5-digit code. Each number must be entered
within five seconds of each other.
4. Enter a sixth digit if you wish to have the personal entry code recall
memory position Driver 1 or Driver 2 (if equipped with the memory
seat/side view mirrors/adjustable pedals feature).Note:The lock motors
will cycle, locked then unlocked.
•Press 1•2 to recall the Driver 1 position.
•Press 3•4 to recall the Driver 2 position.
5. After five seconds of keypad inactivity, programming mode is exited.
All of the vehicle doors will lock and unlock to confirm the code has
been stored. Each memory feature driver position (Driver 1 or Driver 2)
can be associated with only one personal code. The factory-set code
cannot be associated with a memory recall position.
You can program up to three personal codes; these codes do not replace
the factory-set code.
Tips for setting codes:
•The factory set code cannot be erased or changed.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
102

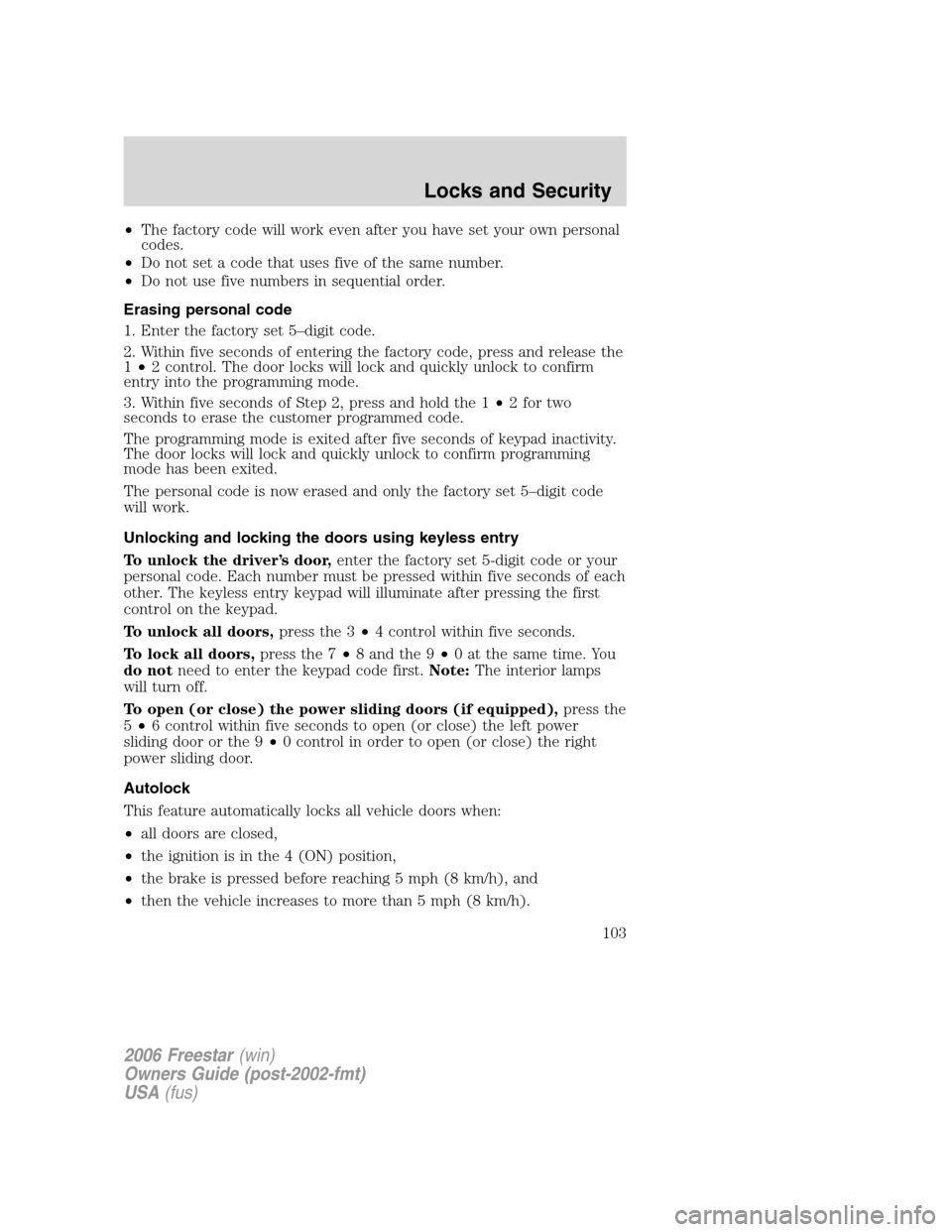

•The factory code will work even after you have set your own personal
codes.
•Do not set a code that uses five of the same number.
•Do not use five numbers in sequential order.
Erasing personal code
1. Enter the factory set 5–digit code.
2. Within five seconds of entering the factory code, press and release the
1•2 control. The door locks will lock and quickly unlock to confirm
entry into the programming mode.
3. Within five seconds of Step 2, press and hold the 1•2 for two
seconds to erase the customer programmed code.
The programming mode is exited after five seconds of keypad inactivity.
The door locks will lock and quickly unlock to confirm programming
mode has been exited.
The personal code is now erased and only the factory set 5–digit code
will work.
Unlocking and locking the doors using keyless entry
To unlock the driver’s door,enter the factory set 5-digit code or your
personal code. Each number must be pressed within five seconds of each
other. The keyless entry keypad will illuminate after pressing the first
control on the keypad.
To unlock all doors,press the 3•4 control within five seconds.
To lock all doors,press the 7•8 and the 9•0 at the same time. You
do notneed to enter the keypad code first.Note:The interior lamps
will turn off.
To open (or close) the power sliding doors (if equipped),press the
5•6 control within five seconds to open (or close) the left power
sliding door or the 9•0 control in order to open (or close) the right
power sliding door.
Autolock
This feature automatically locks all vehicle doors when:
•all doors are closed,
•the ignition is in the 4 (ON) position,
•the brake is pressed before reaching 5 mph (8 km/h), and
•then the vehicle increases to more than 5 mph (8 km/h).
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
103

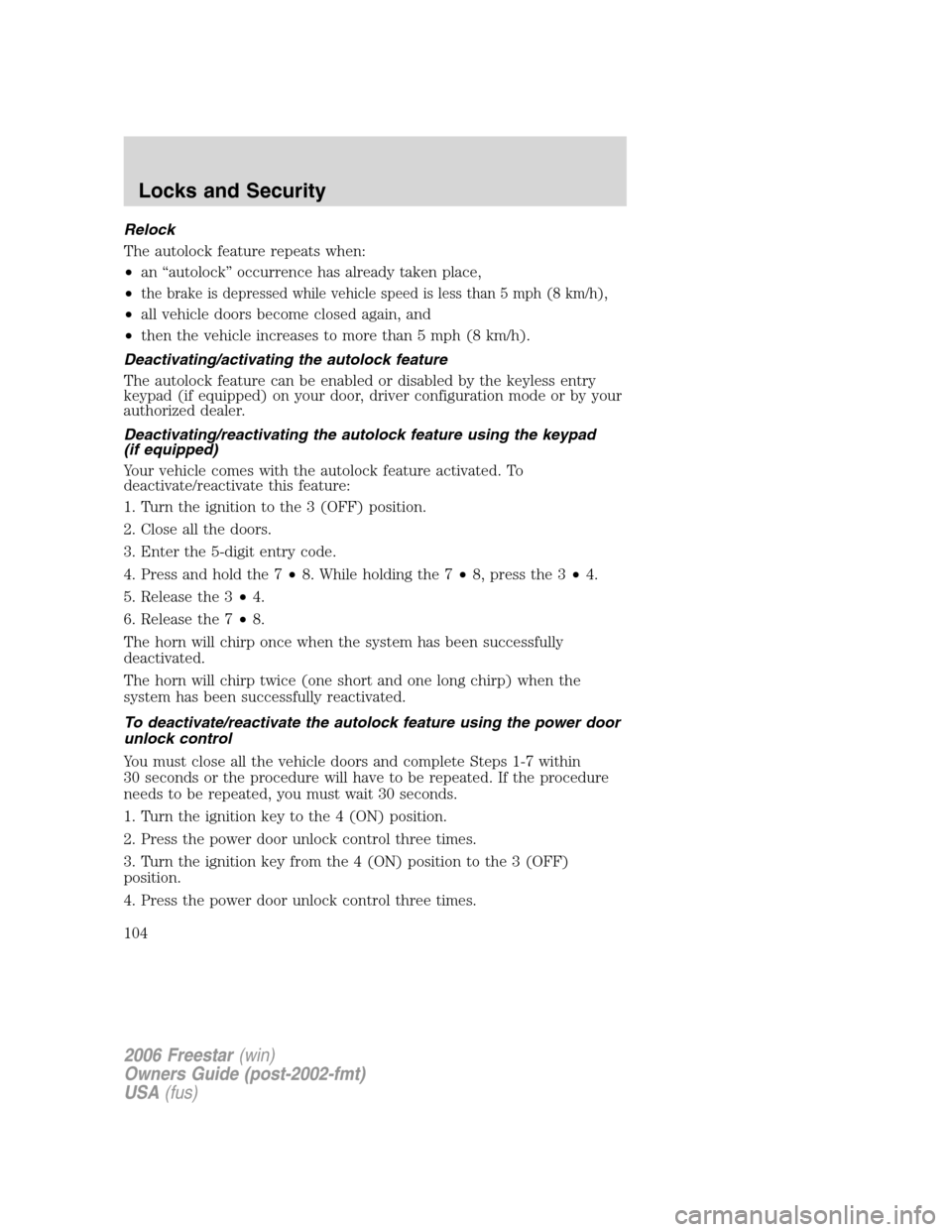

Relock
The autolock feature repeats when:
•an “autolock” occurrence has already taken place,
•
the brake is depressed while vehicle speed is less than 5 mph (8 km/h),
•all vehicle doors become closed again, and
•then the vehicle increases to more than 5 mph (8 km/h).
Deactivating/activating the autolock feature
The autolock feature can be enabled or disabled by the keyless entry
keypad (if equipped) on your door, driver configuration mode or by your
authorized dealer.
Deactivating/reactivating the autolock feature using the keypad
(if equipped)
Your vehicle comes with the autolock feature activated. To
deactivate/reactivate this feature:
1. Turn the ignition to the 3 (OFF) position.
2. Close all the doors.
3. Enter the 5-digit entry code.
4. Press and hold the 7•8. While holding the 7•8, press the 3•4.
5. Release the 3•4.
6. Release the 7•8.
The horn will chirp once when the system has been successfully
deactivated.
The horn will chirp twice (one short and one long chirp) when the
system has been successfully reactivated.
To deactivate/reactivate the autolock feature using the power door
unlock control
You must close all the vehicle doors and complete Steps 1-7 within
30 seconds or the procedure will have to be repeated. If the procedure
needs to be repeated, you must wait 30 seconds.
1. Turn the ignition key to the 4 (ON) position.
2. Press the power door unlock control three times.
3. Turn the ignition key from the 4 (ON) position to the 3 (OFF)
position.
4. Press the power door unlock control three times.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
104

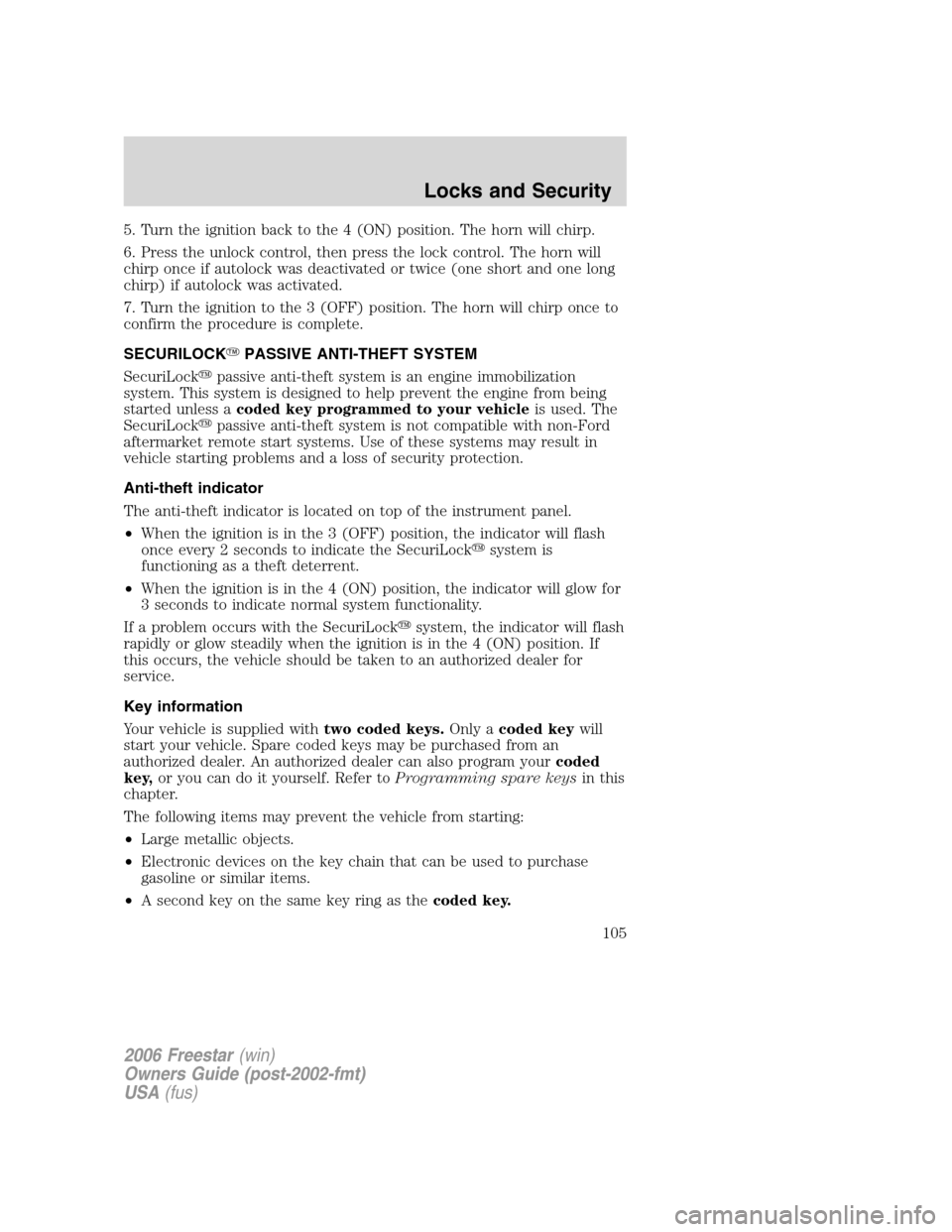

5. Turn the ignition back to the 4 (ON) position. The horn will chirp.
6. Press the unlock control, then press the lock control. The horn will
chirp once if autolock was deactivated or twice (one short and one long
chirp) if autolock was activated.
7. Turn the ignition to the 3 (OFF) position. The horn will chirp once to
confirm the procedure is complete.
SECURILOCKPASSIVE ANTI-THEFT SYSTEM
SecuriLock
passive anti-theft system is an engine immobilization
system. This system is designed to help prevent the engine from being
started unless acoded key programmed to your vehicleis used. The
SecuriLock
passive anti-theft system is not compatible with non-Ford
aftermarket remote start systems. Use of these systems may result in
vehicle starting problems and a loss of security protection.
Anti-theft indicator
The anti-theft indicator is located on top of the instrument panel.
•When the ignition is in the 3 (OFF) position, the indicator will flash
once every 2 seconds to indicate the SecuriLock
system is
functioning as a theft deterrent.
•When the ignition is in the 4 (ON) position, the indicator will glow for
3 seconds to indicate normal system functionality.
If a problem occurs with the SecuriLock
system, the indicator will flash
rapidly or glow steadily when the ignition is in the 4 (ON) position. If
this occurs, the vehicle should be taken to an authorized dealer for
service.
Key information
Your vehicle is supplied withtwo coded keys.Only acoded keywill
start your vehicle. Spare coded keys may be purchased from an
authorized dealer. An authorized dealer can also program yourcoded
key,or you can do it yourself. Refer toProgramming spare keysin this
chapter.
The following items may prevent the vehicle from starting:
•Large metallic objects.
•Electronic devices on the key chain that can be used to purchase
gasoline or similar items.
•A second key on the same key ring as thecoded key.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
105

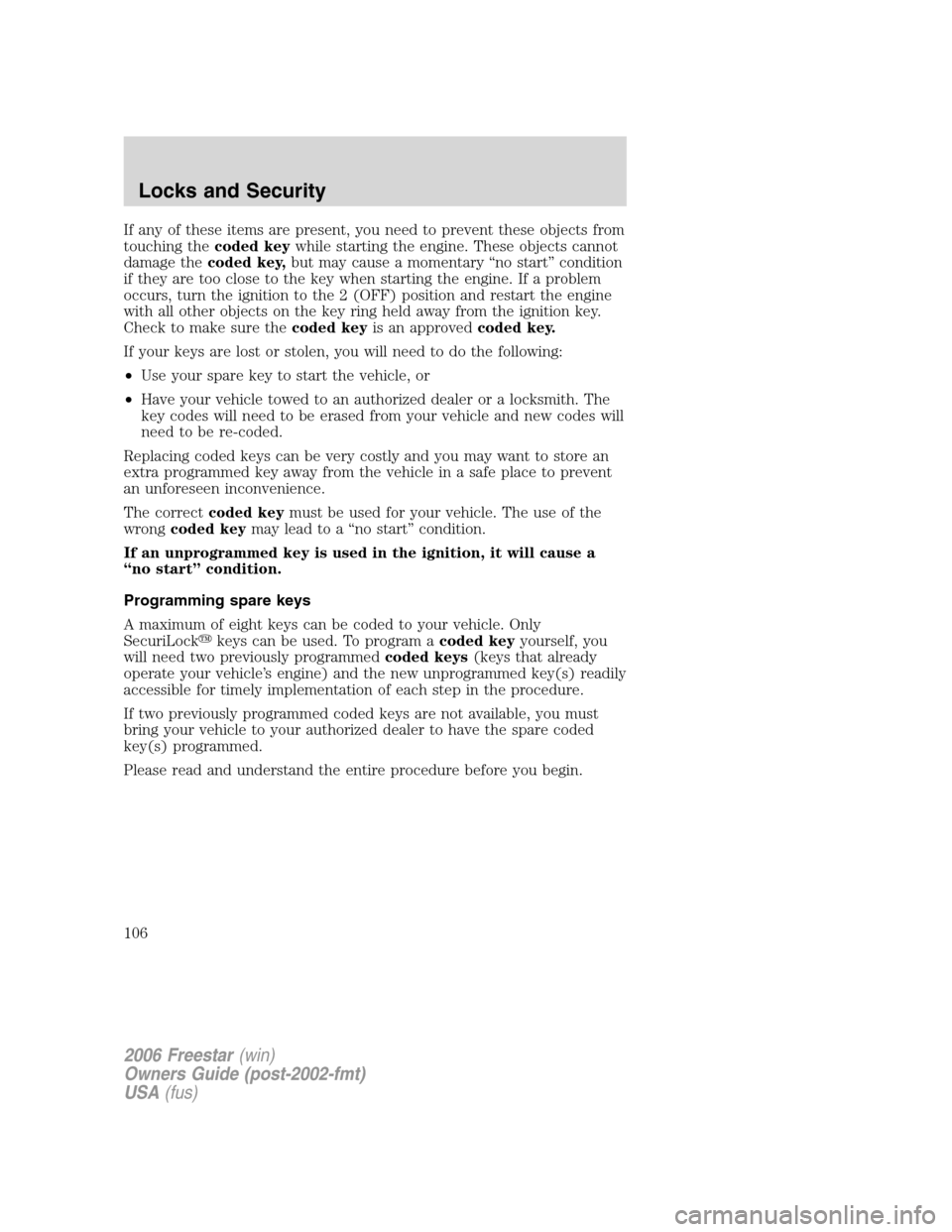

If any of these items are present, you need to prevent these objects from
touching thecoded keywhile starting the engine. These objects cannot
damage thecoded key,but may cause a momentary “no start” condition
if they are too close to the key when starting the engine. If a problem
occurs, turn the ignition to the 2 (OFF) position and restart the engine
with all other objects on the key ring held away from the ignition key.
Check to make sure thecoded keyis an approvedcoded key.
If your keys are lost or stolen, you will need to do the following:
•Use your spare key to start the vehicle, or
•Have your vehicle towed to an authorized dealer or a locksmith. The
key codes will need to be erased from your vehicle and new codes will
need to be re-coded.
Replacing coded keys can be very costly and you may want to store an
extra programmed key away from the vehicle in a safe place to prevent
an unforeseen inconvenience.
The correctcoded keymust be used for your vehicle. The use of the
wrongcoded keymay lead to a “no start” condition.
If an unprogrammed key is used in the ignition, it will cause a
“no start” condition.
Programming spare keys
A maximum of eight keys can be coded to your vehicle. Only
SecuriLock
keys can be used. To program acoded keyyourself, you
will need two previously programmedcoded keys(keys that already
operate your vehicle’s engine) and the new unprogrammed key(s) readily
accessible for timely implementation of each step in the procedure.
If two previously programmed coded keys are not available, you must
bring your vehicle to your authorized dealer to have the spare coded
key(s) programmed.
Please read and understand the entire procedure before you begin.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
106

1. Insert the first previously
programmedcoded keyinto the
ignition and turn the ignition from
the 3 (OFF) position to the 4 (ON)
position [maintain ignition in 4 (ON)
for at least three seconds, but no
more than ten seconds].
2. Turn ignition from the 4 (ON)
position back to the 3 (OFF)
position in order to remove the first
coded keyfrom the ignition.
3. Within ten seconds of removing the firstcoded key,insert the second
previously programmedcoded keyinto the ignition and turn the ignition
from the 3 (OFF) position to the 4 (ON) position [maintain ignition in
the 4 (ON) position for at least three seconds but no more than ten
seconds].
4. Turn the ignition from the 4 (ON) position back to the 3 (OFF)
position in order to remove the secondcoded keyfrom the ignition.
5. Within 10 seconds of removing the secondcoded key,insert the new
unprogrammed key (new key/valet key) into the ignition and turn the
ignition from the 3 (OFF) position to the 4 (ON) position [maintain
ignition in the 4 (ON) position for at least three seconds, but no more
than ten seconds]. This step will program your new key to a coded key.
6. To program additional new unprogrammed key(s), repeat this
procedure from step 1.
If successful, the new coded key(s) will start the vehicle’s engine and the
theft indicator will illuminate for three seconds and then go out.
If not successful, the new coded key(s) will not start the vehicle’s engine
and the theft indicator will flash on and off and you may repeat Steps 1
through 5. If failure repeats, bring your vehicle to your authorized dealer
to have the new spare key(s) programmed.
PERIMETER ALARM SYSTEM (IF EQUIPPED)
The perimeter anti-theft system will warn you in the event of an
unauthorized entry to your vehicle.
If there is any potential perimeter anti-theft problem with your vehicle,
ensureALL remote entry transmittersare taken to the authorized
dealer to aid in troubleshooting.
3
1
2
5
4
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
107

Arming the system
When armed, this system will help protect your vehicle from
unauthorized entry. When unauthorized entry occurs, the system will
flash the turn signal lamps and side repeaters and honk the horn.
The system is ready to arm whenever the key is removed from the
ignition. Any of the following actions will prearm the alarm system:
•Locking the vehicle using the remote entry transmitter.
•Locking the vehicle using the keyless entry keypad.
•Pressing the interior power door lock control while the door is open.
Twenty seconds after one of the above events occurs, any door/hood that
is closed is armed.
Any door/hood that is still open is prearmed and waiting for the
door/hood to be closed.
Once that input is closed, the input will arm in 20 seconds and the
exterior lamps may flash.
Disarming the system
You can disarm the system by any of the following actions:
•Unlock the vehicle with the remote keyless transmitter.
•Unlock the vehicle with the keyless entry keypad.
•Unlock the vehicle with a key in the driver’s door lock cylinder.
•Use a SecuriLock
key to move the ignition to the 4 (ON) or
5 (START) position.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
108

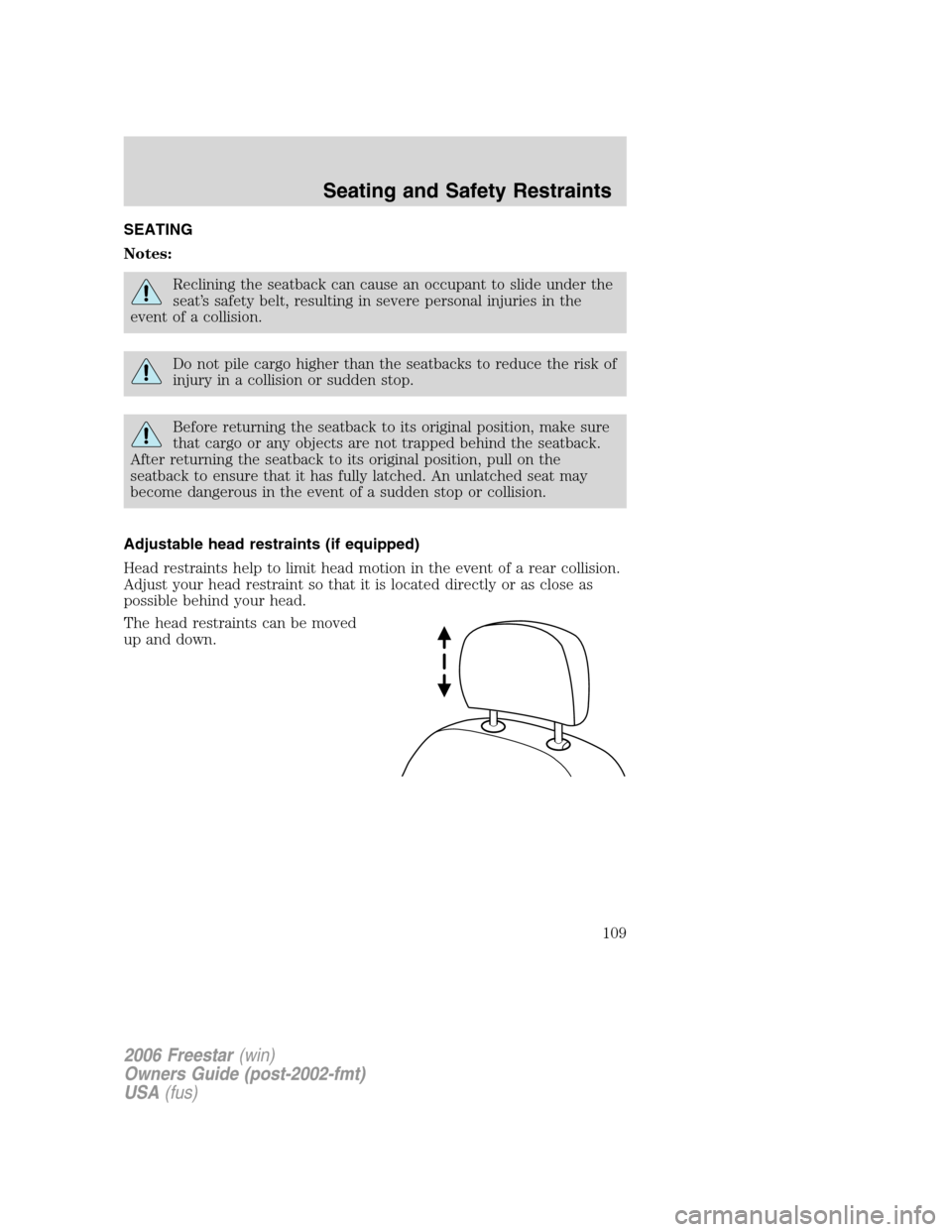

SEATING
Notes:
Reclining the seatback can cause an occupant to slide under the
seat’s safety belt, resulting in severe personal injuries in the
event of a collision.
Do not pile cargo higher than the seatbacks to reduce the risk of
injury in a collision or sudden stop.
Before returning the seatback to its original position, make sure
that cargo or any objects are not trapped behind the seatback.
After returning the seatback to its original position, pull on the
seatback to ensure that it has fully latched. An unlatched seat may
become dangerous in the event of a sudden stop or collision.
Adjustable head restraints (if equipped)
Head restraints help to limit head motion in the event of a rear collision.
Adjust your head restraint so that it is located directly or as close as
possible behind your head.
The head restraints can be moved
up and down.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
109

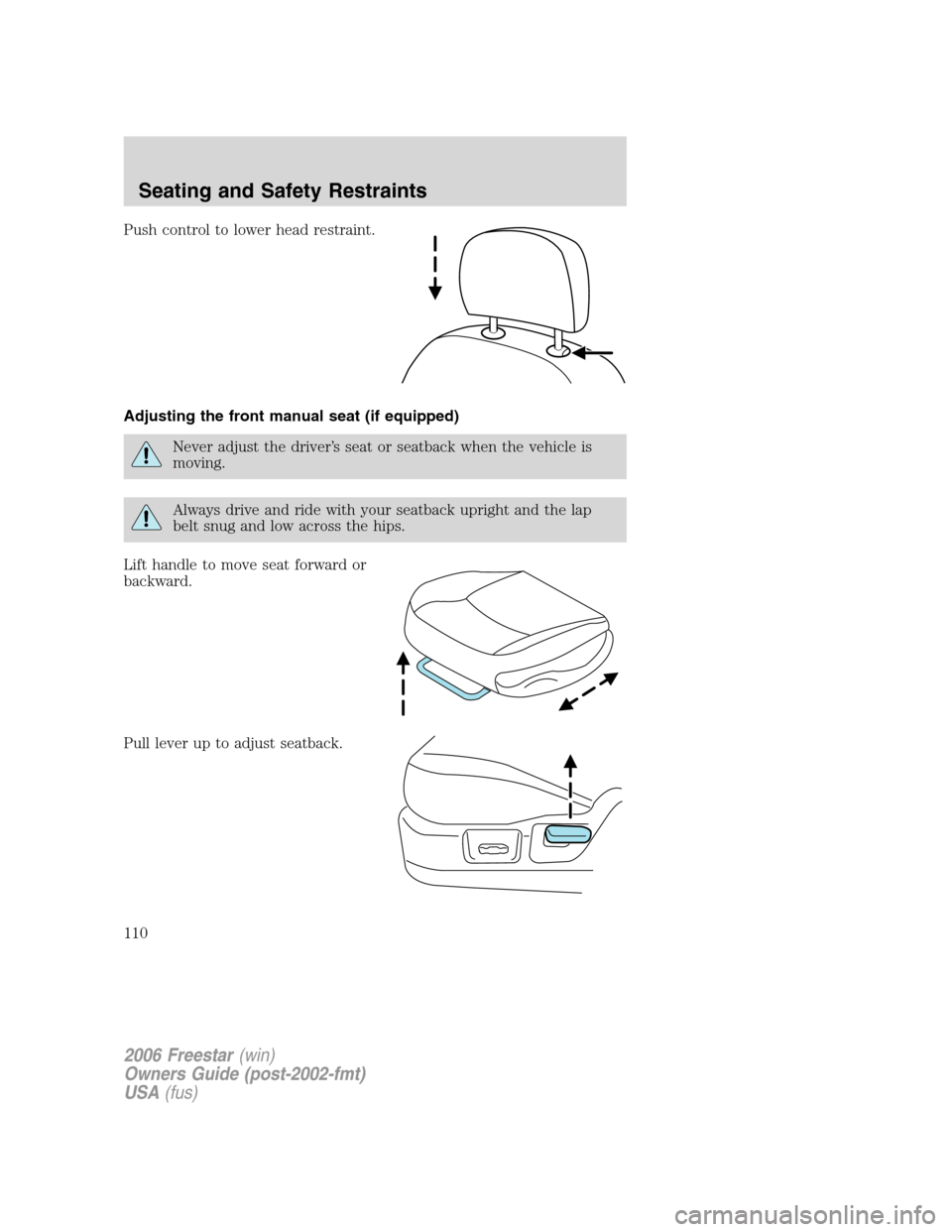

Push control to lower head restraint.
Adjusting the front manual seat (if equipped)
Never adjust the driver’s seat or seatback when the vehicle is
moving.
Always drive and ride with your seatback upright and the lap
belt snug and low across the hips.
Lift handle to move seat forward or
backward.
Pull lever up to adjust seatback.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
110
