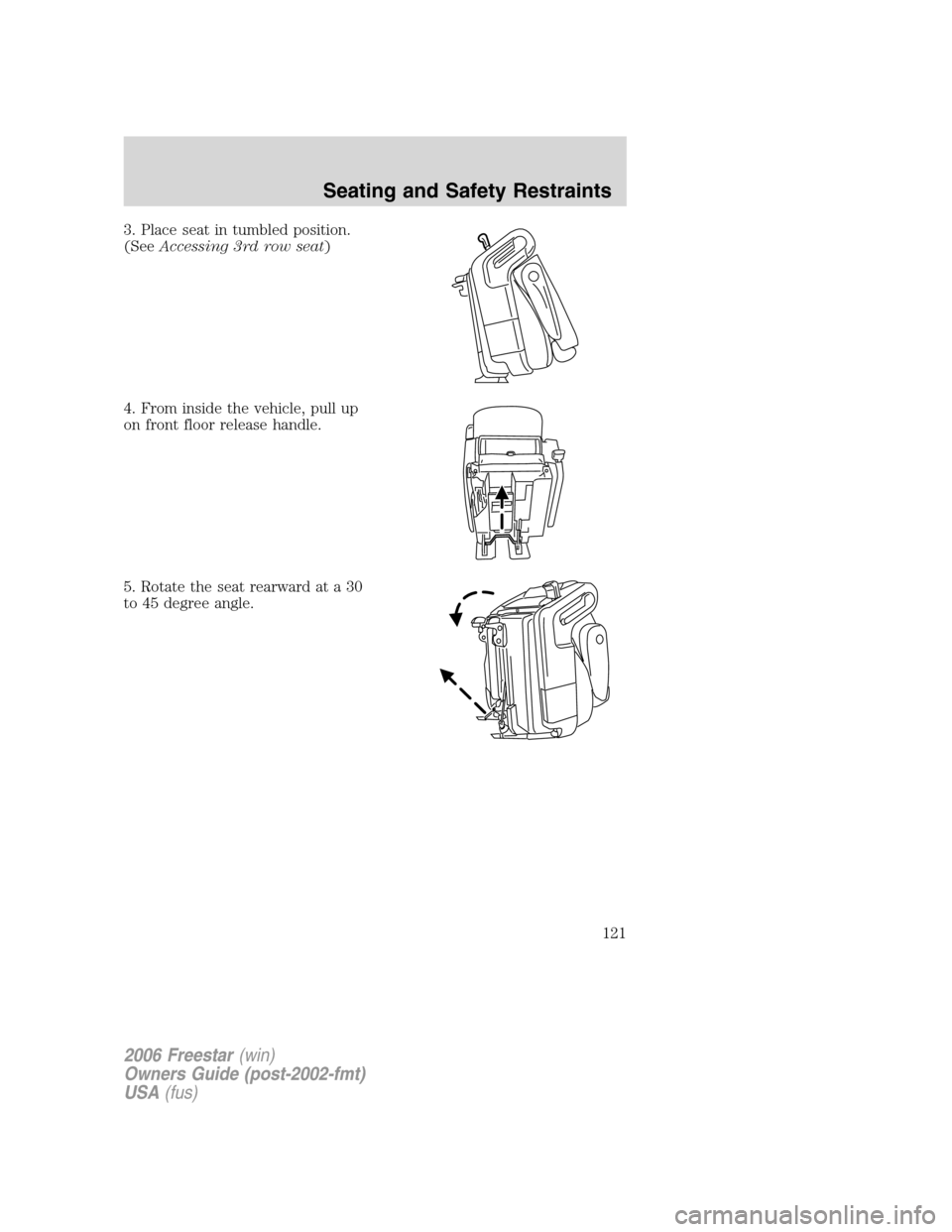

3. Place seat in tumbled position.
(SeeAccessing 3rd row seat)
4. From inside the vehicle, pull up
on front floor release handle.
5. Rotate the seat rearward at a 30
to 45 degree angle.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
121

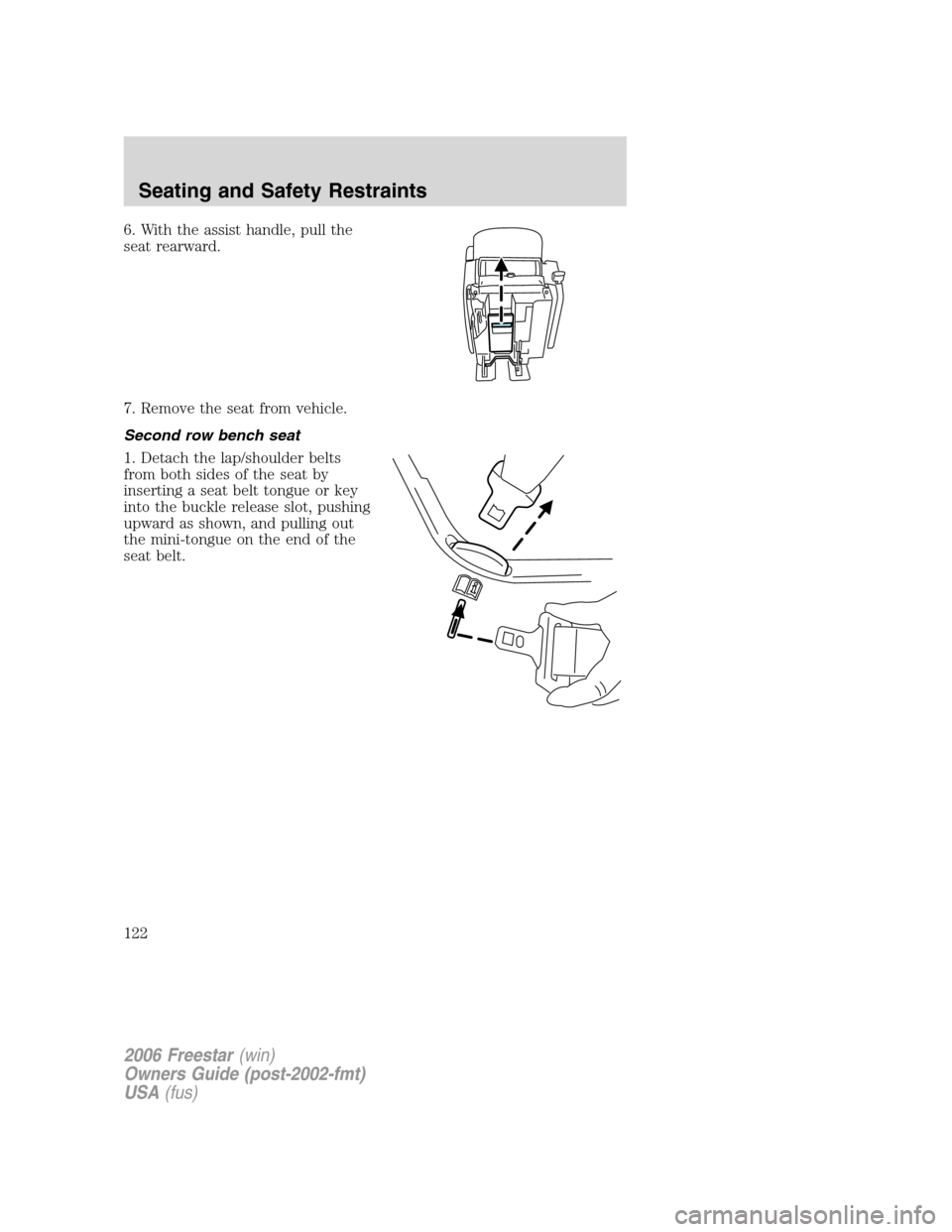

6. With the assist handle, pull the
seat rearward.
7. Remove the seat from vehicle.
Second row bench seat
1. Detach the lap/shoulder belts
from both sides of the seat by
inserting a seat belt tongue or key
into the buckle release slot, pushing
upward as shown, and pulling out
the mini-tongue on the end of the
seat belt.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
122

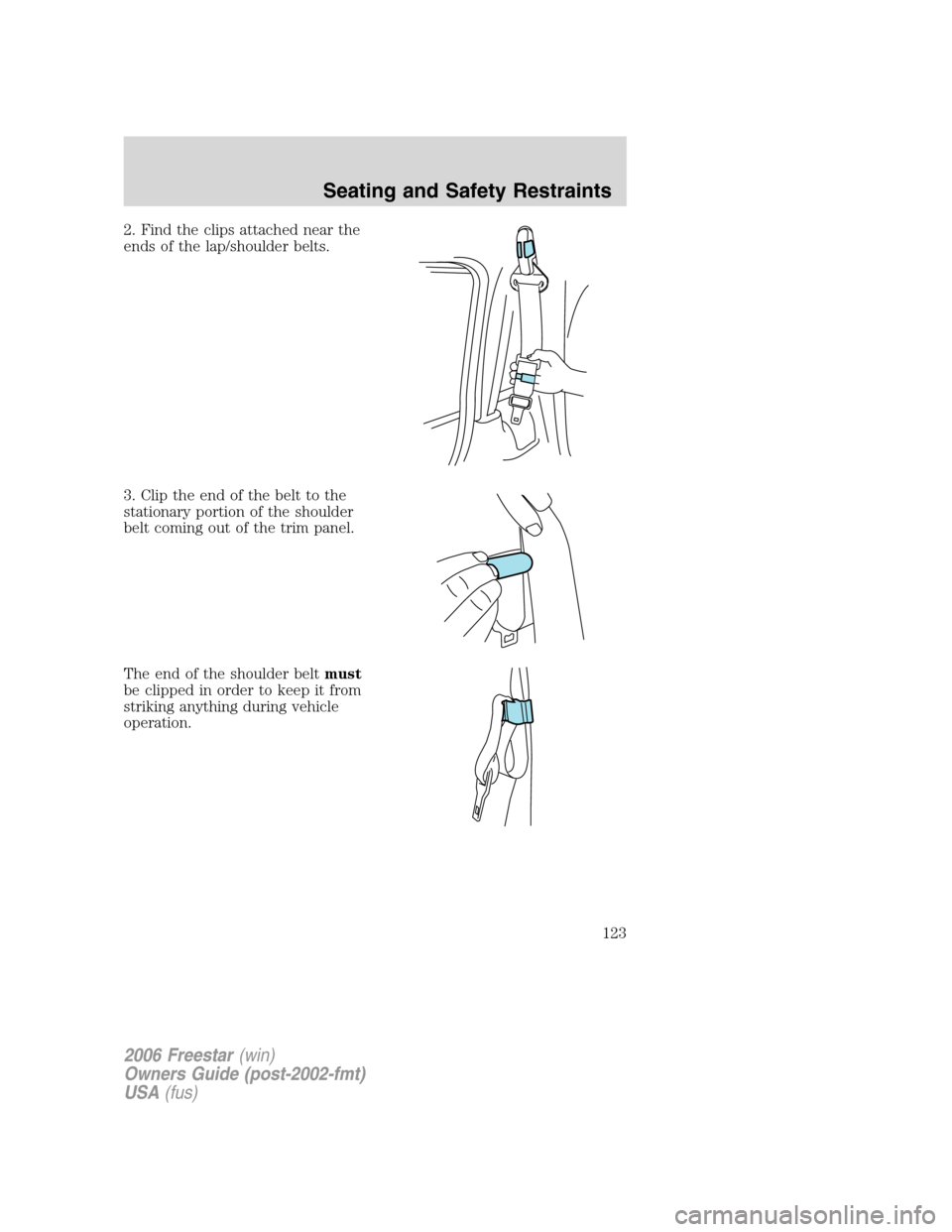

2. Find the clips attached near the
ends of the lap/shoulder belts.
3. Clip the end of the belt to the
stationary portion of the shoulder
belt coming out of the trim panel.
The end of the shoulder beltmust
be clipped in order to keep it from
striking anything during vehicle
operation.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
123

4. Position seatback in full down
position.
5. From behind seat pull straight
back on the release handles located
on each side of the seat, releasing
the rear floor latches.
6. Lift up the seat by the release
handles to clear the floor latches
and then pull the seat rearward
until the front hooks have come out
of the floor tubs.
7. Remove the seat.
Installation of second row seats
Second row bucket seats
Prior to installation, ensure that the seats are on the correct side of the
vehicle. Ensure that the seat is positioned so that the seat belt buckle is
near the center aisle of the vehicle. The seatback must be folded flat
prior to installation.
1. Position the seat in vehicle. Place
first row seat in a forward position
to allow the second row seat to be
installed.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
124

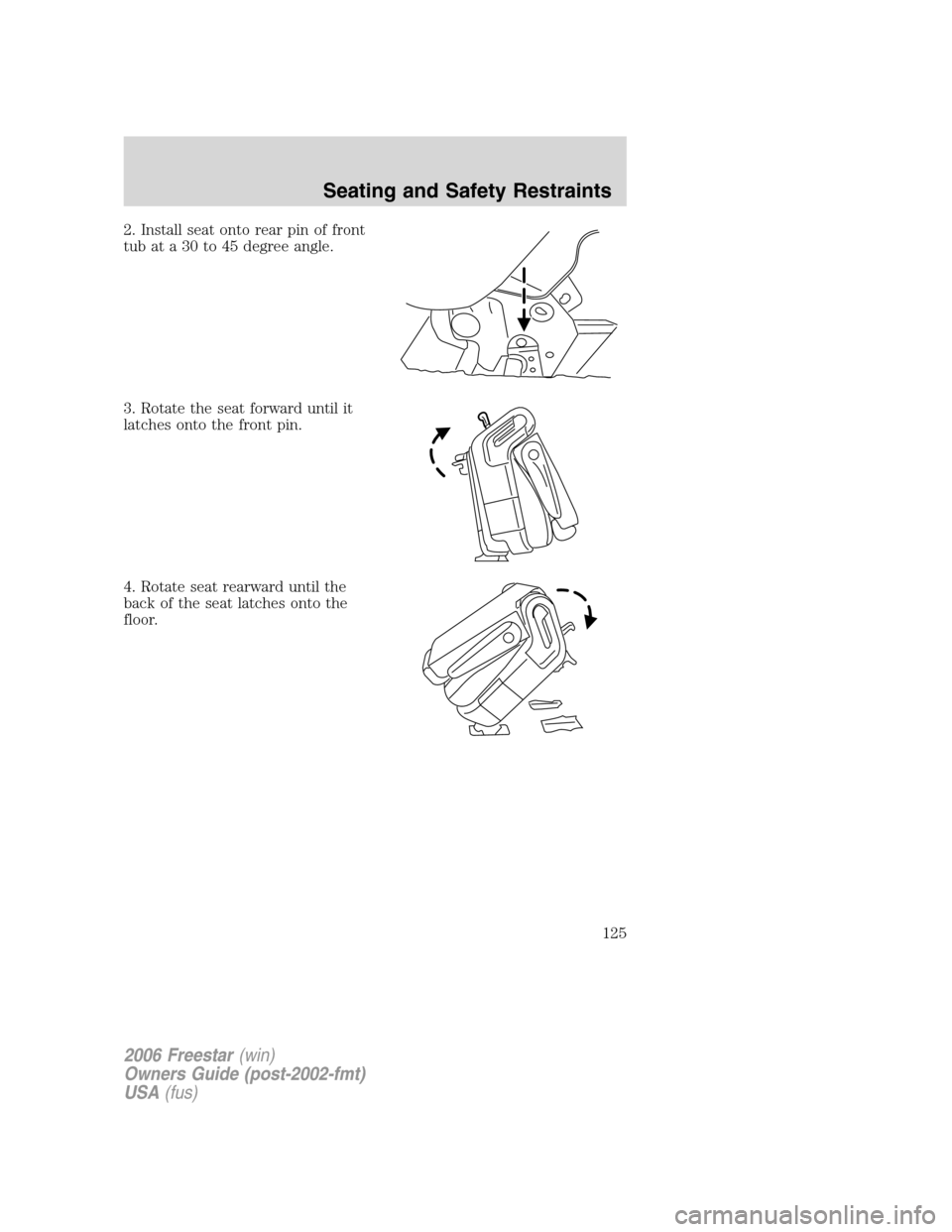

2. Install seat onto rear pin of front
tub at a 30 to 45 degree angle.
3. Rotate the seat forward until it
latches onto the front pin.
4. Rotate seat rearward until the
back of the seat latches onto the
floor.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
125

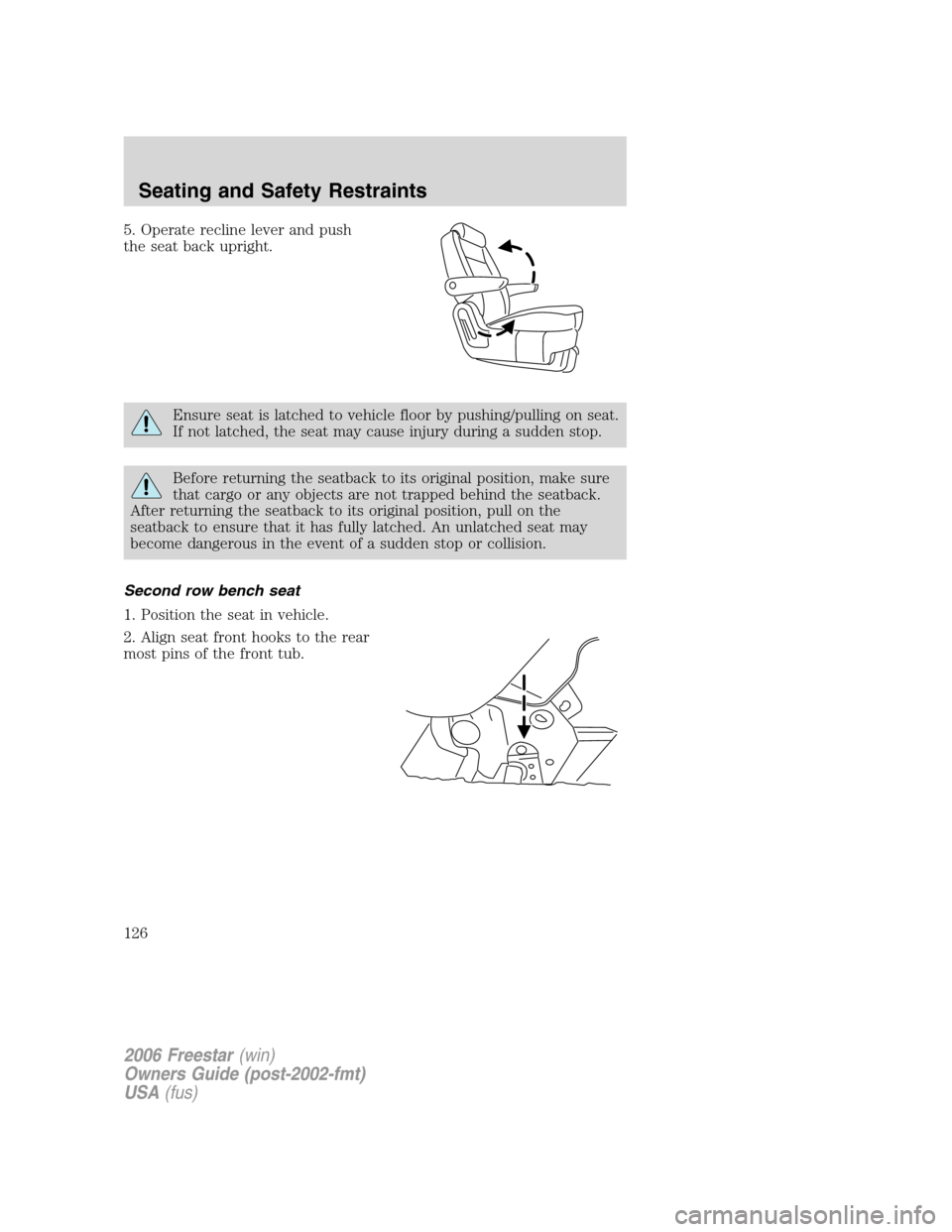

5. Operate recline lever and push
the seat back upright.
Ensure seat is latched to vehicle floor by pushing/pulling on seat.
If not latched, the seat may cause injury during a sudden stop.
Before returning the seatback to its original position, make sure
that cargo or any objects are not trapped behind the seatback.
After returning the seatback to its original position, pull on the
seatback to ensure that it has fully latched. An unlatched seat may
become dangerous in the event of a sudden stop or collision.
Second row bench seat
1. Position the seat in vehicle.
2. Align seat front hooks to the rear
most pins of the front tub.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
126

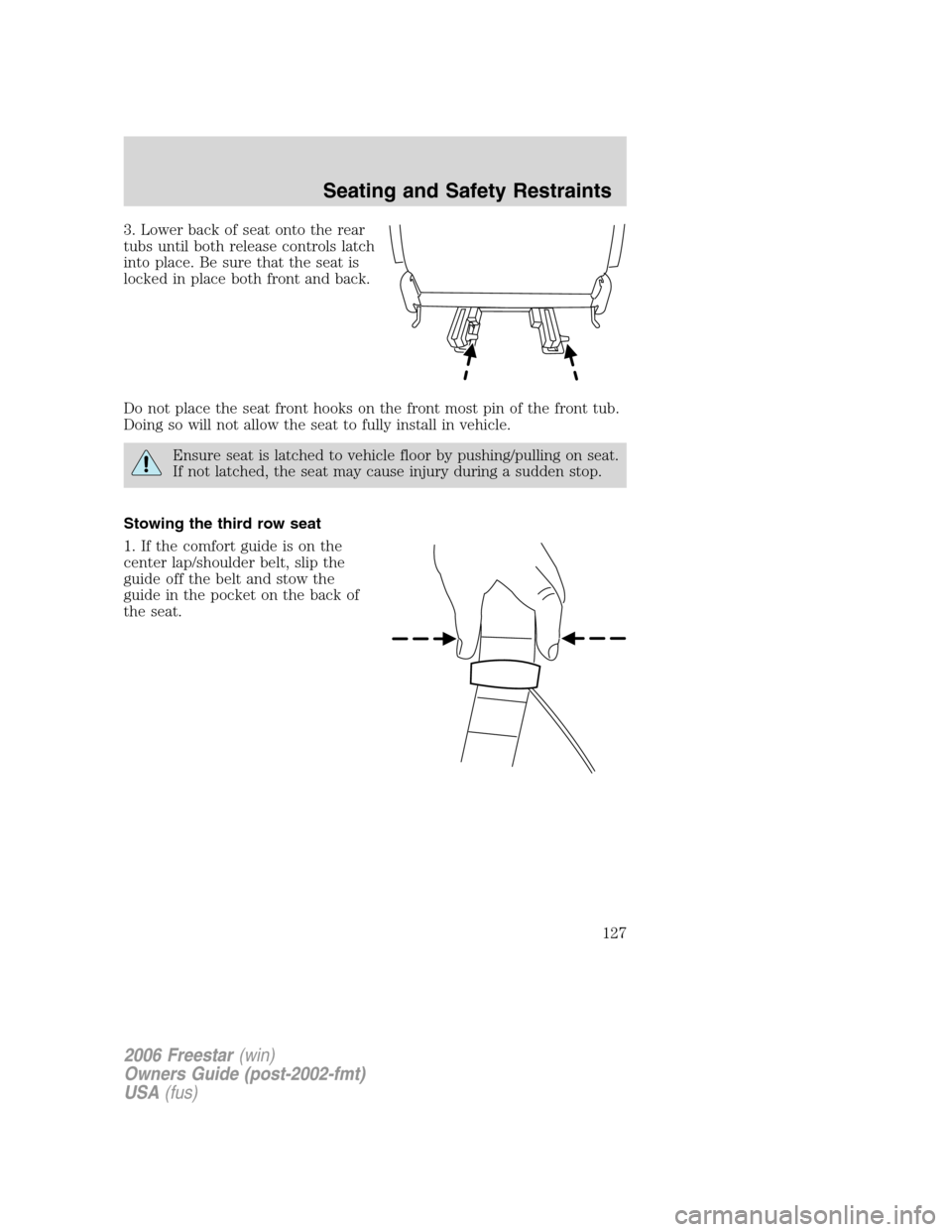

3. Lower back of seat onto the rear
tubs until both release controls latch
into place. Be sure that the seat is
locked in place both front and back.
Do not place the seat front hooks on the front most pin of the front tub.
Doing so will not allow the seat to fully install in vehicle.
Ensure seat is latched to vehicle floor by pushing/pulling on seat.
If not latched, the seat may cause injury during a sudden stop.
Stowing the third row seat
1. If the comfort guide is on the
center lap/shoulder belt, slip the
guide off the belt and stow the
guide in the pocket on the back of
the seat.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
127

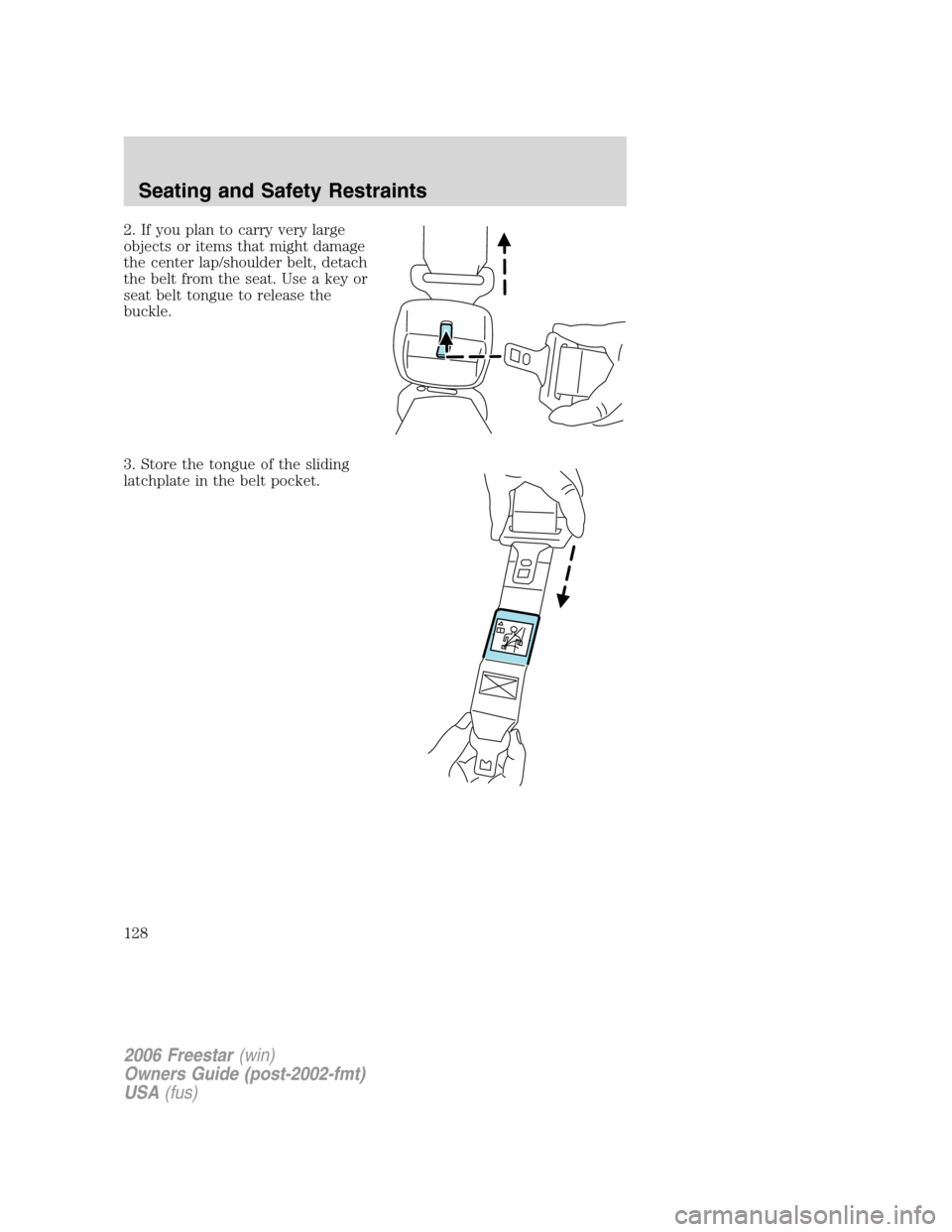

2. If you plan to carry very large
objects or items that might damage
the center lap/shoulder belt, detach
the belt from the seat. Use a key or
seat belt tongue to release the
buckle.
3. Store the tongue of the sliding
latchplate in the belt pocket.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
128

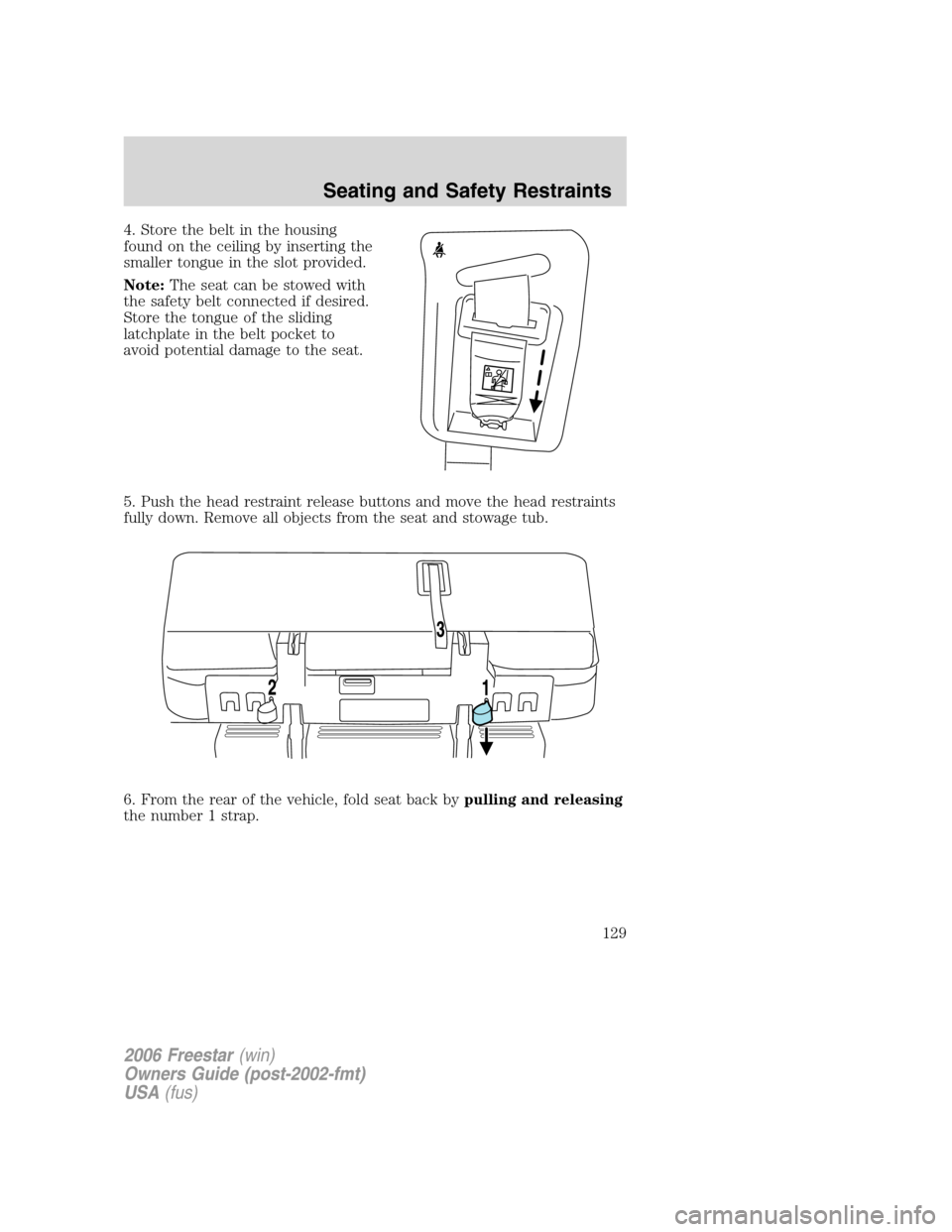

4. Store the belt in the housing
found on the ceiling by inserting the
smaller tongue in the slot provided.
Note:The seat can be stowed with
the safety belt connected if desired.
Store the tongue of the sliding
latchplate in the belt pocket to
avoid potential damage to the seat.
5. Push the head restraint release buttons and move the head restraints
fully down. Remove all objects from the seat and stowage tub.
6. From the rear of the vehicle, fold seat back bypulling and releasing
the number 1 strap.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
129

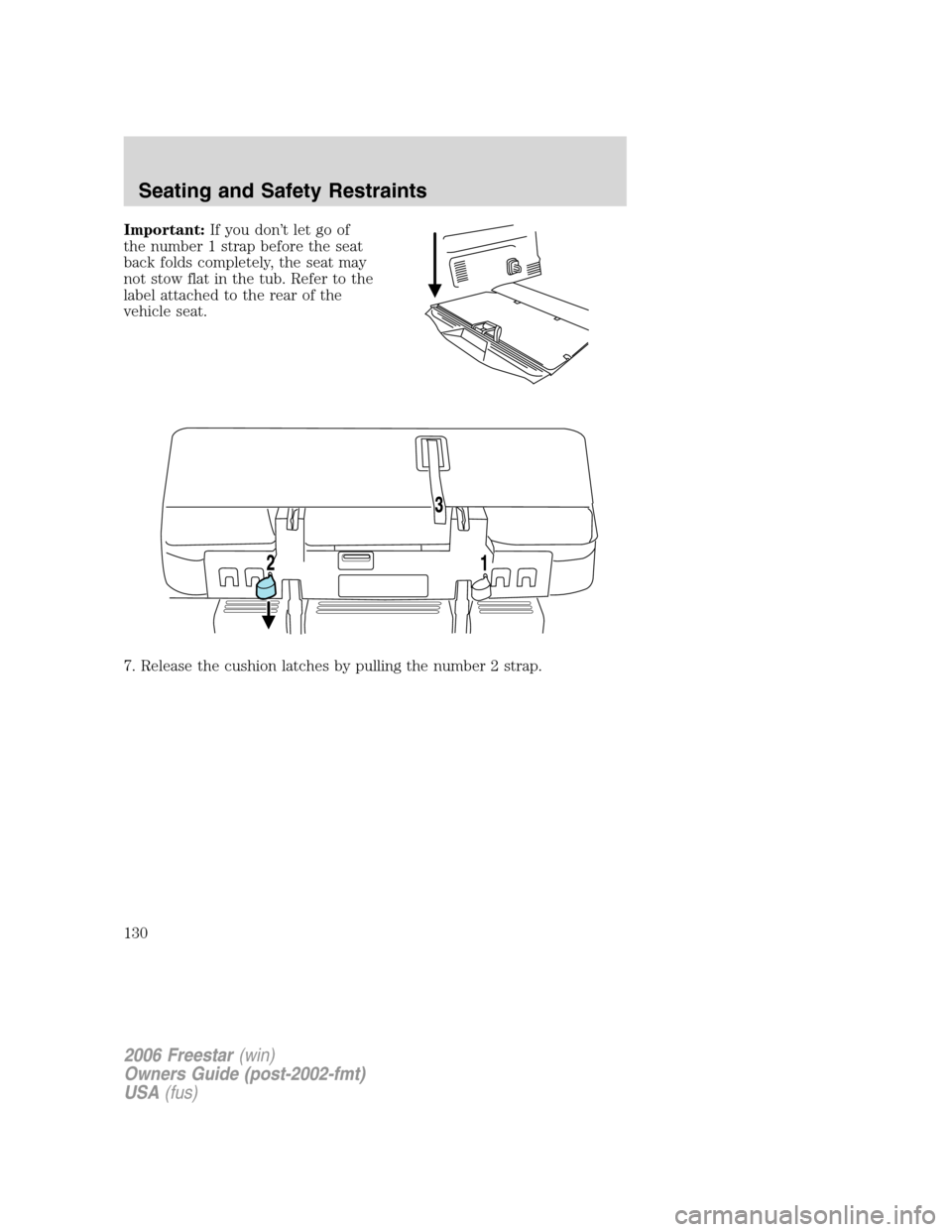

Important:If you don’t let go of
the number 1 strap before the seat
back folds completely, the seat may
not stow flat in the tub. Refer to the
label attached to the rear of the
vehicle seat.
7. Release the cushion latches by pulling the number 2 strap.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
