jump start FORD FREESTAR 2006 1.G Owners Manual

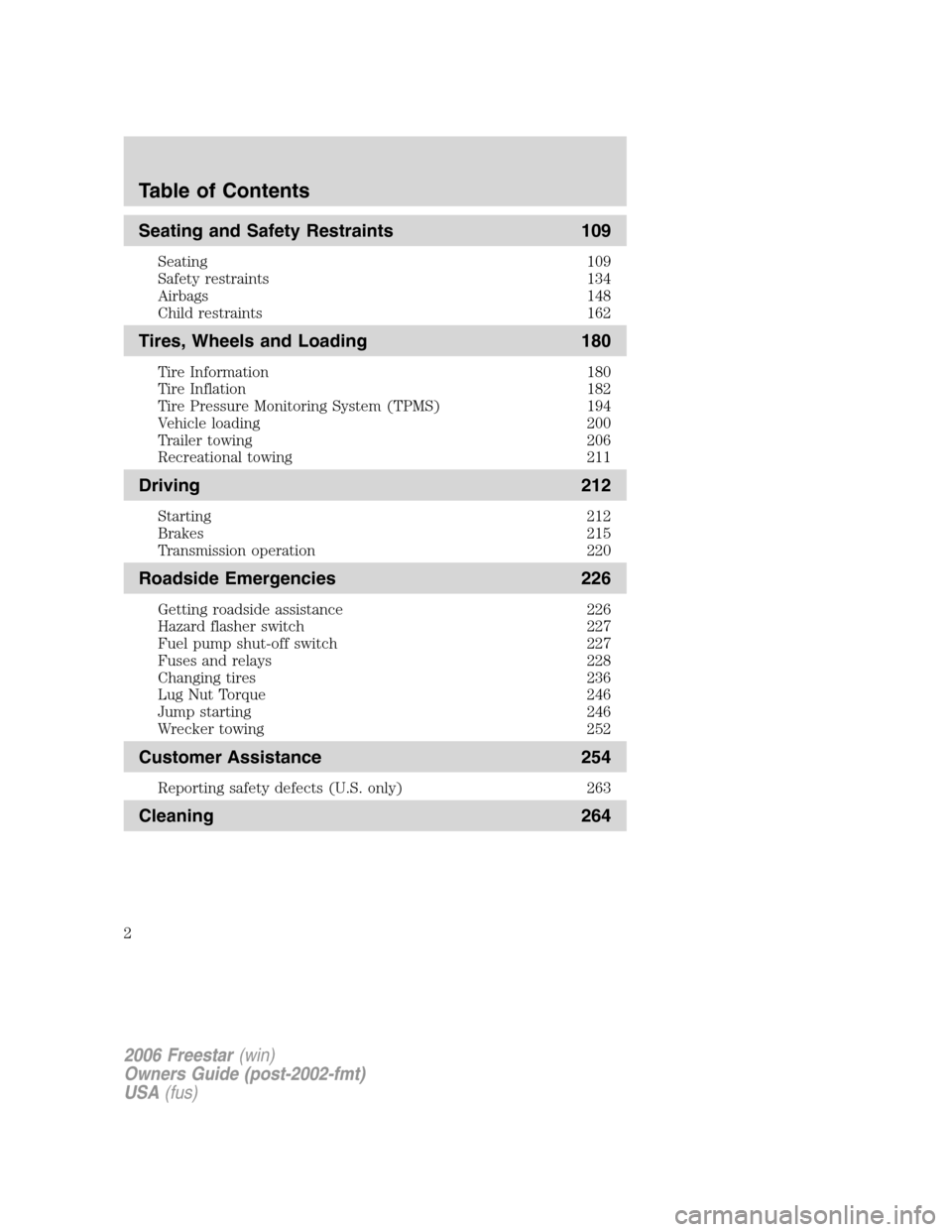

Seating and Safety Restraints 109
Seating 109
Safety restraints 134
Airbags 148
Child restraints 162
Tires, Wheels and Loading 180
Tire Information 180
Tire Inflation 182
Tire Pressure Monitoring System (TPMS) 194
Vehicle loading 200
Trailer towing 206
Recreational towing 211
Driving 212
Starting 212
Brakes 215
Transmission operation 220
Roadside Emergencies 226
Getting roadside assistance 226
Hazard flasher switch 227
Fuel pump shut-off switch 227
Fuses and relays 228
Changing tires 236
Lug Nut Torque 246
Jump starting 246
Wrecker towing 252
Customer Assistance 254
Reporting safety defects (U.S. only) 263
Cleaning 264
Table of Contents
2
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)

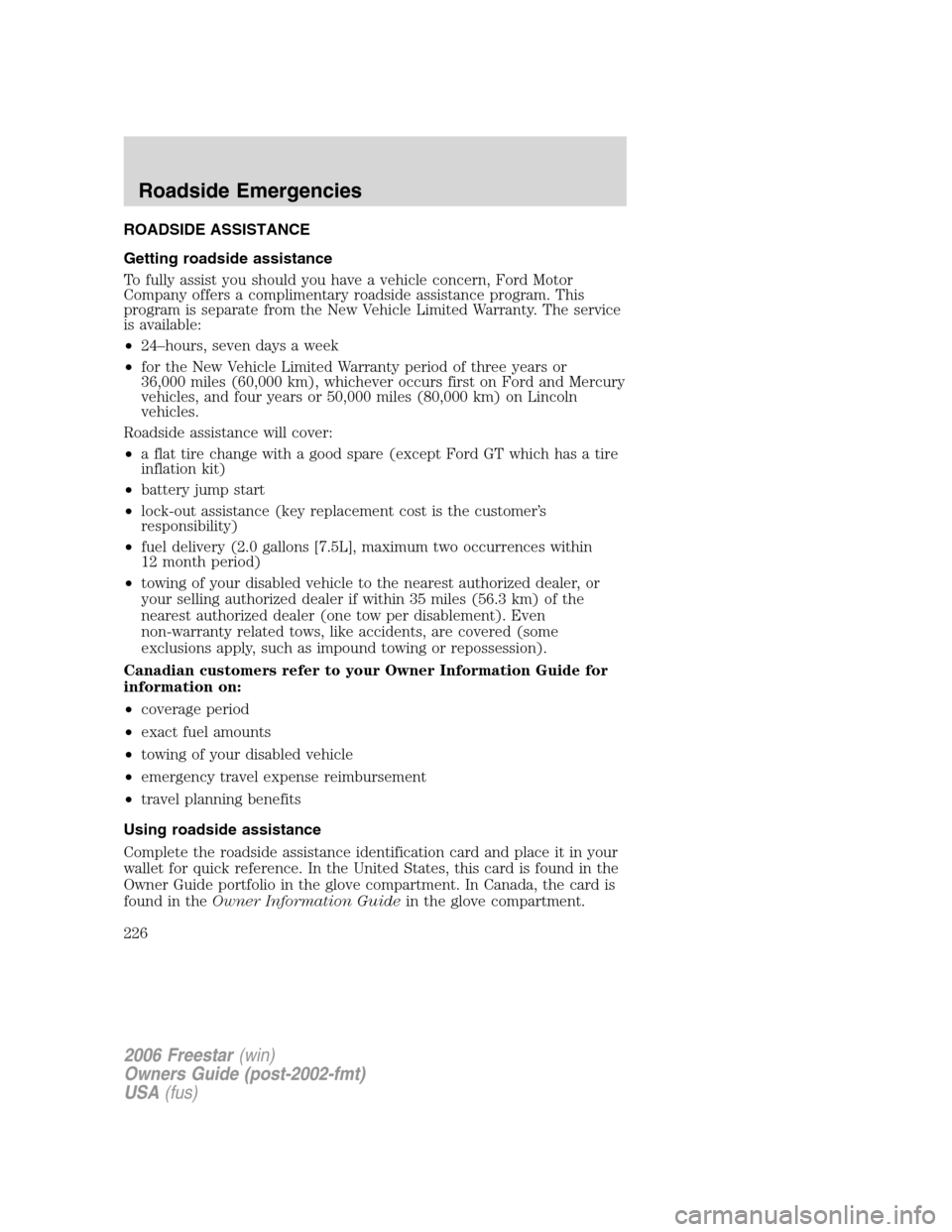

ROADSIDE ASSISTANCE
Getting roadside assistance
To fully assist you should you have a vehicle concern, Ford Motor
Company offers a complimentary roadside assistance program. This
program is separate from the New Vehicle Limited Warranty. The service
is available:
•24–hours, seven days a week
•for the New Vehicle Limited Warranty period of three years or
36,000 miles (60,000 km), whichever occurs first on Ford and Mercury
vehicles, and four years or 50,000 miles (80,000 km) on Lincoln
vehicles.
Roadside assistance will cover:
•a flat tire change with a good spare (except Ford GT which has a tire
inflation kit)
•battery jump start
•lock-out assistance (key replacement cost is the customer’s
responsibility)
•fuel delivery (2.0 gallons [7.5L], maximum two occurrences within
12 month period)
•towing of your disabled vehicle to the nearest authorized dealer, or
your selling authorized dealer if within 35 miles (56.3 km) of the
nearest authorized dealer (one tow per disablement). Even
non-warranty related tows, like accidents, are covered (some
exclusions apply, such as impound towing or repossession).
Canadian customers refer to your Owner Information Guide for
information on:
•coverage period
•exact fuel amounts
•towing of your disabled vehicle
•emergency travel expense reimbursement
•travel planning benefits
Using roadside assistance
Complete the roadside assistance identification card and place it in your
wallet for quick reference. In the United States, this card is found in the
Owner Guide portfolio in the glove compartment. In Canada, the card is
found in theOwner Information Guidein the glove compartment.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
226

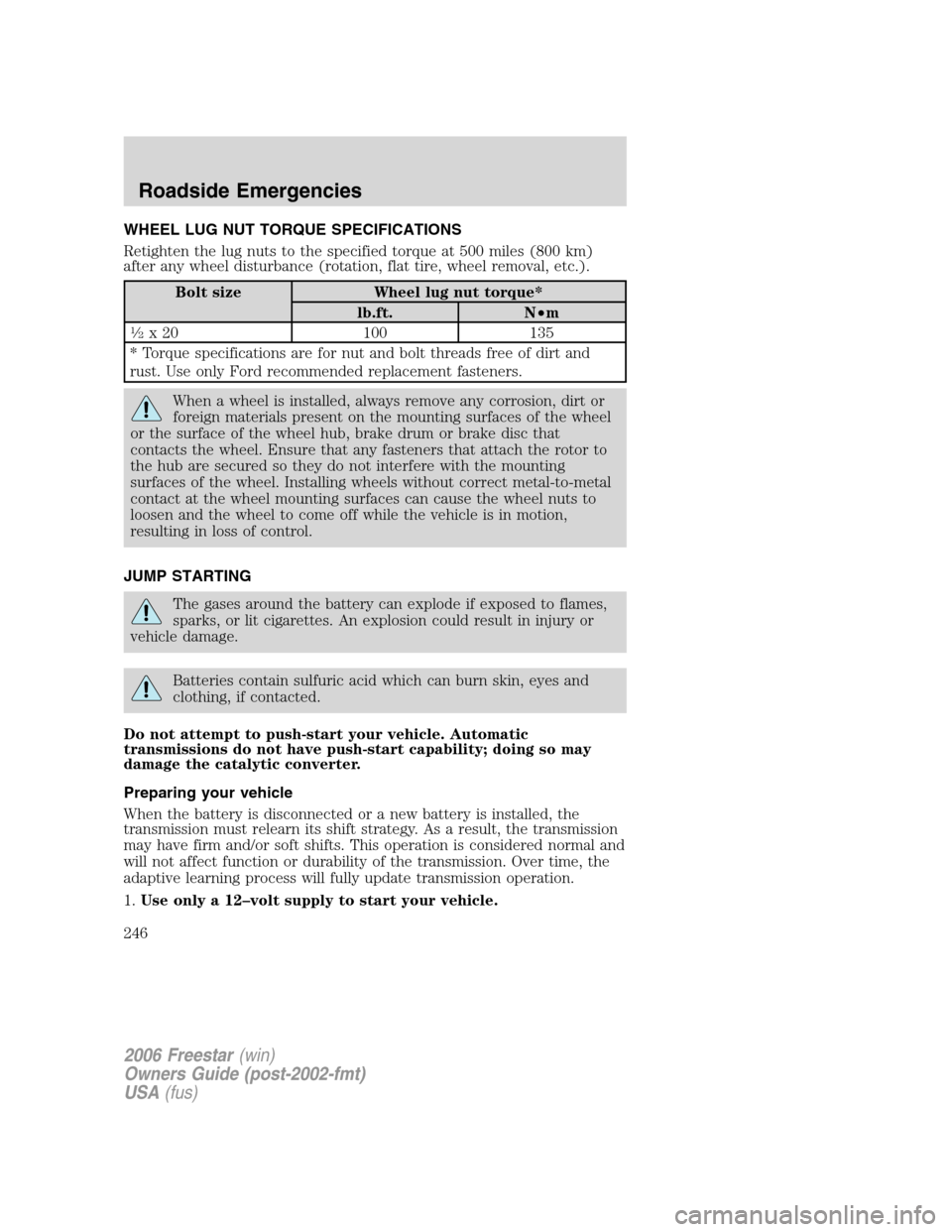

WHEEL LUG NUT TORQUE SPECIFICATIONS
Retighten the lug nuts to the specified torque at 500 miles (800 km)
after any wheel disturbance (rotation, flat tire, wheel removal, etc.).
Bolt size Wheel lug nut torque*
lb.ft. N•m
12x 20 100 135
* Torque specifications are for nut and bolt threads free of dirt and
rust. Use only Ford recommended replacement fasteners.
When a wheel is installed, always remove any corrosion, dirt or
foreign materials present on the mounting surfaces of the wheel
or the surface of the wheel hub, brake drum or brake disc that
contacts the wheel. Ensure that any fasteners that attach the rotor to
the hub are secured so they do not interfere with the mounting
surfaces of the wheel. Installing wheels without correct metal-to-metal
contact at the wheel mounting surfaces can cause the wheel nuts to
loosen and the wheel to come off while the vehicle is in motion,
resulting in loss of control.
JUMP STARTING
The gases around the battery can explode if exposed to flames,
sparks, or lit cigarettes. An explosion could result in injury or
vehicle damage.
Batteries contain sulfuric acid which can burn skin, eyes and
clothing, if contacted.
Do not attempt to push-start your vehicle. Automatic
transmissions do not have push-start capability; doing so may
damage the catalytic converter.
Preparing your vehicle
When the battery is disconnected or a new battery is installed, the
transmission must relearn its shift strategy. As a result, the transmission
may have firm and/or soft shifts. This operation is considered normal and
will not affect function or durability of the transmission. Over time, the
adaptive learning process will fully update transmission operation.
1.Use only a 12–volt supply to start your vehicle.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
246

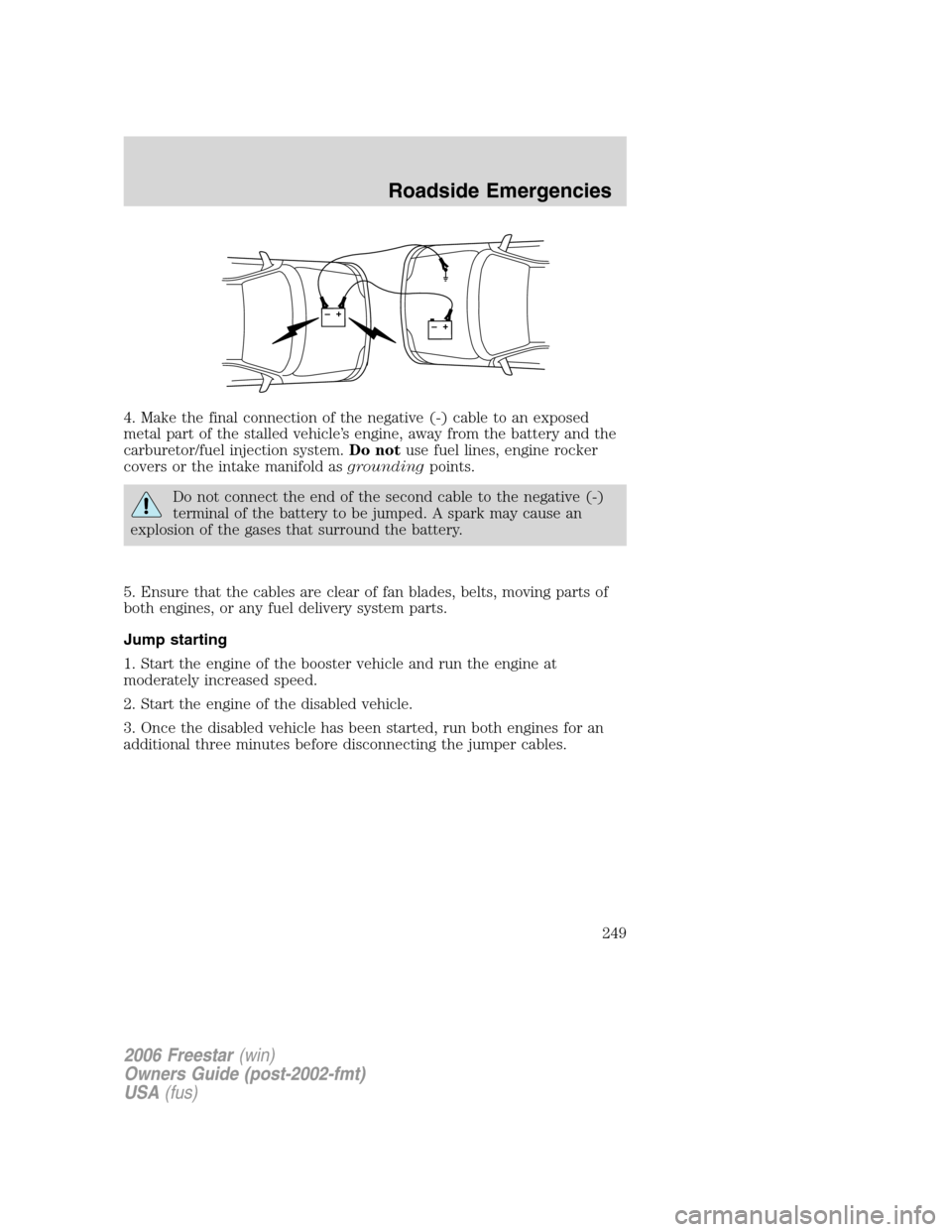

4. Make the final connection of the negative (-) cable to an exposed
metal part of the stalled vehicle’s engine, away from the battery and the
carburetor/fuel injection system.Do notuse fuel lines, engine rocker
covers or the intake manifold asgroundingpoints.
Do not connect the end of the second cable to the negative (-)
terminal of the battery to be jumped. A spark may cause an
explosion of the gases that surround the battery.
5. Ensure that the cables are clear of fan blades, belts, moving parts of
both engines, or any fuel delivery system parts.
Jump starting
1. Start the engine of the booster vehicle and run the engine at
moderately increased speed.
2. Start the engine of the disabled vehicle.
3. Once the disabled vehicle has been started, run both engines for an
additional three minutes before disconnecting the jumper cables.
+–+–
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
249

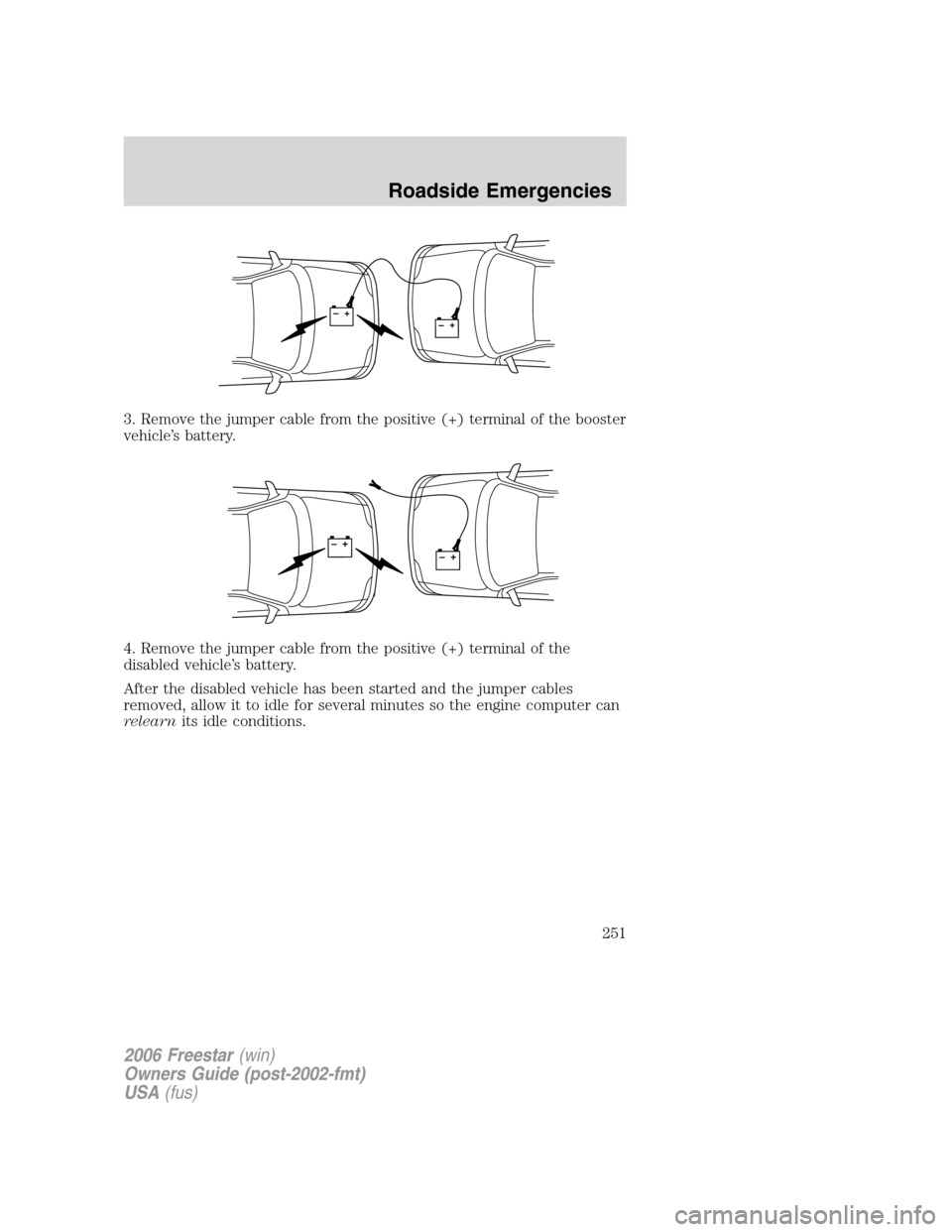

3. Remove the jumper cable from the positive (+) terminal of the booster
vehicle’s battery.
4. Remove the jumper cable from the positive (+) terminal of the
disabled vehicle’s battery.
After the disabled vehicle has been started and the jumper cables
removed, allow it to idle for several minutes so the engine computer can
relearnits idle conditions.
+–+–
+–+–
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
251

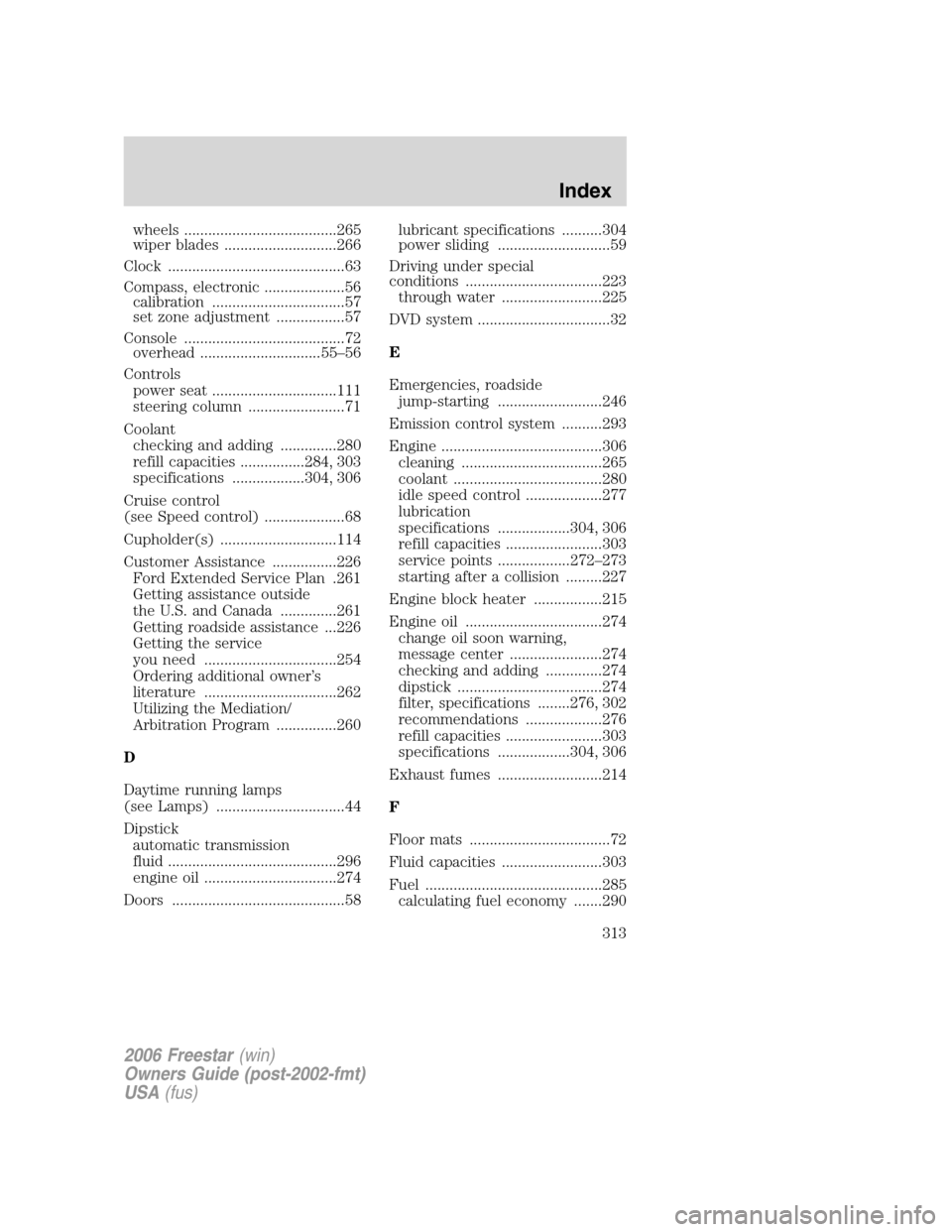

wheels ......................................265
wiper blades ............................266
Clock ............................................63
Compass, electronic ....................56
calibration .................................57
set zone adjustment .................57
Console ........................................72
overhead ..............................55–56
Controls
power seat ...............................111
steering column ........................71
Coolant
checking and adding ..............280
refill capacities ................284, 303
specifications ..................304, 306
Cruise control
(see Speed control) ....................68
Cupholder(s) .............................114
Customer Assistance ................226
Ford Extended Service Plan .261
Getting assistance outside
the U.S. and Canada ..............261
Getting roadside assistance ...226
Getting the service
you need .................................254
Ordering additional owner’s
literature .................................262
Utilizing the Mediation/
Arbitration Program ...............260
D
Daytime running lamps
(see Lamps) ................................44
Dipstick
automatic transmission
fluid ..........................................296
engine oil .................................274
Doors ...........................................58lubricant specifications ..........304
power sliding ............................59
Driving under special
conditions ..................................223
through water .........................225
DVD system .................................32
E
Emergencies, roadside
jump-starting ..........................246
Emission control system ..........293
Engine ........................................306
cleaning ...................................265
coolant .....................................280
idle speed control ...................277
lubrication
specifications ..................304, 306
refill capacities ........................303
service points ..................272–273
starting after a collision .........227
Engine block heater .................215
Engine oil ..................................274
change oil soon warning,
message center .......................274
checking and adding ..............274
dipstick ....................................274
filter, specifications ........276, 302
recommendations ...................276
refill capacities ........................303
specifications ..................304, 306
Exhaust fumes ..........................214
F
Floor mats ...................................72
Fluid capacities .........................303
Fuel ............................................285
calculating fuel economy .......290
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Index
313

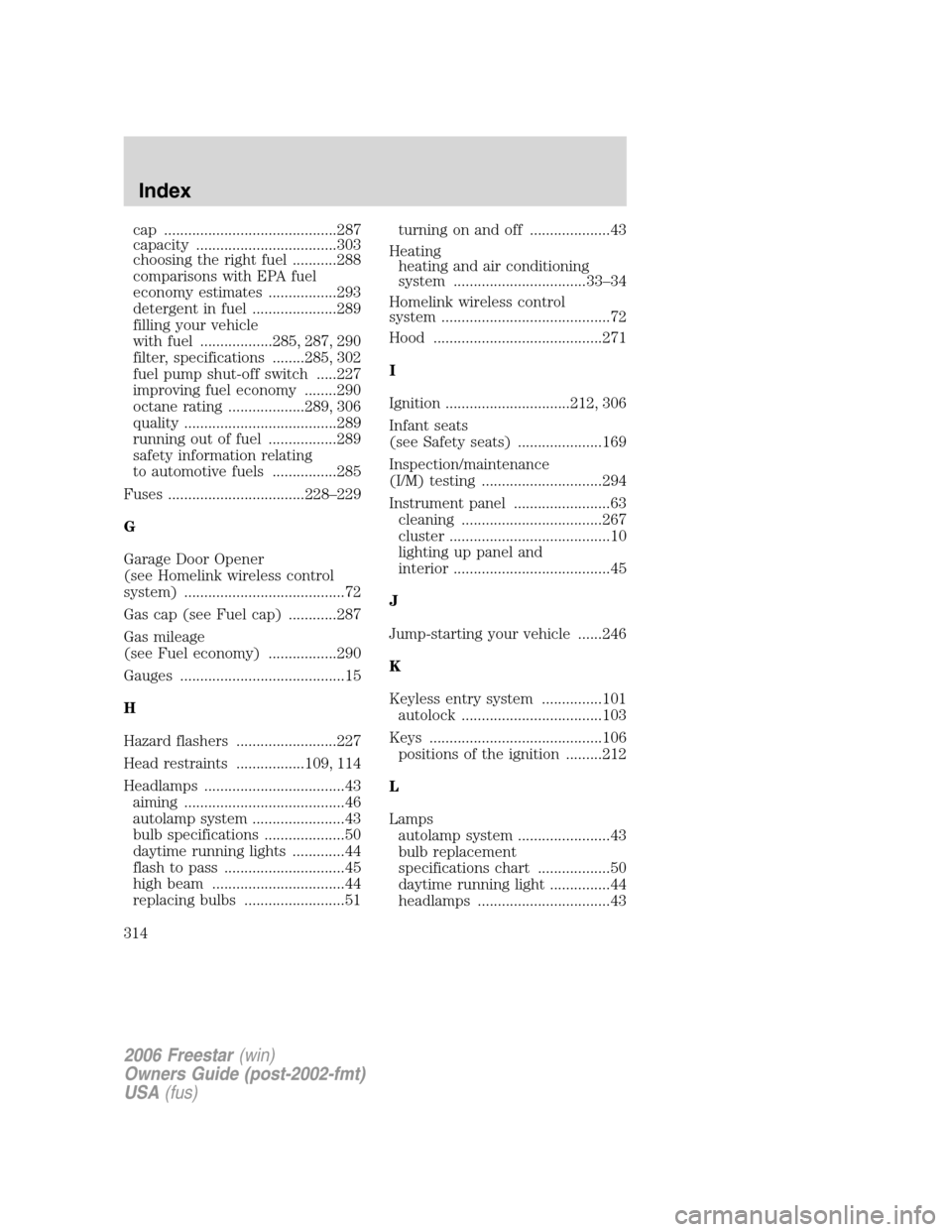

cap ...........................................287
capacity ...................................303
choosing the right fuel ...........288
comparisons with EPA fuel
economy estimates .................293
detergent in fuel .....................289
filling your vehicle
with fuel ..................285, 287, 290
filter, specifications ........285, 302
fuel pump shut-off switch .....227
improving fuel economy ........290
octane rating ...................289, 306
quality ......................................289
running out of fuel .................289
safety information relating
to automotive fuels ................285
Fuses ..................................228–229
G
Garage Door Opener
(see Homelink wireless control
system) ........................................72
Gas cap (see Fuel cap) ............287
Gas mileage
(see Fuel economy) .................290
Gauges .........................................15
H
Hazard flashers .........................227
Head restraints .................109, 114
Headlamps ...................................43
aiming ........................................46
autolamp system .......................43
bulb specifications ....................50
daytime running lights .............44
flash to pass ..............................45
high beam .................................44
replacing bulbs .........................51turning on and off ....................43
Heating
heating and air conditioning
system .................................33–34
Homelink wireless control
system ..........................................72
Hood ..........................................271
I
Ignition ...............................212, 306
Infant seats
(see Safety seats) .....................169
Inspection/maintenance
(I/M) testing ..............................294
Instrument panel ........................63
cleaning ...................................267
cluster ........................................10
lighting up panel and
interior .......................................45
J
Jump-starting your vehicle ......246
K
Keyless entry system ...............101
autolock ...................................103
Keys ...........................................106
positions of the ignition .........212
L
Lamps
autolamp system .......................43
bulb replacement
specifications chart ..................50
daytime running light ...............44
headlamps .................................43
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Index
314

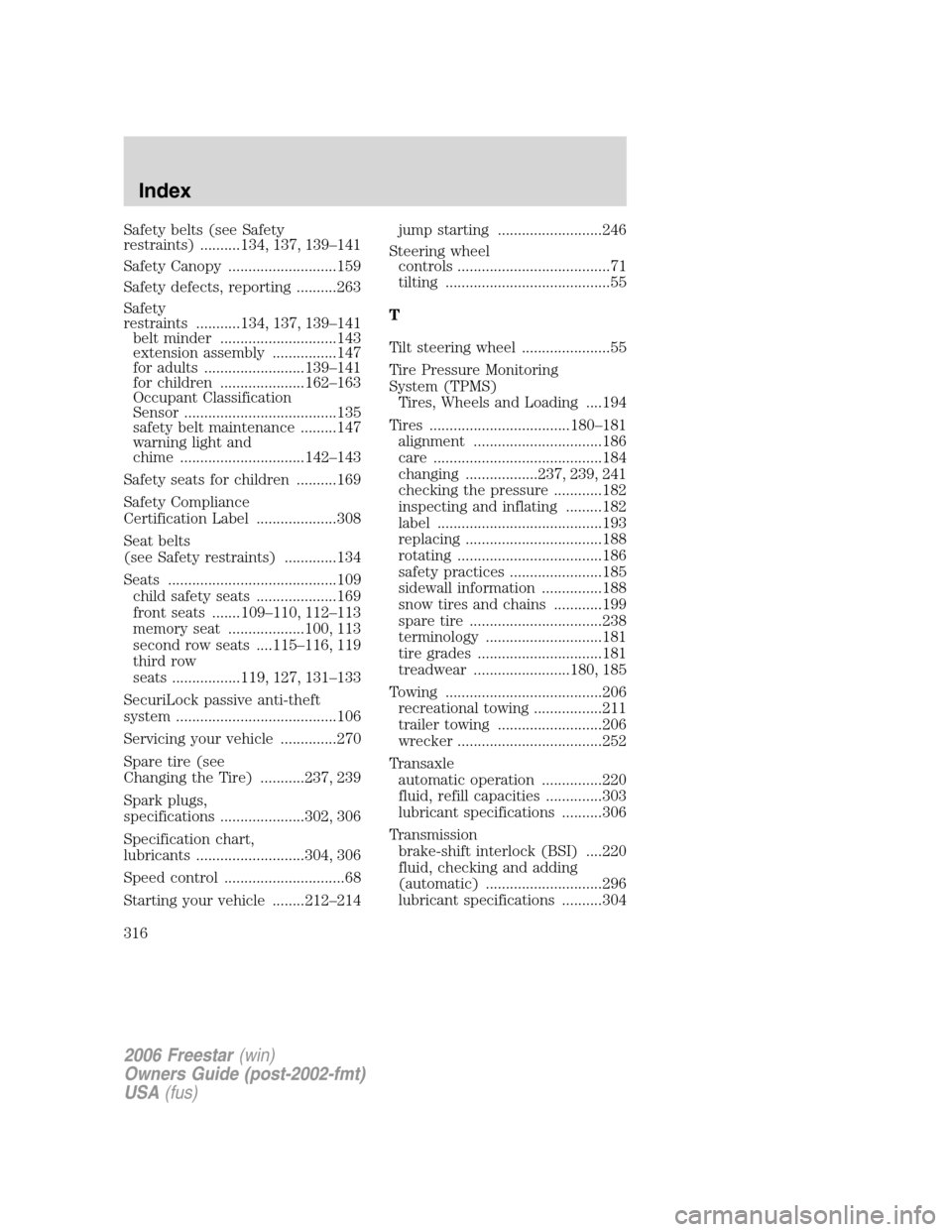

Safety belts (see Safety
restraints) ..........134, 137, 139–141
Safety Canopy ...........................159
Safety defects, reporting ..........263
Safety
restraints ...........134, 137, 139–141
belt minder .............................143
extension assembly ................147
for adults .........................139–141
for children .....................162–163
Occupant Classification
Sensor ......................................135
safety belt maintenance .........147
warning light and
chime ...............................142–143
Safety seats for children ..........169
Safety Compliance
Certification Label ....................308
Seat belts
(see Safety restraints) .............134
Seats ..........................................109
child safety seats ....................169
front seats .......109–110, 112–113
memory seat ...................100, 113
second row seats ....115–116, 119
third row
seats .................119, 127, 131–133
SecuriLock passive anti-theft
system ........................................106
Servicing your vehicle ..............270
Spare tire (see
Changing the Tire) ...........237, 239
Spark plugs,
specifications .....................302, 306
Specification chart,
lubricants ...........................304, 306
Speed control ..............................68
Starting your vehicle ........212–214jump starting ..........................246
Steering wheel
controls ......................................71
tilting .........................................55
T
Tilt steering wheel ......................55
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....194
Tires ...................................180–181
alignment ................................186
care ..........................................184
changing ..................237, 239, 241
checking the pressure ............182
inspecting and inflating .........182
label .........................................193
replacing ..................................188
rotating ....................................186
safety practices .......................185
sidewall information ...............188
snow tires and chains ............199
spare tire .................................238
terminology .............................181
tire grades ...............................181
treadwear ........................180, 185
Towing .......................................206
recreational towing .................211
trailer towing ..........................206
wrecker ....................................252
Transaxle
automatic operation ...............220
fluid, refill capacities ..............303
lubricant specifications ..........306
Transmission
brake-shift interlock (BSI) ....220
fluid, checking and adding
(automatic) .............................296
lubricant specifications ..........304
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Index
316
