seat memory FORD FREESTYLE 2005 1.G Owners Manual

The inside lights will not turn off if:
•they have been turned on using the dimmer control or
•any door is open.
The battery saver feature will turn off the interior lamps 30 minutes after
the ignition is turned to the 1 (LOCK) position.
Locking the doors/liftgate
1. Pressand release to lock all the doors and liftgate. The
turn/parking lamps will flash.Note:If any door or the liftgate are not
closed properly, the lamps will not flash.
2. Press
and release again within three seconds to confirm that all the
doors are closed.Note:The doors will lock again, the horn will chirp and
the turn/parking lamps will flash once if all the doors and liftgate are
closed. If any door or the liftgate is not closed, the horn will chirp twice
and the lamps will not flash.
Sounding a panic alarm
Press
to activate the alarm. The horn will sound and the turn lamps
will flash for a maximum of 3 minutes. Press again or turn the ignition to
the 3 (RUN) position to deactivate, or wait for the alarm to timeout in 3
minutes.
Note:The panic alarm will only operate when the ignition is in the 1
(LOCK) or 2 (ACC) position.
Memory seats/power mirrors/adjustable pedals (if equipped)
The remote entry system can also control the memory seat /power
mirrors/adjustable pedals feature.
Press
to automatically move the seat, mirrors and adjustable pedals to
the desired memory position (the positions correspond to the transmitter
being used).
Activating the memory seat feature
To activate this feature:
1. Position the seat, mirrors and adjustable pedals to the position
desired.
REVIEW COPY
2005 Freestyle(219), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Locks and Security
94

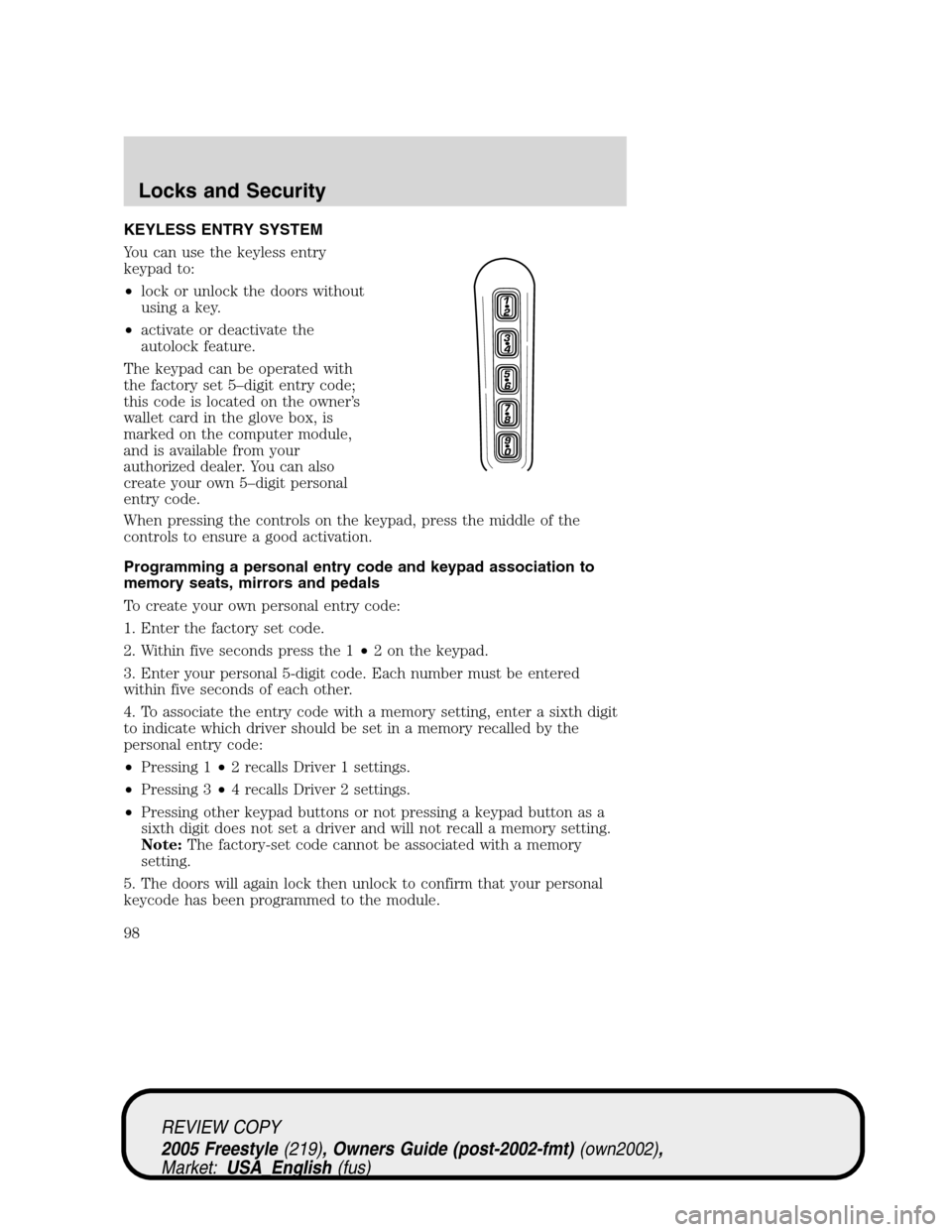

KEYLESS ENTRY SYSTEM
You can use the keyless entry
keypad to:
•lock or unlock the doors without
using a key.
•activate or deactivate the
autolock feature.
The keypad can be operated with
the factory set 5–digit entry code;
this code is located on the owner’s
wallet card in the glove box, is
marked on the computer module,
and is available from your
authorized dealer. You can also
create your own 5–digit personal
entry code.
When pressing the controls on the keypad, press the middle of the
controls to ensure a good activation.
Programming a personal entry code and keypad association to
memory seats, mirrors and pedals
To create your own personal entry code:
1. Enter the factory set code.
2. Within five seconds press the 1•2 on the keypad.
3. Enter your personal 5-digit code. Each number must be entered
within five seconds of each other.
4. To associate the entry code with a memory setting, enter a sixth digit
to indicate which driver should be set in a memory recalled by the
personal entry code:
•Pressing 1•2 recalls Driver 1 settings.
•Pressing 3•4 recalls Driver 2 settings.
•Pressing other keypad buttons or not pressing a keypad button as a
sixth digit does not set a driver and will not recall a memory setting.
Note:The factory-set code cannot be associated with a memory
setting.
5. The doors will again lock then unlock to confirm that your personal
keycode has been programmed to the module.
REVIEW COPY
2005 Freestyle(219), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Locks and Security
98

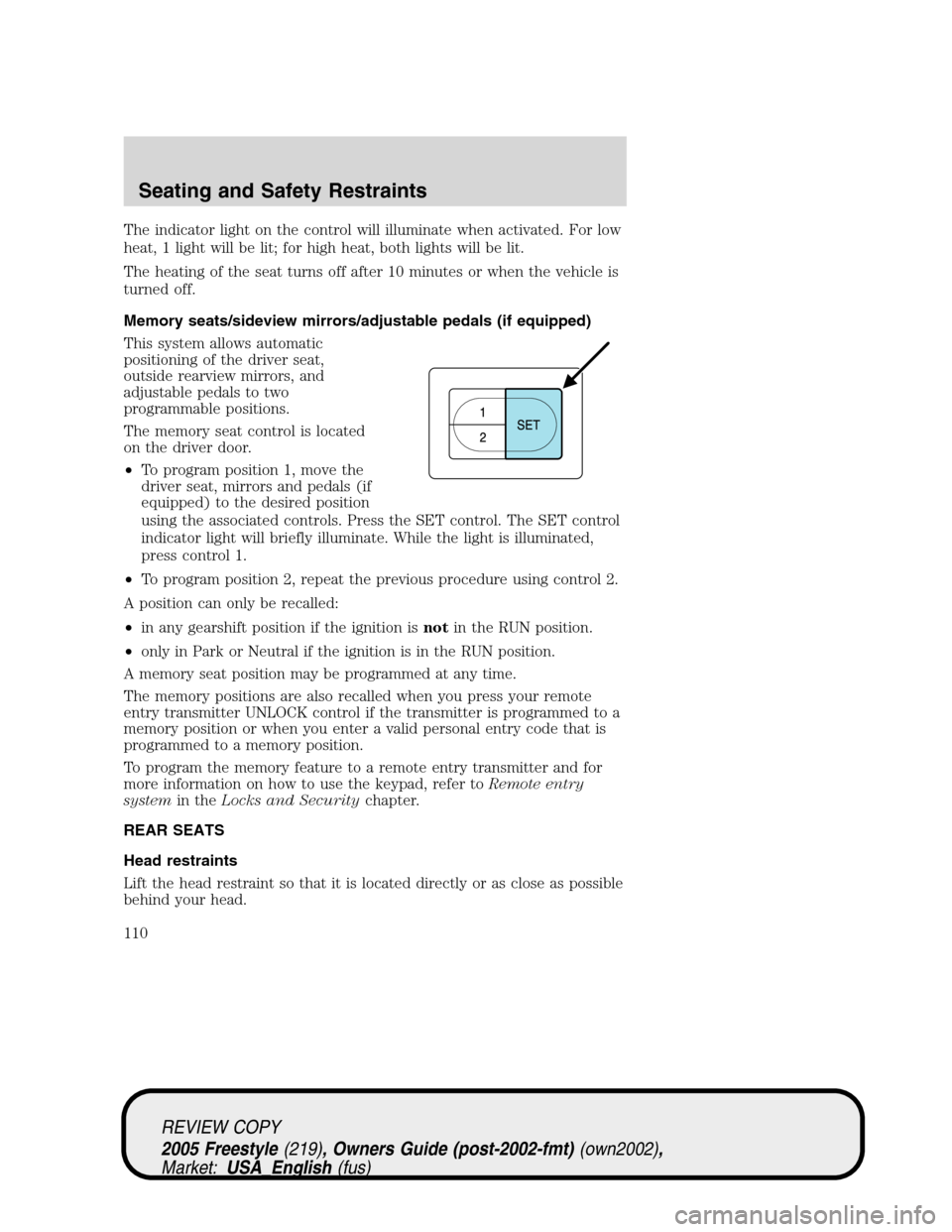

The indicator light on the control will illuminate when activated. For low
heat, 1 light will be lit; for high heat, both lights will be lit.
The heating of the seat turns off after 10 minutes or when the vehicle is
turned off.
Memory seats/sideview mirrors/adjustable pedals (if equipped)
This system allows automatic
positioning of the driver seat,
outside rearview mirrors, and
adjustable pedals to two
programmable positions.
The memory seat control is located
on the driver door.
•To program position 1, move the
driver seat, mirrors and pedals (if
equipped) to the desired position
using the associated controls. Press the SET control. The SET control
indicator light will briefly illuminate. While the light is illuminated,
press control 1.
•To program position 2, repeat the previous procedure using control 2.
A position can only be recalled:
•in any gearshift position if the ignition isnotin the RUN position.
•only in Park or Neutral if the ignition is in the RUN position.
A memory seat position may be programmed at any time.
The memory positions are also recalled when you press your remote
entry transmitter UNLOCK control if the transmitter is programmed to a
memory position or when you enter a valid personal entry code that is
programmed to a memory position.
To program the memory feature to a remote entry transmitter and for
more information on how to use the keypad, refer toRemote entry
systemin theLocks and Securitychapter.
REAR SEATS
Head restraints
Lift the head restraint so that it is located directly or as close as possible
behind your head.
REVIEW COPY
2005 Freestyle(219), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Seating and Safety Restraints
110

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
33 30A* Driver seat motors, Memory
module
34 30A* Ignition switch (to SJB)
35—Not used
36 40A* Front A/C blower motor
37 30A** Front wiper, Front washer
38 5A** Heated Positive Crankcase
Ventilation (PCV) valve
39 25A** Rear wiper, Rear washer
40 10A** TCM, EVMV, Canister vent, ESM,
Exhaust Gas Oxygen heaters, A/C
clutch
41 15A** PCM, Injectors, Ignition coils,
Mass Air Flow (MAF) sensor
42—Not used
43—Not used
44—Not used
45—Not used
46—Not used
47—Not used
48
1⁄2ISO relay Fog lamps
49—Not used
50
1⁄2ISO relay Auxiliary coolant pump
51
1⁄2ISO relay A/C clutch
52—Not used
53
1⁄2ISO relay Fuel pump driver module, Fuel
pump
54—Not used
55 Full ISO relay PCM relay, PDB fuses 40 and 41
56 Full ISO relay Starter motor solenoid
57 Full ISO relay Front A/C blower motor
REVIEW COPY
2005 Freestyle(219), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Roadside Emergencies
217

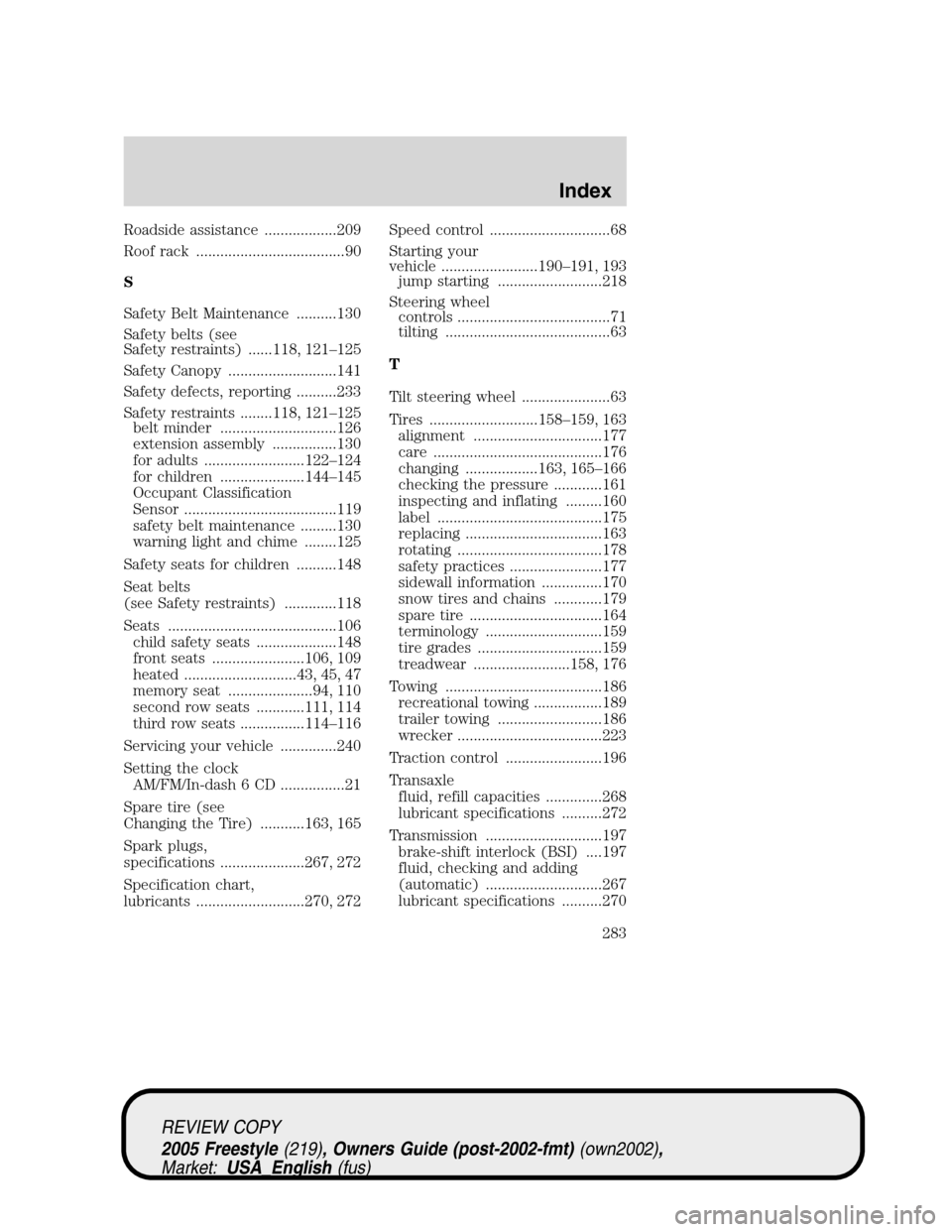

Roadside assistance ..................209
Roof rack .....................................90
S
Safety Belt Maintenance ..........130
Safety belts (see
Safety restraints) ......118, 121–125
Safety Canopy ...........................141
Safety defects, reporting ..........233
Safety restraints ........118, 121–125
belt minder .............................126
extension assembly ................130
for adults .........................122–124
for children .....................144–145
Occupant Classification
Sensor ......................................119
safety belt maintenance .........130
warning light and chime ........125
Safety seats for children ..........148
Seat belts
(see Safety restraints) .............118
Seats ..........................................106
child safety seats ....................148
front seats .......................106, 109
heated ............................43, 45, 47
memory seat .....................94, 110
second row seats ............111, 114
third row seats ................114–116
Servicing your vehicle ..............240
Setting the clock
AM/FM/In-dash 6 CD ................21
Spare tire (see
Changing the Tire) ...........163, 165
Spark plugs,
specifications .....................267, 272
Specification chart,
lubricants ...........................270, 272Speed control ..............................68
Starting your
vehicle ........................190–191, 193
jump starting ..........................218
Steering wheel
controls ......................................71
tilting .........................................63
T
Tilt steering wheel ......................63
Tires ...........................158–159, 163
alignment ................................177
care ..........................................176
changing ..................163, 165–166
checking the pressure ............161
inspecting and inflating .........160
label .........................................175
replacing ..................................163
rotating ....................................178
safety practices .......................177
sidewall information ...............170
snow tires and chains ............179
spare tire .................................164
terminology .............................159
tire grades ...............................159
treadwear ........................158, 176
Towing .......................................186
recreational towing .................189
trailer towing ..........................186
wrecker ....................................223
Traction control ........................196
Transaxle
fluid, refill capacities ..............268
lubricant specifications ..........272
Transmission .............................197
brake-shift interlock (BSI) ....197
fluid, checking and adding
(automatic) .............................267
lubricant specifications ..........270
REVIEW COPY
2005 Freestyle(219), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
283
