oil filter FORD FREESTYLE 2006 1.G Owners Manual

FORD FREESTYLE 2006 1.G Owners Manual https://www.carmanualsonline.info/img/11/5175/w960_5175-0.png FORD FREESTYLE 2006 1.G Owners Manual

Page 9 of 288

FORD FREESTYLE 2006 1.G Owners Manual Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Symbol
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temper

Page 244 of 288

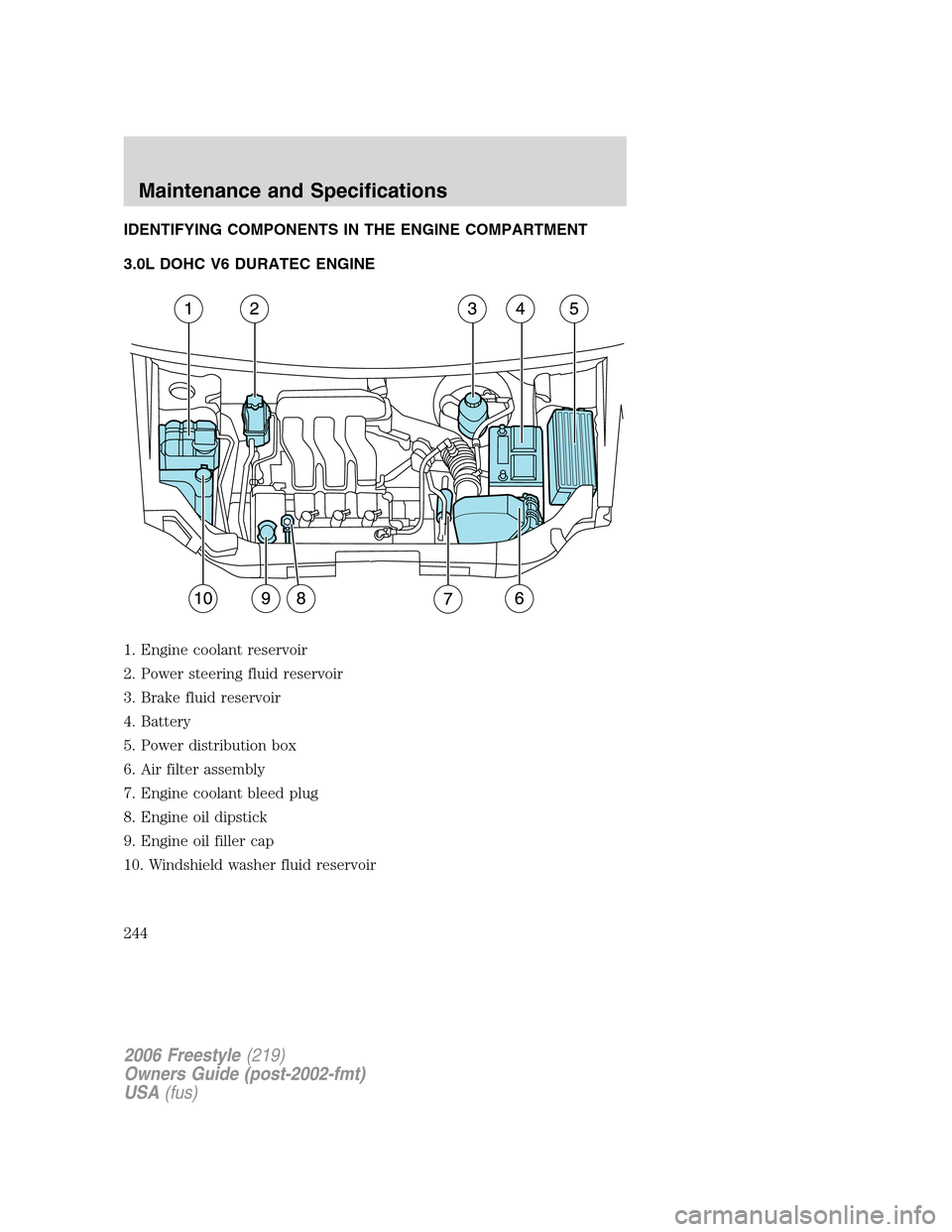

FORD FREESTYLE 2006 1.G Owners Manual IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT
3.0L DOHC V6 DURATEC ENGINE
1. Engine coolant reservoir
2. Power steering fluid reservoir
3. Brake fluid reservoir
4. Battery
5. Power distribution box

Page 248 of 288

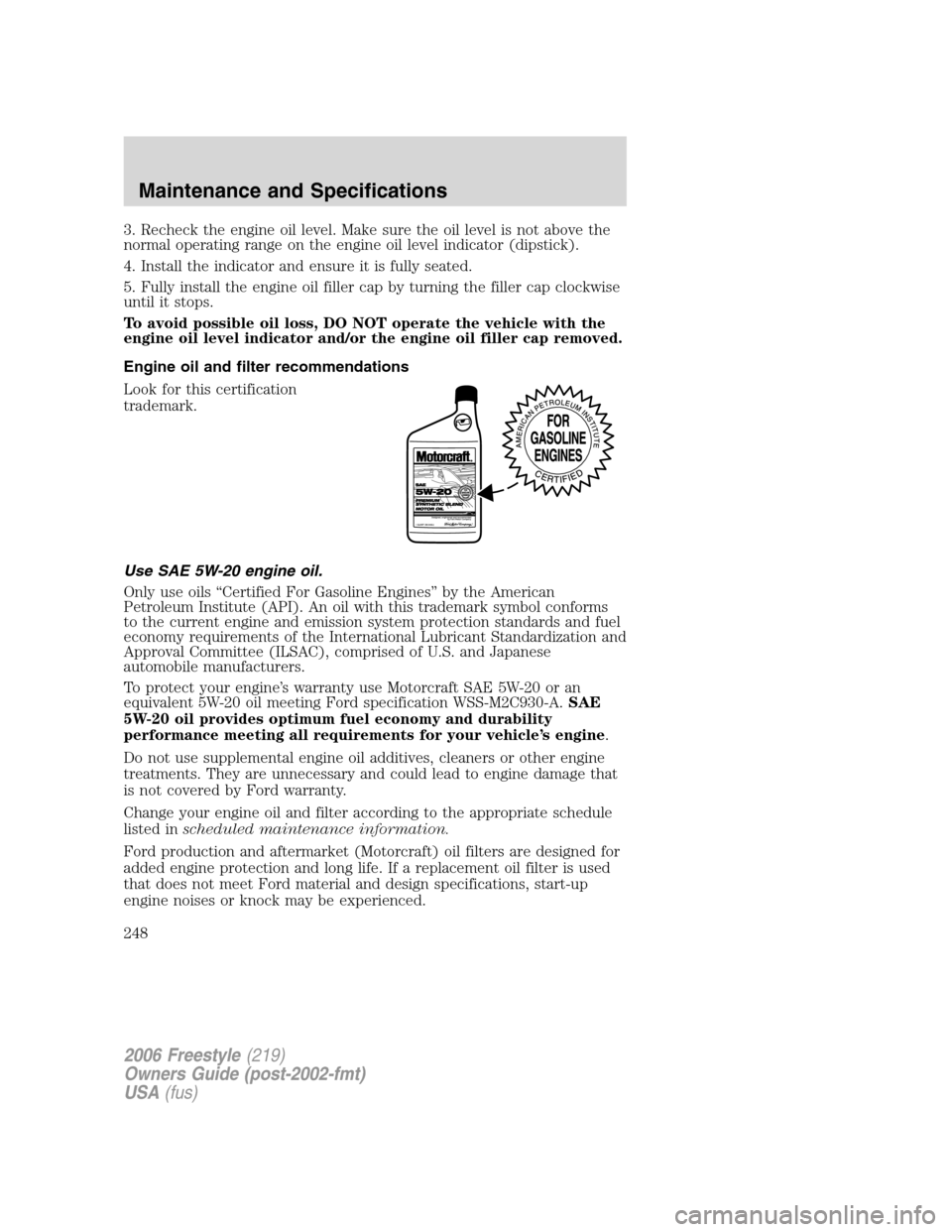

FORD FREESTYLE 2006 1.G Owners Manual 3. Recheck the engine oil level. Make sure the oil level is not above the
normal operating range on the engine oil level indicator (dipstick).
4. Install the indicator and ensure it is fully seated.
5

Page 249 of 288

FORD FREESTYLE 2006 1.G Owners Manual It is recommended you use the appropriate Motorcraft oil filter (or
another brand meeting Ford specifications) for your engine application.
BATTERY
Your vehicle is equipped with a
Motorcraft maintenan

Page 269 of 288

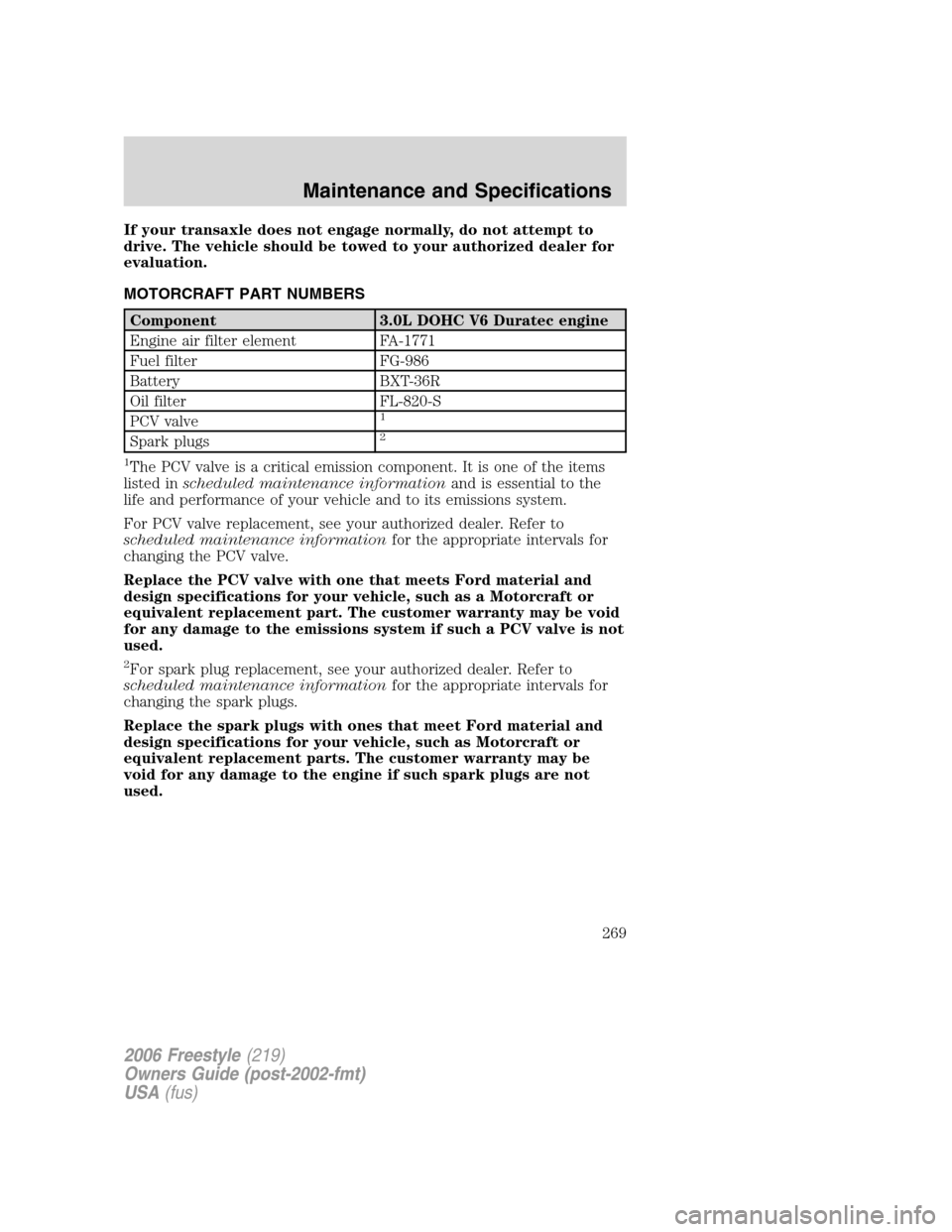

FORD FREESTYLE 2006 1.G Owners Manual If your transaxle does not engage normally, do not attempt to
drive. The vehicle should be towed to your authorized dealer for
evaluation.
MOTORCRAFT PART NUMBERS
Component 3.0L DOHC V6 Duratec engine

Page 270 of 288

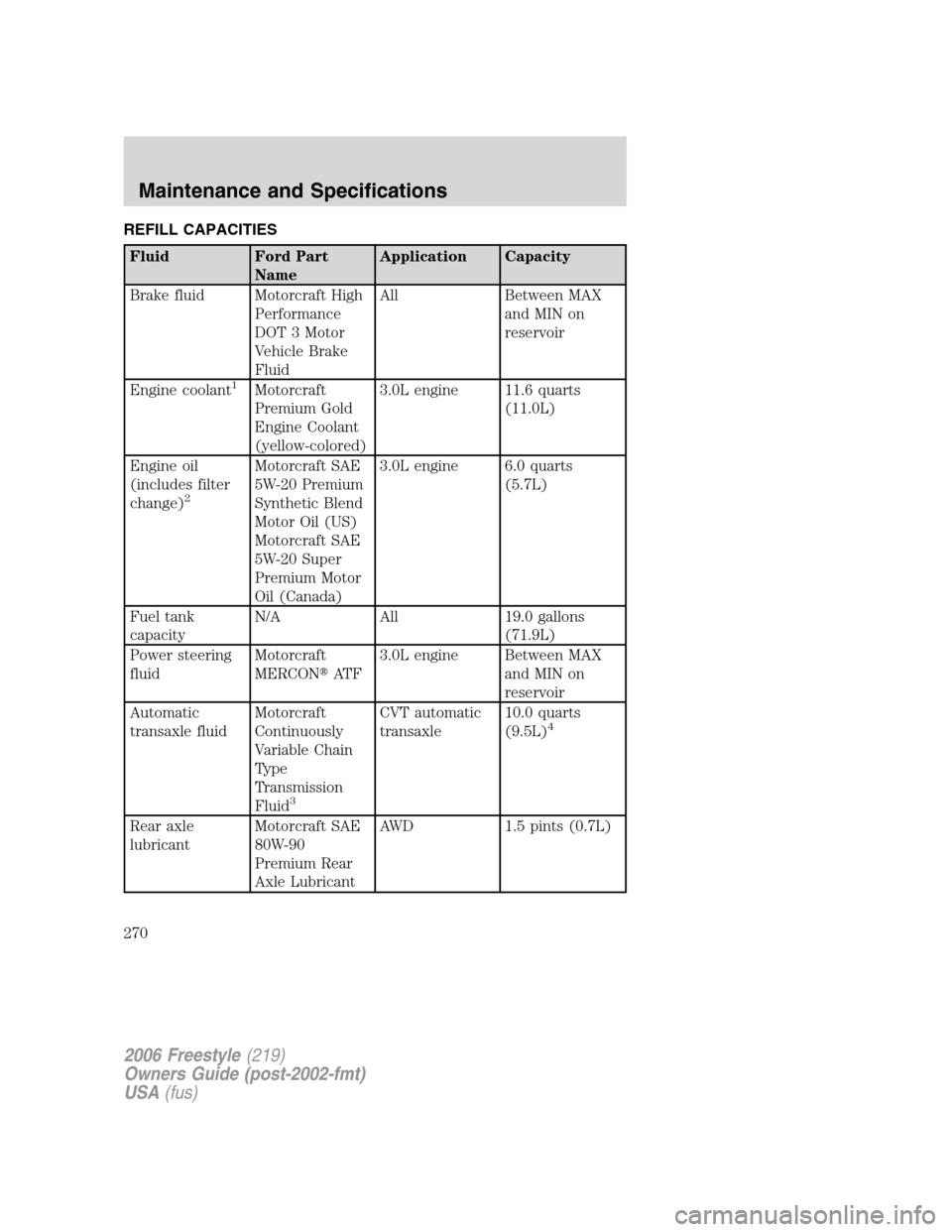

FORD FREESTYLE 2006 1.G Owners Manual REFILL CAPACITIES
Fluid Ford Part
NameApplication Capacity
Brake fluid Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidAll Between MAX
and MIN on
reservoir
Engine coolant
1Motorcraft
Premiu

Page 282 of 288

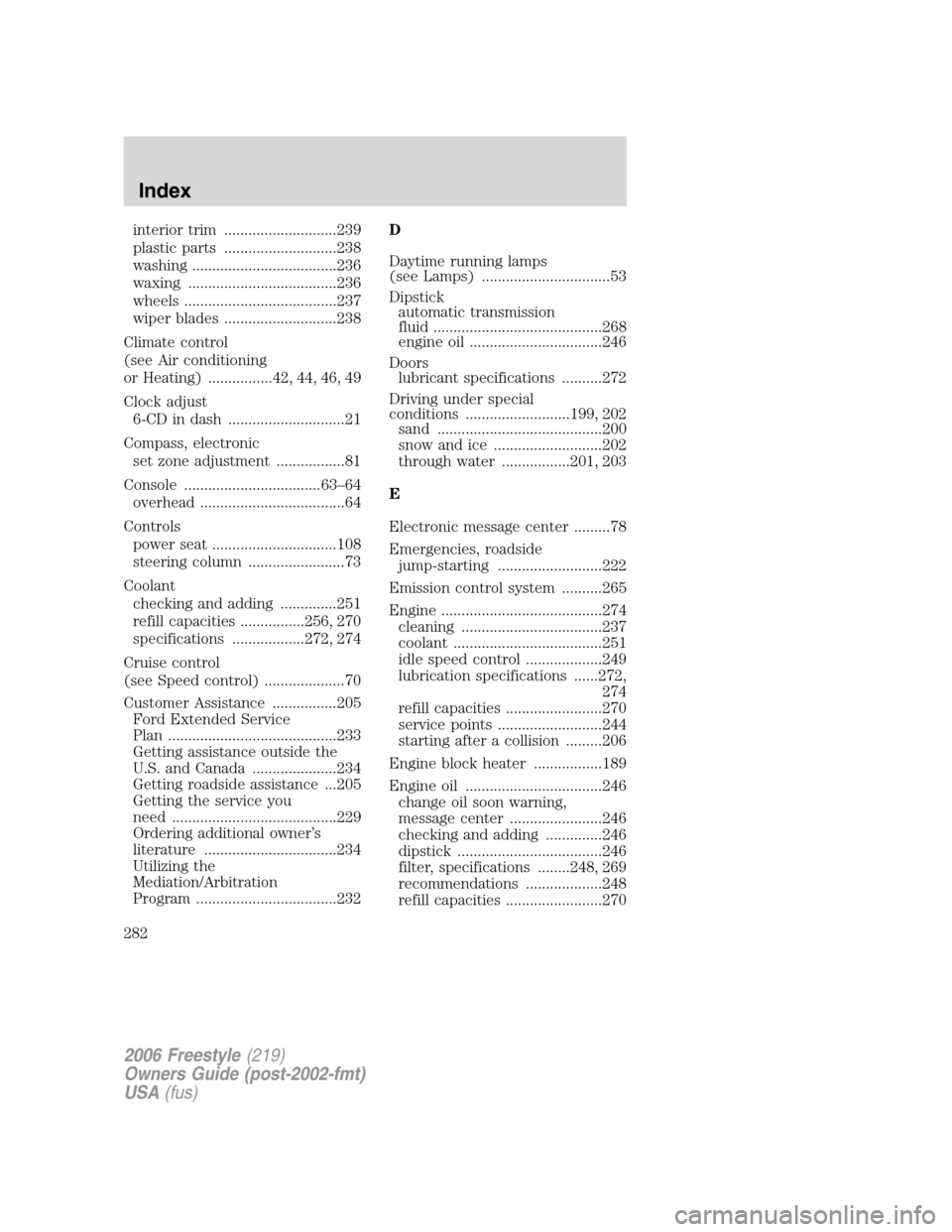

FORD FREESTYLE 2006 1.G Owners Manual interior trim ............................239
plastic parts ............................238
washing ....................................236
waxing .....................................236
wheels .....
