Page 242 of 340
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
35 10A Rear park assist, Blind spot
monitor system, Heated seats,
AWD, Rear video camera
36 5A Passive anti-theft sensor (PATS)
transceiver
37 10A Not used (spare)
38 20A Subwoofer amplifier
39 20A Radio
40 20A Not used (spare)
41 15A Automatic dimming mirror, Moon
roof, Compass, Ambient lighting
42 10A Electronic stability control,
Electronic power assist steering
43 10A Not used (spare)
44 10A Fuel diode/Powertrain control
module
45 5A Heated backlight and blower relay
coil, Wiper washer
46 7.5A Occupant classification sensor
(OCS) module, Passenger airbag
off lamp
47 30A Circuit
BreakerPower windows
48 — Delayed accessory relay
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
WARNING:Always disconnect the battery before servicing high
current fuses.
Roadside Emergencies
242
2010 Fusion(fsn)
Owners Guide, 4th Printing
USA(fus)
ProCarManuals.com
Page 243 of 340
WARNING:To reduce risk of electrical shock, always replace
the cover to the power distribution box before reconnecting the
battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
The high-current fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
1 50A* Electronic power assist steering
B+
2 50A* Electronic power assist steering
B+
3 40A* Powertrain control module (PCM)
(relay 57 power)
4 — Not used
5 30A* Starter motor (relay 55 power)
6 40A* Rear defrost (relay 53 power)
7 — Not used
Roadside Emergencies
243
2010 Fusion(fsn)
Owners Guide, 4th Printing
USA(fus)
ProCarManuals.com

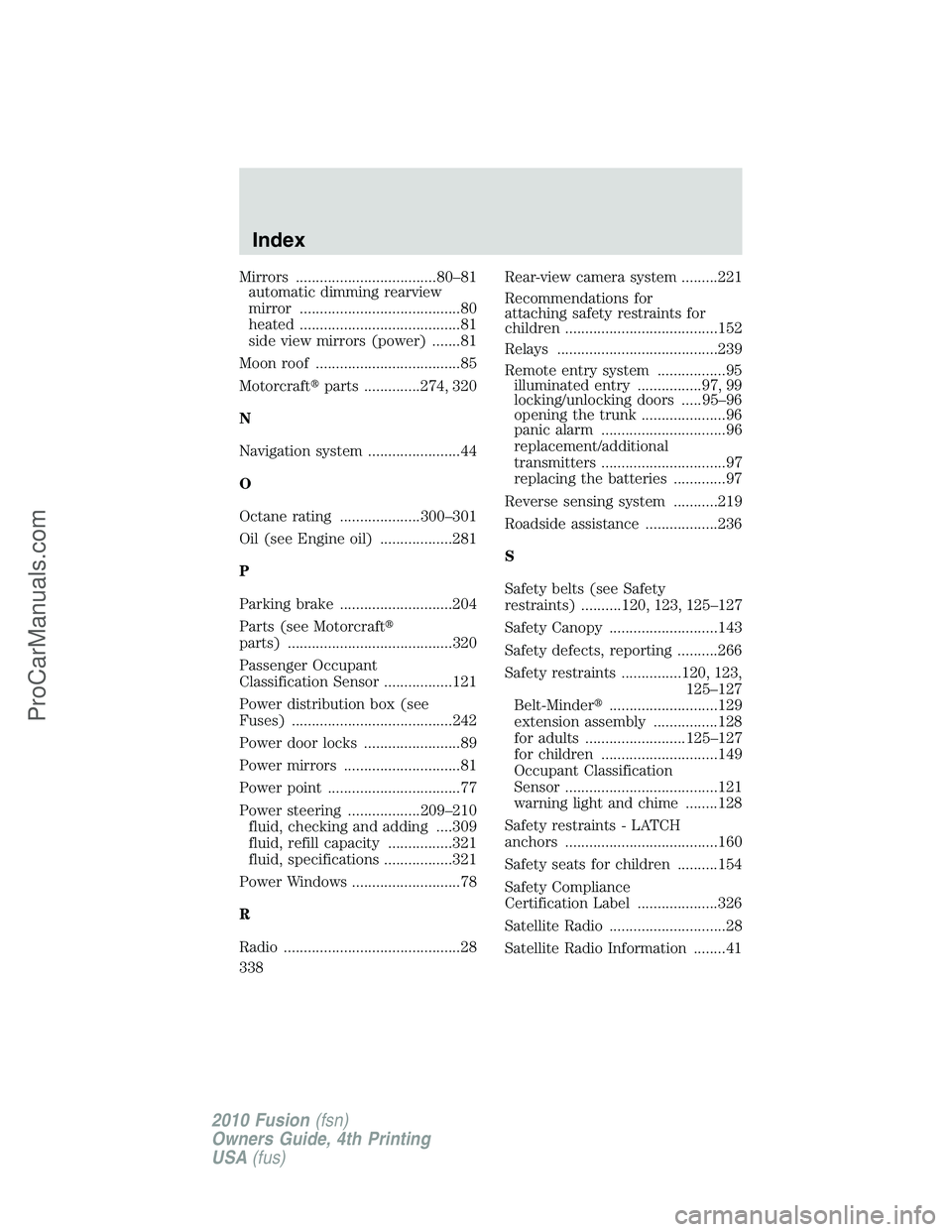

Page 338 of 340
Mirrors ...................................80–81
automatic dimming rearview
mirror ........................................80
heated ........................................81
side view mirrors (power) .......81
Moon roof ....................................85
Motorcraftparts ..............274, 320
N
Navigation system .......................44
O
Octane rating ....................300–301
Oil (see Engine oil) ..................281
P
Parking brake ............................204
Parts (see Motorcraft
parts) .........................................320
Passenger Occupant
Classification Sensor .................121
Power distribution box (see
Fuses) ........................................242
Power door locks ........................89
Power mirrors .............................81
Power point .................................77
Power steering ..................209–210
fluid, checking and adding ....309
fluid, refill capacity ................321
fluid, specifications .................321
Power Windows ...........................78
R
Radio ............................................28Rear-view camera system .........221
Recommendations for
attaching safety restraints for
children ......................................152
Relays ........................................239
Remote entry system .................95
illuminated entry ................97, 99
locking/unlocking doors .....95–96
opening the trunk .....................96
panic alarm ...............................96
replacement/additional
transmitters ...............................97
replacing the batteries .............97
Reverse sensing system ...........219
Roadside assistance ..................236
S
Safety belts (see Safety
restraints) ..........120, 123, 125–127
Safety Canopy ...........................143
Safety defects, reporting ..........266
Safety restraints ...............120, 123,
125–127
Belt-Minder...........................129
extension assembly ................128
for adults .........................125–127
for children .............................149
Occupant Classification
Sensor ......................................121
warning light and chime ........128
Safety restraints - LATCH
anchors ......................................160
Safety seats for children ..........154
Safety Compliance
Certification Label ....................326
Satellite Radio .............................28
Satellite Radio Information ........41
Index
338
2010 Fusion(fsn)
Owners Guide, 4th Printing
USA(fus)
ProCarManuals.com
