seat memory FORD FUSION 2020 Owners Manual

Manual Seats
................................................130
Power Seats ..................................................
130
Memory Function .........................................
132
Rear Seats ......................................................
133
Heated Seats .................................................
135
Climate Controlled Seats .........................
135
Garage Door Opener
Universal Garage Door Opener ...............
137
Auxiliary Power Points
Auxiliary Power Points ...............................
142
Storage Compartments
Center Console .............................................
144
Overhead Console ......................................
144
Rear Seat Armrest .......................................
144
Starting and Stopping the Engine
General Information ...................................
145
Keyless Starting ...........................................
145
Starting a Gasoline Engine ......................
146
Engine Block Heater ...................................
148
Unique Driving Characteristics
Auto-Start-Stop ..........................................
150
Fuel and Refueling
Safety Precautions ......................................
152
Fuel Quality ....................................................
152
Fuel Filler Funnel Location .......................
153
Running Out of Fuel ...................................
154
Refueling .........................................................
155
Fuel Consumption ......................................
158
Engine Emission Control
Emission Law ................................................
159Catalytic Converter
.....................................
160
Transmission
Automatic Transmission ...........................
163
All-Wheel Drive
Using All-Wheel Drive ...............................
168
Brakes
General Information ....................................
173
Hints on Driving With Anti-Lock Brakes ........................................................................\
.
173
Electric Parking Brake .................................
174
Hill Start Assist .............................................
175
Traction Control
Principle of Operation .................................
177
Using Traction Control ................................
177
Stability Control
Principle of Operation ................................
178
Using Stability Control ...............................
179
Parking Aids
Principle of Operation ...............................
180
Rear Parking Aid ..........................................
180
Front Parking Aid .........................................
182
Side Sensing System .................................
184
Active Park Assist ........................................
185
Rear View Camera .......................................
192
Cruise Control
What Is Cruise Control ...............................
195
Switching Cruise Control On and Off ........................................................................\
.
195
Setting the Cruise Control Speed .........
195
Canceling the Set Speed ..........................
196
Resuming the Set Speed .........................
196
Cruise Control Indicators ..........................
196
Using Adaptive Cruise Control ...............
196
3
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Table of Contents

Seats
Action
Message
A reminder that memory seats are not available while driving.
Memory Recall Not
Permitted While Driving
Shows where you have saved your memory setting.
Memory {0} Saved
Starting System Action
Message
A reminder to apply the brake when starting your vehicle.
To START Press Brake
The starter is attempting to start your vehicle.
Engine Start Pending
Please Wait
The system has cancelled the pending start.
Pending Start Cancelled
The starter has exceeded its cranking time in attempting tostart your vehicle.
Cranking Time Exceeded
Tire Pressure Monitoring System Action
Message
One or more tires on your vehicle has low tire pressure. SeeTire Pressure Monitoring System (page 304).
Tire Pressure Low
The tire pressure monitoring system is malfunctioning. If thewarning stays on or continues to come on, contact an
authorized dealer. See
Tire Pressure Monitoring System (page 304).
Tire Pressure Monitor
Fault
A tire pressure sensor is malfunctioning or your spare tire is inuse. See
Tire Pressure Monitoring System (page 304). If
the warning stays on or continues to come on, contact an authorized dealer as soon as possible.
Tire Pressure Sensor
Fault
115
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Information Displays

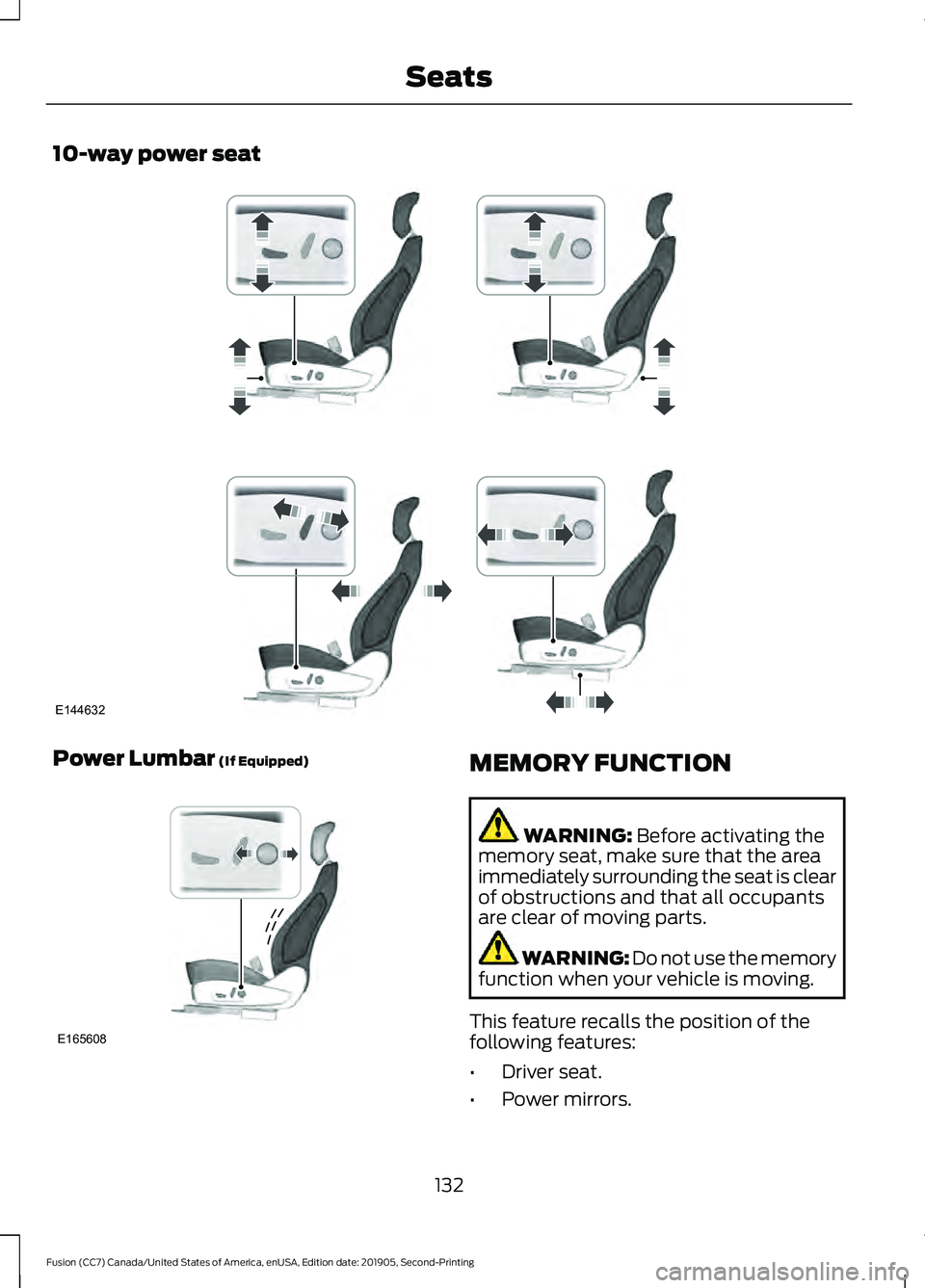

10-way power seat
Power Lumbar (If Equipped)
MEMORY FUNCTION
WARNING:
Before activating the
memory seat, make sure that the area
immediately surrounding the seat is clear
of obstructions and that all occupants
are clear of moving parts. WARNING:
Do not use the memory
function when your vehicle is moving.
This feature recalls the position of the
following features:
• Driver seat.
• Power mirrors.
132
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing SeatsE144632 E165608

The memory control is on the driver door.
Saving a PreSet Position
1. Adjust the memory features to the
position you prefer.
2. Press the SET button until you hear a single tone.
3. Press the preset button you prefer until
you hear a single tone.
You can save up to two preset memory
positions. You can save a memory preset
at any time.
Recalling a PreSet Position
Press and release the preset button
associated with the driving position you
prefer. The memory features move to the
position stored for that preset.
Note: You can only recall a preset memory
position when you switch the ignition off, or
when the transmission is in park (P) or
neutral (N) if the ignition is on and the
vehicle is not moving.
You can also recall a preset memory
position by:
• Pressing the unlock button on your
intelligent access key fob if it is linked
to a preset position.
• Unlocking the intelligent driver door
handle if a linked key fob is present.
Note: Using a linked key fob to recall your
memory position when the ignition is off
moves the seat to the Easy Entry position. Note:
Pressing any active memory feature
control or any memory button during a
memory recall cancels the operation.
Linking a PreSet Position to your
Remote Control or Intelligent
Access Key Fob
Your vehicle can save the preset memory
positions for up to two remote controls or
intelligent access keys.
After you save the memory preset
positions you prefer:
1. Press and hold the preset button you prefer for about three seconds until you
hear a single tone.
2. Within three seconds, press the lock button on the remote control you are
linking.
To unlink a remote control, follow the
same procedure – except in step 2, press
the unlock button on the remote control.
Note: If more than one linked remote
control or intelligent access key is in range,
the memory function moves to the settings
of the first key to initiate a memory recall.
Easy Entry and Exit Feature
If you enable the easy entry and exit
feature, it moves the driver seat position
rearward up to 2 in (5 cm) when you switch
the ignition off.
The driver seat returns to the previous
position when you switch the ignition on.
You can enable or disable this feature
through the information display. See
General Information (page 94).
REAR SEATS
Note: Your vehicle may have split
seatbacks that you must fold individually.
Note: Make sure the center safety belt is
unbuckled before folding the seatback.
133
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing SeatsE223340

Display
Select this tile to adjust display settings
like brightness and auto dim.
Charge Settings (If Equipped)
Select this tile to adjust the electric vehicle
charge settings.
Voice Control
Select this tile to adjust voice control
settings like command confirmations and
displayed lists.
Navigation
(If Equipped)
Select this tile to adjust navigation settings
like map preferences and route guidance.
Multi Contour Seats
(If Equipped)
Select this tile to adjust the position and
massage function of your multi contour
seats. Seats
(If Equipped)
Select this tile to adjust the lumbar
function of your seats.
Message Center
(If Equipped)
Select this tile to view vehicle messages.
Personal Profiles
(If Equipped)
Select this tile to adjust recalled memory
features when using personal profiles.
Valet Mode
(If Equipped)
Select this tile to enable and disable valet
mode.
Ambient Lighting
(If Equipped)
Select this tile to change the color or
intensity of the interior lighting.
416
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing SYNC™ 3

Releasing the Electric Parking Brake if the
Vehicle Battery is Running Out of
Charge................................................................ 175
Electromagnetic Compatibility...............451
Emission Law.................................................159
Noise Emissions Warranty, Prohibited
Tampering Acts and Maintenance.........160
Tampering With a Noise Control System............................................................... 159
End User License Agreement
.................453
VEHICLE SOFTWARE END USER LICENSE
AGREEMENT (EULA) ................................. 453
Engine Block Heater
....................................148
Using the Engine Block Heater...................... 149
Engine Coolant Check
...............................262
Adding Coolant................................................... 262
Coolant Change................................................. 264
Engine Coolant Temperature Management.................................................. 265
Fail-Safe Cooling............................................... 264
Recycled Coolant............................................... 263
Severe Climates................................................. 264
Engine Emission Control
............................159
Engine Immobilizer See: Passive Anti-Theft System.................... 68
Engine Oil Check.........................................260 Adding Engine Oil.............................................. 260
Engine Oil Dipstick - 1.5L EcoBoost™................................................260
Engine Oil Dipstick - 2.0L EcoBoost™/ 2.5L/2.7L EcoBoost™
.............................260
Engine Specifications - 1.5L EcoBoost™...................................................317
Drivebelt Routing................................................. 317
Engine Specifications - 2.0L EcoBoost™...................................................317
Drivebelt Routing................................................ 318
Engine Specifications - 2.5L
.....................318
Drivebelt Routing................................................ 318
Engine Specifications - 2.7L EcoBoost™..................................................319
Drivebelt Routing................................................ 319
Entertainment..............................................393 AM/FM Radio...................................................... 394
Apps....................................................................... 402
Bluetooth Stereo or USB................................. 401
CD (If equipped)............................................... 400HD Radio
™ Information (If
Available)......................................................... 397
SiriusXM® Satellite Radio (If Activated)........................................................ 395
Sources................................................................. 394
Supported Media Players, Formats and Metadata Information................................ 402
USB Ports............................................................. 402
Environment......................................................17
EPB See: Electric Parking Brake.............................. 174
Essential Towing Checks
..........................224
Before Towing a Trailer.................................... 225
Hitches................................................................... 224
Launching or Retrieving a Boat or Personal Watercraft (PWC)........................................ 225
Safety Chains...................................................... 224
Trailer Brakes....................................................... 224
Trailer Lamps....................................................... 224
When Towing a Trailer...................................... 225
Event Data Recording See: Data Recording.............................................. 9
Export Unique Options.................................15
Exterior Mirrors
................................................83
Auto-Dimming Feature...................................... 84
Blind Spot Monitor.............................................. 84
Fold-Away Exterior Mirrors............................... 84
Heated Exterior Mirrors...................................... 84
Memory Mirrors..................................................... 84
Power Exterior Mirrors........................................ 83
Power-Folding Mirrors........................................ 84
Puddle Lamps ...................................................... 84
Signal Indicator Mirrors...................................... 84
F
Fastening the Seatbelts..............................34 Seatbelt Locking Modes.................................... 35
Using Seatbelts During Pregnancy................34
Flat Tire See: Changing a Road Wheel....................... 308
Floor Mats
.......................................................229
Fog Lamps - Front See: Front Fog Lamps......................................... 77
Ford Credit
.........................................................13
US Only..................................................................... 13
486
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Index

Load Limit........................................................217
Special Loading Instructions - for all
vehicles.............................................................. 221
Vehicle Loading - with and without a Trailer.................................................................. 217
Locking and Unlocking..................................61 Activating Intelligent Access............................ 62
Autolock................................................................... 63
Autounlock............................................................. 64
Battery Saver......................................................... 64
Illuminated Entry.................................................. 64
Illuminated Exit..................................................... 64
Power Door Locks................................................. 61
Remote Control..................................................... 61
Smart Unlocks for Intelligent Access Keys...................................................................... 63
Lug Nuts See: Changing a Road Wheel....................... 308
M
Maintenance..................................................255 General Information......................................... 255
Manual Climate Control.............................118
Directing Air to the Footwell Air Vents........118
Directing Air to the Instrument Panel Air
Vents................................................................... 118
Setting the Blower Motor Speed................... 118
Setting the Temperature.................................. 118
Switching Defrost On and Off........................ 118
Switching Maximum Air Conditioning On and Off................................................................ 119
Switching Maximum Defrost On and Off........................................................................\
119
Switching Recirculated Air On and Off........................................................................\
119
Switching the Air Conditioning On and Off........................................................................\
118
Switching the Climate Control On and Off........................................................................\
119
Manual Seats
.................................................130
Memory Function..........................................132
Easy Entry and Exit Feature............................ 133
Linking a PreSet Position to your Remote Control or Intelligent Access Key
Fob....................................................................... 133
Saving a PreSet Position.................................. 133Message Center
See: Information Displays................................. 94
Mirrors See: Windows and Mirrors................................ 82
Mobile Communications Equipment.......15
Moonroof..........................................................85 Bounce-Back......................................................... 86
Opening and Closing the Moonroof.............86
Venting the Moonroof........................................ 86
Motorcraft Parts - 1.5L EcoBoost™.......319
Motorcraft Parts - 2.0L EcoBoost™..................................................321
Motorcraft Parts - 2.5L...............................322
Motorcraft Parts - 2.7L EcoBoost™.................................................323
MyKey – Troubleshooting...........................59
MyKey ™
.............................................................56
Principle of Operation........................................ 56
N
Navigation......................................................407 Changing the Format of the Map...............409
cityseeker................................................................ 411
Michelin Travel Guide........................................ 412
Navigation Map Accuracy and Updates............................................................. 412
Route Guidance................................................. 409
Setting a Destination....................................... 408
SiriusXM Traffic and Travel Link.................... 412
Zoom..................................................................... 409
Normal Scheduled Maintenance
..........436
Intelligent Oil-Life Monitor............................. 436
Normal Maintenance Intervals..................... 437
O
Oil Change Indicator Reset
.......................261
Oil Check See: Engine Oil Check...................................... 260
Opening and Closing the Hood
..............255
Closing the Hood............................................... 256
Opening the Hood............................................. 255
Ordering Additional Owner's Literature......................................................242
Obtaining a French Owner ’s Manual..........242
Overhead Console
.......................................144
489
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Index
