Page 3 of 264
Maintenance and Specifications 206
Engine compartment 208
Engine oil 211
Battery 216
Engine Coolant 218
Fuel information 224
Air filter(s) 241
Part numbers 242
Refill capacities 243
Lubricant specifications 245
Accessories 251
Index 254
All rights reserved. Reproduction by any means, electronic or mechanical
including photocopying, recording or by any information storage and retrieval
system or translation in whole or part is not permitted without written
authorization from Ford Motor Company. Ford may change the contents without
notice and without incurring obligation.
Copyright © 2005 Ford Motor Company
Table of Contents
3
2006 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)

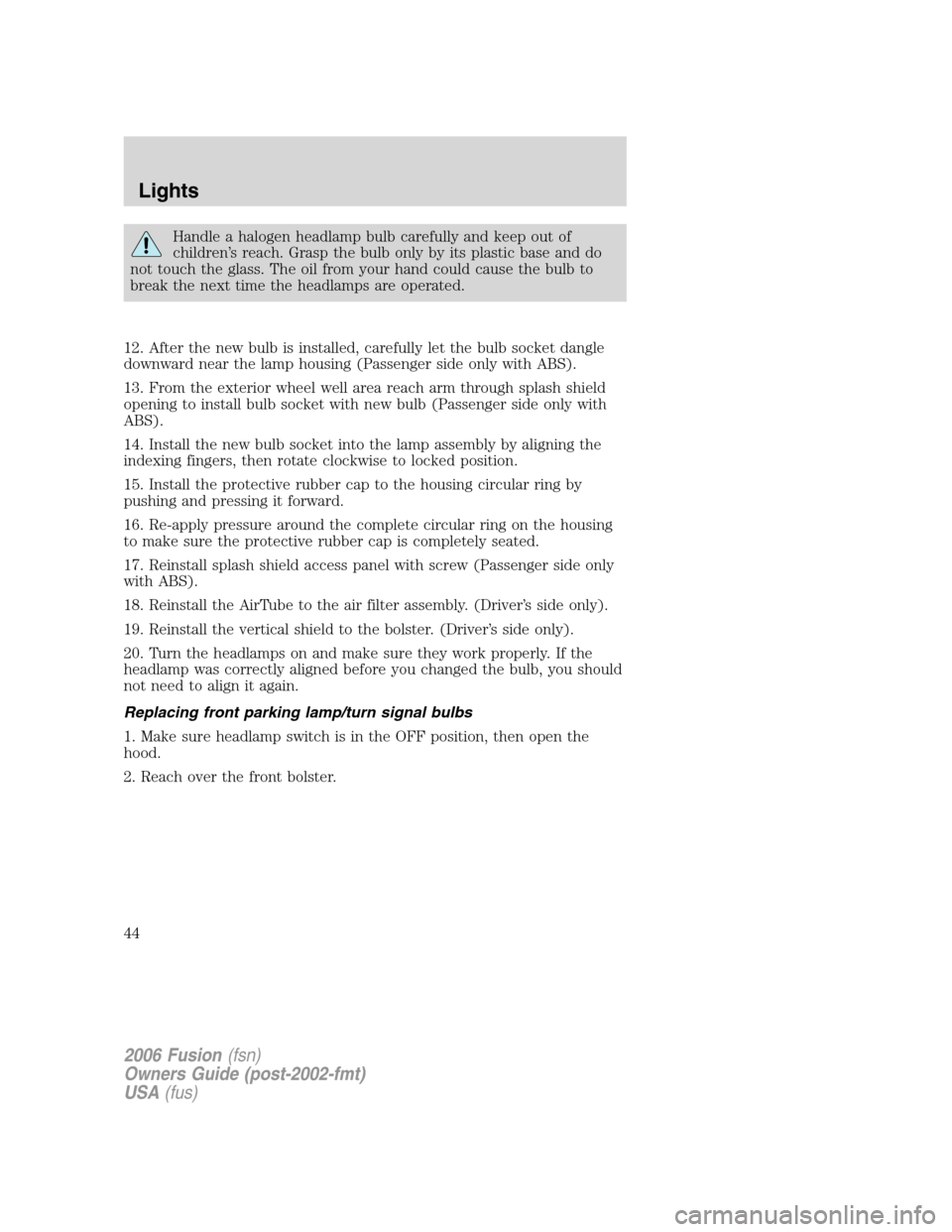

Page 44 of 264
Handle a halogen headlamp bulb carefully and keep out of
children’s reach. Grasp the bulb only by its plastic base and do
not touch the glass. The oil from your hand could cause the bulb to
break the next time the headlamps are operated.
12. After the new bulb is installed, carefully let the bulb socket dangle
downward near the lamp housing (Passenger side only with ABS).
13. From the exterior wheel well area reach arm through splash shield
opening to install bulb socket with new bulb (Passenger side only with
ABS).
14. Install the new bulb socket into the lamp assembly by aligning the
indexing fingers, then rotate clockwise to locked position.
15. Install the protective rubber cap to the housing circular ring by
pushing and pressing it forward.
16. Re-apply pressure around the complete circular ring on the housing
to make sure the protective rubber cap is completely seated.
17. Reinstall splash shield access panel with screw (Passenger side only
with ABS).
18. Reinstall the AirTube to the air filter assembly. (Driver’s side only).
19. Reinstall the vertical shield to the bolster. (Driver’s side only).
20. Turn the headlamps on and make sure they work properly. If the
headlamp was correctly aligned before you changed the bulb, you should
not need to align it again.
Replacing front parking lamp/turn signal bulbs
1. Make sure headlamp switch is in the OFF position, then open the
hood.
2. Reach over the front bolster.
2006 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
44

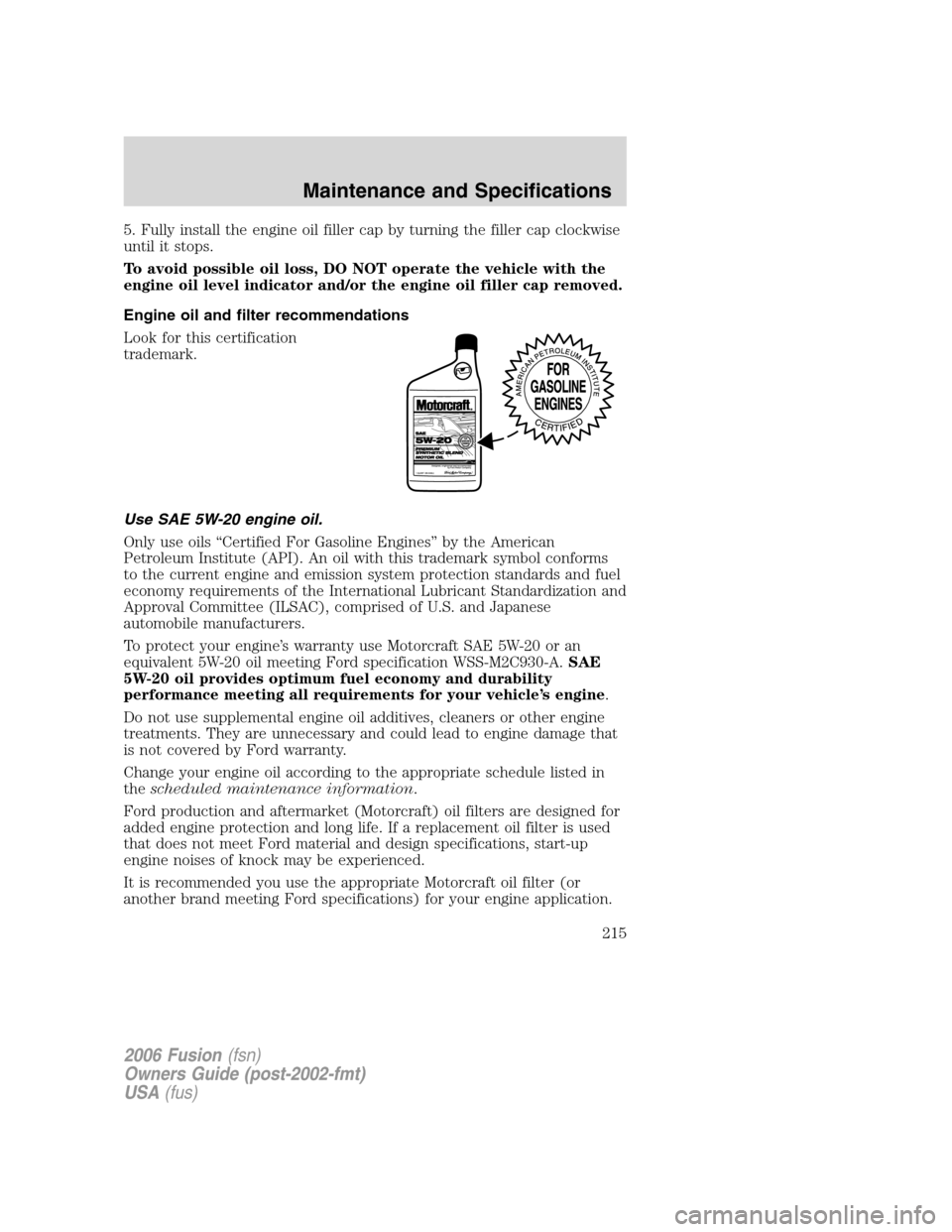

Page 215 of 264
5. Fully install the engine oil filler cap by turning the filler cap clockwise
until it stops.
To avoid possible oil loss, DO NOT operate the vehicle with the
engine oil level indicator and/or the engine oil filler cap removed.
Engine oil and filter recommendations
Look for this certification
trademark.
Use SAE 5W-20 engine oil.
Only use oils “Certified For Gasoline Engines” by the American
Petroleum Institute (API). An oil with this trademark symbol conforms
to the current engine and emission system protection standards and fuel
economy requirements of the International Lubricant Standardization and
Approval Committee (ILSAC), comprised of U.S. and Japanese
automobile manufacturers.
To protect your engine’s warranty use Motorcraft SAE 5W-20 or an
equivalent 5W-20 oil meeting Ford specification WSS-M2C930-A.SAE
5W-20 oil provides optimum fuel economy and durability
performance meeting all requirements for your vehicle’s engine.
Do not use supplemental engine oil additives, cleaners or other engine
treatments. They are unnecessary and could lead to engine damage that
is not covered by Ford warranty.
Change your engine oil according to the appropriate schedule listed in
thescheduled maintenance information.
Ford production and aftermarket (Motorcraft) oil filters are designed for
added engine protection and long life. If a replacement oil filter is used
that does not meet Ford material and design specifications, start-up
engine noises of knock may be experienced.
It is recommended you use the appropriate Motorcraft oil filter (or
another brand meeting Ford specifications) for your engine application.
2006 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
215
Page 243 of 264
Replace the PCV valve with one that meets Ford material and
design specifications for your vehicle, such as a Motorcraft or
equivalent replacement part. The customer warranty may be void
for any damage to the emissions system if such a PCV valve is not
used.
2For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft or
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
3When changing oil filter, you must also replace the oil filter O-ring, part
number 1S7G-6885–AC.
4The 2.3L engine may be equipped with an FL2017 A, Eco-oil filter or an
FL910, spin on oil filter.
REFILL CAPACITIES
Fluid Ford Part
NameApplication Capacity
Brake fluid (and
clutch fluid, if
equipped)Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidAll Fill between Min
and Max on
reservoir
Engine oil
(including filter
change)
1
Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)2.3L I4 engine 4.5 quarts
(4.25L)
3.0L V6 Duratec
engine6.0 quarts
(5.7L)
Fuel tank N/A All 17.5 gallons
(66.2L)
2006 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
243

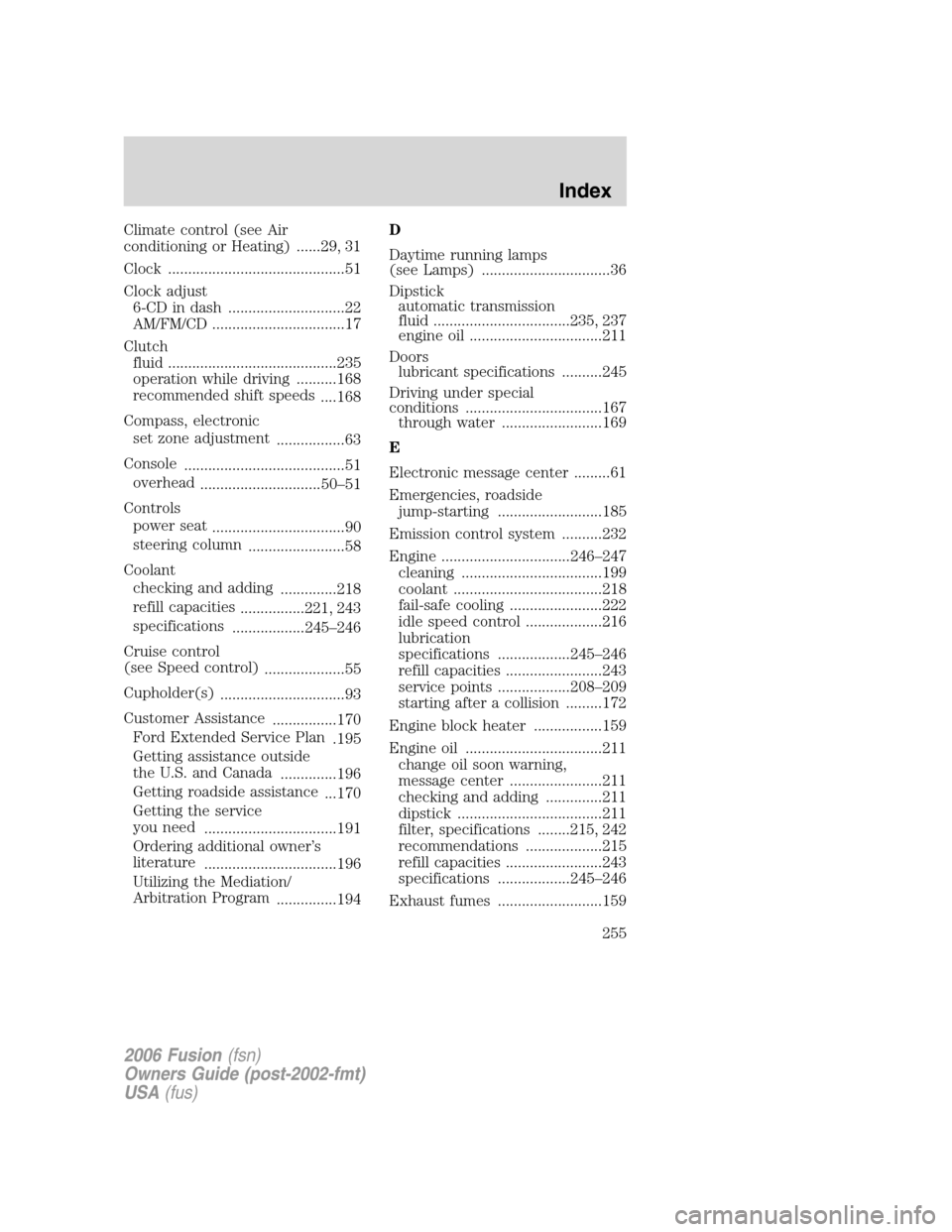

Page 255 of 264
Climate control (see Air
conditioning or Heating) ......29, 31
Clock ............................................51
Clock adjust
6-CD in dash .............................22
AM/FM/CD .................................17
Clutch
fluid ..........................................235
operation while driving ..........168
recommended shift speeds
....168
Compass, electronic
set zone adjustment
.................63
Console
........................................51
overhead
..............................50–51
Controls
power seat
.................................90
steering column
........................58
Coolant
checking and adding
..............218
refill capacities
................221, 243
specifications
..................245–246
Cruise control
(see Speed control)
....................55
Cupholder(s)
...............................93
Customer Assistance
................170
Ford Extended Service Plan
.195
Getting assistance outside
the U.S. and Canada
..............196
Getting roadside assistance
...170
Getting the service
you need
.................................191
Ordering additional owner’s
literature
.................................196
Utilizing the Mediation/
Arbitration Program
...............194D
Daytime running lamps
(see Lamps) ................................36
Dipstick
automatic transmission
fluid ..................................235, 237
engine oil .................................211
Doors
lubricant specifications ..........245
Driving under special
conditions ..................................167
through water .........................169
E
Electronic message center .........61
Emergencies, roadside
jump-starting ..........................185
Emission control system ..........232
Engine ................................246–247
cleaning ...................................199
coolant .....................................218
fail-safe cooling .......................222
idle speed control ...................216
lubrication
specifications ..................245–246
refill capacities ........................243
service points ..................208–209
starting after a collision .........172
Engine block heater .................159
Engine oil ..................................211
change oil soon warning,
message center .......................211
checking and adding ..............211
dipstick ....................................211
filter, specifications ........215, 242
recommendations ...................215
refill capacities ........................243
specifications ..................245–246
Exhaust fumes ..........................159
2006 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)
Index
255
Page 257 of 264
L
Lamps
autolamp system .......................35
bulb replacement
specifications chart ..................40
daytime running light ...............36
fog lamps ...................................36
headlamps .................................35
headlamps, flash to pass ..........37
instrument panel, dimming .....37
interior lamps ...........................39
replacing bulbs ...................39, 41
Lane change indicator
(see Turn signal) ........................39
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........160
Load limits .................................150
Locks
autolock .....................................80
childproof ..................................73
Lubricant specifications ...245–246
Lug nuts ....................................184
Lumbar support, seats ...............89
M
Manual transaxle
fluid capacities ........................243
fluid, checking and adding ....240
lubricant specifications ..........246
Manual transmission .................168
reverse .....................................169
Message center ...........................61
english/metric button ...............66
system check button ................65
warning messages .....................66
Mirrors ...................................50, 54automatic dimming rearview
mirror ........................................54
heated ........................................55
side view mirrors (power) .......54
Moon roof ....................................59
Motorcraft parts ........204, 223, 242
O
Octane rating ............................227
Oil (see Engine oil) ..................211
P
Parking brake ............................161
Parts (see Motorcraft parts) ....242
Passenger Occupant
Classification Sensor ...................95
Power distribution box
(see Fuses) ...............................176
Power mirrors .............................54
Power point .................................52
Power steering ..........................163
fluid, checking and adding ....234
fluid, refill capacity ................243
fluid, specifications .........245–246
Power Windows ...........................53
R
Radio ......................................17, 21
Relays ........................................172
Remote entry system .................76
illuminated entry ................78–79
opening the trunk .....................76
Roadside assistance ..................170
S
Safety Belt Maintenance ..........106
2006 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)
Index
257
