Page 251 of 304

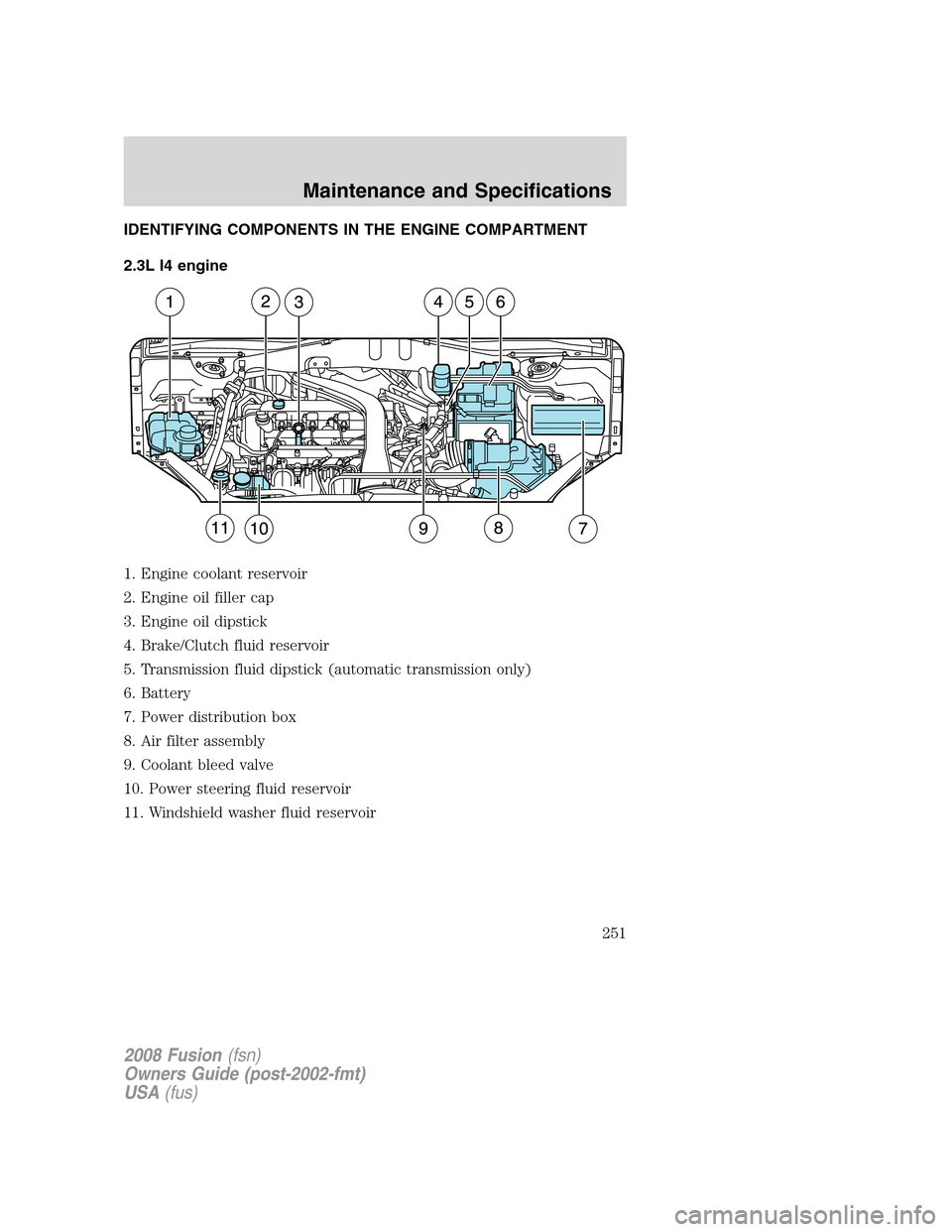

FORD FUSION (AMERICAS) 2008 1.G Owners Manual IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT
2.3L I4 engine
1. Engine coolant reservoir
2. Engine oil filler cap
3. Engine oil dipstick
4. Brake/Clutch fluid reservoir
5. Transmission fluid dipsti

Page 252 of 304

FORD FUSION (AMERICAS) 2008 1.G Owners Manual 3.0L DOHC V6 Duratec engine
1. Engine coolant reservoir
2. Power steering fluid reservoir
3. Brake fluid reservoir
4. Transmission Fluid Dipstick (automatic transmission only)
5. Battery
6. Power dist

Page 253 of 304

FORD FUSION (AMERICAS) 2008 1.G Owners Manual WINDSHIELD WASHER FLUID
Add fluid to fill the reservoir if the
level is low. In very cold weather, do
not fill the reservoir completely.
Only use a washer fluid that meets
Ford specification WSB-M8B16

Page 254 of 304

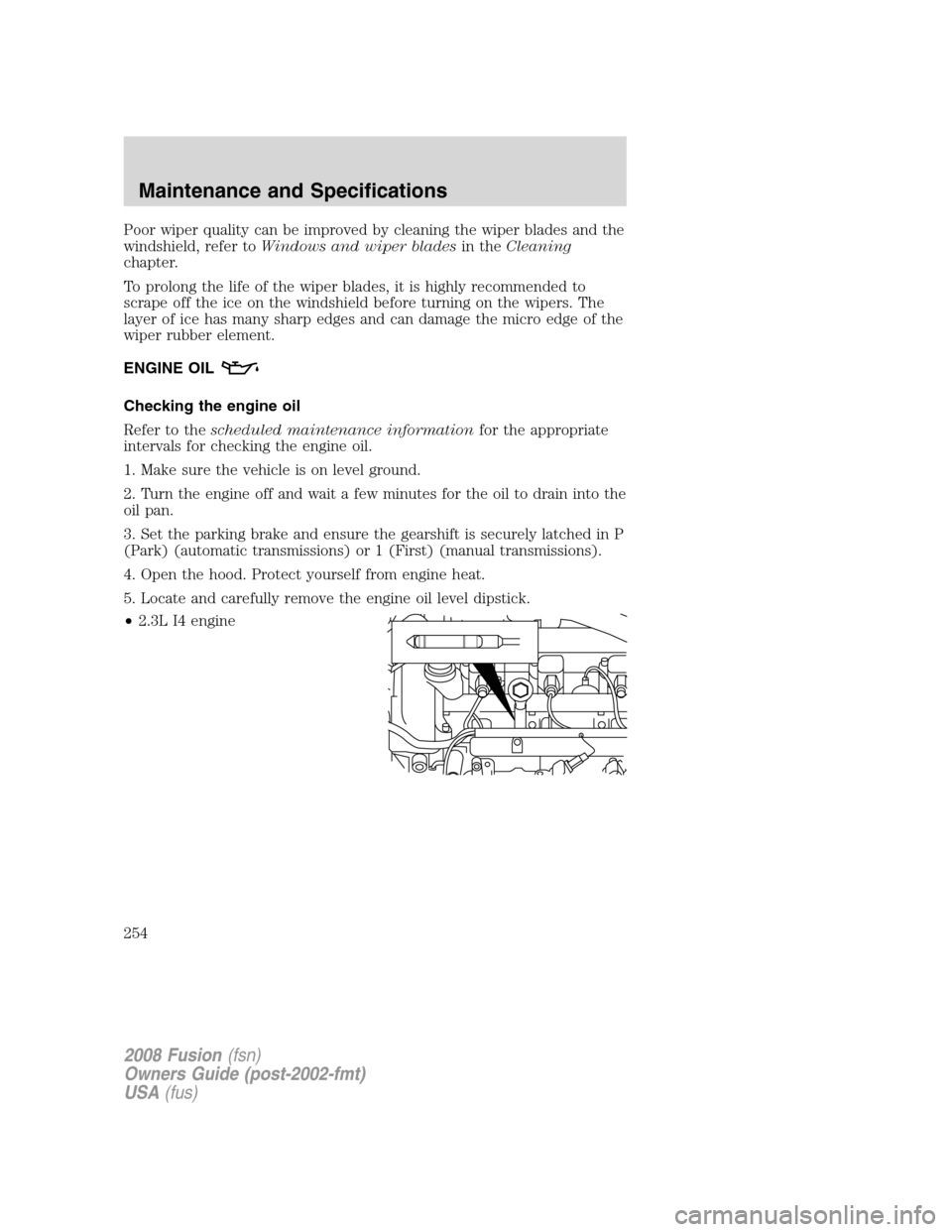

FORD FUSION (AMERICAS) 2008 1.G Owners Manual Poor wiper quality can be improved by cleaning the wiper blades and the
windshield, refer toWindows and wiper bladesin theCleaning
chapter.
To prolong the life of the wiper blades, it is highly recomm

Page 255 of 304

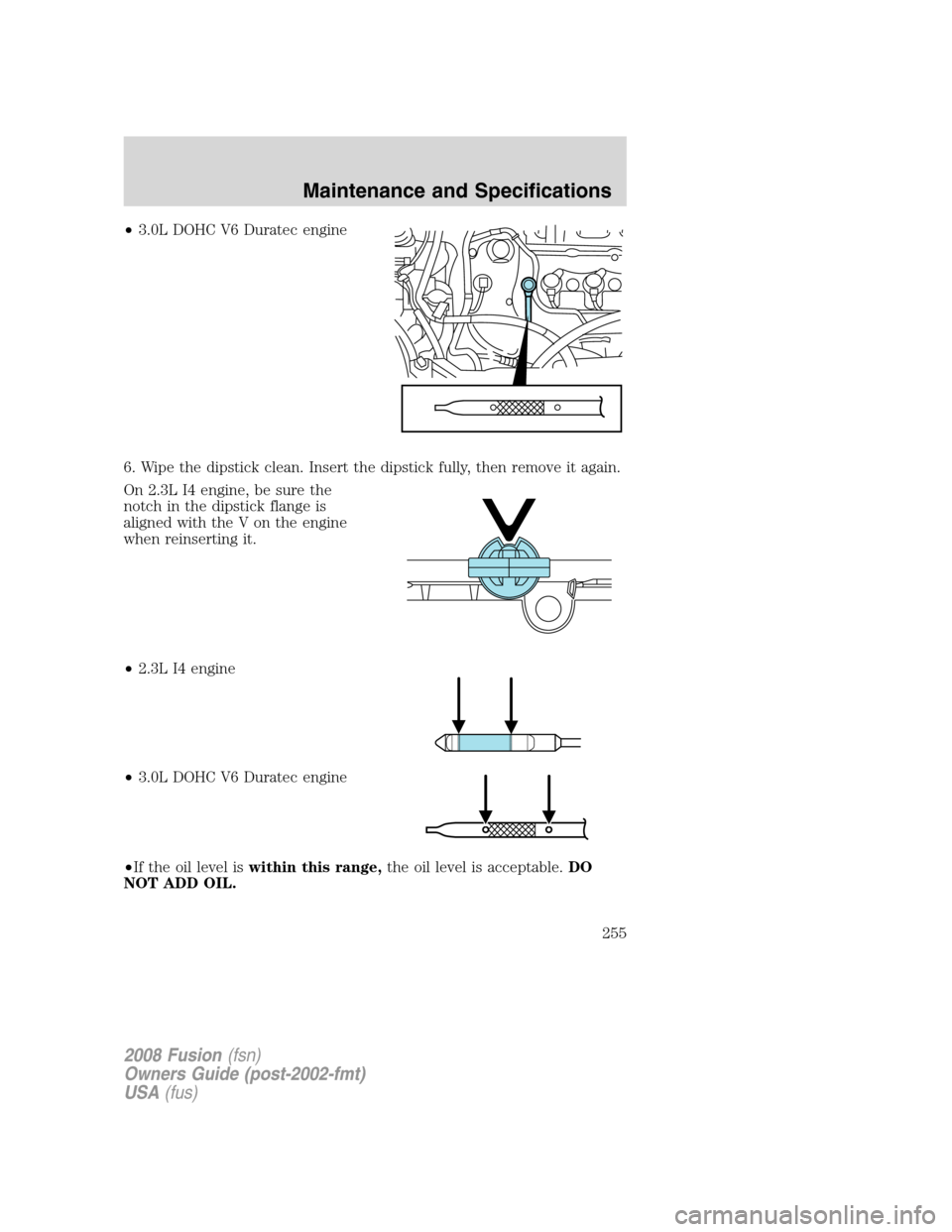

FORD FUSION (AMERICAS) 2008 1.G Owners Manual •3.0L DOHC V6 Duratec engine
6. Wipe the dipstick clean. Insert the dipstick fully, then remove it again.
On 2.3L I4 engine, be sure the
notch in the dipstick flange is
aligned with the V on the eng

Page 256 of 304

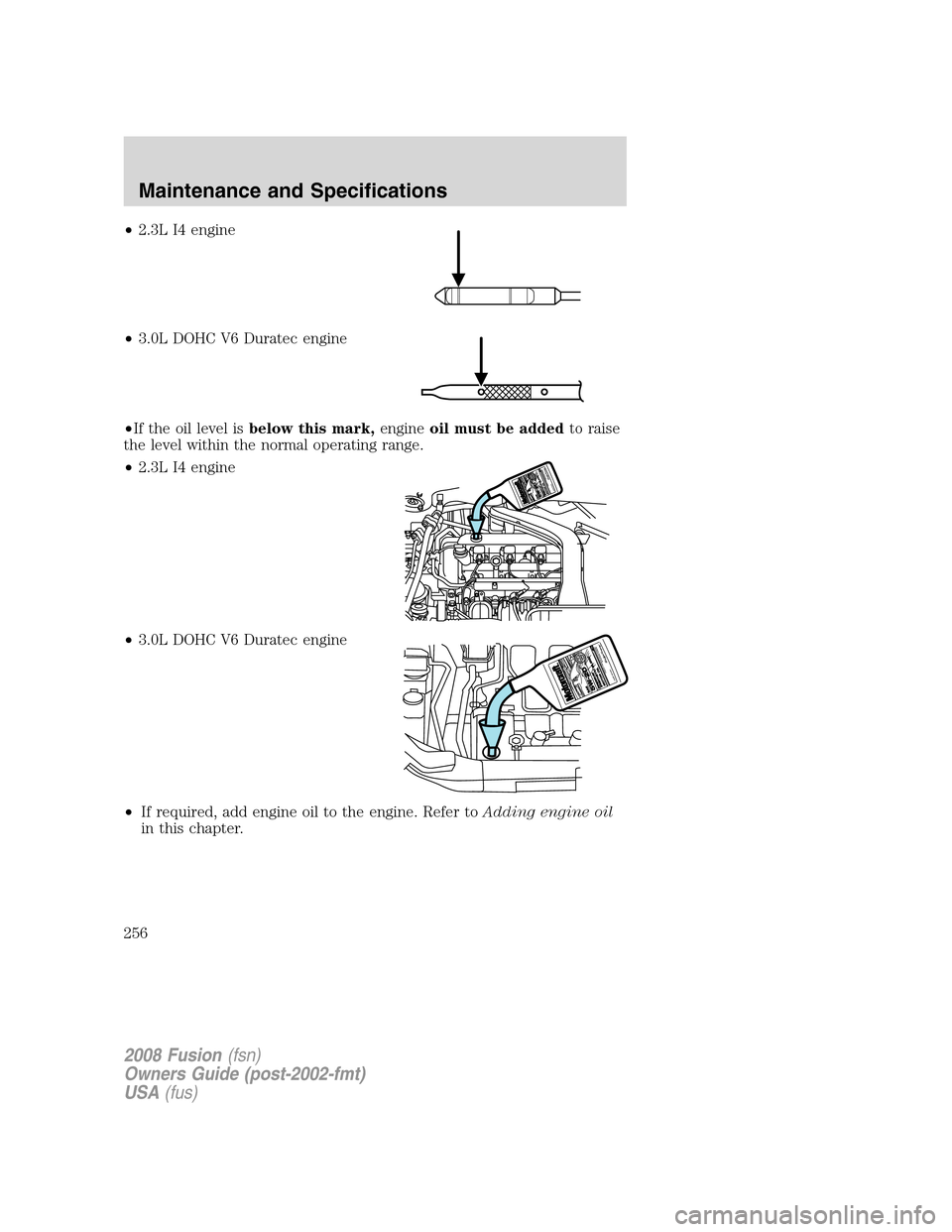

FORD FUSION (AMERICAS) 2008 1.G Owners Manual •2.3L I4 engine
•3.0L DOHC V6 Duratec engine
•If the oil level isbelow this mark,engineoil must be addedto raise
the level within the normal operating range.
•2.3L I4 engine
•3.0L DOHC V6 Du

Page 257 of 304

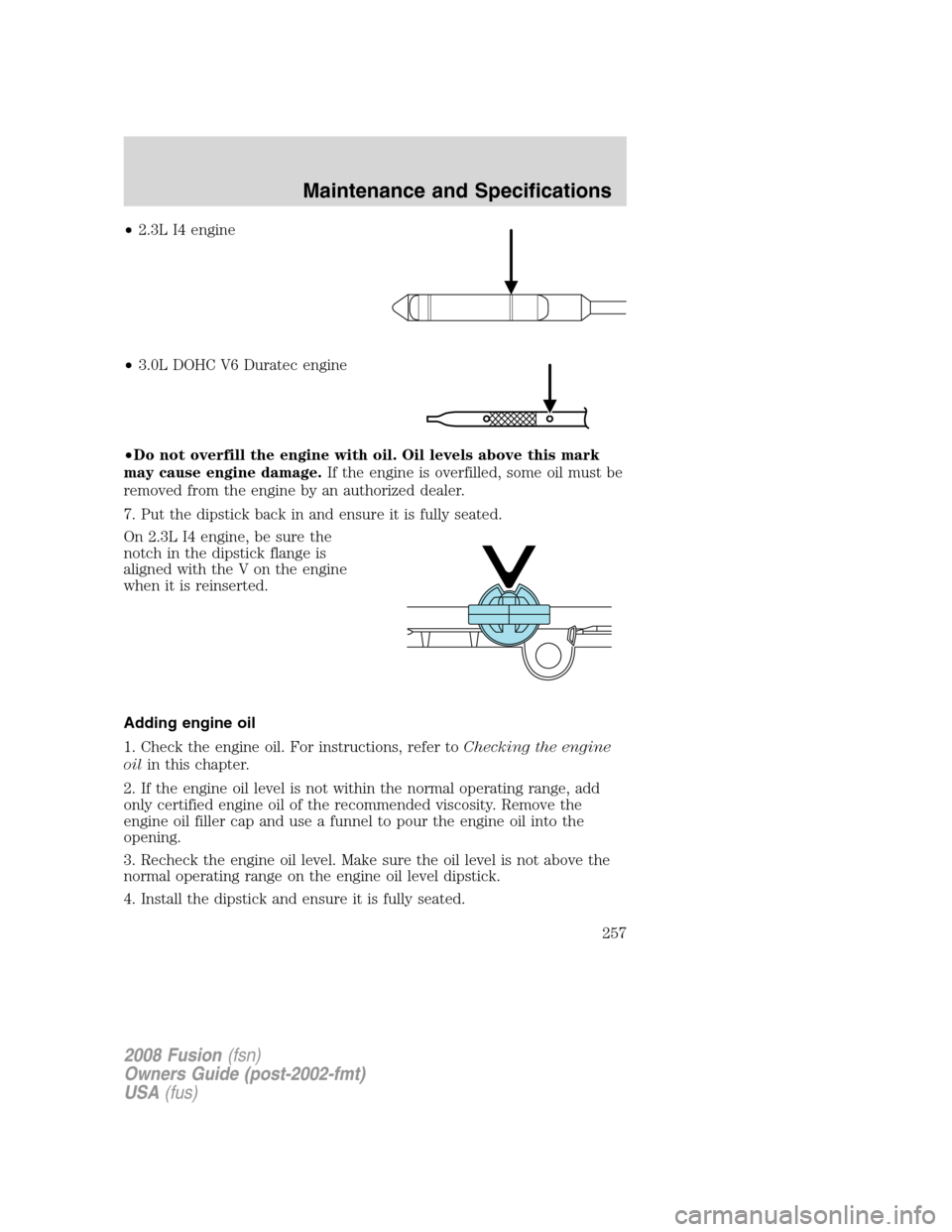

FORD FUSION (AMERICAS) 2008 1.G Owners Manual •2.3L I4 engine
•3.0L DOHC V6 Duratec engine
•Do not overfill the engine with oil. Oil levels above this mark
may cause engine damage.If the engine is overfilled, some oil must be
removed from t

Page 258 of 304

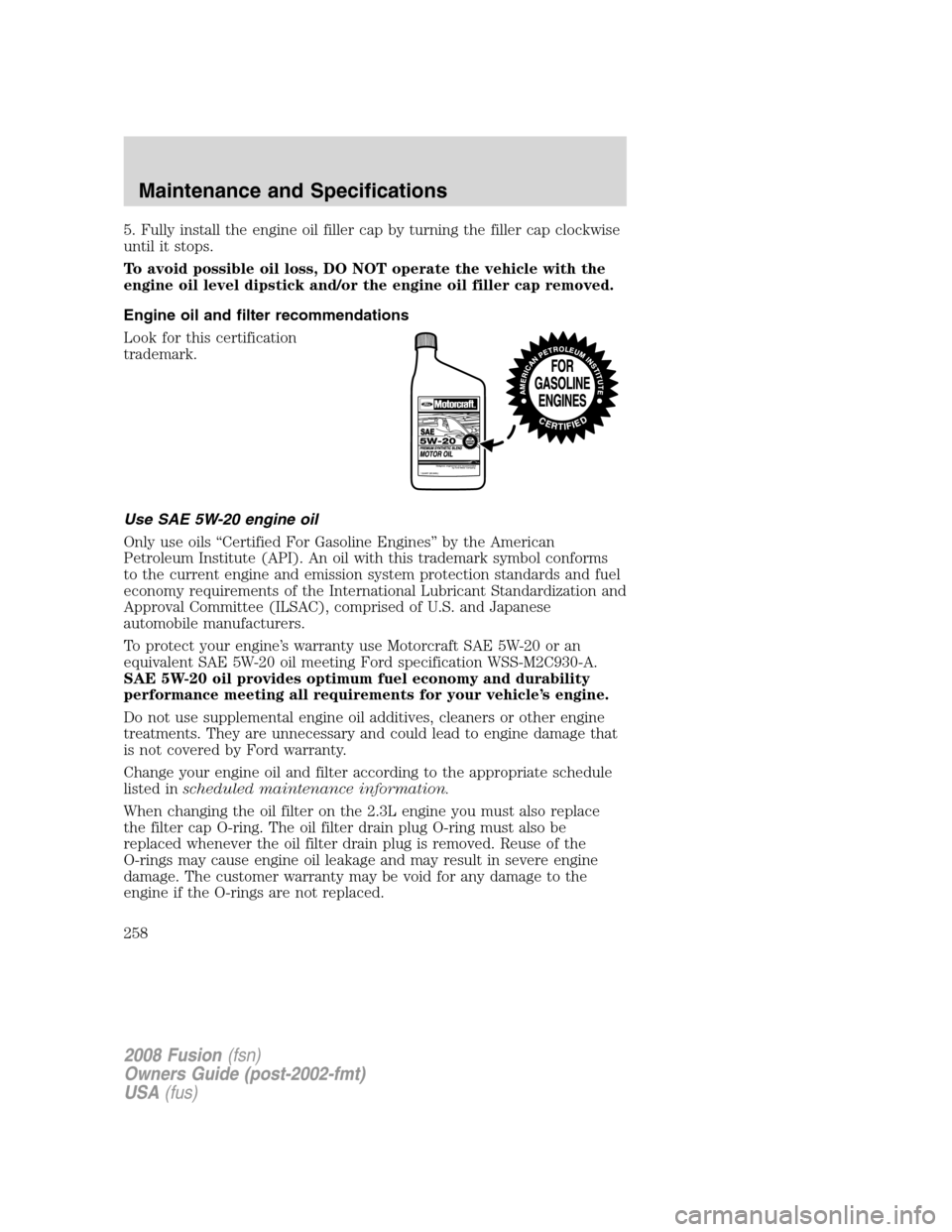

FORD FUSION (AMERICAS) 2008 1.G Owners Manual 5. Fully install the engine oil filler cap by turning the filler cap clockwise
until it stops.
To avoid possible oil loss, DO NOT operate the vehicle with the
engine oil level dipstick and/or the engi

Page 259 of 304

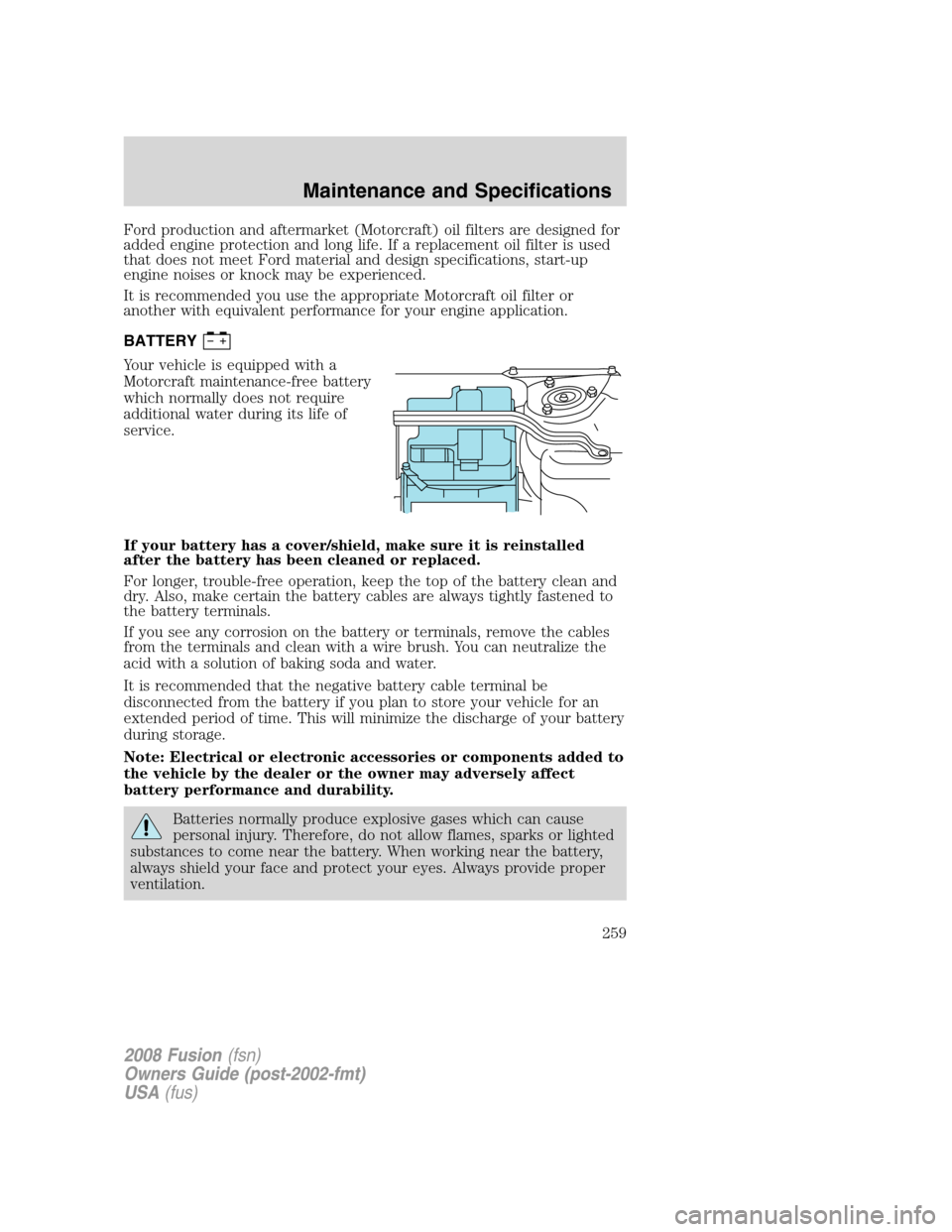

FORD FUSION (AMERICAS) 2008 1.G Owners Manual Ford production and aftermarket (Motorcraft) oil filters are designed for
added engine protection and long life. If a replacement oil filter is used
that does not meet Ford material and design specifi

Page 260 of 304

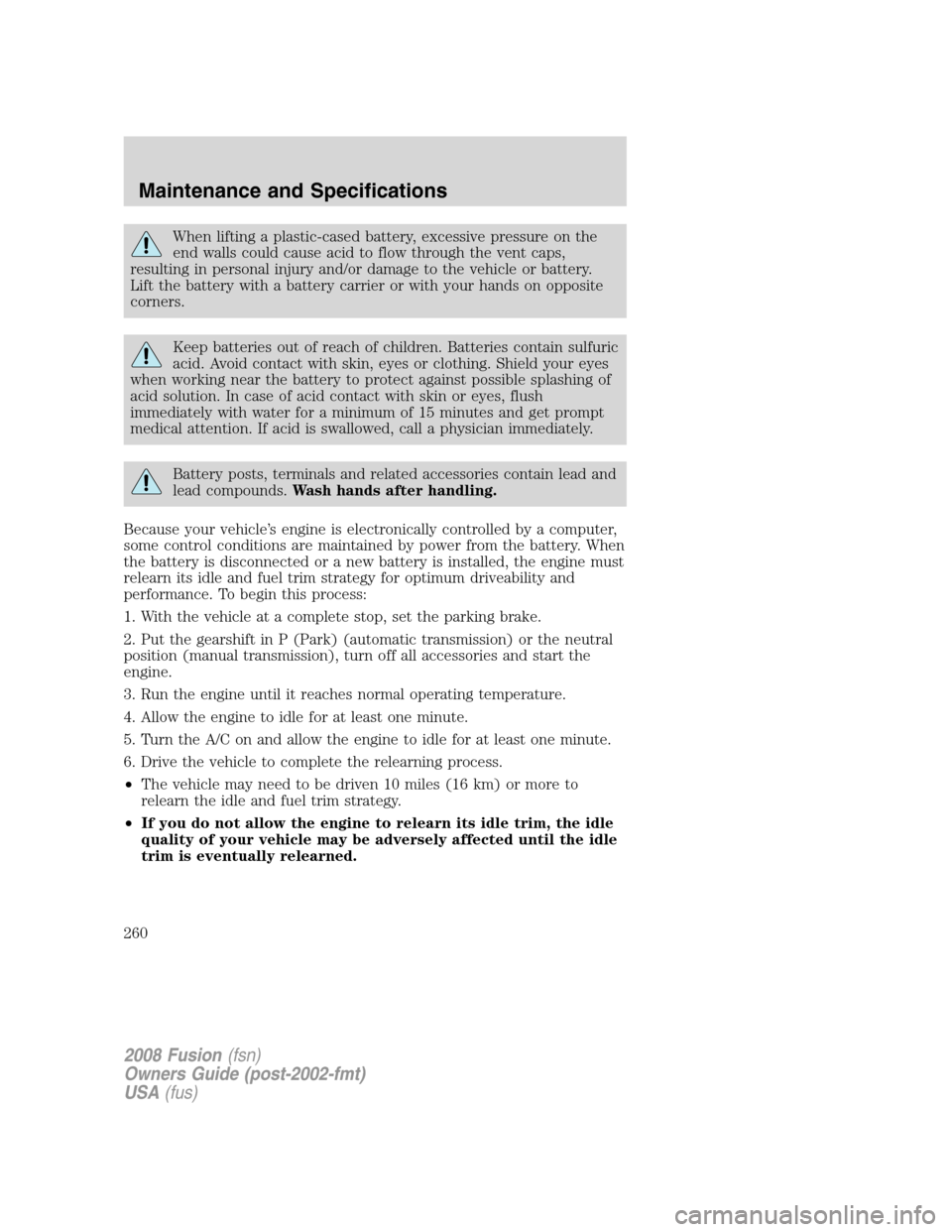

FORD FUSION (AMERICAS) 2008 1.G Owners Manual When lifting a plastic-cased battery, excessive pressure on the
end walls could cause acid to flow through the vent caps,
resulting in personal injury and/or damage to the vehicle or battery.
Lift the
