Page 211 of 304

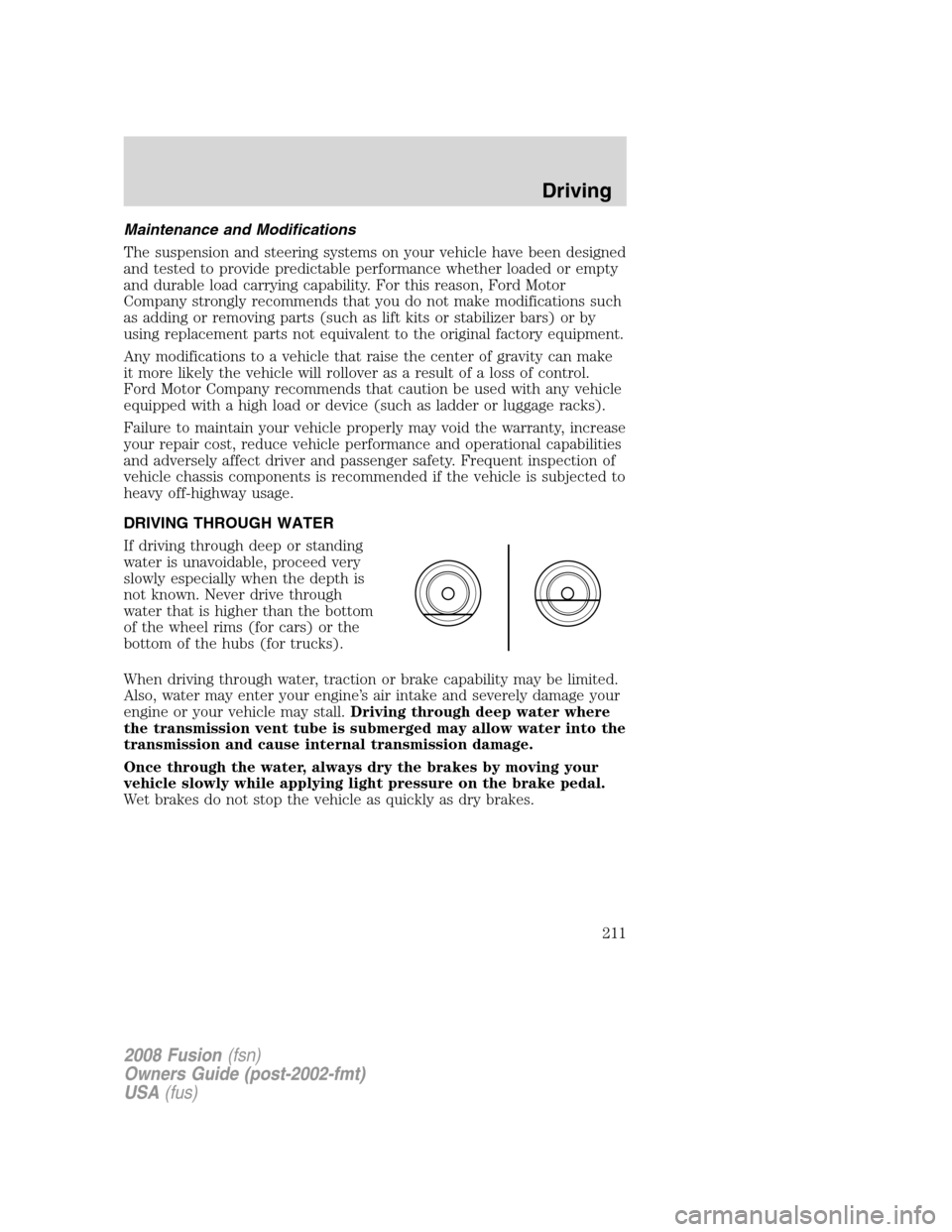

FORD FUSION (AMERICAS) 2008 1.G Owners Manual Maintenance and Modifications
The suspension and steering systems on your vehicle have been designed
and tested to provide predictable performance whether loaded or empty
and durable load carrying cap

Page 212 of 304

FORD FUSION (AMERICAS) 2008 1.G Owners Manual ROADSIDE ASSISTANCE
Getting roadside assistance
To fully assist you should you have a vehicle concern, Ford Motor
Company offers a complimentary roadside assistance program. This
program is separate f

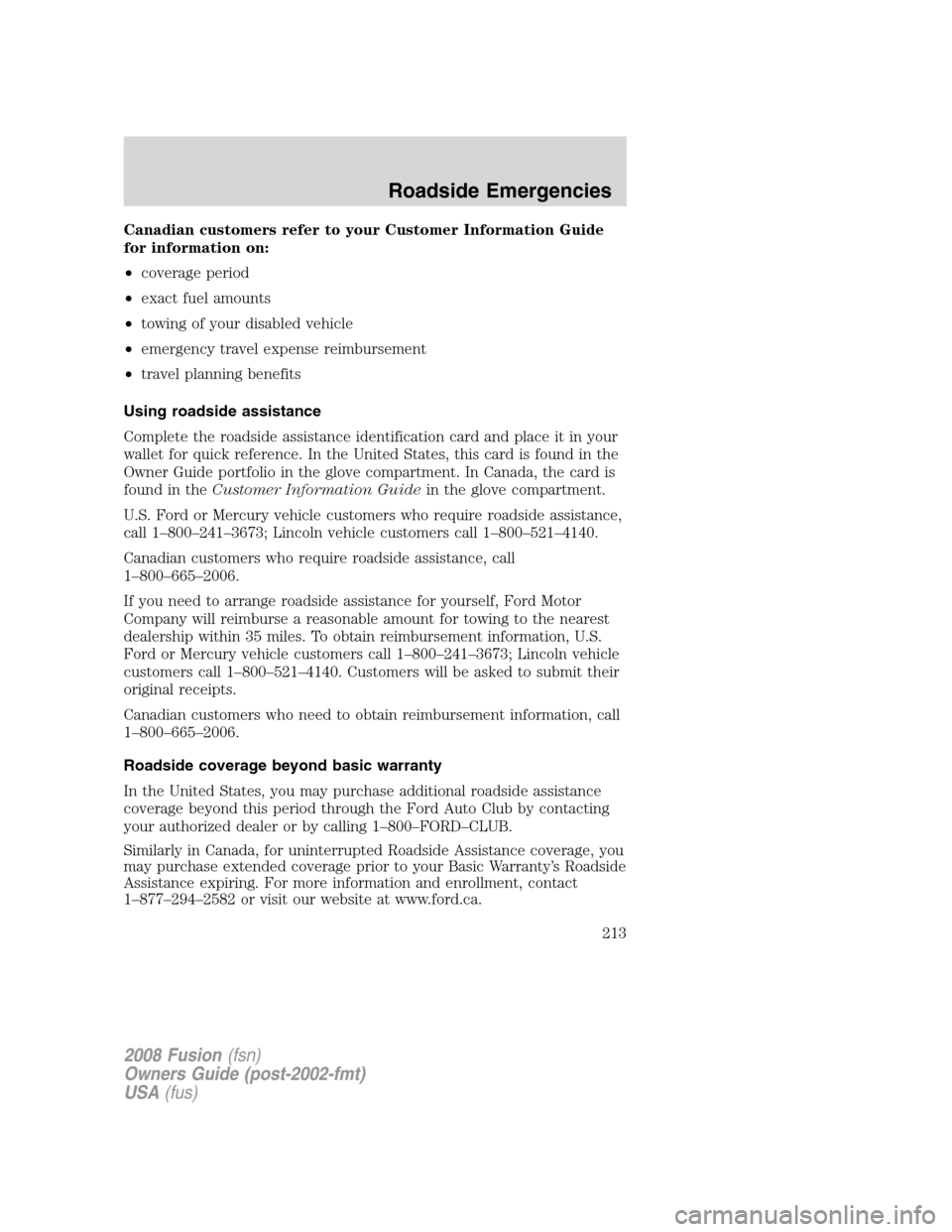

Page 213 of 304

FORD FUSION (AMERICAS) 2008 1.G Owners Manual Canadian customers refer to your Customer Information Guide
for information on:
•coverage period
•exact fuel amounts
•towing of your disabled vehicle
•emergency travel expense reimbursement
â€

Page 214 of 304

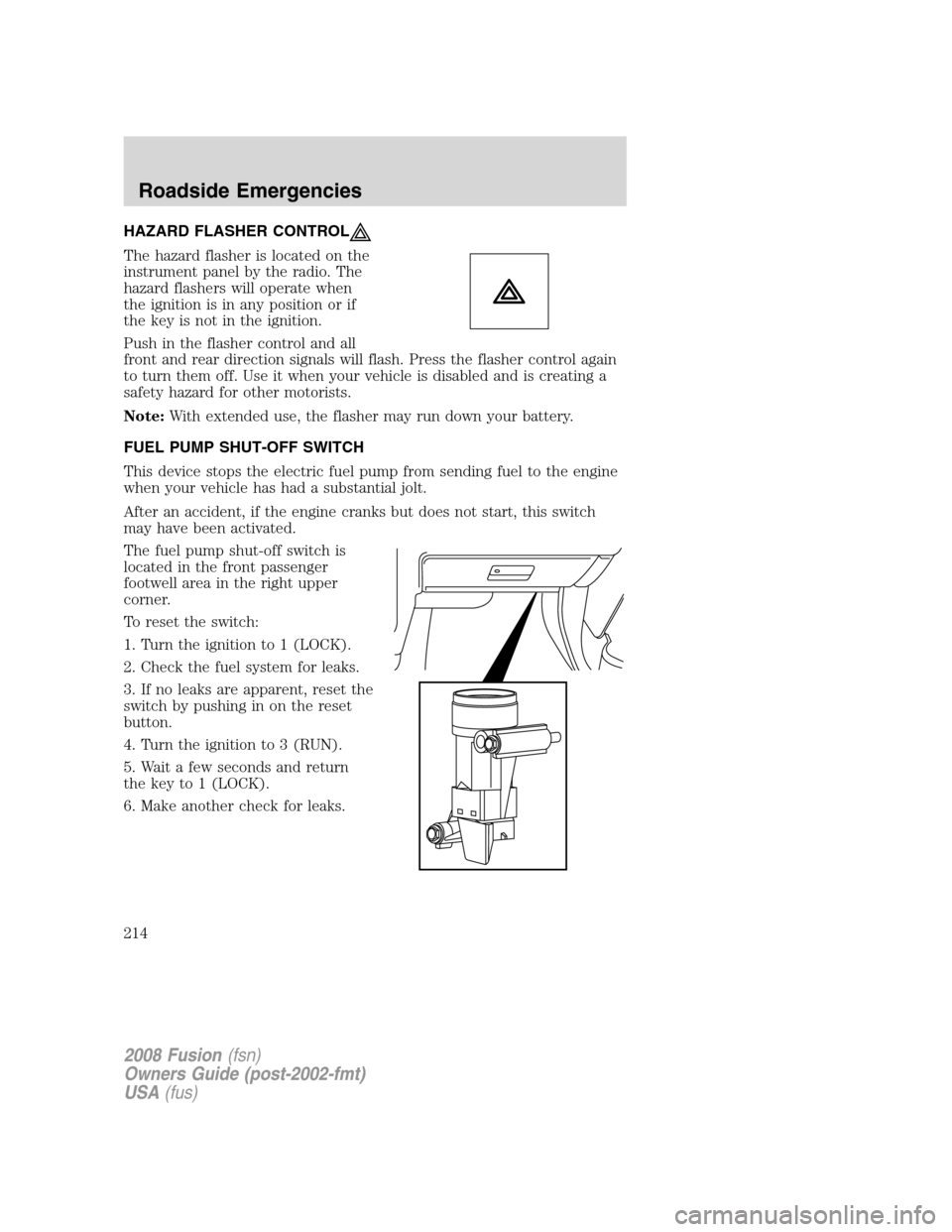

FORD FUSION (AMERICAS) 2008 1.G Owners Manual HAZARD FLASHER CONTROL
The hazard flasher is located on the
instrument panel by the radio. The
hazard flashers will operate when
the ignition is in any position or if
the key is not in the ignition.
P

Page 215 of 304

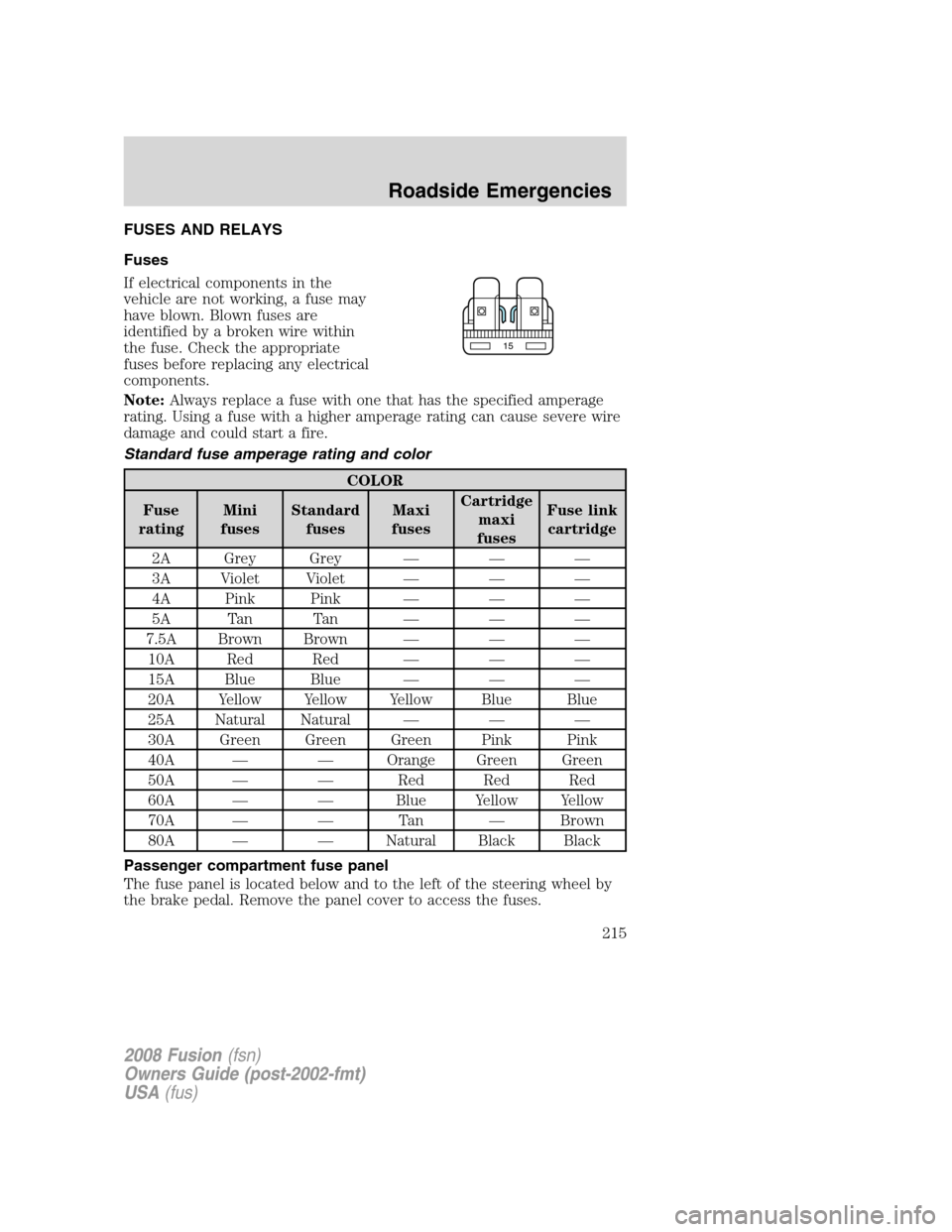

FORD FUSION (AMERICAS) 2008 1.G Owners Manual FUSES AND RELAYS
Fuses
If electrical components in the
vehicle are not working, a fuse may
have blown. Blown fuses are
identified by a broken wire within
the fuse. Check the appropriate
fuses before r

Page 216 of 304

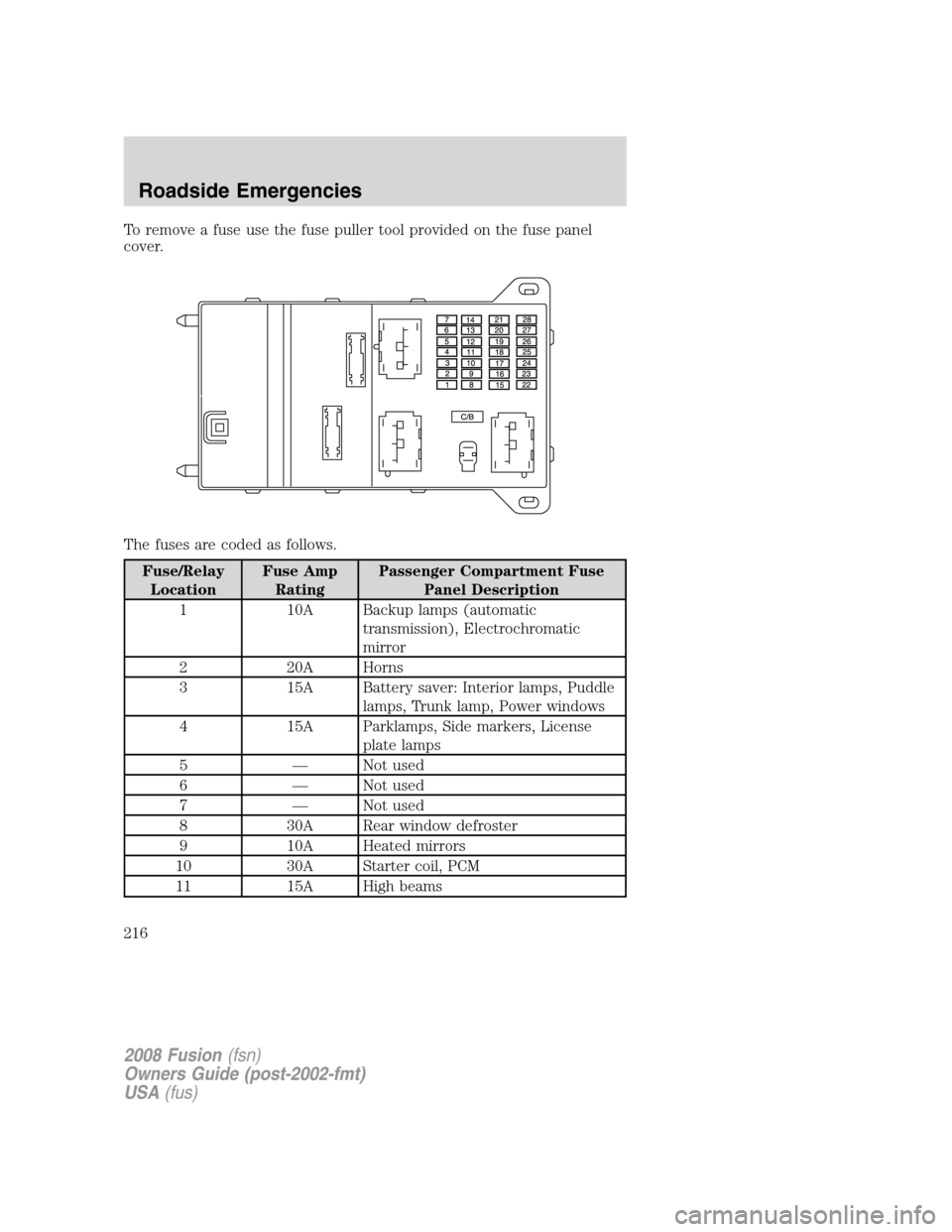

FORD FUSION (AMERICAS) 2008 1.G Owners Manual To remove a fuse use the fuse puller tool provided on the fuse panel
cover.
The fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
1 10A Backup

Page 217 of 304

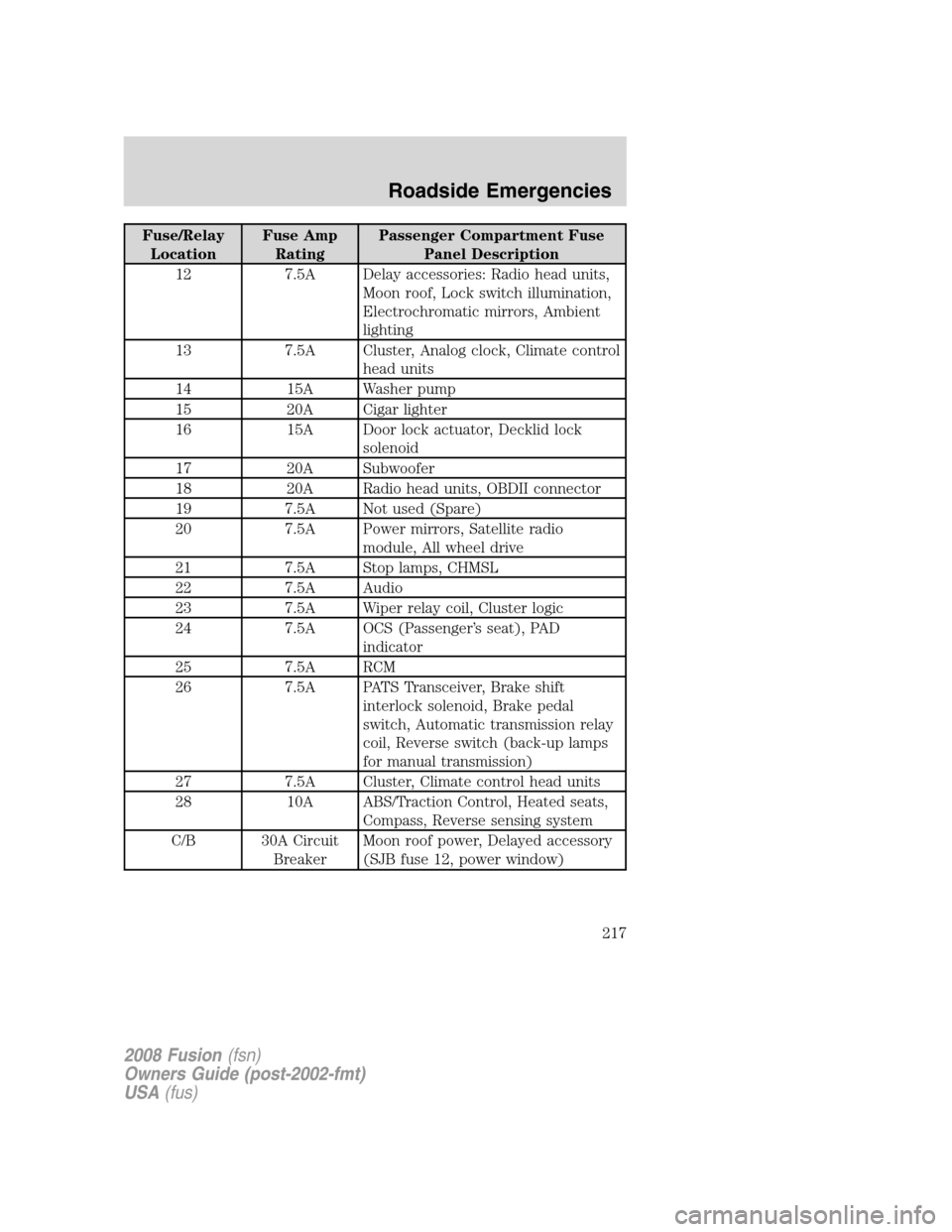

FORD FUSION (AMERICAS) 2008 1.G Owners Manual Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
12 7.5A Delay accessories: Radio head units,
Moon roof, Lock switch illumination,
Electrochromatic mirrors, Ambient
light

Page 218 of 304

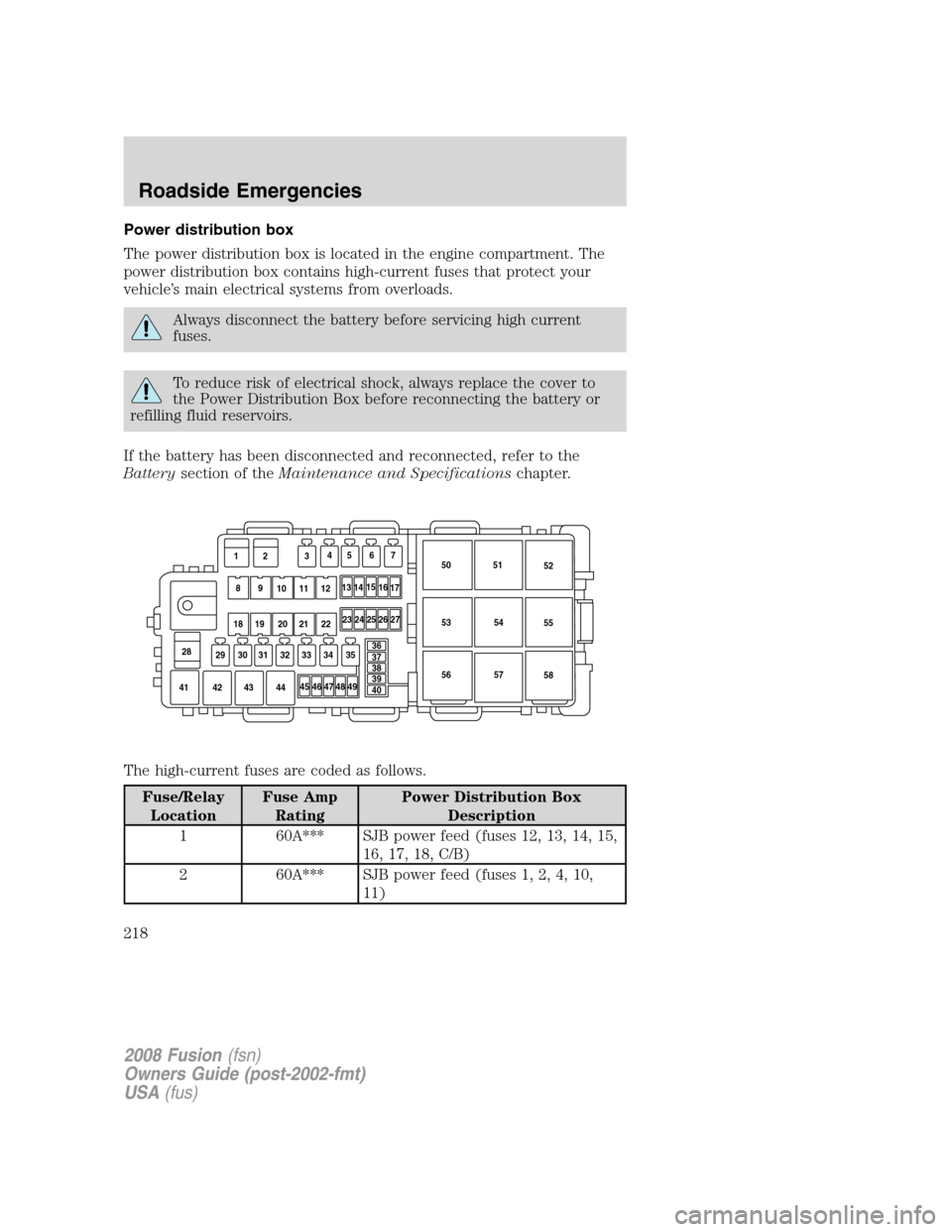

FORD FUSION (AMERICAS) 2008 1.G Owners Manual Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems fro

Page 219 of 304

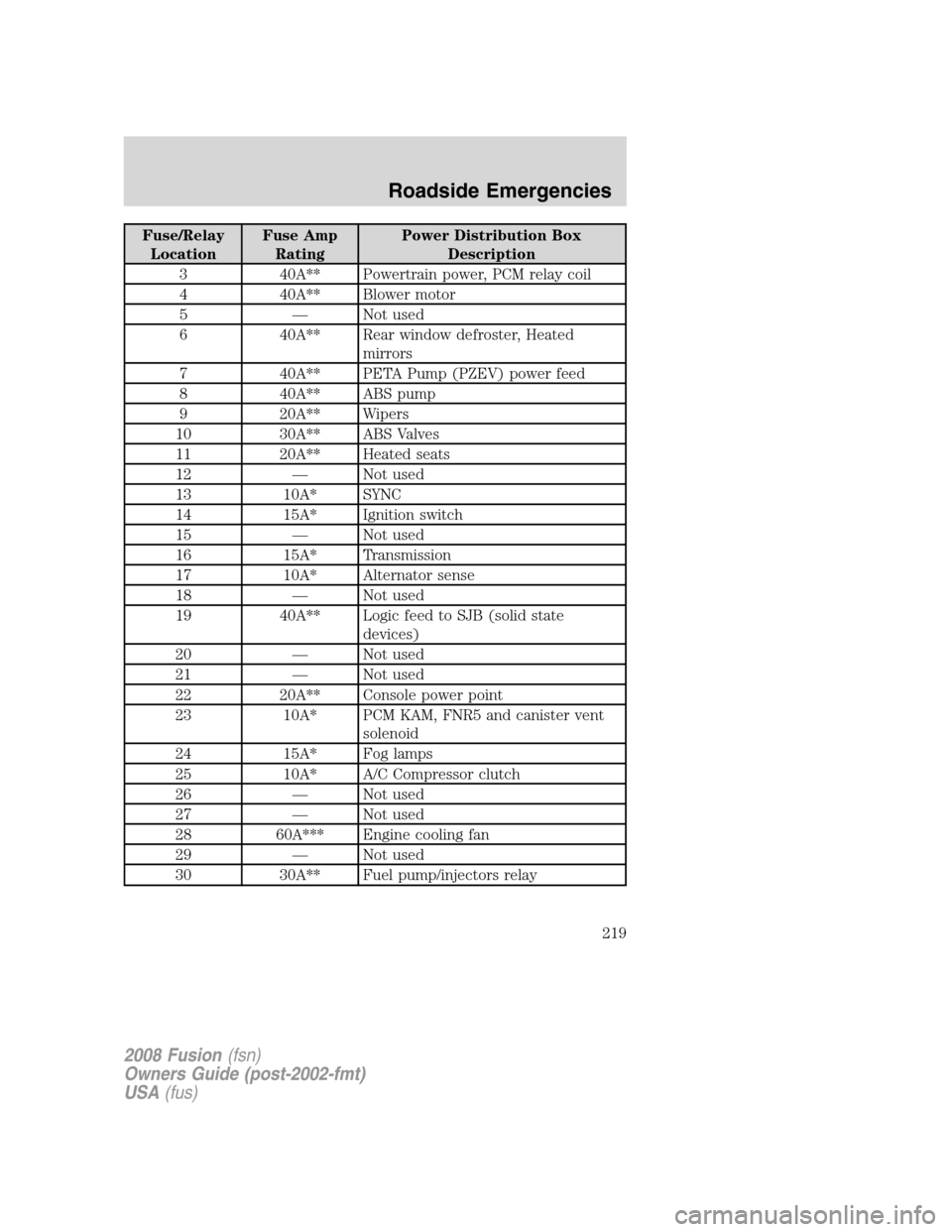

FORD FUSION (AMERICAS) 2008 1.G Owners Manual Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
3 40A** Powertrain power, PCM relay coil
4 40A** Blower motor
5 — Not used
6 40A** Rear window defroster, Heated
mirrors
7 40A**

Page 220 of 304

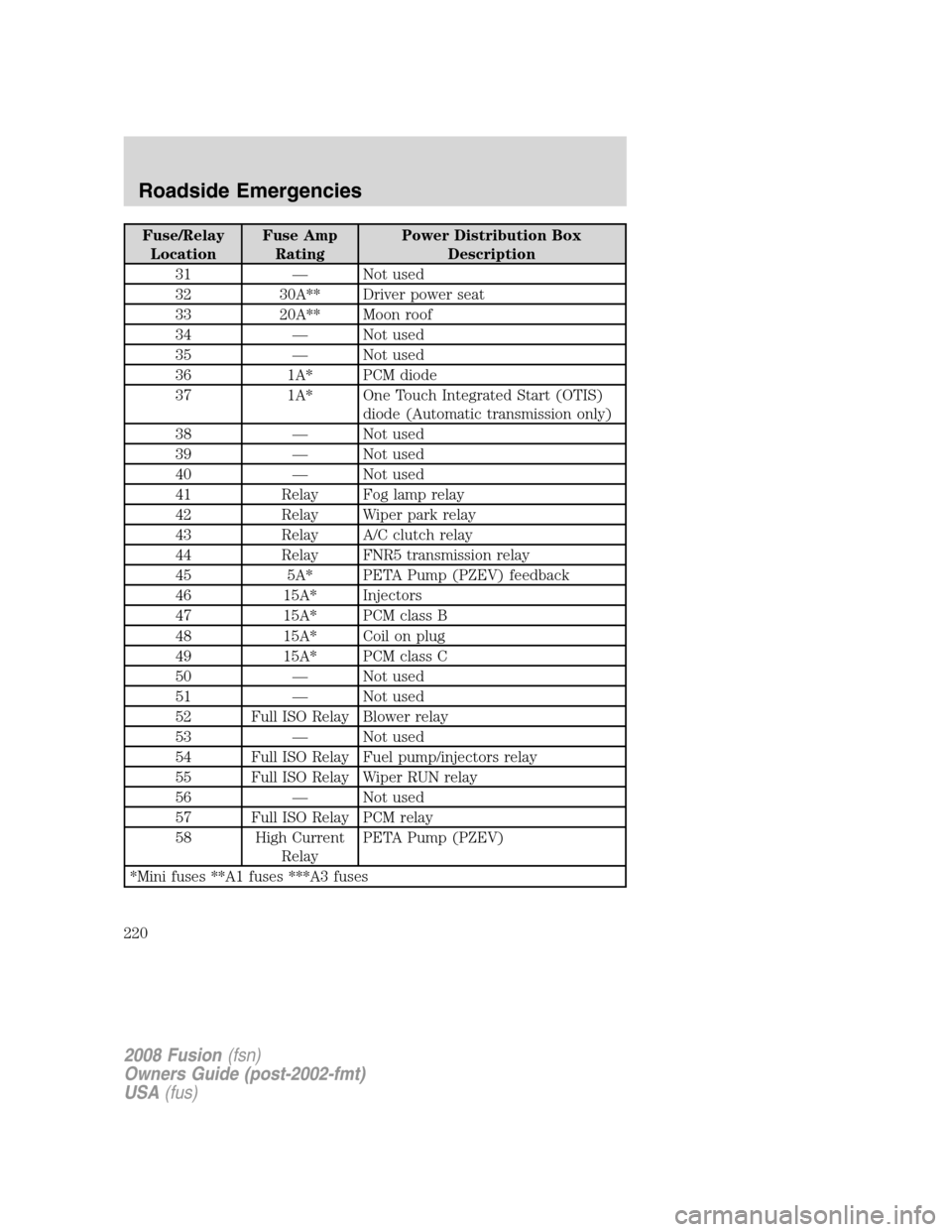

FORD FUSION (AMERICAS) 2008 1.G Owners Manual Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
31 — Not used
32 30A** Driver power seat
33 20A** Moon roof
34 — Not used
35 — Not used
36 1A* PCM diode
37 1A* One Touch Int
