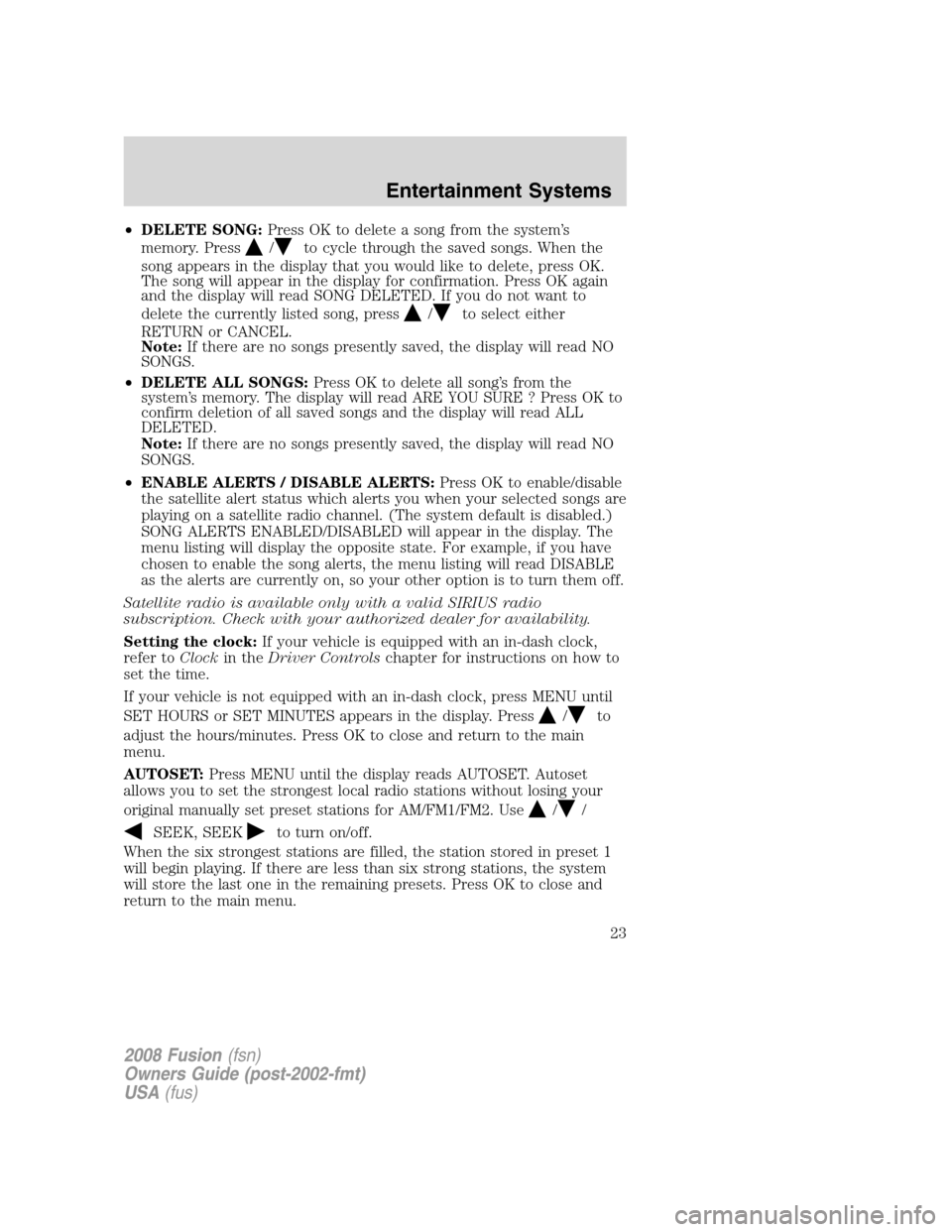

•DELETE SONG:Press OK to delete a song from the system’s
memory. Press
/to cycle through the saved songs. When the
song appears in the display that you would like to delete, press OK.
The song will appear in the display for confirmation. Press OK again
and the display will read SONG DELETED. If you do not want to
delete the currently listed song, press
/to select either
RETURN or CANCEL.
Note:If there are no songs presently saved, the display will read NO
SONGS.
•DELETE ALL SONGS:Press OK to delete all song’s from the
system’s memory. The display will read ARE YOU SURE ? Press OK to
confirm deletion of all saved songs and the display will read ALL
DELETED.
Note:If there are no songs presently saved, the display will read NO
SONGS.
•ENABLE ALERTS / DISABLE ALERTS:Press OK to enable/disable
the satellite alert status which alerts you when your selected songs are
playing on a satellite radio channel. (The system default is disabled.)
SONG ALERTS ENABLED/DISABLED will appear in the display. The
menu listing will display the opposite state. For example, if you have
chosen to enable the song alerts, the menu listing will read DISABLE
as the alerts are currently on, so your other option is to turn them off.
Satellite radio is available only with a valid SIRIUS radio
subscription. Check with your authorized dealer for availability.
Setting the clock:If your vehicle is equipped with an in-dash clock,
refer toClockin theDriver Controlschapter for instructions on how to
set the time.
If your vehicle is not equipped with an in-dash clock, press MENU until
SET HOURS or SET MINUTES appears in the display. Press
/to
adjust the hours/minutes. Press OK to close and return to the main
menu.
AUTOSET:Press MENU until the display reads AUTOSET. Autoset
allows you to set the strongest local radio stations without losing your
original manually set preset stations for AM/FM1/FM2. Use
//
SEEK, SEEKto turn on/off.
When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system
will store the last one in the remaining presets. Press OK to close and
return to the main menu.
2008 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
23

•DELETE SONG:Press OK to delete a song from the system’s
memory. Press
/to cycle through the saved songs. When the
song appears in the display that you would like to delete, press OK.
The song will appear in the display for confirmation. Press OK again
and the display will read SONG DELETED. If you do not want to
delete the currently listed song, press
/to select either
RETURN or CANCEL.
Note:If there are no songs presently saved, the display will read NO
SONGS.
•DELETE ALL SONGS:Press OK to delete all song’s from the
system’s memory. The display will read ARE YOU SURE ? Press OK to
confirm deletion of all saved songs and the display will read ALL
DELETED.
Note:If there are no songs presently saved, the display will read NO
SONGS.
•ENABLE ALERTS / DISABLE ALERTS:Press OK to enable/disable
the satellite alert status which alerts you when your selected songs are
playing on a satellite radio channel. (The system default is disabled.)
SONG ALERTS ENABLED/DISABLED will appear in the display. The
menu listing will display the opposite state. For example, if you have
chosen to enable the song alerts, the menu listing will read DISABLE
as the alerts are currently on, so your other option is to turn them off.
Satellite radio is available only with a valid SIRIUS radio
subscription. Check with your authorized dealer for availability.
Setting the clock:If your vehicle is equipped with an in-dash clock,
refer toClockin theDriver Controlschapter for instructions on how to
set the time.
If your vehicle is not equipped with an in-dash clock, press MENU until
SET HOURS or SET MINUTES appears in the display. Press
/to
adjust. Press OK to close and return to the main menu.
AUTOSET:Press MENU until the display reads AUTOSET. Autoset
allows you to set the strongest local radio stations without losing your
original manually set preset stations for AM/FM1/FM2. Use
//
SEEK, SEEKto turn on/off.
When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system
will store the last one in the remaining presets. Press OK to close and
return to the main menu.
2008 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
31

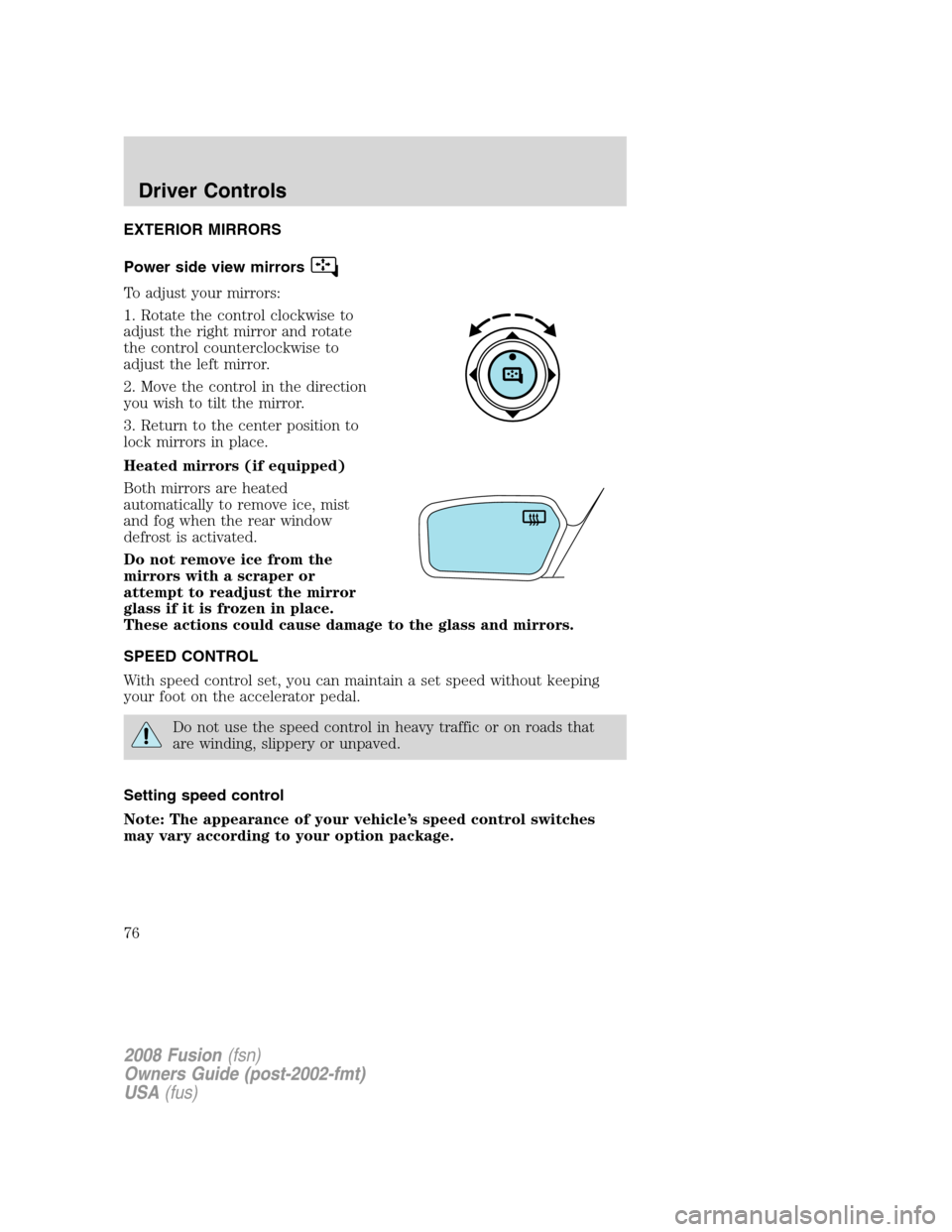

EXTERIOR MIRRORS
Power side view mirrors
To adjust your mirrors:
1. Rotate the control clockwise to
adjust the right mirror and rotate
the control counterclockwise to
adjust the left mirror.
2. Move the control in the direction
you wish to tilt the mirror.
3. Return to the center position to
lock mirrors in place.
Heated mirrors (if equipped)
Both mirrors are heated
automatically to remove ice, mist
and fog when the rear window
defrost is activated.
Do not remove ice from the
mirrors with a scraper or
attempt to readjust the mirror
glass if it is frozen in place.
These actions could cause damage to the glass and mirrors.
SPEED CONTROL
With speed control set, you can maintain a set speed without keeping
your foot on the accelerator pedal.
Do not use the speed control in heavy traffic or on roads that
are winding, slippery or unpaved.
Setting speed control
Note: The appearance of your vehicle’s speed control switches
may vary according to your option package.
2008 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
76

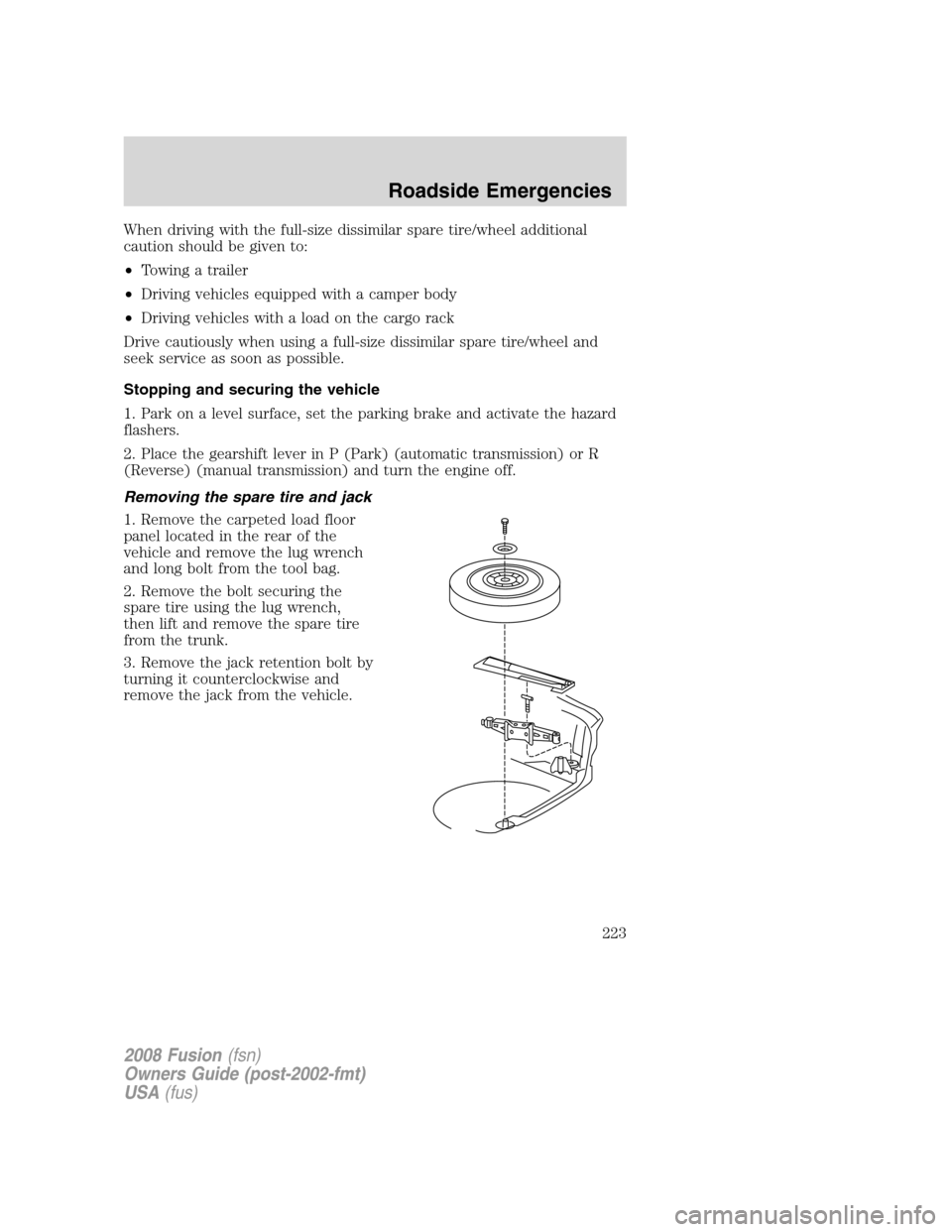

When driving with the full-size dissimilar spare tire/wheel additional
caution should be given to:
•Towing a trailer
•Driving vehicles equipped with a camper body
•Driving vehicles with a load on the cargo rack
Drive cautiously when using a full-size dissimilar spare tire/wheel and
seek service as soon as possible.
Stopping and securing the vehicle
1. Park on a level surface, set the parking brake and activate the hazard
flashers.
2. Place the gearshift lever in P (Park) (automatic transmission) or R
(Reverse) (manual transmission) and turn the engine off.
Removing the spare tire and jack
1. Remove the carpeted load floor
panel located in the rear of the
vehicle and remove the lug wrench
and long bolt from the tool bag.
2. Remove the bolt securing the
spare tire using the lug wrench,
then lift and remove the spare tire
from the trunk.
3. Remove the jack retention bolt by
turning it counterclockwise and
remove the jack from the vehicle.
2008 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
223

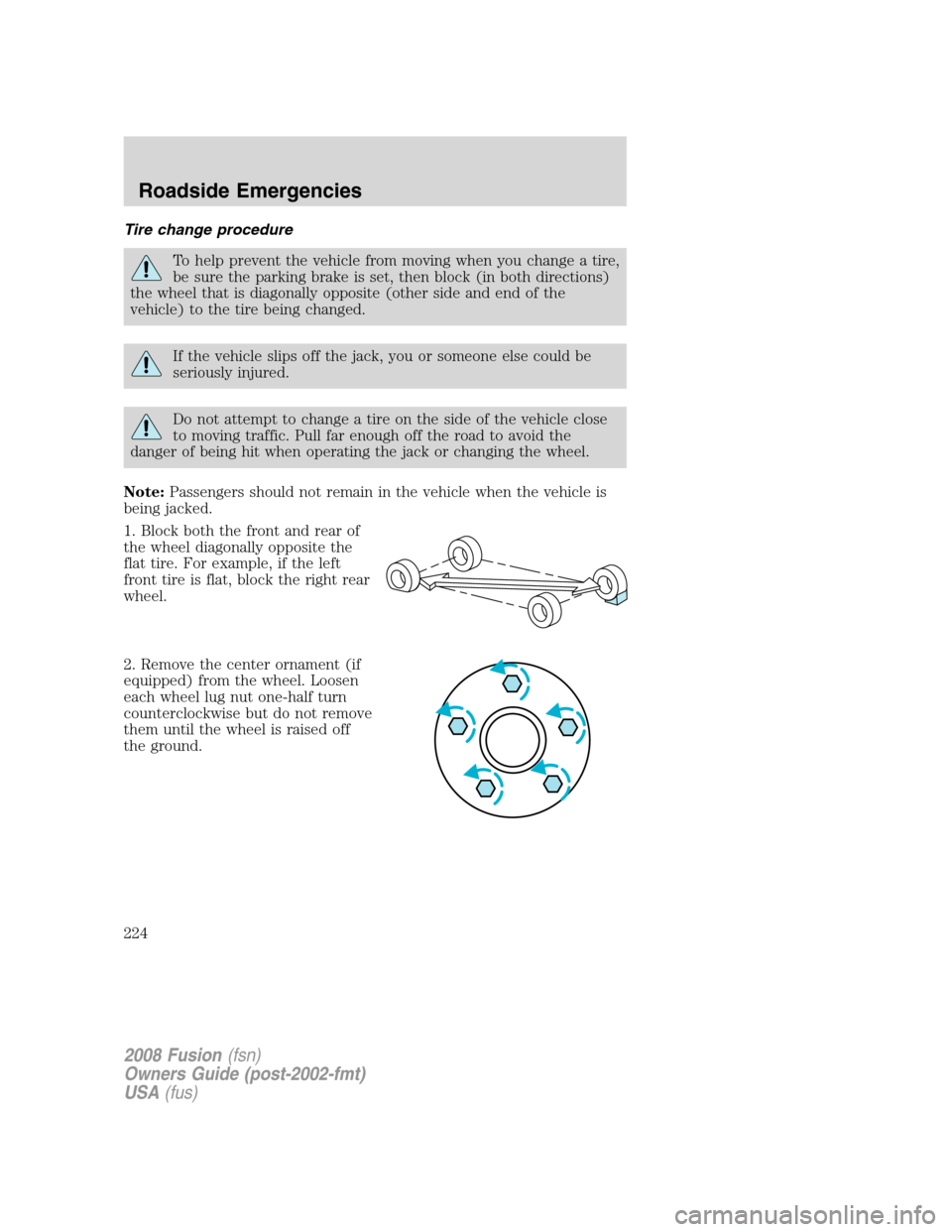

Tire change procedure
To help prevent the vehicle from moving when you change a tire,
be sure the parking brake is set, then block (in both directions)
the wheel that is diagonally opposite (other side and end of the
vehicle) to the tire being changed.
If the vehicle slips off the jack, you or someone else could be
seriously injured.
Do not attempt to change a tire on the side of the vehicle close
to moving traffic. Pull far enough off the road to avoid the
danger of being hit when operating the jack or changing the wheel.
Note:Passengers should not remain in the vehicle when the vehicle is
being jacked.
1. Block both the front and rear of
the wheel diagonally opposite the
flat tire. For example, if the left
front tire is flat, block the right rear
wheel.
2. Remove the center ornament (if
equipped) from the wheel. Loosen
each wheel lug nut one-half turn
counterclockwise but do not remove
them until the wheel is raised off
the ground.
2008 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
224

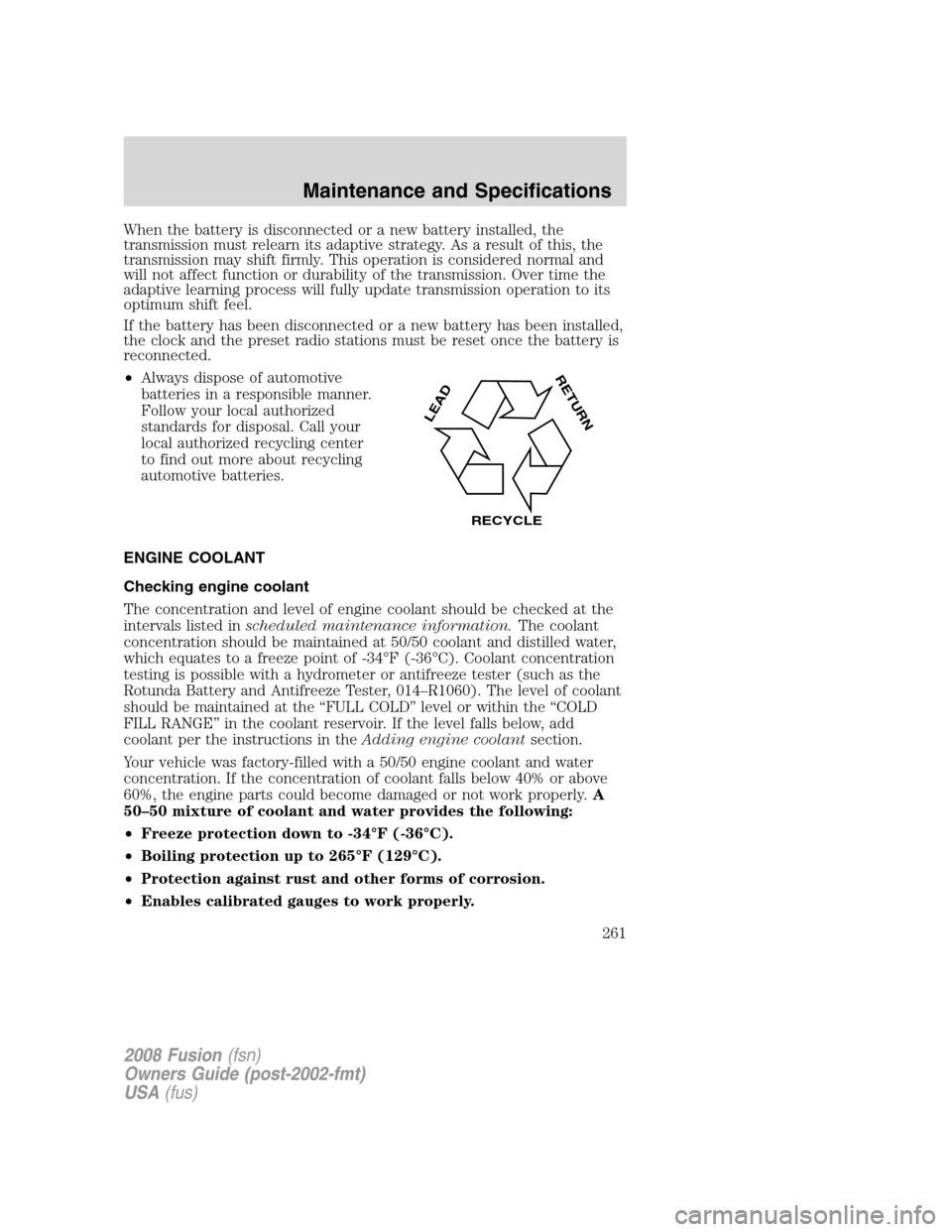

When the battery is disconnected or a new battery installed, the
transmission must relearn its adaptive strategy. As a result of this, the
transmission may shift firmly. This operation is considered normal and
will not affect function or durability of the transmission. Over time the
adaptive learning process will fully update transmission operation to its
optimum shift feel.
If the battery has been disconnected or a new battery has been installed,
the clock and the preset radio stations must be reset once the battery is
reconnected.
•Always dispose of automotive
batteries in a responsible manner.
Follow your local authorized
standards for disposal. Call your
local authorized recycling center
to find out more about recycling
automotive batteries.
ENGINE COOLANT
Checking engine coolant
The concentration and level of engine coolant should be checked at the
intervals listed inscheduled maintenance information.The coolant
concentration should be maintained at 50/50 coolant and distilled water,
which equates to a freeze point of -34°F (-36°C). Coolant concentration
testing is possible with a hydrometer or antifreeze tester (such as the
Rotunda Battery and Antifreeze Tester, 014–R1060). The level of coolant
should be maintained at the “FULL COLD” level or within the “COLD
FILL RANGE” in the coolant reservoir. If the level falls below, add
coolant per the instructions in theAdding engine coolantsection.
Your vehicle was factory-filled with a 50/50 engine coolant and water
concentration. If the concentration of coolant falls below 40% or above
60%, the engine parts could become damaged or not work properly.A
50–50 mixture of coolant and water provides the following:
•Freeze protection down to -34°F (-36°C).
•Boiling protection up to 265°F (129°C).
•Protection against rust and other forms of corrosion.
•Enables calibrated gauges to work properly.
LEAD
RETURN
RECYCLE
2008 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
261

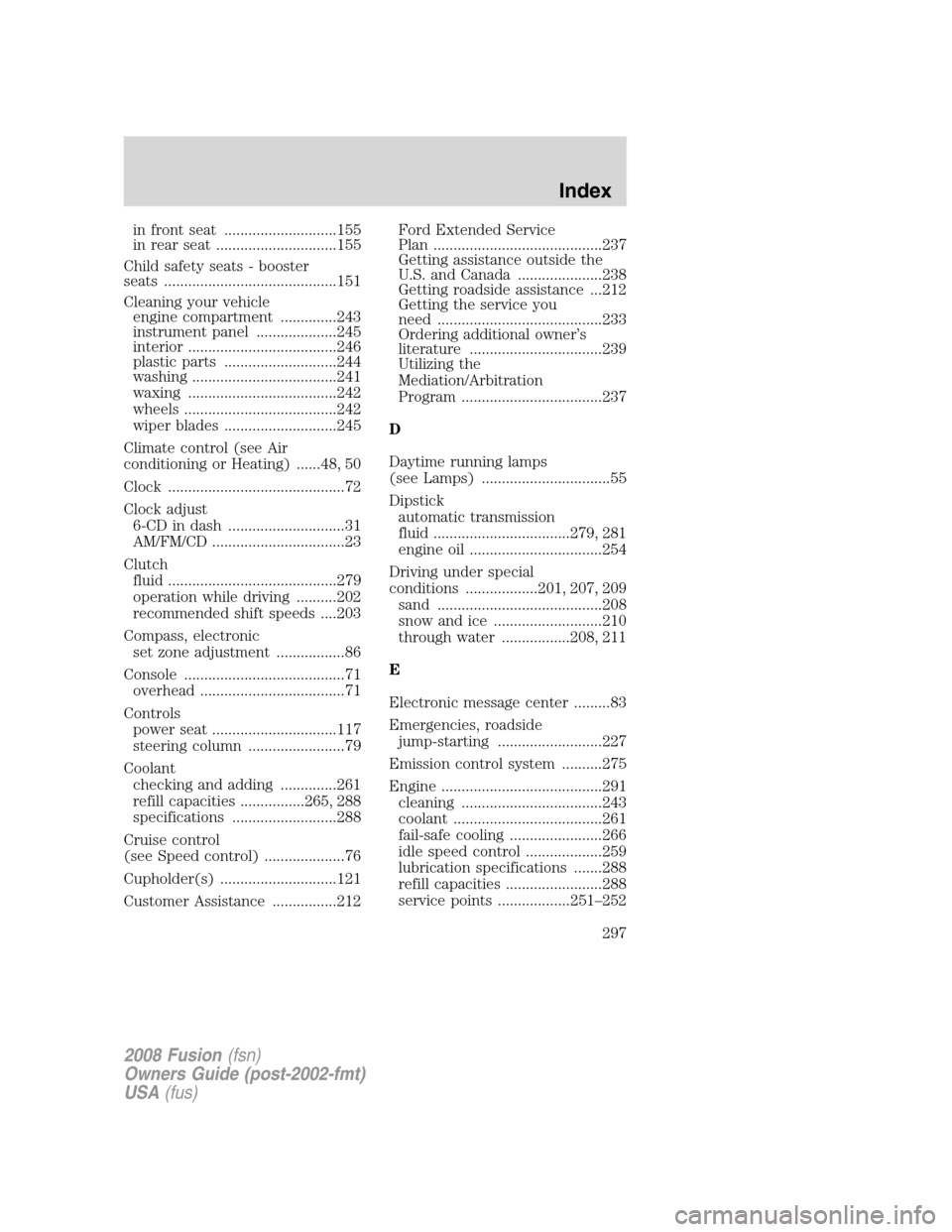

in front seat ............................155
in rear seat ..............................155
Child safety seats - booster
seats ...........................................151
Cleaning your vehicle
engine compartment ..............243
instrument panel ....................245
interior .....................................246
plastic parts ............................244
washing ....................................241
waxing .....................................242
wheels ......................................242
wiper blades ............................245
Climate control (see Air
conditioning or Heating) ......48, 50
Clock ............................................72
Clock adjust
6-CD in dash .............................31
AM/FM/CD .................................23
Clutch
fluid ..........................................279
operation while driving ..........202
recommended shift speeds ....203
Compass, electronic
set zone adjustment .................86
Console ........................................71
overhead ....................................71
Controls
power seat ...............................117
steering column ........................79
Coolant
checking and adding ..............261
refill capacities ................265, 288
specifications ..........................288
Cruise control
(see Speed control) ....................76
Cupholder(s) .............................121
Customer Assistance ................212Ford Extended Service
Plan ..........................................237
Getting assistance outside the
U.S. and Canada .....................238
Getting roadside assistance ...212
Getting the service you
need .........................................233
Ordering additional owner’s
literature .................................239
Utilizing the
Mediation/Arbitration
Program ...................................237
D
Daytime running lamps
(see Lamps) ................................55
Dipstick
automatic transmission
fluid ..................................279, 281
engine oil .................................254
Driving under special
conditions ..................201, 207, 209
sand .........................................208
snow and ice ...........................210
through water .................208, 211
E
Electronic message center .........83
Emergencies, roadside
jump-starting ..........................227
Emission control system ..........275
Engine ........................................291
cleaning ...................................243
coolant .....................................261
fail-safe cooling .......................266
idle speed control ...................259
lubrication specifications .......288
refill capacities ........................288
service points ..................251–252
2008 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)
Index
297

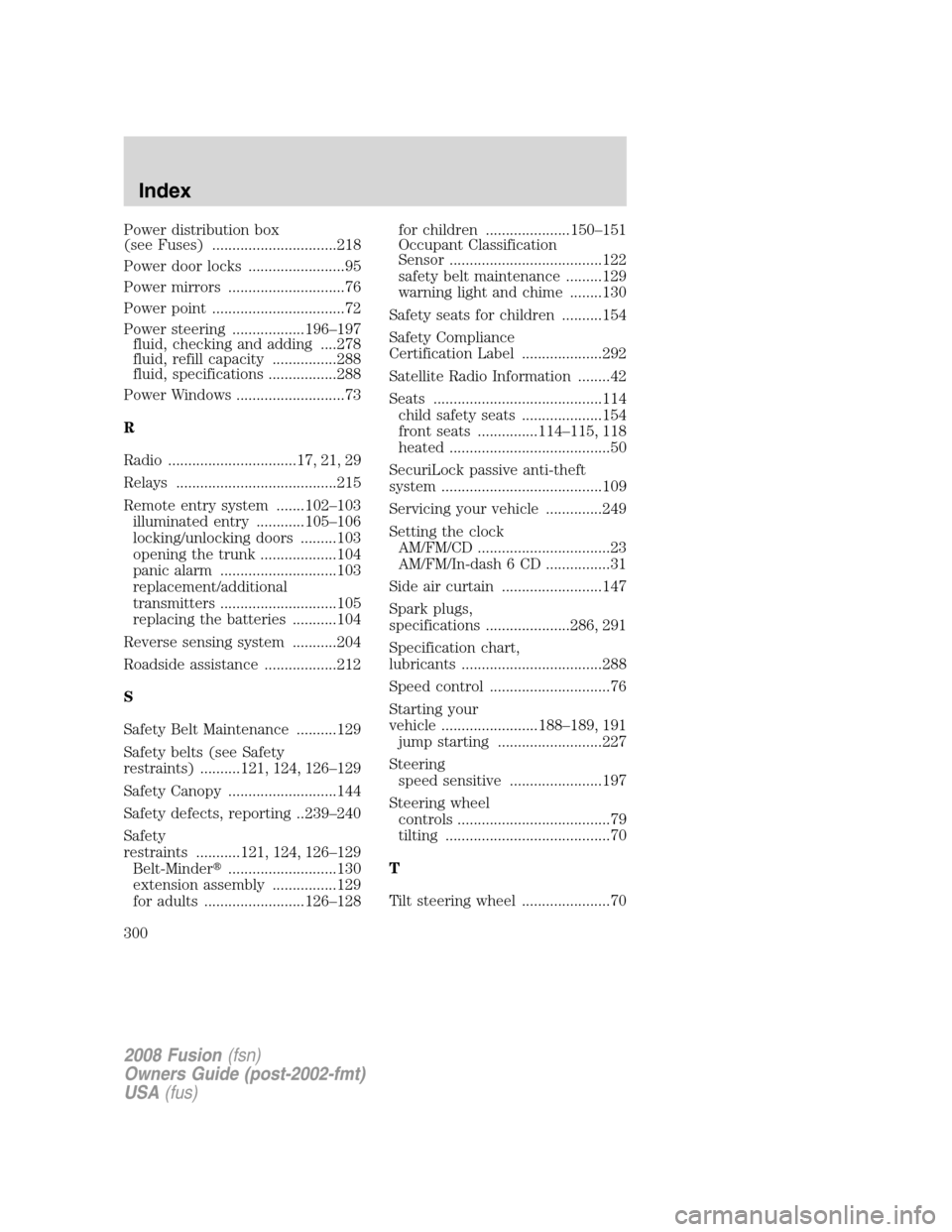

Power distribution box
(see Fuses) ...............................218
Power door locks ........................95
Power mirrors .............................76
Power point .................................72
Power steering ..................196–197
fluid, checking and adding ....278
fluid, refill capacity ................288
fluid, specifications .................288
Power Windows ...........................73
R
Radio ................................17, 21, 29
Relays ........................................215
Remote entry system .......102–103
illuminated entry ............105–106
locking/unlocking doors .........103
opening the trunk ...................104
panic alarm .............................103
replacement/additional
transmitters .............................105
replacing the batteries ...........104
Reverse sensing system ...........204
Roadside assistance ..................212
S
Safety Belt Maintenance ..........129
Safety belts (see Safety
restraints) ..........121, 124, 126–129
Safety Canopy ...........................144
Safety defects, reporting ..239–240
Safety
restraints ...........121, 124, 126–129
Belt-Minder...........................130
extension assembly ................129
for adults .........................126–128for children .....................150–151
Occupant Classification
Sensor ......................................122
safety belt maintenance .........129
warning light and chime ........130
Safety seats for children ..........154
Safety Compliance
Certification Label ....................292
Satellite Radio Information ........42
Seats ..........................................114
child safety seats ....................154
front seats ...............114–115, 118
heated ........................................50
SecuriLock passive anti-theft
system ........................................109
Servicing your vehicle ..............249
Setting the clock
AM/FM/CD .................................23
AM/FM/In-dash 6 CD ................31
Side air curtain .........................147
Spark plugs,
specifications .....................286, 291
Specification chart,
lubricants ...................................288
Speed control ..............................76
Starting your
vehicle ........................188–189, 191
jump starting ..........................227
Steering
speed sensitive .......................197
Steering wheel
controls ......................................79
tilting .........................................70
T
Tilt steering wheel ......................70
2008 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)
Index
300
