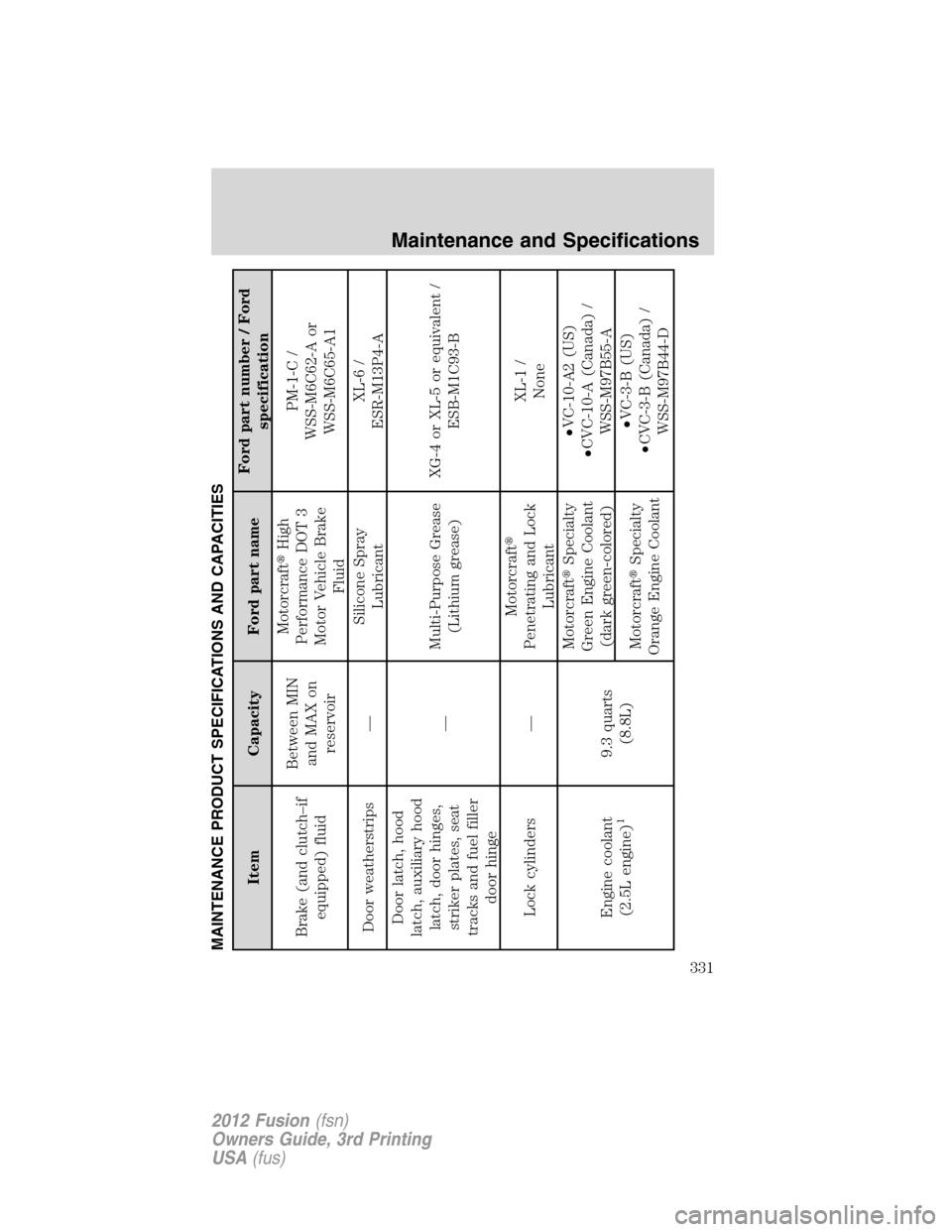

MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Item Capacity Ford part nameFord part number / Ford
specification
Brake (and clutch–if
equipped) fluidBetween MIN
and MAX on
reservoirMotorcraftHigh
Performance DOT 3
Motor Vehicle Brake
FluidPM-1-C /
WSS-M6C62-A or
WSS-M6C65-A1
Door weatherstrips —Silicone Spray
LubricantXL-6 /
ESR-M13P4-A
Door latch, hood
latch, auxiliary hood
latch, door hinges,
striker plates, seat
tracks and fuel filler
door hinge—Multi-Purpose Grease
(Lithium grease)XG-4 or XL-5 or equivalent /
ESB-M1C93-B
Lock cylinders —Motorcraft
Penetrating and Lock
LubricantXL-1 /
None
Engine coolant
(2.5L engine)
1
9.3 quarts
(8.8L)MotorcraftSpecialty
Green Engine Coolant
(dark green-colored)•VC-10-A2 (US)
•CVC-10-A (Canada) /
WSS-M97B55-A
MotorcraftSpecialty
Orange Engine Coolant•VC-3-B (US)
•CVC-3-B (Canada) /
WSS-M97B44-D
Maintenance and Specifications
331
2012 Fusion(fsn)
Owners Guide, 3rd Printing
USA(fus)

Item Capacity Ford part nameFord part number / Ford
specification

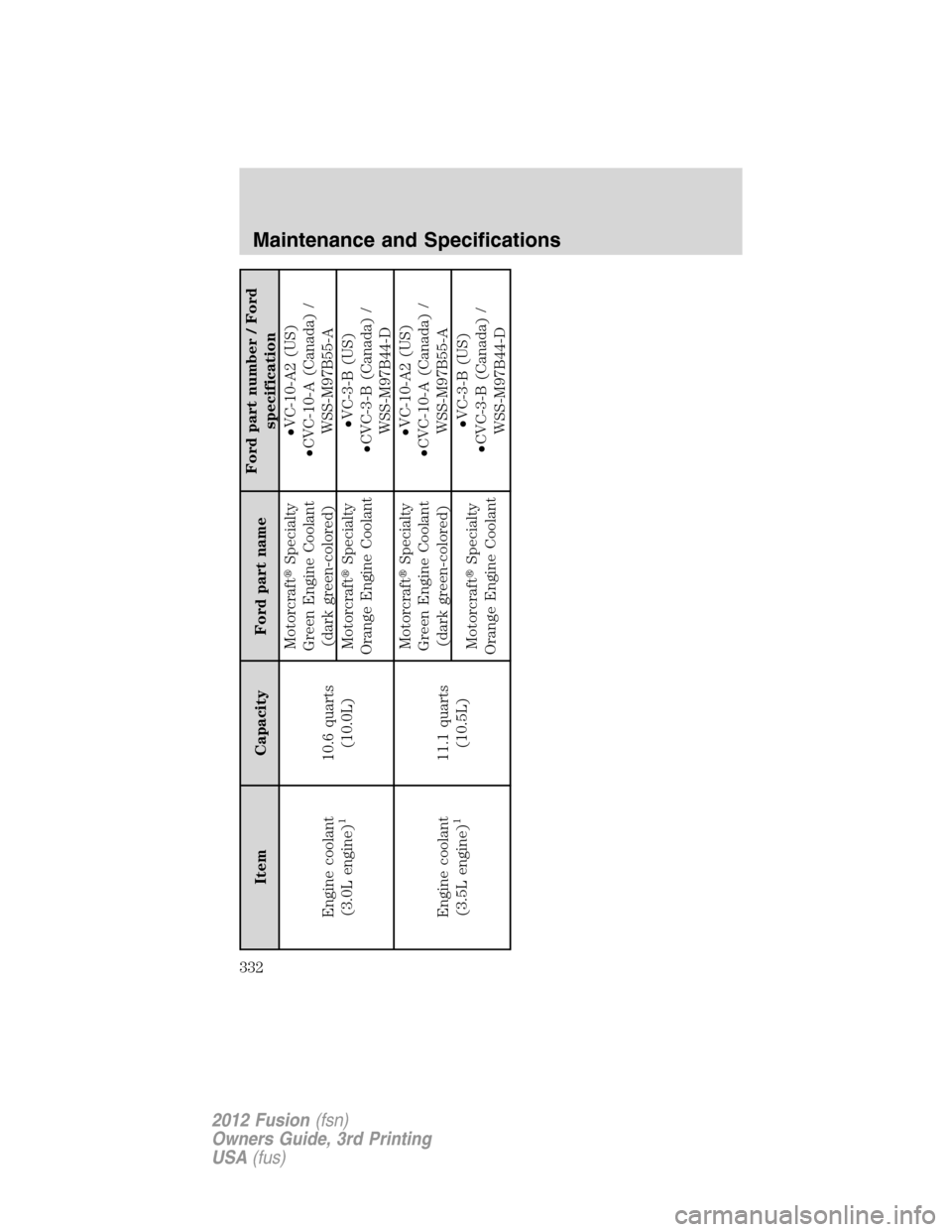

Engine coolant
(3.0L engine)
1
10.6 quarts
(10.0L)MotorcraftSpecialty
Green Engine Coolant
(dark green-colored)•VC-10-A2 (US)
•CVC-10-A (Canada) /
WSS-M97B55-A
MotorcraftSpecialty
Orange Engine Coolant•VC-3-B (US)
•CVC-3-B (Canada) /
WSS-M97B44-D
Engine coolant
(3.5L engine)
1
11.1 quarts
(10.5L)MotorcraftSpecialty
Green Engine Coolant
(dark green-colored)•VC-10-A2 (US)
•CVC-10-A (Canada) /
WSS-M97B55-A
MotorcraftSpecialty
Orange Engine Coolant•VC-3-B (US)
•CVC-3-B (Canada) /
WSS-M97B44-D
Maintenance and Specifications
332
2012 Fusion(fsn)
Owners Guide, 3rd Printing
USA(fus)

Item Capacity Ford part nameFord part number / Ford
specification

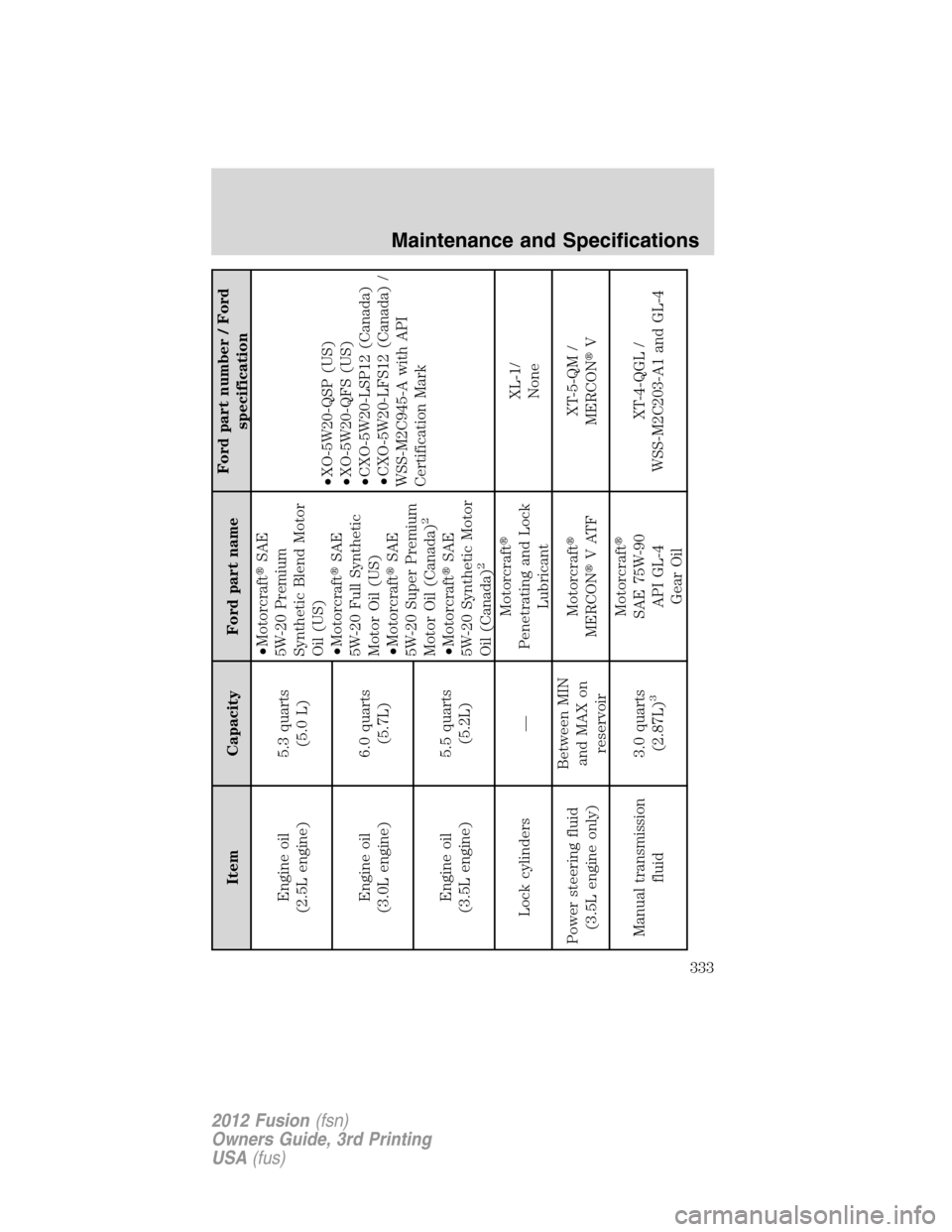

Engine oil
(2.5L engine)5.3 quarts
(5.0 L)•MotorcraftSAE
5W-20 Premium
Synthetic Blend Motor
Oil (US)
•MotorcraftSAE
5W-20 Full Synthetic
Motor Oil (US)
•MotorcraftSAE
5W-20 Super Premium
Motor Oil (Canada)
2
•MotorcraftSAE
5W-20 Synthetic Motor
Oil (Canada)
2
•XO-5W20-QSP (US)
•XO-5W20-QFS (US)
•CXO-5W20-LSP12 (Canada)
•CXO-5W20-LFS12 (Canada) /
WSS-M2C945-A with API
Certification Mark Engine oil
(3.0L engine)6.0 quarts
(5.7L)
Engine oil
(3.5L engine)5.5 quarts
(5.2L)
Lock cylinders —Motorcraft
Penetrating and Lock
LubricantXL-1/
None
Power steering fluid
(3.5L engine only)Between MIN
and MAX on
reservoirMotorcraft
MERCONVATFXT-5-QM /
MERCONV
Manual transmission
fluid3.0 quarts
(2.87L)
3
Motorcraft
SAE 75W-90
API GL-4
Gear OilXT-4-QGL /
WSS-M2C203-A1 and GL-4
Maintenance and Specifications
333
2012 Fusion(fsn)
Owners Guide, 3rd Printing
USA(fus)

Item Capacity Ford part nameFord part number / Ford
specification

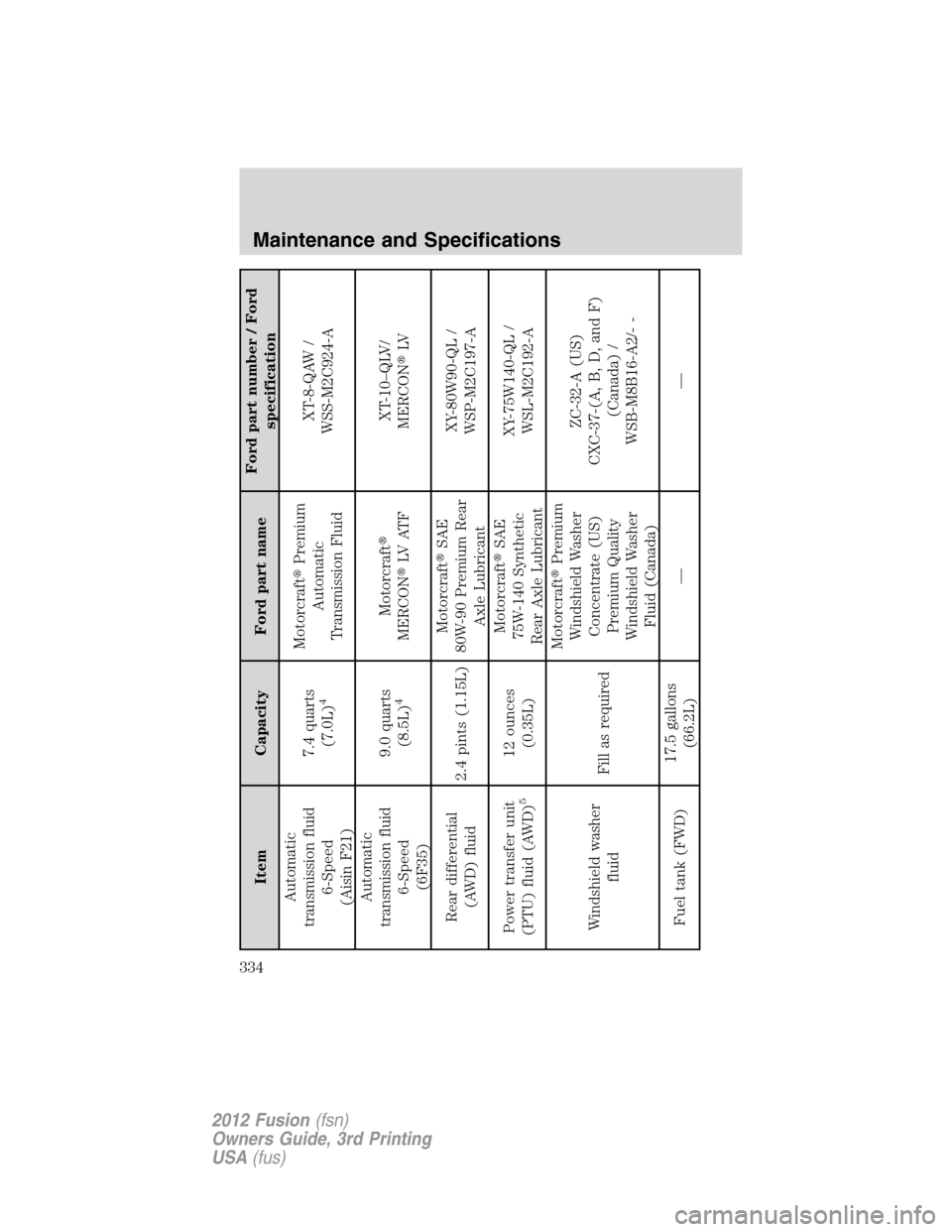

Automatic
transmission fluid
6-Speed
(Aisin F21)7.4 quarts
(7.0L)
4
MotorcraftPremium
Automatic
Transmission FluidXT-8-QAW /
WSS-M2C924-A
Automatic
transmission fluid
6-Speed
(6F35)9.0 quarts
(8.5L)
4
Motorcraft
MERCONLV AT FXT-10–QLV/
MERCONLV
Rear differential
(AWD) fluid2.4 pints (1.15L)MotorcraftSAE
80W-90 Premium Rear
Axle LubricantXY-80W90-QL /
WSP-M2C197-A
Power transfer unit
(PTU) fluid (AWD)
5
12 ounces
(0.35L)MotorcraftSAE
75W-140 Synthetic
Rear Axle LubricantXY-75W140-QL /
WSL-M2C192-A
Windshield washer
fluidFill as requiredMotorcraftPremium
Windshield Washer
Concentrate (US)
Premium Quality
Windshield Washer
Fluid (Canada)ZC-32-A (US)
CXC-37-(A, B, D, and F)
(Canada) /
WSB-M8B16-A2/- -
Fuel tank (FWD)17.5 gallons
(66.2L)——
Maintenance and Specifications
334
2012 Fusion(fsn)
Owners Guide, 3rd Printing
USA(fus)

Item Capacity Ford part nameFord part number / Ford
specification
Fuel tank (AWD)16.5 gallons
(62.4L)——

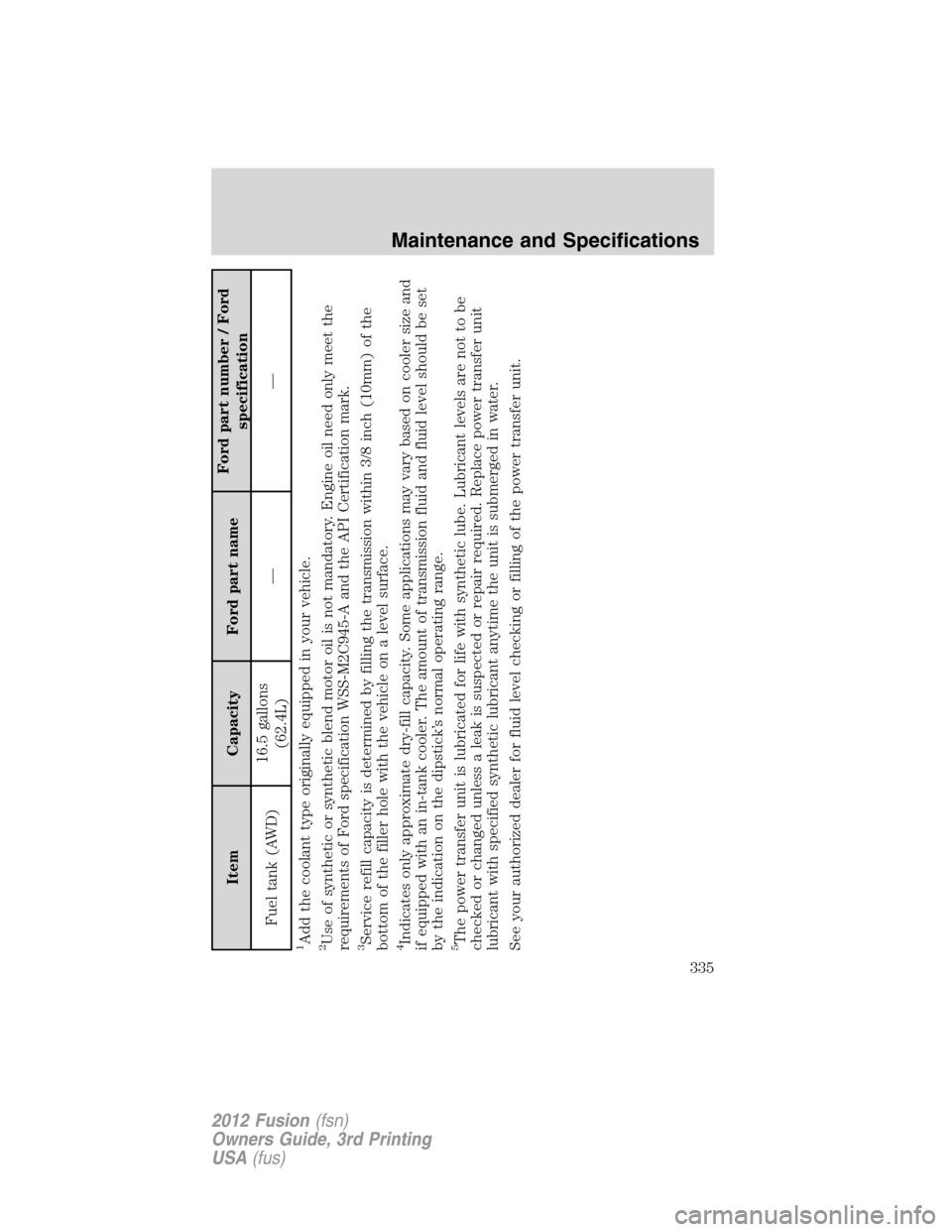

1Add the coolant type originally equipped in your vehicle.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C945-A and the API Certification mark.3Service refill capacity is determined by filling the transmission within 3/8 inch (10mm) of the
bottom of the filler hole with the vehicle on a level surface.4Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler. The amount of transmission fluid and fluid level should be set
by the indication on the dipstick’s normal operating range.5The power transfer unit is lubricated for life with synthetic lube. Lubricant levels are not to be
checked or changed unless a leak is suspected or repair required. Replace power transfer unit
lubricant with specified synthetic lubricant anytime the unit is submerged in water.
See your authorized dealer for fluid level checking or filling of the power transfer unit.
Maintenance and Specifications
335
2012 Fusion(fsn)
Owners Guide, 3rd Printing
USA(fus)

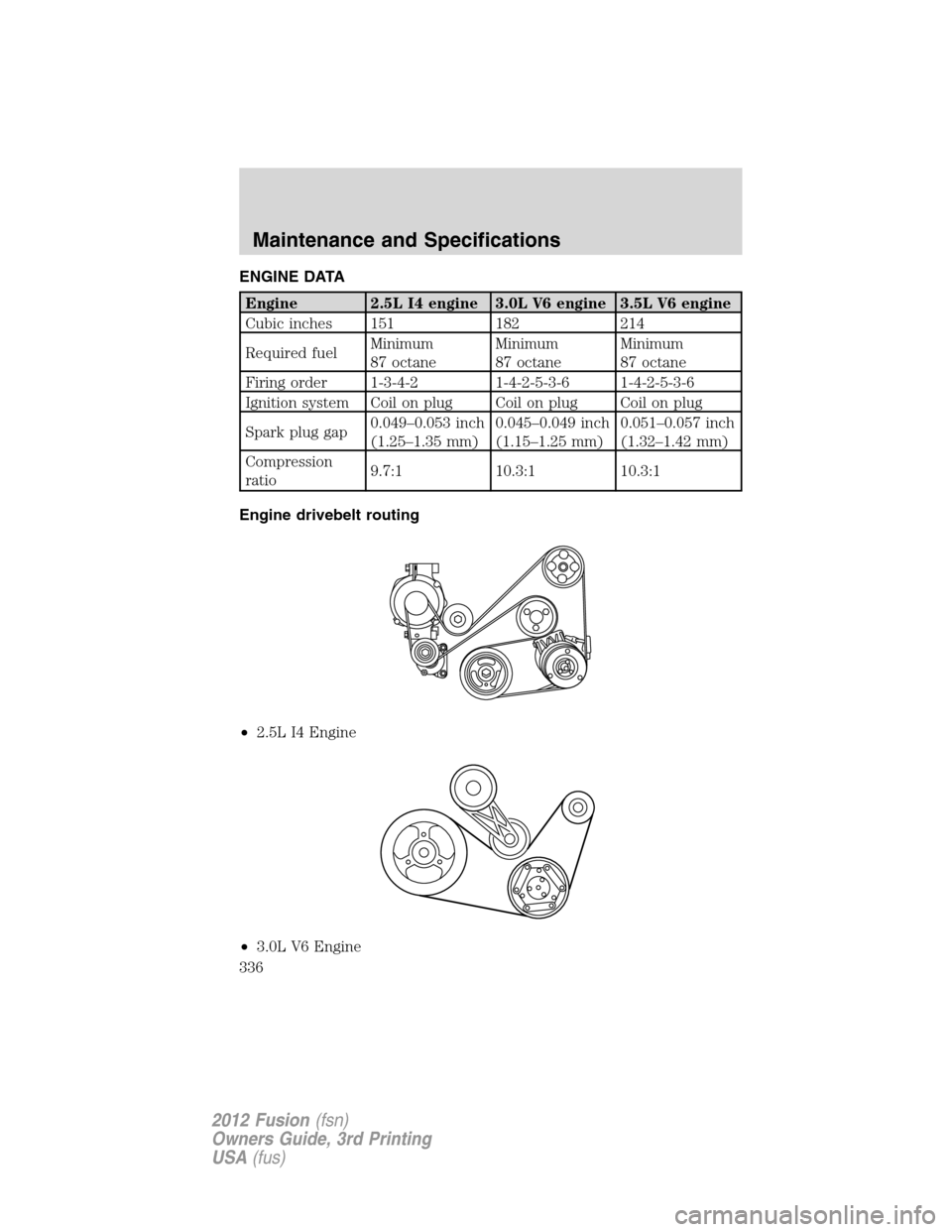

ENGINE DATA
Engine 2.5L I4 engine 3.0L V6 engine 3.5L V6 engine
Cubic inches 151 182 214
Required fuelMinimum
87 octaneMinimum
87 octaneMinimum
87 octane
Firing order 1-3-4-2 1-4-2-5-3-6 1-4-2-5-3-6
Ignition system Coil on plug Coil on plug Coil on plug
Spark plug gap0.049–0.053 inch
(1.25–1.35 mm)0.045–0.049 inch
(1.15–1.25 mm)0.051–0.057 inch
(1.32–1.42 mm)
Compression
ratio9.7:1 10.3:1 10.3:1
Engine drivebelt routing
•2.5L I4 Engine
•3.0L V6 Engine
Maintenance and Specifications
336
2012 Fusion(fsn)
Owners Guide, 3rd Printing
USA(fus)

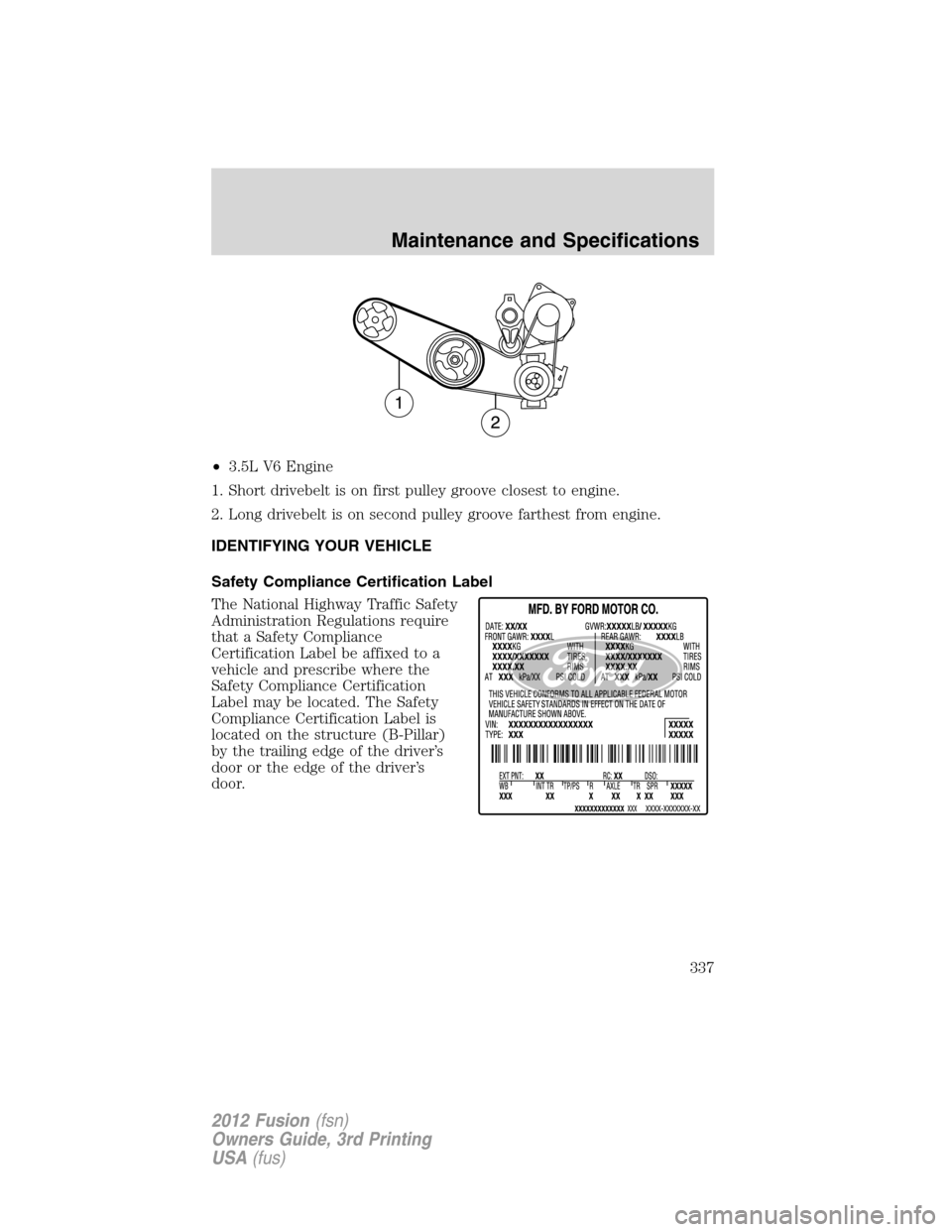

•3.5L V6 Engine
1. Short drivebelt is on first pulley groove closest to engine.
2. Long drivebelt is on second pulley groove farthest from engine.
IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Maintenance and Specifications
337
2012 Fusion(fsn)
Owners Guide, 3rd Printing
USA(fus)

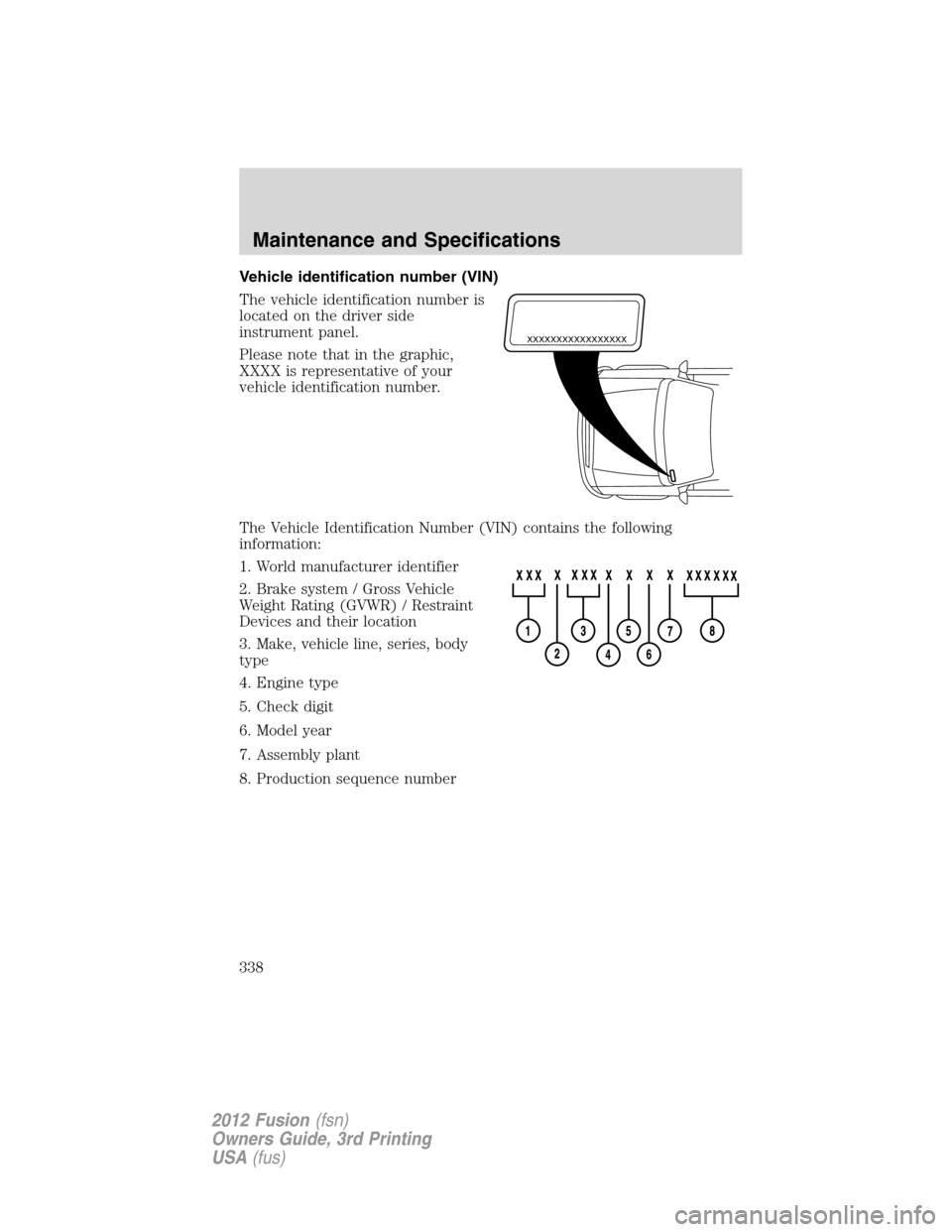

Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
3. Make, vehicle line, series, body
type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
XXXXXXXXXXXXXXXXX
Maintenance and Specifications
338
2012 Fusion(fsn)
Owners Guide, 3rd Printing
USA(fus)

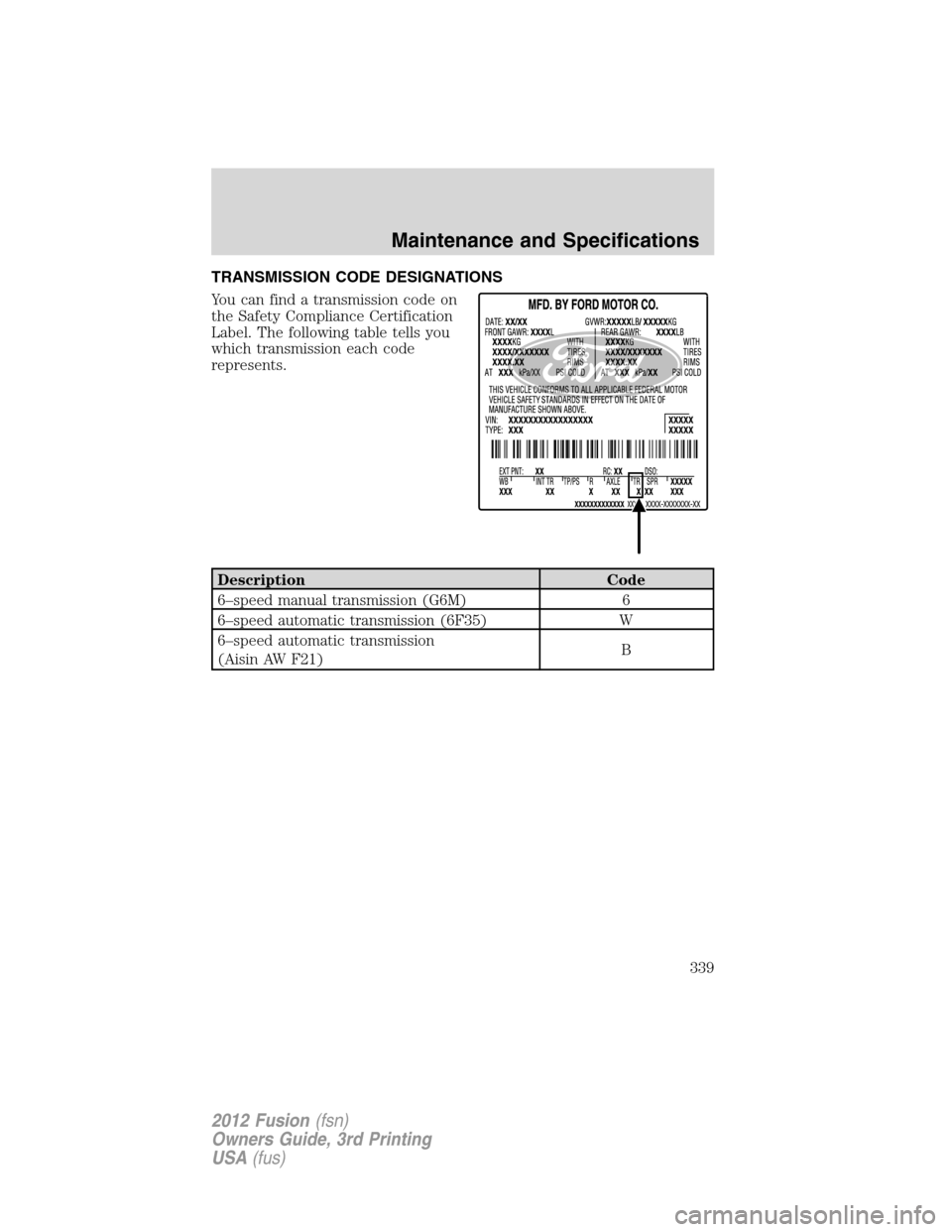

TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
6–speed manual transmission (G6M) 6
6–speed automatic transmission (6F35) W
6–speed automatic transmission
(Aisin AW F21)B
Maintenance and Specifications
339
2012 Fusion(fsn)
Owners Guide, 3rd Printing
USA(fus)

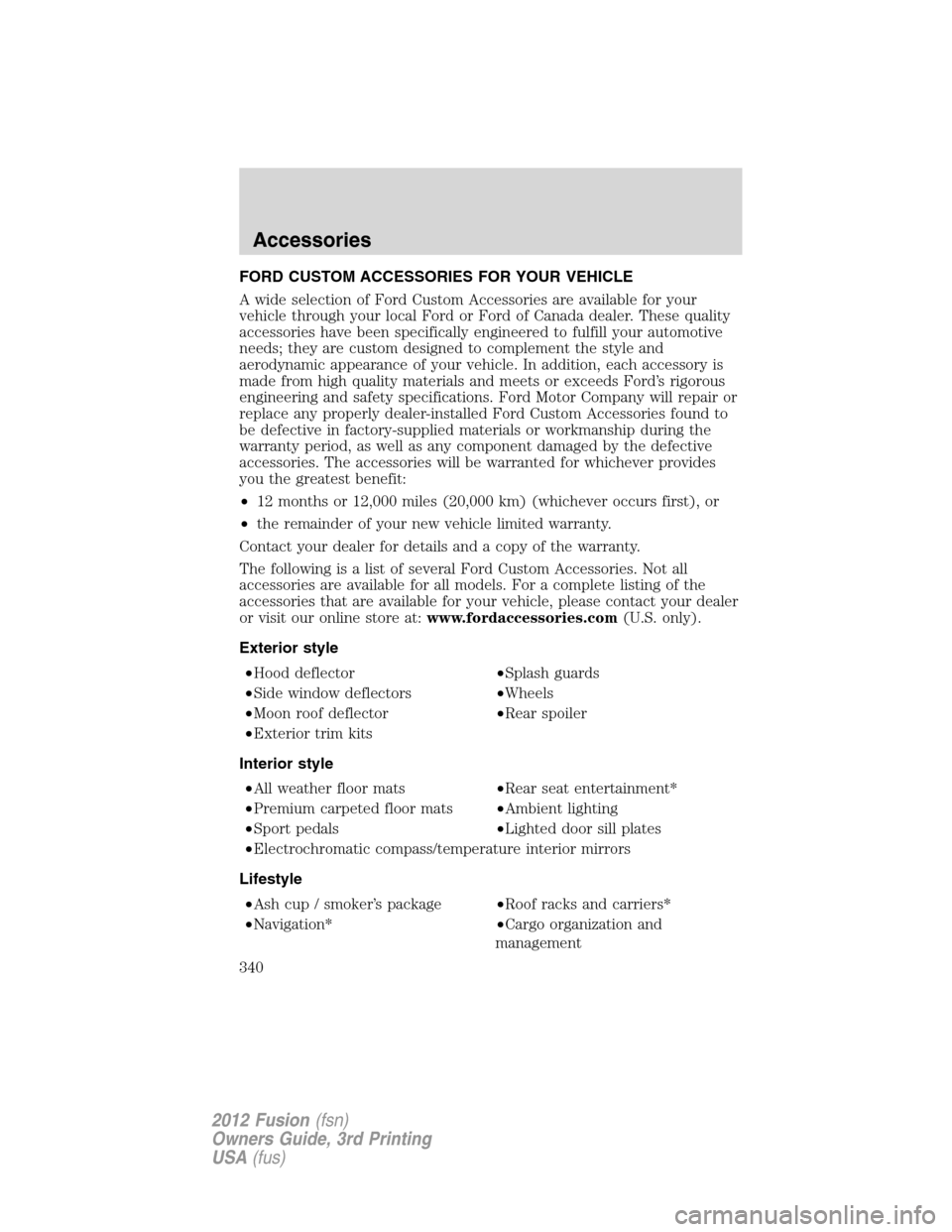

FORD CUSTOM ACCESSORIES FOR YOUR VEHICLE
A wide selection of Ford Custom Accessories are available for your
vehicle through your local Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and
aerodynamic appearance of your vehicle. In addition, each accessory is
made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Ford Custom Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessories. The accessories will be warranted for whichever provides
you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
The following is a list of several Ford Custom Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at:www.fordaccessories.com(U.S. only).
Exterior style
•Hood deflector•Splash guards
•Side window deflectors•Wheels
•Moon roof deflector•Rear spoiler
•Exterior trim kits
Interior style
•All weather floor mats•Rear seat entertainment*
•Premium carpeted floor mats•Ambient lighting
•Sport pedals•Lighted door sill plates
•Electrochromatic compass/temperature interior mirrors
Lifestyle
•Ash cup / smoker’s package•Roof racks and carriers*
•Navigation*•Cargo organization and
management
Accessories
340
2012 Fusion(fsn)
Owners Guide, 3rd Printing
