Scheduled Maintenance
361
2012 Fusion(fsn)
Owners Guide, 3rd Printing
USA(fus)

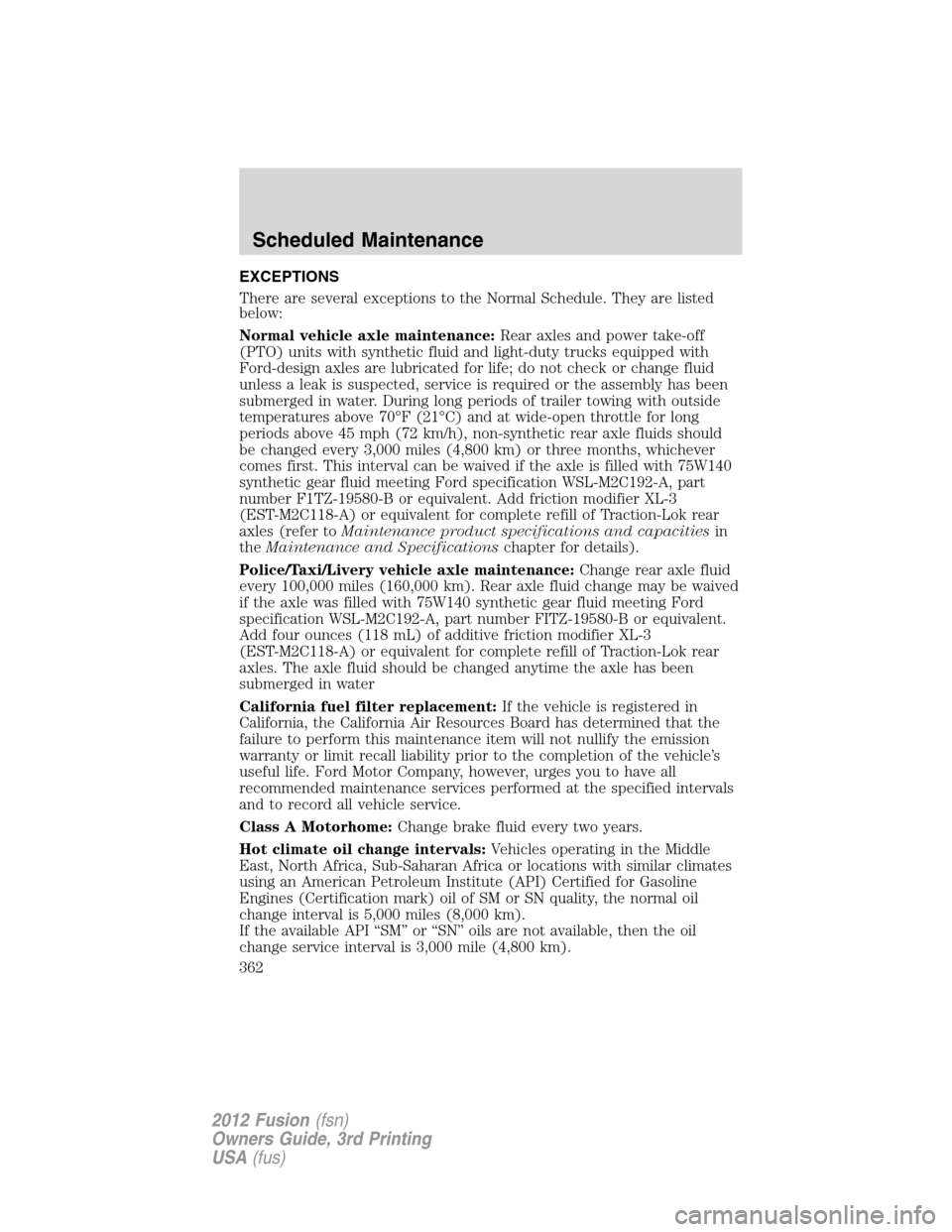

EXCEPTIONS
There are several exceptions to the Normal Schedule. They are listed
below:
Normal vehicle axle maintenance:Rear axles and power take-off
(PTO) units with synthetic fluid and light-duty trucks equipped with
Ford-design axles are lubricated for life; do not check or change fluid
unless a leak is suspected, service is required or the assembly has been
submerged in water. During long periods of trailer towing with outside
temperatures above 70°F (21°C) and at wide-open throttle for long
periods above 45 mph (72 km/h), non-synthetic rear axle fluids should
be changed every 3,000 miles (4,800 km) or three months, whichever
comes first. This interval can be waived if the axle is filled with 75W140
synthetic gear fluid meeting Ford specification WSL-M2C192-A, part
number F1TZ-19580-B or equivalent. Add friction modifier XL-3
(EST-M2C118-A) or equivalent for complete refill of Traction-Lok rear
axles (refer toMaintenance product specifications and capacitiesin
theMaintenance and Specificationschapter for details).
Police/Taxi/Livery vehicle axle maintenance:Change rear axle fluid
every 100,000 miles (160,000 km). Rear axle fluid change may be waived
if the axle was filled with 75W140 synthetic gear fluid meeting Ford
specification WSL-M2C192-A, part number FITZ-19580-B or equivalent.
Add four ounces (118 mL) of additive friction modifier XL-3
(EST-M2C118-A) or equivalent for complete refill of Traction-Lok rear
axles. The axle fluid should be changed anytime the axle has been
submerged in water
California fuel filter replacement:If the vehicle is registered in
California, the California Air Resources Board has determined that the
failure to perform this maintenance item will not nullify the emission
warranty or limit recall liability prior to the completion of the vehicle’s
useful life. Ford Motor Company, however, urges you to have all
recommended maintenance services performed at the specified intervals
and to record all vehicle service.
Class A Motorhome:Change brake fluid every two years.
Hot climate oil change intervals:Vehicles operating in the Middle
East, North Africa, Sub-Saharan Africa or locations with similar climates
using an American Petroleum Institute (API) Certified for Gasoline
Engines (Certification mark) oil of SM or SN quality, the normal oil
change interval is 5,000 miles (8,000 km).
If the available API “SM” or “SN” oils are not available, then the oil
change service interval is 3,000 mile (4,800 km).
Scheduled Maintenance
362
2012 Fusion(fsn)
Owners Guide, 3rd Printing
USA(fus)

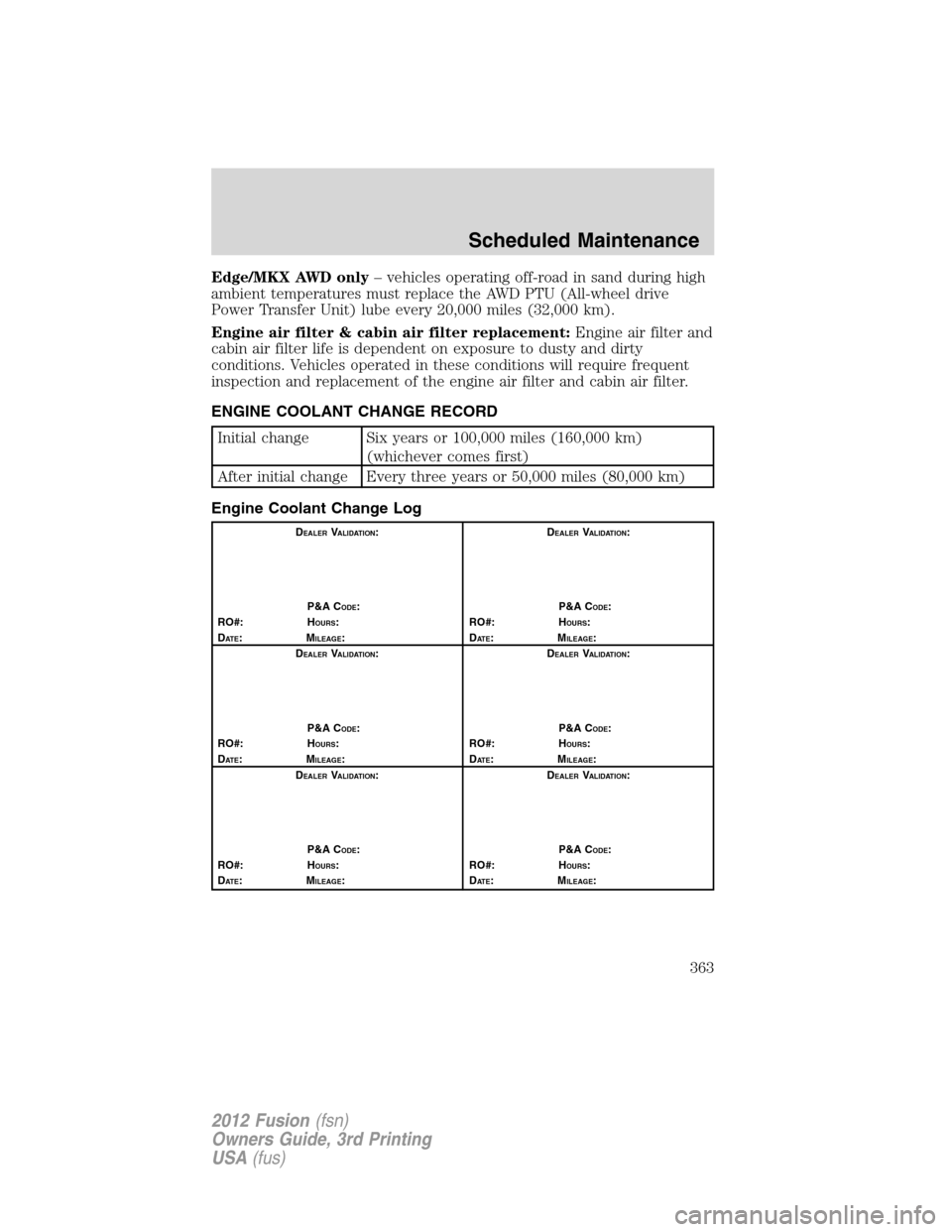

Edge/MKX AWD only– vehicles operating off-road in sand during high
ambient temperatures must replace the AWD PTU (All-wheel drive
Power Transfer Unit) lube every 20,000 miles (32,000 km).
Engine air filter & cabin air filter replacement:Engine air filter and
cabin air filter life is dependent on exposure to dusty and dirty
conditions. Vehicles operated in these conditions will require frequent
inspection and replacement of the engine air filter and cabin air filter.
ENGINE COOLANT CHANGE RECORD
Initial change Six years or 100,000 miles (160,000 km)
(whichever comes first)
After initial change Every three years or 50,000 miles (80,000 km)
Engine Coolant Change Log
DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
Scheduled Maintenance
363
2012 Fusion(fsn)
Owners Guide, 3rd Printing
USA(fus)

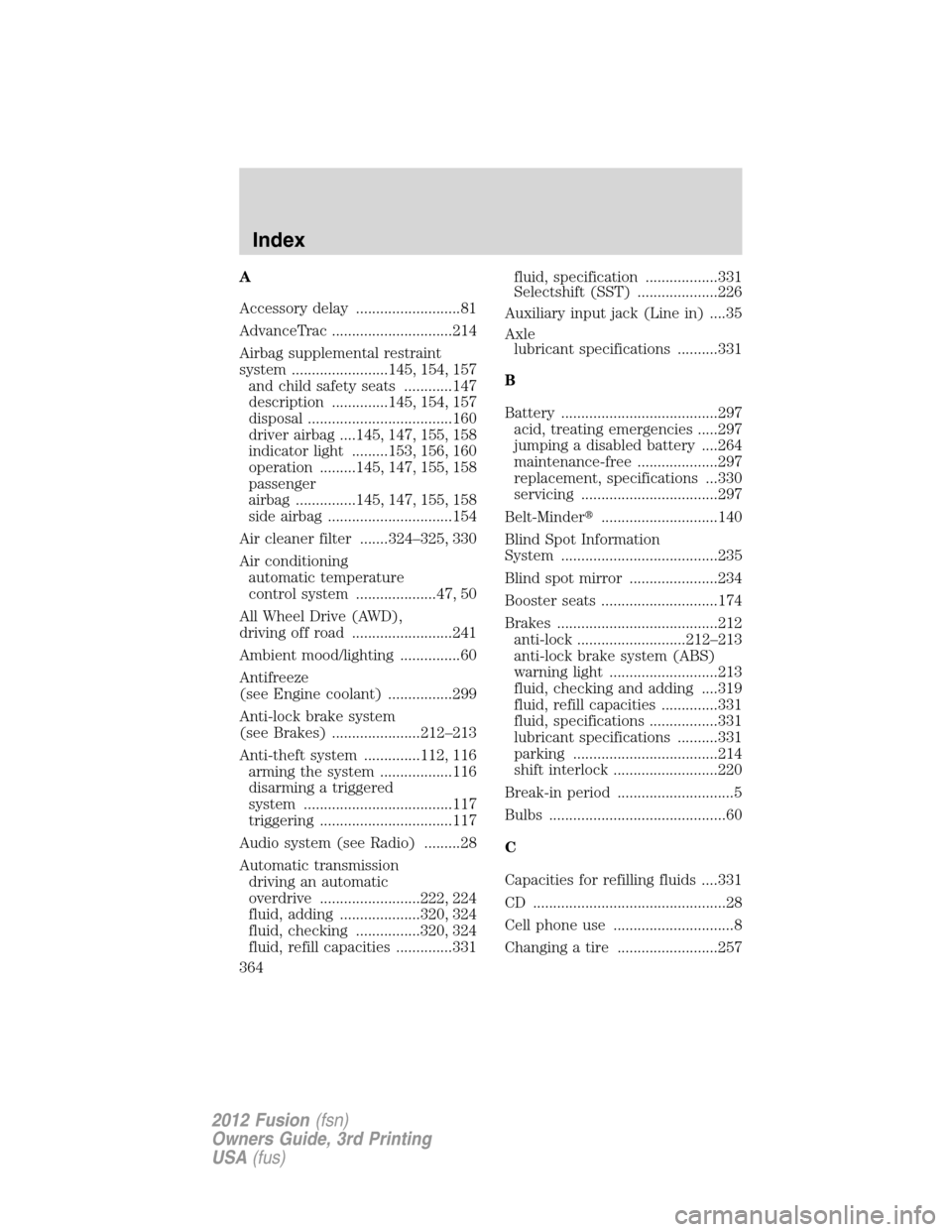

A
Accessory delay ..........................81
AdvanceTrac ..............................214
Airbag supplemental restraint
system ........................145, 154, 157
and child safety seats ............147
description ..............145, 154, 157
disposal ....................................160
driver airbag ....145, 147, 155, 158
indicator light .........153, 156, 160
operation .........145, 147, 155, 158
passenger
airbag ...............145, 147, 155, 158
side airbag ...............................154
Air cleaner filter .......324–325, 330
Air conditioning
automatic temperature
control system ....................47, 50
All Wheel Drive (AWD),
driving off road .........................241
Ambient mood/lighting ...............60
Antifreeze
(see Engine coolant) ................299
Anti-lock brake system
(see Brakes) ......................212–213
Anti-theft system ..............112, 116
arming the system ..................116
disarming a triggered
system .....................................117
triggering .................................117
Audio system (see Radio) .........28
Automatic transmission
driving an automatic
overdrive .........................222, 224
fluid, adding ....................320, 324
fluid, checking ................320, 324
fluid, refill capacities ..............331fluid, specification ..................331
Selectshift (SST) ....................226
Auxiliary input jack (Line in) ....35
Axle
lubricant specifications ..........331
B
Battery .......................................297
acid, treating emergencies .....297
jumping a disabled battery ....264
maintenance-free ....................297
replacement, specifications ...330
servicing ..................................297
Belt-Minder.............................140
Blind Spot Information
System .......................................235
Blind spot mirror ......................234
Booster seats .............................174
Brakes ........................................212
anti-lock ...........................212–213
anti-lock brake system (ABS)
warning light ...........................213
fluid, checking and adding ....319
fluid, refill capacities ..............331
fluid, specifications .................331
lubricant specifications ..........331
parking ....................................214
shift interlock ..........................220
Break-in period .............................5
Bulbs ............................................60
C
Capacities for refilling fluids ....331
CD ................................................28
Cell phone use ..............................8
Changing a tire .........................257
Index
364
2012 Fusion(fsn)
Owners Guide, 3rd Printing
USA(fus)

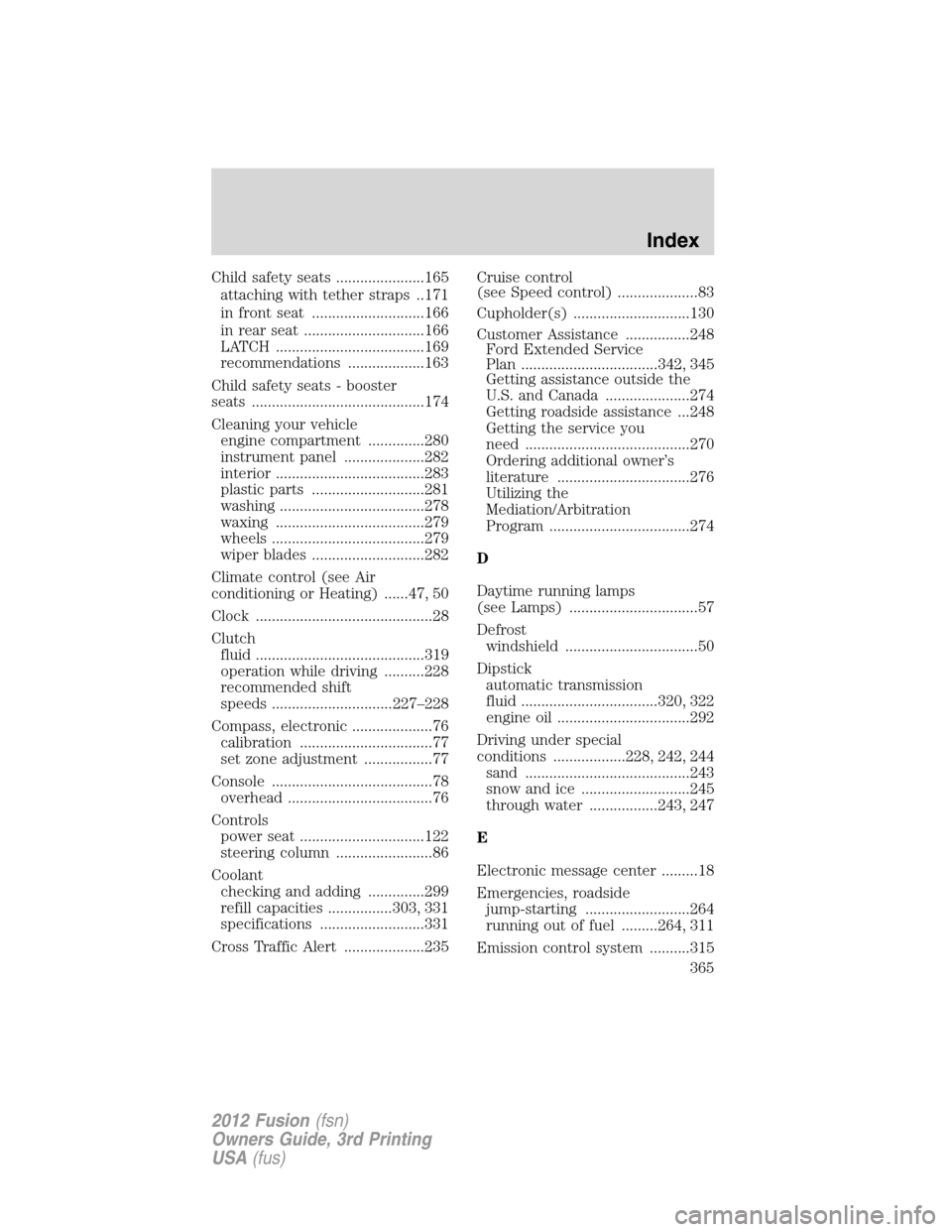

Child safety seats ......................165
attaching with tether straps ..171
in front seat ............................166
in rear seat ..............................166
LATCH .....................................169
recommendations ...................163
Child safety seats - booster
seats ...........................................174
Cleaning your vehicle
engine compartment ..............280
instrument panel ....................282
interior .....................................283
plastic parts ............................281
washing ....................................278
waxing .....................................279
wheels ......................................279
wiper blades ............................282
Climate control (see Air
conditioning or Heating) ......47, 50
Clock ............................................28
Clutch
fluid ..........................................319
operation while driving ..........228
recommended shift
speeds ..............................227–228
Compass, electronic ....................76
calibration .................................77
set zone adjustment .................77
Console ........................................78
overhead ....................................76
Controls
power seat ...............................122
steering column ........................86
Coolant
checking and adding ..............299
refill capacities ................303, 331
specifications ..........................331
Cross Traffic Alert ....................235Cruise control
(see Speed control) ....................83
Cupholder(s) .............................130
Customer Assistance ................248
Ford Extended Service
Plan ..................................342, 345
Getting assistance outside the
U.S. and Canada .....................274
Getting roadside assistance ...248
Getting the service you
need .........................................270
Ordering additional owner’s
literature .................................276
Utilizing the
Mediation/Arbitration
Program ...................................274
D
Daytime running lamps
(see Lamps) ................................57
Defrost
windshield .................................50
Dipstick
automatic transmission
fluid ..................................320, 322
engine oil .................................292
Driving under special
conditions ..................228, 242, 244
sand .........................................243
snow and ice ...........................245
through water .................243, 247
E
Electronic message center .........18
Emergencies, roadside
jump-starting ..........................264
running out of fuel .........264, 311
Emission control system ..........315
Index
365
2012 Fusion(fsn)
Owners Guide, 3rd Printing
USA(fus)

Engine ........................................336
cleaning ...................................280
coolant .....................................299
fail-safe cooling .......................304
idle speed control ...................297
lubrication specifications .......331
refill capacities ........................331
service points ..................288–290
starting after a collision .........249
Engine block heater .................211
Engine oil ..................................292
checking and adding ..............292
dipstick ....................................292
filter, specifications ........296, 330
recommendations ...................296
refill capacities ........................331
specifications ..........................331
Event data recording ....................6
Exhaust fumes ..........................210
F
Fail safe cooling ........................304
Fleet MyKey programming ........96
Flexible Fuel Vehicle (FFV) ....306
Floor mats .............................93–94
Fluid capacities .........................331
Fog lamps ....................................56
Four-Wheel Drive vehicles
driving off road .......................241
Fuel ............................................306
calculating fuel economy .21, 313
cap ...........................................308
capacity ...................................331
choosing the right fuel ...........310
detergent in fuel .....................311
filler funnel .............................311filling your vehicle with
fuel ...........................306, 308, 313
filter, specifications ........305, 330
fuel pump shut-off ..................250
fuel pump shut-off switch .....249
improving fuel economy ........313
octane rating ...................310, 336
quality ......................................311
running out of fuel .........264, 311
safety information relating to
automotive fuels .....................306
Fuel - flex fuel vehicle
(FFV) .................................306, 310
Fuel pump shut-off switch .......249
Fuses ..........................................251
G
Garage door opener ....................89
Gas cap (see Fuel cap) ............308
Gas mileage (see Fuel
economy) ...................................313
Gauges .........................................17
H
Hazard flashers .........................249
Headlamps ...................................55
aiming ........................................58
autolamp system .......................55
bulb specifications ....................61
daytime running lights .............57
flash to pass ..............................57
high beam .................................56
replacing bulbs .........................62
turning on and off ....................55
Heating
heating and air conditioning
system .................................47, 50
Index
366
2012 Fusion(fsn)
Owners Guide, 3rd Printing
USA(fus)

manual heating and air
conditioning system .................45
Hood ..........................................287
I
Ignition ...............................207, 336
Illuminated visor mirror .............75
Infant seats
(see Safety seats) .....................165
Inspection/maintenance (I/M)
testing ........................................317
Instrument panel ........................79
cleaning ...................................282
cluster ........................................12
lighting up panel and
interior .......................................57
J
Jack ............................................257
positioning ...............................257
storage .....................................257
Jump-starting your vehicle ......264
K
Keyless entry system
autolock ...................................101
keypad .....................................111
locking and unlocking doors ..112
programming entry code .......111
Keys .....................................95, 114
positions of the ignition .........207
L
Lamps
autolamp system .......................55bulb replacement
specifications chart ..................61
daytime running light ...............57
fog lamps ...................................56
headlamps .................................55
headlamps, flash to pass ..........57
instrument panel, dimming .....57
interior lamps .....................59, 62
replacing bulbs .........................62
LATCH anchors .........................169
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........213
Load limits .................................200
Locks
autolock ...................................101
childproof ................................105
doors ........................................101
Lubricant specifications ...........331
Lug nuts ....................................263
Lumbar support, seats .....121, 123
M
Manual transmission .................228
fluid capacities ........................331
lubricant specifications ..........331
reverse .....................................229
Message center .....................18–19
english/metric button ...............23
system check button ................23
warning messages .....................23
Mirrors ...................................82–83
automatic dimming rearview
mirror ........................................82
heated ........................................83
side view mirrors (power) .......83
Moon roof ....................................87
Motorcraftparts ..............285, 330
Index
367
2012 Fusion(fsn)
Owners Guide, 3rd Printing
USA(fus)

MyKey ..........................................96
N
Navigation system .......................44
O
Octane rating ............................310
Oil (see Engine oil) ..................292
P
Parental MyKey programming ...96
Parking brake ............................214
Parts
(see Motorcraftparts) ...........330
Passenger Occupant
Classification Sensor .................131
Power distribution box
(see Fuses) ...............................254
Power door locks ......................101
Power mirrors .............................83
Powerpoint ..................................79
Power steering ..................218, 220
fluid, checking and adding ....318
fluid, refill capacity ................331
fluid, specifications .................331
Power Windows ...........................80
Power windows
opening using remote entry
system .....................................108
R
Radio ............................................28
Rear-view camera system .........232Recommendations for
attaching safety restraints for
children ......................................163
Relays ........................................251
Remote entry system ...............107
illuminated entry ....................110
locking/unlocking
doors ................................107–108
opening the trunk ...................109
opening the windows .............108
panic alarm .............................108
replacement/additional
transmitters .............................109
replacing the batteries ...........109
Reverse sensing system ...........230
Roadside assistance ..................248
S
Safety belts (see Safety
restraints) ..133, 135–136, 138–139
Safety defects, reporting ..........277
Safety
restraints ...133, 135–136, 138–139
Belt-Minder...........................140
extension assembly ................138
for adults .................135–136, 138
for children .............................161
Occupant Classification
Sensor ......................................131
warning light and chime ........139
Safety restraints - LATCH
anchors ......................................169
Safety seats for children ..........165
Safety Compliance
Certification Label ....................337
Satellite Radio Information ........41
Index
368
2012 Fusion(fsn)
Owners Guide, 3rd Printing
USA(fus)

Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............352
Seats ..........................................118
child safety seats ....................165
front seats ...............................120
heated ......................................124
SecuriCode keyless entry
system ........................................111
SecuriLock passive anti-theft
system ........................................112
Servicing your vehicle ..............286
Setting the clock .........................28
Side air curtain .........................157
SOS Post Crash Alert ...............160
Spark plugs,
specifications .....................330, 336
Specification chart,
lubricants ...................................331
Speed control ..............................83
Starting your
vehicle ........................207–208, 210
jump starting ..........................264
Steering
speed sensitive .......................220
Steering wheel
controls ......................................86
tilting .........................................74
Stereo
CD-MP3 .....................................28
SYNC..........................................44
T
Tilt steering wheel ......................74Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....194
Tires ...........................179–180, 257
alignment ................................187
care ..........................................183
changing ..................................257
checking the pressure ............183
inflating ...................................181
label .........................................193
replacing ..................................185
rotating ....................................188
safety practices .......................187
sidewall information ...............188
snow tires and chains ............199
spare tire .................................258
terminology .............................180
tire grades ...............................180
treadwear ........................179, 184
Towing .......................................205
trailer towing ..........................205
wrecker ....................................268
Transmission .............................222
brake-shift interlock (BSI) ....220
fluid, checking and adding
(automatic) .............................322
fluid, checking and adding
(manual) .........................322, 324
fluid, refill capacities ..............331
lubricant specifications ..........331
manual operation ....................228
Trunk .........................................105
remote release ..................94, 109
Turn signal ..................................59
U
Universal garage door opener ....89
USB port ......................................37
Index
369
2012 Fusion(fsn)
Owners Guide, 3rd Printing
USA(fus)

V
Vehicle Identification Number
(VIN) ..........................................338
Vehicle loading ..........................200
Ventilating your vehicle ...........210
W
Warning lights (see Lights) .......12
Washer fluid ..............................291Water, Driving through .............247
Windows
opening using remote entry
system .....................................108
power .........................................80
Windshield washer fluid and
wipers ..........................................73
checking and adding fluid .....291
replacing wiper blades ...........291
Wrecker towing .........................268
Index
370
2012 Fusion(fsn)
Owners Guide, 3rd Printing
USA(fus)
