Troubleshooting:
1. Do not connect the audio input jack to a line level output. Line level
outputs are intended for connection to a home stereo and are not
compatible with the AIJ. The AIJ will only work correctly with devices
that have a headphone output with a volume control.
2. Do not set the portable music player’s volume level higher than is
necessary to match the volume of the CD or FM radio in your audio
system as this will cause distortion and will reduce sound quality. Many
portable music players have different output levels, so not all players
should be set at the same levels. Some players will sound best at full
volume and others will need to be set at a lower volume.
3. If the music sounds distorted at lower listening levels, turn the
portable music player volume down. If the problems persists, replace or
recharge the batteries in the portable music player.
4. The portable music player must be controlled in the same manner
when it is used with headphones as the AIJ does not provide control
(play, pause, etc.) over the attached portable music player.
5. For safety reasons, connecting or adjusting the settings on your
portable music player should not be attempted while the vehicle is
moving. Also, the portable music player should be stored in a secure
location, such as the center console or the glove box, when the vehicle is
in motion. The audio extension cable must be long enough to allow the
portable music player to be safely stored while the vehicle is in motion.
USB port (if equipped)
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving, encourage the use of voice-operated
systems when possible and that you become aware of applicable state
and local laws that may affect use of electronic devices while driving.
Entertainment Systems
37
2012 Fusion(fsn)
Owners Guide, 3rd Printing
USA(fus)

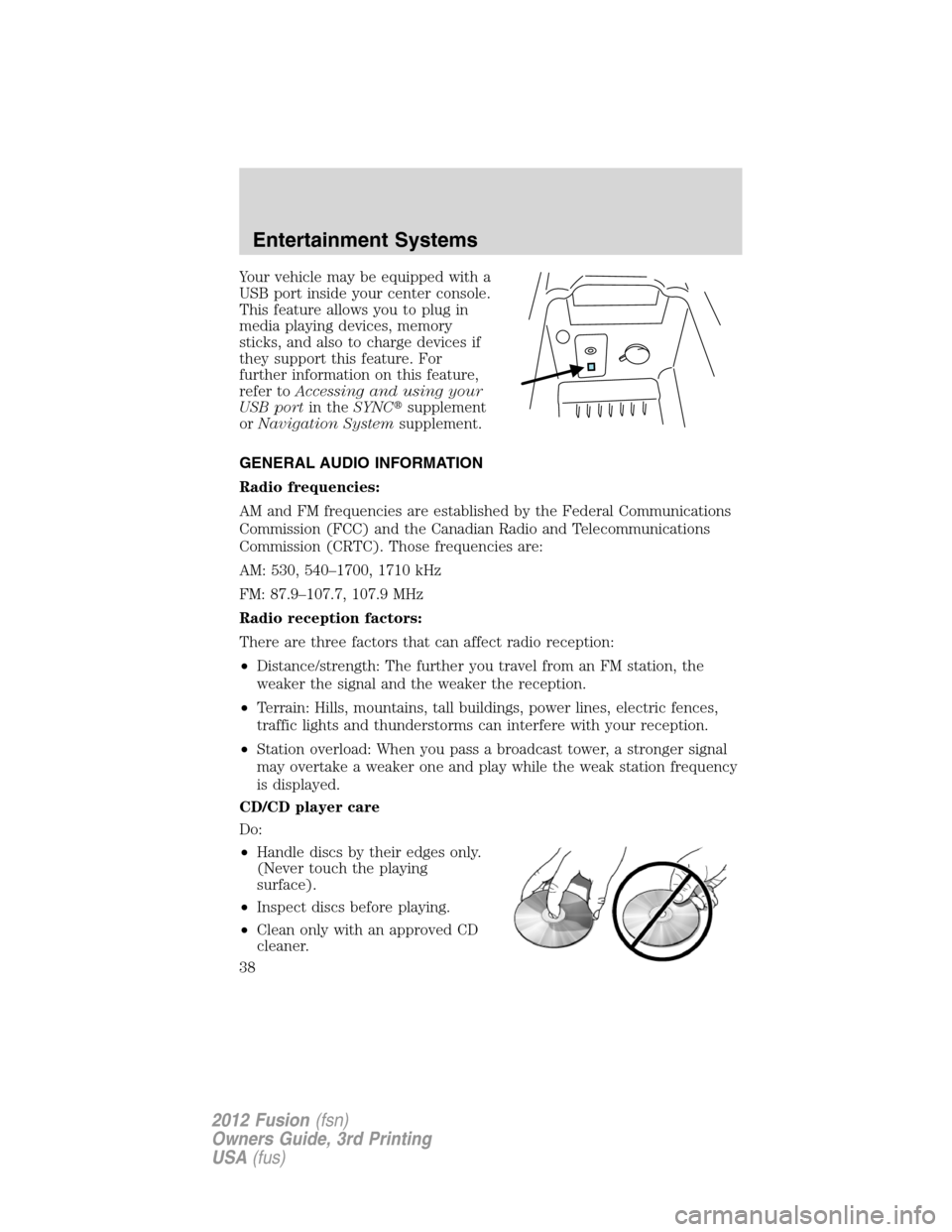

Your vehicle may be equipped with a
USB port inside your center console.
This feature allows you to plug in
media playing devices, memory
sticks, and also to charge devices if
they support this feature. For
further information on this feature,
refer toAccessing and using your
USB portin theSYNCsupplement
orNavigation Systemsupplement.
GENERAL AUDIO INFORMATION
Radio frequencies:
AM and FM frequencies are established by the Federal Communications
Commission (FCC) and the Canadian Radio and Telecommunications
Commission (CRTC). Those frequencies are:
AM: 530, 540–1700, 1710 kHz
FM: 87.9–107.7, 107.9 MHz
Radio reception factors:
There are three factors that can affect radio reception:
•Distance/strength: The further you travel from an FM station, the
weaker the signal and the weaker the reception.
•Terrain: Hills, mountains, tall buildings, power lines, electric fences,
traffic lights and thunderstorms can interfere with your reception.
•Station overload: When you pass a broadcast tower, a stronger signal
may overtake a weaker one and play while the weak station frequency
is displayed.
CD/CD player care
Do:
•Handle discs by their edges only.
(Never touch the playing
surface).
•Inspect discs before playing.
•Clean only with an approved CD
cleaner.
Entertainment Systems
38
2012 Fusion(fsn)
Owners Guide, 3rd Printing
USA(fus)

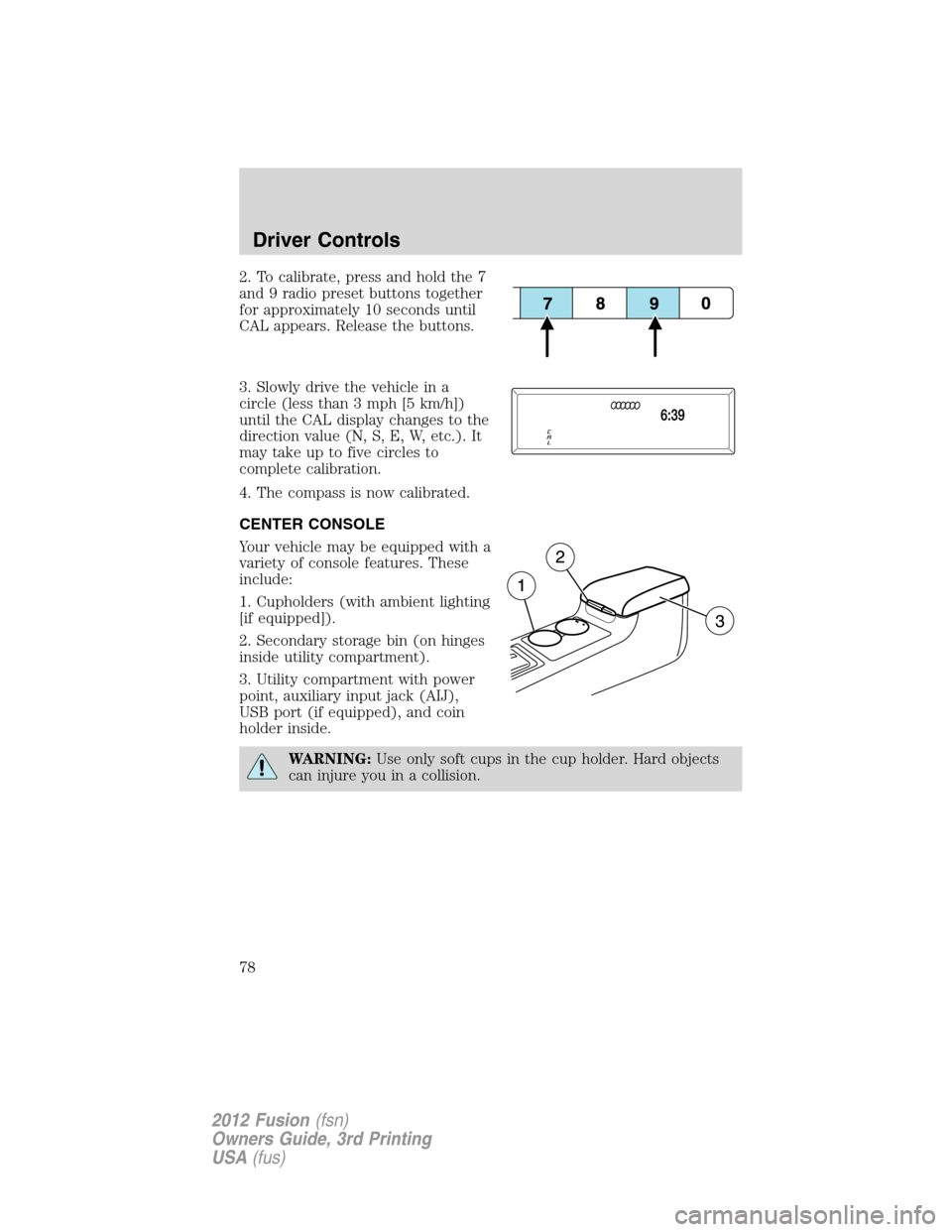

2. To calibrate, press and hold the 7
and 9 radio preset buttons together
for approximately 10 seconds until
CAL appears. Release the buttons.
3. Slowly drive the vehicle in a
circle (less than 3 mph [5 km/h])
until the CAL display changes to the
direction value (N, S, E, W, etc.). It
may take up to five circles to
complete calibration.
4. The compass is now calibrated.
CENTER CONSOLE
Your vehicle may be equipped with a
variety of console features. These
include:
1. Cupholders (with ambient lighting
[if equipped]).
2. Secondary storage bin (on hinges
inside utility compartment).
3. Utility compartment with power
point, auxiliary input jack (AIJ),
USB port (if equipped), and coin
holder inside.
WARNING:Use only soft cups in the cup holder. Hard objects
can injure you in a collision.
Driver Controls
78
2012 Fusion(fsn)
Owners Guide, 3rd Printing
USA(fus)

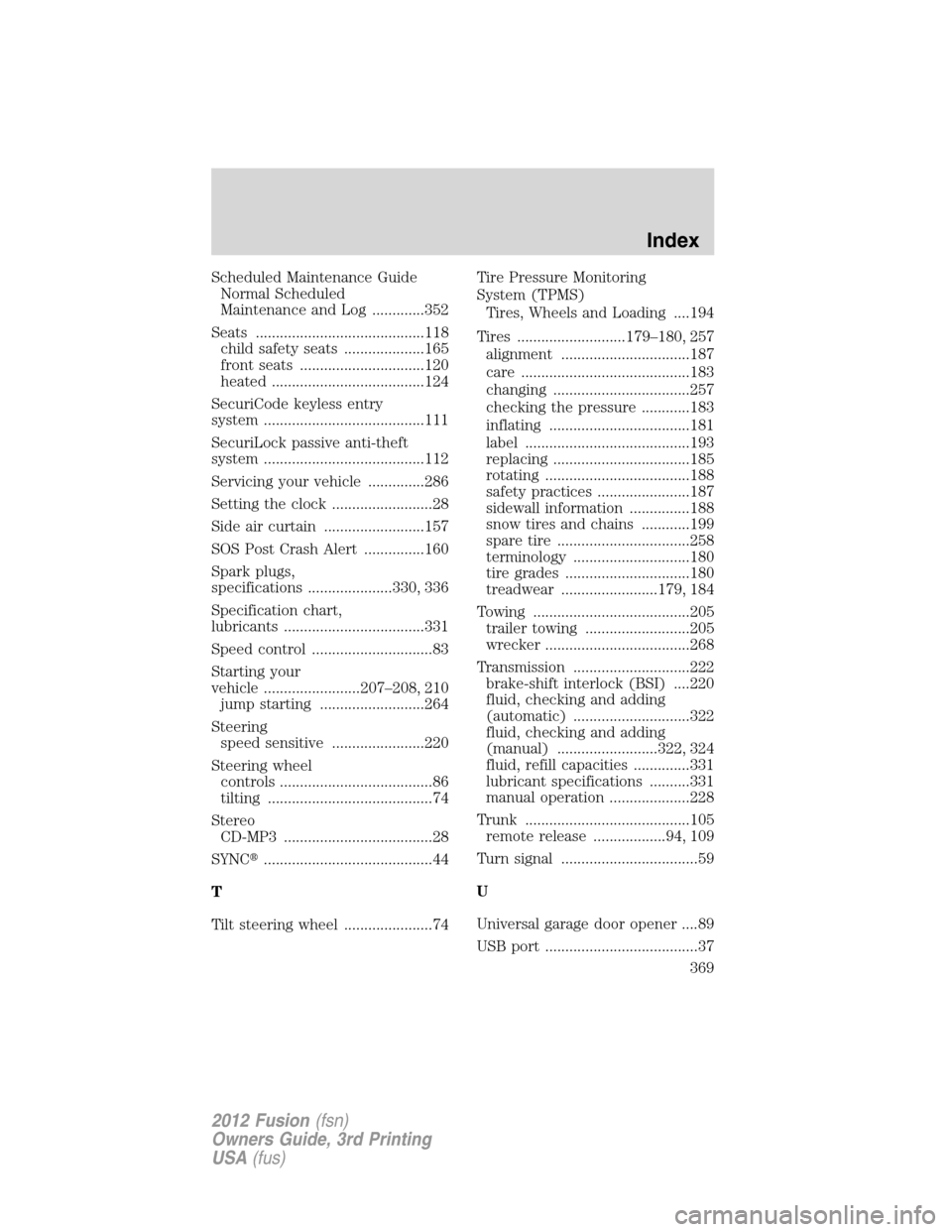

Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............352
Seats ..........................................118
child safety seats ....................165
front seats ...............................120
heated ......................................124
SecuriCode keyless entry
system ........................................111
SecuriLock passive anti-theft
system ........................................112
Servicing your vehicle ..............286
Setting the clock .........................28
Side air curtain .........................157
SOS Post Crash Alert ...............160
Spark plugs,
specifications .....................330, 336
Specification chart,
lubricants ...................................331
Speed control ..............................83
Starting your
vehicle ........................207–208, 210
jump starting ..........................264
Steering
speed sensitive .......................220
Steering wheel
controls ......................................86
tilting .........................................74
Stereo
CD-MP3 .....................................28
SYNC..........................................44
T
Tilt steering wheel ......................74Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....194
Tires ...........................179–180, 257
alignment ................................187
care ..........................................183
changing ..................................257
checking the pressure ............183
inflating ...................................181
label .........................................193
replacing ..................................185
rotating ....................................188
safety practices .......................187
sidewall information ...............188
snow tires and chains ............199
spare tire .................................258
terminology .............................180
tire grades ...............................180
treadwear ........................179, 184
Towing .......................................205
trailer towing ..........................205
wrecker ....................................268
Transmission .............................222
brake-shift interlock (BSI) ....220
fluid, checking and adding
(automatic) .............................322
fluid, checking and adding
(manual) .........................322, 324
fluid, refill capacities ..............331
lubricant specifications ..........331
manual operation ....................228
Trunk .........................................105
remote release ..................94, 109
Turn signal ..................................59
U
Universal garage door opener ....89
USB port ......................................37
