Page 251 of 528

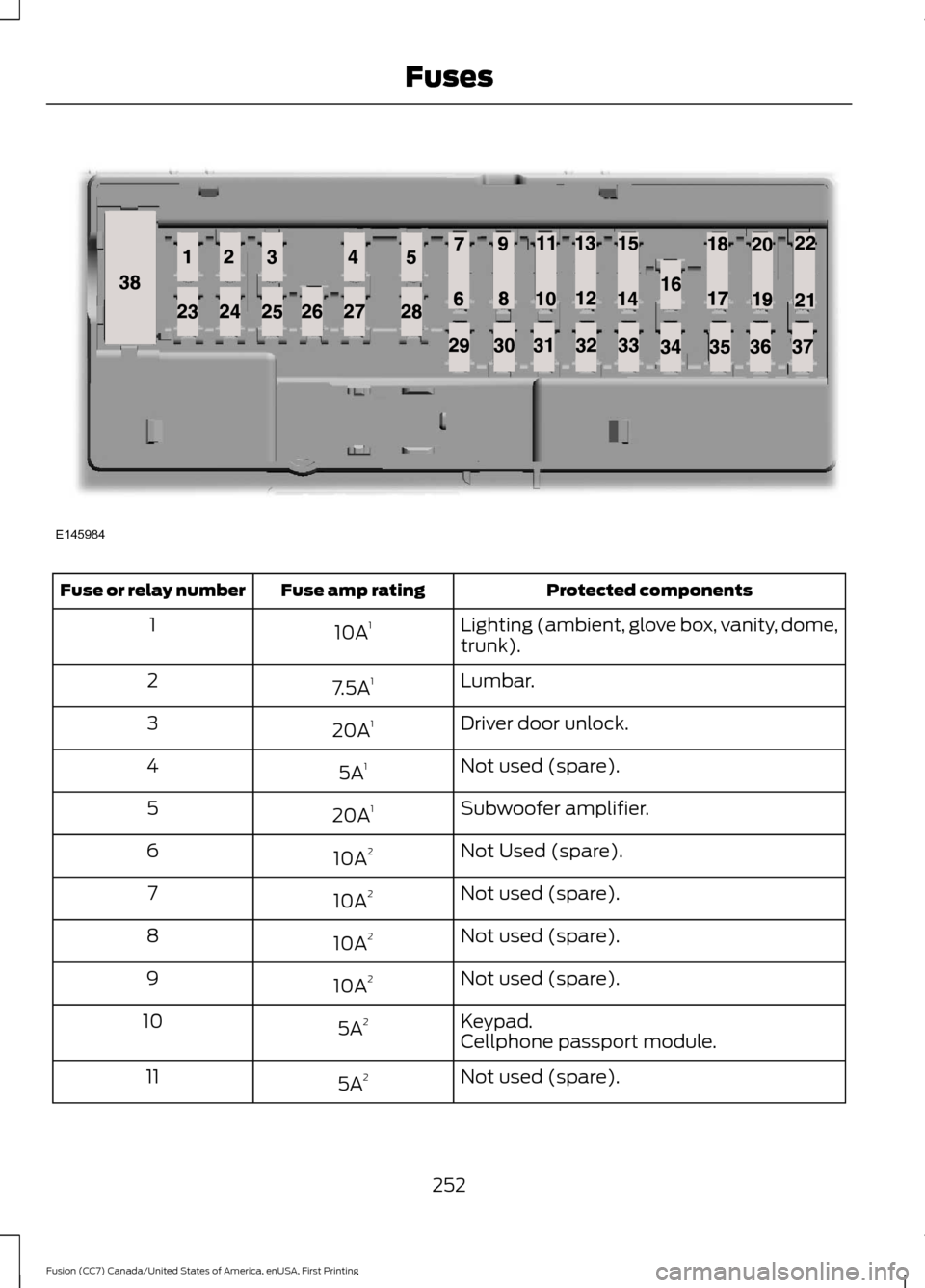

FORD FUSION (AMERICAS) 2017 2.G Owners Manual Protected components
Fuse amp rating
Fuse or relay number
Not used.
—
43
Not used.
—
44
Not used.
—
45
Not used.
—
46
Not used.
—
47
Not used.
—
48
Not used.
—
49
Horn.
20A 1
50
Not used

Page 252 of 528

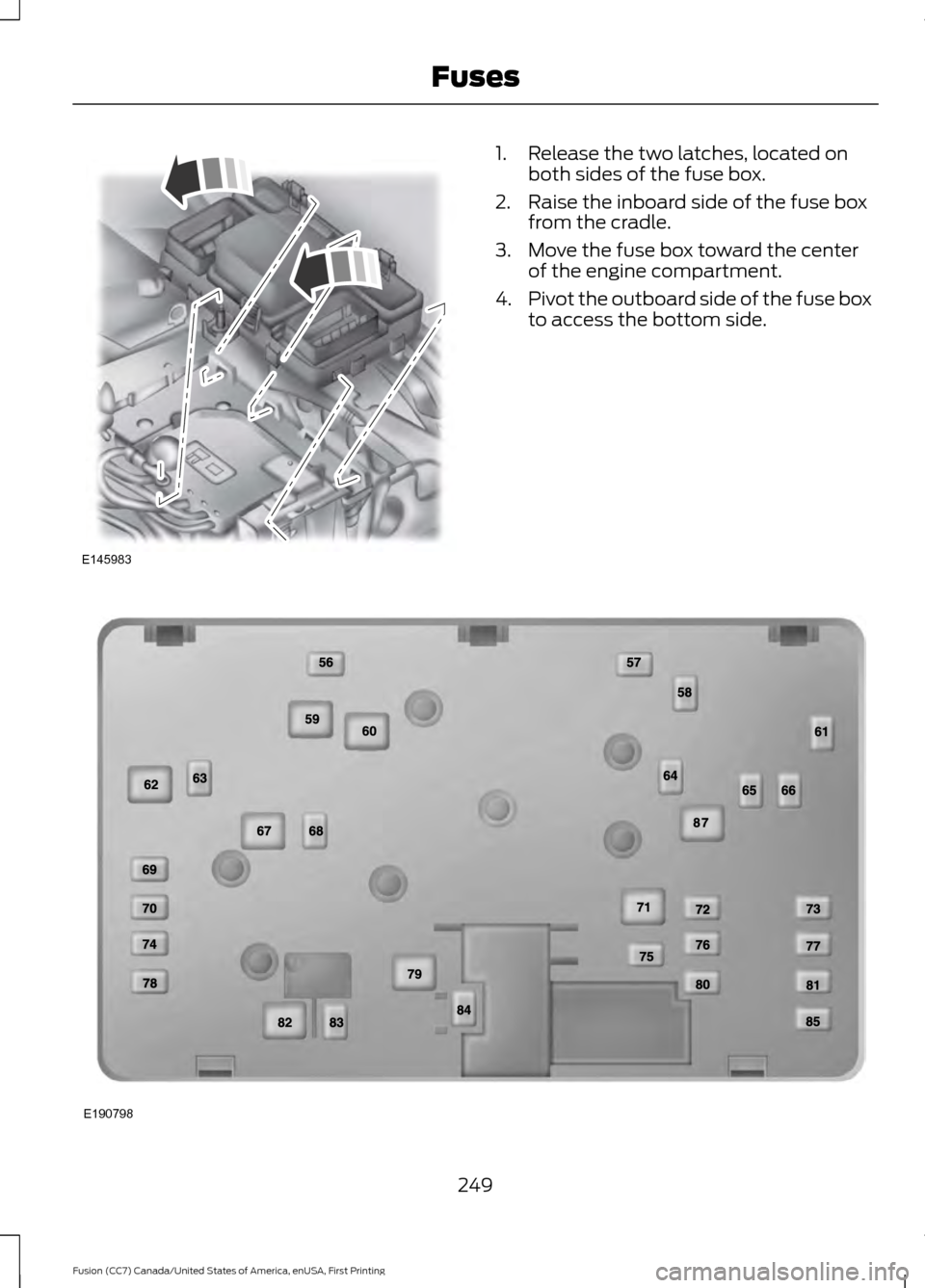

FORD FUSION (AMERICAS) 2017 2.G Owners Manual 1. Release the two latches, located on
both sides of the fuse box.
2. Raise the inboard side of the fuse box from the cradle.
3. Move the fuse box toward the center of the engine compartment.
4. Pivot

Page 253 of 528

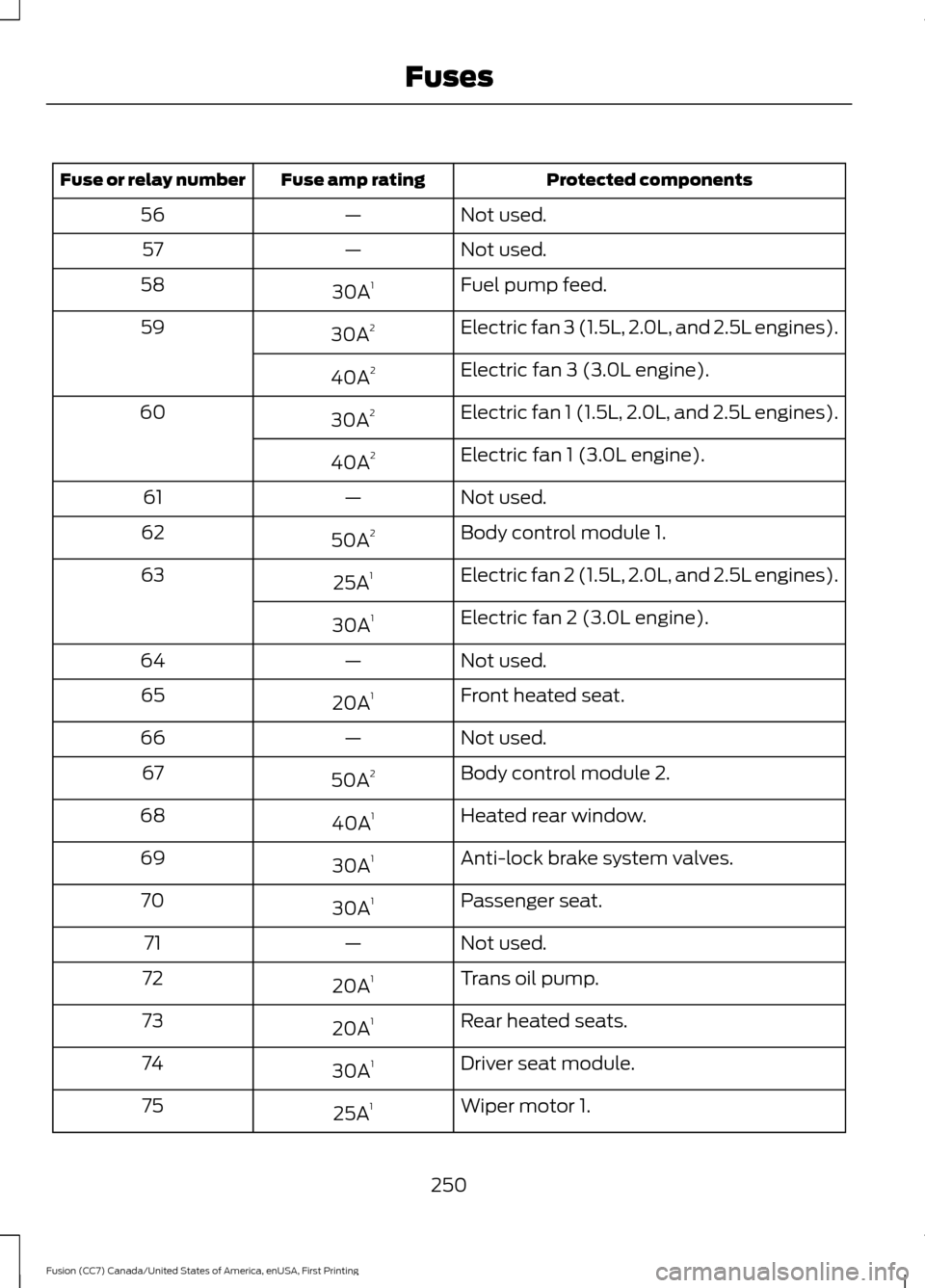

FORD FUSION (AMERICAS) 2017 2.G Owners Manual Protected components
Fuse amp rating
Fuse or relay number
Not used.
—
56
Not used.
—
57
Fuel pump feed.
30A 1
58
Electric fan 3 (1.5L, 2.0L, and 2.5L engines).
30A 2
59
Electric fan 3 (3.0L engine

Page 254 of 528

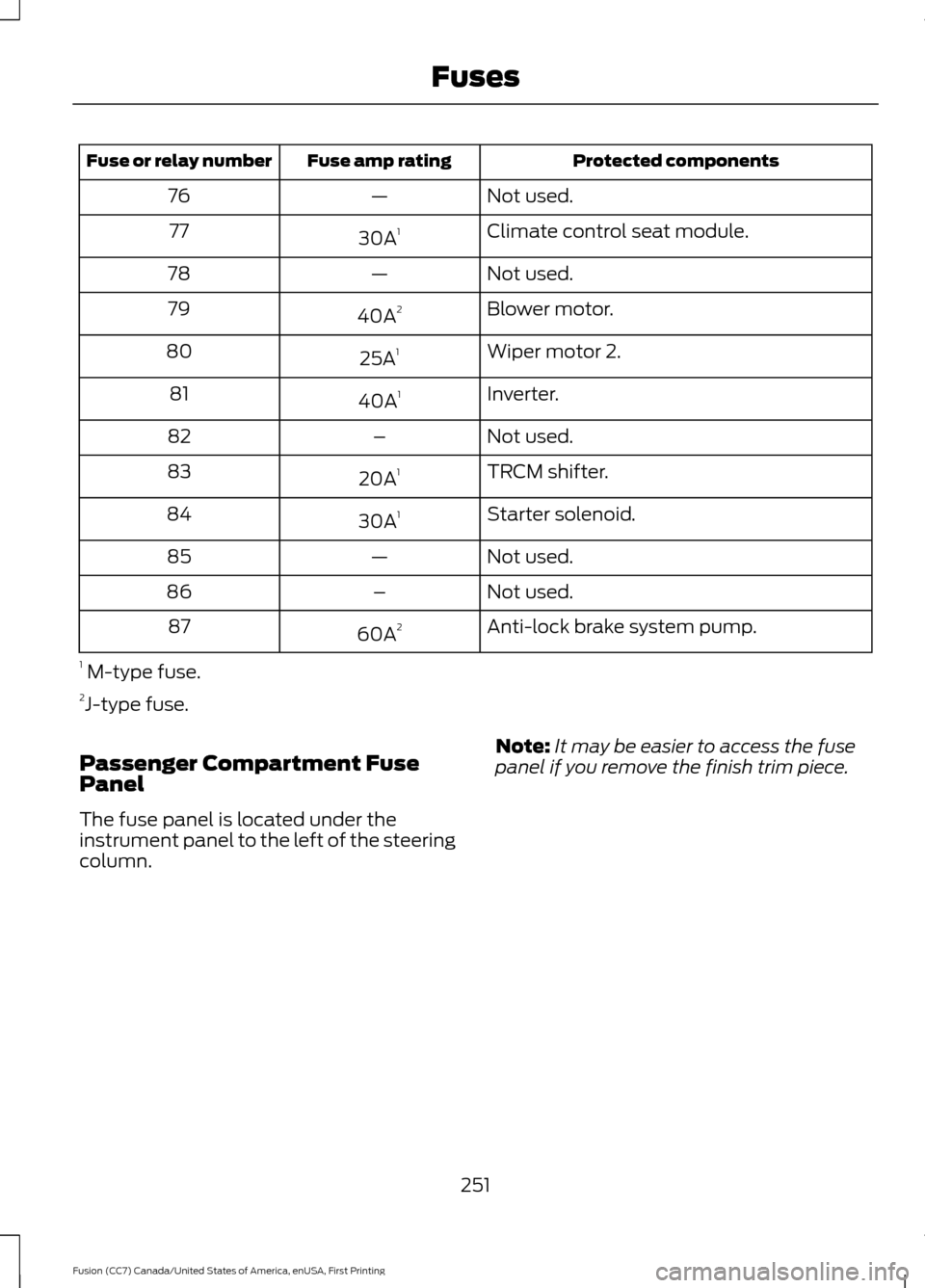

FORD FUSION (AMERICAS) 2017 2.G Owners Manual Protected components
Fuse amp rating
Fuse or relay number
Not used.
—
76
Climate control seat module.
30A 1
77
Not used.
—
78
Blower motor.
40A 2
79
Wiper motor 2.
25A 1
80
Inverter.
40A 1
81
Not

Page 255 of 528

FORD FUSION (AMERICAS) 2017 2.G Owners Manual Protected components
Fuse amp rating
Fuse or relay number
Lighting (ambient, glove box, vanity, dome,
trunk).
10A
1
1
Lumbar.
7.5A 1
2
Driver door unlock.
20A 1
3
Not used (spare).
5A 1
4
Subwoofer am

Page 256 of 528

FORD FUSION (AMERICAS) 2017 2.G Owners Manual Protected components
Fuse amp rating
Fuse or relay number
Climate control.
7.5A 2
12
Gear shift
Steering wheel column lock.
7.5A 2
13
Cluster.
Datalink logic.
Extended power module.
10A 2
14
Datalink

Page 257 of 528

FORD FUSION (AMERICAS) 2017 2.G Owners Manual Protected components
Fuse amp rating
Fuse or relay number
Global positioning system.
10A 1
32
Display.
Voice control.
Radio frequency receiver.
Radio.
20A 1
33
Active noise control.
Run-start bus (fus

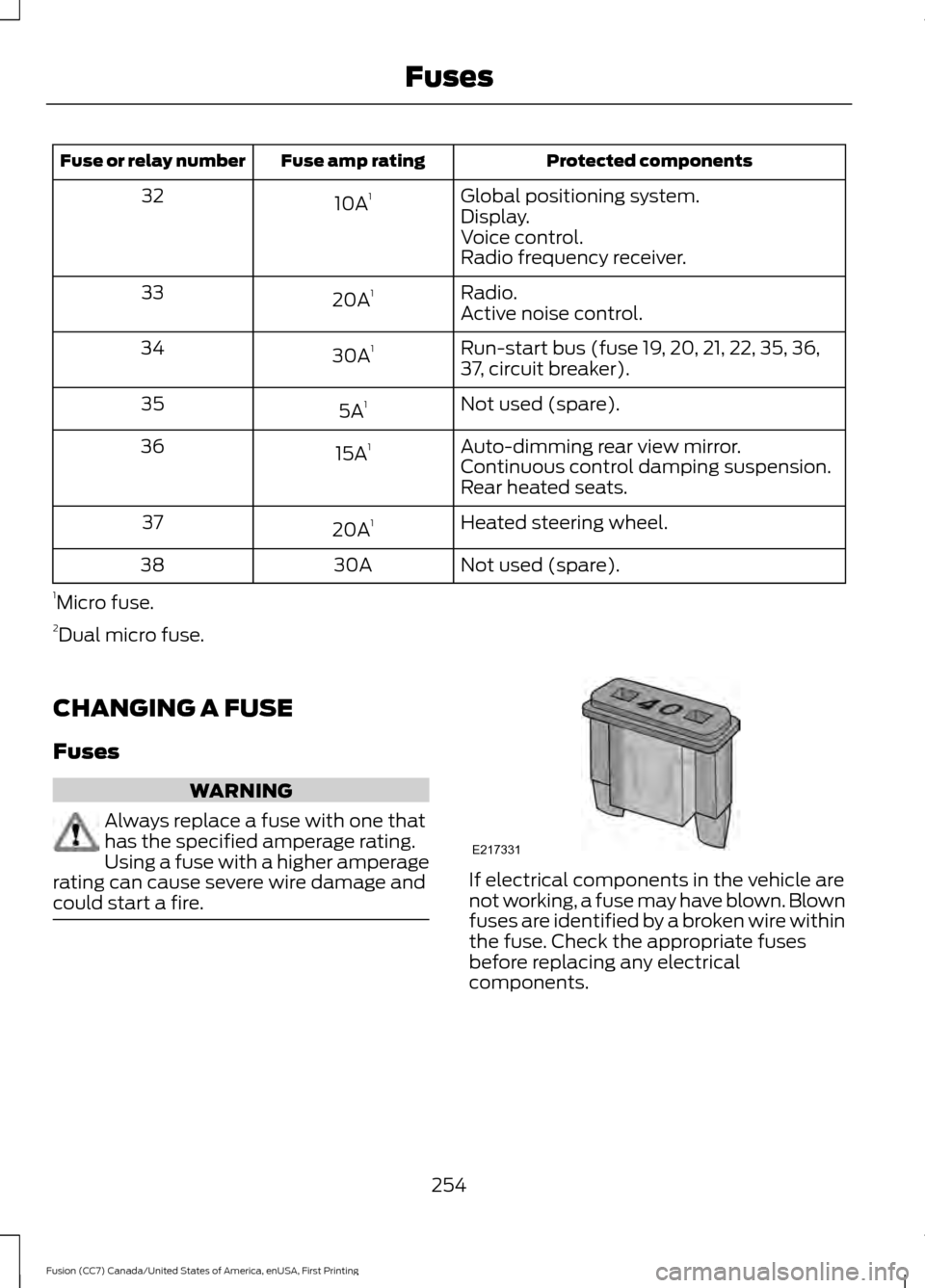

Page 258 of 528

FORD FUSION (AMERICAS) 2017 2.G Owners Manual Fuse Types
Fuse Type
Callout
Micro 2
A
Micro 3
B
Maxi
C
Mini
D
M Case
E
J Case
F
J Case Low Profile
G
255
Fusion (CC7) Canada/United States of America, enUSA, First Printing FusesE207206

Page 259 of 528

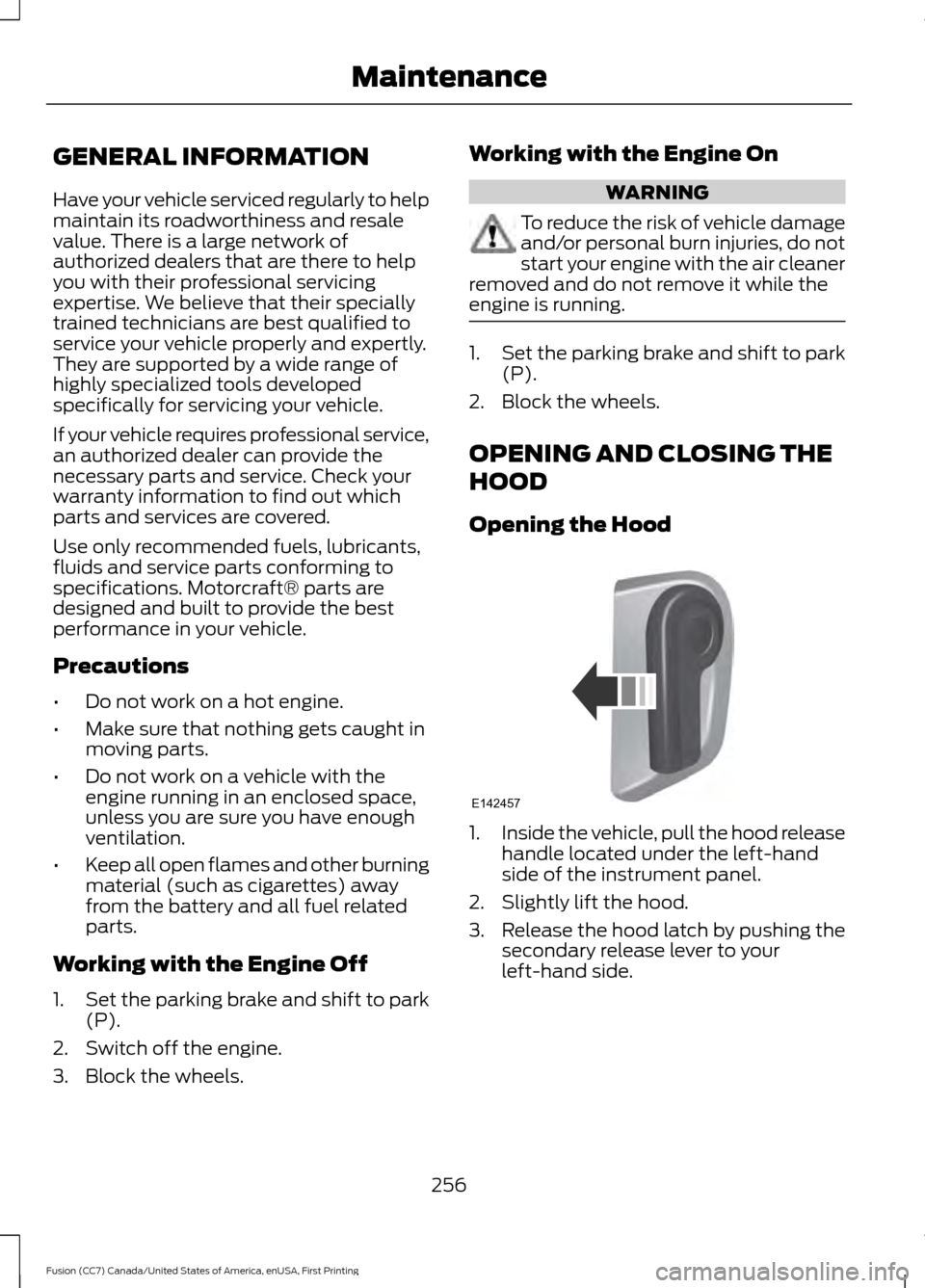

FORD FUSION (AMERICAS) 2017 2.G Owners Manual GENERAL INFORMATION
Have your vehicle serviced regularly to help
maintain its roadworthiness and resale
value. There is a large network of
authorized dealers that are there to help
you with their prof

Page 260 of 528

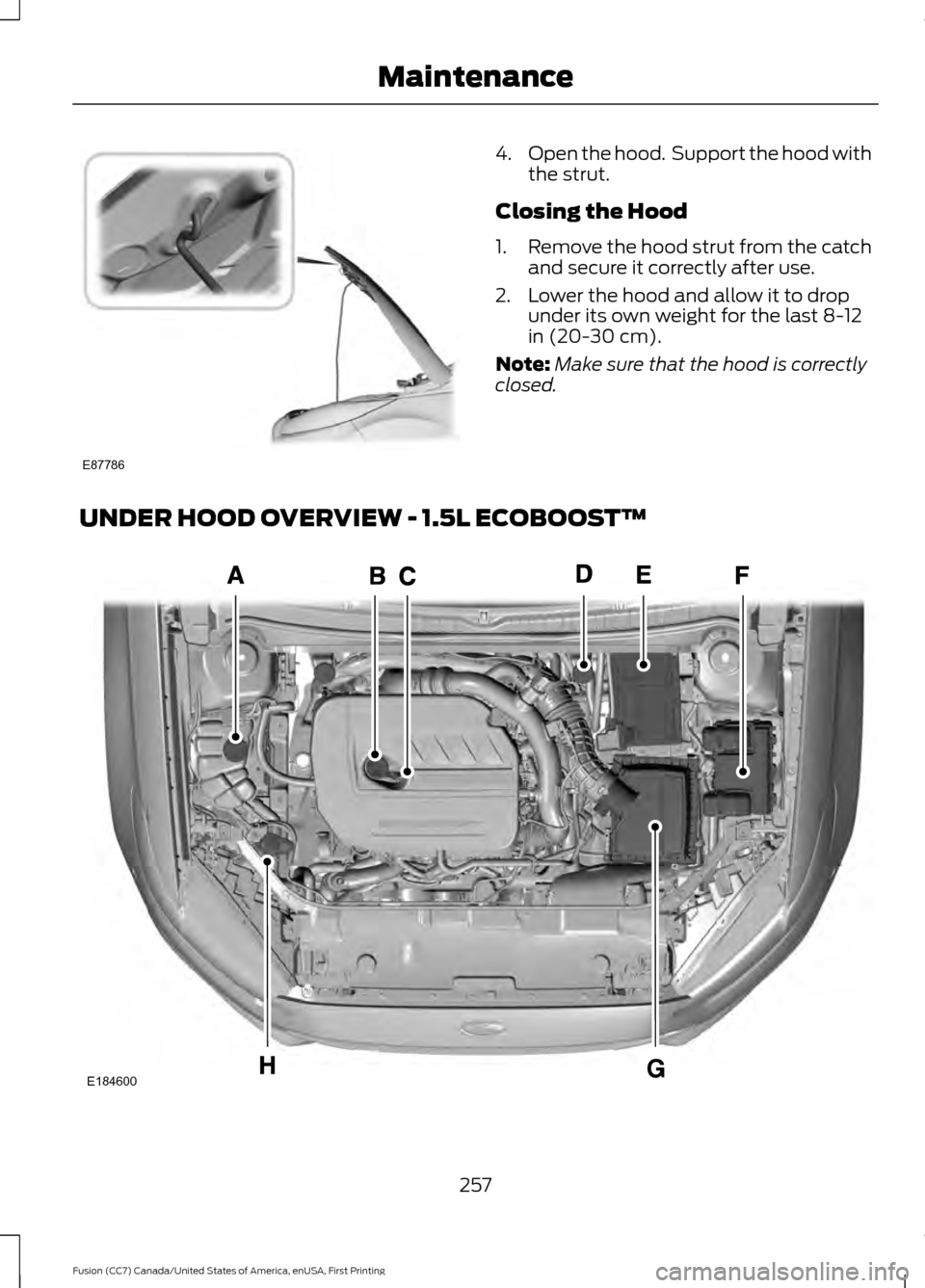

FORD FUSION (AMERICAS) 2017 2.G Owners Manual 4.
Open the hood.  Support the hood with
the strut.
Closing the Hood
1. Remove the hood strut from the catch
and secure it correctly after use.
2. Lower the hood and allow it to drop under its own wei
