Page 261 of 528

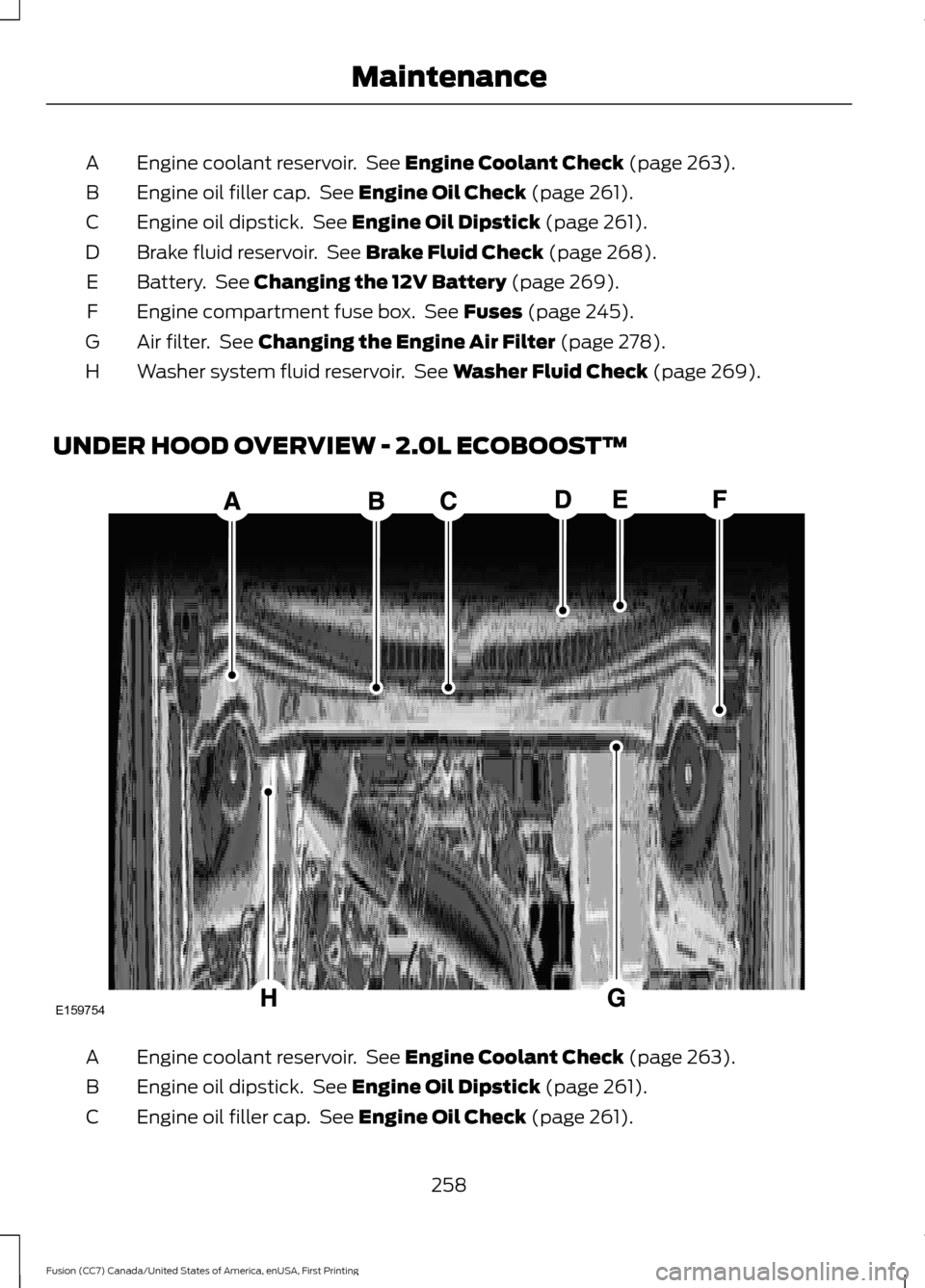

FORD FUSION (AMERICAS) 2017 2.G Owners Manual Engine coolant reservoir.  See Engine Coolant Check (page 263).
A
Engine oil filler cap.  See
Engine Oil Check (page 261).
B
Engine oil dipstick.  See
Engine Oil Dipstick (page 261).
C
Brake fluid r

Page 262 of 528

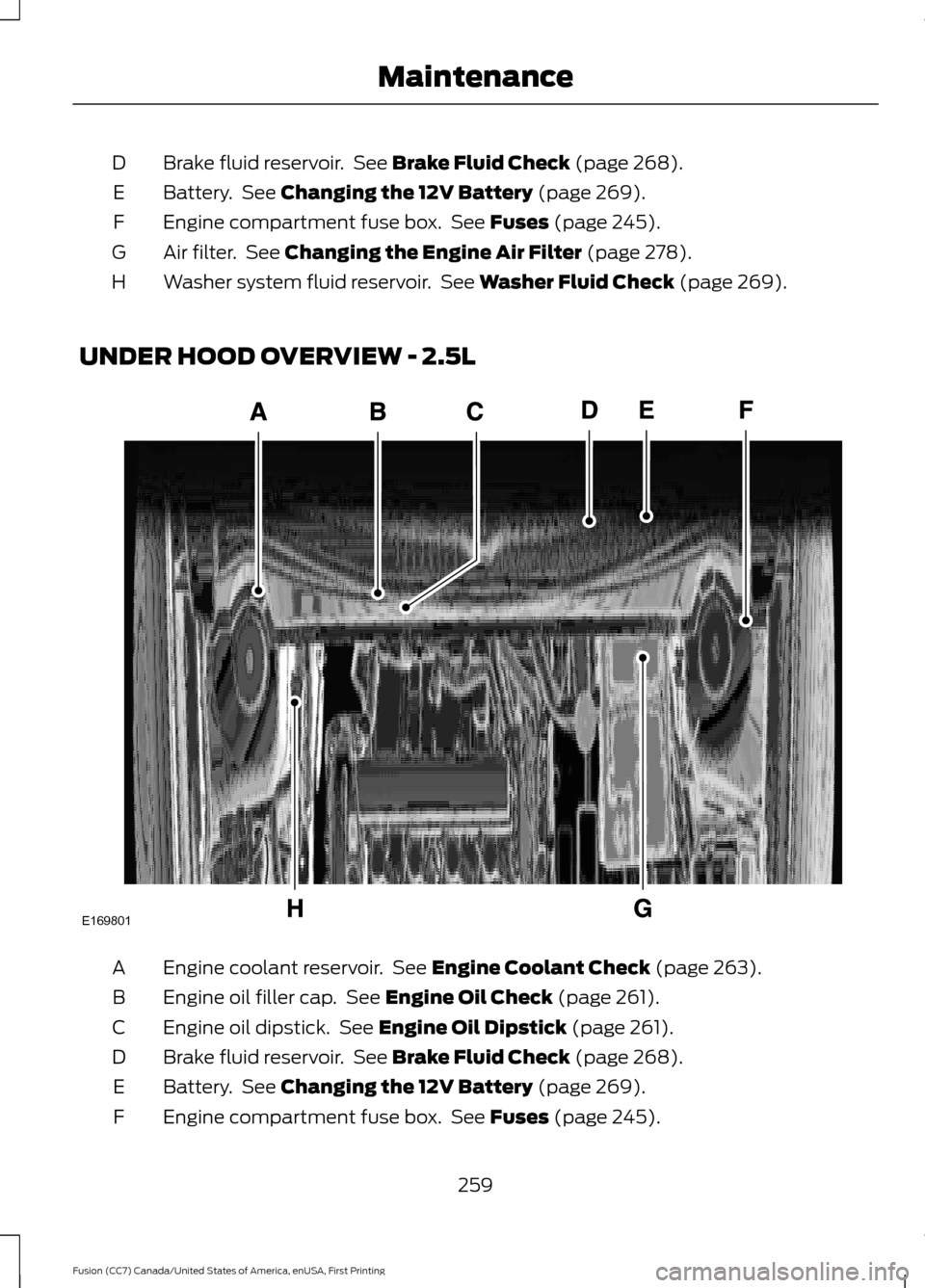

FORD FUSION (AMERICAS) 2017 2.G Owners Manual Brake fluid reservoir.  See Brake Fluid Check (page 268).
D
Battery.  See
Changing the 12V Battery (page 269).
E
Engine compartment fuse box.  See
Fuses (page 245).
F
Air filter.  See
Changing the

Page 263 of 528

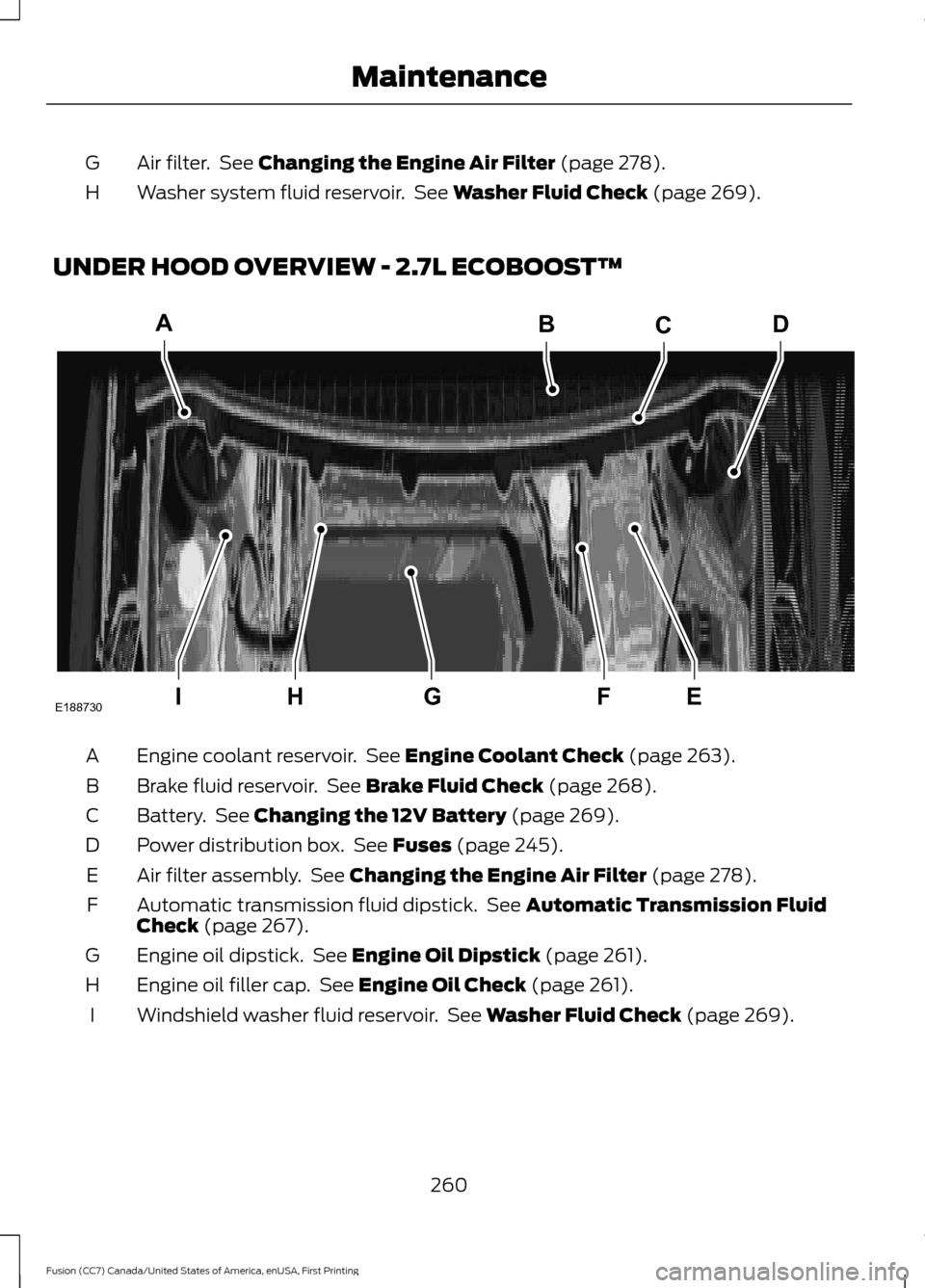

FORD FUSION (AMERICAS) 2017 2.G Owners Manual Air filter.  See Changing the Engine Air Filter (page 278).
G
Washer system fluid reservoir.  See
Washer Fluid Check (page 269).
H
UNDER HOOD OVERVIEW - 2.7L ECOBOOST™ Engine coolant reservoir.  Se

Page 264 of 528

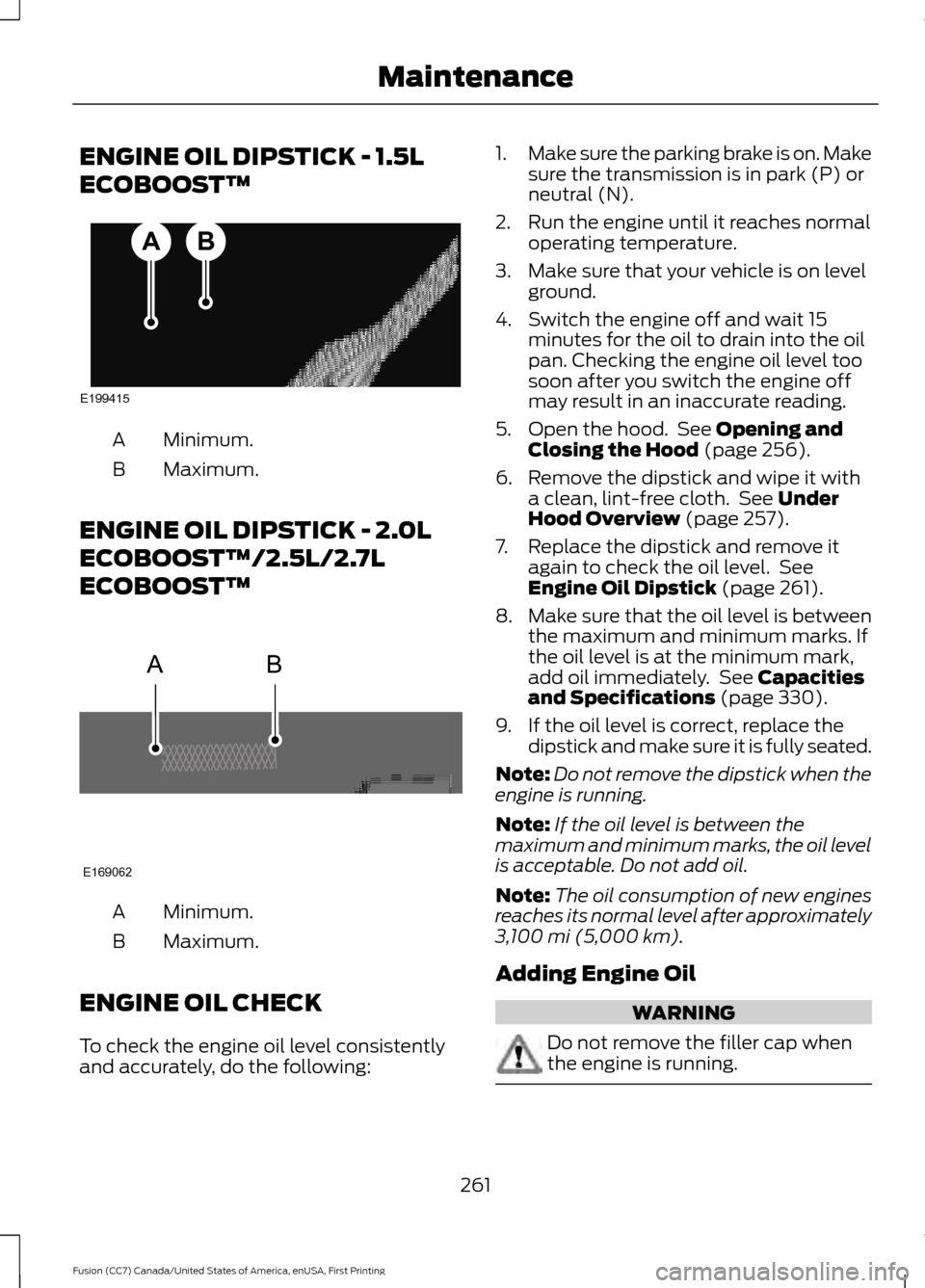

FORD FUSION (AMERICAS) 2017 2.G Owners Manual ENGINE OIL DIPSTICK - 1.5L
ECOBOOST™
Minimum.
A
Maximum.
B
ENGINE OIL DIPSTICK - 2.0L
ECOBOOST™/2.5L/2.7L
ECOBOOST™ Minimum.
A
Maximum.
B
ENGINE OIL CHECK
To check the engine oil level consisten

Page 265 of 528

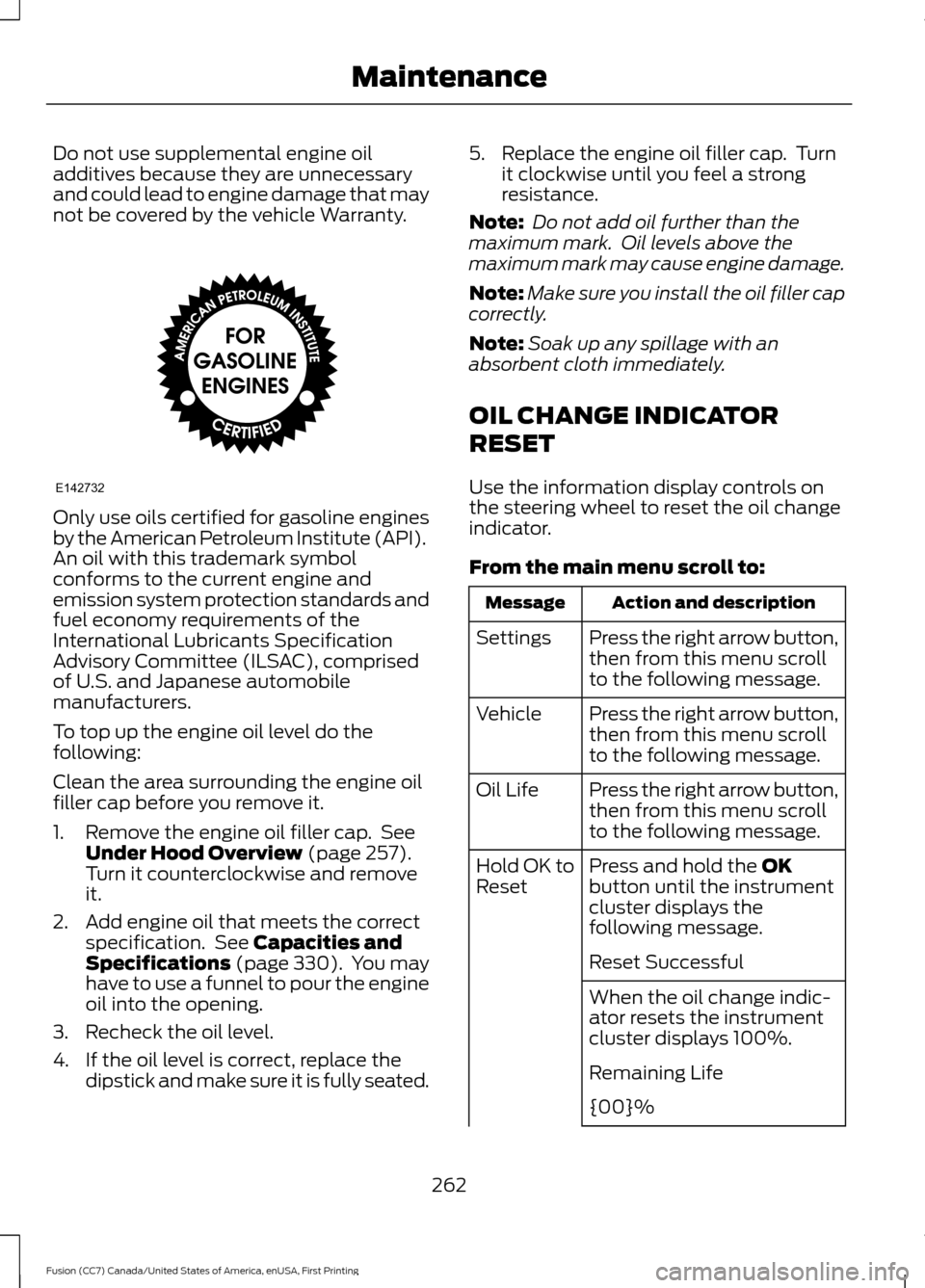

FORD FUSION (AMERICAS) 2017 2.G Owners Manual Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that may
not be covered by the vehicle Warranty.
Only use oils certified for gasoline engines

Page 266 of 528

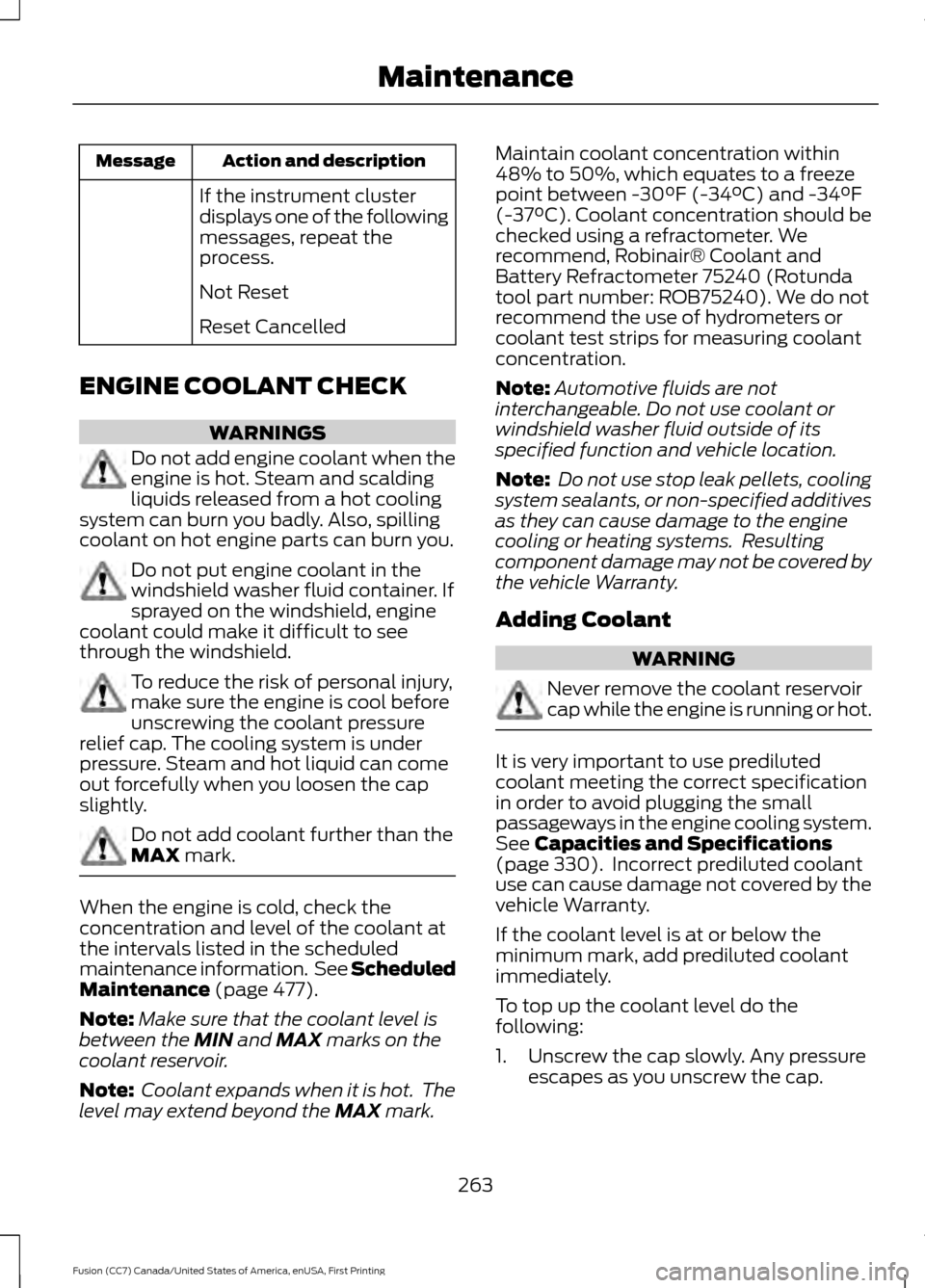

FORD FUSION (AMERICAS) 2017 2.G Owners Manual Action and description
Message
If the instrument cluster
displays one of the following
messages, repeat the
process.
Not Reset
Reset Cancelled
ENGINE COOLANT CHECK WARNINGS
Do not add engine coolant w

Page 267 of 528

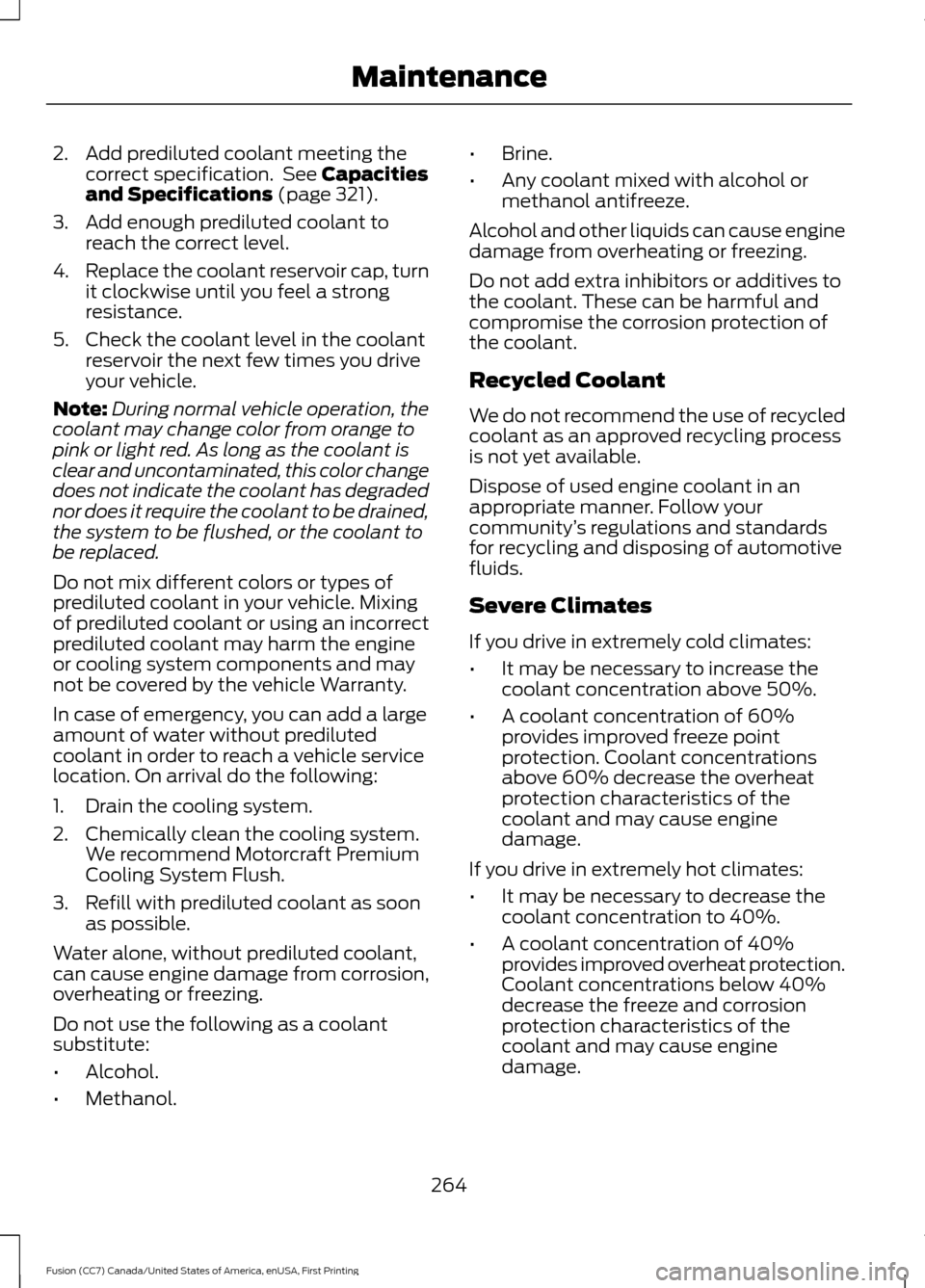

FORD FUSION (AMERICAS) 2017 2.G Owners Manual 2. Add prediluted coolant meeting the
correct specification.  See Capacities
and Specifications (page 321).
3. Add enough prediluted coolant to reach the correct level.
4. Replace the coolant reservoi

Page 268 of 528

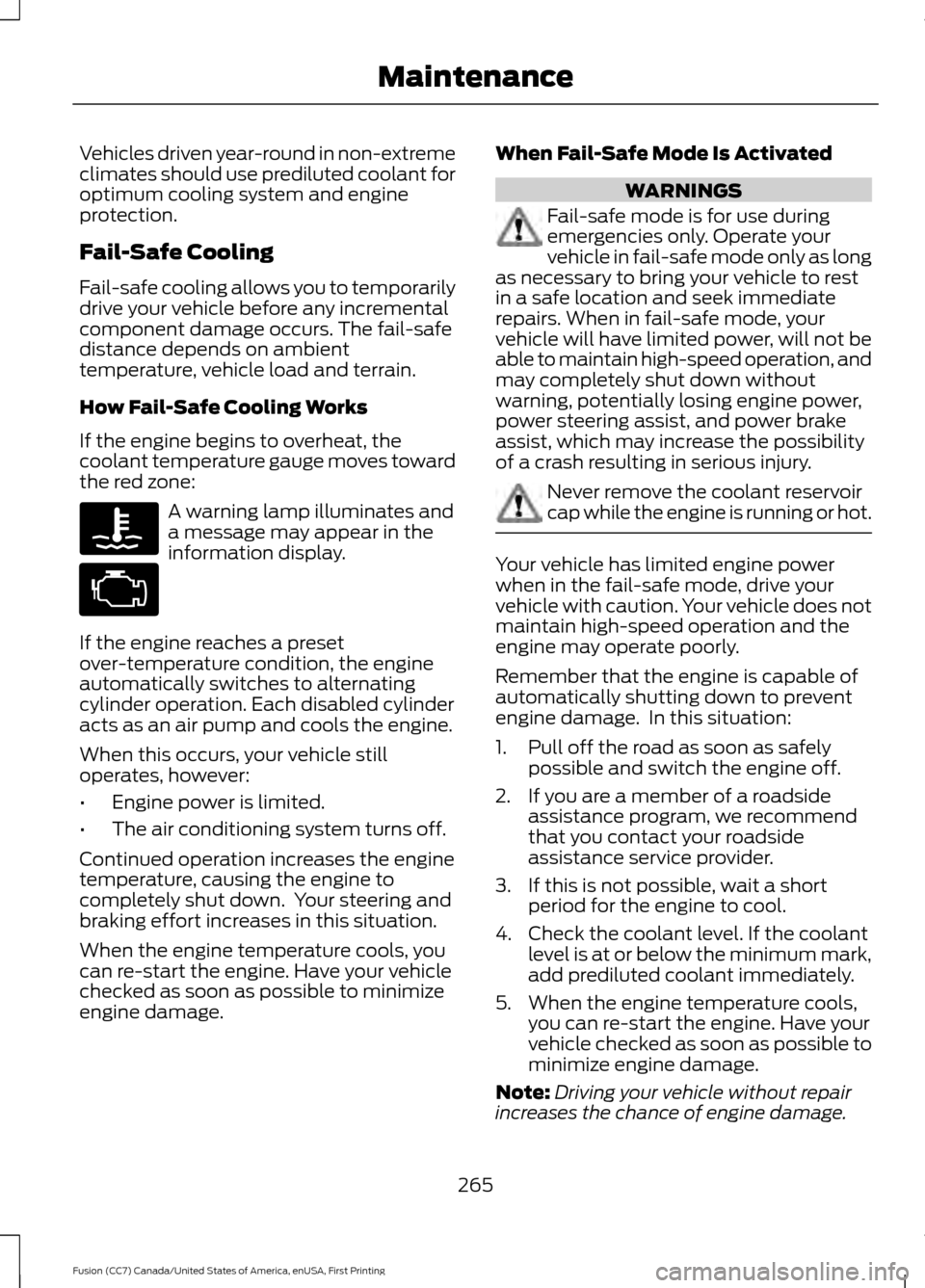

FORD FUSION (AMERICAS) 2017 2.G Owners Manual Vehicles driven year-round in non-extreme
climates should use prediluted coolant for
optimum cooling system and engine
protection.
Fail-Safe Cooling
Fail-safe cooling allows you to temporarily
drive y

Page 269 of 528

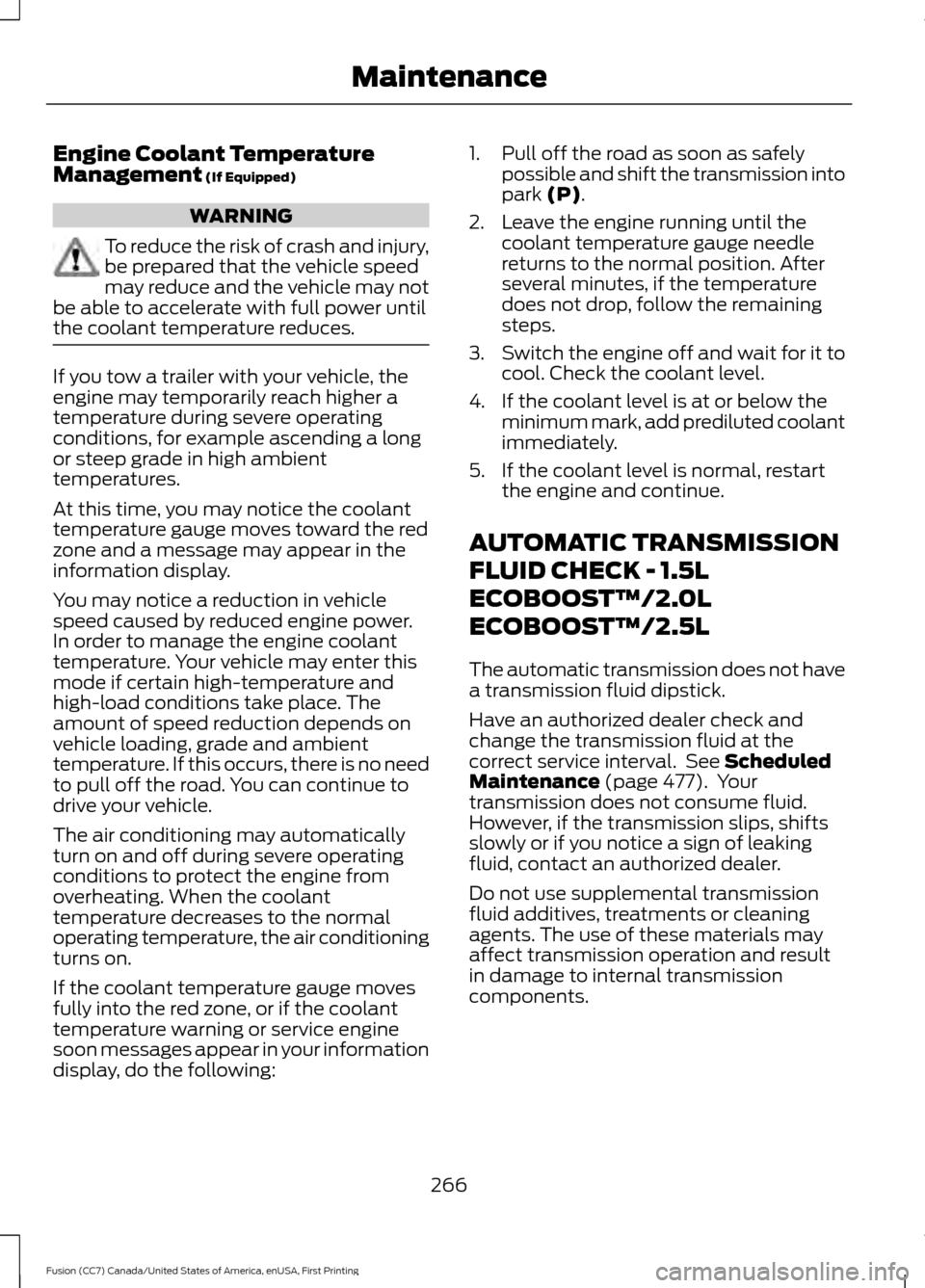

FORD FUSION (AMERICAS) 2017 2.G Owners Manual Engine Coolant Temperature
Management (If Equipped)
WARNING
To reduce the risk of crash and injury,
be prepared that the vehicle speed
may reduce and the vehicle may not
be able to accelerate with ful

Page 270 of 528

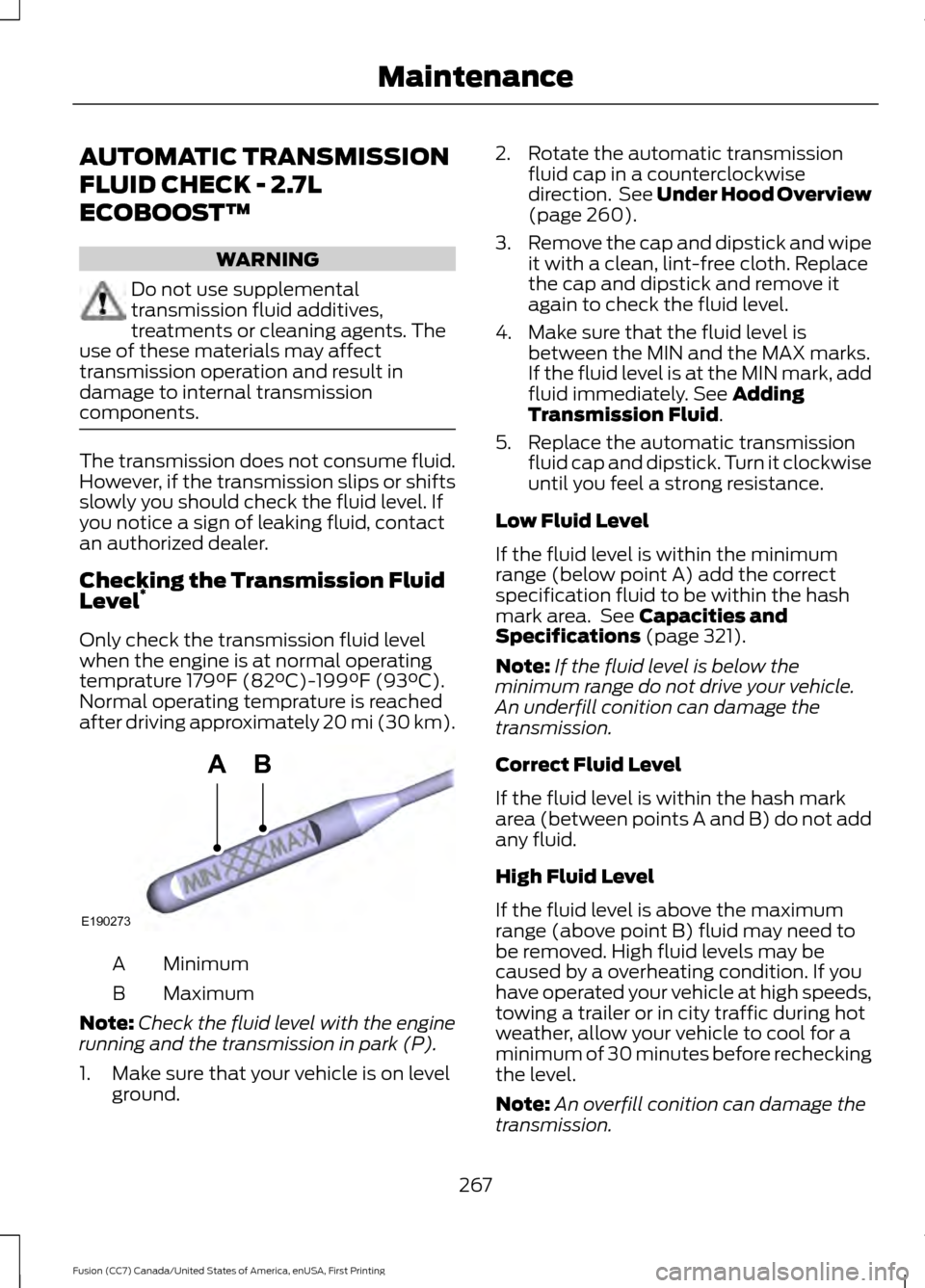

FORD FUSION (AMERICAS) 2017 2.G Owners Manual AUTOMATIC TRANSMISSION
FLUID CHECK - 2.7L
ECOBOOST™
WARNING
Do not use supplemental
transmission fluid additives,
treatments or cleaning agents. The
use of these materials may affect
transmission op
