Page 311 of 538

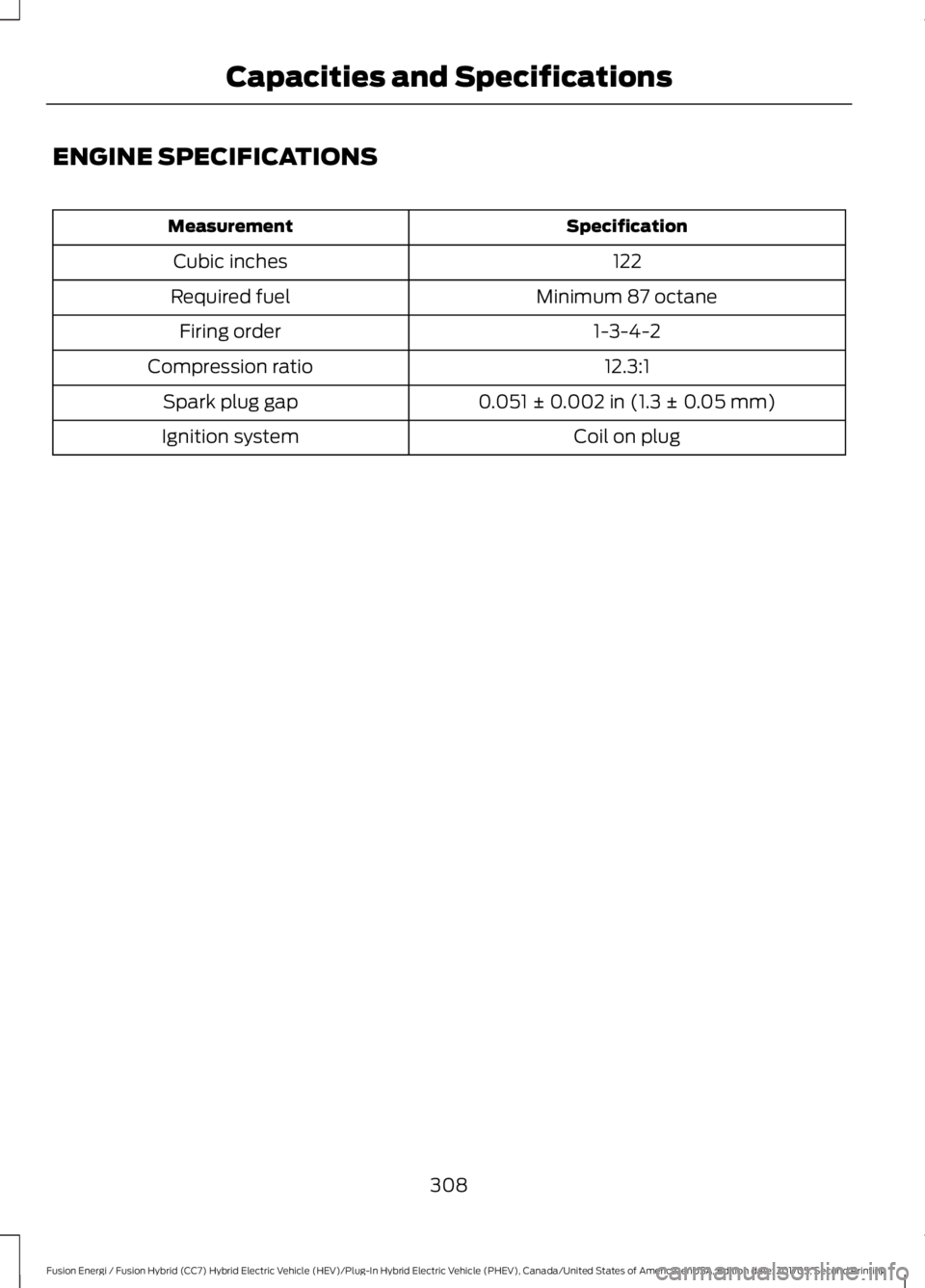

FORD FUSION ENERGI 2018  Owners Manual ENGINE SPECIFICATIONS
SpecificationMeasurement
122Cubic inches
Minimum 87 octaneRequired fuel
1-3-4-2Firing order
12.3:1Compression ratio
0.051 ± 0.002 in (1.3 ± 0.05 mm)Spark plug gap
Coil on plugI

Page 312 of 538

FORD FUSION ENERGI 2018  Owners Manual MOTORCRAFT PARTS
2.0L ATK iVCT EngineComponent
FA-1911Air filter element
FL-910-SOil filter
BXT-90T5-590Battery
SP-530Spark plugs
FP-71Cabin air filter
WW-2601(driver side)Windshield wiper bladeWW-270

Page 313 of 538

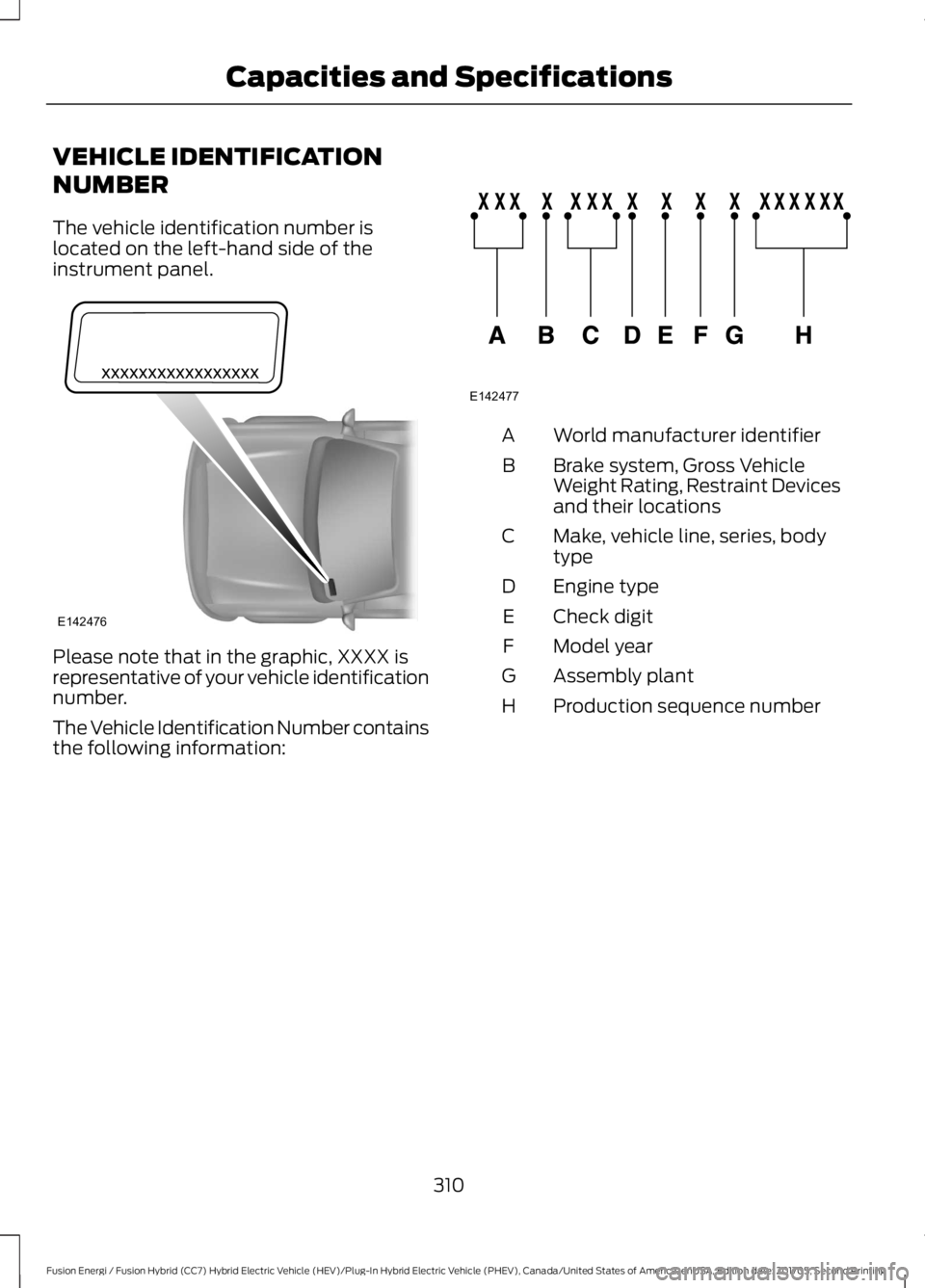

FORD FUSION ENERGI 2018  Owners Manual VEHICLE IDENTIFICATION
NUMBER
The vehicle identification number islocated on the left-hand side of theinstrument panel.
Please note that in the graphic, XXXX isrepresentative of your vehicle identific

Page 314 of 538

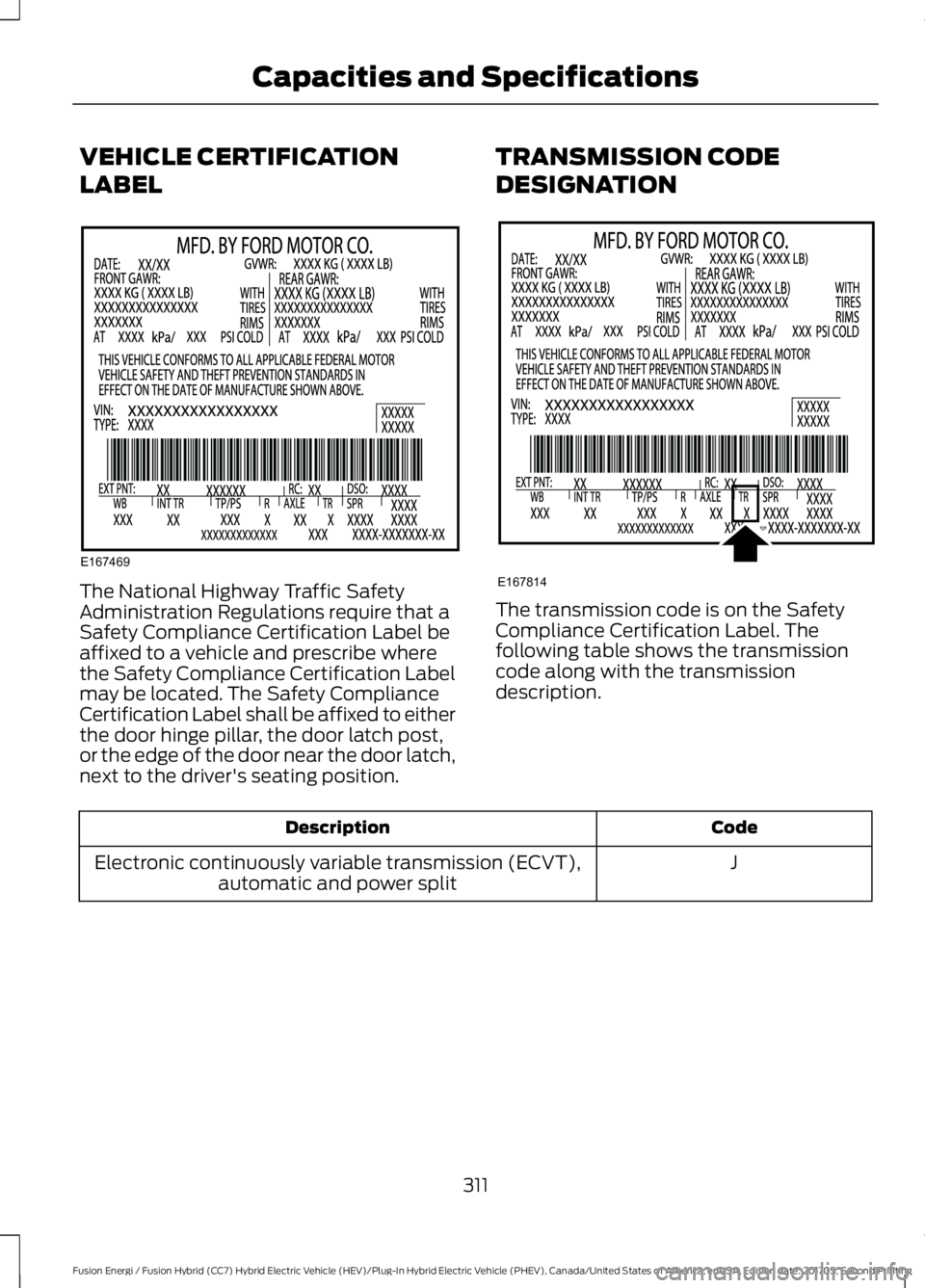

FORD FUSION ENERGI 2018  Owners Manual VEHICLE CERTIFICATION
LABEL
The National Highway Traffic SafetyAdministration Regulations require that aSafety Compliance Certification Label beaffixed to a vehicle and prescribe wherethe Safety Compl

Page 315 of 538

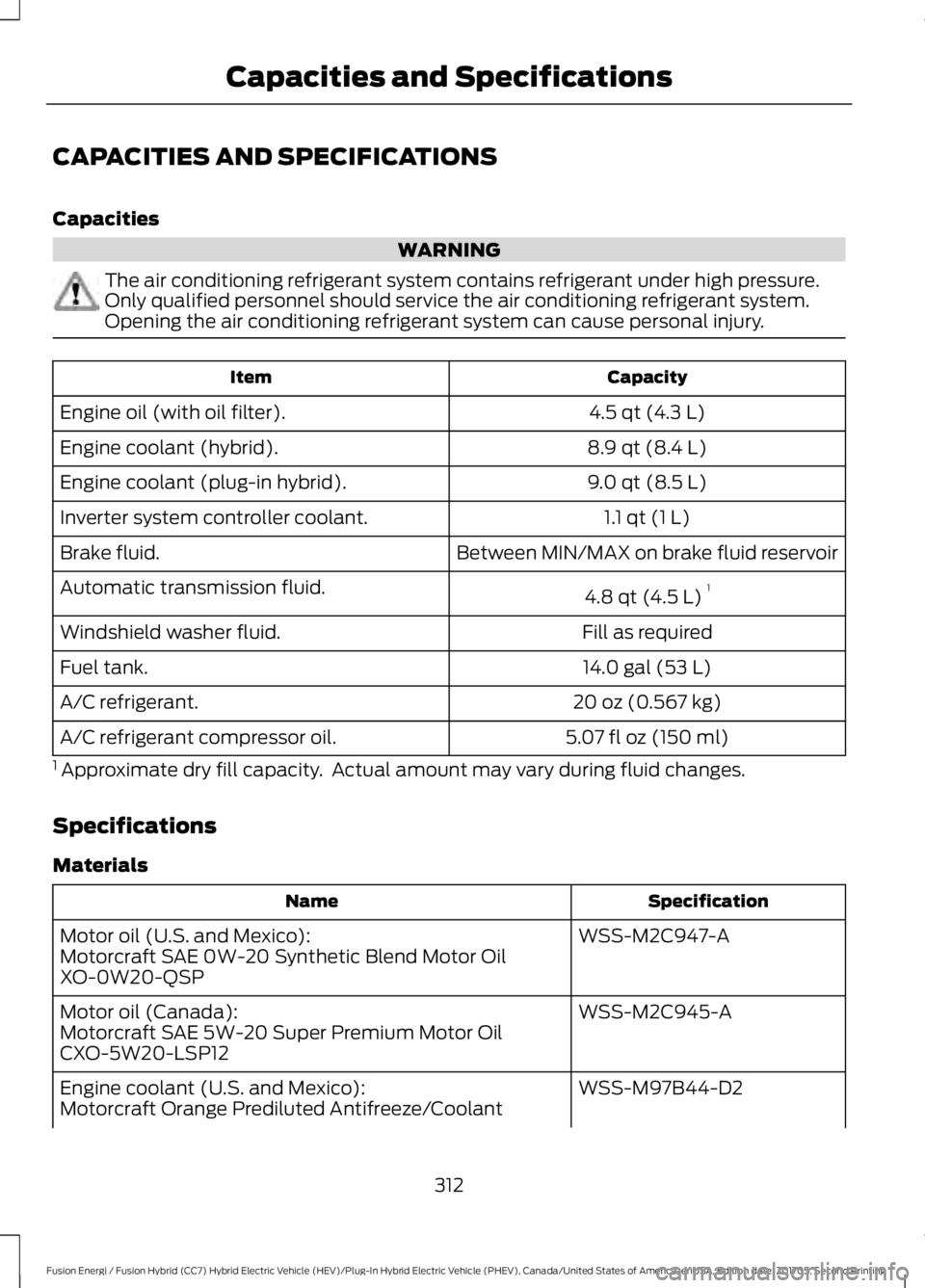

FORD FUSION ENERGI 2018  Owners Manual CAPACITIES AND SPECIFICATIONS
Capacities
WARNING
The air conditioning refrigerant system contains refrigerant under high pressure.Only qualified personnel should service the air conditioning refrigera

Page 316 of 538

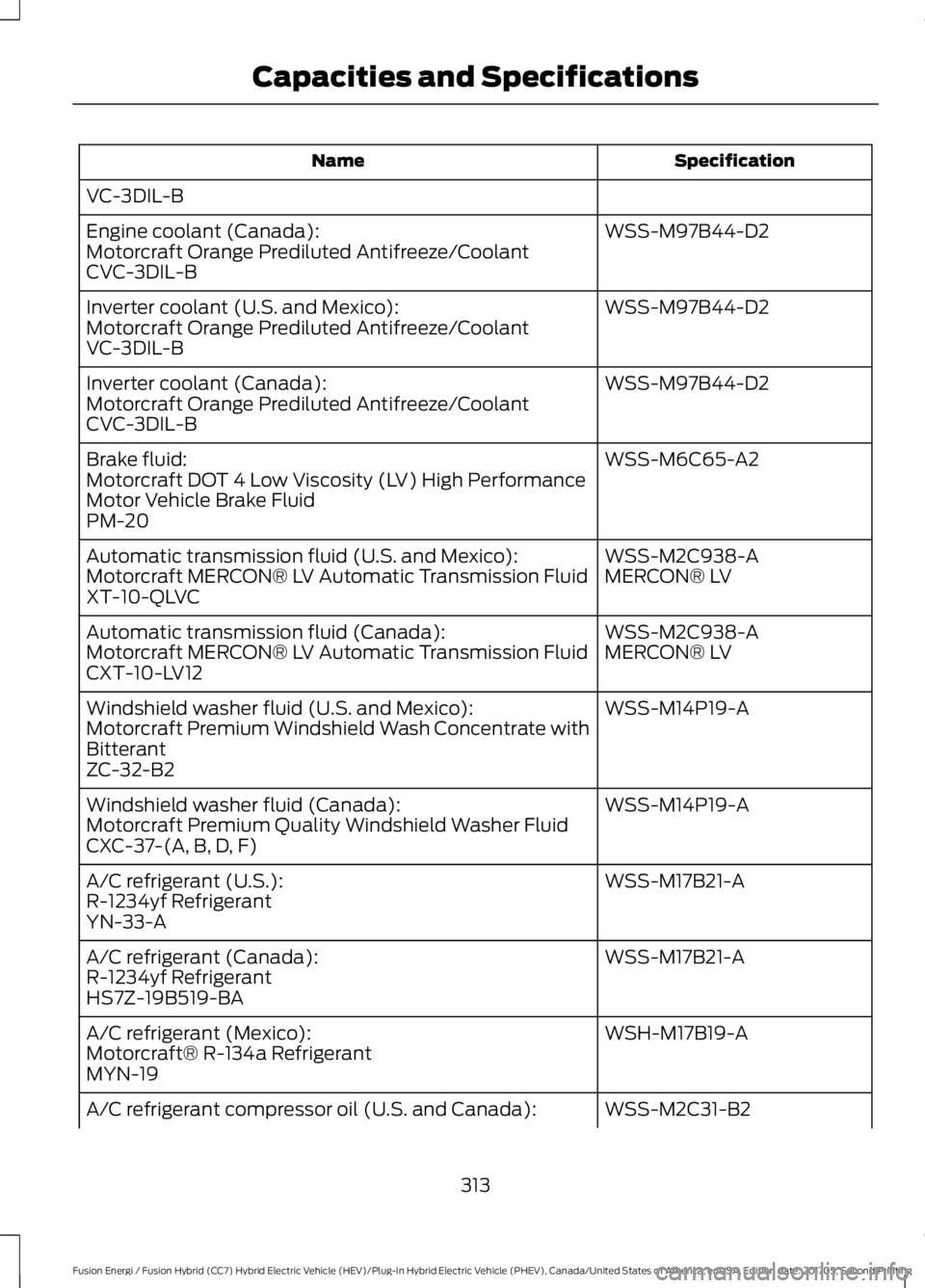

FORD FUSION ENERGI 2018  Owners Manual SpecificationName
VC-3DIL-B
WSS-M97B44-D2Engine coolant (Canada):Motorcraft Orange Prediluted Antifreeze/CoolantCVC-3DIL-B
WSS-M97B44-D2Inverter coolant (U.S. and Mexico):Motorcraft Orange Prediluted

Page 317 of 538

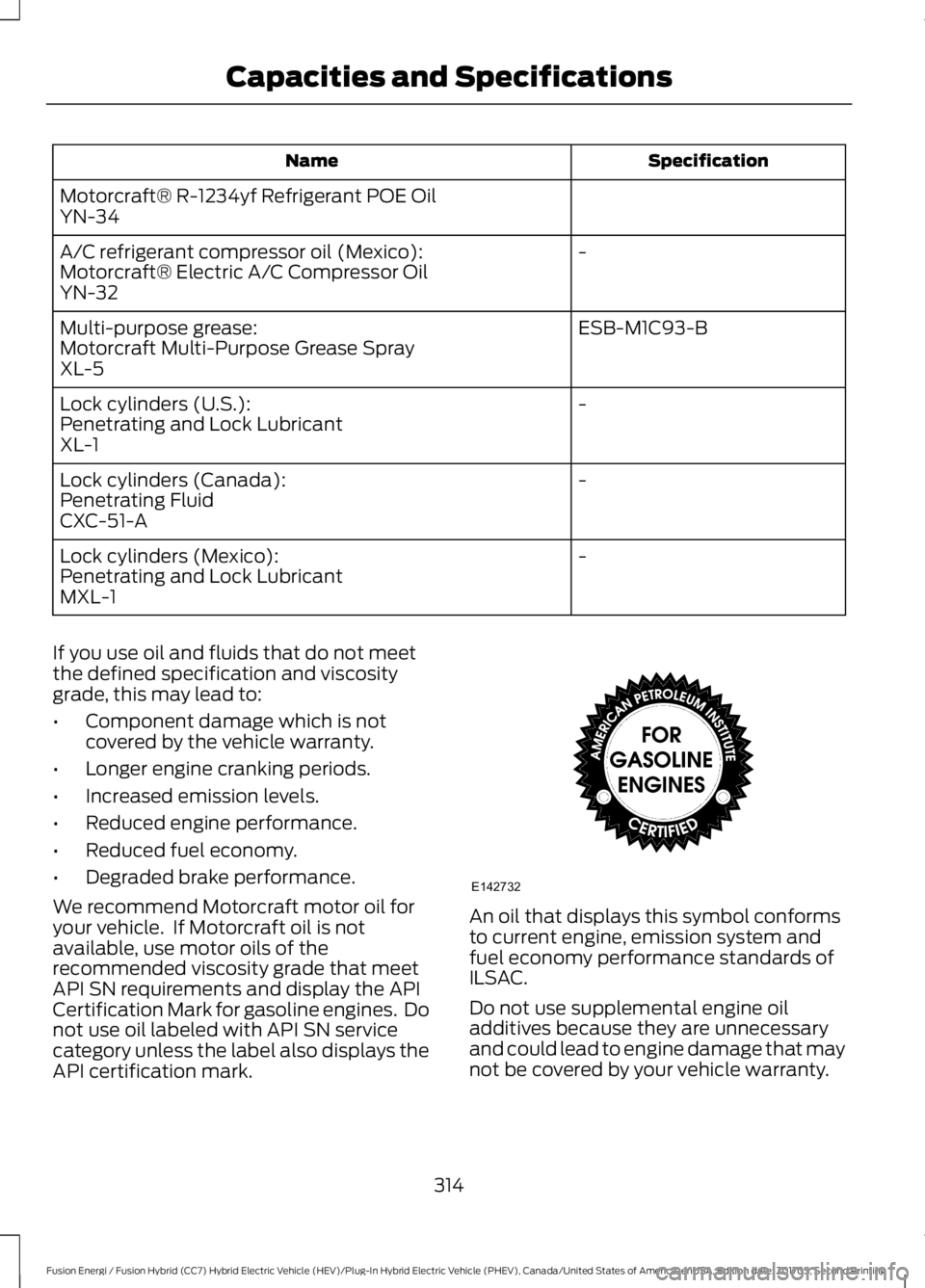

FORD FUSION ENERGI 2018  Owners Manual SpecificationName
Motorcraft® R-1234yf Refrigerant POE OilYN-34
-A/C refrigerant compressor oil (Mexico):Motorcraft® Electric A/C Compressor OilYN-32
ESB-M1C93-BMulti-purpose grease:Motorcraft Multi

Page 318 of 538

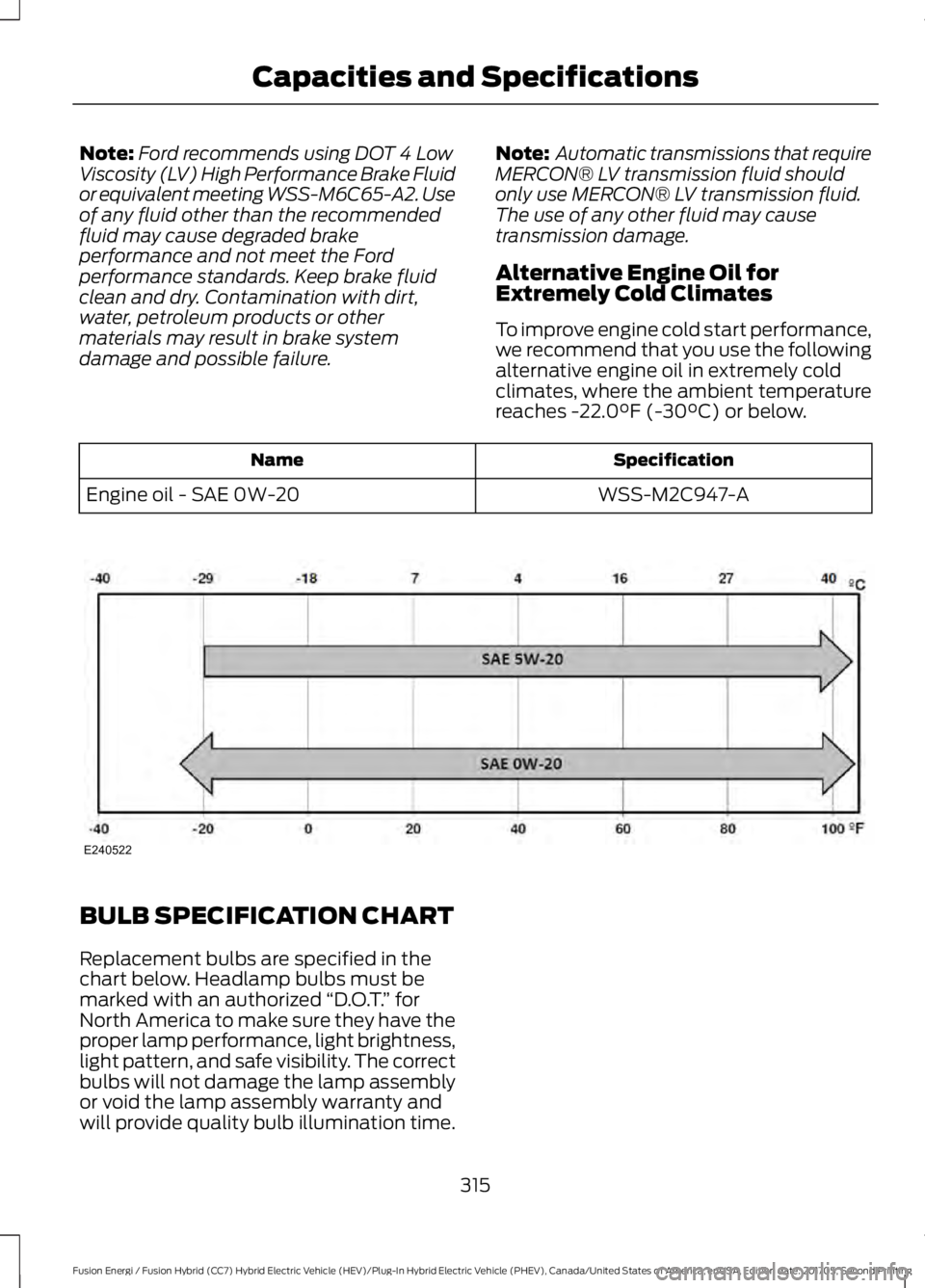

FORD FUSION ENERGI 2018  Owners Manual Note:Ford recommends using DOT 4 LowViscosity (LV) High Performance Brake Fluidor equivalent meeting WSS-M6C65-A2. Useof any fluid other than the recommendedfluid may cause degraded brakeperformance a

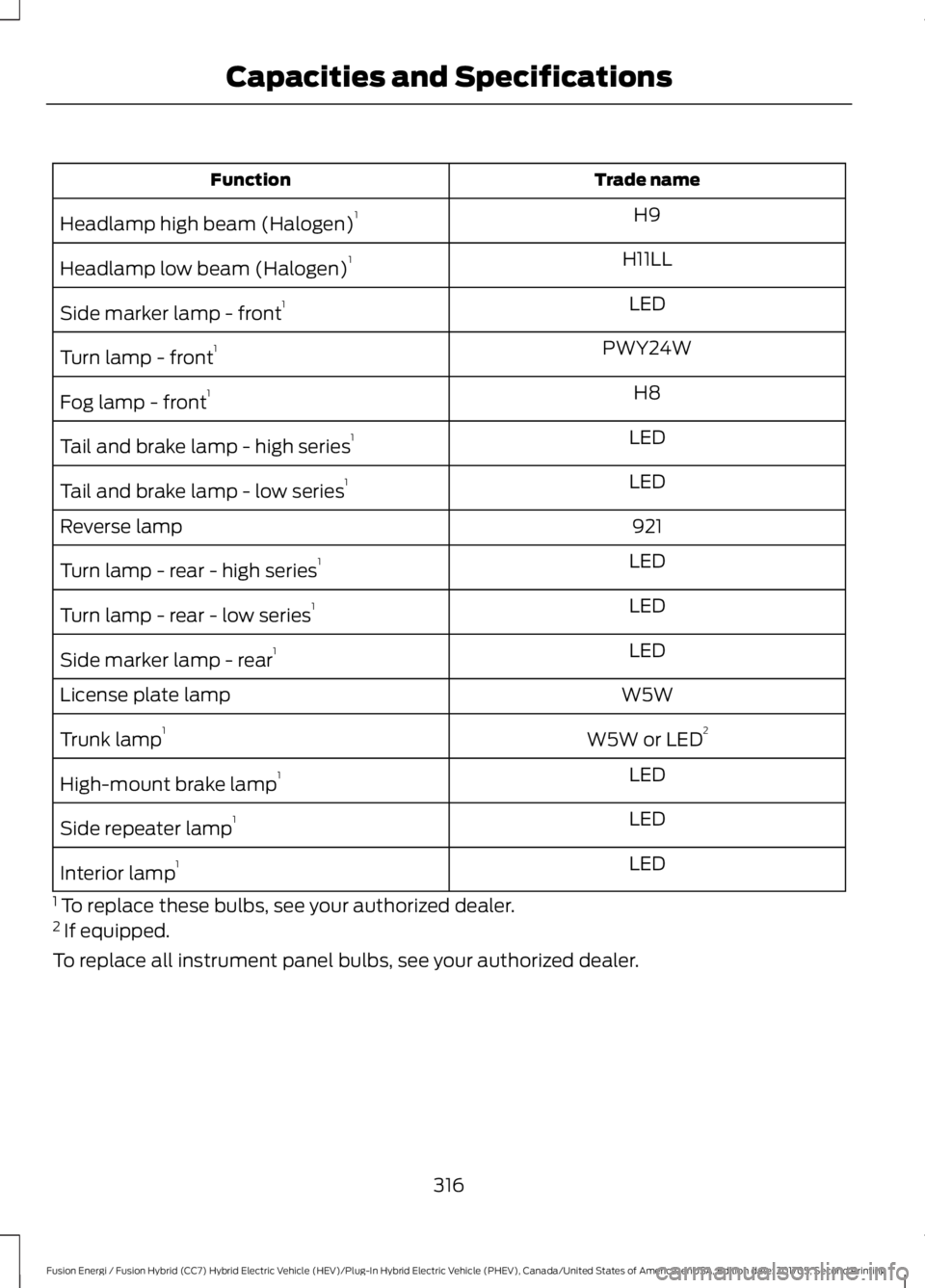

Page 319 of 538

FORD FUSION ENERGI 2018  Owners Manual Trade nameFunction
H9Headlamp high beam (Halogen)1
H11LLHeadlamp low beam (Halogen)1
LEDSide marker lamp - front1
PWY24WTurn lamp - front1
H8Fog lamp - front1
LEDTail and brake lamp - high series1
LED

Page 320 of 538

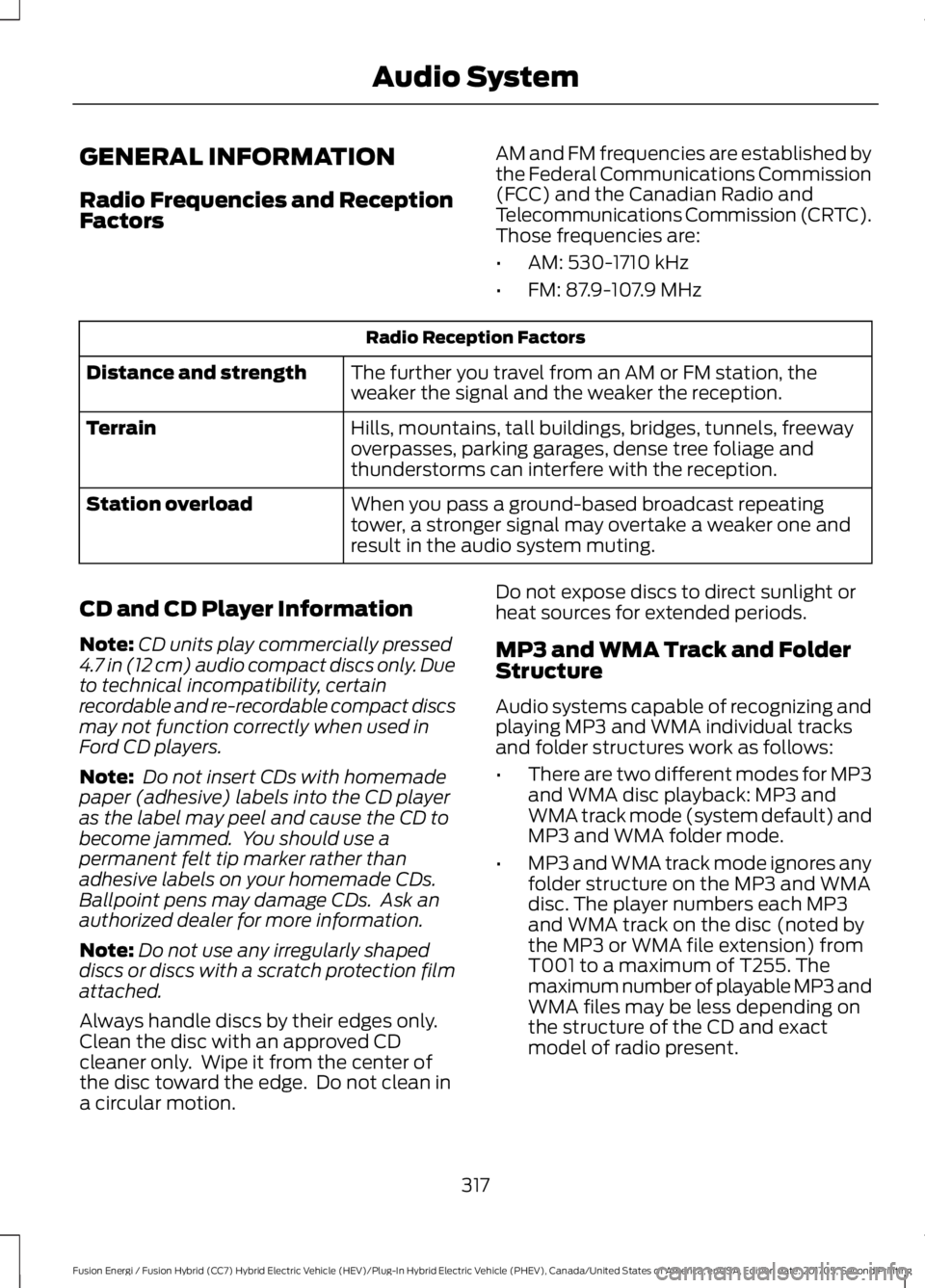

FORD FUSION ENERGI 2018  Owners Manual GENERAL INFORMATION
Radio Frequencies and ReceptionFactors
AM and FM frequencies are established bythe Federal Communications Commission(FCC) and the Canadian Radio andTelecommunications Commission (C
