Page 6 of 486

Rear Seats
.......................................................131
Heated Seats .................................................
133
Climate Controlled Seats .........................
133
Garage Door Opener
Universal Garage Door Opener ...............
135
Auxiliary Power Points
Auxiliary Power Points ..............................
140
Storage Compartments
Center Console .............................................
142
Overhead Console .......................................
142
Rear Seat Armrest .......................................
142
Starting and Stopping the Engine
General Information ...................................
143
Keyless Starting ...........................................
143
Starting a Hybrid Electric Vehicle System ........................................................................\
.
144
Engine Block Heater ...................................
146
Unique Driving Characteristics
Hybrid Vehicle Operation .........................
148
Plug-In Hybrid Vehicle Operation .........
150
EcoSelect ........................................................
152
Hybrid Vehicle Frequently Asked Questions ...................................................
152
Fuel and Refueling
Safety Precautions ......................................
155
Fuel Quality ....................................................
155
Fuel Filler Funnel Location .......................
157
Running Out of Fuel ....................................
157
Refueling .........................................................
158
Fuel Consumption ......................................
160Engine Emission Control
Emission Law
................................................
162
Catalytic Converter .....................................
163
High Voltage Battery
General Information ...................................
166
Charging the High Voltage Battery .......
168
High Voltage Shutoff Switch ...................
172
Transmission
Automatic Transmission ...........................
173
Brakes
General Information ....................................
177
Hints on Driving With Anti-Lock Brakes ........................................................................\
.
178
Electric Parking Brake ................................
178
Hill Start Assist .............................................
179
Traction Control
Principle of Operation .................................
181
Using Traction Control ................................
181
Stability Control
Principle of Operation ................................
182
Using Stability Control ..............................
183
Parking Aids
Principle of Operation ...............................
184
Rear Parking Aid ..........................................
184
Front Parking Aid .........................................
186
Side Sensing System .................................
188
Active Park Assist ........................................
189
Rear View Camera ......................................
196
Cruise Control
What Is Cruise Control ..............................
199
Switching Cruise Control On and Off ........................................................................\
199
Setting the Cruise Control Speed .........
199
3
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Table of Contents
Page 138 of 486

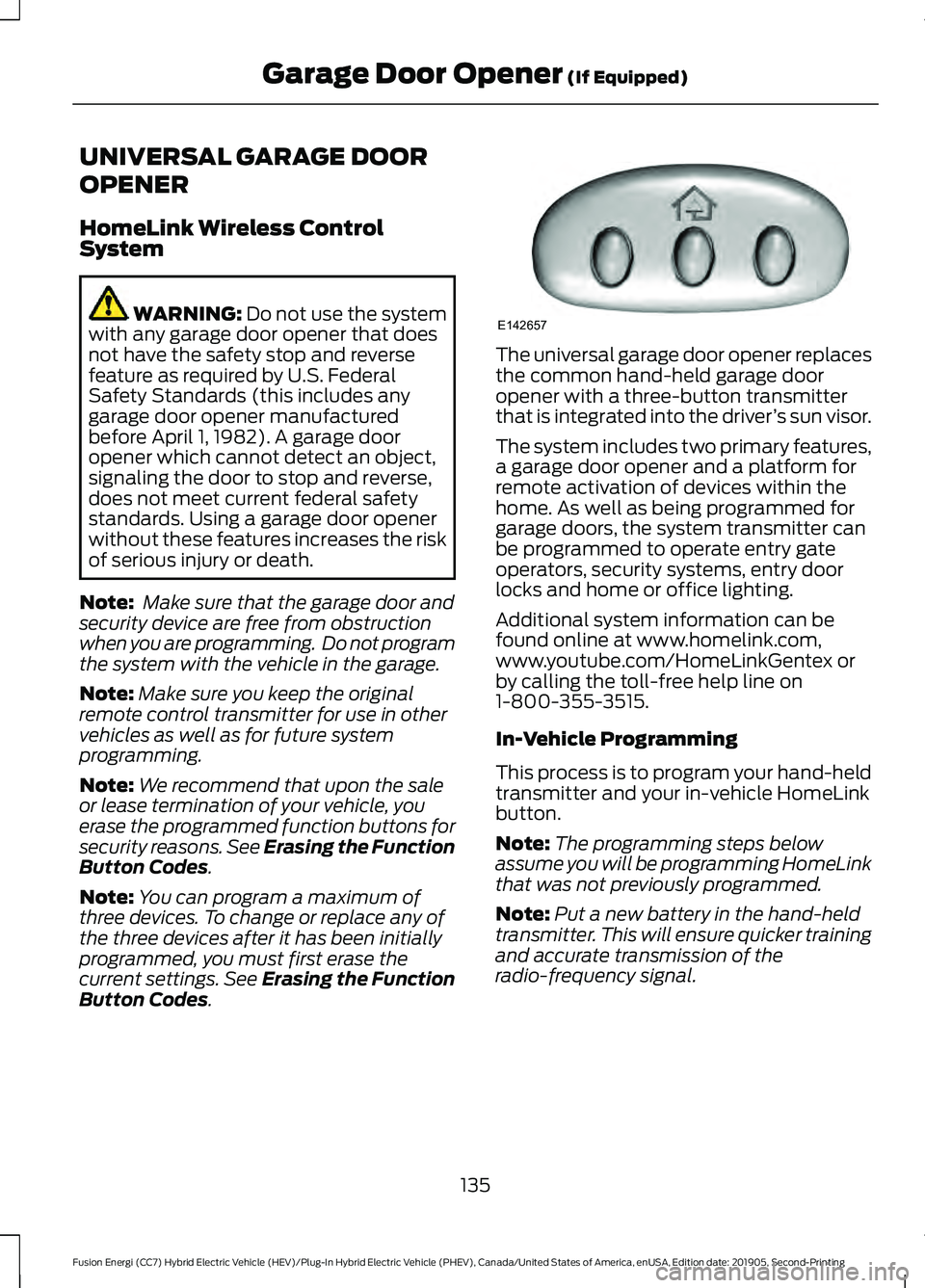

UNIVERSAL GARAGE DOOR
OPENER
HomeLink Wireless Control
System
WARNING: Do not use the system
with any garage door opener that does
not have the safety stop and reverse
feature as required by U.S. Federal
Safety Standards (this includes any
garage door opener manufactured
before April 1, 1982). A garage door
opener which cannot detect an object,
signaling the door to stop and reverse,
does not meet current federal safety
standards. Using a garage door opener
without these features increases the risk
of serious injury or death.
Note: Make sure that the garage door and
security device are free from obstruction
when you are programming. Do not program
the system with the vehicle in the garage.
Note: Make sure you keep the original
remote control transmitter for use in other
vehicles as well as for future system
programming.
Note: We recommend that upon the sale
or lease termination of your vehicle, you
erase the programmed function buttons for
security reasons. See Erasing the Function
Button Codes
.
Note: You can program a maximum of
three devices. To change or replace any of
the three devices after it has been initially
programmed, you must first erase the
current settings. See Erasing the Function
Button Codes
. The universal garage door opener replaces
the common hand-held garage door
opener with a three-button transmitter
that is integrated into the driver
’s sun visor.
The system includes two primary features,
a garage door opener and a platform for
remote activation of devices within the
home. As well as being programmed for
garage doors, the system transmitter can
be programmed to operate entry gate
operators, security systems, entry door
locks and home or office lighting.
Additional system information can be
found online at www.homelink.com,
www.youtube.com/HomeLinkGentex or
by calling the toll-free help line on
1-800-355-3515.
In-Vehicle Programming
This process is to program your hand-held
transmitter and your in-vehicle HomeLink
button.
Note: The programming steps below
assume you will be programming HomeLink
that was not previously programmed.
Note: Put a new battery in the hand-held
transmitter. This will ensure quicker training
and accurate transmission of the
radio-frequency signal.
135
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Garage Door Opener
(If Equipped)E142657
Page 139 of 486

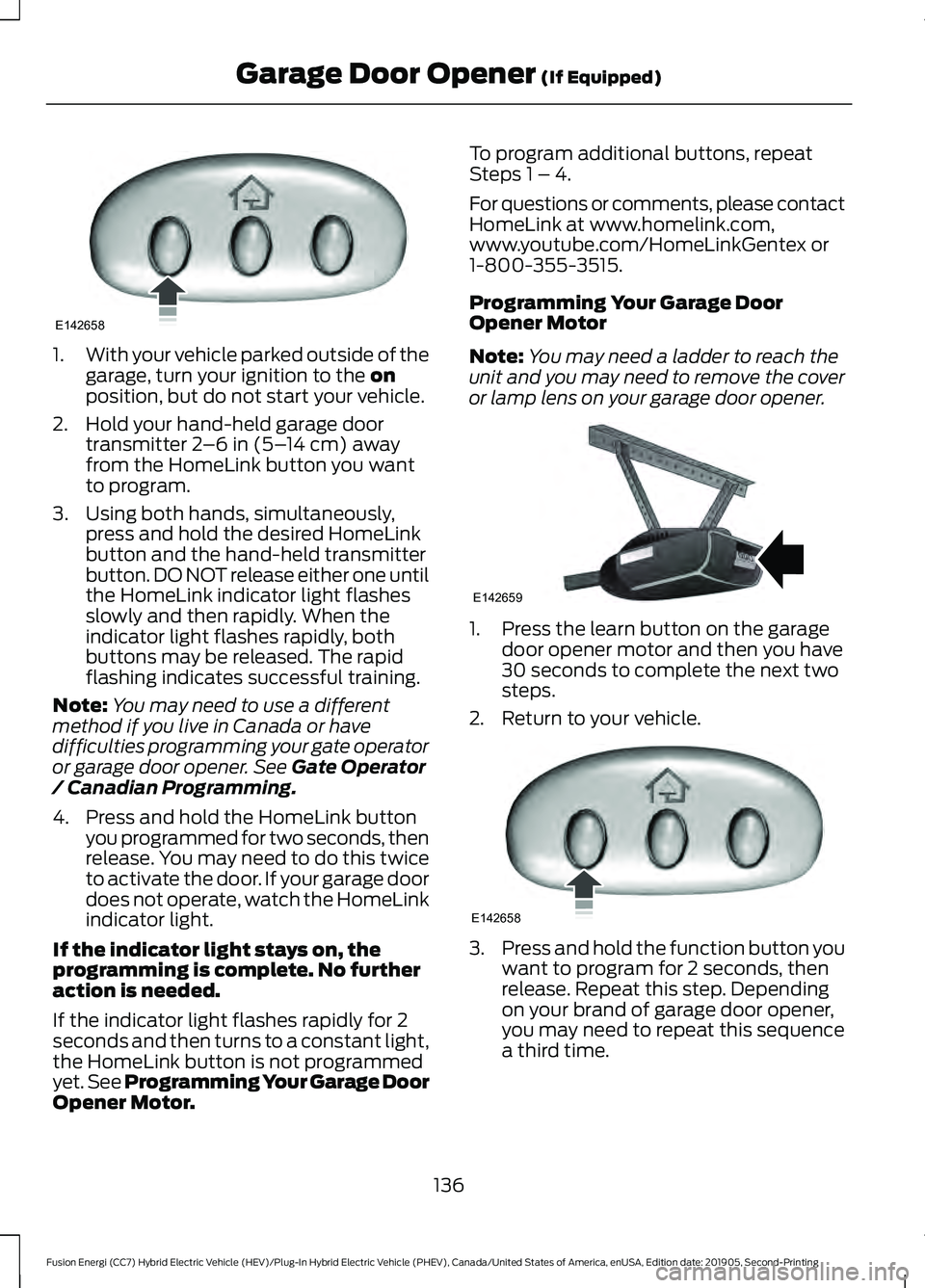

1.
With your vehicle parked outside of the
garage, turn your ignition to the on
position, but do not start your vehicle.
2. Hold your hand-held garage door transmitter
2–6 in (5– 14 cm) away
from the HomeLink button you want
to program.
3. Using both hands, simultaneously, press and hold the desired HomeLink
button and the hand-held transmitter
button. DO NOT release either one until
the HomeLink indicator light flashes
slowly and then rapidly. When the
indicator light flashes rapidly, both
buttons may be released. The rapid
flashing indicates successful training.
Note: You may need to use a different
method if you live in Canada or have
difficulties programming your gate operator
or garage door opener. See
Gate Operator
/ Canadian Programming.
4. Press and hold the HomeLink button you programmed for two seconds, then
release. You may need to do this twice
to activate the door. If your garage door
does not operate, watch the HomeLink
indicator light.
If the indicator light stays on, the
programming is complete. No further
action is needed.
If the indicator light flashes rapidly for 2
seconds and then turns to a constant light,
the HomeLink button is not programmed
yet. See Programming Your Garage Door
Opener Motor. To program additional buttons, repeat
Steps 1 – 4.
For questions or comments, please contact
HomeLink at www.homelink.com,
www.youtube.com/HomeLinkGentex or
1-800-355-3515.
Programming Your Garage Door
Opener Motor
Note:
You may need a ladder to reach the
unit and you may need to remove the cover
or lamp lens on your garage door opener. 1. Press the learn button on the garage
door opener motor and then you have
30 seconds to complete the next two
steps.
2. Return to your vehicle. 3.
Press and hold the function button you
want to program for 2 seconds, then
release. Repeat this step. Depending
on your brand of garage door opener,
you may need to repeat this sequence
a third time.
136
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Garage Door Opener
(If Equipped)E142658 E142659 E142658
Page 140 of 486

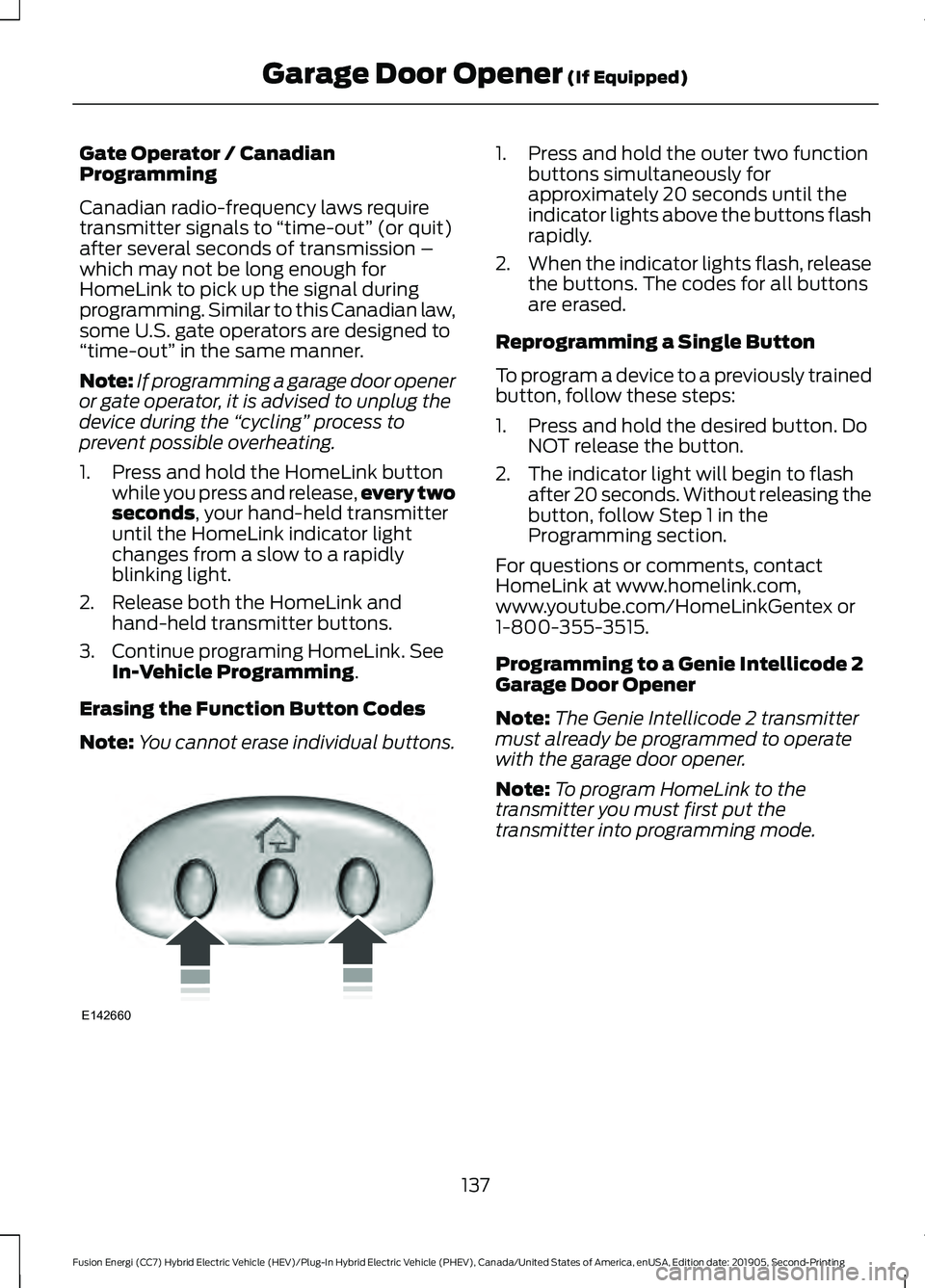

Gate Operator / Canadian
Programming
Canadian radio-frequency laws require
transmitter signals to
“time-out” (or quit)
after several seconds of transmission –
which may not be long enough for
HomeLink to pick up the signal during
programming. Similar to this Canadian law,
some U.S. gate operators are designed to
“time-out” in the same manner.
Note: If programming a garage door opener
or gate operator, it is advised to unplug the
device during the “cycling” process to
prevent possible overheating.
1. Press and hold the HomeLink button while you press and release, every two
seconds, your hand-held transmitter
until the HomeLink indicator light
changes from a slow to a rapidly
blinking light.
2. Release both the HomeLink and hand-held transmitter buttons.
3. Continue programing HomeLink. See In-Vehicle Programming
.
Erasing the Function Button Codes
Note: You cannot erase individual buttons. 1. Press and hold the outer two function
buttons simultaneously for
approximately 20 seconds until the
indicator lights above the buttons flash
rapidly.
2. When the indicator lights flash, release
the buttons. The codes for all buttons
are erased.
Reprogramming a Single Button
To program a device to a previously trained
button, follow these steps:
1. Press and hold the desired button. Do NOT release the button.
2. The indicator light will begin to flash after 20 seconds. Without releasing the
button, follow Step 1 in the
Programming section.
For questions or comments, contact
HomeLink at www.homelink.com,
www.youtube.com/HomeLinkGentex or
1-800-355-3515.
Programming to a Genie Intellicode 2
Garage Door Opener
Note: The Genie Intellicode 2 transmitter
must already be programmed to operate
with the garage door opener.
Note: To program HomeLink to the
transmitter you must first put the
transmitter into programming mode.
137
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Garage Door Opener
(If Equipped)E142660
Page 141 of 486

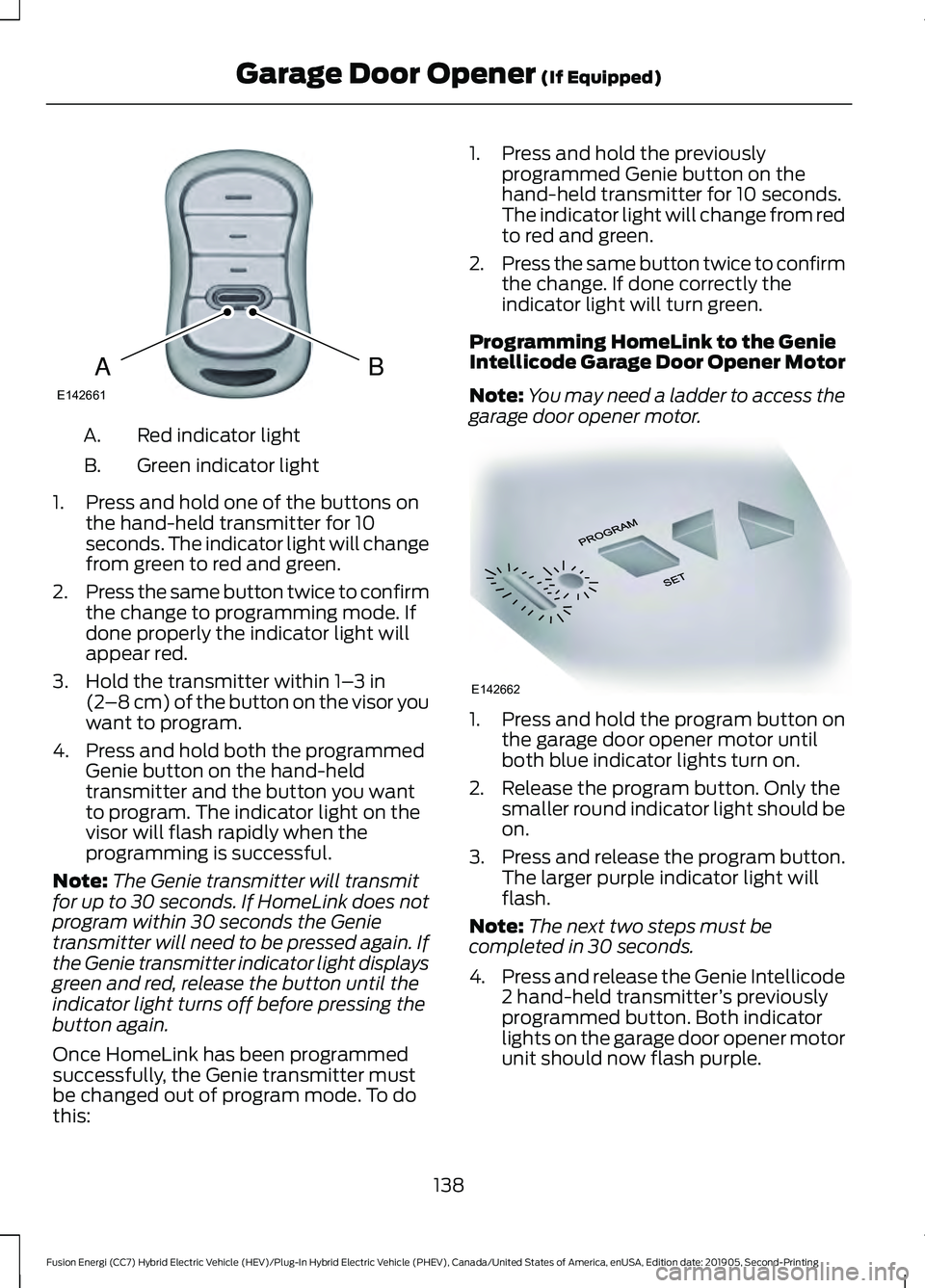

Red indicator light
A.
Green indicator light
B.
1. Press and hold one of the buttons on the hand-held transmitter for 10
seconds. The indicator light will change
from green to red and green.
2. Press the same button twice to confirm
the change to programming mode. If
done properly the indicator light will
appear red.
3. Hold the transmitter within 1– 3 in
(2 –8 cm) of the button on the visor you
want to program.
4. Press and hold both the programmed Genie button on the hand-held
transmitter and the button you want
to program. The indicator light on the
visor will flash rapidly when the
programming is successful.
Note: The Genie transmitter will transmit
for up to 30 seconds. If HomeLink does not
program within 30 seconds the Genie
transmitter will need to be pressed again. If
the Genie transmitter indicator light displays
green and red, release the button until the
indicator light turns off before pressing the
button again.
Once HomeLink has been programmed
successfully, the Genie transmitter must
be changed out of program mode. To do
this: 1. Press and hold the previously
programmed Genie button on the
hand-held transmitter for 10 seconds.
The indicator light will change from red
to red and green.
2. Press the same button twice to confirm
the change. If done correctly the
indicator light will turn green.
Programming HomeLink to the Genie
Intellicode Garage Door Opener Motor
Note: You may need a ladder to access the
garage door opener motor. 1. Press and hold the program button on
the garage door opener motor until
both blue indicator lights turn on.
2. Release the program button. Only the smaller round indicator light should be
on.
3. Press and release the program button.
The larger purple indicator light will
flash.
Note: The next two steps must be
completed in 30 seconds.
4. Press and release the Genie Intellicode
2 hand-held transmitter ’s previously
programmed button. Both indicator
lights on the garage door opener motor
unit should now flash purple.
138
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Garage Door Opener
(If Equipped)BAE142661 E142662
Page 142 of 486

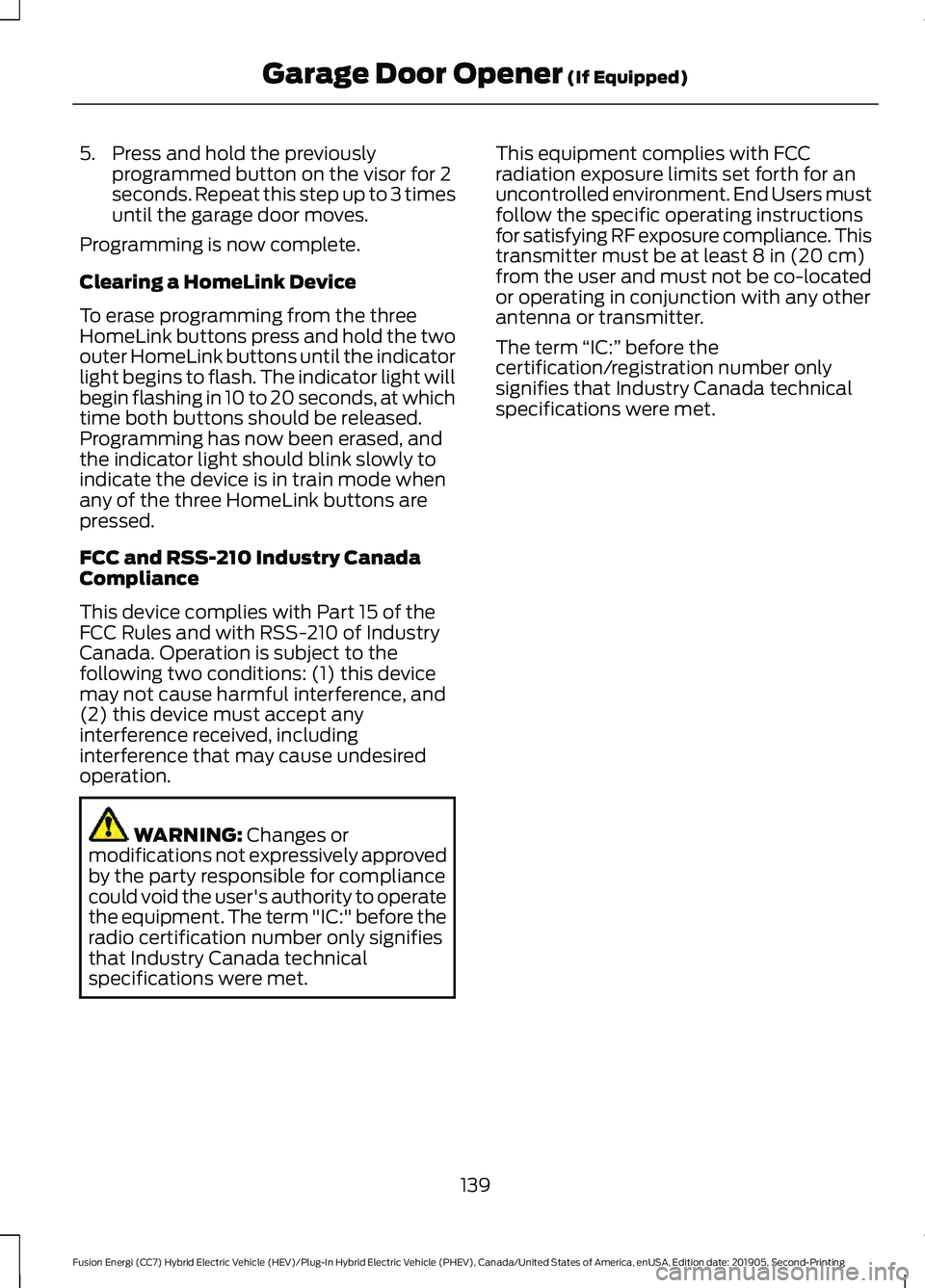

5. Press and hold the previously
programmed button on the visor for 2
seconds. Repeat this step up to 3 times
until the garage door moves.
Programming is now complete.
Clearing a HomeLink Device
To erase programming from the three
HomeLink buttons press and hold the two
outer HomeLink buttons until the indicator
light begins to flash. The indicator light will
begin flashing in 10 to 20 seconds, at which
time both buttons should be released.
Programming has now been erased, and
the indicator light should blink slowly to
indicate the device is in train mode when
any of the three HomeLink buttons are
pressed.
FCC and RSS-210 Industry Canada
Compliance
This device complies with Part 15 of the
FCC Rules and with RSS-210 of Industry
Canada. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation. WARNING: Changes or
modifications not expressively approved
by the party responsible for compliance
could void the user's authority to operate
the equipment. The term "IC:" before the
radio certification number only signifies
that Industry Canada technical
specifications were met. This equipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment. End Users must
follow the specific operating instructions
for satisfying RF exposure compliance. This
transmitter must be at least
8 in (20 cm)
from the user and must not be co-located
or operating in conjunction with any other
antenna or transmitter.
The term “IC:” before the
certification/registration number only
signifies that Industry Canada technical
specifications were met.
139
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Garage Door Opener
(If Equipped)
Page 479 of 486

Fog Lamps - Front
See: Front Fog Lamps......................................... 78
Ford Credit.........................................................13
US Only..................................................................... 13
Ford Protect
...................................................419
Ford Protect Extended Service Plan
(CANADA ONLY).......................................... 420
Ford Protect Extended Service Plans (U.S. Only)................................................................... 419
Front Fog Lamps............................................78 Front Fog Lamp Indicator.................................. 79
Switching the Front Fog Lamps On or Off........................................................................\
. 78
Front Parking Aid..........................................186 Object Distance Indicator................................ 187
Front Passenger Sensing System............43
Fuel and Refueling.......................................155
Fuel Consumption.......................................160 Advertised Capacity.......................................... 160
Calculating Fuel Economy.............................. 160
Fuel Filler Funnel Location........................157
Fuel Filter
........................................................269
Fuel Quality.....................................................155 Choosing the Right Fuel................................... 155
Fuel Freshness Mode........................................ 156
Fuel Shutoff
....................................................231
Fuses................................................................244
Fuse Specification Chart..........................244
Passenger Compartment Fuse Panel.........251
Power Distribution Box.................................... 244
G
Garage Door Opener
...................................135
Garage Door Opener See: Universal Garage Door Opener............135
Gauges...............................................................88 Left Information Display................................... 88
Right Information Display................................. 90
Gearbox See: Transmission............................................... 173
General Information on Radio Frequencies....................................................51
Intelligent Access.................................................. 51
General Maintenance Information.........421 Multi-point Inspection..................................... 424
Owner Checks and Services.......................... 423
Protecting Your Investment............................ 421Why Maintain Your Vehicle?...........................
421
Why Maintain Your Vehicle at Your Dealership?...................................................... 421
Getting Assistance Outside the U.S. and Canada.........................................................240
Getting the Services You Need...............237 Away From Home.............................................. 237
Global Opening and Closing......................84 Closing the Windows.......................................... 84
Opening the Windows....................................... 84
H
Hazard Flashers
.............................................231
Headlamp Adjusting See: Adjusting the Headlamps..................... 267
Headlamp Exit Delay.....................................77
Headlamp Removal See: Removing a Headlamp.......................... 270
Headrest See: Head Restraints......................................... 126
Head Restraints.............................................126 Adjusting the Head Restraint.......................... 127
Tilting Head Restraints .................................... 128
Heated Exterior Mirrors...............................125
Heated Rear Window..................................124
Heated Seats
..................................................133
Heated Steering Wheel................................72
Heating See: Climate Control.......................................... 119
High Voltage Battery
...................................166
General Information.......................................... 166
High Voltage Shutoff Switch
....................172
Hill Start Assist..............................................179 Switching the System On and Off...............180
Using Hill Start Assist....................................... 180
Hints on Controlling the Interior Climate..........................................................123
Defogging the Side Windows in Cold Weather............................................................. 124
General Hints........................................................ 123
Quickly Cooling the Interior............................. 124
Quickly Heating the Interior............................ 124
Recommended Settings for Cooling...........124
Recommended Settings for Heating..........124
Hints on Driving With Anti-Lock Brakes.............................................................178
476
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Index
Page 484 of 486

SYNC™ 3 Troubleshooting.....................405
Additional Information and
Assistance......................................................... 417
Apps........................................................................\
. 412
Navigation.............................................................. 411
Personal Profiles................................................. 415
Phone.................................................................... 409
Resetting the System........................................ 417
USB and Bluetooth Audio............................. 406
Voice Recognition............................................. 405
Wi-Fi Connectivity.............................................. 414
SYNC™ Applications and Services........................................................340
911 Assist.............................................................. 340
SYNC Mobile Apps............................................ 342
SYNC™...........................................................336 General Information......................................... 336
SYNC™ Troubleshooting.........................344
T
Technical Specifications See: Capacities and Specifications.............310
The Better Business Bureau (BBB) Auto Line Program (U.S. Only).......................239
Tire Care
..........................................................289
Glossary of Tire Terminology.......................... 291
Information About Uniform Tire Quality Grading............................................................. 289
Information Contained on the Tire Sidewall............................................................ 292
Temperature A B C............................................ 290
Traction AA A B C.............................................. 290
Treadwear............................................................ 290
Tire Inflation When Punctured See: Tire Sealant and Inflator Kit.................283
Tire Pressure Monitoring System..........305 Changing Tires With a Tire Pressure
Monitoring System...................................... 306
Understanding Your Tire Pressure Monitoring System ..................................... 306
Tire Repair Kit See: Tire Sealant and Inflator Kit.................283
Tire Sealant and Inflator Kit
....................283
First Stage: Reinflating the Tire with Sealing
Compound and Air....................................... 285
General Information......................................... 284Second Stage: Checking Tire
Pressure............................................................ 287
Tips for Use of the Kit...................................... 284
What to do after the Tire has been Sealed............................................................... 287
What to do when a Tire Is Punctured........285
Tires See: Wheels and Tires..................................... 283
Towing a Trailer
............................................226
Towing the Vehicle on Four Wheels..........................................................226
Emergency Towing............................................ 226
Recreational Towing......................................... 226
Towing..............................................................226
Traction Control
.............................................181
Principle of Operation........................................ 181
Transmission Code Designation.............313
Transmission...................................................173
Transporting the Vehicle...........................236
U
Under Hood Overview................................257
Unique Driving Characteristics................148
Universal Garage Door Opener...............135 HomeLink Wireless Control System............135
USB Port
.........................................................335
Using Adaptive Cruise Control...............200
Automatic Cancellation.................................. 203
Blocked Sensor.................................................. 205
Canceling the Set Speed................................ 203
Changing the Set Speed................................. 203
Detection Issues................................................ 204
Following a Vehicle............................................ 201
Following a Vehicle to a Complete Stop................................................................... 202
Hilly Condition Usage...................................... 204
Overriding the Set Speed............................... 203
Park Brake Application.................................... 204
Resuming the Set Speed................................ 203
Setting the Adaptive Cruise Speed.............201
Setting the Adaptive Cruise Speed When Your Vehicle is Stationary........................... 201
Setting the Gap Distance............................... 202
Switching Adaptive Cruise Control Off...................................................................... 204
Switching Adaptive Cruise Control On........................................................................\
201
481
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Index
