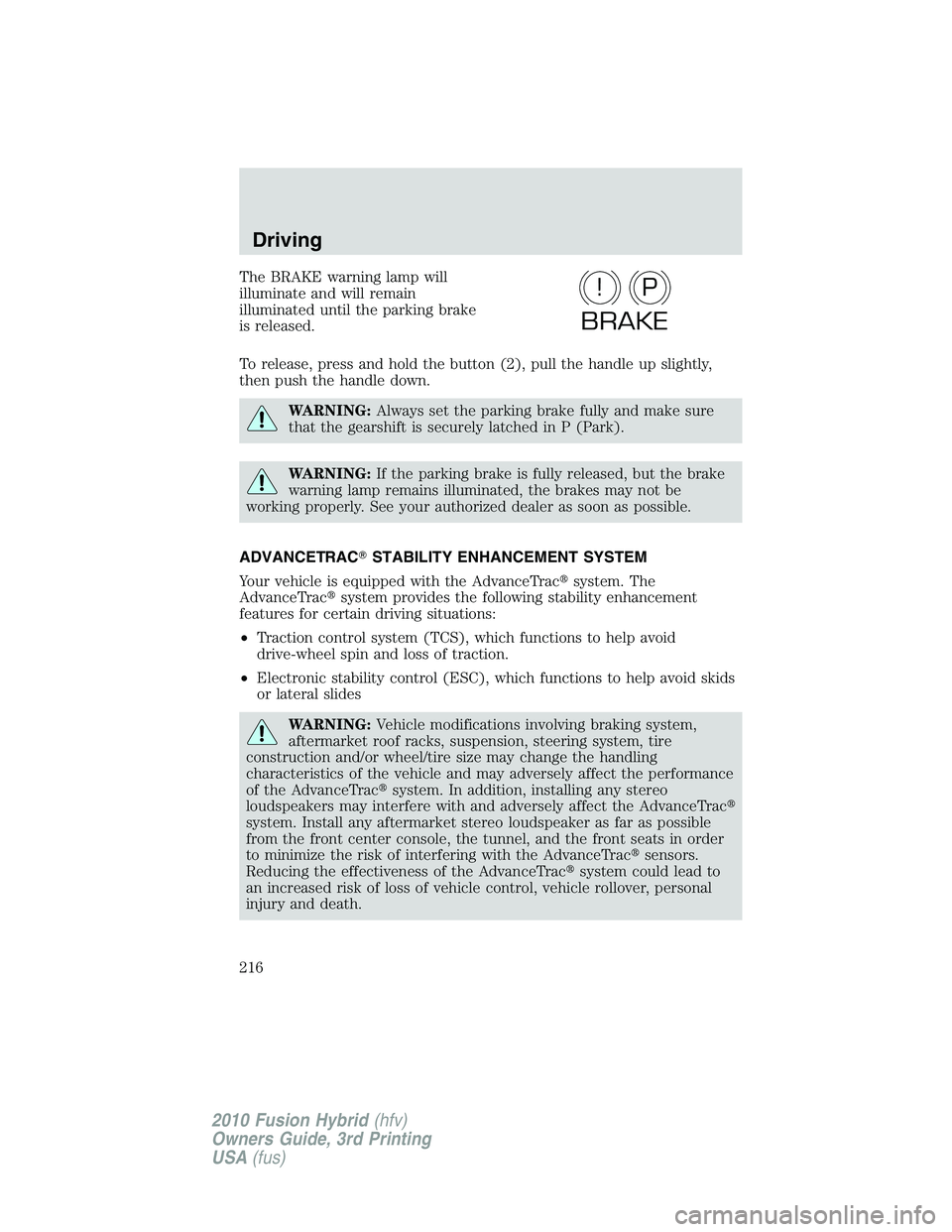

The BRAKE warning lamp will
illuminate and will remain
illuminated until the parking brake
is released.
To release, press and hold the button (2), pull the handle up slightly,
then push the handle down.
WARNING:Always set the parking brake fully and make sure
that the gearshift is securely latched in P (Park).
WARNING:If the parking brake is fully released, but the brake
warning lamp remains illuminated, the brakes may not be
working properly. See your authorized dealer as soon as possible.
ADVANCETRACSTABILITY ENHANCEMENT SYSTEM
Your vehicle is equipped with the AdvanceTracsystem. The
AdvanceTracsystem provides the following stability enhancement
features for certain driving situations:
•Traction control system (TCS), which functions to help avoid
drive-wheel spin and loss of traction.
•Electronic stability control (ESC), which functions to help avoid skids
or lateral slides
WARNING:Vehicle modifications involving braking system,
aftermarket roof racks, suspension, steering system, tire
construction and/or wheel/tire size may change the handling
characteristics of the vehicle and may adversely affect the performance
of the AdvanceTracsystem. In addition, installing any stereo
loudspeakers may interfere with and adversely affect the AdvanceTrac
system. Install any aftermarket stereo loudspeaker as far as possible
from the front center console, the tunnel, and the front seats in order
to minimize the risk of interfering with the AdvanceTracsensors.
Reducing the effectiveness of the AdvanceTracsystem could lead to
an increased risk of loss of vehicle control, vehicle rollover, personal
injury and death.
P!
BRAKE
Driving
216
2010 Fusion Hybrid(hfv)
Owners Guide, 3rd Printing
USA(fus)

Cross traffic alert (CTA) system operation
The CTA system warns the driver of approaching vehicles when R
(Reverse) is selected and the vehicle is backing out of a front-in parking
spot. It sounds a series of tones and flashes the BLISindicator found on
the exterior mirror on the side of the approaching vehicle. Additionally,
the message center will display either, VEHICLE COMING FROM RIGHT
or VEHICLE COMING FROM LEFT to warn the driver from which
direction vehicles are approaching.
The system is not designed to prevent contact with other vehicles or
objects. The system is designed to provide a warning to assist the driver
in detecting vehicles in the blind zones. The system will not detect
infrastructure, pedestrians, or bicyclists.
WARNING:To help avoid personal injury, NEVER use the CTA
system as a replacement for using the side and rear view mirrors
and looking over your shoulder before backing out of a parking space.
CTA is not a replacement for careful driving and only an assist.
The CTA system detects vehicles approaching up to 45 feet (14 meters)
away (approximately the width of five parking spaces). Coverage
decreases when vehicles and objects in close proximity block the CTA
sensors (refer to figure for approximate zone coverage areas[sensor
obstructed to vehicle on left]). Backing slowly from the parking spot
in these situations helps to increase the sensor coverage and
effectiveness.
Driving
231
2010 Fusion Hybrid(hfv)
Owners Guide, 3rd Printing
USA(fus)
