FORD FUSION HYBRID 2011 Owners Manual

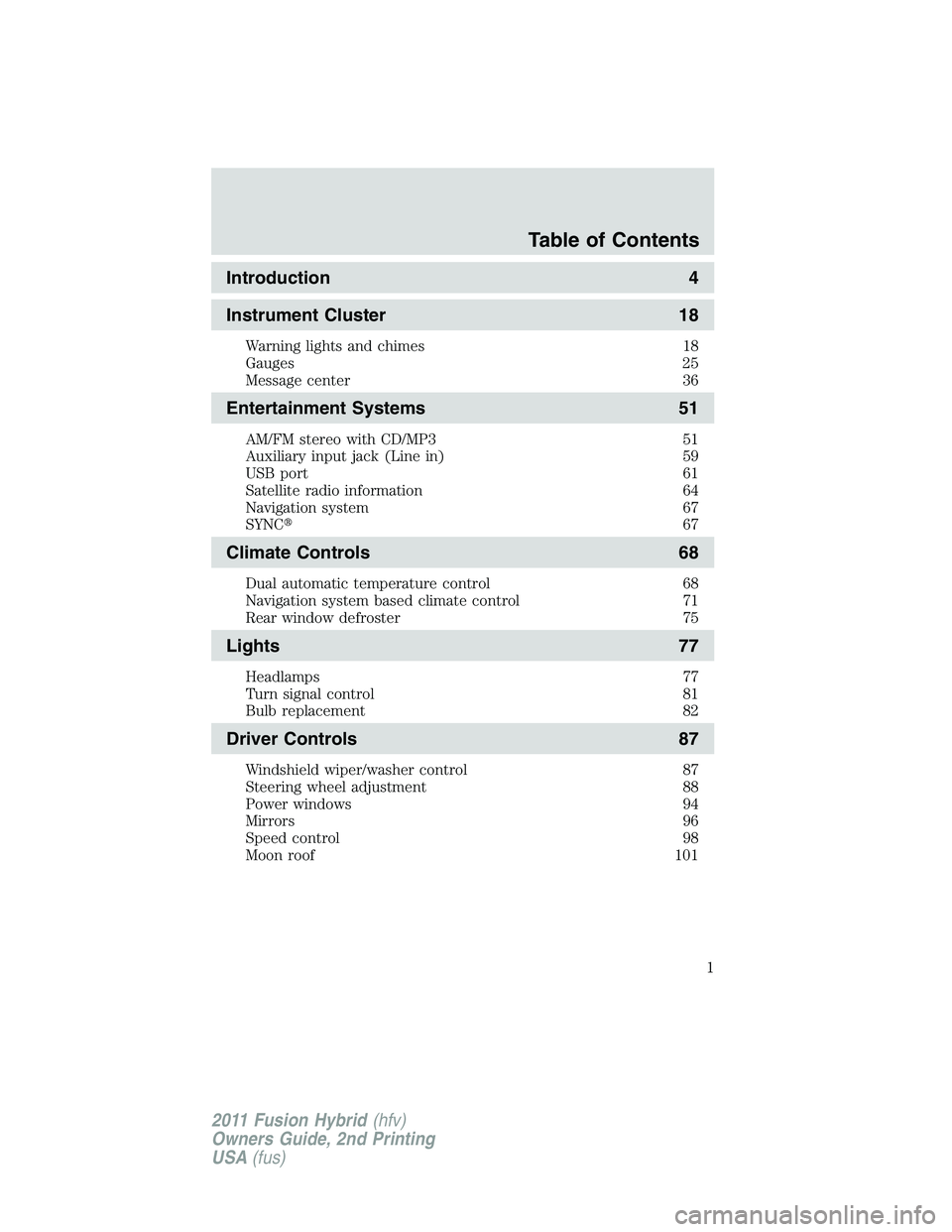

Introduction 4
Instrument Cluster 18
Warning lights and chimes 18
Gauges 25
Message center 36
Entertainment Systems 51
AM/FM stereo with CD/MP3 51
Auxiliary input jack (Line in) 59
USB port 61
Satellite radio information 64
Navigation system 67
SYNC67
Climate Controls 68
Dual automatic temperature control 68
Navigation system based climate control 71
Rear window defroster 75
Lights 77
Headlamps 77
Turn signal control 81
Bulb replacement 82
Driver Controls 87
Windshield wiper/washer control 87
Steering wheel adjustment 88
Power windows 94
Mirrors 96
Speed control 98
Moon roof 101
Table of Contents
1
2011 Fusion Hybrid(hfv)
Owners Guide, 2nd Printing
USA(fus)

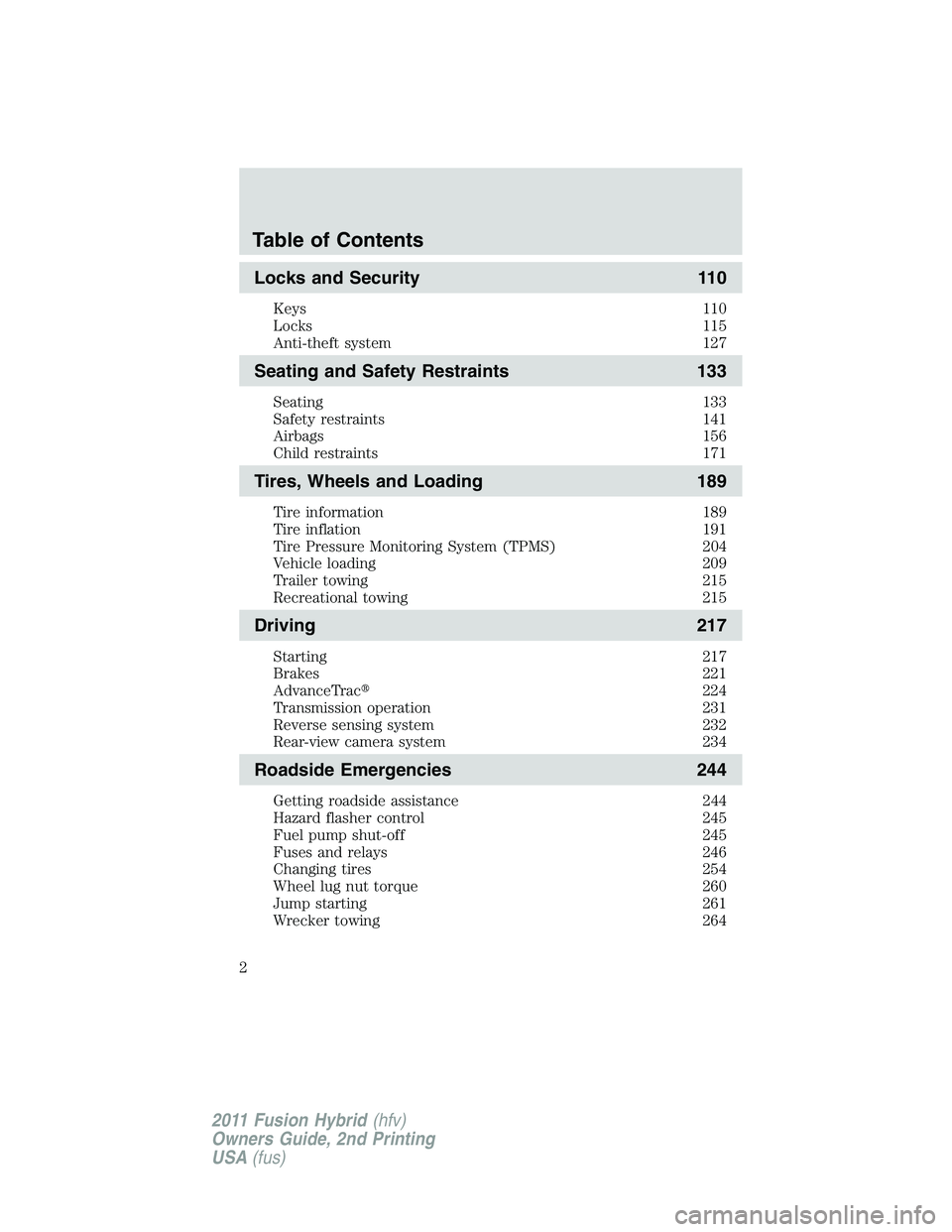

Locks and Security 110
Keys 110
Locks 115
Anti-theft system 127
Seating and Safety Restraints 133
Seating 133
Safety restraints 141
Airbags 156
Child restraints 171
Tires, Wheels and Loading 189
Tire information 189
Tire inflation 191
Tire Pressure Monitoring System (TPMS) 204
Vehicle loading 209
Trailer towing 215
Recreational towing 215
Driving 217
Starting 217
Brakes 221
AdvanceTrac224
Transmission operation 231
Reverse sensing system 232
Rear-view camera system 234
Roadside Emergencies 244
Getting roadside assistance 244
Hazard flasher control 245
Fuel pump shut-off 245
Fuses and relays 246
Changing tires 254
Wheel lug nut torque 260
Jump starting 261
Wrecker towing 264
Table of Contents
2
2011 Fusion Hybrid(hfv)
Owners Guide, 2nd Printing
USA(fus)

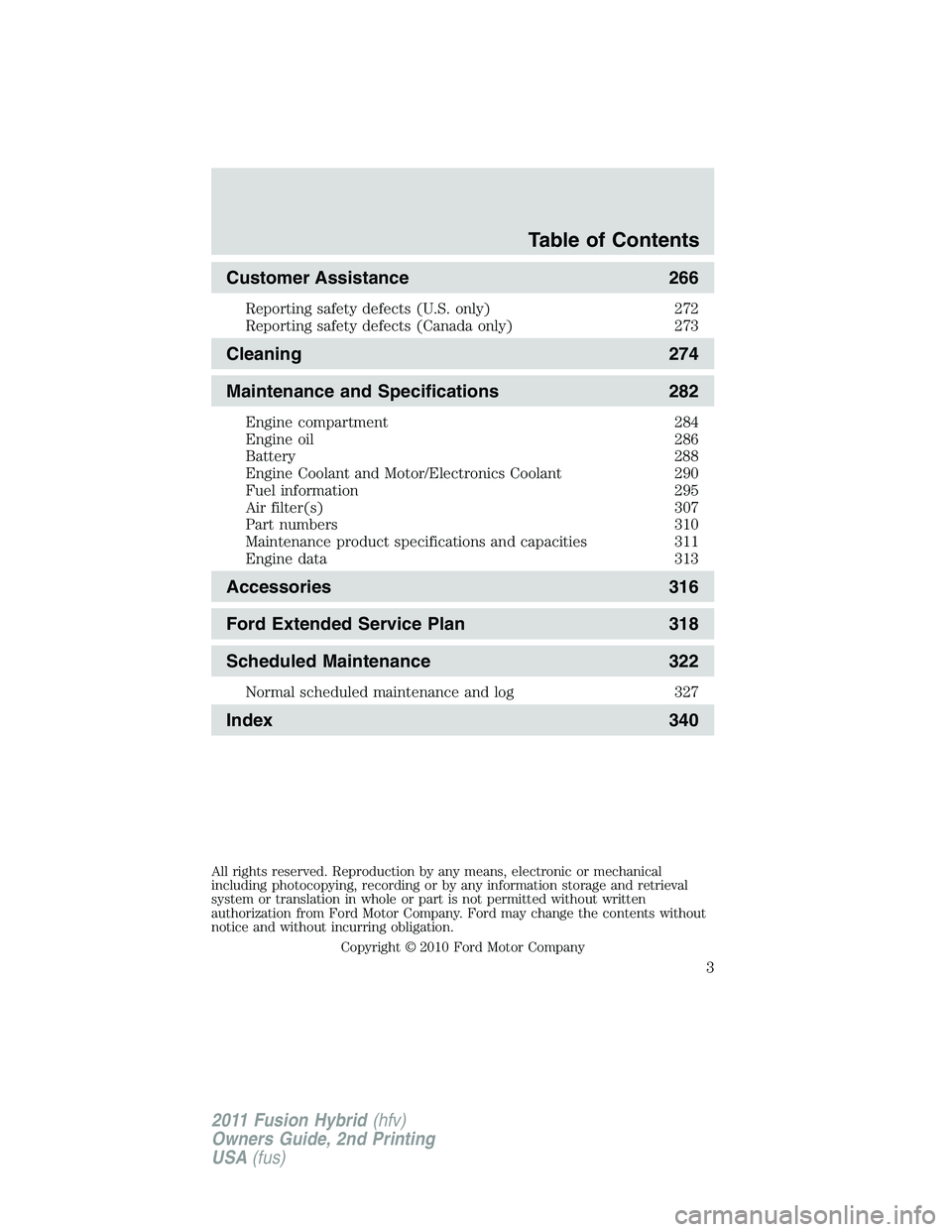

Customer Assistance 266
Reporting safety defects (U.S. only) 272
Reporting safety defects (Canada only) 273
Cleaning 274
Maintenance and Specifications 282
Engine compartment 284
Engine oil 286
Battery 288
Engine Coolant and Motor/Electronics Coolant 290
Fuel information 295
Air filter(s) 307
Part numbers 310
Maintenance product specifications and capacities 311
Engine data 313
Accessories 316
Ford Extended Service Plan 318
Scheduled Maintenance 322
Normal scheduled maintenance and log 327
Index 340
All rights reserved. Reproduction by any means, electronic or mechanical
including photocopying, recording or by any information storage and retrieval
system or translation in whole or part is not permitted without written
authorization from Ford Motor Company. Ford may change the contents without
notice and without incurring obligation.
Copyright © 2010 Ford Motor Company
Table of Contents
3
2011 Fusion Hybrid(hfv)
Owners Guide, 2nd Printing
USA(fus)

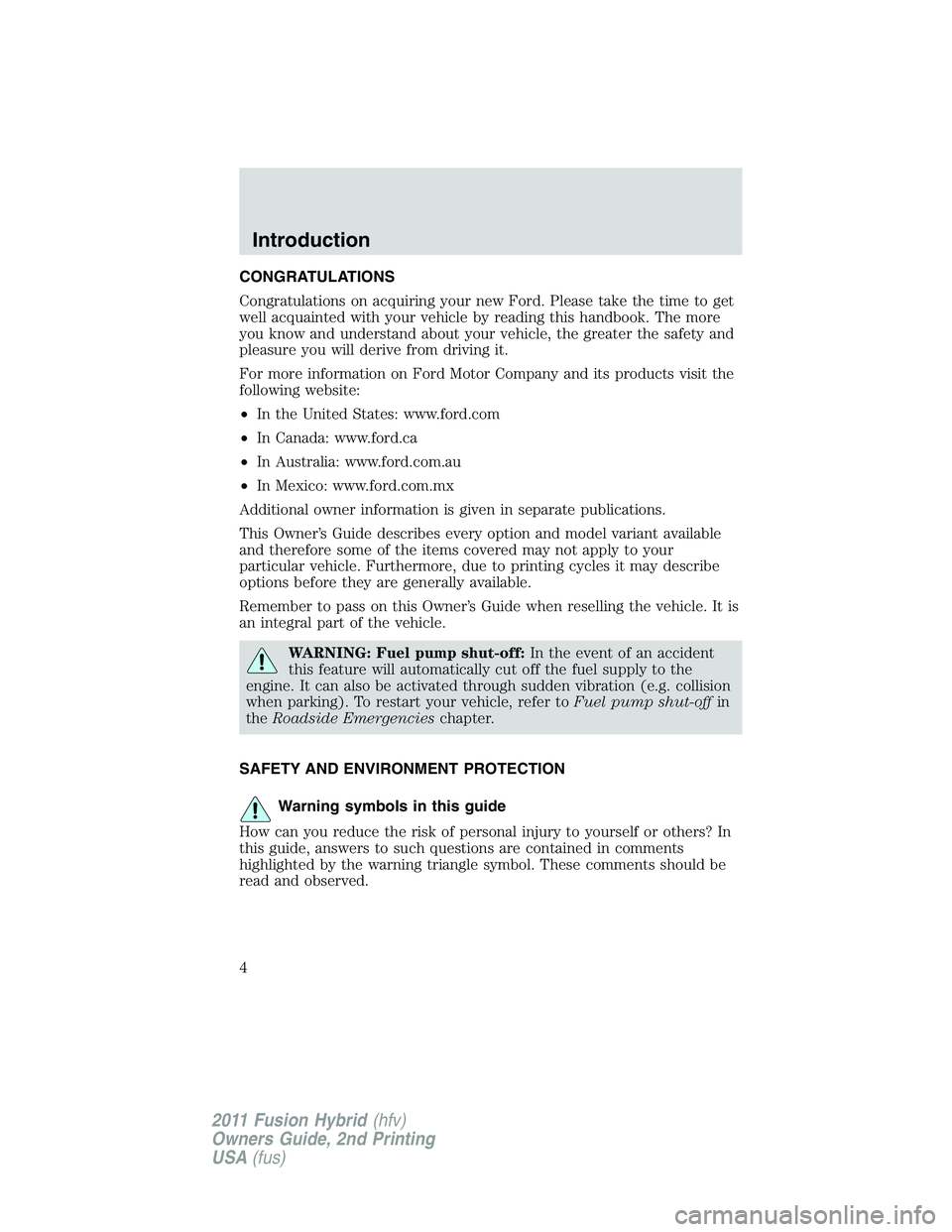

CONGRATULATIONS
Congratulations on acquiring your new Ford. Please take the time to get
well acquainted with your vehicle by reading this handbook. The more
you know and understand about your vehicle, the greater the safety and
pleasure you will derive from driving it.
For more information on Ford Motor Company and its products visit the
following website:
•In the United States: www.ford.com
•In Canada: www.ford.ca
•In Australia: www.ford.com.au
•In Mexico: www.ford.com.mx
Additional owner information is given in separate publications.
This Owner’s Guide describes every option and model variant available
and therefore some of the items covered may not apply to your
particular vehicle. Furthermore, due to printing cycles it may describe
options before they are generally available.
Remember to pass on this Owner’s Guide when reselling the vehicle. It is
an integral part of the vehicle.
WARNING: Fuel pump shut-off:In the event of an accident
this feature will automatically cut off the fuel supply to the
engine. It can also be activated through sudden vibration (e.g. collision
when parking). To restart your vehicle, refer toFuel pump shut-offin
theRoadside Emergencieschapter.
SAFETY AND ENVIRONMENT PROTECTION
Warning symbols in this guide
How can you reduce the risk of personal injury to yourself or others? In
this guide, answers to such questions are contained in comments
highlighted by the warning triangle symbol. These comments should be
read and observed.
Introduction
4
2011 Fusion Hybrid(hfv)
Owners Guide, 2nd Printing
USA(fus)

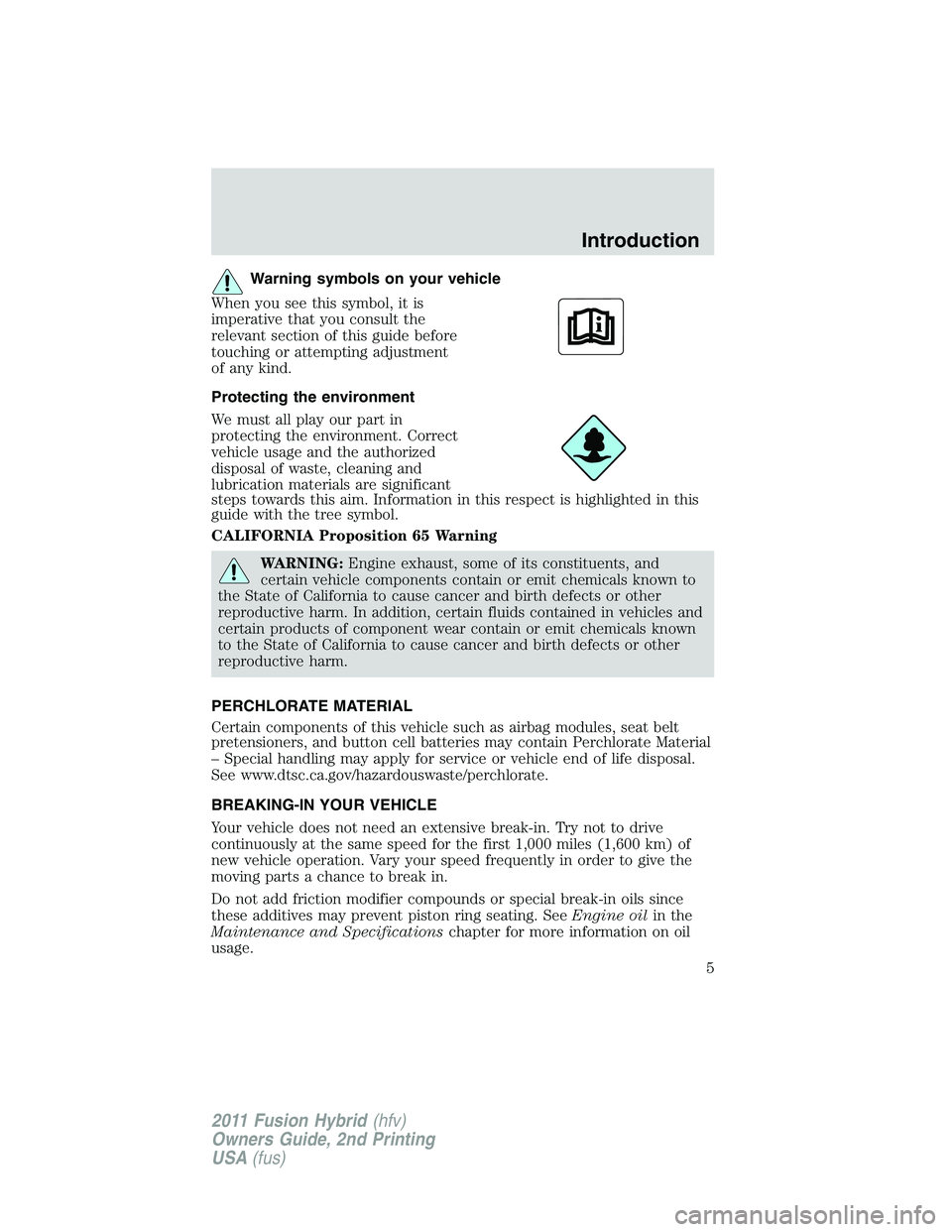

Warning symbols on your vehicle
When you see this symbol, it is
imperative that you consult the
relevant section of this guide before
touching or attempting adjustment
of any kind.
Protecting the environment
We must all play our part in
protecting the environment. Correct
vehicle usage and the authorized
disposal of waste, cleaning and
lubrication materials are significant
steps towards this aim. Information in this respect is highlighted in this
guide with the tree symbol.
CALIFORNIA Proposition 65 Warning
WARNING:Engine exhaust, some of its constituents, and
certain vehicle components contain or emit chemicals known to
the State of California to cause cancer and birth defects or other
reproductive harm. In addition, certain fluids contained in vehicles and
certain products of component wear contain or emit chemicals known
to the State of California to cause cancer and birth defects or other
reproductive harm.
PERCHLORATE MATERIAL
Certain components of this vehicle such as airbag modules, seat belt
pretensioners, and button cell batteries may contain Perchlorate Material
– Special handling may apply for service or vehicle end of life disposal.
See www.dtsc.ca.gov/hazardouswaste/perchlorate.
BREAKING-IN YOUR VEHICLE
Your vehicle does not need an extensive break-in. Try not to drive
continuously at the same speed for the first 1,000 miles (1,600 km) of
new vehicle operation. Vary your speed frequently in order to give the
moving parts a chance to break in.
Do not add friction modifier compounds or special break-in oils since
these additives may prevent piston ring seating. SeeEngine oilin the
Maintenance and Specificationschapter for more information on oil
usage.
Introduction
5
2011 Fusion Hybrid(hfv)
Owners Guide, 2nd Printing
USA(fus)

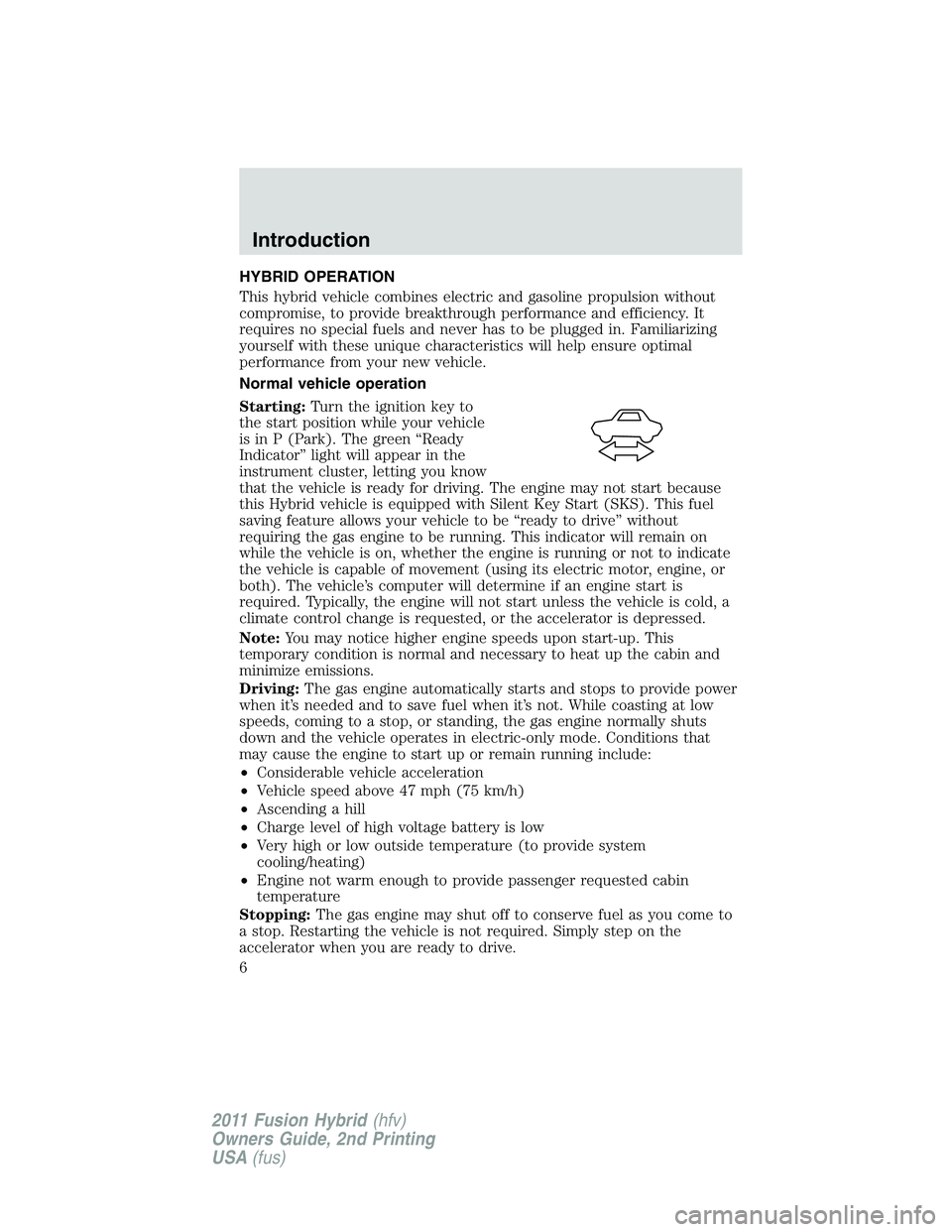

HYBRID OPERATION
This hybrid vehicle combines electric and gasoline propulsion without
compromise, to provide breakthrough performance and efficiency. It
requires no special fuels and never has to be plugged in. Familiarizing
yourself with these unique characteristics will help ensure optimal
performance from your new vehicle.
Normal vehicle operation
Starting:Turn the ignition key to
the start position while your vehicle
is in P (Park). The green “Ready
Indicator” light will appear in the
instrument cluster, letting you know
that the vehicle is ready for driving. The engine may not start because
this Hybrid vehicle is equipped with Silent Key Start (SKS). This fuel
saving feature allows your vehicle to be “ready to drive” without
requiring the gas engine to be running. This indicator will remain on
while the vehicle is on, whether the engine is running or not to indicate
the vehicle is capable of movement (using its electric motor, engine, or
both). The vehicle’s computer will determine if an engine start is
required. Typically, the engine will not start unless the vehicle is cold, a
climate control change is requested, or the accelerator is depressed.
Note:You may notice higher engine speeds upon start-up. This
temporary condition is normal and necessary to heat up the cabin and
minimize emissions.
Driving:The gas engine automatically starts and stops to provide power
when it’s needed and to save fuel when it’s not. While coasting at low
speeds, coming to a stop, or standing, the gas engine normally shuts
down and the vehicle operates in electric-only mode. Conditions that
may cause the engine to start up or remain running include:
•Considerable vehicle acceleration
•Vehicle speed above 47 mph (75 km/h)
•Ascending a hill
•Charge level of high voltage battery is low
•Very high or low outside temperature (to provide system
cooling/heating)
•Engine not warm enough to provide passenger requested cabin
temperature
Stopping:The gas engine may shut off to conserve fuel as you come to
a stop. Restarting the vehicle is not required. Simply step on the
accelerator when you are ready to drive.
Introduction
6
2011 Fusion Hybrid(hfv)
Owners Guide, 2nd Printing
USA(fus)

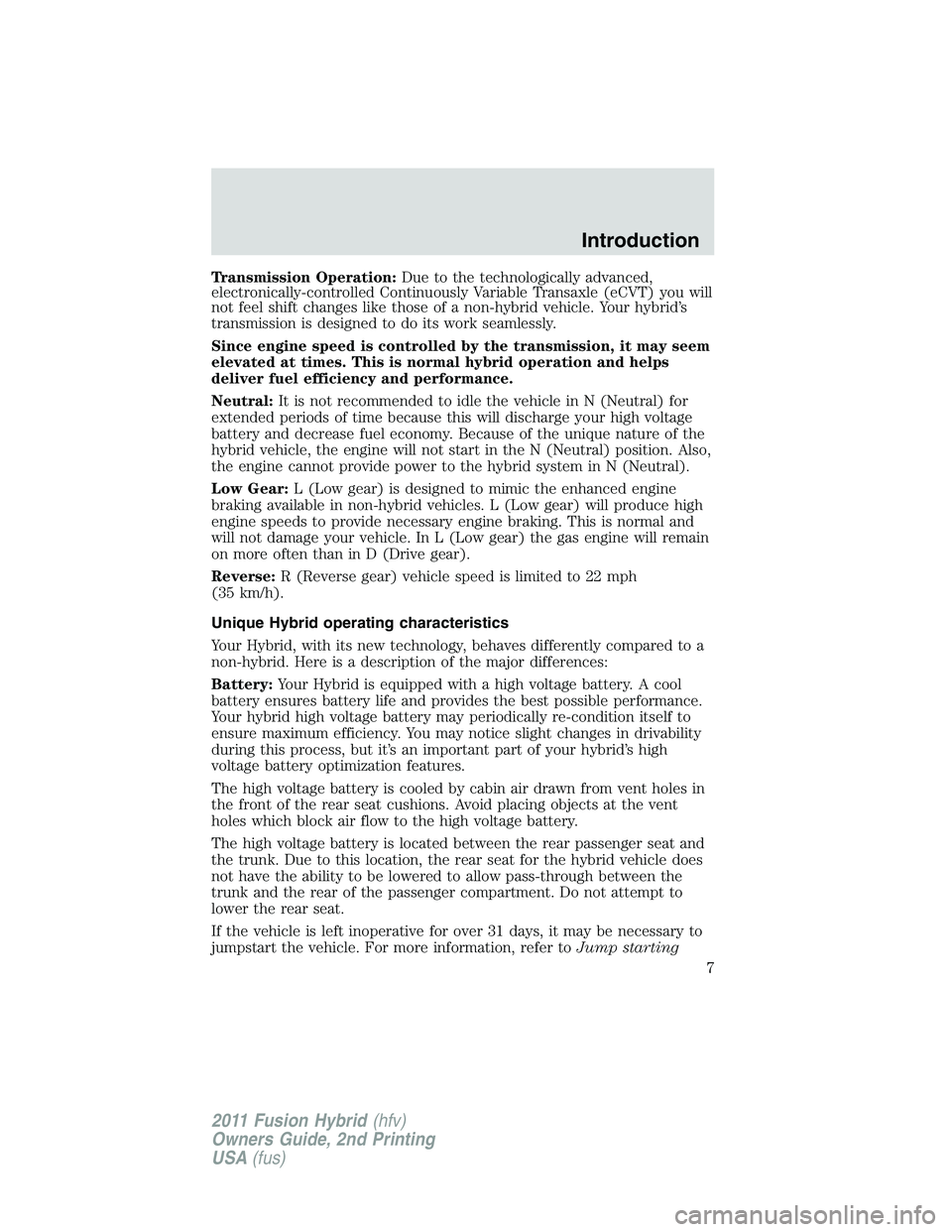

Transmission Operation:Due to the technologically advanced,
electronically-controlled Continuously Variable Transaxle (eCVT) you will
not feel shift changes like those of a non-hybrid vehicle. Your hybrid’s
transmission is designed to do its work seamlessly.
Since engine speed is controlled by the transmission, it may seem
elevated at times. This is normal hybrid operation and helps
deliver fuel efficiency and performance.
Neutral:It is not recommended to idle the vehicle in N (Neutral) for
extended periods of time because this will discharge your high voltage
battery and decrease fuel economy. Because of the unique nature of the
hybrid vehicle, the engine will not start in the N (Neutral) position. Also,
the engine cannot provide power to the hybrid system in N (Neutral).
Low Gear:L (Low gear) is designed to mimic the enhanced engine
braking available in non-hybrid vehicles. L (Low gear) will produce high
engine speeds to provide necessary engine braking. This is normal and
will not damage your vehicle. In L (Low gear) the gas engine will remain
on more often than in D (Drive gear).
Reverse:R (Reverse gear) vehicle speed is limited to 22 mph
(35 km/h).
Unique Hybrid operating characteristics
Your Hybrid, with its new technology, behaves differently compared to a
non-hybrid. Here is a description of the major differences:
Battery:Your Hybrid is equipped with a high voltage battery. A cool
battery ensures battery life and provides the best possible performance.
Your hybrid high voltage battery may periodically re-condition itself to
ensure maximum efficiency. You may notice slight changes in drivability
during this process, but it’s an important part of your hybrid’s high
voltage battery optimization features.
The high voltage battery is cooled by cabin air drawn from vent holes in
the front of the rear seat cushions. Avoid placing objects at the vent
holes which block air flow to the high voltage battery.
The high voltage battery is located between the rear passenger seat and
the trunk. Due to this location, the rear seat for the hybrid vehicle does
not have the ability to be lowered to allow pass-through between the
trunk and the rear of the passenger compartment. Do not attempt to
lower the rear seat.
If the vehicle is left inoperative for over 31 days, it may be necessary to
jumpstart the vehicle. For more information, refer toJump starting
Introduction
7
2011 Fusion Hybrid(hfv)
Owners Guide, 2nd Printing
USA(fus)

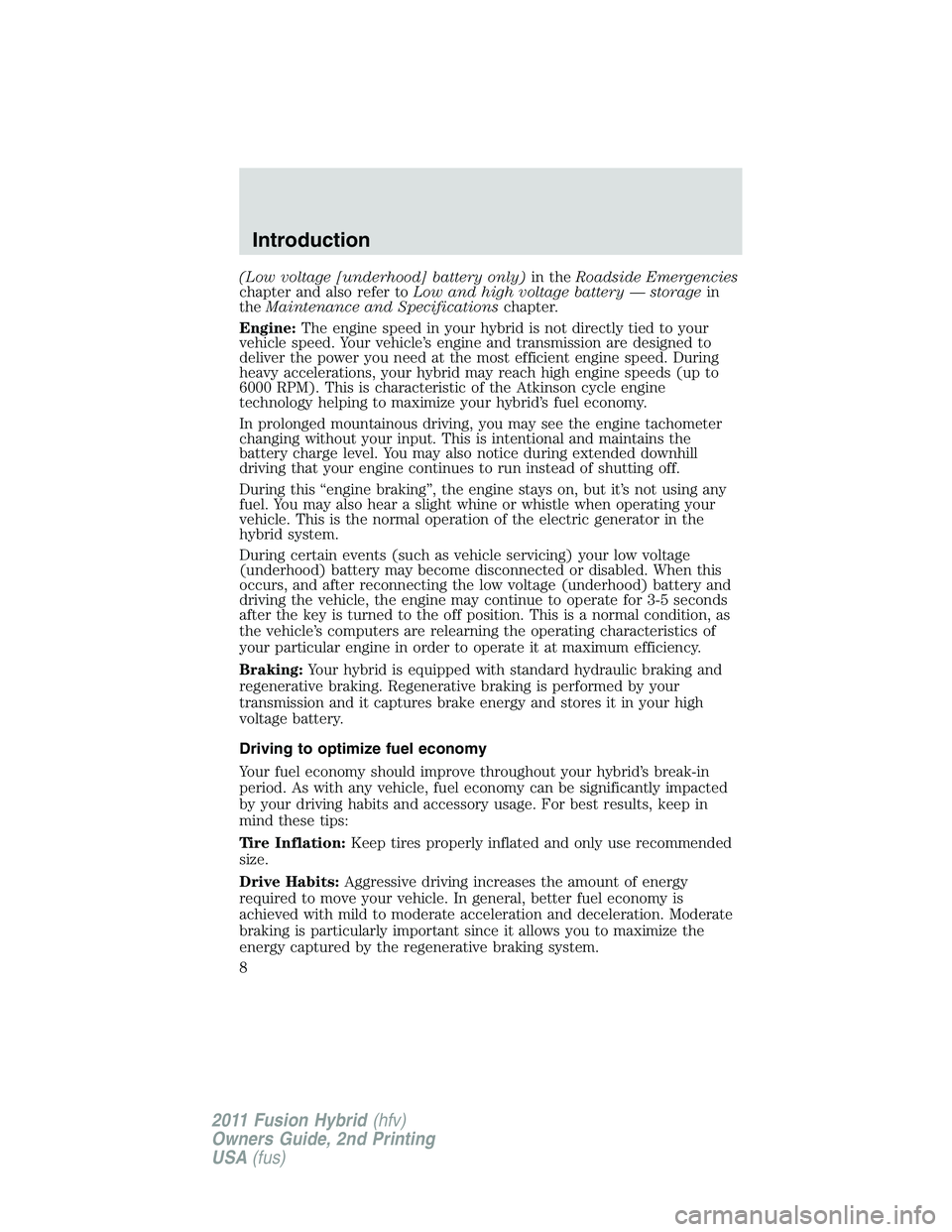

(Low voltage [underhood] battery only)in theRoadside Emergencies
chapter and also refer toLow and high voltage battery — storagein
theMaintenance and Specificationschapter.
Engine:The engine speed in your hybrid is not directly tied to your
vehicle speed. Your vehicle’s engine and transmission are designed to
deliver the power you need at the most efficient engine speed. During
heavy accelerations, your hybrid may reach high engine speeds (up to
6000 RPM). This is characteristic of the Atkinson cycle engine
technology helping to maximize your hybrid’s fuel economy.
In prolonged mountainous driving, you may see the engine tachometer
changing without your input. This is intentional and maintains the
battery charge level. You may also notice during extended downhill
driving that your engine continues to run instead of shutting off.
During this “engine braking”, the engine stays on, but it’s not using any
fuel. You may also hear a slight whine or whistle when operating your
vehicle. This is the normal operation of the electric generator in the
hybrid system.
During certain events (such as vehicle servicing) your low voltage
(underhood) battery may become disconnected or disabled. When this
occurs, and after reconnecting the low voltage (underhood) battery and
driving the vehicle, the engine may continue to operate for 3-5 seconds
after the key is turned to the off position. This is a normal condition, as
the vehicle’s computers are relearning the operating characteristics of
your particular engine in order to operate it at maximum efficiency.
Braking:Your hybrid is equipped with standard hydraulic braking and
regenerative braking. Regenerative braking is performed by your
transmission and it captures brake energy and stores it in your high
voltage battery.
Driving to optimize fuel economy
Your fuel economy should improve throughout your hybrid’s break-in
period. As with any vehicle, fuel economy can be significantly impacted
by your driving habits and accessory usage. For best results, keep in
mind these tips:
Tire Inflation:Keep tires properly inflated and only use recommended
size.
Drive Habits:Aggressive driving increases the amount of energy
required to move your vehicle. In general, better fuel economy is
achieved with mild to moderate acceleration and deceleration. Moderate
braking is particularly important since it allows you to maximize the
energy captured by the regenerative braking system.
Introduction
8
2011 Fusion Hybrid(hfv)
Owners Guide, 2nd Printing
USA(fus)

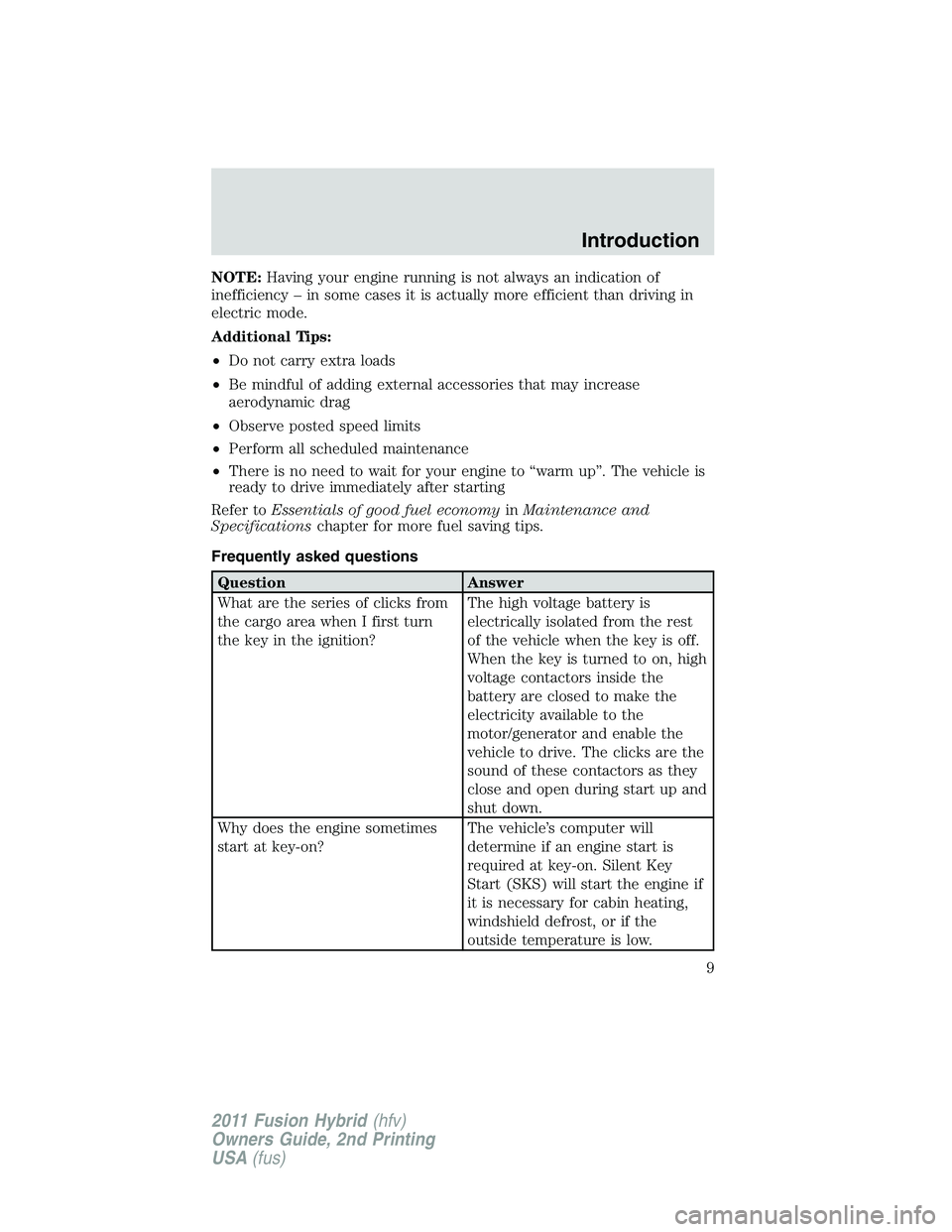

NOTE:Having your engine running is not always an indication of
inefficiency – in some cases it is actually more efficient than driving in
electric mode.
Additional Tips:
•Do not carry extra loads
•Be mindful of adding external accessories that may increase
aerodynamic drag
•Observe posted speed limits
•Perform all scheduled maintenance
•There is no need to wait for your engine to “warm up”. The vehicle is
ready to drive immediately after starting
Refer toEssentials of good fuel economyinMaintenance and
Specificationschapter for more fuel saving tips.
Frequently asked questions
Question Answer
What are the series of clicks from
the cargo area when I first turn
the key in the ignition?The high voltage battery is
electrically isolated from the rest
of the vehicle when the key is off.
When the key is turned to on, high
voltage contactors inside the
battery are closed to make the
electricity available to the
motor/generator and enable the
vehicle to drive. The clicks are the
sound of these contactors as they
close and open during start up and
shut down.
Why does the engine sometimes
start at key-on?The vehicle’s computer will
determine if an engine start is
required at key-on. Silent Key
Start (SKS) will start the engine if
it is necessary for cabin heating,
windshield defrost, or if the
outside temperature is low.
Introduction
9
2011 Fusion Hybrid(hfv)
Owners Guide, 2nd Printing
USA(fus)

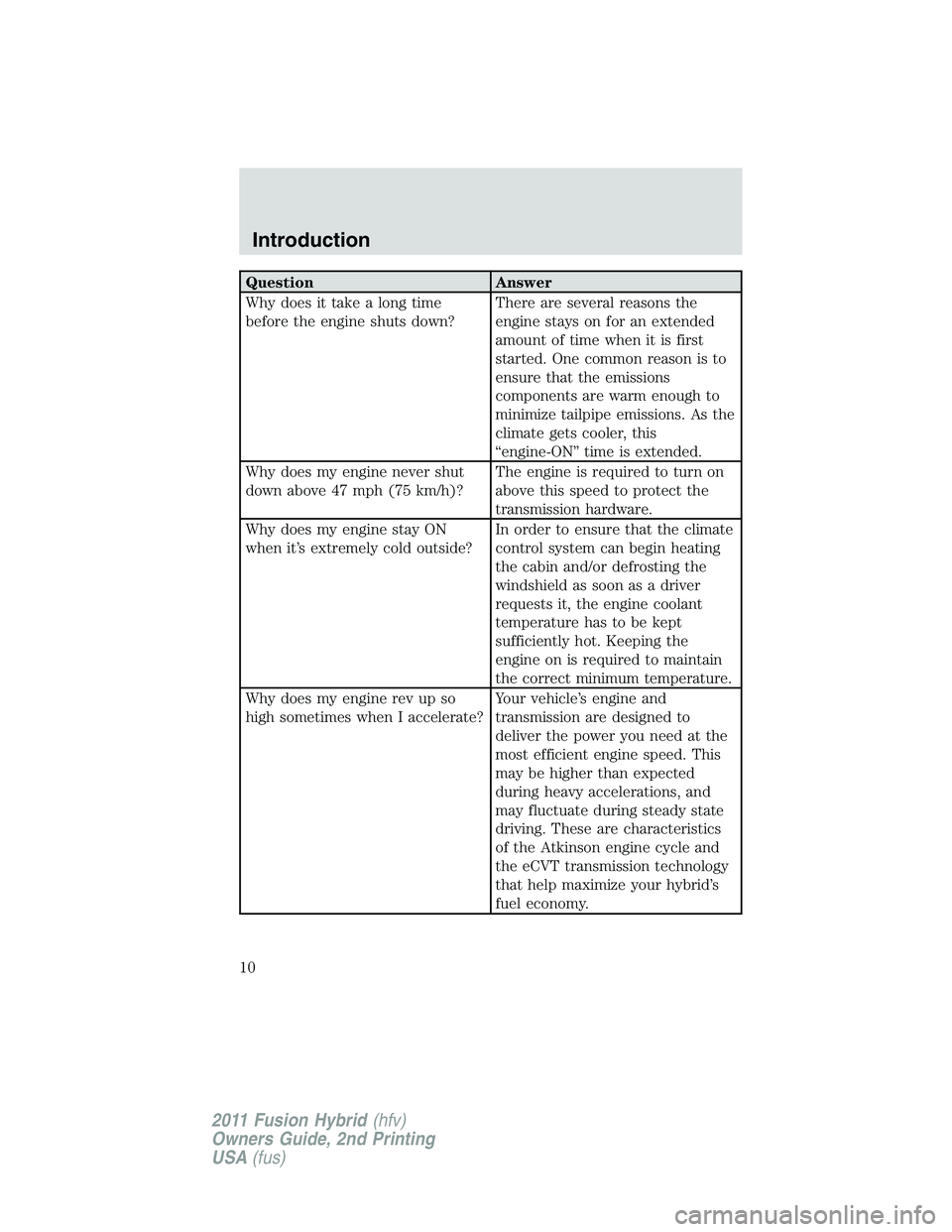

Question Answer
Why does it take a long time
before the engine shuts down?There are several reasons the
engine stays on for an extended
amount of time when it is first
started. One common reason is to
ensure that the emissions
components are warm enough to
minimize tailpipe emissions. As the
climate gets cooler, this
“engine-ON” time is extended.
Why does my engine never shut
down above 47 mph (75 km/h)?The engine is required to turn on
above this speed to protect the
transmission hardware.
Why does my engine stay ON
when it’s extremely cold outside?In order to ensure that the climate
control system can begin heating
the cabin and/or defrosting the
windshield as soon as a driver
requests it, the engine coolant
temperature has to be kept
sufficiently hot. Keeping the
engine on is required to maintain
the correct minimum temperature.
Why does my engine rev up so
high sometimes when I accelerate?Your vehicle’s engine and
transmission are designed to
deliver the power you need at the
most efficient engine speed. This
may be higher than expected
during heavy accelerations, and
may fluctuate during steady state
driving. These are characteristics
of the Atkinson engine cycle and
the eCVT transmission technology
that help maximize your hybrid’s
fuel economy.
Introduction
10
2011 Fusion Hybrid(hfv)
Owners Guide, 2nd Printing
USA(fus)
