Windshield washer:Press the end
of the stalk:
•briefly: causes a single swipe of
the wipers without washer fluid.
•a quick press and hold: the
wipers will swipe three times with
washer fluid.
•a long press and hold: the wipers
and washer fluid will be activated
for up to ten seconds.
Courtesy wipe feature:One extra wipe will occur a few seconds after
washing the front window to clear any excess washer fluid remaining on
the windshield.
Note:Do not operate the washer when the washer reservoir is empty.
This may cause the washer pump to overheat. Check the washer fluid
level frequently. Do not operate the wipers when the windshield is dry.
This may scratch the glass, damage the wiper blades and cause the wiper
motor to burn out. Before operating the wiper on a dry windshield,
always use the windshield washer. In freezing weather, be sure the wiper
blades are not frozen to the windshield before operating the wipers.
Windshield wiper rainlamp feature (if equipped with autolamp)
When the windshield wipers are turned on during daylight, and the
headlamp control is in the autolamp position, the exterior lamps will turn
on after a brief delay and will remain on until the wipers are turned off.
TILT/TELESCOPE STEERING WHEEL
To adjust the steering wheel:
1. Pull the lever down to unlock the
steering column.
2. While the lever is in the down
position, move the steering wheel
up or down and in or out until you
find the desired position.
3. While holding the steering wheel
in place, pull the lever up to its
original position to lock the steering
column.
Driver Controls
88
2011 Fusion Hybrid(hfv)
Owners Guide, 2nd Printing
USA(fus)

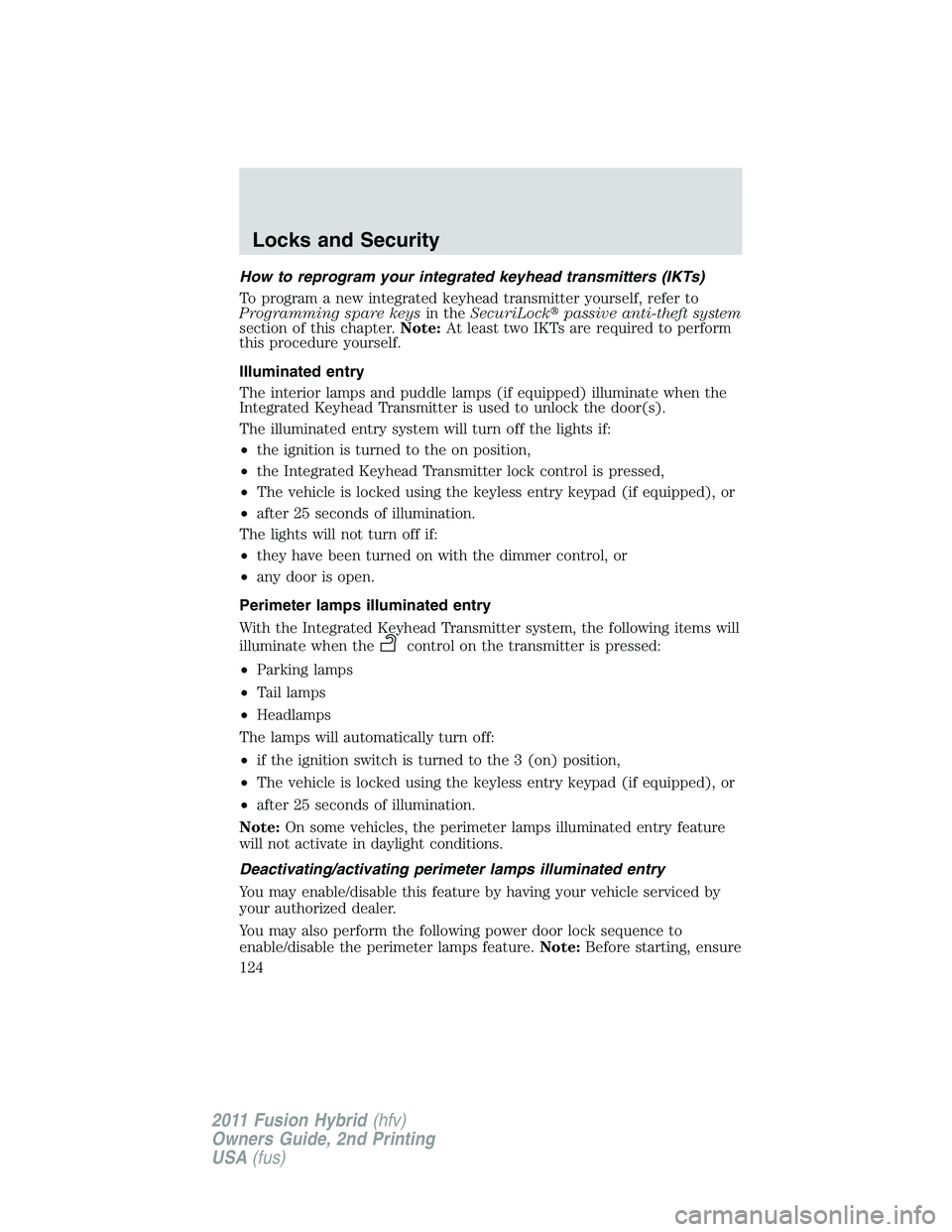

How to reprogram your integrated keyhead transmitters (IKTs)
To program a new integrated keyhead transmitter yourself, refer to
Programming spare keysin theSecuriLockpassive anti-theft system
section of this chapter.Note:At least two IKTs are required to perform
this procedure yourself.
Illuminated entry
The interior lamps and puddle lamps (if equipped) illuminate when the
Integrated Keyhead Transmitter is used to unlock the door(s).
The illuminated entry system will turn off the lights if:
•the ignition is turned to the on position,
•the Integrated Keyhead Transmitter lock control is pressed,
•The vehicle is locked using the keyless entry keypad (if equipped), or
•after 25 seconds of illumination.
The lights will not turn off if:
•they have been turned on with the dimmer control, or
•any door is open.
Perimeter lamps illuminated entry
With the Integrated Keyhead Transmitter system, the following items will
illuminate when the
control on the transmitter is pressed:
•Parking lamps
•Tail lamps
•Headlamps
The lamps will automatically turn off:
•if the ignition switch is turned to the 3 (on) position,
•The vehicle is locked using the keyless entry keypad (if equipped), or
•after 25 seconds of illumination.
Note:On some vehicles, the perimeter lamps illuminated entry feature
will not activate in daylight conditions.
Deactivating/activating perimeter lamps illuminated entry
You may enable/disable this feature by having your vehicle serviced by
your authorized dealer.
You may also perform the following power door lock sequence to
enable/disable the perimeter lamps feature.Note:Before starting, ensure
Locks and Security
124
2011 Fusion Hybrid(hfv)
Owners Guide, 2nd Printing
USA(fus)

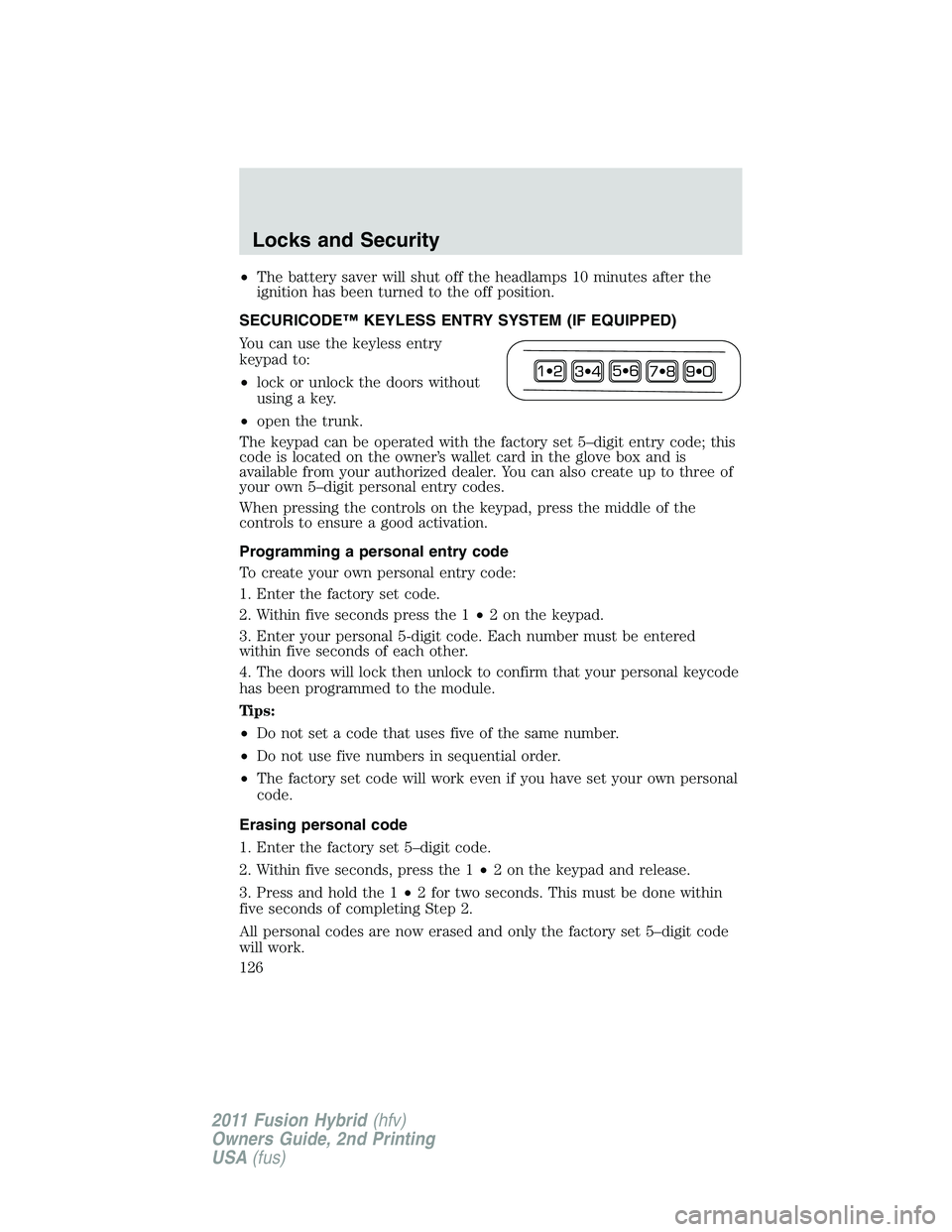

•The battery saver will shut off the headlamps 10 minutes after the
ignition has been turned to the off position.
SECURICODE™ KEYLESS ENTRY SYSTEM (IF EQUIPPED)
You can use the keyless entry
keypad to:
•lock or unlock the doors without
using a key.
•open the trunk.
The keypad can be operated with the factory set 5–digit entry code; this
code is located on the owner’s wallet card in the glove box and is
available from your authorized dealer. You can also create up to three of
your own 5–digit personal entry codes.
When pressing the controls on the keypad, press the middle of the
controls to ensure a good activation.
Programming a personal entry code
To create your own personal entry code:
1. Enter the factory set code.
2. Within five seconds press the 1•2 on the keypad.
3. Enter your personal 5-digit code. Each number must be entered
within five seconds of each other.
4. The doors will lock then unlock to confirm that your personal keycode
has been programmed to the module.
Tips:
•Do not set a code that uses five of the same number.
•Do not use five numbers in sequential order.
•The factory set code will work even if you have set your own personal
code.
Erasing personal code
1. Enter the factory set 5–digit code.
2. Within five seconds, press the 1•2 on the keypad and release.
3. Press and hold the 1•2 for two seconds. This must be done within
five seconds of completing Step 2.
All personal codes are now erased and only the factory set 5–digit code
will work.
Locks and Security
126
2011 Fusion Hybrid(hfv)
Owners Guide, 2nd Printing
USA(fus)

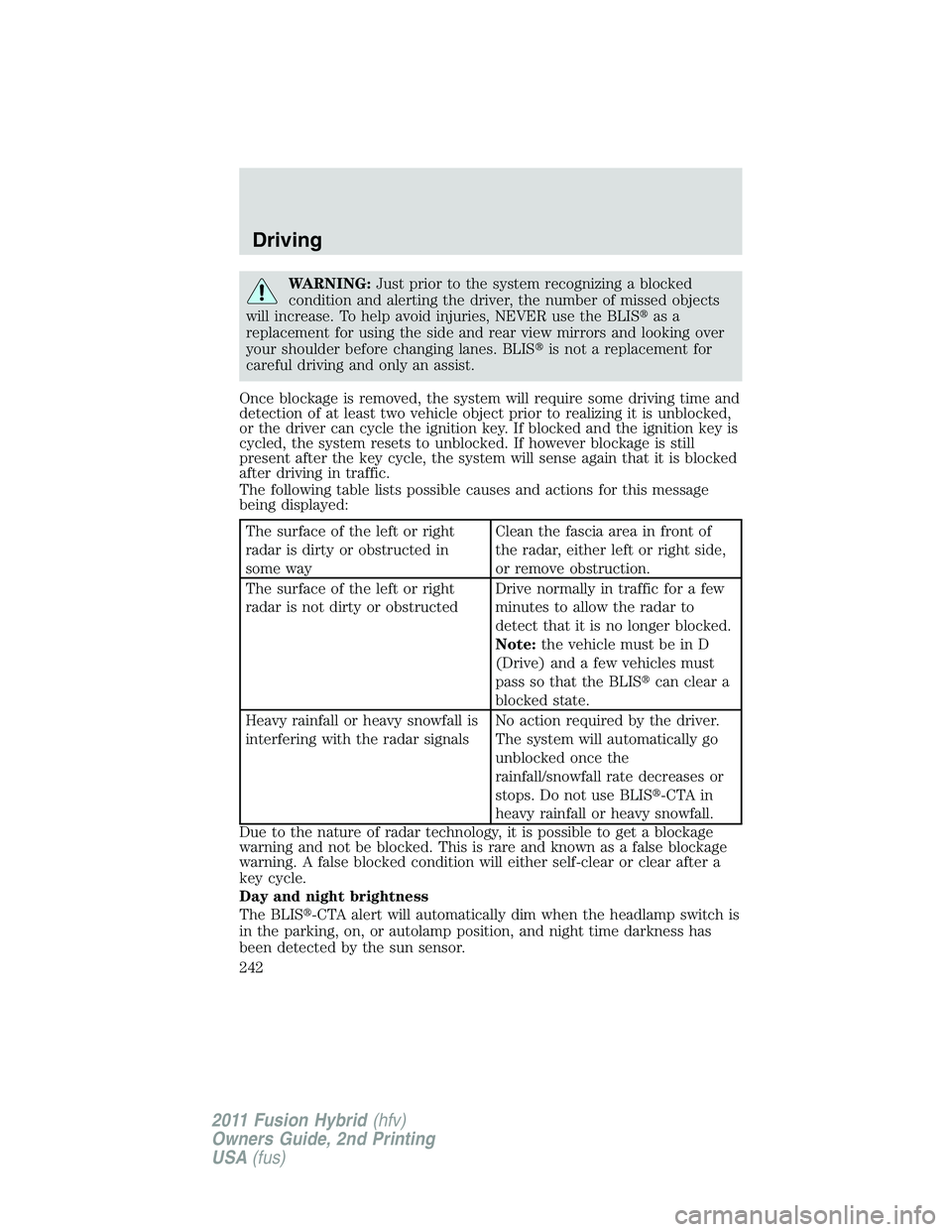

WARNING:Just prior to the system recognizing a blocked
condition and alerting the driver, the number of missed objects
will increase. To help avoid injuries, NEVER use the BLISas a
replacement for using the side and rear view mirrors and looking over
your shoulder before changing lanes. BLISis not a replacement for
careful driving and only an assist.
Once blockage is removed, the system will require some driving time and
detection of at least two vehicle object prior to realizing it is unblocked,
or the driver can cycle the ignition key. If blocked and the ignition key is
cycled, the system resets to unblocked. If however blockage is still
present after the key cycle, the system will sense again that it is blocked
after driving in traffic.
The following table lists possible causes and actions for this message
being displayed:
The surface of the left or right
radar is dirty or obstructed in
some wayClean the fascia area in front of
the radar, either left or right side,
or remove obstruction.
The surface of the left or right
radar is not dirty or obstructedDrive normally in traffic for a few
minutes to allow the radar to
detect that it is no longer blocked.
Note:the vehicle must be in D
(Drive) and a few vehicles must
pass so that the BLIScan clear a
blocked state.
Heavy rainfall or heavy snowfall is
interfering with the radar signalsNo action required by the driver.
The system will automatically go
unblocked once the
rainfall/snowfall rate decreases or
stops. Do not use BLIS-CTA in
heavy rainfall or heavy snowfall.
Due to the nature of radar technology, it is possible to get a blockage
warning and not be blocked. This is rare and known as a false blockage
warning. A false blocked condition will either self-clear or clear after a
key cycle.
Day and night brightness
The BLIS-CTA alert will automatically dim when the headlamp switch is
in the parking, on, or autolamp position, and night time darkness has
been detected by the sun sensor.
Driving
242
2011 Fusion Hybrid(hfv)
Owners Guide, 2nd Printing
USA(fus)

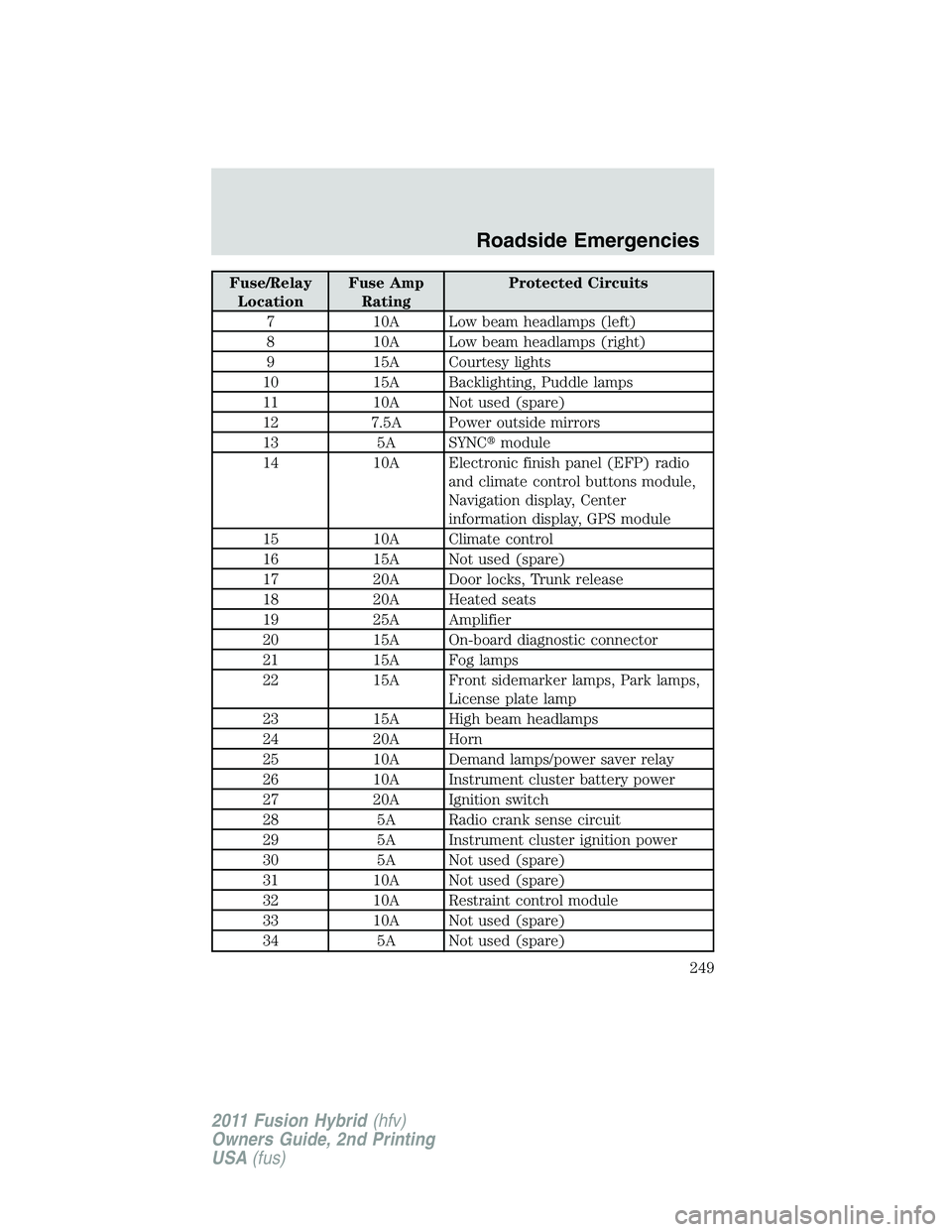

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
7 10A Low beam headlamps (left)
8 10A Low beam headlamps (right)
9 15A Courtesy lights
10 15A Backlighting, Puddle lamps
11 10A Not used (spare)
12 7.5A Power outside mirrors
13 5A SYNCmodule
14 10A Electronic finish panel (EFP) radio
and climate control buttons module,
Navigation display, Center
information display, GPS module
15 10A Climate control
16 15A Not used (spare)
17 20A Door locks, Trunk release
18 20A Heated seats
19 25A Amplifier
20 15A On-board diagnostic connector
21 15A Fog lamps
22 15A Front sidemarker lamps, Park lamps,
License plate lamp
23 15A High beam headlamps
24 20A Horn
25 10A Demand lamps/power saver relay
26 10A Instrument cluster battery power
27 20A Ignition switch
28 5A Radio crank sense circuit
29 5A Instrument cluster ignition power
30 5A Not used (spare)
31 10A Not used (spare)
32 10A Restraint control module
33 10A Not used (spare)
34 5A Not used (spare)
Roadside Emergencies
249
2011 Fusion Hybrid(hfv)
Owners Guide, 2nd Printing
USA(fus)

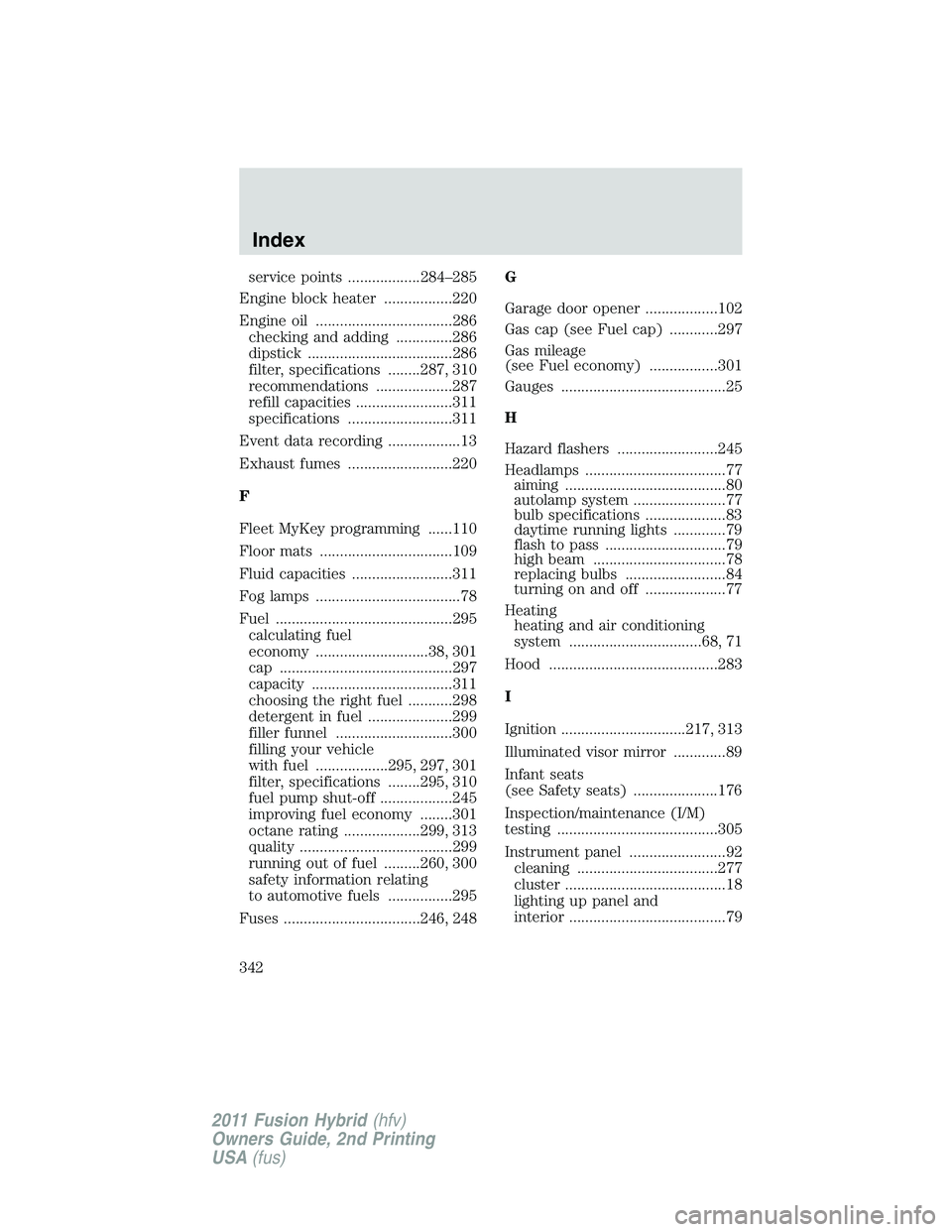

service points ..................284–285
Engine block heater .................220
Engine oil ..................................286
checking and adding ..............286
dipstick ....................................286
filter, specifications ........287, 310
recommendations ...................287
refill capacities ........................311
specifications ..........................311
Event data recording ..................13
Exhaust fumes ..........................220
F
Fleet MyKey programming ......110
Floor mats .................................109
Fluid capacities .........................311
Fog lamps ....................................78
Fuel ............................................295
calculating fuel
economy ............................38, 301
cap ...........................................297
capacity ...................................311
choosing the right fuel ...........298
detergent in fuel .....................299
filler funnel .............................300
filling your vehicle
with fuel ..................295, 297, 301
filter, specifications ........295, 310
fuel pump shut-off ..................245
improving fuel economy ........301
octane rating ...................299, 313
quality ......................................299
running out of fuel .........260, 300
safety information relating
to automotive fuels ................295
Fuses ..................................246, 248G
Garage door opener ..................102
Gas cap (see Fuel cap) ............297
Gas mileage
(see Fuel economy) .................301
Gauges .........................................25
H
Hazard flashers .........................245
Headlamps ...................................77
aiming ........................................80
autolamp system .......................77
bulb specifications ....................83
daytime running lights .............79
flash to pass ..............................79
high beam .................................78
replacing bulbs .........................84
turning on and off ....................77
Heating
heating and air conditioning
system .................................68, 71
Hood ..........................................283
I
Ignition ...............................217, 313
Illuminated visor mirror .............89
Infant seats
(see Safety seats) .....................176
Inspection/maintenance (I/M)
testing ........................................305
Instrument panel ........................92
cleaning ...................................277
cluster ........................................18
lighting up panel and
interior .......................................79
Index
342
2011 Fusion Hybrid(hfv)
Owners Guide, 2nd Printing
USA(fus)

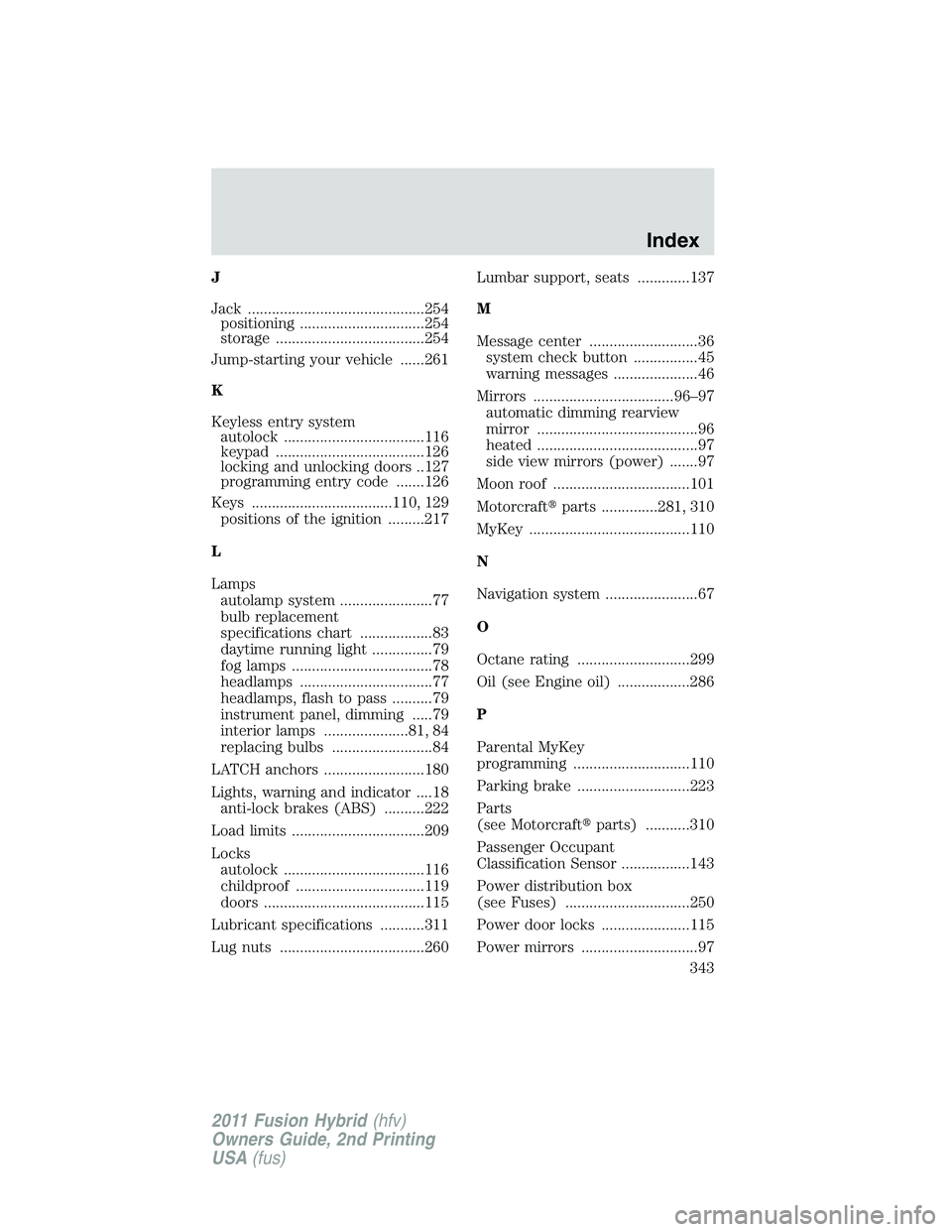

J
Jack ............................................254
positioning ...............................254
storage .....................................254
Jump-starting your vehicle ......261
K
Keyless entry system
autolock ...................................116
keypad .....................................126
locking and unlocking doors ..127
programming entry code .......126
Keys ...................................110, 129
positions of the ignition .........217
L
Lamps
autolamp system .......................77
bulb replacement
specifications chart ..................83
daytime running light ...............79
fog lamps ...................................78
headlamps .................................77
headlamps, flash to pass ..........79
instrument panel, dimming .....79
interior lamps .....................81, 84
replacing bulbs .........................84
LATCH anchors .........................180
Lights, warning and indicator ....18
anti-lock brakes (ABS) ..........222
Load limits .................................209
Locks
autolock ...................................116
childproof ................................119
doors ........................................115
Lubricant specifications ...........311
Lug nuts ....................................260Lumbar support, seats .............137
M
Message center ...........................36
system check button ................45
warning messages .....................46
Mirrors ...................................96–97
automatic dimming rearview
mirror ........................................96
heated ........................................97
side view mirrors (power) .......97
Moon roof ..................................101
Motorcraftparts ..............281, 310
MyKey ........................................110
N
Navigation system .......................67
O
Octane rating ............................299
Oil (see Engine oil) ..................286
P
Parental MyKey
programming .............................110
Parking brake ............................223
Parts
(see Motorcraftparts) ...........310
Passenger Occupant
Classification Sensor .................143
Power distribution box
(see Fuses) ...............................250
Power door locks ......................115
Power mirrors .............................97
Index
343
2011 Fusion Hybrid(hfv)
Owners Guide, 2nd Printing
USA(fus)
