Relay Location Relay Type Function
4 High current
microRear window defogger
5 High current
microPowertrain control module
6 High current
microVacuum pump cut-off
7 Solid state Vacuum pump
CHANGING THE TIRES
If you get a flat tire while driving, do not apply the brake heavily.
Instead, gradually decrease your speed. Hold the steering wheel firmly
and slowly move to a safe place on the side of the road.
Note:The tire pressure monitoring system (TPMS) indicator light will
illuminate when the spare tire is in use. To restore the full functionality
of the monitoring system, all road wheels equipped with tire pressure
monitoring sensors must be mounted on the vehicle.
Have a flat serviced by an authorized dealer in order to prevent damage
to the TPMS sensors, refer toTire pressure monitoring system
(TPMS)in theTires, Wheels and Loadingchapter. Replace the spare
tire with a road tire as soon as possible. During repairing or replacing of
the flat tire, have the authorized dealer inspect the TPMS sensor for
damage.
WARNING:The use of tire sealants may damage your tire
pressure monitoring system (TPMS) and should not be used.
However, if you must use a sealant, the TPMS sensor and valve stem
on the wheel must be replaced by an authorized Ford dealer.
WARNING:Refer toTire pressure monitoring system (TPMS)
in theTires, Wheels and Loadingchapter for important
information. If the tire pressure monitor sensor becomes damaged, it
will no longer function.
Roadside Emergencies
254
2011 Fusion Hybrid(hfv)
Owners Guide, 2nd Printing
USA(fus)

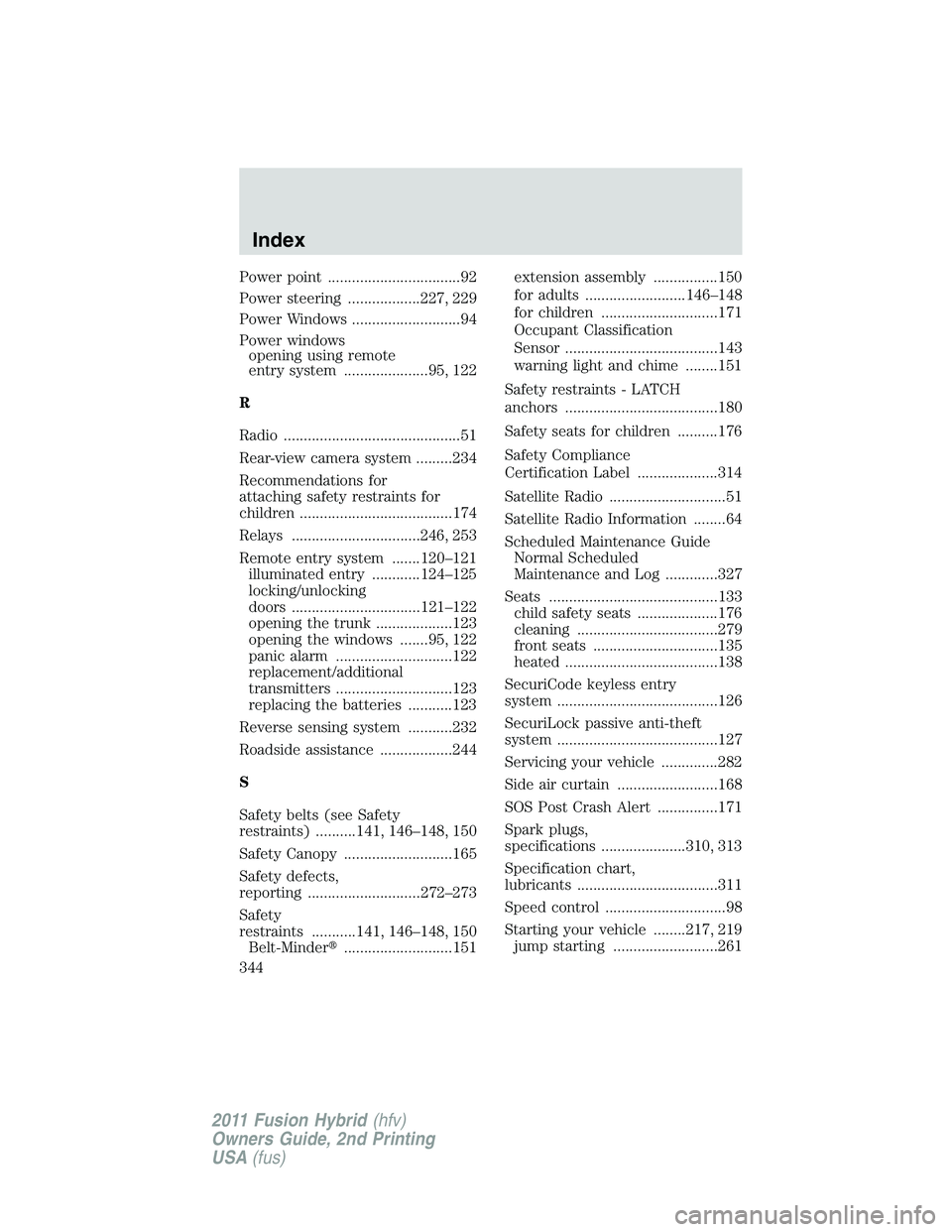

Power point .................................92
Power steering ..................227, 229
Power Windows ...........................94
Power windows
opening using remote
entry system .....................95, 122
R
Radio ............................................51
Rear-view camera system .........234
Recommendations for
attaching safety restraints for
children ......................................174
Relays ................................246, 253
Remote entry system .......120–121
illuminated entry ............124–125
locking/unlocking
doors ................................121–122
opening the trunk ...................123
opening the windows .......95, 122
panic alarm .............................122
replacement/additional
transmitters .............................123
replacing the batteries ...........123
Reverse sensing system ...........232
Roadside assistance ..................244
S
Safety belts (see Safety
restraints) ..........141, 146–148, 150
Safety Canopy ...........................165
Safety defects,
reporting ............................272–273
Safety
restraints ...........141, 146–148, 150
Belt-Minder...........................151extension assembly ................150
for adults .........................146–148
for children .............................171
Occupant Classification
Sensor ......................................143
warning light and chime ........151
Safety restraints - LATCH
anchors ......................................180
Safety seats for children ..........176
Safety Compliance
Certification Label ....................314
Satellite Radio .............................51
Satellite Radio Information ........64
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............327
Seats ..........................................133
child safety seats ....................176
cleaning ...................................279
front seats ...............................135
heated ......................................138
SecuriCode keyless entry
system ........................................126
SecuriLock passive anti-theft
system ........................................127
Servicing your vehicle ..............282
Side air curtain .........................168
SOS Post Crash Alert ...............171
Spark plugs,
specifications .....................310, 313
Specification chart,
lubricants ...................................311
Speed control ..............................98
Starting your vehicle ........217, 219
jump starting ..........................261
Index
344
