What is the fan noise I hear from
the rear of my hybrid?The fan noise comes from a fan
located inside the high voltage
battery. This fan turns on when
the battery requires cooling air.
The fan speed, and associated
noise level, will change according
to the amount of cooling required
to maintain good performance.
Maintaining the battery
temperature at optimal conditions
also prolongs the useful life of the
battery and helps to achieve better
fuel economy.
How far can I go in Electric Drive
if I run out of gas?Running out of gas is not
recommended. However, you may
be able to go about one mile,
driving at 30 mph (48 km/h), if the
battery has a normal state of
charge.
What is the engine oil change
service interval?The engine oil should be changed
every 10,000 miles (16,000 km)
under normal operating conditions.
See theScheduled Maintenance
Guidechapter.
Can I put E10 or E85 in my
vehicle, and how will it affect my
fuel economy?Your hybrid vehicle can use E10
(10% ethanol, 90% gasoline) fuel,
but you may notice slightly
reduced fuel economy because
ethanol contains less energy per
gallon than gasoline. Your hybrid
vehicle is not designed to use E85
(85% ethanol).
Introduction
11
2011 Fusion Hybrid(hfv)
Owners Guide, 2nd Printing
USA(fus)

Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
Do Not Open When HotBattery
Avoid Smoking, Flames,
or SparksBattery Acid
Explosive GasFan Warning
Power Steering FluidMaintain Correct Fluid
LevelMAX
MIN
Service Engine SoonEngine Air Filter
Passenger Compartment
Air FilterJack
Check Fuel CapLow Tire Pressure
Warning
Introduction
17
2011 Fusion Hybrid(hfv)
Owners Guide, 2nd Printing
USA(fus)

malfunction with the charging system. Contact your authorized dealer as
soon as possible. This indicates a problem with the electrical system or a
related component.
Engine oil pressure (RTT):
Illuminates when the oil pressure
falls below the normal range. The
message center displays LOW OIL
PRESSURE when the engine oil level is low. Check the oil level and add
oil if needed. If the warning light or message stays on, even though the
oil level is correct, do not start the engine and contact your authorized
dealer as soon as possible. This indicates a problem with the engine or a
related component. Refer toEngine oilin theMaintenance and
Specificationschapter.
High engine or high motor
electronic coolant temperature
(RTT):Illuminates when the engine
coolant or motor electronics coolant temperature is high. The message
center displays HIGH ENGINE TEMPERATURE / HIGH MOTOR
TEMPERATURE when the engine coolant or motor electronics are
overheating. Stop the vehicle as soon as safely possible, turn off the
engine, and let it cool. Check the coolant and coolant level. If the light
and message stays on or continues to turn on after the vehicle warms
up, contact your authorized dealer as soon as possible. Continuing to
drive with an overheated engine can cause serious engine damage. This
indicates a problem with the engine or a related component. Refer to
Engine coolant and motor/electronics coolantin theMaintenance
and Specificationschapter.
WARNING:Never remove the coolant reservoir cap while the
engine is running or hot.
AdvanceTrac:Illuminates when
AdvanceTracis active. If the light
remains on, contact your authorized
dealer as soon as possible. Refer to
theDrivingchapter for more
information.
Instrument Cluster
22
2011 Fusion Hybrid(hfv)
Owners Guide, 2nd Printing
USA(fus)

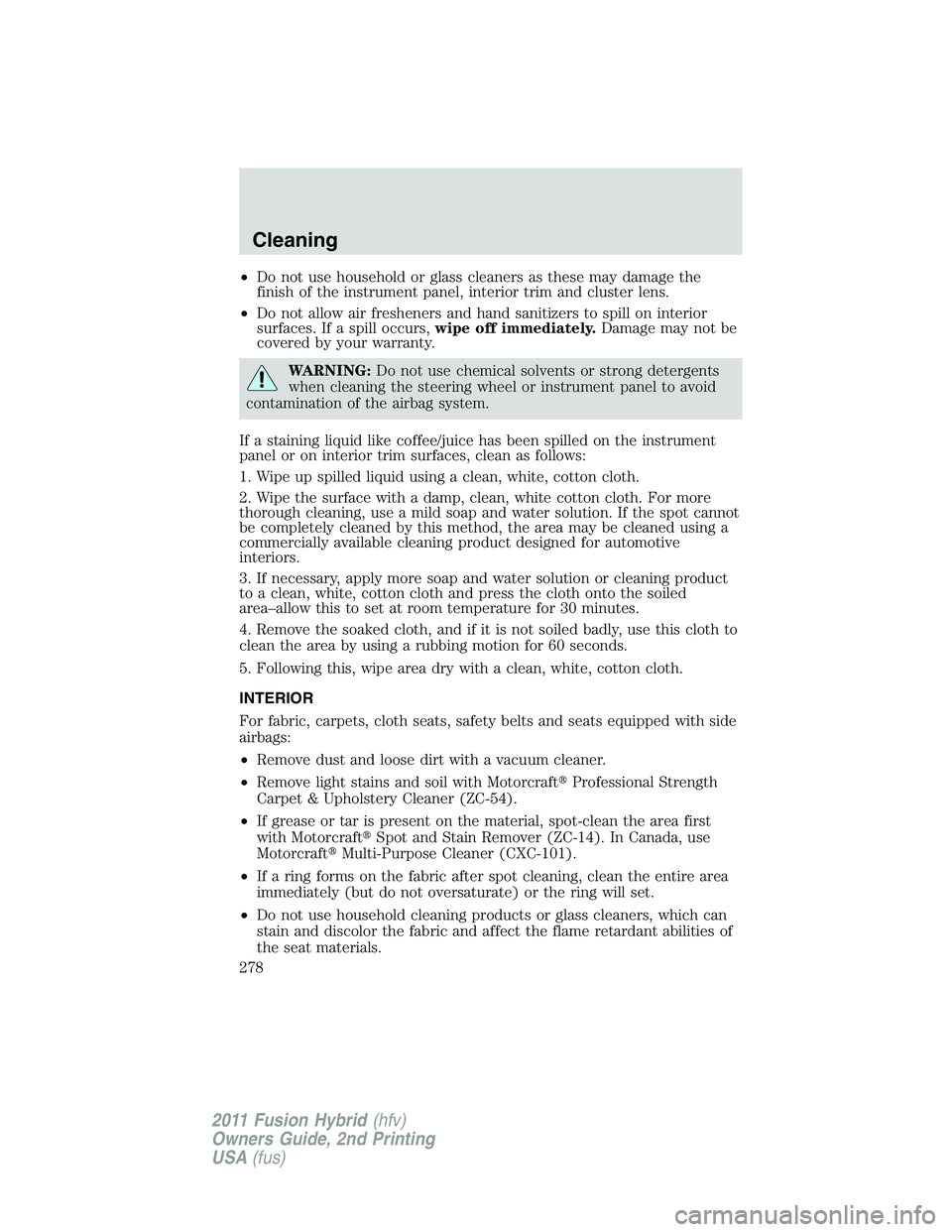

•Do not use household or glass cleaners as these may damage the
finish of the instrument panel, interior trim and cluster lens.
•Do not allow air fresheners and hand sanitizers to spill on interior
surfaces. If a spill occurs,wipe off immediately.Damage may not be
covered by your warranty.
WARNING:Do not use chemical solvents or strong detergents
when cleaning the steering wheel or instrument panel to avoid
contamination of the airbag system.
If a staining liquid like coffee/juice has been spilled on the instrument
panel or on interior trim surfaces, clean as follows:
1. Wipe up spilled liquid using a clean, white, cotton cloth.
2. Wipe the surface with a damp, clean, white cotton cloth. For more
thorough cleaning, use a mild soap and water solution. If the spot cannot
be completely cleaned by this method, the area may be cleaned using a
commercially available cleaning product designed for automotive
interiors.
3. If necessary, apply more soap and water solution or cleaning product
to a clean, white, cotton cloth and press the cloth onto the soiled
area–allow this to set at room temperature for 30 minutes.
4. Remove the soaked cloth, and if it is not soiled badly, use this cloth to
clean the area by using a rubbing motion for 60 seconds.
5. Following this, wipe area dry with a clean, white, cotton cloth.
INTERIOR
For fabric, carpets, cloth seats, safety belts and seats equipped with side
airbags:
•Remove dust and loose dirt with a vacuum cleaner.
•Remove light stains and soil with MotorcraftProfessional Strength
Carpet & Upholstery Cleaner (ZC-54).
•If grease or tar is present on the material, spot-clean the area first
with MotorcraftSpot and Stain Remover (ZC-14). In Canada, use
MotorcraftMulti-Purpose Cleaner (CXC-101).
•If a ring forms on the fabric after spot cleaning, clean the entire area
immediately (but do not oversaturate) or the ring will set.
•Do not use household cleaning products or glass cleaners, which can
stain and discolor the fabric and affect the flame retardant abilities of
the seat materials.
Cleaning
278
2011 Fusion Hybrid(hfv)
Owners Guide, 2nd Printing
USA(fus)

Checking engine coolant
The concentration and level of
engine coolant should be checked at
the intervals listed inscheduled
maintenance information. The
coolant concentration should be
maintained at 50/50 coolant and
distilled water. Coolant
concentration testing is possible
with a hydrometer or antifreeze
tester. The level of coolant should
be maintained at the FULL COLD
level or within the COLD FILL
RANGE in the coolant reservoir. If
the level falls below, add coolant per
the instructions in theAdding
engine coolantsection. When the engine is cold, check the level of
engine coolant in the reservoir.
Checking motor/electronics (M/E) coolant
The M/E coolant reservoir is located
at the rear of the engine
compartment. Refer to the following
engine coolant sections for all
information, instructions and
warnings related to cooling systems.
The two systems use the same
coolant and operate similarly, with
the Motor and Electronics system
generally operating at a lower
temperature and pressure. The fluid
levels in both reservoirs need to be maintained. When the engine is cold,
check the level of M/E coolant in the reservoir. The coolant should be at
the FULL COLD level as shown on the side of the coolant reservoir.
Factory fill and coolant specifications
Your vehicle was factory-filled with a 50/50 engine coolant and water
concentration. If the concentration of coolant falls below 40% or above
60%, the engine parts could become damaged or not work properly.A
50/50 mixture of coolant and water provides the following:
•Improved freeze protection.
•Improved boiling protection.
Maintenance and Specifications
291
2011 Fusion Hybrid(hfv)
Owners Guide, 2nd Printing
USA(fus)

•Drive at a smooth, constant speed. Excessive variation in pedal input
causes more operating mode changes and reduces efficiency.
•Drive at reasonable speeds. Traveling at 60 mph [96 km/h] uses
approximately 20% less fuel than traveling at 70 mph [112 km/h]).
•Minimize A/C and defroster usage. Your vehicle is equipped with an
electric A/C system, which can provide cooling for passenger comfort
or defrost without running the engine. However, the A/C system uses
battery energy when the engine is off, which reduces fuel economy.
Using Auto mode, minimizing use of defrost and Max A/C, or choosing
a higher temperature setting can help reduce energy usage.
•Minimize temperature extremes when the vehicle is parked, for
example by storing in a garage to avoid extreme cold in winter and
extreme sun loads in summer. The high voltage battery operates more
efficiently in moderate temperatures, and less energy will be spent
returning the passenger compartment to a comfortable temperature.
•Combine errands. Your vehicle is more fuel efficient when the engine
is warm. Driving to your farthest destination first will warm the engine
more quickly and may improve fuel economy for the rest of the trip.
Maintenance
•Keep tires properly inflated and use only recommended size.
•Keep wheels properly aligned.
•Use recommended engine oil. Refer toMaintenance product
specifications and capacitiesin this chapter.
•Perform all regularly scheduled maintenance items. Follow the
recommended maintenance schedule and owner maintenance checks
found inscheduled maintenance information.
Conditions
•Heavily loading a vehicle or towing a trailer may reduce fuel economy
at any speed.
•Carrying unnecessary weight may reduce fuel economy (approximately
1 mpg [0.4 km/L] is lost for every 300 lb [136 kg] of weight carried).
•Adding certain accessories to your vehicle (for example; bug
deflectors, rollbars/light bars, running boards, ski/luggage racks, flags)
may reduce fuel economy.
•Using fuel blended with alcohol may lower fuel economy.
•Driving on flat terrain offers improved fuel economy as compared to
driving on mountainous terrain.
Maintenance and Specifications
303
2011 Fusion Hybrid(hfv)
Owners Guide, 2nd Printing
USA(fus)

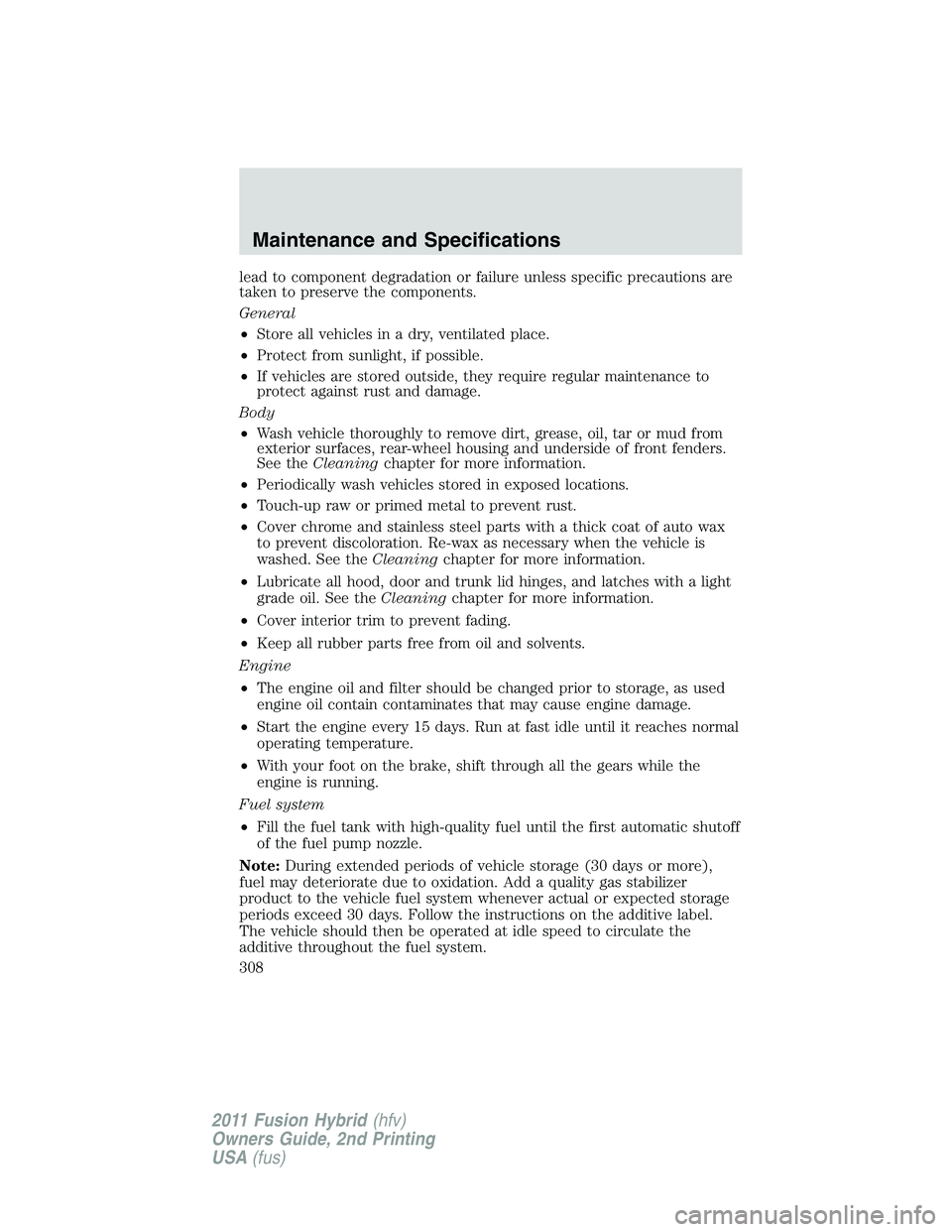

lead to component degradation or failure unless specific precautions are
taken to preserve the components.
General
•Store all vehicles in a dry, ventilated place.
•Protect from sunlight, if possible.
•If vehicles are stored outside, they require regular maintenance to
protect against rust and damage.
Body
•Wash vehicle thoroughly to remove dirt, grease, oil, tar or mud from
exterior surfaces, rear-wheel housing and underside of front fenders.
See theCleaningchapter for more information.
•Periodically wash vehicles stored in exposed locations.
•Touch-up raw or primed metal to prevent rust.
•Cover chrome and stainless steel parts with a thick coat of auto wax
to prevent discoloration. Re-wax as necessary when the vehicle is
washed. See theCleaningchapter for more information.
•Lubricate all hood, door and trunk lid hinges, and latches with a light
grade oil. See theCleaningchapter for more information.
•Cover interior trim to prevent fading.
•Keep all rubber parts free from oil and solvents.
Engine
•The engine oil and filter should be changed prior to storage, as used
engine oil contain contaminates that may cause engine damage.
•Start the engine every 15 days. Run at fast idle until it reaches normal
operating temperature.
•With your foot on the brake, shift through all the gears while the
engine is running.
Fuel system
•Fill the fuel tank with high-quality fuel until the first automatic shutoff
of the fuel pump nozzle.
Note:During extended periods of vehicle storage (30 days or more),
fuel may deteriorate due to oxidation. Add a quality gas stabilizer
product to the vehicle fuel system whenever actual or expected storage
periods exceed 30 days. Follow the instructions on the additive label.
The vehicle should then be operated at idle speed to circulate the
additive throughout the fuel system.
Maintenance and Specifications
308
2011 Fusion Hybrid(hfv)
Owners Guide, 2nd Printing
USA(fus)

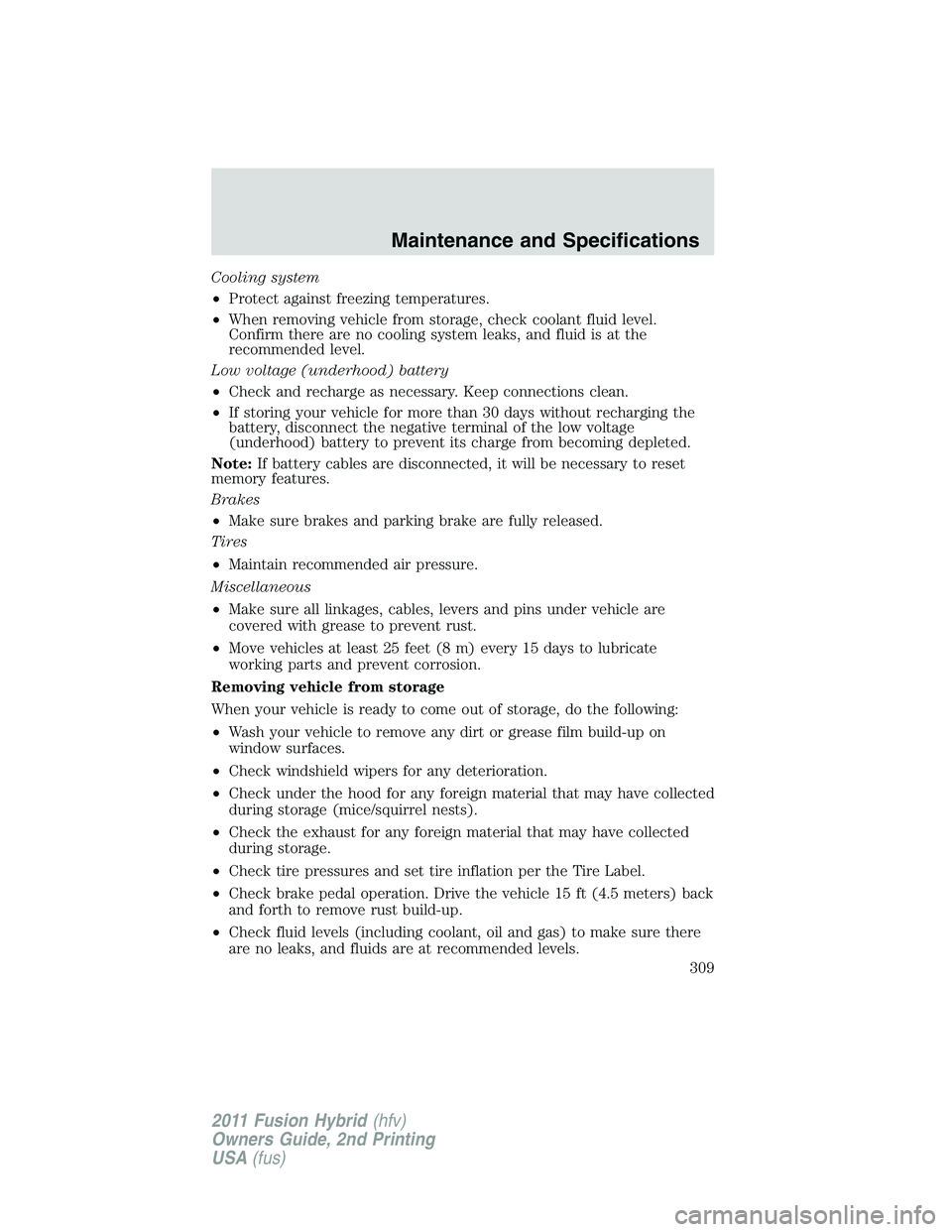

Cooling system
•Protect against freezing temperatures.
•When removing vehicle from storage, check coolant fluid level.
Confirm there are no cooling system leaks, and fluid is at the
recommended level.
Low voltage (underhood) battery
•Check and recharge as necessary. Keep connections clean.
•If storing your vehicle for more than 30 days without recharging the
battery, disconnect the negative terminal of the low voltage
(underhood) battery to prevent its charge from becoming depleted.
Note:If battery cables are disconnected, it will be necessary to reset
memory features.
Brakes
•Make sure brakes and parking brake are fully released.
Tires
•Maintain recommended air pressure.
Miscellaneous
•Make sure all linkages, cables, levers and pins under vehicle are
covered with grease to prevent rust.
•Move vehicles at least 25 feet (8 m) every 15 days to lubricate
working parts and prevent corrosion.
Removing vehicle from storage
When your vehicle is ready to come out of storage, do the following:
•Wash your vehicle to remove any dirt or grease film build-up on
window surfaces.
•Check windshield wipers for any deterioration.
•Check under the hood for any foreign material that may have collected
during storage (mice/squirrel nests).
•Check the exhaust for any foreign material that may have collected
during storage.
•Check tire pressures and set tire inflation per the Tire Label.
•Check brake pedal operation. Drive the vehicle 15 ft (4.5 meters) back
and forth to remove rust build-up.
•Check fluid levels (including coolant, oil and gas) to make sure there
are no leaks, and fluids are at recommended levels.
Maintenance and Specifications
309
2011 Fusion Hybrid(hfv)
Owners Guide, 2nd Printing
USA(fus)

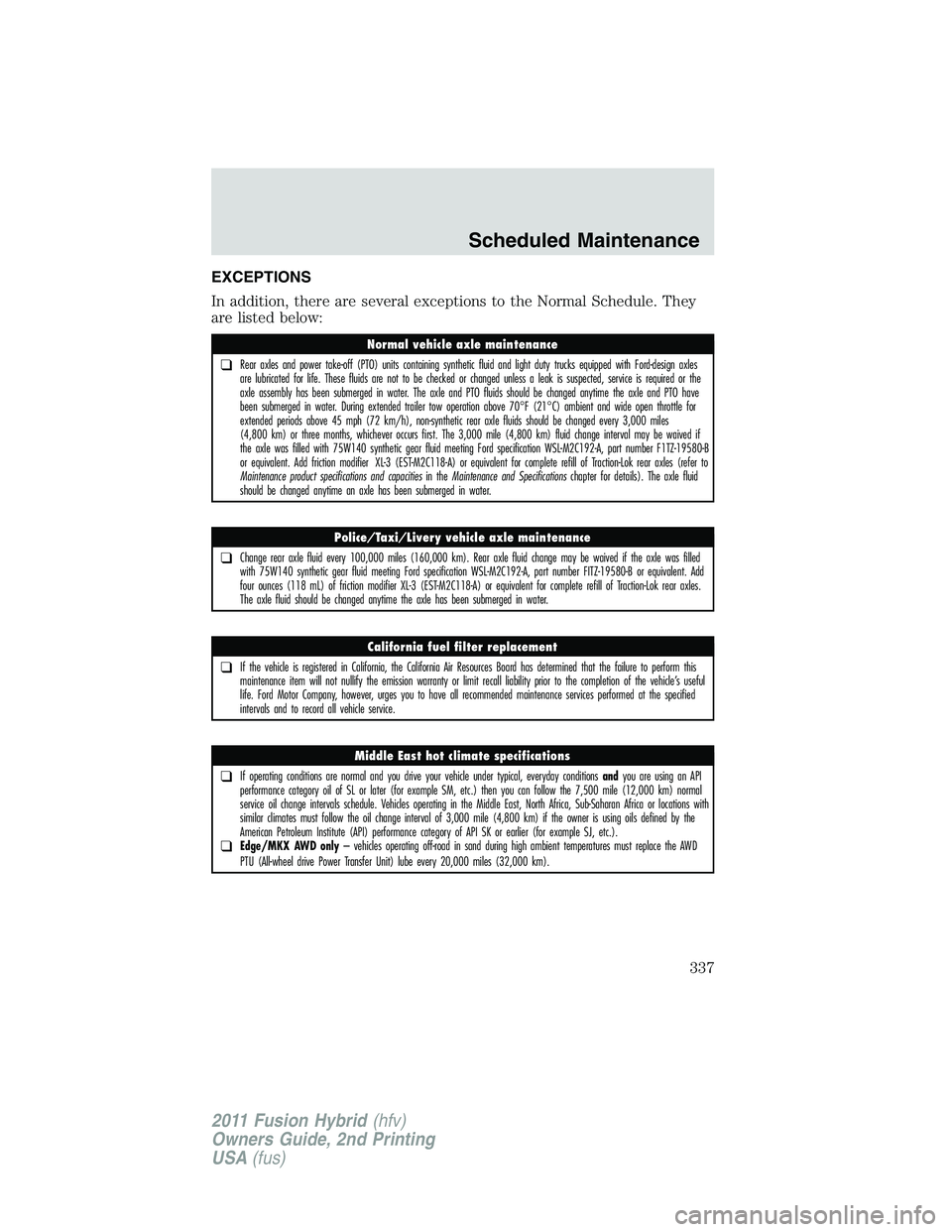

EXCEPTIONS
In addition, there are several exceptions to the Normal Schedule. They
are listed below:
Normal vehicle axle maintenance
❑Rear axles and power take-off (PTO) units containing synthetic fluid and light duty trucks equipped with Ford-design axles
are lubricated for life. These fluids are not to be checked or changed unless a leak is suspected, service is required or the
axle assembly has been submerged in water. The axle and PTO fluids should be changed anytime the axle and PTO have
been submerged in water. During extended trailer tow operation above 70°F (21°C) ambient and wide open throttle for
extended periods above 45 mph (72 km/h), non-synthetic rear axle fluids should be changed every 3,000 miles
(4,800 km) or three months, whichever occurs first. The 3,000 mile (4,800 km) fluid change interval may be waived if
the axle was filled with 75W140 synthetic gear fluid meeting Ford specification WSL-M2C192-A, part number F1TZ-19580-B
or equivalent. Add friction modifier XL-3 (EST-M2C118-A) or equivalent for complete refill of Traction-Lok rear axles (refer to
Maintenance product specifications and capacitiesin theMaintenance and Specificationschapter for details). The axle fluid
should be changed anytime an axle has been submerged in water.
Police/Taxi/Livery vehicle axle maintenance
❑Change rear axle fluid every 100,000 miles (160,000 km). Rear axle fluid change may be waived if the axle was filled
with 75W140 synthetic gear fluid meeting Ford specification WSL-M2C192-A, part number FITZ-19580-B or equivalent. Add
four ounces (118 mL) of friction modifier XL-3 (EST-M2C118-A) or equivalent for complete refill of Traction-Lok rear axles.
The axle fluid should be changed anytime the axle has been submerged in water.
California fuel filter replacement
❑If the vehicle is registered in California, the California Air Resources Board has determined that the failure to perform this
maintenance item will not nullify the emission warranty or limit recall liability prior to the completion of the vehicle’s useful
life. Ford Motor Company, however, urges you to have all recommended maintenance services performed at the specified
intervals and to record all vehicle service.
Middle East hot climate specifications
❑If operating conditions are normal and you drive your vehicle under typical, everyday conditionsandyou are using an API
performance category oil of SL or later (for example SM, etc.) then you can follow the 7,500 mile (12,000 km) normal
service oil change intervals schedule. Vehicles operating in the Middle East, North Africa, Sub-Saharan Africa or locations with
similar climates must follow the oil change interval of 3,000 mile (4,800 km) if the owner is using oils defined by the
American Petroleum Institute (API) performance category of API SK or earlier (for example SJ, etc.).
❑Edge/MKX AWD only– vehicles operating off-road in sand during high ambient temperatures must replace the AWD
PTU (All-wheel drive Power Transfer Unit) lube every 20,000 miles (32,000 km).
Scheduled Maintenance
337
2011 Fusion Hybrid(hfv)
Owners Guide, 2nd Printing
USA(fus)
