technical specifications FORD FUSION HYBRID 2014 Owners Manual

Hazard Warning Flashers..........................225
Fuel Shutoff...................................................225
Jump-Starting the Vehicle........................225
Collision, Damage or Fire Event.............228
Post-Crash Alert System..........................230
Fuses Changing a Fuse............................................231
Fuse Specification Chart............................231
Maintenance General Information....................................241
Opening and Closing the Hood...............241
Under Hood Overview - 2.0L Hybrid.....242
Engine Oil Dipstick - 2.0L Hybrid...........244
Engine Oil Check..........................................244
Oil Change Indicator Reset......................245
Engine Coolant Check...............................245
Automatic Transmission Fluid
Check...........................................................249
Brake Fluid Check........................................249
Power Steering Fluid Check....................249
Fuel Filter........................................................249
Washer Fluid Check....................................249
Changing the 12V Battery.........................249
Checking the Wiper Blades.......................251
Changing the Wiper Blades......................251
Changing the Engine Air Filter.................252
Adjusting the Headlamps.........................253
Removing a Headlamp..............................254
Changing a Bulb...........................................255
Bulb Specification Chart..........................258
Vehicle Care General Information...................................260
Cleaning Products......................................260
Cleaning the Exterior.................................260
Repairing Minor Paint Damage...............261
Waxing ..............................................................261 Cleaning the Engine....................................262
Cleaning the Windows and Wiper
Blades..........................................................262
Cleaning the Interior...................................262
Cleaning the Instrument Panel and
Instrument Cluster Lens.......................263
Cleaning Leather Seats.............................264
Cleaning the Alloy Wheels.......................264
Vehicle Storage............................................265
Wheels and Tires Temporary Mobility Kit...............................267
Tire Care...........................................................273
Tire Pressure Monitoring System..........288
Using Snow Chains......................................291
Technical Specifications...........................292
Capacities and Specific-
ations Engine Specifications................................293
Motorcraft Parts..........................................294
Vehicle Identification Number................295
Vehicle Certification Label.......................295
Transmission Code Designation............296
Technical Specifications...........................297
Audio System General Information...................................299
Audio unit - Vehicles With:
AM/FM/CD/SYNC/Satellite
Radio...........................................................300
Audio unit - Vehicles With: Premium
AM/FM/CD ................................................302
Audio unit - Vehicles With: Sony
AM/FM/CD ................................................304
Digital Audio..................................................307
Satellite Radio...............................................310
Auxiliary Input Jack.......................................312
USB Port...........................................................313
Media Hub.......................................................313
4Table of Contents

GENERAL INFORMATION ON
RADIO FREQUENCIES This device complies with Part 15 of the
FCC Rules and with Industry Canada
license-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) This device
must accept any interference received,
including interference that may cause
undesired operation.
Note: Changes or modifications not
expressively approved by the party
responsible for compliance could void the
user's authority to operate the equipment.
The term IC before the radio certification
number only signifies that Industry Canada
technical specifications were met.
The typical operating range for your
transmitter is approximately 33 feet (10
meters). Vehicles with the remote start
feature will have a greater range. One of
the following could cause a decrease in
operating range:
• weather conditions
• nearby radio towers
• structures around the vehicle
• other vehicles parked next to your
vehicle
The radio frequency used by your remote
control can also be used by other short
distance radio transmissions, for example
amateur radios, medical equipment,
wireless headphones, remote controls and
alarm systems. If the frequencies are
jammed, you will not be able to use your
remote control. You can lock and unlock
the doors with the key.
Note: Make sure to lock your vehicle before
leaving it unattended.
Note: If you are in range, the remote control
will operate if you press any button
unintentionally. Intelligent Access (If Equipped)
The system uses a radio frequency signal
to communicate with your vehicle and
authorize your vehicle to unlock when one
of the following conditions are met:
• You touch the inside of the front
exterior door handle.
• You press the luggage compartment
button.
• You press a button on the transmitter.
If excessive radio frequency interference
is present in the area or if the transmitter
battery is low, you may need to
mechanically unlock your door. You can
use the mechanical key blade in your
intelligent access key to open the driver
door in this situation. See Remote
Control (page 44).
REMOTE CONTROL Integrated Keyhead Transmitters (If Equipped)
Use the key blade to start your vehicle and
unlock or lock the driver door from outside
your vehicle. The transmitter portion
functions as the remote control.
E151797
Press the button to release the key. Press
and hold the button to fold the key back
in when not in use.
44Keys and Remote Controls

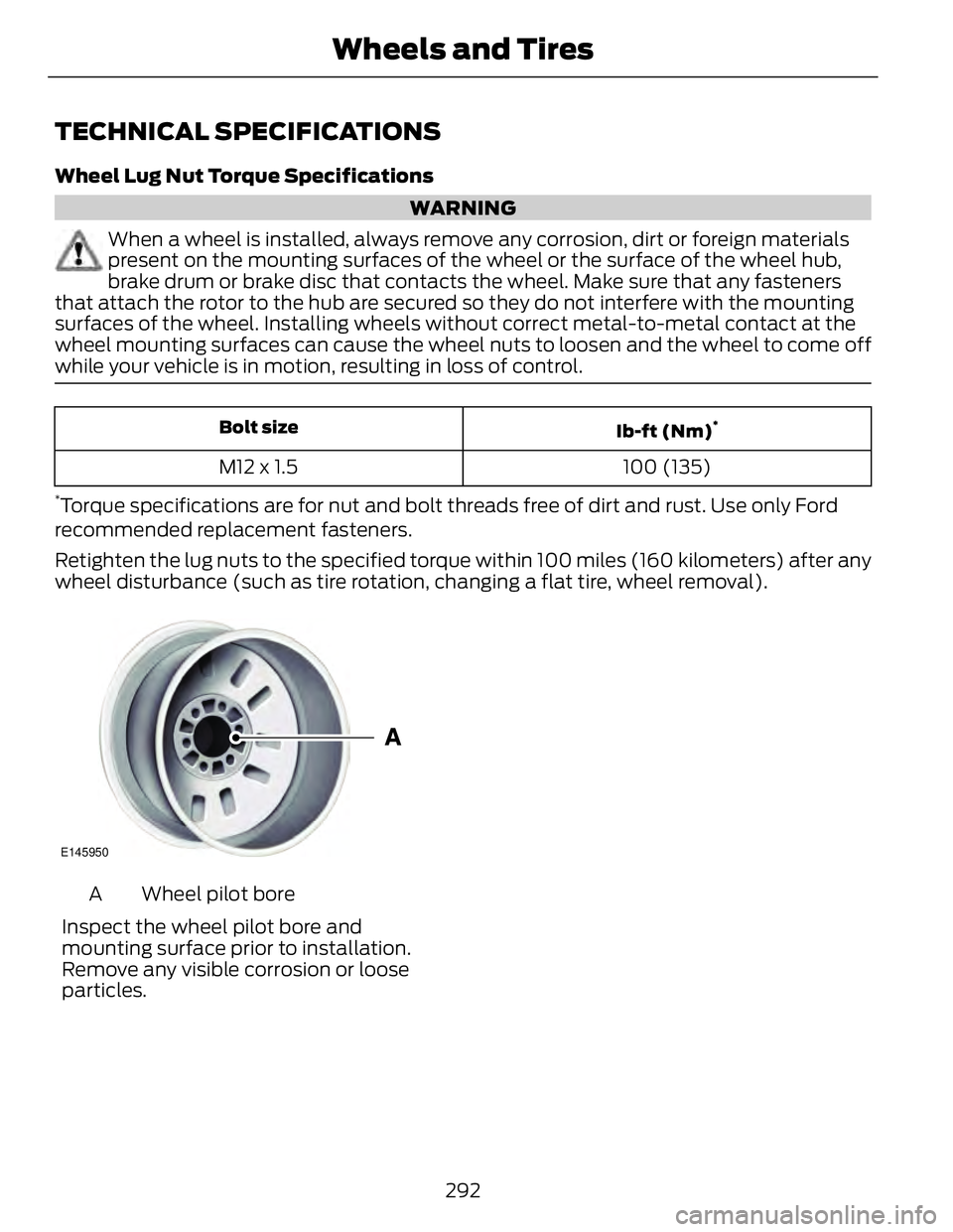

TECHNICAL SPECIFICATIONS Wheel Lug Nut Torque Specifications
WARNING
When a wheel is installed, always remove any corrosion, dirt or foreign materials
present on the mounting surfaces of the wheel or the surface of the wheel hub,
brake drum or brake disc that contacts the wheel. Make sure that any fasteners
that attach the rotor to the hub are secured so they do not interfere with the mounting
surfaces of the wheel. Installing wheels without correct metal-to-metal contact at the
wheel mounting surfaces can cause the wheel nuts to loosen and the wheel to come off
while your vehicle is in motion, resulting in loss of control. Ib-ft (Nm) *
Bolt size
100 (135)M12 x 1.5*
Torque specifications are for nut and bolt threads free of dirt and rust. Use only Ford
recommended replacement fasteners.
Retighten the lug nuts to the specified torque within 100 miles (160 kilometers) after any
wheel disturbance (such as tire rotation, changing a flat tire, wheel removal).
E145950
Wheel pilot boreA
Inspect the wheel pilot bore and
mounting surface prior to installation.
Remove any visible corrosion or loose
particles.
292Wheels and Tires

TECHNICAL SPECIFICATIONS Ford part number /
Ford specificationFord part name or
equivalentCapacityItem
PM-1-C /Motorcraft™ DOT 4
LV High Perform-
ance Brake FluidBetween MIN and
MAX on reservoirBrake fluid 1
WSS-M6C65-A2 and
ISO 4925 Class 6
Motorcraft XL-5
(aerosol) and/or
CRCSL3151ESB /Multi-Purpose
Grease (lithium
grease)Not applicableHinges, latches,
striker plates and
rotors, seat tracks,
fuel filler door
hinge and spring /ESB-M1C93-B
XL-1 /NoneMotorcraft Penet-
rating and Lock
LubricantNot applicableLock cylinder
XT-10-QLV MERCON
LVMotorcraft
MERCON™ LV ATF5.7 qt (5.4L)Automatic trans-
mission fluid 2, 3
WSS-M2C945-AMotorcraft SAE 5W-
20 or equivalent4.5 qt (4.3L)
Engine oil 4, 5
VC-3DIL-B (U.S.)Motorcraft Orange
Antifreeze / Coolant
Prediluted8.8 qt (8.3L)Energi engine
coolant 6
CVC-3DIL-B
(Canada)
8.2 qt (8.2L)Hybrid engine
coolant 6
/WSS-M97B44-D2
1 qt (1.1L)Inverter system
controller coolant 6
ZC-32-A (U.S.)Motorcraft Premium
Windshield Washer
Concentrate (U.S.)Fill as requiredWindshield washer
fluid CXC-37-(A, B, D, and
F) (Canada)
Premium Quality
Windshield Washer
Fluid (Canada) /WSB-M8B16-A2
Not applicableNot applicable14 gal (53L)Energi fuel tank
13.5 gal (51.1L)Hybrid fuel tank
YN-19 (US)Motorcraft R-134a
Refrigerant1.25 lb (0.567 kg)A/C Refrigerant 7
CYR-16-R (Canada)
297Capacities and Specifications

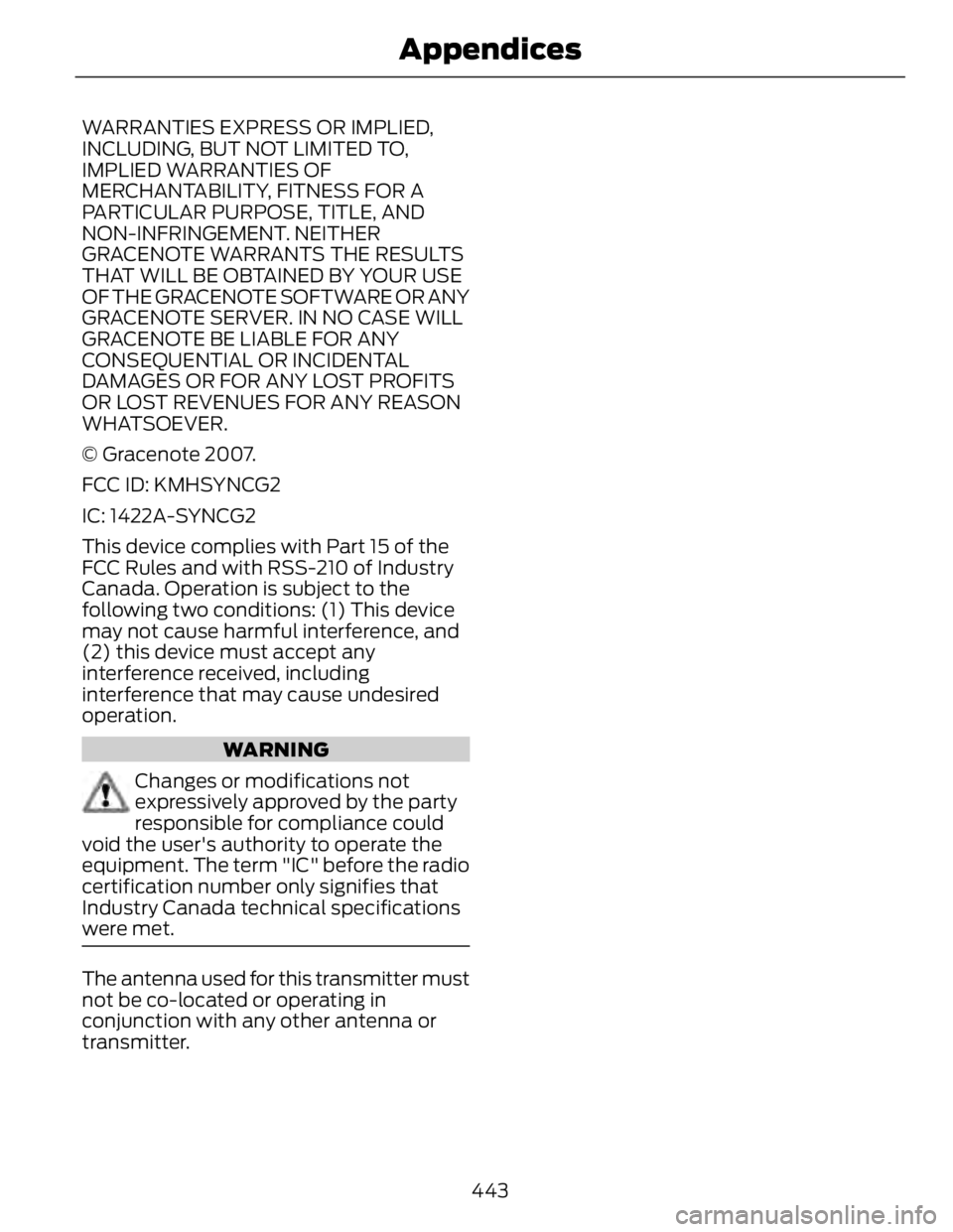

WARRANTIES EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO,
IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE, TITLE, AND
NON-INFRINGEMENT. NEITHER
GRACENOTE WARRANTS THE RESULTS
THAT WILL BE OBTAINED BY YOUR USE
OF THE GRACENOTE SOFTWARE OR ANY
GRACENOTE SERVER. IN NO CASE WILL
GRACENOTE BE LIABLE FOR ANY
CONSEQUENTIAL OR INCIDENTAL
DAMAGES OR FOR ANY LOST PROFITS
OR LOST REVENUES FOR ANY REASON
WHATSOEVER.
© Gracenote 2007.
FCC ID: KMHSYNCG2
IC: 1422A-SYNCG2
This device complies with Part 15 of the
FCC Rules and with RSS-210 of Industry
Canada. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
WARNING
Changes or modifications not
expressively approved by the party
responsible for compliance could
void the user's authority to operate the
equipment. The term "IC" before the radio
certification number only signifies that
Industry Canada technical specifications
were met.
The antenna used for this transmitter must
not be co-located or operating in
conjunction with any other antenna or
transmitter.
443Appendices

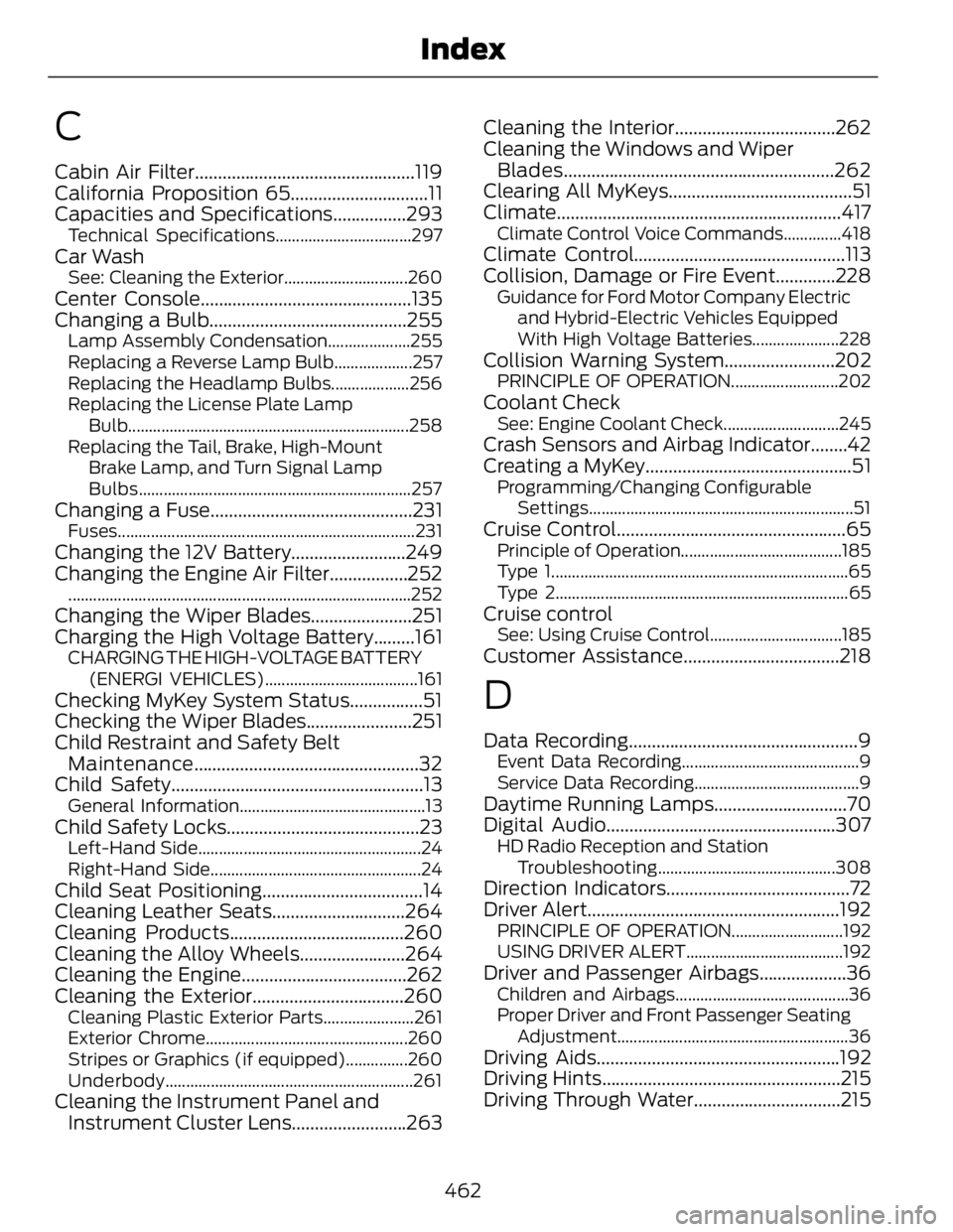

C Cabin Air Filter................................................119
California Proposition 65..............................11
Capacities and Specifications................293 Technical Specifications.................................297
Car Wash See: Cleaning the Exterior..............................260
Center Console..............................................135
Changing a Bulb...........................................255 Lamp Assembly Condensation....................255
Replacing a Reverse Lamp Bulb...................257
Replacing the Headlamp Bulbs...................256
Replacing the License Plate Lamp
Bulb .................................................................... 258
Replacing the Tail, Brake, High-Mount
Brake Lamp, and Turn Signal Lamp
Bulbs ..................................................................257
Changing a Fuse............................................231 Fuses ........................................................................231
Changing the 12V Battery.........................249
Changing the Engine Air Filter.................252 ...................................................................................252
Changing the Wiper Blades......................251
Charging the High Voltage Battery.........161 CHARGING THE HIGH-VOLTAGE BATTERY
(ENERGI VEHICLES).....................................161
Checking MyKey System Status................51
Checking the Wiper Blades.......................251
Child Restraint and Safety Belt
Maintenance .................................................32
Child Safety.......................................................13 General Information.............................................13
Child Safety Locks..........................................23 Left-Hand Side......................................................24
Right-Hand Side...................................................24
Child Seat Positioning...................................14
Cleaning Leather Seats.............................264
Cleaning Products......................................260
Cleaning the Alloy Wheels.......................264
Cleaning the Engine....................................262
Cleaning the Exterior.................................260 Cleaning Plastic Exterior Parts......................261
Exterior Chrome.................................................260
Stripes or Graphics (if equipped)...............260
Underbody ............................................................261
Cleaning the Instrument Panel and
Instrument Cluster Lens.........................263 Cleaning the Interior...................................262
Cleaning the Windows and Wiper
Blades...........................................................262
Clearing All MyKeys........................................51
Climate..............................................................417 Climate Control Voice Commands..............418
Climate Control..............................................113
Collision, Damage or Fire Event.............228 Guidance for Ford Motor Company Electric
and Hybrid-Electric Vehicles Equipped
With High Voltage Batteries.....................228
Collision Warning System........................202 PRINCIPLE OF OPERATION..........................202
Coolant Check See: Engine Coolant Check............................245
Crash Sensors and Airbag Indicator........42
Creating a MyKey.............................................51 Programming/Changing Configurable
Settings ................................................................51
Cruise Control..................................................65 Principle of Operation.......................................185
Type 1........................................................................65
Type 2.......................................................................65
Cruise control See: Using Cruise Control................................185
Customer Assistance..................................218
D Data Recording..................................................9 Event Data Recording...........................................9
Service Data Recording........................................9
Daytime Running Lamps.............................70
Digital Audio..................................................307 HD Radio Reception and Station
Troubleshooting ...........................................308
Direction Indicators........................................72
Driver Alert.......................................................192 PRINCIPLE OF OPERATION...........................192
USING DRIVER ALERT......................................192
Driver and Passenger Airbags...................36 Children and Airbags..........................................36
Proper Driver and Front Passenger Seating
Adjust ment........................................................ 36
Driving Aids.....................................................192
Driving Hints....................................................215
Driving Through Water................................215
462Index

Satellite Radio...............................................310 Satellite Radio Electronic Serial Number
(ESN)...................................................................311
Satellite Radio Reception Factors...............310
SIRIUS® Satellite Radio Service..................310
Trouble shooting ................................................... 311
Scheduled Maintenance Record...........454
Scheduled Maintenance..........................444
Seats...................................................................121
Security ...............................................................61
Settings...........................................................364 Clock .......................................................................365
Display ...................................................................365
Settings ..................................................................367
Sound ....................................................................366
Vehicle ...................................................................366
Side Airbags.....................................................40
Side Curtain Airbags......................................41
Sitting in the Correct Position...................121
Snow Chains See: Using Snow Chains..................................291
Special Notices................................................12 New Vehicle Limited Warranty.........................12
Special Instructions..............................................12
Special Operating Conditions Scheduled
Maintenance ...............................................451Exceptions ............................................................453
Speed Control See: Cruise Control............................................185
Stability Control.............................................175 Principle of Operation.......................................175
Starter Switch See: Ignition Switch...........................................136
Starting a Gasoline Engine........................137 Automatic Shutdown.......................................138
Guarding Against Exhaust Fumes...............140
Important Ventilating Information..............140
Switching Off the Vehicle When It Is
Moving...............................................................139
Switching Off the Vehicle When It Is
Stationary .........................................................139
Vehicles with an Ignition Key..........................137
Vehicles with Keyless Start.............................137
Starting and Stopping the Engine..........136
General Information..........................................136
Steering ............................................................ 201
Electric Power Steering....................................201
Steering Wheel...............................................64 Storage Compartments.............................135
Sunroof See: Moonroof........................................................77
Sun Visors..........................................................77 Illuminated Vanity Mirror....................................77
Supplementary Restraints System.........35 Principle of Operation.........................................35
Symbols Glossary.............................................7
SYNC™ Applications and
Services ........................................................335911 Assist...............................................................335
SYNC AppLink.....................................................341
SYNC Services: Traffic, Directions &
Information (TDI).........................................338
Vehicle Health Report......................................337
SYNC™............................................................319 General Information..........................................319
SYNC™ Troubleshooting.........................350
T Technical Specifications See: Capacities and Specifications............293
Temporary Mobility Kit...............................267 First Stage: Reinflating the Tire with Sealing
Compound and Air.......................................269
General Information..........................................267
Second Stage: Checking Tire
Pressure ............................................................270
Tips for Use of the Kit......................................268
What to do after the Tire has been
Sealed.................................................................271
What to do when a Tire Is Punctured........268
The Better Business Bureau (BBB) Auto
Line Program (U.S. Only).......................220
Tire Care...........................................................273 Glossary of Tire Terminology.........................274
Information About Uniform Tire Quality
Grading ..............................................................273
Information Contained on the Tire
Sidewall............................................................275
Temperature A B C.............................................274
Traction AA A B C...............................................273
Treadwear.............................................................273
Tire Inflation When Punctured
See: Temporary Mobility Kit...........................267
468Index

Vehicle Storage............................................265 Battery...................................................................265
Body........................................................................ 265
Brakes....................................................................266
Cooling system...................................................265
Engine ....................................................................265
Fuel system..........................................................265
General ..................................................................265
Miscellane ous..................................................... 266
Removing Vehicle From Storage.................266
Tires........................................................................266
Ventilated Seats............................................127 Heated and ventilated seat air filter
replacement (if equipped).........................127
Ventilation See: Climate Control..........................................113
VIN See: Vehicle Identification Number............295
Voice Control...................................................65
W Warning Lamps and Indicators..................81 Adaptive Cruise Control.....................................82
Anti-Lock Braking System................................82
Battery......................................................................82
Blind Spot Monitor...............................................82
Brake System.........................................................82
Cruise Control........................................................82
Direction Indicator................................................82
Door Ajar..................................................................82
Electric Park Brake...............................................83
Engine/Motor Coolant Temperature............83
Engine Oil................................................................83
EV Later...................................................................83
EV Now....................................................................83
Fasten Safety Belt...............................................83
Front Airbag............................................................83
Front Fog Lamps..................................................83
Grade Assist...........................................................83
Heads Up Display.................................................83
High Beam..............................................................83
Hood Ajar................................................................83
Lane Keeping Aid.................................................83
Low Fuel Level......................................................84
Low Tire Pressure Warning...............................84
Parking Lamps......................................................84
Powertrain Fault...................................................84
Ready to Drive.......................................................84
Service Engine Soon...........................................84
Stability Control...................................................85
Stability Control Off............................................85
Stop Safely.............................................................85
Trunk Ajar................................................................85
Vehicle Plugged in................................................85
Washer Fluid Check....................................249
Washers See: Cleaning the Exterior..............................260
See: Wipers and Washers..................................67
Waxing ..............................................................261
Wheels and Tires.........................................267 Technical Specifications.................................292
Windows and Mirrors....................................74
Windshield Washers.....................................68
Windshield Wipers.........................................67
Intermittent Wipe.................................................67
Speed Dependent Wipers.................................67
Wipers and Washers.....................................67
470Index
