Page 251 of 538

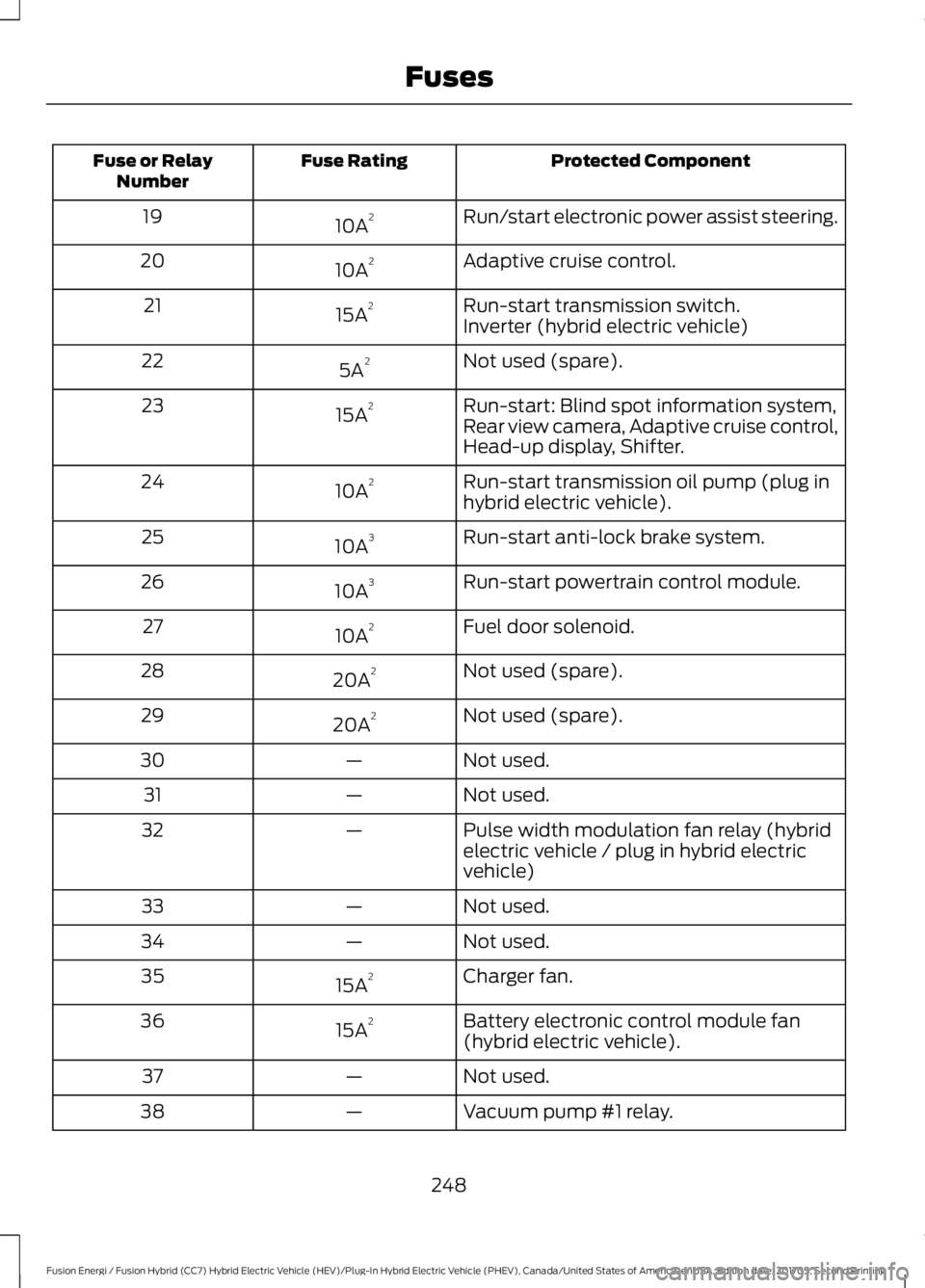

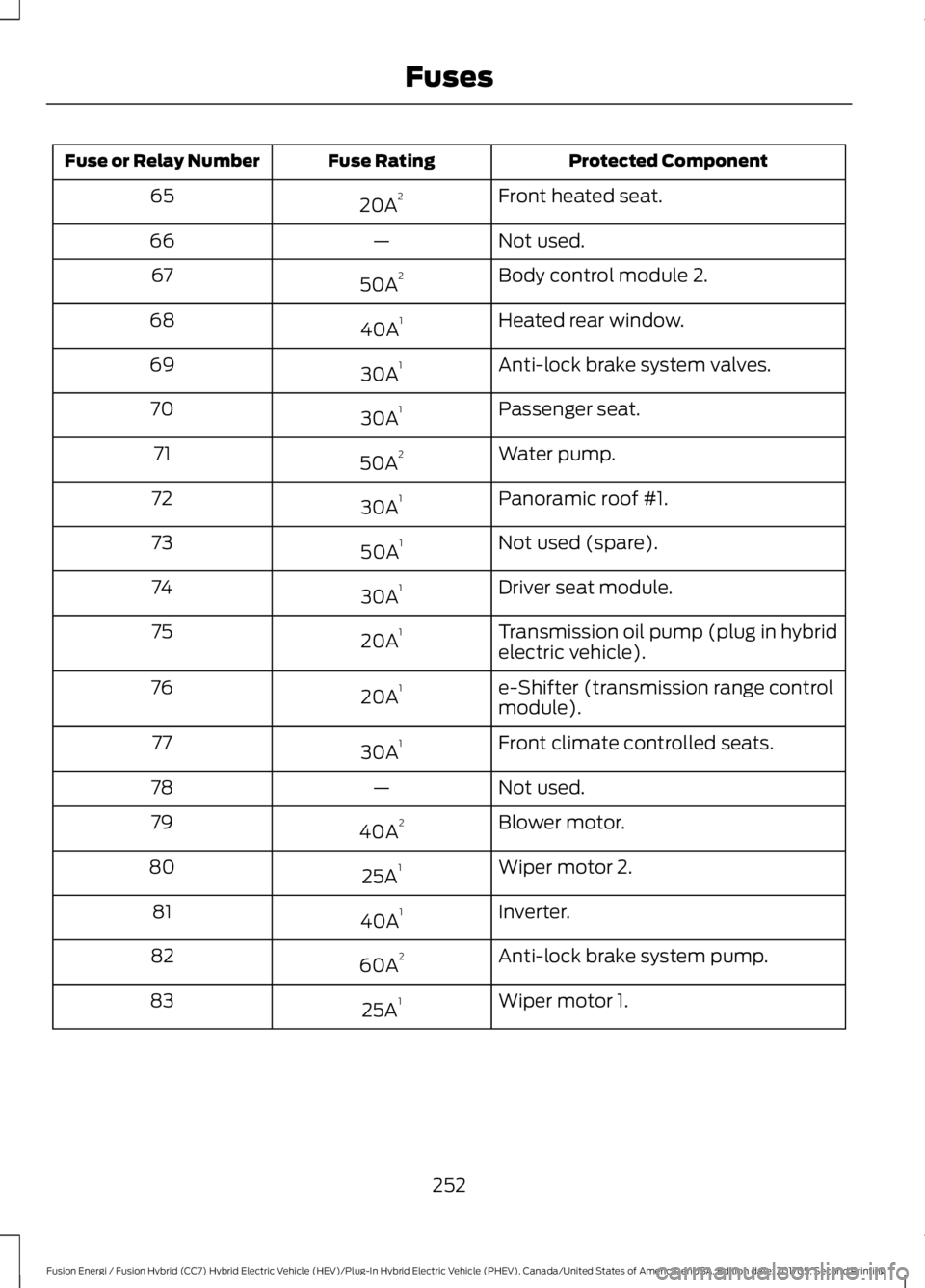

FORD FUSION/HYBRID 2018  Owners Manual Protected Component
Fuse Rating
Fuse or Relay
Number
Run/start electronic power assist steering.
10A 2
19
Adaptive cruise control.
10A 2
20
Run-start transmission switch.
15A 2
21
Inverter (hybrid ele

Page 252 of 538

FORD FUSION/HYBRID 2018  Owners Manual Protected Component
Fuse Rating
Fuse or Relay
Number
Vacuum pump #2 relay.
—
39
Fuel pump relay.
—
40
Horn relay.
—
41
Not used.
—
42
Not used.
—
43
Not used.
—
44
Vacuum pump monitor.
5A

Page 253 of 538

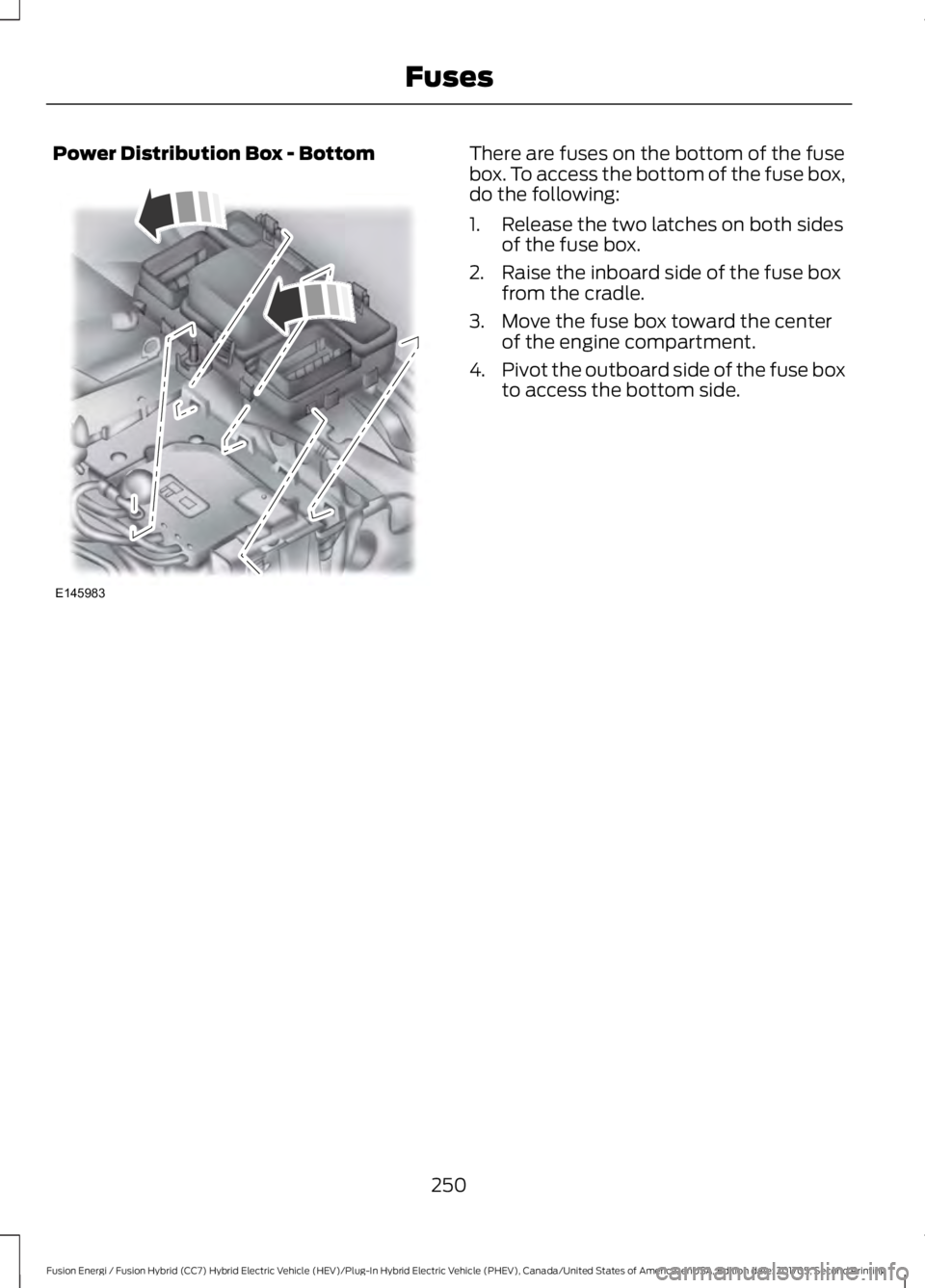

FORD FUSION/HYBRID 2018  Owners Manual Power Distribution Box - Bottom There are fuses on the bottom of the fuse
box. To access the bottom of the fuse box,
do the following:
1. Release the two latches on both sides
of the fuse box.
2. Rais

Page 254 of 538

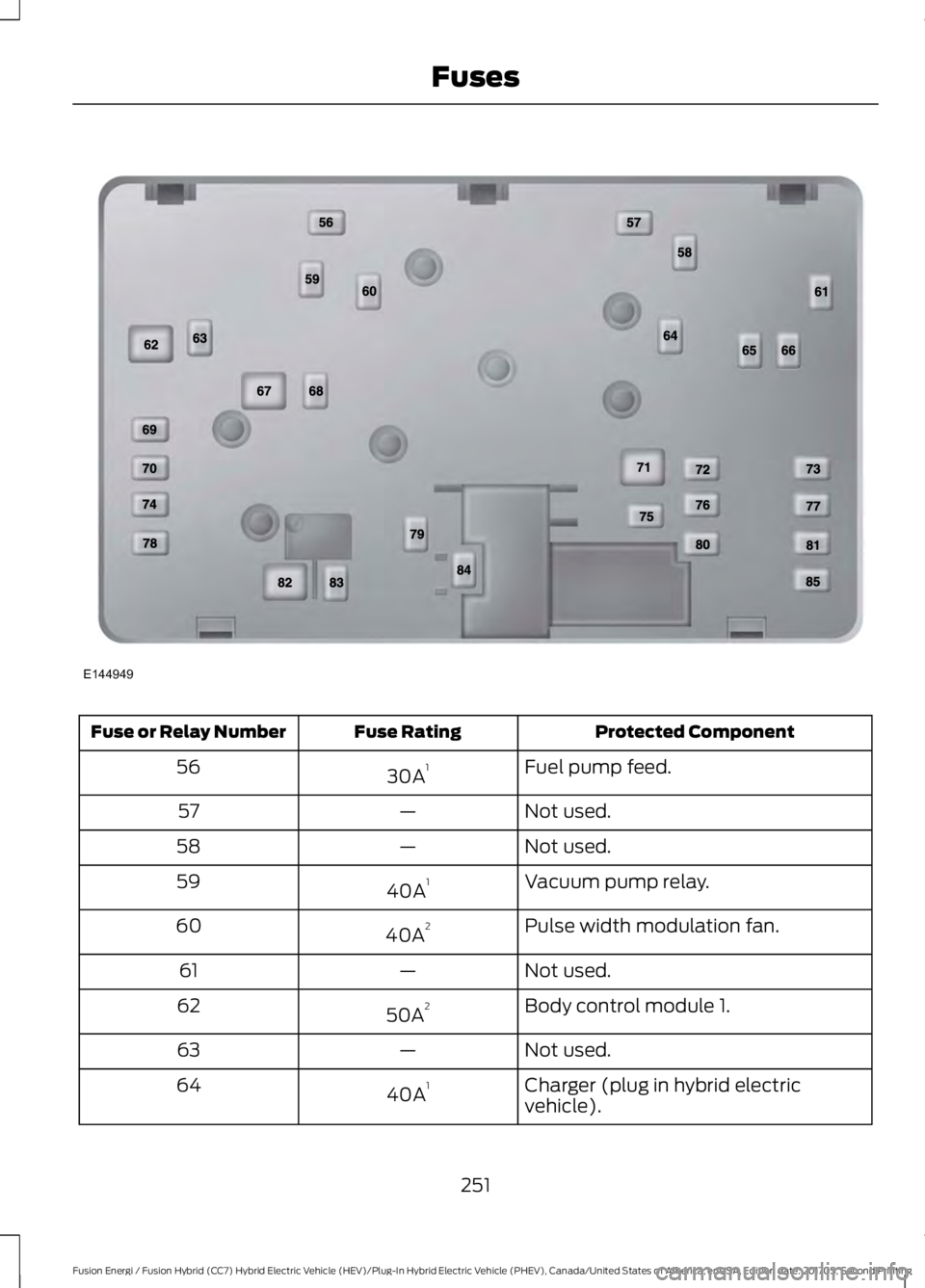

FORD FUSION/HYBRID 2018  Owners Manual Protected Component
Fuse Rating
Fuse or Relay Number
Fuel pump feed.
30A 1
56
Not used.
—
57
Not used.
—
58
Vacuum pump relay.
40A 1
59
Pulse width modulation fan.
40A 2
60
Not used.
—
61
Body c

Page 255 of 538

FORD FUSION/HYBRID 2018  Owners Manual Protected Component
Fuse Rating
Fuse or Relay Number
Front heated seat.
20A 2
65
Not used.
—
66
Body control module 2.
50A 2
67
Heated rear window.
40A 1
68
Anti-lock brake system valves.
30A 1
69
P

Page 256 of 538

FORD FUSION/HYBRID 2018  Owners Manual Protected Component
Fuse Rating
Fuse or Relay Number
Not used.
—
84
Not used (spare).
30A 1
85
1  M Case fuse.
2  J Case fuse.

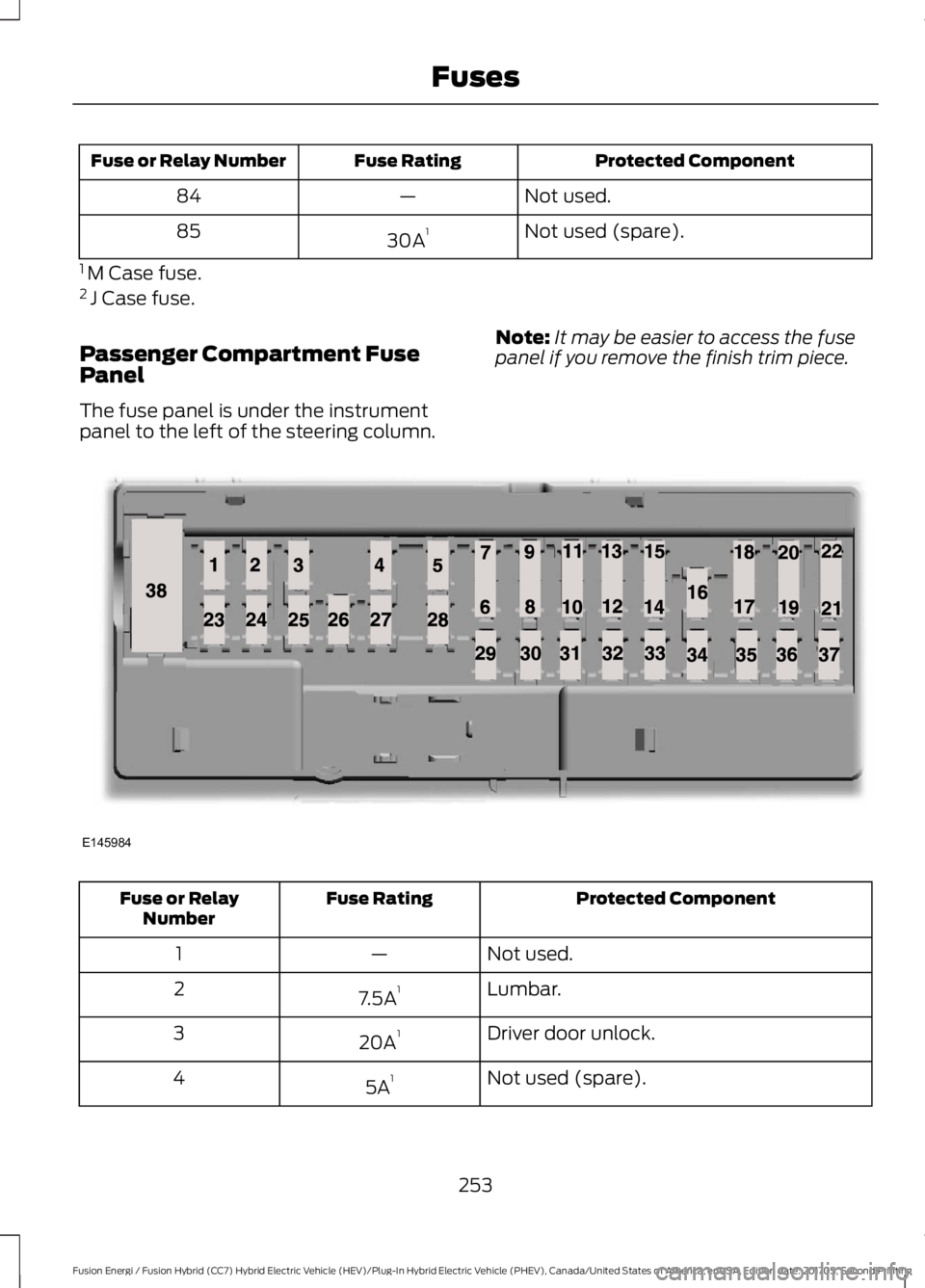

Passenger Compartment Fuse
Panel
The fuse panel is under the instrument

Page 257 of 538

FORD FUSION/HYBRID 2018  Owners Manual Protected Component
Fuse Rating
Fuse or Relay
Number
Subwoofer amplifier.
20A 1
5
Not used (spare).
10A 2
6
Not used (spare).
10A 2
7
Not used (spare).
10A 2
8
Not used (spare).
10A 2
9
Keypad.
5A 2
1

Page 258 of 538

FORD FUSION/HYBRID 2018  Owners Manual Protected Component
Fuse Rating
Fuse or Relay
Number
Central lock unlock
20A 1
24
Driver door (window, mirror).
30A 1
25
Front passenger door (window, mirror).
30A 1
26
Moonroof.
30A 1
27
Amplifier.
2

Page 259 of 538

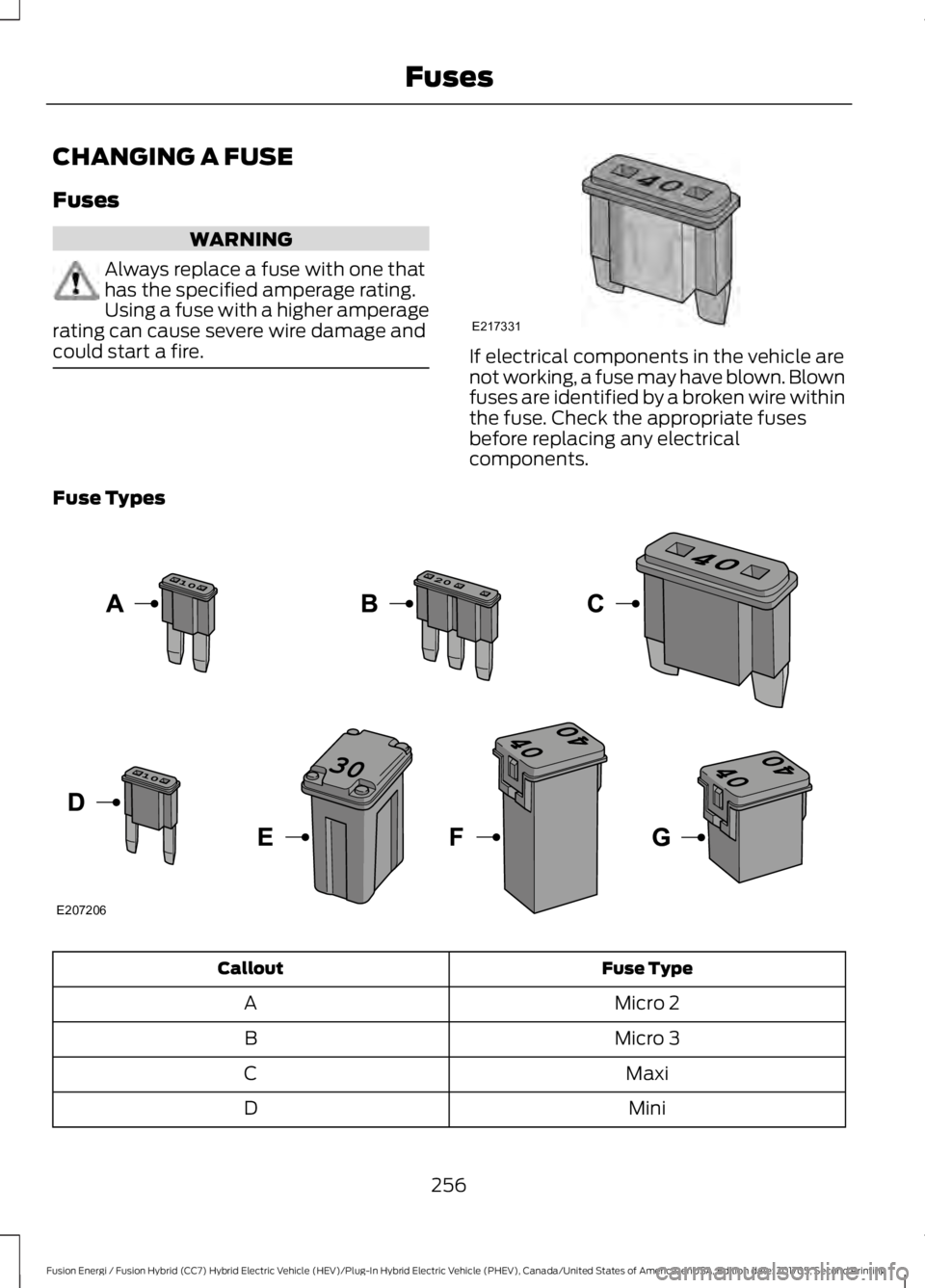

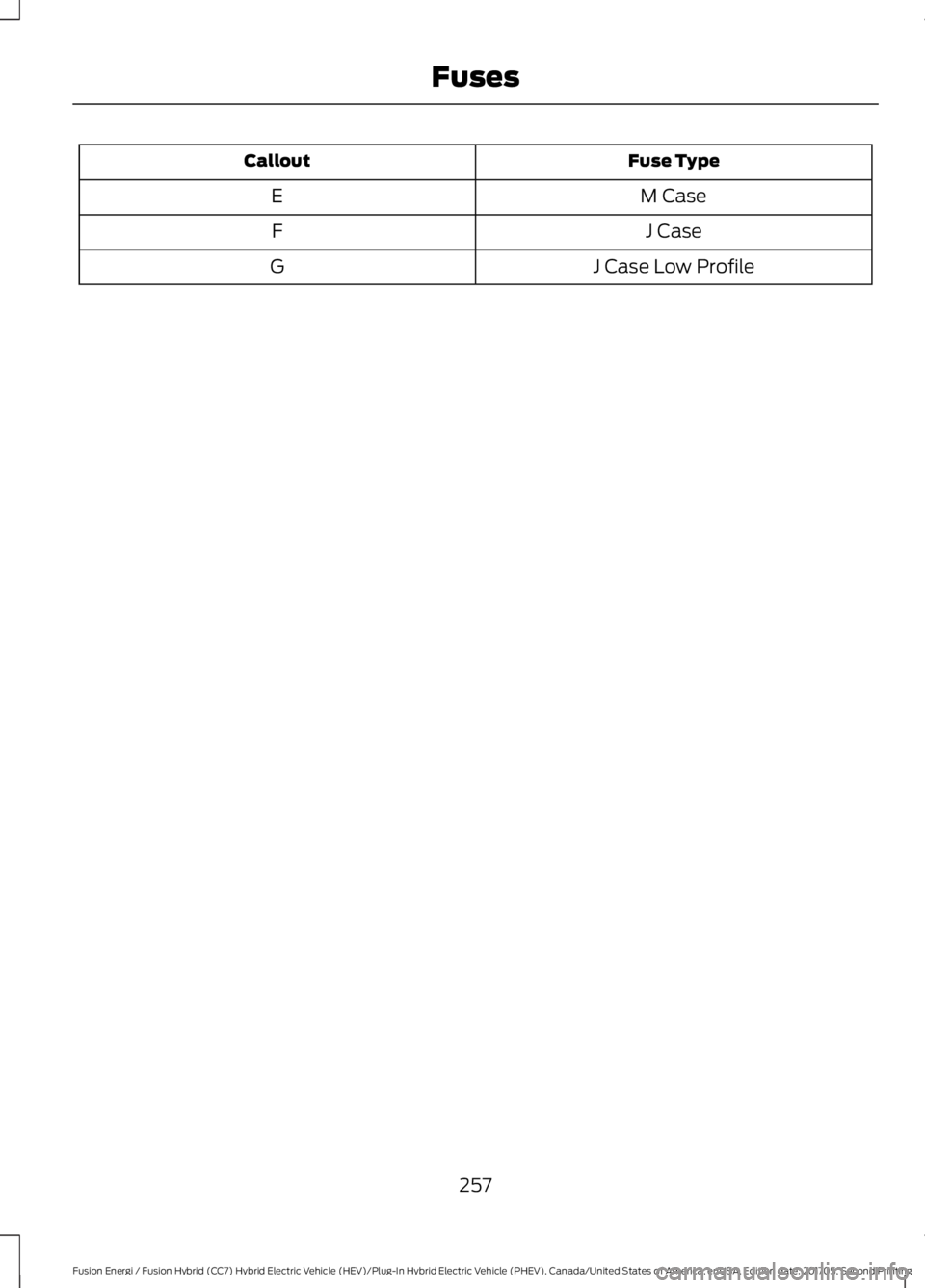

FORD FUSION/HYBRID 2018  Owners Manual CHANGING A FUSE
Fuses
WARNING
Always replace a fuse with one that
has the specified amperage rating.
Using a fuse with a higher amperage
rating can cause severe wire damage and
could start a fire. If

Page 260 of 538

FORD FUSION/HYBRID 2018  Owners Manual Fuse Type
Callout
M Case
E
J Case
F
J Case Low Profile
G
257
